Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3601M29021 ( GCM10MX )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

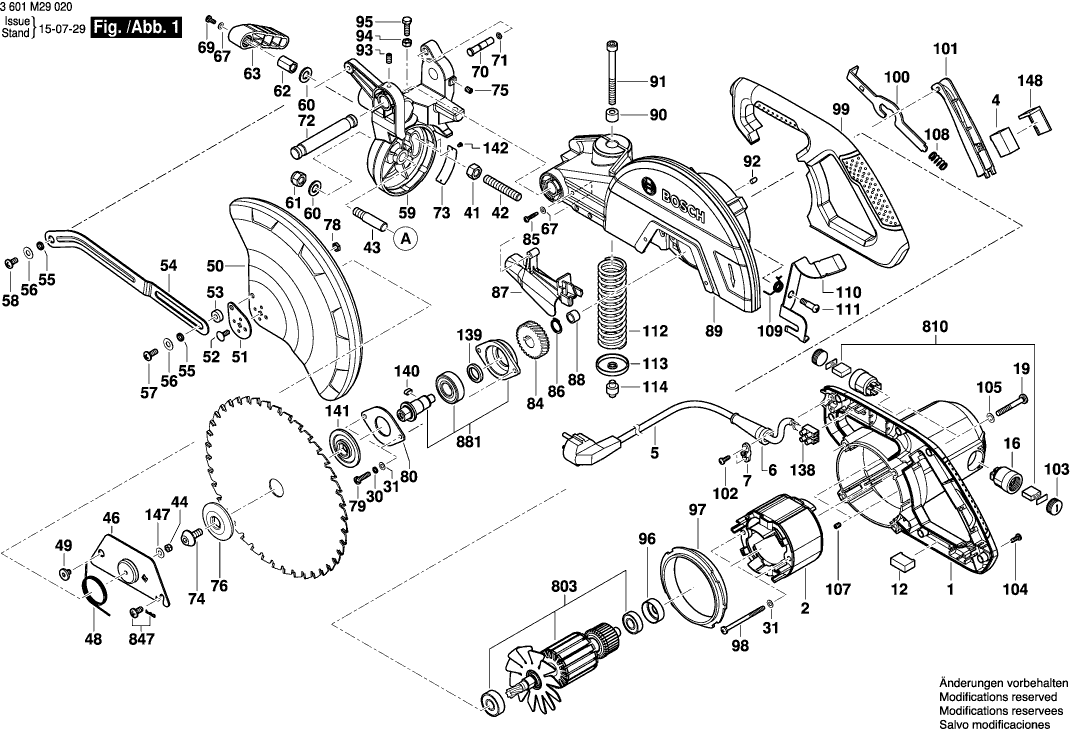

Tekeningen van de Bosch 3601M29021 ( GCM10MX )
Onderdelen lijst van de Bosch 3601M29021 ( GCM10MX )
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Motorhuis | ||||
1 | 1619PA7071 | 33.45 | 40.47 | |
Poolschoen | ||||
2 | 1619PA6835 | 67.25 | 81.37 | |
Schakelaar | ||||
4 | 1619PA6703 | 10.73 | 12.98 | |
Leid Voor Netaansluiting | ||||
5 | 1619PA9471 | 10.73 | 12.98 | |
Doorvoerbuisje | ||||
6 | 1619PA7081 | 1.18 | 1.43 | |
Klembevestiging | ||||
7 | 1609203J01 | 0.83 | 1.00 | |
Typeplaat | ||||
8 | 1619PA9475 | 1.84 | 2.23 | |
Ontstoringscondensator | ||||
12 | 1619PA7095 | 1.70 | 2.06 | |
Borstelhouder | ||||
16 | 1619PA6920 | 5.33 | 6.45 | |
Platkopschroef | ||||
19 | 1619PA7002 | 2.71 | 3.28 | |
Verstekliniaal | ||||
22 | 1619PA6924 | 12.41 | 15.02 | |
Verstekliniaal | ||||
23 | 1619PA6925 | 29.75 | 36.00 | |
Vleugelschroef | ||||
24 | 1619PA6926 | 0.83 | 1.00 | |
Schroefdraadpen | ||||
25 | 1619PA6927 | 0.83 | 1.00 | |
Onderlegschijf | ||||
26 | 1619PA6928 | 0.83 | 1.00 | |
Inbusbout | ||||
27 | 1619PA6929 | 2.24 | 2.71 | |
Tafel | ||||
28 | 1619PA6930 | 91.56 | 110.79 | |
Platkopschroef | ||||
29 | 1619PA6931 | 0.83 | 1.00 | |
Verende Sluitring | ||||
30 | 1619PA6932 | 0.83 | 1.00 | |
Onderlegschijf | ||||
31 | 1619PA6933 | 1.18 | 1.43 | |
Deksel | ||||
32 | 1619PA6934 | 0.83 | 1.00 | |
Knopgreep | ||||
33 | 1619PA6935 | 4.70 | 5.69 | |
Verende Sluitring | ||||
34 | 1619PA6921 | 1.18 | 1.43 | |
Onderlegschijf | ||||
35 | 1619PA6936 | 0.83 | 1.00 | |
Borgmoer | ||||
36 | 1619PA6937 | 0.83 | 1.00 | |
Inlegstuk | ||||
37 | 1619PA6938 | 2.71 | 3.28 | |
Verzonken Schroef | ||||
38 | 1619PA6939 | 1.18 | 1.43 | |
Moer | ||||
39 | 1619PA6940 | 1.18 | 1.43 | |
Wijzer | ||||
40 | 1619PA6941 | 0.83 | 1.00 | |
Moer | ||||
41 | 1619PA6942 | 0.83 | 1.00 | |
Schroefdraadpen | ||||
42 | 1619PA6943 | 1.18 | 1.43 | |
Lageras | ||||
43 | 1619PA6944 | 1.70 | 2.06 | |
Borgmoer | ||||
44 | 1619PA6945 | 0.83 | 1.00 | |
Contacthuls | ||||
45 | 1619PA6922 | 0.83 | 1.00 | |
Beschermingsplaat | ||||
46 | 1619PA6946 | 3.31 | 4.01 | |
Torsieveer | ||||
48 | 1619PA6948 | 0.83 | 1.00 | |
Speciale bout | ||||
49 | 1619PA6949 | 0.83 | 1.00 | |
Veiligheidsdeksel | ||||
50 | 1619PA6950 | 12.41 | 15.02 | |
Beschermingsplaat | ||||
51 | 1619PA6951 | 1.18 | 1.43 | |
Speciale bout | ||||
52 | 1619PA6952 | 1.18 | 1.43 | |
Spanbus | ||||
53 | 1619PA6953 | 0.83 | 1.00 | |
Buisconstructie | ||||
54 | 1619PA6954 | 4.10 | 4.96 | |
Spanbus | ||||
55 | 1619PA6955 | 1.18 | 1.43 | |
Onderlegschijf | ||||
56 | 1619PA6956 | 0.83 | 1.00 | |
Platkopschroef | ||||
57 | 1619PA6957 | 0.83 | 1.00 | |
Speciale bout | ||||
58 | 1619PA6958 | 0.83 | 1.00 | |
Kussenblok | ||||
59 | 1619PA6959 | 26.84 | 32.48 | |
Onderlegschijf | ||||
60 | 1619PA6960 | 0.83 | 1.00 | |
Borgmoer | ||||
61 | 1619PA6961 | 0.83 | 1.00 | |
Vastzetmoer | ||||
62 | 1619PA6962 | 1.70 | 2.06 | |
Hendel | ||||
63 | 1619PA6963 | 1.70 | 2.06 | |
Zeskant schroef | ||||
64 | 1619PA6964 | 1.70 | 2.06 | |
Sokkel | ||||
65 | 1619PA6965 | 86.22 | 104.33 | |
Schuifplaat | ||||
66 | 1619PA6923 | 3.31 | 4.01 | |
Onderlegschijf | ||||
67 | 1619PA6966 | 0.83 | 1.00 | |
Verende Sluitring | ||||
68 | 1619PA6967 | 0.83 | 1.00 | |
Platkopschroef | ||||
69 | 1619PA6968 | 0.83 | 1.00 | |
Aanslagbout | ||||
70 | 1619PA6969 | 1.18 | 1.43 | |
O-ring | ||||
71 | 1619PA6970 | 0.83 | 1.00 | |
Lageras | ||||
72 | 1619PA6971 | 2.71 | 3.28 | |
Contacthuls | ||||
73 | 1619PA6972 | 2.24 | 2.71 | |
Bout | ||||
74 | 1619P03482 | 1.70 | 2.06 | |
Schroefdraadpen | ||||
75 | 1619PA7349 | 0.83 | 1.00 | |
Opspanflens | ||||
76 | 1619PA6973 | 2.71 | 3.28 | |
Moer | ||||
78 | 1619PA7034 | 0.83 | 1.00 | |
Platkopschroef | ||||
79 | 1619PA6975 | 0.83 | 1.00 | |
Lagerdeksel | ||||
80 | 1619PA6976 | 1.18 | 1.43 | |
Spiraaltandwiel | ||||
84 | 1619PA6980 | 12.41 | 15.02 | |
Platkopschroef | ||||
85 | 1619PA6981 | 0.83 | 1.00 | |
Borgring | ||||
86 | 1619PA6982 | 0.83 | 1.00 | |
Stofafscheider | ||||
87 | 1619PA6983 | 0.83 | 1.00 | |
Naaldhuls | ||||
88 | 1619PA6984 | 1.70 | 2.06 | |
Afscherming Teg Aanrak. | ||||
89 | 1619PA6985 | 55.25 | 66.85 | |
Spanbus | ||||
90 | 1619PA6986 | 0.83 | 1.00 | |
Zeskant schroef | ||||
91 | 1619PA6987 | 0.83 | 1.00 | |
Afstandsbout | ||||
92 | 1619PA6988 | 0.83 | 1.00 | |
Schroefdraadpen | ||||
93 | 1619PA6989 | 0.83 | 1.00 | |
Moer | ||||
94 | 1619PA6990 | 0.83 | 1.00 | |
Zeskant schroef | ||||
95 | 1619PA6991 | 0.83 | 1.00 | |
Rubbersluitring | ||||
96 | 1619PA6992 | 1.18 | 1.43 | |
Luchtgeleidingsring | ||||
97 | 1619PA6993 | 1.70 | 2.06 | |
Platkopschroef | ||||
98 | 1619PA6994 | 2.71 | 3.28 | |
Handgreep | ||||
99 | 1619PA6995 | 9.53 | 11.53 | |
Asborging | ||||
100 | 1619PA6996 | 1.70 | 2.06 | |
Activator | ||||
101 | 1619PA6997 | 1.70 | 2.06 | |
Platkopschroef | ||||
102 | 1619PA6998 | 0.83 | 1.00 | |
Borsteldeksel | ||||
103 | 1619PA6999 | 0.83 | 1.00 | |
Platkopschroef | ||||
104 | 1619PA7000 | 0.83 | 1.00 | |
Onderlegschijf | ||||
105 | 1619PA7001 | 0.83 | 1.00 | |
Schroefdraadpen | ||||
107 | 1619PA7003 | 0.83 | 1.00 | |
Drukveer | ||||
108 | 1619PA7004 | 0.83 | 1.00 | |
Torsieveer | ||||
109 | 1619PA7005 | 0.83 | 1.00 | |
Vergrendelingshendel | ||||
110 | 1619PA7006 | 2.71 | 3.28 | |
Speciale bout | ||||
111 | 1619PA7007 | 0.83 | 1.00 | |
Drukveer | ||||
112 | 1619PA7008 | 9.53 | 11.53 | |
Veerkooi | ||||
113 | 1619PA7009 | 1.18 | 1.43 | |
Fixeerstift | ||||
114 | 1619PA7010 | 0.83 | 1.00 | |
Hoekplaat | ||||
129 | 1619PA7011 | 2.71 | 3.28 | |
Verende Sluitring | ||||
130 | 1619PA7012 | 0.83 | 1.00 | |
Inbusbout | ||||
131 | 1619PA7013 | 0.83 | 1.00 | |
Vergrendelingsplaat | ||||
132 | 1619PA7014 | 0.83 | 1.00 | |
Houderarm | ||||
133 | 1619PA7015 | 1.94 | 2.35 | |
Drukstang | ||||
134 | 1619PA7016 | 1.18 | 1.43 | |
Sluitlijst | ||||
135 | 1619PA7017 | 1.18 | 1.43 | |
Borgpen | ||||
136 | 1619PA7018 | 1.70 | 2.06 | |
Drukveer | ||||
137 | 1619PA7019 | 0.83 | 1.00 | |
Connector | ||||
138 | 1619PA7020 | 1.18 | 1.43 | |
Spanbus | ||||
139 | 1619PA7021 | 0.83 | 1.00 | |
Afstelveer | ||||
140 | 1619PA7022 | 0.83 | 1.00 | |
Opspanflens | ||||
141 | 1619PA9477 | 4.70 | 5.69 | |
Opspanflens | ||||
141 | 1619PA7023 | 3.85 | 4.66 | |
Niet | ||||
142 | 1619PA7024 | 0.83 | 1.00 | |
Verende Sluitring | ||||
144 | 1619PA7026 | 0.83 | 1.00 | |
Platkopschroef | ||||
145 | 1619PA7027 | 0.83 | 1.00 | |
Bevestiging | ||||
146 | 1619PA7028 | 0.83 | 1.00 | |
Onderlegschijf | ||||
147 | 1619PA7029 | 0.83 | 1.00 | |
Aftandsstuk | ||||
148 | 1619PA7030 | 0.83 | 1.00 | |
Kabelset | ||||
149 | 1619PA7031 | 2.56 | 3.10 | |
Zeskantsteeksleutel | ||||
651 | 1619PA7036 | 1.70 | 2.06 | |
Klembevestiging | ||||
652 | 1619PA7037 | 9.53 | 11.53 | |
Steunplaat | ||||
653 | 1619PA7046 | 2.71 | 3.28 | |
Stofzak | ||||
654 | 1619PA7051 | 5.33 | 6.45 | |
Uitbreidingsframe | ||||
655 | 1619PA6916 | 12.41 | 15.02 | |
Anker | ||||
803 | 1619PA7056 | 101.94 | 123.35 | |
Koolborstelset | ||||
810 | 1619PA7057 | 20.42 | 24.71 | |
Speciale bout | ||||
847 | 1619PA7058 | 0.83 | 1.00 | |
Sokkel | ||||
865 | 1619PA9488 | 101.94 | 123.35 | |
As | ||||
881 | 1619PA7032 | 12.41 | 15.02 |
