Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita LH1040F'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

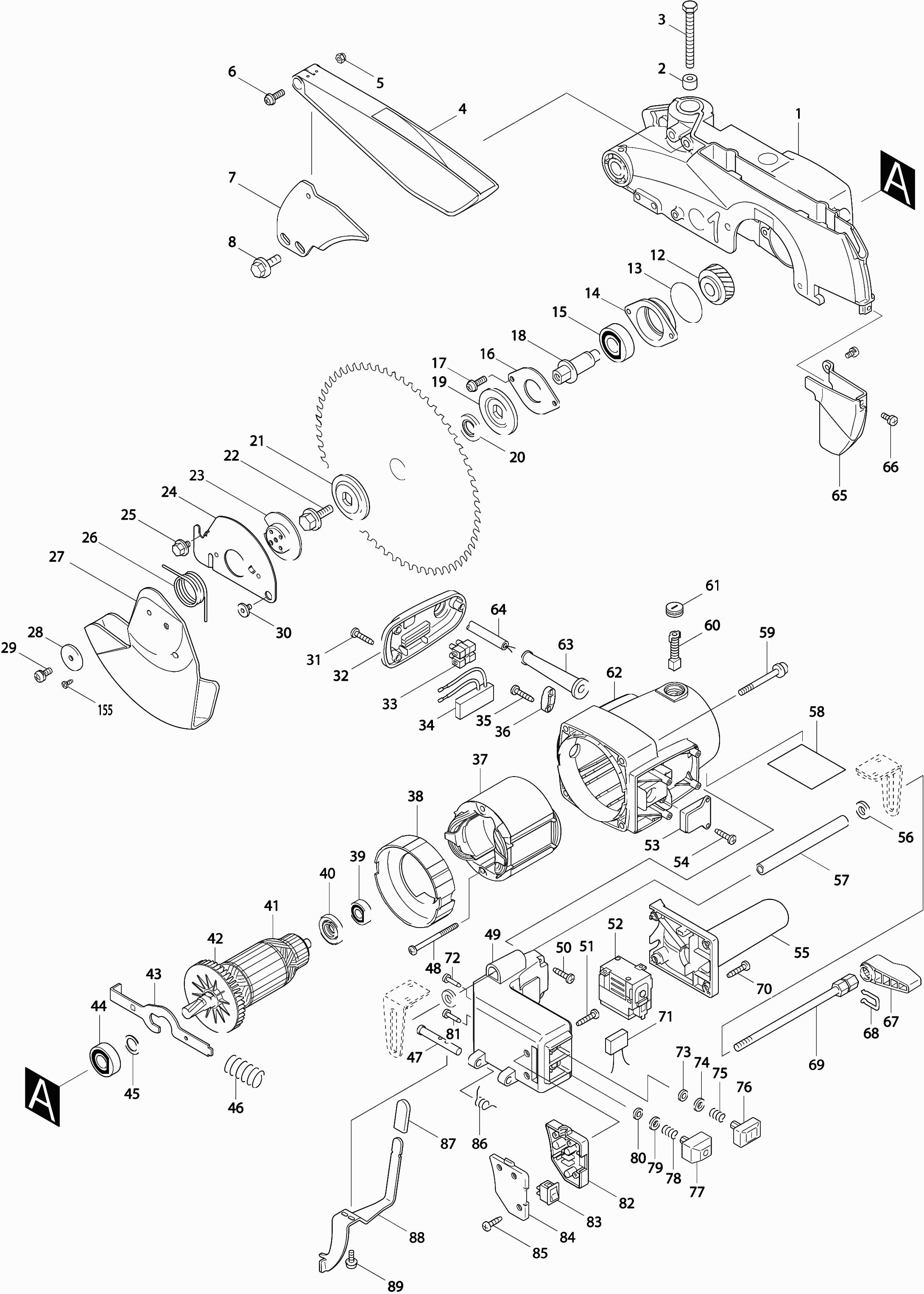

Tekeningen van de Makita LH1040F
Onderdelen lijst van de Makita LH1040F
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Geen informatie beschikbaar, niet bestelbaar | ||||
001 | 153993-1 | |||
Rubber pen 6 | ||||
001A | 263005-3 | 0.83 | 1.00 | |
Pen voor verbinding | ||||
001B | 322316-6 | 2.08 | 2.52 | |
Waarschuwingslabel | ||||
001C | 810968-0 | 1.43 | 1.73 | |
Waarschuwingslabel | ||||
001D | 817667-5 | 0.83 | 1.00 | |
Rubber bus 6 | ||||
002 | 262511-5 | 0.83 | 1.00 | |
Zeskant bout 8x75 | ||||
003 | 251667-9 | 1.06 | 1.28 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
004 | 154521-5 | |||
Waarschuwingslabel | ||||
004A | 817283-3 | 0.83 | 1.00 | |
Zeskant borgmoer 5x8 | ||||
005 | 252103-8 | 0.83 | 1.00 | |
Schroef 5x16 | ||||
006 | 911224-2 | 0.83 | 1.00 | |
Spouwmes | ||||
007 | 345423-8 | 12.58 | 15.22 | |
Flensbout M8x20 | ||||
008 | 251644-1 | 1.43 | 1.73 | |
Label "makita" | ||||
009 | 819064-1 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
010 | 183881-8 | |||
Waarschuwingslabel | ||||
010A | 810063-6 | 2.80 | 3.39 | |
Afdekkap | ||||
011 | 421362-7 | 1.43 | 1.73 | |
Tandwiel 42 | ||||
012 | 226465-0 | 9.52 | 11.52 | |
O-ring 46 | ||||
013 | 213621-1 | 0.83 | 1.00 | |
Lagerhuis | ||||
014 | 316821-3 | 5.88 | 7.11 | |
Kogellager 6203zz | ||||
015 | 211290-2 | 6.58 | 7.96 | |
Lagerplaat 64 | ||||
016 | 285685-5 | 1.43 | 1.73 | |
Schroef 5x16 | ||||
017 | 911224-2 | 0.83 | 1.00 | |
Zaagas | ||||
018 | 322865-3 | 12.58 | 15.22 | |
Binnen/buitenflens | ||||
019 | 224333-1 | 3.55 | 4.30 | |
Verloopring 30x15,88x4mm | ||||
020 | 257295-8 | 0.91 | 1.10 | |
Binnen/buitenflens | ||||
021 | 224333-1 | 3.55 | 4.30 | |
Inbusbout M8x22 | ||||
022 | 266762-2 | 1.43 | 1.73 | |
Centreerplaat | ||||
023 | 343639-9 | 5.22 | 6.32 | |
Beschermplaat | ||||
024 | 346516-4 | 2.08 | 2.52 | |
Flensbout M8x12 | ||||
025 | 265324-3 | 1.21 | 1.46 | |
Torsieveer 36 | ||||
026 | 231593-8 | 0.83 | 1.00 | |
Verende beschermkap | ||||
027 | 453026-5 | 14.23 | 17.22 | |
Ring 5 | ||||
028 | 267136-0 | 1.01 | 1.22 | |
Inbusbout 5x12 | ||||
029 | 922211-6 | 0.83 | 1.00 | |
Zeskant bout M6 | ||||
030 | 265985-9 | 1.43 | 1.73 | |
Tapschroef 4x18 | ||||
031 | 265A48-7 | 0.90 | 1.09 | |
Afdekkap | ||||
032 | 418620-0 | 4.08 | 4.94 | |
Kroonsteen | ||||
033 | 654561-8 | 3.37 | 4.08 | |
Soft start circuit | ||||
034 | 631613-2 | 21.70 | 26.26 | |
Tapschroef 4x18 | ||||
035 | 265A48-7 | 0.90 | 1.09 | |
Klemstrip | ||||
036 | 687124-5 | 0.83 | 1.00 | |
Veld | ||||
037 | 599519-9 | 33.12 | 40.08 | |
Statorveertje Cb5 | ||||
037A | 654020-2 | 0.83 | 1.00 | |
Klembus tbv statorv. 2mm | ||||
037B | 654502-4 | 0.83 | 1.00 | |
Opvulplaat | ||||
038 | 418621-8 | 3.83 | 4.63 | |
Kogellager 6000llb | ||||
039 | 211061-7 | 7.44 | 9.00 | |
Isolatiering | ||||
040 | 681640-9 | 0.83 | 1.00 | |
Anker | ||||
041 | 516718-8 | 70.18 | 84.92 | |
Waaier 80 | ||||
042 | 241909-9 | 2.93 | 3.55 | |
Asblokkering | ||||
043 | 343641-2 | 2.08 | 2.52 | |
Kogellager 6202llb | ||||
044 | 211228-7 | 7.44 | 9.00 | |
Sluitring 15 | ||||
045 | 253853-8 | 0.83 | 1.00 | |
Drukveer 9 | ||||
046 | 231297-2 | 0.83 | 1.00 | |
Blokkeerpin | ||||
047 | 324496-4 | 5.22 | 6.32 | |
Tapschroef Pt 5x65 | ||||
048 | 266029-8 | 1.72 | 2.08 | |
Schakeldoos | ||||
049 | 418630-7 | 4.26 | 5.15 | |
Tapschroef 4x18 | ||||
050 | 265A48-7 | 0.90 | 1.09 | |
Tapschroef 4x18 | ||||
051 | 265A48-7 | 0.90 | 1.09 | |
Relais | ||||
052 | 652772-9 | 49.85 | 60.32 | |
Bevestigingsplaat | ||||
053 | 153996-5 | 1.43 | 1.73 | |
Schroef Pt4x12mm | ||||
054 | 266020-6 | 0.83 | 1.00 | |
Handgreep | ||||
055 | 153995-7 | 11.68 | 14.13 | |
Sluitring 8 | ||||
056 | 941202-8 | 0.83 | 1.00 | |
Vulpijp 9x126 | ||||
057 | 331683-8 | 1.24 | 1.50 | |
Naamplaat | ||||
058 | 860810-5 | 2.80 | 3.39 | |
Schroef 6x60 | ||||
059 | 911383-2 | 0.83 | 1.00 | |
Koolborstel set Cb-153 | ||||
060 | 181044-0 | 4.08 | 4.94 | |
Koolborstelhouderdop | ||||
061 | 643650-4 | 0.83 | 1.00 | |
Motorhuis compl. | ||||
062 | 153994-9 | 23.75 | 28.74 | |
Koolborstelhouder A | ||||
062A | 643536-2 | 1.54 | 1.86 | |
Kabeltule 9.3-85 | ||||
063 | 682516-3 | 1.01 | 1.22 | |
Netsnoer 2x1.50 4.0mtr | ||||
064 | 695123-3 | 21.70 | 26.26 | |
Bladgeleider Lh1040F A | ||||
065 | 165659-1 | 3.84 | 4.65 | |
Verzonken schroef 5x10 | ||||
066 | 912207-5 | 0.83 | 1.00 | |
Vergrendelhefboom | ||||
067 | 272230-5 | 2.08 | 2.52 | |
Borgveer 12 | ||||
068 | 231955-0 | 0.83 | 1.00 | |
Bout M8x150mm | ||||
069 | 331682-0 | 11.16 | 13.50 | |
Tapschroef 4x18 | ||||
070 | 265A48-7 | 0.90 | 1.09 | |
Condensator 0,22uf | ||||
071 | 645190-8 | 2.44 | 2.95 | |
Pin | ||||
072 | 418618-7 | 1.51 | 1.83 | |
Afdichting vilt | ||||
073 | 443103-1 | 0.83 | 1.00 | |
Sluitring 7 LF1000 A | ||||
074 | 267322-3 | 0.83 | 1.00 | |
Drukveer 8 | ||||
075 | 231025-5 | 0.83 | 1.00 | |
Drukknop "aan" | ||||
076 | 418616-1 | 2.56 | 3.10 | |
Drukknop "uit" | ||||
077 | 418617-9 | 2.56 | 3.10 | |
Drukveer 8 | ||||
078 | 231025-5 | 0.83 | 1.00 | |
Sluitring 7 LF1000 A | ||||
079 | 267322-3 | 0.83 | 1.00 | |
Afdichting vilt | ||||
080 | 443103-1 | 0.83 | 1.00 | |
Pin | ||||
081 | 418618-7 | 1.51 | 1.83 | |
Schakel doos "licht" | ||||
082 | 418623-4 | 4.08 | 4.94 | |
Schakelaar | ||||
083 | 651522-9 | 3.65 | 4.42 | |
Schakeldooskap "licht" | ||||
084 | 418624-2 | 3.65 | 4.42 | |
Tapschroef 3x12 | ||||
085 | 265893-4 | 0.83 | 1.00 | |
Torsieveer | ||||
086 | 231674-8 | 0.83 | 1.00 | |
Kap | ||||
087 | 421589-9 | 0.83 | 1.00 | |
Blokkeerhandel | ||||
088 | 345427-0 | 2.80 | 3.39 | |
Schroef 4x10 | ||||
089 | 911113-1 | 0.83 | 1.00 | |
Tapschroef 4x18 | ||||
090 | 265A48-7 | 0.90 | 1.09 | |
Tapschroef 4x18 | ||||
091 | 265A48-7 | 0.90 | 1.09 | |
Kruiskopschroef 5x16 | ||||
092 | 265096-0 | 0.83 | 1.00 | |
Verzonken schroef 5x16 | ||||
092 | 912221-1 | 0.83 | 1.00 | |
Verzonken schroef 5x16 | ||||
093 | 912221-1 | 0.83 | 1.00 | |
Kruiskopschroef 5x16 | ||||
093 | 265096-0 | 0.83 | 1.00 | |
Vergrendelhefboom | ||||
094 | 272230-5 | 2.08 | 2.52 | |
Borgveer 12 | ||||
095 | 231955-0 | 0.83 | 1.00 | |
Bout M8x70mm | ||||
096 | 331681-2 | 6.58 | 7.96 | |
Drukveer 14 | ||||
097 | 233042-1 | 0.83 | 1.00 | |
Bus 8 | ||||
098 | 257675-8 | 1.01 | 1.22 | |
Tafelsteun | ||||
099 | 317779-9 | 3.83 | 4.63 | |
Zaagplateau | ||||
100 | 141630-9 | 43.02 | 52.05 | |
Indicatielabel | ||||
100A | 816182-6 | 2.93 | 3.55 | |
Steun | ||||
101 | 165388-6 | 1.21 | 1.46 | |
Beschermplaat | ||||
102 | 418619-5 | 5.22 | 6.32 | |
Licht circuit | ||||
103 | 631611-6 | 28.85 | 34.91 | |
Tapschroef Ct4x16 | ||||
104 | 266034-5 | 0.83 | 1.00 | |
Drukveer 21 | ||||
105 | 233415-8 | 0.83 | 1.00 | |
Vastzetschroef M5X10 | ||||
106 | 251812-6 | 1.02 | 1.23 | |
Zeskant bout 6x10 | ||||
107 | 251961-9 | 0.83 | 1.00 | |
Montage steun | ||||
108 | 345425-4 | 1.27 | 1.54 | |
Torsieveer 11 | ||||
109 | 231675-6 | 0.83 | 1.00 | |
Sluitring 10x0,5mm | ||||
110 | 267070-4 | 0.83 | 1.00 | |
Schroef 5x16 | ||||
111 | 911224-2 | 0.83 | 1.00 | |
Geleidingsbus | ||||
112 | 324497-2 | 2.08 | 2.52 | |
Schroef 5x16 | ||||
113 | 911224-2 | 0.83 | 1.00 | |
Zaagblad afscherming | ||||
114 | 345426-2 | 5.22 | 6.32 | |
Stopring E-5 | ||||
115 | 961018-5 | 0.83 | 1.00 | |
Sluitring 6 | ||||
116 | 253804-1 | 0.83 | 1.00 | |
Ring 16 | ||||
117 | 257163-5 | 1.24 | 1.50 | |
Verbindingsplaat | ||||
118 | 344377-6 | 6.60 | 7.99 | |
Zeskant knopbout M6 | ||||
119 | 265984-1 | 1.43 | 1.73 | |
Sluitring 7 | ||||
120 | 253823-7 | 0.83 | 1.00 | |
Ring 7 | ||||
121 | 257162-7 | 1.72 | 2.08 | |
Handgreep | ||||
122 | 416006-2 | 4.08 | 4.94 | |
Schroef 4x10 | ||||
123 | 911113-1 | 0.83 | 1.00 | |
Zeskant bout M10 | ||||
124 | 265437-0 | 3.37 | 4.08 | |
Ring 10 | ||||
125 | 253024-7 | 0.83 | 1.00 | |
Stang 16 | ||||
126 | 256836-7 | 2.44 | 2.95 | |
Arm | ||||
127 | 141139-1 | 21.87 | 26.46 | |
Afdekkap | ||||
128 | 421867-7 | 1.72 | 2.08 | |
Blokkeerpen | ||||
129 | 324183-5 | 1.01 | 1.22 | |
O-ring 5 | ||||
130 | 213021-5 | 0.83 | 1.00 | |
Knop 20 | ||||
131 | 271601-3 | 0.83 | 1.00 | |
Pen 8 Ls1040 A | ||||
132 | 256280-8 | 1.43 | 1.73 | |
Veerhouder Ls1013 | ||||
133 | 344464-1 | 1.06 | 1.28 | |
Drukveer 27 | ||||
134 | 233414-0 | 4.81 | 5.82 | |
Geleideplaat | ||||
135 | 343799-7 | 1.51 | 1.83 | |
Markeerpunt | ||||
136 | 344385-7 | 0.83 | 1.00 | |
Schroef 4x10 | ||||
137 | 911113-1 | 0.83 | 1.00 | |
Zeskant bout 8x30 | ||||
138 | 265371-4 | 1.01 | 1.22 | |
Ring 8 | ||||
139 | 253762-1 | 1.01 | 1.22 | |
Borgmoer M8x13 hoog | ||||
140 | 252105-4 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
141 | 418615-3 | |||
Geen informatie beschikbaar, niet bestelbaar | ||||
142 | 418615-3 | |||
Zeskantbout M8X30 A | ||||
143 | 265488-3 | 2.05 | 2.48 | |
Achterlineaal Lh1040F A | ||||
144 | 319200-4 | 33.12 | 40.08 | |
Draaischijf | ||||
145 | 318800-7 | 45.06 | 54.52 | |
Schroef 6x20 | ||||
146 | 911333-7 | 0.83 | 1.00 | |
Voetzool | ||||
147 | 141140-6 | 63.90 | 77.32 | |
Schaalverdeling | ||||
147A | 816311-1 | 4.08 | 4.94 | |
Aanduidingsplaat Ls800Dw * | ||||
147B | 810965-6 | 1.01 | 1.22 | |
Waarschuwingslabel | ||||
147C | 817283-3 | 0.83 | 1.00 | |
Tapschroef Ct4x16 | ||||
148 | 266034-5 | 0.83 | 1.00 | |
Bladveer | ||||
149 | 232075-3 | 1.01 | 1.22 | |
Blokkeerveerplaat | ||||
150 | 344381-5 | 3.22 | 3.90 | |
Verstelhandvat | ||||
151 | 273495-2 | 4.08 | 4.94 | |
Schroef 5x12 | ||||
152 | 911213-7 | 0.83 | 1.00 | |
Zeskant bout 8x30 | ||||
153 | 921452-1 | 0.83 | 1.00 | |
Afdekkap | ||||
154 | 416972-3 | 1.02 | 1.23 | |
Tapschroef Pt3X8 | ||||
155 | 265954-0 | 0.83 | 1.00 |
