Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HR008G'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

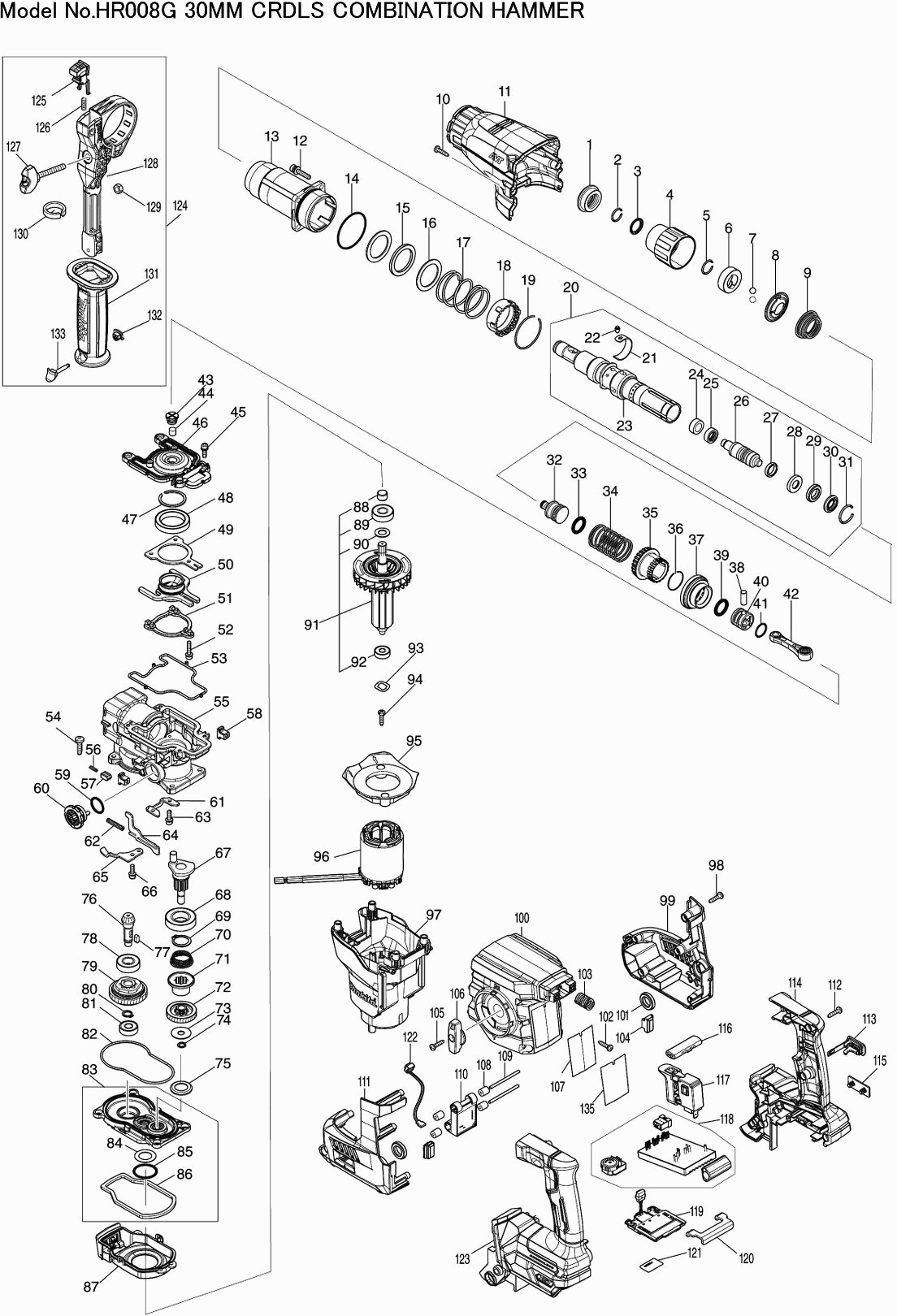

Tekeningen van de Makita HR008G
Onderdelen lijst van de Makita HR008G
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Rubber stofkap 35 | ||||
| 001 | 286288-8 | 0.83 | 1.00 | |
| Veerring 14 | ||||
| 002 | 233989-9 | 0.83 | 1.00 | |
| Revet 16mm | ||||
| 003 | 346834-0 | 0.83 | 1.00 | |
| Boorkopkap HR3001/11C | ||||
| 004 | 459685-3 | 1.01 | 1.22 | |
| Borgveer 15 | ||||
| 005 | 233992-0 | 0.83 | 1.00 | |
| Ring 17 HR3001/11 | ||||
| 006 | 327269-4 | 4.09 | 4.95 | |
| Stalen bal 7.0 | ||||
| 007 | 216022-2 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 008 | 347944-6 | |||
| Drukveer 21-34 HR3001/11 | ||||
| 009 | 232503-8 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 010 | 266326-2 | |||
| Cilinderkap HR3011/12 | ||||
| 011 | 459167-5 | 6.58 | 7.96 | |
| Inbusschr M5x25mm HR3011FC | ||||
| 012 | 266793-1 | 0.83 | 1.00 | |
| Cilinderhuis HR3001/11C | ||||
| 013 | 140J35-0 | 14.23 | 17.22 | |
| Oliekeerring 25 | ||||
| 013C10 | 213636-8 | 4.08 | 4.94 | |
| O-ring 46 | ||||
| 014 | 213620-3 | 0.83 | 1.00 | |
| Rubber ring 31 HR3001/11C | ||||
| 015 | 422493-5 | 1.43 | 1.73 | |
| Revet 31 | ||||
| 016 | 267354-0 | 0.83 | 1.00 | |
| Drukveer 37 HR3001/11 | ||||
| 017 | 232496-9 | 0.83 | 1.00 | |
| Blokkeerbus | ||||
| 018 | 419986-1 | 1.06 | 1.28 | |
| Veerring 41 | ||||
| 019 | 233952-2 | 0.83 | 1.00 | |
| Boor/beitelhouder HR3011/12 | ||||
| 020 | 136312-6 | 57.06 | 69.04 | |
| Bladveer HR3011FC | ||||
| 021 | 347501-0 | 0.83 | 1.00 | |
| Kraagpin 4 HR3011FC | ||||
| 022 | 256598-7 | 1.01 | 1.22 | |
| Boor-beitelhouder HR3011FC | ||||
| 023 | 327277-5 | 31.61 | 38.25 | |
| Bus 11 HR3011FC | ||||
| 024 | 327515-5 | 1.30 | 1.57 | |
| Ring 11 HR3011FC | ||||
| 025 | 327516-3 | 1.43 | 1.73 | |
| Slagbout A HR3011FC | ||||
| 026 | 140S89-1 | 12.55 | 15.19 | |
| Pakkingring 12 HR3011FC | ||||
| 027 | 213880-7 | 1.70 | 2.06 | |
| Ring 11 HR3011FC | ||||
| 028 | 327268-6 | 1.24 | 1.50 | |
| Stootring 12 | ||||
| 029 | 424267-0 | 1.21 | 1.46 | |
| Sluitring 11 HR3011FC | ||||
| 030 | 327271-7 | 1.21 | 1.46 | |
| Veerring 21 | ||||
| 031 | 231987-7 | 0.83 | 1.00 | |
| Slagstuk HR3001/11 | ||||
| 032 | 327266-0 | 3.22 | 3.90 | |
| O-ring 16 HR3001/11 | ||||
| 033 | 213881-5 | 3.22 | 3.90 | |
| Drukveer 27 HR3001/11 | ||||
| 034 | 232497-7 | 0.83 | 1.00 | |
| Geleidebus HR3001/11 | ||||
| 035 | 327276-7 | 7.44 | 9.00 | |
| Borgveer 24 HR3001/11 | ||||
| 036 | 232501-2 | 0.83 | 1.00 | |
| Tandwiel 31 A HR3001/11 | ||||
| 037 | 226868-8 | 17.90 | 21.66 | |
| Pin 7 HR3001/11 | ||||
| 038 | 268122-4 | 0.83 | 1.00 | |
| O-ring 16 HR3001/11 | ||||
| 039 | 213881-5 | 3.22 | 3.90 | |
| Zuiger HR3001/11 | ||||
| 040 | 319807-6 | 4.58 | 5.54 | |
| O-ring 16 | ||||
| 041 | 213226-7 | 1.01 | 1.22 | |
| Drijfstang HR3001/11 | ||||
| 042 | 140J36-8 | 4.08 | 4.94 | |
| Filterkap HR3001/11 | ||||
| 043 | 459180-3 | 0.83 | 1.00 | |
| Dempingsvilt | ||||
| 044 | 443153-6 | 0.83 | 1.00 | |
| Zeskant bout | ||||
| 045 | 922123-3 | 0.83 | 1.00 | |
| Krukaskap HR3011/12 | ||||
| 046 | 319802-6 | 6.58 | 7.96 | |
| Borgring | ||||
| 047 | 961140-8 | 0.83 | 1.00 | |
| Kogellager 6806ddw | ||||
| 048 | 211423-9 | 4.08 | 4.94 | |
| Lagerborgring B HR3001/11 | ||||
| 049 | 347500-2 | 1.21 | 1.46 | |
| Balansgewicht HR3001/11 | ||||
| 050 | 140J31-8 | 37.12 | 44.92 | |
| Balanshouder HR3001/11 | ||||
| 051 | 310927-9 | 2.80 | 3.39 | |
| Inbusbout M4x20mm | ||||
| 052 | 266948-8 | 0.83 | 1.00 | |
| Pakkingring B HR3001/11 | ||||
| 053 | 459182-9 | 1.02 | 1.23 | |
| Tapschroef 5x20 | ||||
| 054 | 266021-4 | 0.83 | 1.00 | |
| Krukashuis cpl HR3001/11 | ||||
| 055 | 140J33-4 | 23.75 | 28.74 | |
| Drukveer 2 HR3001/11 | ||||
| 056 | 232499-3 | 0.83 | 1.00 | |
| Drukplaat HR3001/11 | ||||
| 057 | 310929-5 | 0.83 | 1.00 | |
| Montagebus | ||||
| 058 | 455165-7 | 0.83 | 1.00 | |
| O-ring 18 | ||||
| 059 | 213262-3 | 1.01 | 1.22 | |
| Koppelplaat HR3001/11 | ||||
| 060 | 459175-6 | 1.43 | 1.73 | |
| Lagerborgring A HR3001/11 | ||||
| 061 | 347497-5 | 0.83 | 1.00 | |
| Drukveer 4 | ||||
| 062 | 234019-9 | 0.83 | 1.00 | |
| Zeskant bout | ||||
| 063 | 922123-3 | 0.83 | 1.00 | |
| Verbindingsplaat | ||||
| 064 | 345814-3 | 0.83 | 1.00 | |
| Geleideplaat HR3001/11 | ||||
| 065 | 347498-3 | 0.83 | 1.00 | |
| Zeskant bout | ||||
| 066 | 922123-3 | 0.83 | 1.00 | |
| Krukas cpl HR3001/11 | ||||
| 067 | 140M22-7 | 10.81 | 13.08 | |
| Kogellager 6904 | ||||
| 068 | 211323-3 | 8.46 | 10.24 | |
| Borgring S-20 | ||||
| 069 | 961060-6 | 0.83 | 1.00 | |
| Drukveer 21-26 HR3001/11 | ||||
| 070 | 232498-5 | 0.83 | 1.00 | |
| Koppeling HR3001/11 | ||||
| 071 | 327273-3 | 3.22 | 3.90 | |
| Tandwiel 31 B HR3001/11 | ||||
| 072 | 226869-6 | 7.44 | 9.00 | |
| Revet 29 | ||||
| 073 | 267353-2 | 0.83 | 1.00 | |
| Borgring | ||||
| 074 | 961034-7 | 0.83 | 1.00 | |
| Schotelring 16 | ||||
| 075 | 345818-5 | 0.83 | 1.00 | |
| Tandwiel 8 HR3001/11 | ||||
| 076 | 226867-0 | 9.52 | 11.52 | |
| Inlegspie 4 | ||||
| 077 | 254239-9 | 1.01 | 1.22 | |
| Kogellager 6001dw | ||||
| 078 | 211131-2 | 9.52 | 11.52 | |
| Koppelbegrenzer | ||||
| 079 | 125386-2 | 43.02 | 52.05 | |
| Borgring S-10 | ||||
| 080 | 257408-1 | 0.95 | 1.15 | |
| Kogellager 608ddw | ||||
| 081 | 210005-4 | 4.58 | 5.54 | |
| Pakkingring A HR3001/11 | ||||
| 082 | 459181-1 | 0.83 | 1.00 | |
| Tandwielhuis HR3011/12 | ||||
| 083 | 136330-4 | 12.58 | 15.22 | |
| Sluitring 16 * | ||||
| 084 | 253749-3 | 0.83 | 1.00 | |
| O-ring 26 | ||||
| 085 | 213407-3 | 1.21 | 1.46 | |
| Sponsrubber HR3011FC | ||||
| 086 | 459183-7 | 0.83 | 1.00 | |
| Luchtinlaat HR3001/12 | ||||
| 087 | 140J32-6 | 5.88 | 7.11 | |
| Bus 10 | ||||
| 088 | 331775-3 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 089 | 211097-6 | |||
| Sluitring 10 | ||||
| 090 | 253828-7 | 0.83 | 1.00 | |
| Anker assy HR008G | ||||
| 091 | 519722-6 | 55.32 | 66.94 | |
| Kogellager 626zz | ||||
| 092 | 210143-2 | 2.80 | 3.39 | |
| Veerring 12 HR008G | ||||
| 093 | 253555-6 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 094 | 266326-2 | |||
| Tussenplaat HR008G | ||||
| 095 | 413F13-2 | 2.21 | 2.67 | |
| Veld HR008G | ||||
| 096 | 629A96-4 | 39.02 | 47.21 | |
| Motorhuis cpl HR008G | ||||
| 097 | 141H81-4 | 11.04 | 13.36 | |
| Rubber pen 4 | ||||
| 097C10 | 263027-3 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 098 | 266326-2 | |||
| Huis cpl HR008G | ||||
| 099 | 183V77-3 | 7.67 | 9.28 | |
| Handgreepbasis HR008G | ||||
| 100 | 413F12-4 | 8.63 | 10.44 | |
| Bufferring HR001G | ||||
| 101 | 459184-5 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 102 | 266326-2 | |||
| Drukveer 10 HR3001/11 | ||||
| 103 | 232500-4 | 0.83 | 1.00 | |
| Batterijhouder HR008G | ||||
| 104 | 422863-8 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 105 | 266326-2 | |||
| Wisselhendel HR3001/11 | ||||
| 106 | 459174-8 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 107 | 8119V9-3 | |||
| Demper HR001G | ||||
| 108 | 422472-3 | 1.72 | 2.08 | |
| As 3mm HR001G | ||||
| 109 | 256886-2 | 0.83 | 1.00 | |
| Versnellingsmeter HR008G | ||||
| 110 | 620J19-9 | 33.67 | 40.74 | |
| Huis cpl HR008G | ||||
| 111 | 183V77-3 | 7.67 | 9.28 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 112 | 266326-2 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 113 | 140G30-2 | |||
| O-ring 16 SP001G | ||||
| 113C10 | 213A05-9 | 0.83 | 1.00 | |
| Handgreepset HR008G | ||||
| 114 | 183V96-9 | 17.97 | 21.74 | |
| Rubber pen 6 | ||||
| 114C10 | 263005-3 | 0.83 | 1.00 | |
| Label XGT logo | ||||
| 114C20 | 8005T5-8 | 0.83 | 1.00 | |
| Kap HR007G | ||||
| 115 | 459753-2 | 0.83 | 1.00 | |
| L+r schakelhendel | ||||
| 116 | 453124-5 | 0.83 | 1.00 | |
| Schakelaar JR001G | ||||
| 117 | 651439-6 | 17.90 | 21.66 | |
| Controller HR008G | ||||
| 118 | 620J18-1 | 158.22 | 191.45 | |
| Controleunit GA-40V serie | ||||
| 119 | 632P65-6 | 8.46 | 10.24 | |
| Hulpplaat HR007G | ||||
| 120 | 347885-6 | 1.10 | 1.33 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 121 | 8119W3-2 | |||
| Circuit led HR007G | ||||
| 122 | 620G34-5 | 5.33 | 6.45 | |
| Handgreepset HR008G | ||||
| 123 | 183V96-9 | 17.97 | 21.74 | |
| Rubber pen 6 | ||||
| 123C10 | 263005-3 | 0.83 | 1.00 | |
| Label XGT logo | ||||
| 123C20 | 8005T5-8 | 0.83 | 1.00 | |
| Handgreep anti-vibratie DHR281/283 | ||||
| 124 | 126882-3 | 13.77 | 16.66 | |
| Blokkeerknop DHR281/283 | ||||
| 125 | 144959-2 | 1.02 | 1.23 | |
| Drukveer 4 | ||||
| 126 | 233360-7 | 0.83 | 1.00 | |
| Vleugelbout M6x50mm | ||||
| 127 | 265625-9 | 1.01 | 1.22 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 128 | 458355-1 | |||
| Zeskant moer M6 | ||||
| 129 | 931302-2 | 0.83 | 1.00 | |
| Sponsrubber DHR281 | ||||
| 130 | 422258-5 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 131 | 458357-7 | |||
| Afdekkap handgrp DHR281/283 | ||||
| 132 | 422255-1 | 1.01 | 1.22 | |
| Montagepin h-gr DHR281/283 | ||||
| 133 | 161838-9 | 3.22 | 3.90 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 135 | 8052T1-3 | |||
