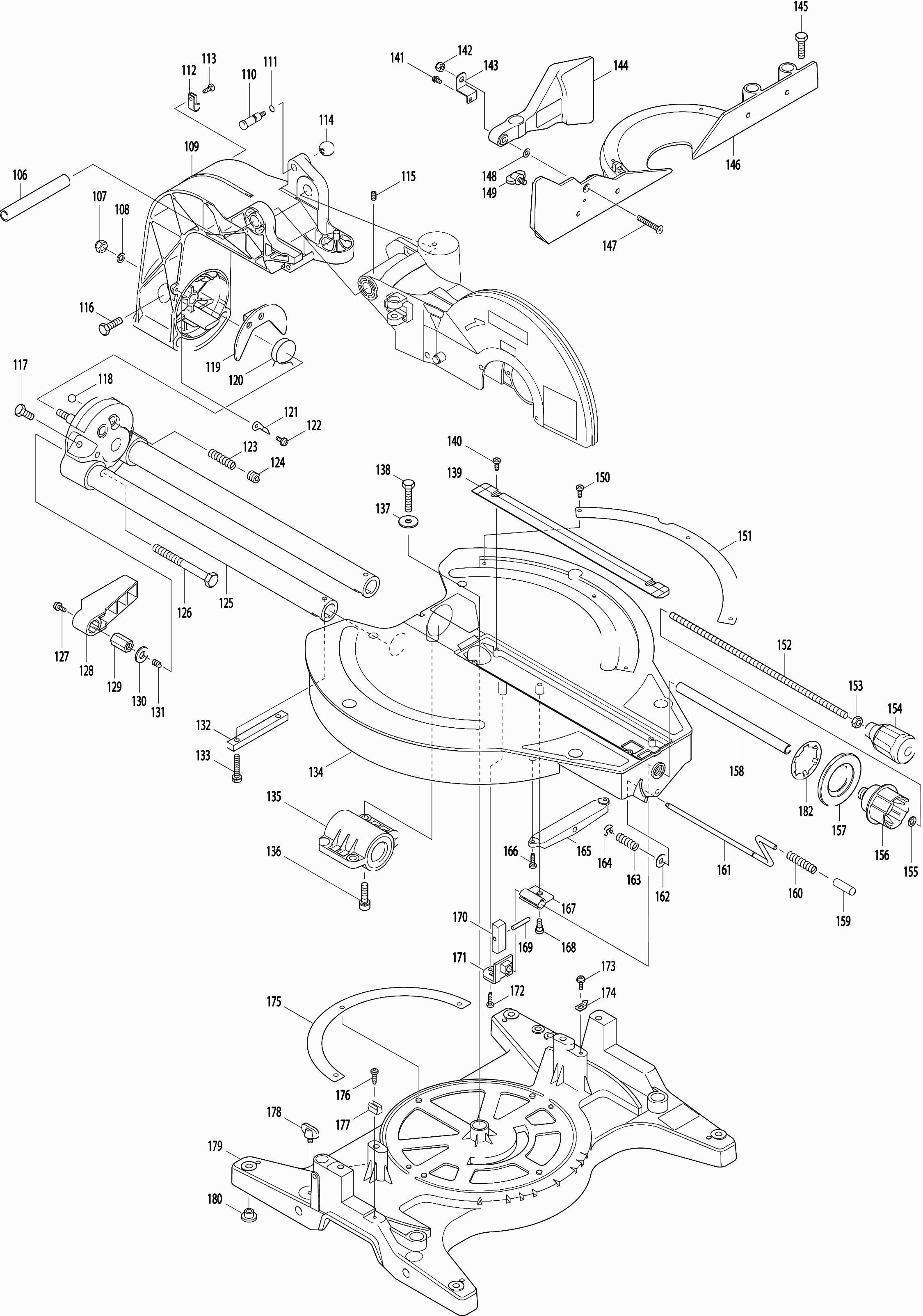

Tekeningen van de Makita LS1214F
Onderdelen lijst van de Makita LS1214F
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Tapschroef 4x18 | ||||
| 001 | 265A48-7 | 0.90 | 1.09 | |
| Afdek deksel | ||||
| 002 | 416075-3 | 4.58 | 5.54 | |
| Tapschroef 4x18 | ||||
| 003 | 265A48-7 | 0.90 | 1.09 | |
| Controle circuit | ||||
| 004 | 631238-2 | 53.39 | 64.60 | |
| Condensator 0,1uf | ||||
| 005 | 645105-5 | 2.80 | 3.39 | |
| Kruiskopschroef M6X50 * | ||||
| 006 | 911373-5 | 0.83 | 1.00 | |
| Motorhuis Ls1214F * | ||||
| 007 | 153907-0 | 19.80 | 23.96 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 007A | 643660-1 | |||
| Koolborstelhouder A | ||||
| 007C10 | 643536-2 | 1.54 | 1.86 | |
| Koolborstel set Cb-153 | ||||
| 008 | 181044-0 | 4.08 | 4.94 | |
| Koolborstelhouderdop | ||||
| 009 | 643650-4 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 010 | 860634-9 | |||
| Veld | ||||
| 011 | 599508-4 | 83.82 | 101.42 | |
| Statorveertje Cb5 | ||||
| 011A | 654020-2 | 0.83 | 1.00 | |
| Klembus tbv statorv. 2mm | ||||
| 011B | 654502-4 | 0.83 | 1.00 | |
| Statorveertje Cb5 | ||||
| 011C10 | 654020-2 | 0.83 | 1.00 | |
| Klembus tbv statorv. 2mm | ||||
| 011C20 | 654502-4 | 0.83 | 1.00 | |
| Zelftapper Pt 5x75 | ||||
| 012 | 266059-9 | 1.27 | 1.54 | |
| Opvulplaat | ||||
| 013 | 416264-0 | 2.16 | 2.61 | |
| Kogellager 6000llb | ||||
| 014 | 211061-7 | 7.44 | 9.00 | |
| Isolatiering | ||||
| 015 | 681642-5 | 8.46 | 10.24 | |
| Anker Ls1214F * | ||||
| 016 | 516738-2 | 121.98 | 147.60 | |
| Waaier 80 | ||||
| 017 | 240001-8 | 3.37 | 4.08 | |
| Schroef 5x16 | ||||
| 018 | 911224-2 | 0.83 | 1.00 | |
| Lagerplaat 94 | ||||
| 019 | 285686-3 | 3.83 | 4.63 | |
| Kogellager 6003ddw | ||||
| 020 | 210301-0 | 5.96 | 7.21 | |
| Borgring S-17 | ||||
| 021 | 961057-5 | 0.83 | 1.00 | |
| Borgring 8 | ||||
| 022 | 231928-3 | 0.83 | 1.00 | |
| Blokkeerpen 6 4110C | ||||
| 023 | 256633-1 | 0.83 | 1.00 | |
| Drukveer 7 | ||||
| 024 | 231240-1 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 025 | 961018-5 | 0.83 | 1.00 | |
| Sluitring 6 | ||||
| 026 | 253804-1 | 0.83 | 1.00 | |
| Ring 16 | ||||
| 027 | 257163-5 | 1.24 | 1.50 | |
| Verbindingsplaat | ||||
| 028 | 345419-9 | 6.16 | 7.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 029 | 922331-6 | |||
| Sluitring 6 | ||||
| 030 | 253804-1 | 0.83 | 1.00 | |
| Ring 16 | ||||
| 031 | 257163-5 | 1.24 | 1.50 | |
| Veerhouder | ||||
| 032 | 316470-6 | 5.46 | 6.61 | |
| Drukveer 34 Ls1214F * | ||||
| 033 | 233424-7 | 7.80 | 9.44 | |
| Blokkeerpen | ||||
| 034 | 324458-2 | 1.80 | 2.18 | |
| Ashouder | ||||
| 035 | 418610-3 | 4.58 | 5.54 | |
| Tapschroef Ct4x16 | ||||
| 036 | 266034-5 | 0.83 | 1.00 | |
| Blokkeerhandel Ls1214F * | ||||
| 037 | 345416-5 | 2.45 | 2.96 | |
| Schroef 4x10 | ||||
| 038 | 911113-1 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 039 | 961012-7 | |||
| Kantelas 8mm | ||||
| 040 | 324459-0 | 7.80 | 9.44 | |
| Trekveer 8 | ||||
| 041 | 231633-2 | 0.83 | 1.00 | |
| Kap | ||||
| 042 | 421589-9 | 0.83 | 1.00 | |
| Schroef 4x10 | ||||
| 043 | 911113-1 | 0.83 | 1.00 | |
| Blokkeerplaat | ||||
| 044 | 345417-3 | 1.51 | 1.83 | |
| Tapschroef 4x18 | ||||
| 045 | 265A48-7 | 0.90 | 1.09 | |
| Licht Set Cpl Ls1040F | ||||
| 046 | 125180-2 | 43.02 | 52.05 | |
| Lampdoos incl glas+ lens | ||||
| 046A | 152923-9 | 1.72 | 2.08 | |
| TL buis 5W LS0714FLB | ||||
| 046B | 193730-1 | 3.95 | 4.78 | |
| Lampdoos incl glas+ lens | ||||
| 046C10 | 152923-9 | 1.72 | 2.08 | |
| TL buis 5W LS0714FLB | ||||
| 046C20 | 193730-1 | 3.95 | 4.78 | |
| Deblokkeerknop | ||||
| 047 | 417113-4 | 1.20 | 1.45 | |
| Handgreep set | ||||
| 048 | 183842-8 | 16.13 | 19.52 | |
| Waarschuwingslabel | ||||
| 048A | 810966-4 | 2.80 | 3.39 | |
| Waarschuwingslabel | ||||
| 048C10 | 810966-4 | 2.80 | 3.39 | |
| Kabeltule 10-90 | ||||
| 049 | 682505-8 | 1.72 | 2.08 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 050 | 695123-3 | 21.70 | 26.26 | |
| Klemstrip | ||||
| 051 | 687124-5 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 052 | 265A48-7 | 0.90 | 1.09 | |
| Nok | ||||
| 053 | 414546-4 | 1.01 | 1.22 | |
| Deblokkeer handel | ||||
| 054 | 416000-4 | 1.21 | 1.46 | |
| Kroonsteen | ||||
| 055 | 654575-7 | 2.93 | 3.55 | |
| Drukveer 3 | ||||
| 056 | 231457-6 | 0.83 | 1.00 | |
| Condensator 0,22uf | ||||
| 057 | 645190-8 | 2.44 | 2.95 | |
| Schakelaar Sw-127 | ||||
| 058 | 651923-1 | 12.58 | 15.22 | |
| Micro schakelaar | ||||
| 059 | 651941-9 | 3.22 | 3.90 | |
| Schakelaarhandel LS1013 A | ||||
| 060 | 459017-4 | 1.02 | 1.23 | |
| Tapschroef 4x18 | ||||
| 061 | 265A48-7 | 0.90 | 1.09 | |
| Handgreep set | ||||
| 062 | 183842-8 | 16.13 | 19.52 | |
| Waarschuwingslabel | ||||
| 062A | 810966-4 | 2.80 | 3.39 | |
| Waarschuwingslabel | ||||
| 062C10 | 810966-4 | 2.80 | 3.39 | |
| Zeskantbout M8X45 * | ||||
| 063 | 921467-8 | 0.83 | 1.00 | |
| Rubber koolborstelring | ||||
| 064 | 262003-4 | 0.83 | 1.00 | |
| Zeskant bout 6x16 | ||||
| 065 | 911323-0 | 0.83 | 1.00 | |
| Greep | ||||
| 066 | 421562-9 | 2.45 | 2.96 | |
| Greephouder | ||||
| 067 | 344420-1 | 2.80 | 3.39 | |
| Zeskant bout 6x16 | ||||
| 068 | 911323-0 | 0.83 | 1.00 | |
| Schroef 4x10 | ||||
| 069 | 911114-9 | 0.83 | 1.00 | |
| Stofafzuigadapter afkortzaag | ||||
| 070 | 419277-0 | 2.59 | 3.13 | |
| O-ring 35 | ||||
| 071 | 213460-9 | 1.21 | 1.46 | |
| Schroef 4x10 | ||||
| 072 | 911113-1 | 0.83 | 1.00 | |
| Vleugelbout m6x43 | ||||
| 073 | 265717-4 | 2.05 | 2.48 | |
| Kunststof Ring 5 | ||||
| 074 | 262001-8 | 1.43 | 1.73 | |
| Blokkeerarm | ||||
| 075 | 317176-9 | 7.80 | 9.44 | |
| Stopplaat | ||||
| 076 | 344045-1 | 0.83 | 1.00 | |
| Label "makita" | ||||
| 077 | 819064-1 | 0.83 | 1.00 | |
| Vaste beschermkap | ||||
| 078 | 183843-6 | 90.50 | 109.50 | |
| Waarschuwingslabel | ||||
| 078A | 810964-8 | 1.43 | 1.73 | |
| Waarschuwingslabel | ||||
| 078B | 810968-0 | 1.43 | 1.73 | |
| Waarschuwingslabel | ||||
| 078C | 817667-5 | 0.83 | 1.00 | |
| Waarschuwingslabel | ||||
| 078C10 | 810964-8 | 1.43 | 1.73 | |
| Waarschuwingslabel | ||||
| 078C20 | 810968-0 | 1.43 | 1.73 | |
| Waarschuwingslabel | ||||
| 078C30 | 817667-5 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 079 | 345415-7 | |||
| Geleiding | ||||
| 080 | 421916-0 | 1.24 | 1.50 | |
| Kogellager 608llb | ||||
| 081 | 210043-6 | 1.72 | 2.08 | |
| Borgring S-14 | ||||
| 082 | 961054-1 | 0.83 | 1.00 | |
| Tandwiel 35 | ||||
| 083 | 226750-1 | 30.23 | 36.58 | |
| Rubber ring 20 | ||||
| 084 | 262074-1 | 0.83 | 1.00 | |
| Sluitring 14 | ||||
| 085 | 267035-6 | 1.21 | 1.46 | |
| O-ring 54 | ||||
| 086 | 213675-8 | 1.01 | 1.22 | |
| Lagerdoos | ||||
| 087 | 316473-0 | 12.58 | 15.22 | |
| Inlegspie 4 | ||||
| 088 | 254202-2 | 0.83 | 1.00 | |
| Zaagas | ||||
| 089 | 322989-5 | 8.38 | 10.14 | |
| Kogellager 6203dw | ||||
| 090 | 211278-2 | 9.52 | 11.52 | |
| Lagerhouder 66 | ||||
| 091 | 285828-9 | 1.43 | 1.73 | |
| Reduceerring 25x15,88x4,0mm | ||||
| 092 | 257022-3 | 1.98 | 2.40 | |
| Schroef 5x16 | ||||
| 093 | 911224-2 | 0.83 | 1.00 | |
| Binnenflens 61 | ||||
| 094 | 224398-3 | 8.46 | 10.24 | |
| Verloopring 30x15,88x4mm | ||||
| 095 | 257295-8 | 0.91 | 1.10 | |
| Binnenflens 61 | ||||
| 096 | 224398-3 | 8.46 | 10.24 | |
| Inbusbout M10x20mm | ||||
| 097 | 266755-9 | 2.44 | 2.95 | |
| Centreer plaat | ||||
| 098 | 344473-0 | 28.85 | 34.91 | |
| Centreer plaat huis | ||||
| 099 | 344038-8 | 3.83 | 4.63 | |
| Flensbout M8x12 | ||||
| 100 | 265324-3 | 1.21 | 1.46 | |
| Platkop schroef M5 | ||||
| 101 | 265008-3 | 1.21 | 1.46 | |
| Torsieveer 45 | ||||
| 102 | 231613-8 | 1.43 | 1.73 | |
| Beschermkap | ||||
| 103 | 450131-9 | 19.80 | 23.96 | |
| Sluitring 6 | ||||
| 104 | 253977-0 | 1.43 | 1.73 | |
| Schroef 5x12 | ||||
| 105 | 911213-7 | 0.83 | 1.00 | |
| Bus 16-113 | ||||
| 106 | 331428-4 | 5.88 | 7.11 | |
| Borgmoer M8x13 hoog | ||||
| 107 | 252105-4 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 108 | 941202-8 | 0.83 | 1.00 | |
| Transportpen | ||||
| 110 | 322629-5 | 2.80 | 3.39 | |
| O-ring 7 | ||||
| 111 | 213011-8 | 0.83 | 1.00 | |
| Trekontlaster | ||||
| 112 | 687042-7 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 113 | 266026-4 | 0.83 | 1.00 | |
| Knop 20 | ||||
| 114 | 271601-3 | 0.83 | 1.00 | |
| Zeskant bout 6x10 | ||||
| 115 | 251961-9 | 0.83 | 1.00 | |
| Zeskant bout 8x30 | ||||
| 116 | 265371-4 | 1.01 | 1.22 | |
| Zeskant bout 8x20 | ||||
| 117 | 265412-6 | 0.83 | 1.00 | |
| Stalen kogel 10 | ||||
| 118 | 216003-6 | 0.83 | 1.00 | |
| Geleidingsplaat | ||||
| 119 | 345418-1 | 7.44 | 9.00 | |
| Torsieveer 28 | ||||
| 120 | 231626-9 | 2.08 | 2.52 | |
| Indicatieplaat | ||||
| 121 | 413067-3 | 1.06 | 1.28 | |
| Schroef 4x10 | ||||
| 122 | 911114-9 | 0.83 | 1.00 | |
| Drukveer 5 | ||||
| 123 | 233168-9 | 0.83 | 1.00 | |
| Inbusbout M2x12 | ||||
| 124 | 266131-7 | 0.83 | 1.00 | |
| Armhouder | ||||
| 125 | 151459-5 | 83.82 | 101.42 | |
| Schaal verdelings label | ||||
| 125A | 816771-7 | 2.93 | 3.55 | |
| Schaal verdelings label | ||||
| 125C10 | 816771-7 | 2.93 | 3.55 | |
| Zeskant bout 10x100 | ||||
| 126 | 251662-9 | 1.27 | 1.54 | |
| Schroef 4x10 | ||||
| 127 | 911113-1 | 0.83 | 1.00 | |
| Handgreep | ||||
| 128 | 416006-2 | 4.08 | 4.94 | |
| Zeskant moer 10x17 | ||||
| 129 | 252144-4 | 2.80 | 3.39 | |
| Ring 10 | ||||
| 130 | 253024-7 | 0.83 | 1.00 | |
| Veer 5 voor hefboom 100 | ||||
| 131 | 231266-3 | 0.83 | 1.00 | |
| Vierkante pen Ls1013 * | ||||
| 132 | 152542-1 | 14.24 | 17.23 | |
| Rubber pen 6 | ||||
| 132A | 263005-3 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 132C10 | 263005-3 | 0.83 | 1.00 | |
| Zeskant bout 6x35 | ||||
| 133 | 921356-7 | 0.83 | 1.00 | |
| Draaiplateau | ||||
| 134 | 153832-5 | 174.44 | 211.07 | |
| Lineair kogell 3064 | ||||
| 134 | 211444-1 | 30.23 | 36.58 | |
| Lineair kogell 3064 | ||||
| 134A | 211444-1 | 30.23 | 36.58 | |
| Lager 30 | ||||
| 134B | 219002-7 | 16.07 | 19.44 | |
| Vilten ring 30 | ||||
| 134C | 262048-2 | 1.43 | 1.73 | |
| Lager 30 | ||||
| 134C10 | 219002-7 | 16.07 | 19.44 | |
| Vilten ring 30 | ||||
| 134C20 | 262048-2 | 1.43 | 1.73 | |
| Rubber pen 6 | ||||
| 134C30 | 263005-3 | 0.83 | 1.00 | |
| Kap | ||||
| 134C40 | 343676-3 | 1.27 | 1.54 | |
| Waarschuwingslabel | ||||
| 134C50 | 817283-3 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 134D | 263005-3 | 0.83 | 1.00 | |
| Kap | ||||
| 134E | 343676-3 | 1.27 | 1.54 | |
| Waarschuwingslabel | ||||
| 134F | 817283-3 | 0.83 | 1.00 | |
| Lagerhuis B | ||||
| 135 | 152540-5 | 48.51 | 58.70 | |
| Lineair kogell 3064 | ||||
| 135A | 211444-1 | 30.23 | 36.58 | |
| Vilten ring 30 | ||||
| 135B | 262048-2 | 1.43 | 1.73 | |
| Kap | ||||
| 135C | 343676-3 | 1.27 | 1.54 | |
| Lineair kogell 3064 | ||||
| 135C10 | 211444-1 | 30.23 | 36.58 | |
| Vilten ring 30 | ||||
| 135C20 | 262048-2 | 1.43 | 1.73 | |
| Kap | ||||
| 135C30 | 343676-3 | 1.27 | 1.54 | |
| Lagerhuis B | ||||
| 135C40 | 316837-8 | 21.70 | 26.26 | |
| Lagerhuis B | ||||
| 135D | 316837-8 | 21.70 | 26.26 | |
| Inbusbout M8x30 | ||||
| 136 | 922451-6 | 1.02 | 1.23 | |
| Ring 8 | ||||
| 137 | 253852-0 | 1.21 | 1.46 | |
| Zeskant bout 8x40 | ||||
| 138 | 265442-7 | 0.83 | 1.00 | |
| Inzaagplaat | ||||
| 139 | 415209-5 | 2.80 | 3.39 | |
| Tapschroef M4x12mm Ck | ||||
| 140 | 266026-4 | 0.83 | 1.00 | |
| Schroef 4x8 | ||||
| 141 | 911109-2 | 0.83 | 1.00 | |
| Borgmoer 6-10 | ||||
| 142 | 252014-7 | 0.83 | 1.00 | |
| Steun voor aanslag | ||||
| 143 | 344463-3 | 0.83 | 1.00 | |
| Aanslag | ||||
| 144 | 153890-1 | 16.07 | 19.44 | |
| Waarschuwingslabel | ||||
| 144A | 810967-2 | 2.93 | 3.55 | |
| Waarschuwingslabel | ||||
| 144C10 | 810967-2 | 2.93 | 3.55 | |
| Zeskantbout M8X30 A | ||||
| 145 | 265488-3 | 2.05 | 2.48 | |
| Achterlineaal | ||||
| 146 | 317757-9 | 34.35 | 41.56 | |
| Verzonken schroef 6x35 | ||||
| 147 | 912357-6 | 0.83 | 1.00 | |
| Sluitring 6 | ||||
| 148 | 253715-0 | 0.83 | 1.00 | |
| Vleugelbout M6X10mm | ||||
| 149 | 251887-5 | 0.83 | 1.00 | |
| Vleugelbout 6x10 | ||||
| 149 | 924306-1 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 150 | 266026-4 | 0.83 | 1.00 | |
| Niet meer leverbaar, geen vervanging | ||||
| 151 | 816326-8 | |||
| Schroef 8x320 | ||||
| 152 | 266132-5 | 4.08 | 4.94 | |
| Moer M8 | ||||
| 153 | 931402-8 | 0.83 | 1.00 | |
| Handgreep 40 | ||||
| 154 | 271314-6 | 8.46 | 10.24 | |
| Sluitring 8 | ||||
| 155 | 941202-8 | 0.83 | 1.00 | |
| Draaiknop | ||||
| 156 | 152541-3 | 7.43 | 8.99 | |
| Afdekkap | ||||
| 157 | 421863-5 | 1.43 | 1.73 | |
| Niet meer leverbaar, geen vervanging | ||||
| 158 | 331491-7 | |||
| Kap 10 | ||||
| 159 | 421563-7 | 1.01 | 1.22 | |
| Veer | ||||
| 160 | 322924-3 | 0.83 | 1.00 | |
| Blokkeerpin | ||||
| 161 | 322909-9 | 6.58 | 7.96 | |
| Sluitring 6 | ||||
| 162 | 253804-1 | 0.83 | 1.00 | |
| Drukveer 6 | ||||
| 163 | 231307-5 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 164 | 961018-5 | 0.83 | 1.00 | |
| Pinhouder | ||||
| 165 | 316899-6 | 8.84 | 10.70 | |
| Tapschroef Ct4x16 | ||||
| 166 | 266034-5 | 0.83 | 1.00 | |
| Geleiderstopper | ||||
| 167 | 344411-2 | 1.72 | 2.08 | |
| Schroef M6 | ||||
| 168 | 251267-5 | 0.83 | 1.00 | |
| Pen 5 | ||||
| 169 | 256196-7 | 0.83 | 1.00 | |
| Draaistopper | ||||
| 170 | 331493-3 | 79.95 | 96.74 | |
| Stopperhouder | ||||
| 171 | 344412-0 | 10.84 | 13.12 | |
| Tapschroef Ct4x16 | ||||
| 172 | 266034-5 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 173 | 266026-4 | 0.83 | 1.00 | |
| Indicatieplaat | ||||
| 174 | 816128-2 | 0.83 | 1.00 | |
| Geleideplaat | ||||
| 175 | 344477-2 | 1.72 | 2.08 | |
| Tapschroef Ct4x16 | ||||
| 176 | 266034-5 | 0.83 | 1.00 | |
| Bladveer | ||||
| 177 | 232075-3 | 1.01 | 1.22 | |
| Vleugelbout M6X10mm | ||||
| 178 | 251887-5 | 0.83 | 1.00 | |
| Vleugelbout 6x10 | ||||
| 178 | 924306-1 | 0.83 | 1.00 | |
| Voetzool | ||||
| 179 | 153889-6 | 90.50 | 109.50 | |
| Aanduidingsplaat Ls800Dw * | ||||
| 179A | 810965-6 | 1.01 | 1.22 | |
| Aanduidingsplaat Ls800Dw * | ||||
| 179C10 | 810965-6 | 1.01 | 1.22 | |
| Afdekkap | ||||
| 180 | 416972-3 | 1.02 | 1.23 | |
| Voet | ||||
| 180 | 286212-1 | 0.83 | 1.00 | |
| Sluitring 25 | ||||
| 181 | 253791-4 | 1.70 | 2.06 | |
| Borgring | ||||
| 182 | 345494-5 | 0.83 | 1.00 | |
