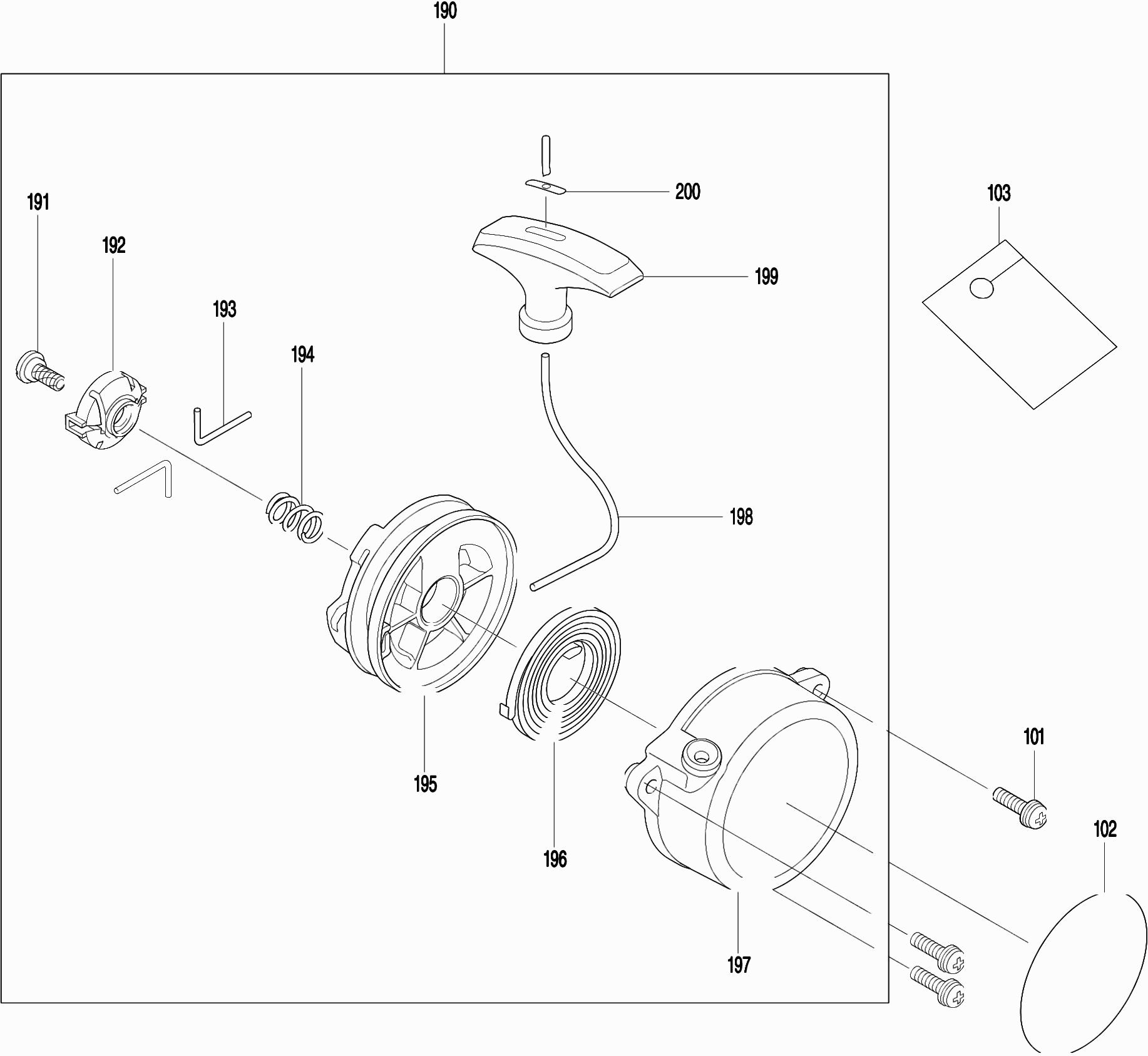

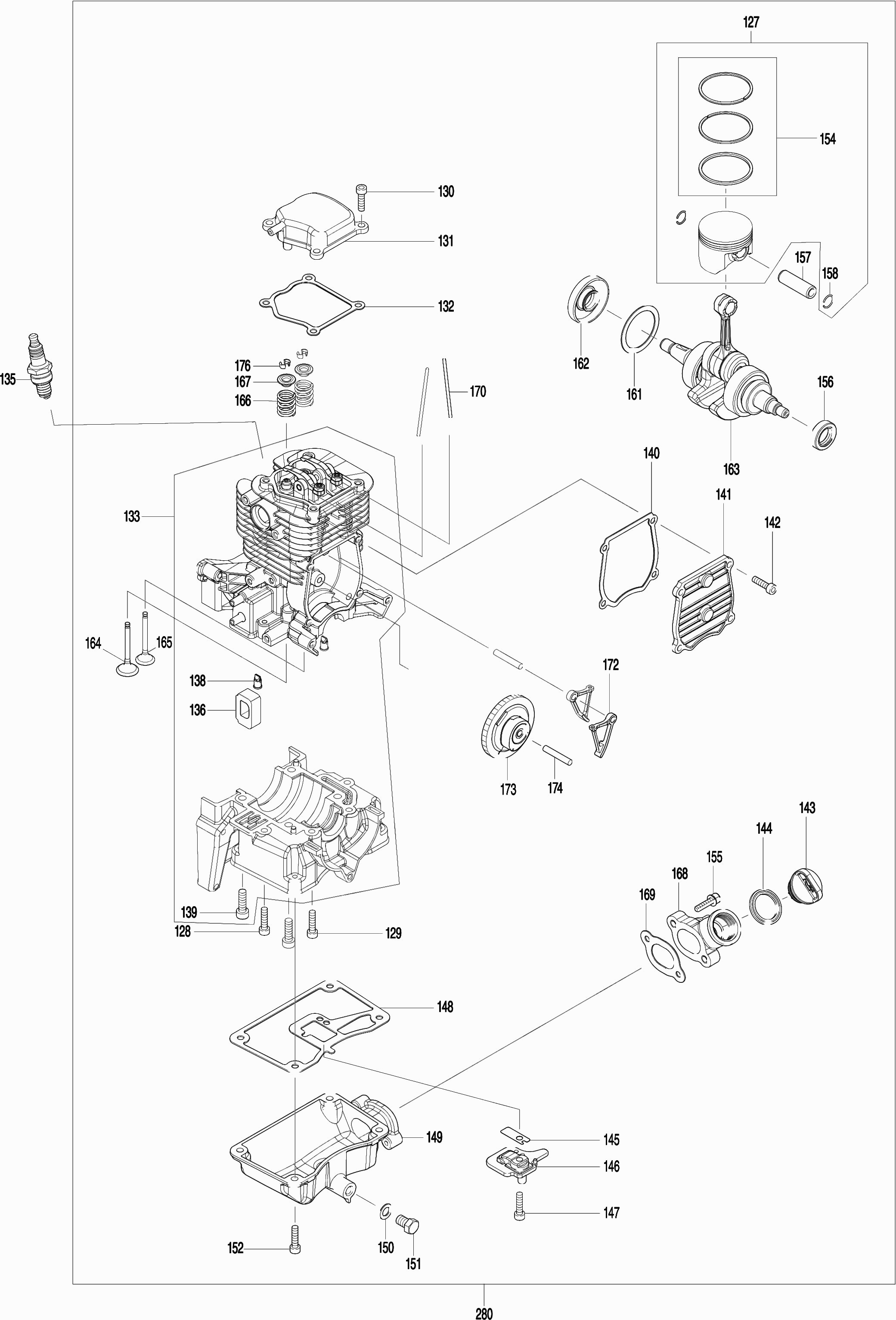

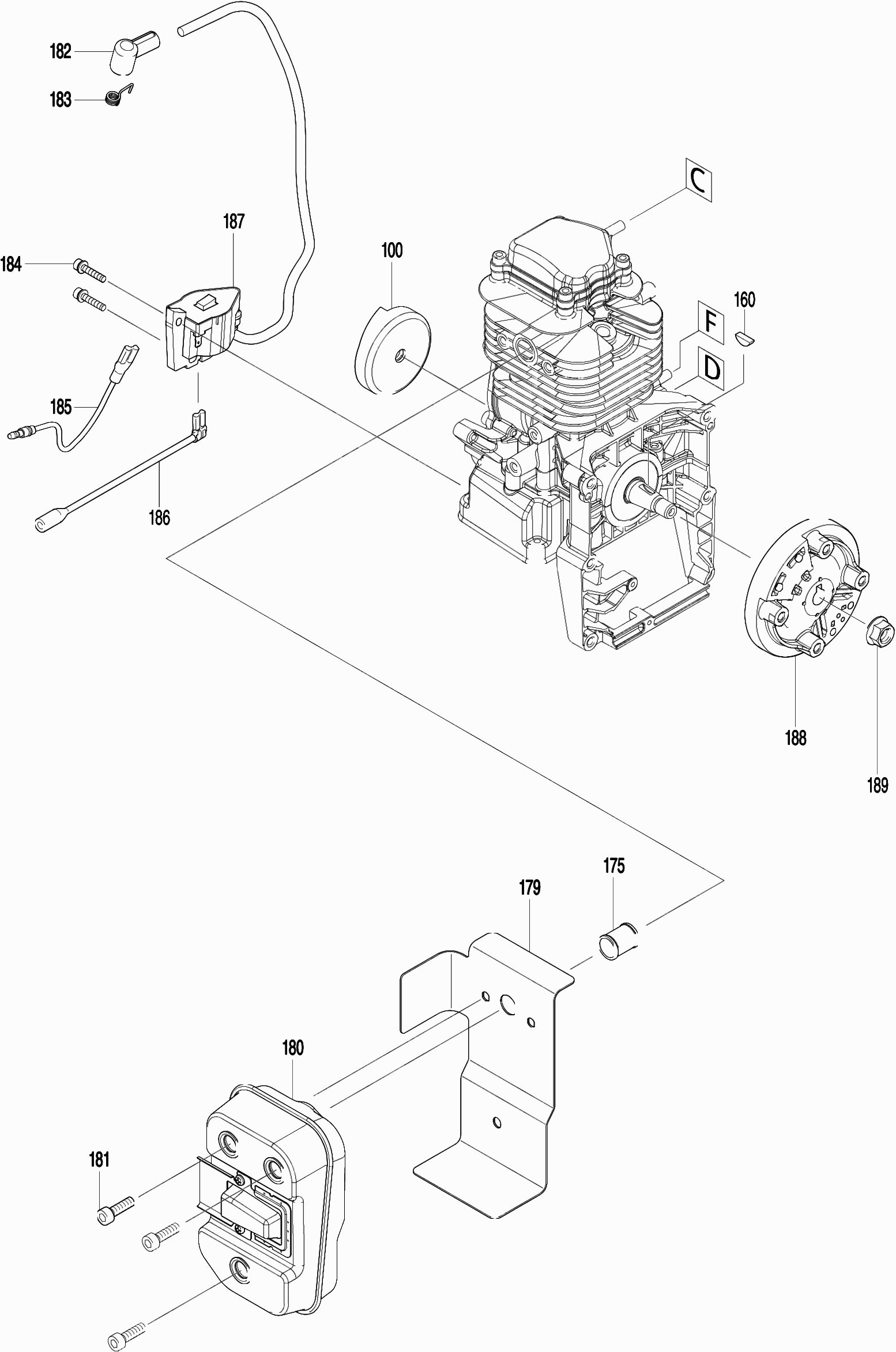

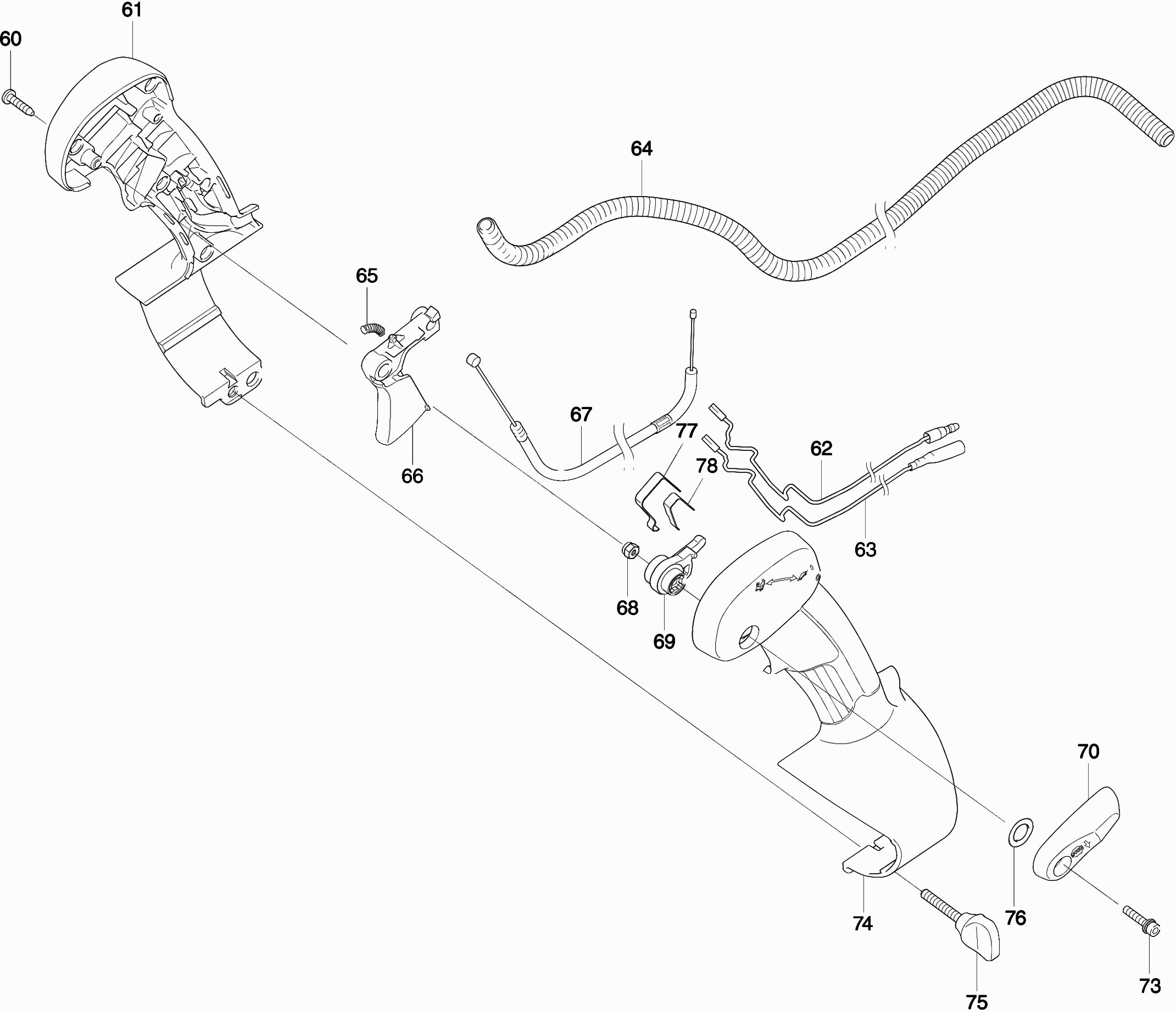

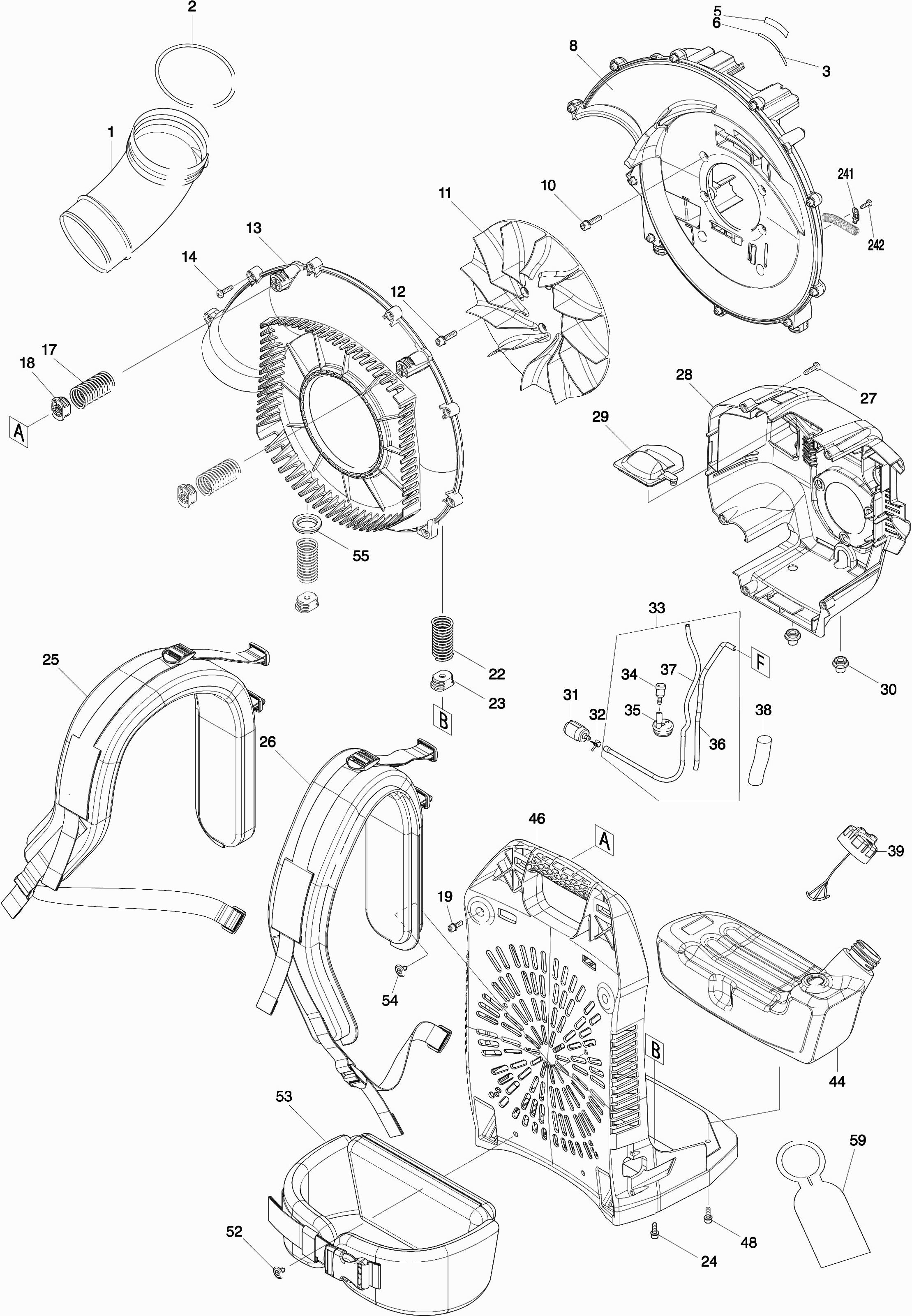

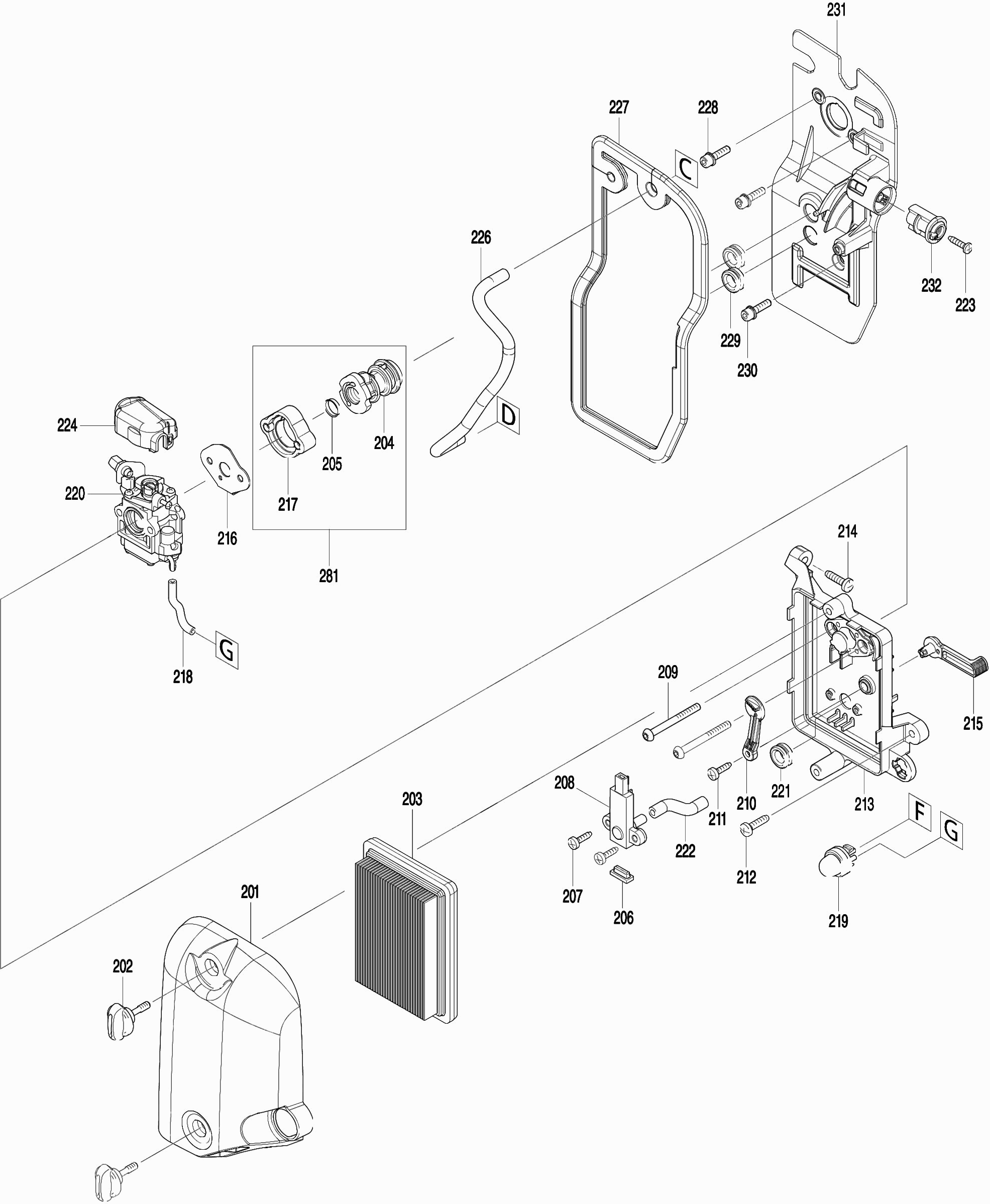

Tekeningen van de Makita MG5300.4
Onderdelen lijst van de Makita MG5300.4
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Bocht | ||||
001 | 412144-8 | 6.16 | 7.45 | |
O-Ring Bbx7600 A | ||||
002 | 213645-7 | 2.80 | 3.39 | |
Label Serienr Eb5300Th | ||||
003 | 852V99-1 | 1.02 | 1.23 | |
Waarschuwingslabel | ||||
005 | 803T61-7 | 0.83 | 1.00 | |
Label "serienr" | ||||
006 | 801D19-4 | 2.93 | 3.55 | |
Waaierhuis Voorkant Eb5300Th | ||||
008 | 457098-2 | 19.80 | 23.96 | |
Bout m6x25 | ||||
010 | 922343-9 | 1.21 | 1.46 | |
Waaier 243 Eb5300Th | ||||
011 | 240170-5 | 12.58 | 15.22 | |
Bout m6x25 | ||||
012 | 922343-9 | 1.21 | 1.46 | |
Waaierhuis Achter Eb5300Th | ||||
013 | 457099-0 | 14.23 | 17.22 | |
Schroef 4x20 | ||||
014 | 266420-0 | 0.83 | 1.00 | |
Drukveer 22 Eb5300Th | ||||
017 | 232328-0 | 1.43 | 1.73 | |
Veerhouder "b" | ||||
018 | 454904-2 | 0.83 | 1.00 | |
Met.Schroef Ph2 M5X16Mm Ck A | ||||
019 | 922223-9 | 0.83 | 1.00 | |
Drukveer 22 Eb5300Th | ||||
022 | 232329-8 | 1.43 | 1.73 | |
Veerhouder "b" | ||||
023 | 454904-2 | 0.83 | 1.00 | |
Met.Schroef Ph2 M5X16Mm Ck A | ||||
024 | 922223-9 | 0.83 | 1.00 | |
Rechter Draagriem D Mg5300.4 | ||||
025 | 161546-2 | 9.52 | 11.52 | |
Linker Draagriem D Mg5300.4 | ||||
026 | 161545-4 | 9.52 | 11.52 | |
Schroef 4x20 | ||||
027 | 266420-0 | 0.83 | 1.00 | |
Motorkap Mg5300.4 | ||||
028 | 144361-9 | 16.07 | 19.44 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
028C10 | 898343-0 | |||
Bougiekap Eb5300Th | ||||
029 | 424909-6 | 3.22 | 3.90 | |
Trillingsdemper | ||||
030 | 424620-0 | 0.83 | 1.00 | |
Benzinefilter | ||||
031 | 163532-9 | 6.58 | 7.96 | |
Slangklem | ||||
032 | 345920-4 | 0.83 | 1.00 | |
Benzineslang Eb5300Th | ||||
033 | 123788-6 | 12.58 | 15.22 | |
Ontluchtingsventiel | ||||
034 | 168396-6 | 5.22 | 6.32 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
035 | 424505-0 | |||
Geen informatie beschikbaar, niet bestelbaar | ||||
036 | 412120-2 | |||
Geen informatie beschikbaar, niet bestelbaar | ||||
037 | 412114-7 | |||
Slangtule | ||||
038 | 422137-7 | 1.27 | 1.54 | |
Tankdop Assy Ms246.4 A | ||||
039 | 127112-5 | 12.22 | 14.79 | |
Benzinetank Eb5300Th | ||||
044 | 457086-9 | 12.58 | 15.22 | |
Frame Eb5300Th | ||||
046 | 457097-4 | 26.11 | 31.59 | |
Met.Schroef Ph2 M5X16Mm Ck A | ||||
048 | 922223-9 | 0.83 | 1.00 | |
Montagebus Bbx7600 A | ||||
052 | 458158-3 | 1.21 | 1.46 | |
Montagebus Bbx7600 A | ||||
052-1 | 458158-3 | 1.21 | 1.46 | |
Heupkussen Eb5300Th | ||||
053 | 161567-4 | 12.58 | 15.22 | |
Montagebus Bbx7600 A | ||||
054 | 458158-3 | 1.21 | 1.46 | |
Montagebus Bbx7600 A | ||||
054-1 | 458158-3 | 1.21 | 1.46 | |
Rubber ring 25mm | ||||
055 | 424678-9 | 1.02 | 1.23 | |
Waarschuwingslabel "fuel" | ||||
059 | 810455-9 | 2.93 | 3.55 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
060 | 266326-2 | |||
Gashendel Assy Eb5300Th | ||||
061 | 183F27-2 | 16.07 | 19.44 | |
Draadboom A Eb5300Th | ||||
062 | 632J31-7 | 1.43 | 1.73 | |
Draadboom B Eb5300Th | ||||
063 | 632J60-0 | 1.43 | 1.73 | |
Doorvoerslang Eb5300Th | ||||
064 | 457105-1 | 2.80 | 3.39 | |
Drukveer 4 | ||||
065 | 231469-9 | 0.83 | 1.00 | |
Gashendel "a" | ||||
066 | 454899-9 | 1.43 | 1.73 | |
Gaskabel | ||||
067 | 168843-7 | 4.58 | 5.54 | |
Borgmoer M4x7mm | ||||
068 | 252126-6 | 0.83 | 1.00 | |
Gaslink | ||||
069 | 454924-6 | 1.01 | 1.22 | |
Gashandel | ||||
070 | 454900-0 | 1.21 | 1.46 | |
Inbusbout M4x20 Ck | ||||
073 | 922138-0 | 0.83 | 1.00 | |
Gashendel Assy Eb5300Th | ||||
074 | 183F27-2 | 16.07 | 19.44 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
075 | 265762-9 | |||
Sluitring 12 | ||||
076 | 253052-2 | 0.83 | 1.00 | |
Bladveer Eb5300Th | ||||
077 | 232330-3 | 0.83 | 1.00 | |
Bladveer Eb5300Th | ||||
078 | 232331-1 | 0.83 | 1.00 | |
Slangklem | ||||
090 | 282025-8 | 3.22 | 3.90 | |
Flexbuis | ||||
091 | 454934-3 | 12.58 | 15.22 | |
Slangklem | ||||
092 | 282025-8 | 3.22 | 3.90 | |
Verbindingsbuis Eb5300TH A | ||||
093 | 161653-1 | 9.52 | 11.52 | |
kabelhouder | ||||
094 | 456400-6 | 1.43 | 1.73 | |
Startpoelie Bbx7600 A | ||||
100 | 161599-1 | 6.58 | 7.96 | |
Startpoelie Bbx7600 A | ||||
100-1 | 161599-1 | 6.58 | 7.96 | |
Inbusbout 5x20 | ||||
101 | 922232-8 | 1.01 | 1.22 | |
Model Label Mg5300.4 | ||||
102 | 812A82-4 | 2.80 | 3.39 | |
Waarschuwingslabel | ||||
103 | 819430-2 | 2.80 | 3.39 | |
Zuiger Set Eb5300Th | ||||
127 | 198420-1 | 14.23 | 17.22 | |
Inbusbout 5x20 | ||||
128 | 922232-8 | 1.01 | 1.22 | |
Inbusbout 5x20 | ||||
129 | 922232-8 | 1.01 | 1.22 | |
Inbusbout 5x20 | ||||
130 | 922232-8 | 1.01 | 1.22 | |
Kleppendeksel Eb5300Th | ||||
131 | 319465-8 | 4.08 | 4.94 | |
Klepdekselpakkingsset Eb5300th | ||||
132 | 161520-0 | 1.43 | 1.73 | |
Cilinderblok Eb5300Th | ||||
133 | 135893-7 | 95.74 | 115.85 | |
Bougie | ||||
135 | 168652-4 | 11.16 | 13.50 | |
Verdeler | ||||
136 | 352020-3 | 3.65 | 4.42 | |
Controle klep | ||||
138 | 424201-0 | 1.72 | 2.08 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
139 | 922332-4 | |||
Carterdekselpakkingsset Eb5300th | ||||
140 | 161521-8 | 1.72 | 2.08 | |
Carterdeksel Eb5300Th | ||||
141 | 319464-0 | 4.08 | 4.94 | |
Inbusbout 5x20 | ||||
142 | 922232-8 | 1.01 | 1.22 | |
Oliedop | ||||
143 | 452047-4 | 1.43 | 1.73 | |
Pakking | ||||
144 | 424343-0 | 0.83 | 1.00 | |
Inlaat membraam | ||||
145 | 346398-4 | 0.83 | 1.00 | |
Borgplaat Eb5300Th | ||||
146 | 319467-4 | 3.22 | 3.90 | |
Inbusbout 5x20 | ||||
147 | 922232-8 | 1.01 | 1.22 | |
Carterpakkingsset Eb5300th | ||||
148 | 161522-6 | 2.80 | 3.39 | |
Carter Eb5300Th | ||||
149 | 319466-6 | 8.46 | 10.24 | |
Pakking | ||||
150 | 346452-4 | 0.83 | 1.00 | |
Zeskant bout 8x12 | ||||
151 | 921412-3 | 0.83 | 1.00 | |
Inbusbout 5x20 | ||||
152 | 922232-8 | 1.01 | 1.22 | |
Zuigerveerset Eb5300Th | ||||
154 | 198421-9 | 9.54 | 11.54 | |
Inbusbout 5x20 | ||||
155 | 922232-8 | 1.01 | 1.22 | |
Keerring 10 | ||||
156 | 213231-4 | 5.88 | 7.11 | |
Zuigerpen 11 Eb5300Th | ||||
157 | 256331-7 | 1.43 | 1.73 | |
Borgring 11Eb5300Th | ||||
158 | 232316-7 | 0.83 | 1.00 | |
Inlegspie 4 | ||||
160 | 254001-2 | 0.83 | 1.00 | |
Sluitring 35 Eb5300Th | ||||
161 | 253374-0 | 0.83 | 1.00 | |
Keerring 15 Eb5300Th | ||||
162 | 213088-3 | 5.22 | 6.32 | |
Krukas Eb5300Th | ||||
163 | 123748-8 | 53.38 | 64.59 | |
Inlaatklep Eb5300Th | ||||
164 | 326795-0 | 4.08 | 4.94 | |
Uitlaatklep Eb5300Th | ||||
165 | 326796-8 | 4.08 | 4.94 | |
Drukveer 12 Eb5300Th | ||||
166 | 232315-9 | 0.83 | 1.00 | |
Klepborgring | ||||
167 | 331966-6 | 2.44 | 2.95 | |
Olieleiding Eb5300Th | ||||
168 | 456999-1 | 3.22 | 3.90 | |
Pakkingset Eb5300Th | ||||
169 | 161523-4 | 0.83 | 1.00 | |
Kleppenpen | ||||
170 | 256866-8 | 0.83 | 1.00 | |
Tuimelaar Lifter Eb5300Th | ||||
172 | 310739-0 | 0.83 | 1.00 | |
Tuimelaartandw. Assy Eb5300Th | ||||
173 | 135894-5 | 4.58 | 5.54 | |
Pen 5 | ||||
174 | 256196-7 | 0.83 | 1.00 | |
Afstandbus | ||||
175 | 331987-8 | 1.24 | 1.50 | |
Splitpen | ||||
176 | 331967-4 | 1.01 | 1.22 | |
Uitlaatpakking Eb5300Th | ||||
179 | 347077-7 | 2.80 | 3.39 | |
Uitlaat Eb5300Th | ||||
180 | 161518-7 | 10.81 | 13.08 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
181 | 922332-4 | |||
Bougiedop Ebh253U A | ||||
182 | 424105-6 | 2.80 | 3.39 | |
Bougieveer Ebh253U A | ||||
183 | 324891-8 | 1.21 | 1.46 | |
Inbusbout M4x20 Ck | ||||
184 | 922138-0 | 0.83 | 1.00 | |
Draadboom A Eb5300Th | ||||
185 | 632J30-9 | 0.83 | 1.00 | |
Draadboom B Eb5300Th | ||||
186 | 632J50-3 | 0.83 | 1.00 | |
Ontsteking Eb5300Th | ||||
187 | 161411-5 | 14.23 | 17.22 | |
Vliegwiel Eb5300Th | ||||
188 | 319391-1 | 11.16 | 13.50 | |
Vliegwielmoer | ||||
189 | 264054-3 | 1.01 | 1.22 | |
Startinrichting Eb5300Th | ||||
190 | 123863-8 | 12.58 | 15.22 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
191 | SG00000005 | |||
Aandrijfhuls | ||||
192 | 424516-5 | 5.22 | 6.32 | |
Meenemer | ||||
193 | 326200-7 | 4.08 | 4.94 | |
Drukveer | ||||
194 | 234257-3 | 5.88 | 7.11 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
195 | 441075-4 | |||
Spiraalveer Eb5300Th | ||||
196 | SG00000018 | 4.58 | 5.54 | |
Startinrichting Compl Eb5300Th | ||||
197 | 457302-9 | 11.19 | 13.54 | |
Starterkoord | ||||
198 | 444043-6 | 2.80 | 3.39 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
199 | 424361-8 | |||
Stop plaat | ||||
200 | SG00000009 | 0.83 | 1.00 | |
Luchtfilterhuis Eb5300Th | ||||
201 | 457088-5 | 4.58 | 5.54 | |
Vleugelbout 5x20 | ||||
202 | 251481-3 | 1.21 | 1.46 | |
Luchtfilter Element Eb5300Th | ||||
203 | 424896-9 | 4.58 | 5.54 | |
Benzineleiding Eb5300Th | ||||
204 | 424898-5 | 7.43 | 8.99 | |
Binnenring | ||||
205 | 332075-4 | 0.83 | 1.00 | |
Rubber Afdichtplaatje Eb5300Th | ||||
206 | 424897-7 | 0.83 | 1.00 | |
Tapschroef 4X14 Ga7020 A | ||||
207 | 266385-6 | 0.83 | 1.00 | |
Luchtgeleider Eb5300Th | ||||
208 | 456994-1 | 1.43 | 1.73 | |
Inbusbout M5X50Mm Eb5300Th | ||||
209 | 251496-0 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
210 | 456995-9 | |||
Geen informatie beschikbaar, niet bestelbaar | ||||
210-1 | 458167-2 | |||
Tapschroef 4X14 Ga7020 A | ||||
211 | 266385-6 | 0.83 | 1.00 | |
Schroef 4x20 | ||||
212 | 266420-0 | 0.83 | 1.00 | |
Luchtfilterplaat Eb5300Th | ||||
213 | 456993-3 | 6.58 | 7.96 | |
Schroef 4x20 | ||||
214 | 266420-0 | 0.83 | 1.00 | |
Chokehendel | ||||
215 | 453502-9 | 8.52 | 10.31 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
215-1 | 458165-6 | |||
Carburateurpakkingsset Eb5300th | ||||
216 | 161519-5 | 1.01 | 1.22 | |
Carburateur Beugel Eb5300Th | ||||
217 | 456996-7 | 5.87 | 7.10 | |
Benzineslang Eb5300Th | ||||
218 | 424900-4 | 0.83 | 1.00 | |
OPVOERPOMP DCS230T A | ||||
219 | 168398-2 | 4.58 | 5.54 | |
Carburateur Eb5300Th | ||||
220 | 161517-9 | 53.39 | 64.60 | |
Doorvoer | ||||
221 | 424623-4 | 0.83 | 1.00 | |
Slang 5x55mm | ||||
222 | 422084-2 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
223 | 266326-2 | |||
Carburateurkap | ||||
224 | 456401-4 | 1.24 | 1.50 | |
Olieleiding 5-195 Eb5300Th | ||||
226 | 424901-2 | 1.72 | 2.08 | |
Luchtfilterpakking Eb5300Th | ||||
227 | 424899-3 | 2.80 | 3.39 | |
Inbusbout 5x20 | ||||
228 | 922232-8 | 1.01 | 1.22 | |
Doorvoer | ||||
229 | 424623-4 | 0.83 | 1.00 | |
Inbusbout 5x20 | ||||
230 | 922232-8 | 1.01 | 1.22 | |
Spruitstuk Eb5300Th | ||||
231 | 456997-5 | 6.58 | 7.96 | |
Chokeklep Eb5300Th | ||||
232 | 456998-3 | 0.83 | 1.00 | |
Trekontlaster | ||||
241 | 687682-1 | 0.83 | 1.00 | |
Tapschroef 4X14 Ga7020 A | ||||
242 | 266385-6 | 0.83 | 1.00 | |
Vastzetschroef | ||||
250 | 266795-7 | 2.56 | 3.10 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
251 | 264065-8 | |||
Afstelschroef Rbc230 A | ||||
252 | 266704-6 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
253 | 346491-4 | |||
Zwenkelement | ||||
254 | 325922-6 | 4.26 | 5.15 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
255 | 413140-9 | |||
Seegering E-3 A | ||||
256 | 257964-1 | 2.08 | 2.52 | |
Pakking ring | ||||
257 | 424444-4 | 2.44 | 2.95 | |
Drukveer 5-9mm | ||||
258 | 234183-6 | 2.93 | 3.55 | |
Membraampakking | ||||
261 | 442155-9 | 2.44 | 2.95 | |
Pomp diafragma | ||||
262 | WJ00009599 | 4.08 | 4.94 | |
Pomphuis Eb5300Th | ||||
263 | WJ00059242 | 14.23 | 17.22 | |
Pakking Ht2350/60D A | ||||
264 | 442183-4 | 2.08 | 2.52 | |
Membraam | ||||
265 | 168620-7 | 14.23 | 17.22 | |
Deksel Ea3201S A | ||||
266 | WJ00021158 | 2.16 | 2.61 | |
Schroef | ||||
267 | WJ00096325 | 1.72 | 2.08 | |
Veer | ||||
268 | WJ00983160 | 1.72 | 2.08 | |
Schroef | ||||
269 | WJ00096424 | 1.43 | 1.73 | |
Pen Dcs230T A | ||||
270 | WJ00014477 | 2.80 | 3.39 | |
Stelvork | ||||
271 | WJ00016648 | 2.08 | 2.52 | |
Vlotternaald | ||||
272 | WJ00008282 | 7.44 | 9.00 | |
Inlaatzeef | ||||
273 | WJ00014070 | 1.72 | 2.08 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
280 | 123986-2 | |||
Benzineleiding Compl Eb5300Th | ||||
281 | 135838-5 | 11.16 | 13.50 |
