Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000463184 ( AP14-2200E )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

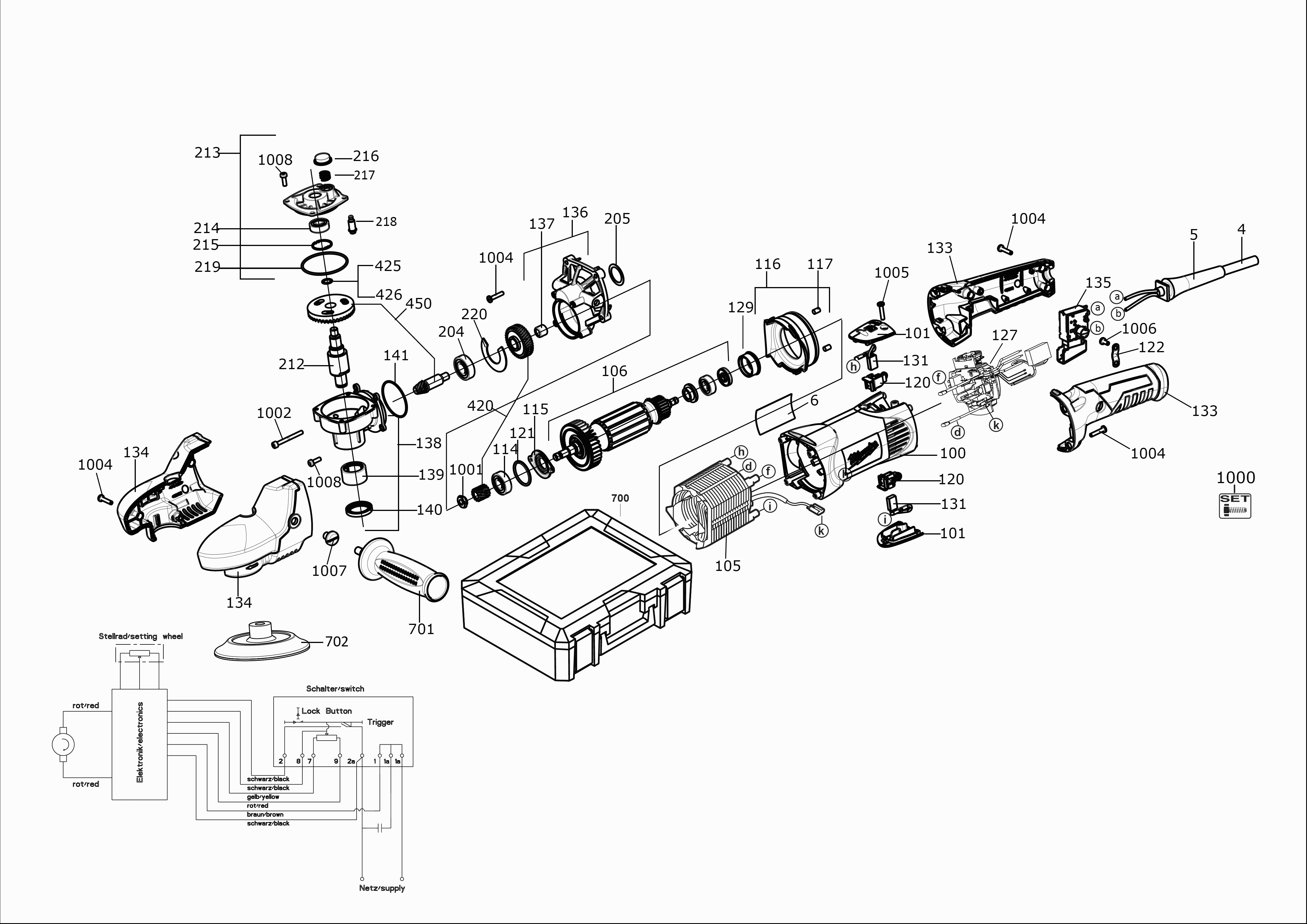

Tekeningen van de Milwaukee 4000463184 ( AP14-2200E )
Onderdelen lijst van de Milwaukee 4000463184 ( AP14-2200E )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931624741 | 57.02 | 68.99 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931359575 | 5.40 | 6.53 | |
| RATING PLATE | ||||
| 0006 | 4931463182 | 1.80 | 2.18 | |
| HOUSING SET ASSY | ||||
| 0100 | 4931432849 | 20.59 | 24.91 | |
| COVER | ||||
| 0101 | 4931378566 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931463366 | 66.53 | 80.50 | |
| ARMATURE ASSEMBLY | ||||
| 0106 | 4931442923 | 88.70 | 107.33 | |
| GROOVED BALL BEAR, | ||||
| 0114 | 4931368037 | 5.40 | 6.53 | |
| BEARING COVER | ||||
| 0115 | 4931432843 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931378135 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 5.40 | 6.53 | |
| BRUSH HOLDER | ||||
| 0120 | 4931382268 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0121 | 4931623961 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0122 | 4931256500 | 5.40 | 6.53 | |
| ELECTRONIC ELEMENT | ||||
| 0127 | 4931463364 | 93.46 | 113.09 | |
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931381391 | 14.40 | 17.42 | |
| HANDLE HALF | ||||
| 0133 | 4931432810 | 14.40 | 17.42 | |
| GEAR BOX | ||||
| 0134 | 4931432820 | 15.84 | 19.17 | |
| POTENTIOMETER | ||||
| 0135 | 4931432833 | 16.20 | 19.60 | |
| GEAR BOX | ||||
| 0136 | 4931432834 | 50.69 | 61.33 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0137 | 4931912093 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0138 | 4931432835 | 41.18 | 49.83 | |
| NEEDLE BEARING | ||||
| 0139 | 4931624726 | 9.00 | 10.89 | |
| SEAL RING N874724 22X30X4 | ||||
| 0140 | 4931928566 | 9.00 | 10.89 | |
| O-RING | ||||
| 0141 | 4931624728 | 1.20 | 1.45 | |
| BALL BEARING | ||||
| 0204 | 4931624724 | 9.00 | 10.89 | |
| WASHER | ||||
| 0205 | 4931362085 | 1.80 | 2.18 | |
| SPINDLE | ||||
| 0212 | 4931432828 | 10.80 | 13.07 | |
| GEAR BOX COVER | ||||
| 0213 | 4931432832 | 33.26 | 40.24 | |
| BALL BEARING | ||||
| 0214 | 4931624725 | 9.00 | 10.89 | |
| LOCKING RING D 472 22X1 | ||||
| 0215 | 4931613683 | 5.40 | 6.53 | |
| COVER | ||||
| 0216 | 4931432839 | 1.20 | 1.45 | |
| PRESSURE SPRING | ||||
| 0217 | 4931303788 | 4.49 | 5.43 | |
| LOCKING BOLT | ||||
| 0218 | 4931362321 | 4.49 | 5.43 | |
| SEAL RING N874701 40X2 | ||||
| 0219 | 4931623679 | 4.49 | 5.43 | |
| CUP SPRING | ||||
| 0220 | 4931432840 | 1.80 | 2.18 | |
| SPINDLE GEAR | ||||
| 0420 | 4931442379 | 28.51 | 34.50 | |
| DISC N874237 8,1X12X0,1 | ||||
| 0425 | 4931808410 | 4.49 | 5.43 | |
| DISC N874237 8,1X12X0,2 | ||||
| 0426 | 4931908727 | 4.49 | 5.43 | |
| BEVEL GEAR PAIR | ||||
| 0450 | 4931442378 | 50.69 | 61.33 | |
| Transportkoffer Milwaukee (maat 2) | ||||
| 0700 | 4932383162 | 67.96 | 82.23 | |
| HOLDING GRIP | ||||
| 0701 | 4931369805 | 4.49 | 5.43 | |
| Polijststeunschijf 125 mm | ||||
| 0702 | 4932430394 | 31.93 | 38.64 | |
| CONNECTION SET | ||||
| 1000 | 4931432799 | 7.80 | 9.44 | |
| NUT | ||||
| 1001 | 4931326952 | 5.40 | 6.53 | |
| SCREW | ||||
| 1002 | 4931624732 | 1.80 | 2.18 | |
| SCREW N874101-1 SHR H-K4X18 T15 | ||||
| 1004 | 4931624515 | 1.80 | 2.18 | |
| SCREW | ||||
| 1005 | 4931623591 | 1.80 | 2.18 | |
| SCREW | ||||
| 1006 | 4931624538 | 1.80 | 2.18 | |
| SCREW | ||||
| 1007 | 4931624733 | 1.20 | 1.45 | |
| SCREW | ||||
| 1008 | 4931624581 | 1.80 | 2.18 | |
