Milwaukee K1528H IN2 tekeningen en onderdelen

Zoek naar onderdelen:
Milwaukee
Exact typenummer:
4000 4555 51

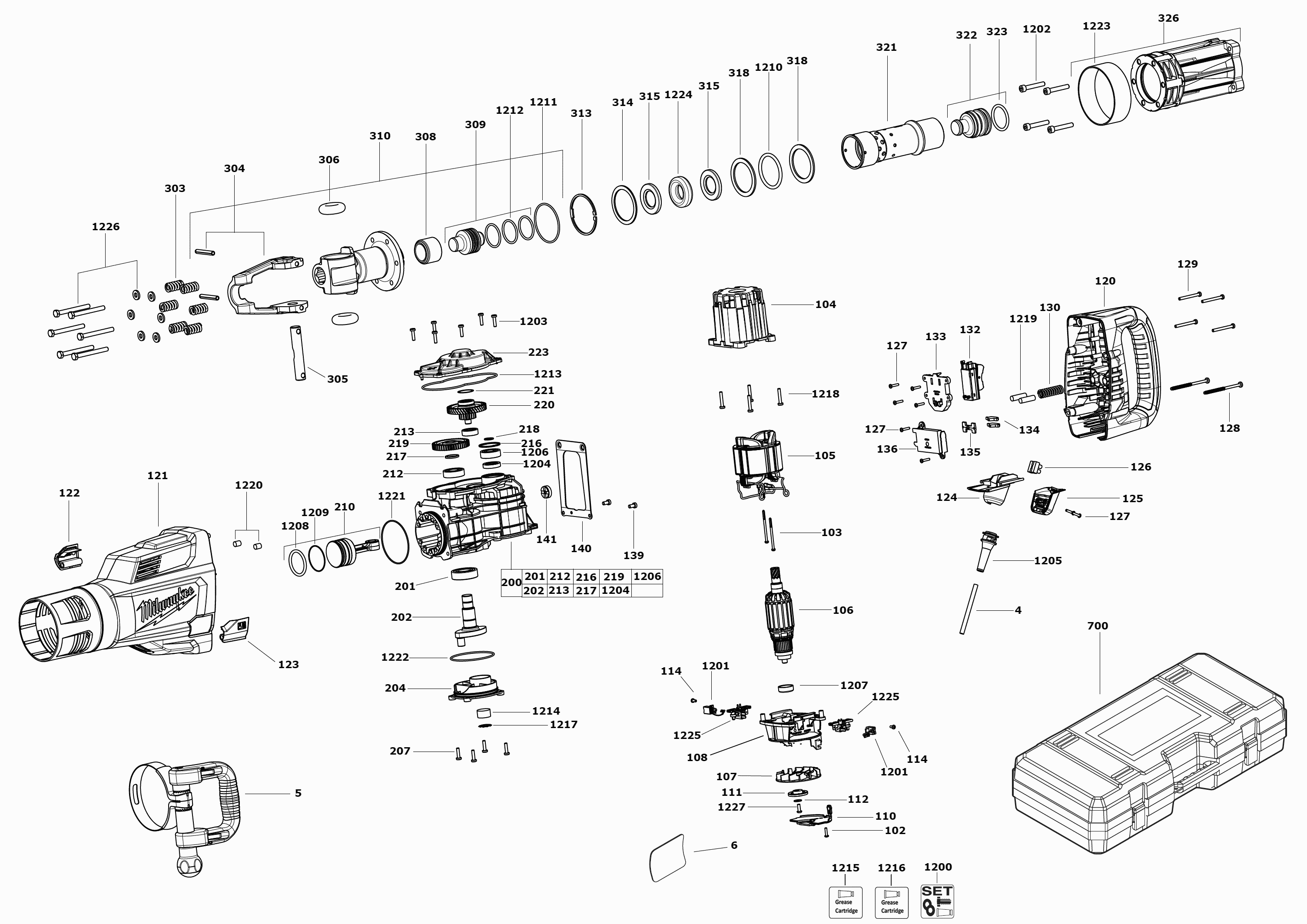

Tekeningen van de MILWAUKEE 4000455551 ( K1528HIN2 )

Onderdelen lijst van de MILWAUKEE 4000455551 ( K1528HIN2 )

Op deze pagina kunt u onderdelen toevoegen aan de winkelwagen, door het aantal te selecteren en daarna de knop erachter te klikken. Wanneer u klaar bent met het uitzoeken van de juiste onderdelen, kunt u onder aan de pagina op de knop "Uw winkelwagen" klikken. De prijzen hieronder zijn inclusief btw. Het exacte btw bedrag wordt in de winkelwagen berekend op basis van het land waarin u het pakket wenst te ontvangen.
CONNECTION CABLE
00044931624696CONNECTION CABLE€ 19.96
HANDLE
00054931455093HANDLE€ 85.18
RATING PLATE
00064931463105RATING PLATE€ 1.51
SCREW
01024931624537SCREW€ 1.51
SCREW
01034931339996SCREW€ 1.51
MOTOR HOUSING
01044931455573MOTOR HOUSING€ 13.31
FIELD EF,TRANSISTOR
01054931455516FIELD EF,TRANSISTOR€ 77.20
ARMATURE
01064931455515ARMATURE€ 117.13
FAN
01074931455525FAN€ 10.59
BRUSH MODULE
01084931455064BRUSH MODULE€ 10.59
HOLDER
01104931463938HOLDER€ 1.51
MAGNET,DISC FASTEN,
01114931455579MAGNET,DISC FASTEN,€ 3.78
WASHER
01124931455939WASHER€ 1.51
SCREW
01144931624538SCREW€ 1.51
HANDLE
01204931455577HANDLE€ 81.19
MOTOR HOUSING
01214931455536MOTOR HOUSING€ 95.83
SERVICING LID
01224931455959SERVICING LID€ 3.78
SERVICING LID
01234931455958SERVICING LID€ 3.78
GUIDE PIECE
01244931455934GUIDE PIECE€ 6.05
HOUSING COVER
01254931455997HOUSING COVER€ 4.54
TERMINAL STRIP
01264931463903TERMINAL STRIP€ 13.61
SCREW
01274931618253SCREW€ 1.51
SCREW
01284931455992SCREW€ 1.51
SCREW
01294931455929SCREW€ 1.51
PRESSURE SPRING
01304931463951PRESSURE SPRING€ 1.51
SWITCH
01324931455009SWITCH€ 33.28
SWITCH RETAINER
01334931455526SWITCH RETAINER€ 4.54
LIGHT PIPE
01344931398114LIGHT PIPE€ 4.54
HOLDER
01354931455937HOLDER€ 1.51
ELECTRONIC
01364931455538ELECTRONIC€ 73.20
SCREW
01394931455938SCREW€ 1.51
SPRING
01404931455512SPRING€ 12.10
SPRING
01414931455587SPRING€ 3.02
GEAR BOX
02004931455893GEAR BOX€ 175.69
GROOV, BALL BEARING
02014931455896GROOV, BALL BEARING€ 13.61
CRANK WHEEL
02024931455077CRANK WHEEL€ 90.51
COVER
02044931455081COVER€ 9.08
SCREW
02074931624541SCREW€ 1.51
PISTON
02104931455906PISTON€ 54.57
GROOV, BALL BEARING
02124931455897GROOV, BALL BEARING€ 10.59
GROOV, BALL BEARING
02134931455895GROOV, BALL BEARING€ 6.05
PROTECTION WASHER
02164931455928PROTECTION WASHER€ 1.51
SPACER
02174931455951SPACER€ 1.51
RING D471 17X1
02184931605204RING D471 17X1€ 1.51
WHEEL
02194931455058WHEEL€ 27.95
GEAR
02204931455055GEAR€ 83.85
DISC 31,7X26,5X0,4
02214931881678DISC 31,7X26,5X0,4€ 1.51
GEAR BOX COVER
02234931455892GEAR BOX COVER€ 26.62
PRESSURE SPRING
03034931463959PRESSURE SPRING€ 6.05
HOLDING BRACKET
03044931468942HOLDING BRACKET€ 103.82
LOCKING BOLT
03054931455903LOCKING BOLT€ 18.63
DAMPING RING
03064931463967DAMPING RING€ 10.59
STOP WASHER
03084931463943STOP WASHER€ 30.61
SNAP DIE
03094931455079SNAP DIE€ 39.93
TOOL ACCEPTANCE
03104931455594TOOL ACCEPTANCE€ 515.10
PROTECTION WASHER
03134931455990PROTECTION WASHER€ 2.27
ATTACHMENT RING
03144931455989ATTACHMENT RING€ 4.54
BACK-PRESSURE RING
03154931455068BACK-PRESSURE RING€ 15.97
ATTACHMENT RING
03184931463992ATTACHMENT RING€ 4.54
SPINDLE SLEEVE
03214931455590SPINDLE SLEEVE€ 224.94
PERCUSSION BODY
03224931455596PERCUSSION BODY€ 87.85
PISTONRING
03234931455926PISTONRING€ 6.05
GEAR BOX ASSY
03264931455947GEAR BOX ASSY€ 107.81
CARRYING CASE
07004931463094CARRYING CASE€ 179.68
MAINTENANCE SET
12004931468749MAINTENANCE SET€ 182.35
CARBON BRUSH SET
12014931468438CARBON BRUSH SET€ 5.32
SCREW
12024931463944SCREW€ 1.51
SCREW
12034931624541SCREW€ 1.51
PISTONRING
12044931455927PISTONRING€ 3.78
PROTECTING COVER
12054931392174PROTECTING COVER€ 4.54
BALL BEARING
12064931455898BALL BEARING€ 9.08
RUBBER SLEEVE
12074931455066RUBBER SLEEVE€ 1.51
PISTONRING
12084931455926PISTONRING€ 6.05
PISTONRING
12094931455908PISTONRING€ 1.51
PISTONRING
12104931455913PISTONRING€ 1.51
PISTONRING
12114931463969PISTONRING€ 1.51
SEAL RING
12124931463929SEAL RING€ 3.02
SEAL
12134931455539SEAL€ 5.30
FELT
12144931455541FELT€ 1.51
GREASE TUBE
12154931432782GREASE TUBE€ 12.10
GREASE
12164931455865GREASE€ 19.96
RING
12174931455961RING€ 1.51
SCREW D 912 AM 5X50
12184931624075SCREW D 912 AM 5X50€ 1.51
DAMPING ELEMENT
12194931455542DAMPING ELEMENT€ 1.51
DAMPING ELEMENT
12204931455932DAMPING ELEMENT€ 1.51
PISTONRING
12214931468797PISTONRING€ 1.51
PISTONRING
12224931455917PISTONRING€ 1.51
GUIDE SLEEVE
12234931463941GUIDE SLEEVE€ 6.05
CORE LIFTER RING
12244931455067CORE LIFTER RING€ 6.05
BRUSH HOLDER
12254931463990BRUSH HOLDER€ 118.46
REPAIR KIT
12264931468943REPAIR KIT€ 82.52
SCREW
12274931455991SCREW€ 3.78
