Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3600HB9605 ( ADVANCEDROTAK36-660 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

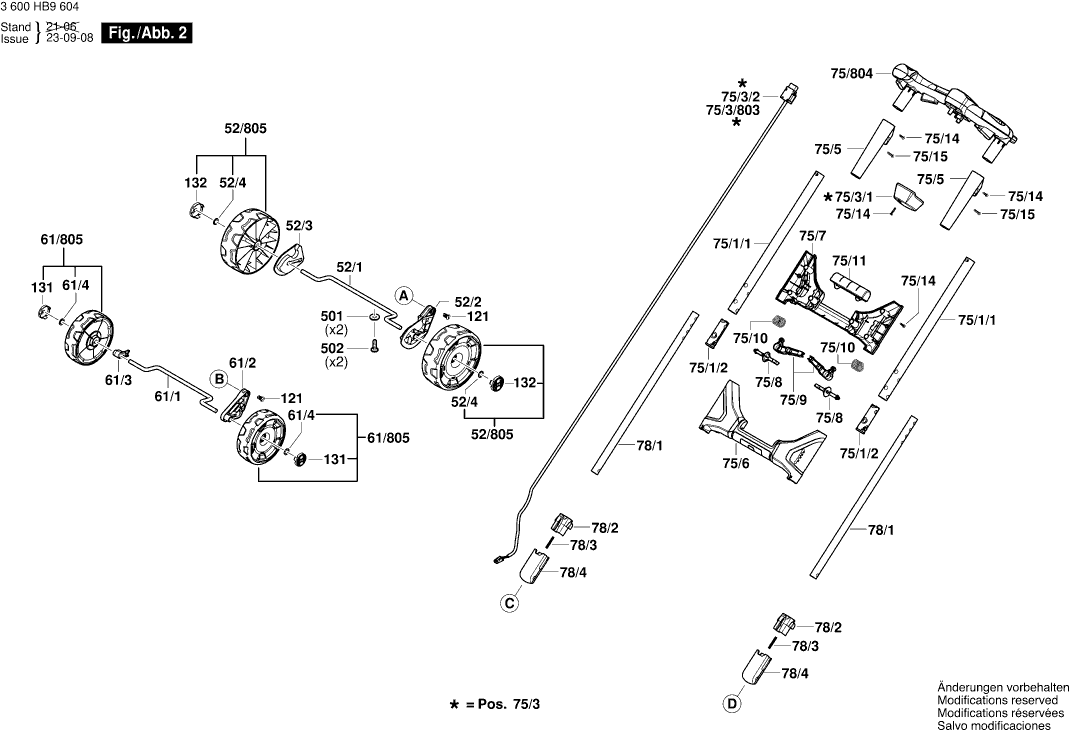

Tekeningen van de Bosch 3600HB9605 ( ADVANCEDROTAK36-660 )
Onderdelen lijst van de Bosch 3600HB9605 ( ADVANCEDROTAK36-660 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SCHROEF | ||||
| 3 | 160343003T | 1.00 | 1.21 | |
| TORX-FLENSSCHROEF | ||||
| 32 | F016L69108 | 1.00 | 1.21 | |
| LEIDINGHOUDER | ||||
| 39/16 | F016L66895 | 1.00 | 1.21 | |
| SPANHEFBOOM | ||||
| 39/801 | F016105363 | 3.71 | 4.49 | |
| MAAIERHUIS /46 | ||||
| 40 | F016L90982 | 26.62 | 32.21 | |
| MAAIERHUIS /38 | ||||
| 40 | F016L90981 | 22.88 | 27.68 | |
| APPARATUURHUIS 42 CM | ||||
| 41 | F016L69359 | 37.50 | 45.38 | |
| APPARATUURHUIS 38 CM | ||||
| 41 | F016L69357 | 33.33 | 40.33 | |
| MOTORKAP | ||||
| 43/1 | F016L90017 | 15.61 | 18.89 | |
| SIERROOSTER PRINTED | ||||
| 43/10 | F016L91059 | 15.61 | 18.89 | |
| ZELFKLEVENDE PLAAT L/H | ||||
| 43/11 | F016L90076 | 2.18 | 2.64 | |
| ZELFKLEVENDE PLAAT | ||||
| 43/11 | 160111C3G3 | 2.18 | 2.64 | |
| ZELFKLEVENDE PLAAT | ||||
| 43/12 | 160111C3G4 | 2.18 | 2.64 | |
| ZELFKLEVENDE PLAAT R/H | ||||
| 43/12 | F016L90077 | 2.18 | 2.64 | |
| AFDEKSCHERM | ||||
| 43/13 | F016L90021 | 1.90 | 2.30 | |
| SLEUTEL | ||||
| 43/14 | F016L90054 | 6.53 | 7.90 | |
| ACTIVEERHENDEL | ||||
| 43/15 | F016L90773 | 5.96 | 7.21 | |
| VEER | ||||
| 43/16 | F016L90701 | 1.00 | 1.21 | |
| SCHAKELAARGELEIDING | ||||
| 43/17 | F016L90777 | 5.96 | 7.21 | |
| KABELBOOM | ||||
| 43/18 | F016L90833 | 17.60 | 21.30 | |
| BATTERIJHUIS | ||||
| 43/19 | F016L90057 | 10.68 | 12.92 | |
| HANDGREEP | ||||
| 43/2 | F016L90018 | 1.32 | 1.60 | |
| TORX-FLENSSCHROEF | ||||
| 43/20 | F016L68124 | 1.00 | 1.21 | |
| TRANSPARANT DEKSEL INDOW | ||||
| 43/4 | F016L90432 | 1.32 | 1.60 | |
| AFLEESINSTRUMENT /38 | ||||
| 43/5 | F016L90433 | 3.04 | 3.68 | |
| AFLEESINSTRUMENT /46 | ||||
| 43/5 | F016L90434 | 1.00 | 1.21 | |
| TOETS | ||||
| 43/6 | 1600A022AC | 1.90 | 2.30 | |
| VEER | ||||
| 43/7 | F016L90071 | 1.00 | 1.21 | |
| VEER | ||||
| 43/7 | F016L91168 | 1.00 | 1.21 | |
| BESCHERMLAP | ||||
| 43/8 | F016L90022 | 6.53 | 7.90 | |
| VEER | ||||
| 43/9 | F016L90868 | 1.32 | 1.60 | |
| SCHARNIERDEEL NK ARM 42/46 | ||||
| 49 | F016L90028 | 8.48 | 10.26 | |
| SCHARNIERDEEL NK ARM 36/38 | ||||
| 49 | F016L90027 | 7.32 | 8.86 | |
| AS /38 CM REAR | ||||
| 52/1 | F016L90005 | 4.58 | 5.54 | |
| AS /46 CM REAR | ||||
| 52/1 | F016L90007 | 4.58 | 5.54 | |
| SCHARNIERHELFT HOC LEVER | ||||
| 52/2 | F016L90033 | 1.32 | 1.60 | |
| SCHARNIERHELFT PACER | ||||
| 52/3 | F016L90037 | 1.32 | 1.60 | |
| WIEL 165MM BLACK | ||||
| 52/805 | F016105108 | 8.48 | 10.26 | |
| WIEL EAR | ||||
| 52/805 | F016104422 | 7.32 | 8.86 | |
| MAAIMES CM P2 | ||||
| 55 | F016L90159 | 17.60 | 21.30 | |
| MAAIMES CM P1 | ||||
| 55 | F016L90158 | 15.61 | 18.89 | |
| VERENDE SLUITRING | ||||
| 58 | F016L66173 | 1.32 | 1.60 | |
| BOUT | ||||
| 59 | F016L66141 | 2.18 | 2.64 | |
| AS /46 CM FRONT | ||||
| 61/1 | F016L90006 | 4.58 | 5.54 | |
| AS /38 CM FRONT | ||||
| 61/1 | F016L90004 | 3.71 | 4.49 | |
| SCHARNIERHELFT HOC LEVER | ||||
| 61/2 | F016L90032 | 1.32 | 1.60 | |
| AFTANDSSTUK RONT | ||||
| 61/3 | F016L90036 | 1.00 | 1.21 | |
| ARRETEERKAP MM AXLE | ||||
| 61/4 | F016L68095 | 1.32 | 1.60 | |
| WIEL BUSHED BLACK | ||||
| 61/805 | F016105110 | 7.32 | 8.86 | |
| HANDGREEP | ||||
| 75/1 | F016L90608 | 13.90 | 16.82 | |
| HANDGREEP UBE | ||||
| 75/1/1 | F016L90012 | 13.90 | 16.82 | |
| LAGERBUS | ||||
| 75/1/2 | F016L90064 | 1.32 | 1.60 | |
| DRUKVEER | ||||
| 75/10 | F016L90074 | 1.00 | 1.21 | |
| KNOP HING UNIT/GREY | ||||
| 75/11 | F016L91039 | 1.90 | 2.30 | |
| SCHROEF | ||||
| 75/14 | F016L36542 | 2.18 | 2.64 | |
| TORX-FLENSSCHROEF | ||||
| 75/15 | F016L68124 | 1.00 | 1.21 | |
| BEDRADINGEENHEID | ||||
| 75/3 | F016L90849 | 15.61 | 18.89 | |
| BEDRADINGEENHEID | ||||
| 75/3 | F016L90850 | 15.61 | 18.89 | |
| CONNECTORHUIS | ||||
| 75/3/1 | F016L67218 | 4.58 | 5.54 | |
| Niet meer leverbaar, geen vervanging | ||||
| 75/3/2 | F016L90847 | |||
| SCHAKELAARSET | ||||
| 75/3/803 | F016104163 | 12.21 | 14.77 | |
| KABELGELEIDING | ||||
| 75/3/804 | F016104213 | 7.32 | 8.86 | |
| HULS | ||||
| 75/5 | F016L90070 | 1.90 | 2.30 | |
| HANDGREEP | ||||
| 75/6 | F016L90066 | 4.58 | 5.54 | |
| HANDGREEP NG REAR | ||||
| 75/7 | F016L90067 | 5.27 | 6.38 | |
| SLUITPEN | ||||
| 75/8 | F016L90068 | 1.32 | 1.60 | |
| MOEROPNAME | ||||
| 75/802 | F016105314 | 2.52 | 3.05 | |
| SCHAKELAARMONTAGE | ||||
| 75/804 | F016105448 | 26.62 | 32.21 | |
| HULS | ||||
| 75/805 | F016104361 | 3.71 | 4.49 | |
| HENDEL HING UNIT | ||||
| 75/9 | F016L91109 | 2.52 | 3.05 | |
| GREEPSTANG WER | ||||
| 78/1 | F016L90013 | 10.68 | 12.92 | |
| HOUDERARM | ||||
| 78/1 | F016L91163 | 1.32 | 1.60 | |
| HANDGREEP M L/H | ||||
| 78/2 | F016L90890 | 8.48 | 10.26 | |
| AFDRUKVOORZIENING | ||||
| 78/2 | F016L90063 | 1.32 | 1.60 | |
| SCHROEF | ||||
| 78/3 | F016L36542 | 2.18 | 2.64 | |
| DRUKVEER | ||||
| 78/3 | F016L90841 | 1.00 | 1.21 | |
| AFDRUKVOORZIENING | ||||
| 78/4 | F016L90062 | 2.18 | 2.64 | |
| HOUDERARM NDLE | ||||
| 78/6 | F016L90082 | 5.27 | 6.38 | |
| SCHARNIERPEN CM | ||||
| 78/7 | F016L90014 | 1.00 | 1.21 | |
| HOUDERARM | ||||
| 79/1 | F016L91164 | 1.32 | 1.60 | |
| Niet meer leverbaar, geen vervanging | ||||
| 79/2 | F016L90891 | |||
| BALANCEERSTUKKEN | ||||
| 99 | F016L69400 | 17.60 | 21.30 | |
| MACHINE-CLIP | ||||
| 121 | F016L91066 | 1.00 | 1.21 | |
| VEER ALANCE | ||||
| 122 | F016L90072 | 2.52 | 3.05 | |
| VEER | ||||
| 122 | F016L59327 | 2.52 | 3.05 | |
| KUNSTSTOF INZETSTUK L 38 | ||||
| 123 | F016L90553 | 2.18 | 2.64 | |
| TOETS H | ||||
| 125 | F016L90197 | 1.90 | 2.30 | |
| TOETS H | ||||
| 126 | F016L90198 | 1.90 | 2.30 | |
| AFDEKDOP | ||||
| 131 | F016L68116 | 1.00 | 1.21 | |
| AFDEKDOP | ||||
| 132 | F016L68116 | 1.00 | 1.21 | |
| AFDEKKING H | ||||
| 160 | F016L90060 | 2.18 | 2.64 | |
| AFDEKKING H | ||||
| 161 | F016L90061 | 2.18 | 2.64 | |
| TORX-LENSKOPSCHROEF | ||||
| 163 | 1613490011 | 1.90 | 2.30 | |
| SCHROEFDRVOERINGSSCHROEF | ||||
| 501 | 2603410048 | 1.32 | 1.60 | |
| ONDERLEGSCHIJF 25 X 1.5THK | ||||
| 501 | 8716107299 | 1.00 | 1.21 | |
| ZELFTAPPENDE SCHROEF | ||||
| 502 | F016L37433 | 1.00 | 1.21 | |
| SCHROEFDRVOERINGSSCHROEF | ||||
| 503 | 2603410048 | 1.32 | 1.60 | |
| ACCUPAKKET | ||||
| 650 | 1607A350RC | 340.97 | 412.57 | |
| Accupakket | ||||
| 650 | 1607A3504P | 286.44 | 346.59 | |
| ACCUPAKKET | ||||
| 650 | 1607A350R2 | 262.05 | 317.08 | |
| Accu | ||||
| 650 | 2607336913 | 187.62 | 227.02 | |
| SNELLADER | ||||
| 651 | 2607226273 | 61.93 | 74.94 | |
| AFBUIGPLAAT BLY P1 | ||||
| 652 | F016L90830 | 17.60 | 21.30 | |
| AFBUIGPLAAT BLY P1 | ||||
| 652 | F016L90829 | 15.61 | 18.89 | |
| GELIJKSTROOMMOTOR | ||||
| 801 | 1607000E85 | 146.07 | 176.74 | |
| WARMTEGELEIDENDE FOLIE | ||||
| 801/19 | 1600A01Z1R | 7.32 | 8.86 | |
| EL.MODULE | ||||
| 802 | F016105439 | 55.56 | 67.23 | |
| TYPEPLAAT | ||||
| 808 | 160111A7C1 | 2.18 | 2.64 | |
| OPVANGMAND | ||||
| 883 | F016105378 | 61.93 | 74.94 | |
| OPVANGMAND | ||||
| 883 | F016105377 | 55.56 | 67.23 | |
| STEKKERPEN | ||||
| 883/1/10 | F016L91107 | 2.52 | 3.05 | |
| BUSINZETSTUK | ||||
| 883/1/11 | F016L91108 | 2.52 | 3.05 | |
| HANDGREEP RASSBOX | ||||
| 883/1/2 | F016L90040 | 1.32 | 1.60 | |
| AFDEKKING | ||||
| 883/1/3 | F016L90557 | 1.90 | 2.30 | |
| OPLEGPLAAT | ||||
| 883/1/4 | F016L91038 | 1.00 | 1.21 | |
