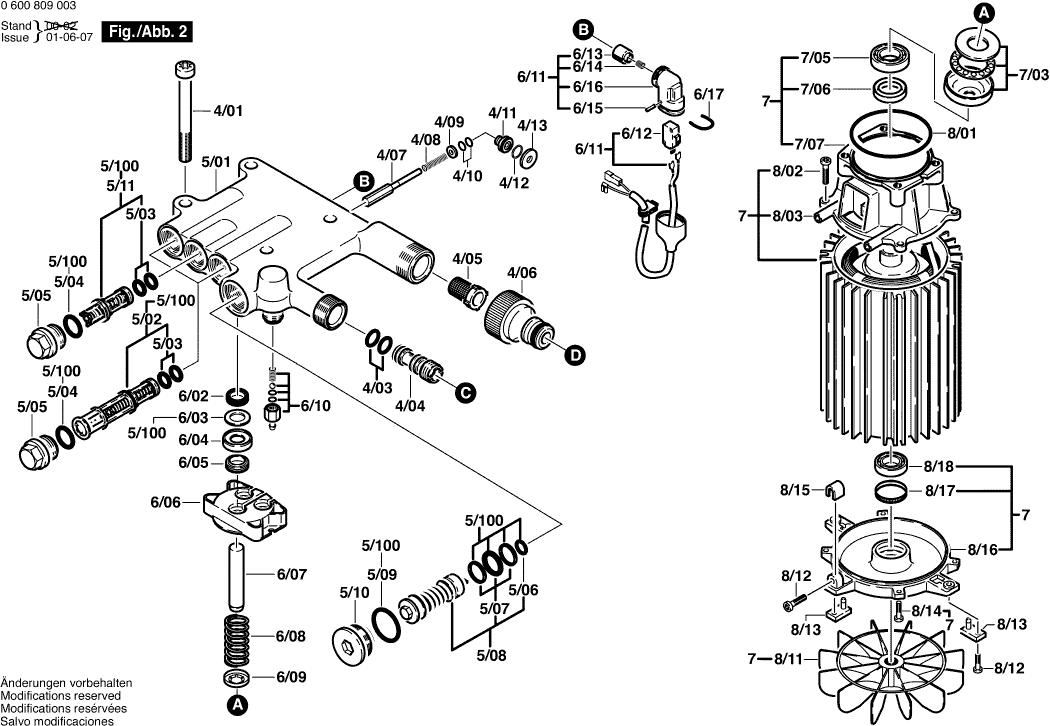

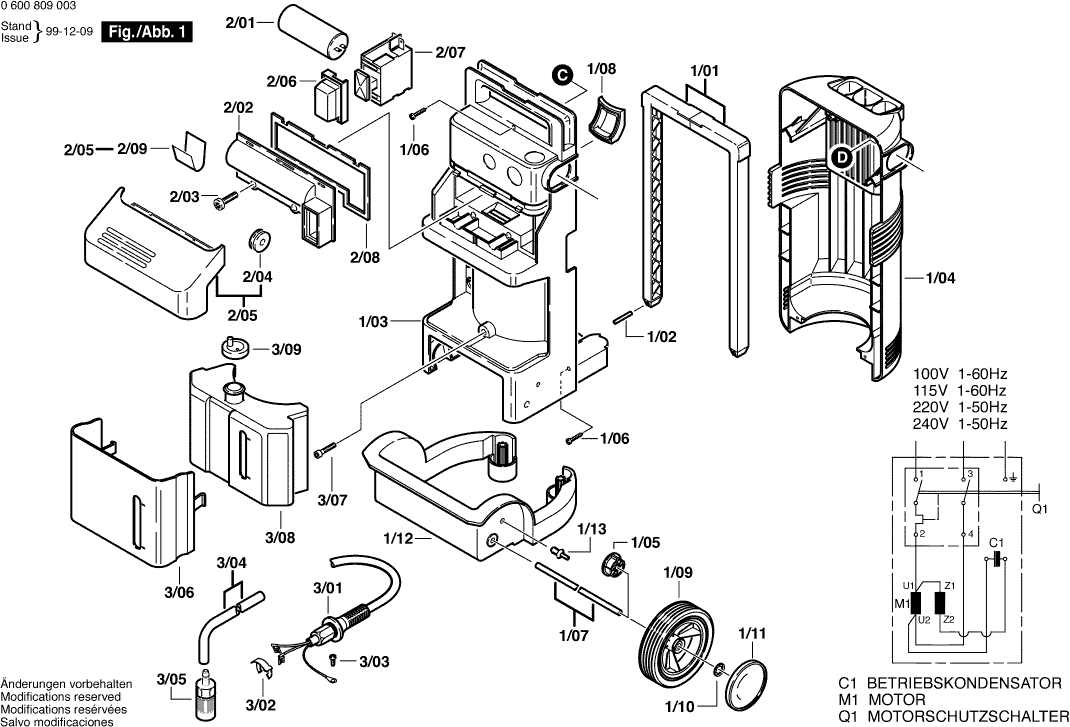

Tekeningen van de Bosch 0600809003 ( AHR1500AS )
Onderdelen lijst van de Bosch 0600809003 ( AHR1500AS )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Hendel | ||||
| 1/01 | F016102533 | 15.71 | 19.01 | |
| Knevelkerfstift 5,0x3,5 MM | ||||
| 1/02 | F016102627 | 1.18 | 1.43 | |
| Afdekkap | ||||
| 1/03 | F016102556 | 55.25 | 66.85 | |
| Afdekkap | ||||
| 1/04 | F016102557 | 67.25 | 81.37 | |
| Vormdeel | ||||
| 1/05 | F016102549 | 3.31 | 4.01 | |
| Schroef 4,2x22 MM | ||||
| 1/06 | F016102401 | 1.70 | 2.06 | |
| As | ||||
| 1/07 | F016102559 | 8.45 | 10.22 | |
| Afdichting | ||||
| 1/08 | F016102575 | 5.83 | 7.05 | |
| Wiel | ||||
| 1/09 | F016102610 | 7.58 | 9.17 | |
| Bevestigingsdeel | ||||
| 1/10 | F016102590 | 1.18 | 1.43 | |
| Kap | ||||
| 1/11 | F016102697 | 2.71 | 3.28 | |
| Bekleding | ||||
| 1/12 | F016102548 | 15.71 | 19.01 | |
| Splijtnagel 6,0 MM | ||||
| 1/13 | F016102618 | 1.18 | 1.43 | |
| Condensator 40MF | ||||
| 2/01 | F016102624 | 15.71 | 19.01 | |
| Schakelaarafdekking | ||||
| 2/02 | F016102655 | 11.88 | 14.37 | |
| Lenskopschroef M5x34 MM | ||||
| 2/03 | F016102588 | 1.94 | 2.35 | |
| Nok | ||||
| 2/04 | F016102564 | 2.24 | 2.71 | |
| TASTKNOP | ||||
| 2/05 | F016102656 | 11.88 | 14.37 | |
| Veiligheidsdeksel | ||||
| 2/06 | F016102616 | 4.10 | 4.96 | |
| Schakelaar | ||||
| 2/07 | F016102615 | 33.45 | 40.47 | |
| Platte Pakkingsring | ||||
| 2/08 | F016102574 | 6.54 | 7.91 | |
| Bladveer | ||||
| 2/09 | F016102572 | 2.71 | 3.28 | |
| Kabel | ||||
| 3/01 | F016102619 | 33.45 | 40.47 | |
| Zekering | ||||
| 3/02 | F016102591 | 2.24 | 2.71 | |
| Schroef | ||||
| 3/03 | F016102657 | 0.83 | 1.00 | |
| Slang | ||||
| 3/04 | F016102605 | 4.10 | 4.96 | |
| Filter | ||||
| 3/05 | F016102545 | 6.54 | 7.91 | |
| Carterdeksel | ||||
| 3/06 | F016102555 | 15.71 | 19.01 | |
| Schroef M6x22 MM | ||||
| 3/07 | F016102587 | 1.94 | 2.35 | |
| Waterreservoir | ||||
| 3/08 | F016102558 | 20.42 | 24.71 | |
| Klep | ||||
| 3/09 | F016102609 | 5.33 | 6.45 | |
| Schroef M8x75 MM | ||||
| 4/01 | F016102626 | 1.70 | 2.06 | |
| O-ring 9x1,5 MM | ||||
| 4/03 | F016102597 | 1.70 | 2.06 | |
| Inzetstuk | ||||
| 4/04 | F016102699 | 11.88 | 14.37 | |
| Zeef | ||||
| 4/05 | F016102411 | 2.71 | 3.28 | |
| Aansluitschroefverbinding 3/4" | ||||
| 4/06 | F016102409 | 8.45 | 10.22 | |
| Stang | ||||
| 4/07 | F016102785 | 9.53 | 11.53 | |
| Veer | ||||
| 4/08 | F016102786 | 1.94 | 2.35 | |
| Schijf | ||||
| 4/09 | F016102787 | 1.94 | 2.35 | |
| O-ring | ||||
| 4/10 | F016102788 | 4.10 | 4.96 | |
| Sluitschroef | ||||
| 4/11 | F016102789 | 12.41 | 15.02 | |
| O-ring | ||||
| 4/12 | F016102855 | 2.24 | 2.71 | |
| Afdichting | ||||
| 4/13 | F016102791 | 2.24 | 2.71 | |
| Cilinderkop | ||||
| 5/01 | F016102578 | 187.62 | 227.02 | |
| Klep | ||||
| 5/02 | F016102536 | 40.61 | 49.14 | |
| O-ring 8,73x1,78 MM | ||||
| 5/03 | F016102601 | 1.70 | 2.06 | |
| O-ring 13,3x2,4 MM | ||||
| 5/04 | F016102592 | 2.24 | 2.71 | |
| Schroef | ||||
| 5/05 | F016102581 | 8.45 | 10.22 | |
| O-ring 12,0x2,0 MM | ||||
| 5/06 | F016102595 | 2.24 | 2.71 | |
| O-ring | ||||
| 5/07 | F016102700 | 2.71 | 3.28 | |
| Overloopklep 18,0x2,5 MM | ||||
| 5/08 | F016102538 | 49.56 | 59.97 | |
| O-ring 18,0x2,5 MM | ||||
| 5/09 | F016102593 | 2.24 | 2.71 | |
| Schroef | ||||
| 5/10 | F016102565 | 8.45 | 10.22 | |
| Cilinderkop | ||||
| 5/100 | F016102532 | 23.75 | 28.74 | |
| Klep | ||||
| 5/11 | F016102537 | 18.19 | 22.01 | |
| Gleufring | ||||
| 6/02 | F016102603 | 4.10 | 4.96 | |
| Schijf | ||||
| 6/03 | F016102562 | 2.24 | 2.71 | |
| Schijf | ||||
| 6/04 | F016102563 | 5.83 | 7.05 | |
| Gleufring 14x22x7 MM | ||||
| 6/05 | F016102602 | 4.10 | 4.96 | |
| Behuizing | ||||
| 6/06 | F016102552 | 26.84 | 32.48 | |
| Zuiger | ||||
| 6/07 | F016102579 | 18.19 | 22.01 | |
| Veer | ||||
| 6/08 | F016102569 | 2.71 | 3.28 | |
| Vormdeel | ||||
| 6/09 | F016102547 | 2.24 | 2.71 | |
| Reservedeelset | ||||
| 6/10 | F016102701 | 15.71 | 19.01 | |
| Schakelaar | ||||
| 6/11 | F016102539 | 20.42 | 24.71 | |
| Schakelaar | ||||
| 6/12 | F016102539 | 20.42 | 24.71 | |
| Console | ||||
| 6/13 | F016102551 | 1.94 | 2.35 | |
| Veer | ||||
| 6/14 | F016102570 | 1.94 | 2.35 | |
| Knevelkerfstift 5,0x3,5 MM | ||||
| 6/15 | F016102627 | 1.18 | 1.43 | |
| Houder | ||||
| 6/16 | F016102550 | 5.83 | 7.05 | |
| Klem | ||||
| 6/17 | F016102857 | 2.71 | 3.28 | |
| Motor | ||||
| 7 | F016S10281 | 342.01 | 413.83 | |
| TUIMELSCHIJF | ||||
| 7/03 | F016102608 | 29.75 | 36.00 | |
| Kogellager | ||||
| 7/05 | F016102630 | 18.19 | 22.01 | |
| Asafdichtring | ||||
| 7/06 | F016102604 | 6.54 | 7.91 | |
| Lagerdeksel | ||||
| 7/07 | F016102554 | 60.65 | 73.39 | |
| O-ring | ||||
| 8/01 | F016102594 | 2.24 | 2.71 | |
| Schroef M6x30 MM | ||||
| 8/02 | F016102625 | 1.70 | 2.06 | |
| Lagerdeksel | ||||
| 8/03 | F016102554 | 60.65 | 73.39 | |
| Schoepenwiel | ||||
| 8/11 | F016102582 | 13.93 | 16.86 | |
| Schroef M6x22 MM | ||||
| 8/12 | F016102587 | 1.94 | 2.35 | |
| Vulring | ||||
| 8/13 | F016102576 | 2.24 | 2.71 | |
| Schroef M6x30 MM | ||||
| 8/14 | F016102625 | 1.70 | 2.06 | |
| Rubberbuffer | ||||
| 8/15 | F016102573 | 1.94 | 2.35 | |
| Lagerdeksel | ||||
| 8/16 | F016102553 | 29.75 | 36.00 | |
| Tolerantiering | ||||
| 8/17 | F016102589 | 4.10 | 4.96 | |
| Kogellager | ||||
| 8/18 | F016102631 | 13.93 | 16.86 | |
| Hendel | ||||
| 9 | F016102666 | 101.94 | 123.35 | |
| Slang | ||||
| 10/01 | F016102667 | 49.56 | 59.97 | |
| O-ring | ||||
| 10/02 | F016102530 | 1.18 | 1.43 | |
| O-ring 9,25x1,78 MM | ||||
| 10/04 | 1609203577 | 1.18 | 1.43 | |
| SPROEIBUIS | ||||
| 10/05 | F016102668 | 113.29 | 137.08 | |
| Spuitkop | ||||
| 10/06 | F016102669 | 67.25 | 81.37 | |
