Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3600H79001 (AQUATAKCLIC125)'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

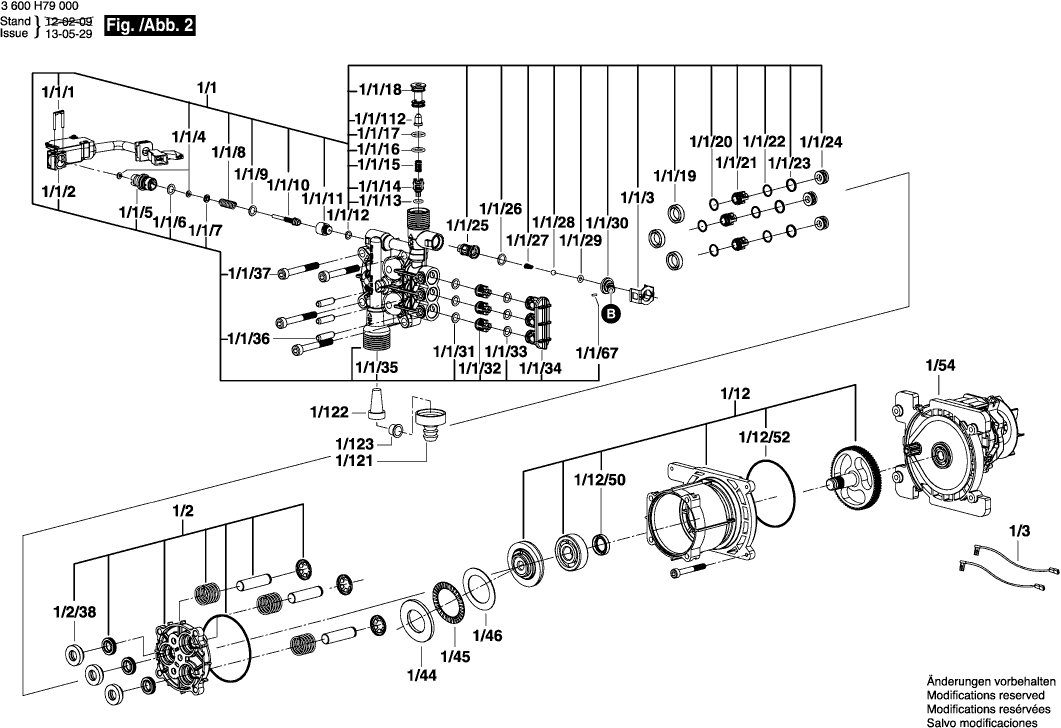

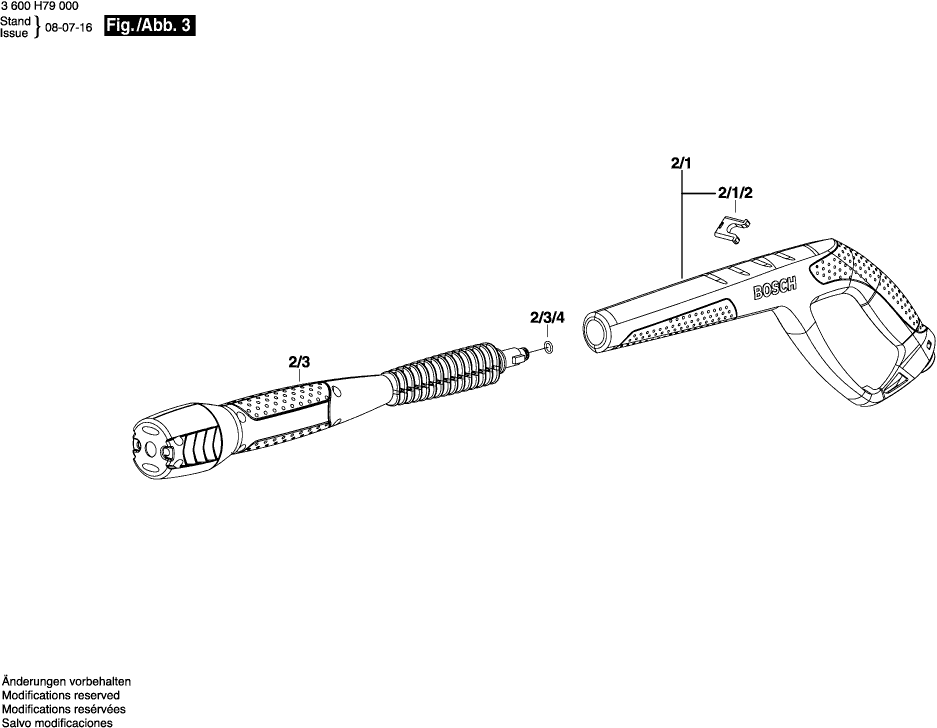

Tekeningen van de Bosch 3600H79001 (AQUATAKCLIC125)
Onderdelen lijst van de Bosch 3600H79001 (AQUATAKCLIC125)
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CILINDERKOP | ||||
| 1/1 | F016F03972 | 122.80 | 148.59 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1/1/1 | F016F03862 | |||
| Zuiger | ||||
| 1/1/10 | F016F03958 | 3.44 | 4.16 | |
| Zuiger | ||||
| 1/1/11 | F016F03944 | 2.40 | 2.90 | |
| Spuitkop | ||||
| 1/1/112 | F016F03967 | 1.49 | 1.80 | |
| O-RING | ||||
| 1/1/12 | F016F03924 | 1.00 | 1.21 | |
| O-RING | ||||
| 1/1/13 | F016F03925 | 1.00 | 1.21 | |
| KLEP | ||||
| 1/1/14 | F016F03941 | 1.00 | 1.21 | |
| DRUKVEER | ||||
| 1/1/15 | F016F03935 | 1.00 | 1.21 | |
| O-RING | ||||
| 1/1/16 | F016F03483 | 1.00 | 1.21 | |
| O-RING | ||||
| 1/1/17 | F016F03923 | 1.00 | 1.21 | |
| SPUITKOP | ||||
| 1/1/18 | F016F03945 | 1.00 | 1.21 | |
| LAGERBUS | ||||
| 1/1/19 | F016F03929 | 2.86 | 3.46 | |
| MICROSCHAKELAAR | ||||
| 1/1/2 | F016F03863 | 9.67 | 11.70 | |
| O-RING | ||||
| 1/1/20 | F016F03483 | 1.00 | 1.21 | |
| KLEP | ||||
| 1/1/21 | F016F03970 | 1.00 | 1.21 | |
| O-ring | ||||
| 1/1/22 | F016F03919 | 1.00 | 1.21 | |
| LAGERBUS | ||||
| 1/1/23 | F016F03927 | 1.00 | 1.21 | |
| VULRING | ||||
| 1/1/24 | F016F03938 | 1.00 | 1.21 | |
| Nippel | ||||
| 1/1/25 | F016F03942 | 1.49 | 1.80 | |
| O-RING | ||||
| 1/1/26 | F016F03921 | 1.00 | 1.21 | |
| DRUKVEER | ||||
| 1/1/27 | F016F03934 | 1.00 | 1.21 | |
| KOGEL | ||||
| 1/1/28 | F016F03965 | 1.00 | 1.21 | |
| O-RING | ||||
| 1/1/29 | F016F03922 | 1.00 | 1.21 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1/1/3 | F016F03864 | |||
| Nippel | ||||
| 1/1/30 | F016F03943 | 1.00 | 1.21 | |
| O-RING | ||||
| 1/1/31 | F016F03483 | 1.00 | 1.21 | |
| KLEP | ||||
| 1/1/32 | F016F03970 | 1.00 | 1.21 | |
| O-ring | ||||
| 1/1/33 | F016F03919 | 1.00 | 1.21 | |
| Afdekking | ||||
| 1/1/34 | F016F03939 | 1.49 | 1.80 | |
| REGELKOP | ||||
| 1/1/35 | F016F03932 | 43.12 | 52.18 | |
| Stekkerpen | ||||
| 1/1/36 | F016F03969 | 1.49 | 1.80 | |
| SCHROEF | ||||
| 1/1/37 | F016F03371 | 8.35 | 10.10 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1/1/4 | F016F03867 | |||
| NIPPEL | ||||
| 1/1/5 | F016F03865 | 1.00 | 1.21 | |
| O-RING | ||||
| 1/1/6 | F016F03923 | 1.00 | 1.21 | |
| Stekkerpen | ||||
| 1/1/67 | F016F04101 | 1.49 | 1.80 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1/1/7 | F016F03866 | |||
| HIJSSTANG | ||||
| 1/1/8 | 2600780149 | 23.90 | 28.92 | |
| O-RING | ||||
| 1/1/9 | F016F03926 | 2.08 | 2.52 | |
| Afdekking | ||||
| 1/100 | F016F03980 | 1.00 | 1.21 | |
| Lagerbus | ||||
| 1/101 | F016F03968 | 1.00 | 1.21 | |
| O-RING | ||||
| 1/102 | F016F03484 | 1.00 | 1.21 | |
| O-ring | ||||
| 1/103 | F016F03920 | 1.00 | 1.21 | |
| VERDEELLEIDINGSET | ||||
| 1/104 | F016F03966 | 31.42 | 38.02 | |
| Luchtverdeler | ||||
| 1/113 | F016F03959 | 4.18 | 5.06 | |
| Verpakking | ||||
| 1/113 | F016F03933 | 1.49 | 1.80 | |
| Luchtverdeler | ||||
| 1/114 | F016F03959 | 4.18 | 5.06 | |
| Verpakking | ||||
| 1/114 | F016F03933 | 1.49 | 1.80 | |
| O-RING | ||||
| 1/115 | F016F03761 | 1.00 | 1.21 | |
| SCHROEF | ||||
| 1/116 | F016F03034 | 1.00 | 1.21 | |
| Transmissiehuis | ||||
| 1/12 | F016F03974 | 71.68 | 86.73 | |
| LAGERBUS | ||||
| 1/12/50 | F016F03962 | 1.00 | 1.21 | |
| O-ring | ||||
| 1/12/52 | F016F03753 | 2.08 | 2.52 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1/121 | F016F03359 | |||
| DOORVOERFILTER | ||||
| 1/122 | F016F03884 | 1.00 | 1.21 | |
| AFSLUITSTOP | ||||
| 1/123 | F016F04130 | 1.00 | 1.21 | |
| POMPFLENS | ||||
| 1/2 | F016F03973 | 39.14 | 47.36 | |
| LAGERBUS | ||||
| 1/2/38 | F016F03963 | 4.18 | 5.06 | |
| VERBINDINGSKABEL | ||||
| 1/3 | F016F03975 | 4.94 | 5.98 | |
| Wig Tegen Wegrollen | ||||
| 1/44 | F016F03918 | 5.81 | 7.03 | |
| Lager | ||||
| 1/45 | F016F03916 | 2.08 | 2.52 | |
| Wig Tegen Wegrollen | ||||
| 1/46 | F016F03917 | 1.00 | 1.21 | |
| Elektromotor | ||||
| 1/54 | F016F03977 | 155.51 | 188.17 | |
| Afdichting | ||||
| 1/58 | F016F03928 | 4.18 | 5.06 | |
| VENTILATORHUIS | ||||
| 1/6 | F016F03976 | 18.94 | 22.92 | |
| Schroef | ||||
| 1/6/59 | F016F03989 | 1.00 | 1.21 | |
| SCHROEF | ||||
| 1/62 | F016F03517 | 2.40 | 2.90 | |
| Bak Voor Accessoires | ||||
| 1/66 | F016F03956 | 2.86 | 3.46 | |
| BAK VOOR ACCESSOIRES | ||||
| 1/66 | F016F03955 | 2.40 | 2.90 | |
| Bak Voor Accessoires | ||||
| 1/68 | F016F03956 | 2.86 | 3.46 | |
| BAK VOOR ACCESSOIRES | ||||
| 1/68 | F016F03955 | 2.40 | 2.90 | |
| BEHUIZING | ||||
| 1/7 | F016F03971 | 43.12 | 52.18 | |
| KAP | ||||
| 1/75 | F016F03951 | 1.00 | 1.21 | |
| ROL | ||||
| 1/76 | F016F03964 | 7.46 | 9.03 | |
| BAK VOOR ACCESSOIRES | ||||
| 1/80 | F016F03954 | 4.18 | 5.06 | |
| MOTORKAP | ||||
| 1/81 | F016F03961 | 3.44 | 4.16 | |
| MOTORKAP | ||||
| 1/82 | F016F03960 | 4.18 | 5.06 | |
| BAK VOOR ACCESSOIRES | ||||
| 1/83 | F016F03957 | 3.44 | 4.16 | |
| HANDGREEP | ||||
| 1/85 | F016F03948 | 10.90 | 13.19 | |
| RESERVOIR | ||||
| 1/86 | F016F03953 | 12.82 | 15.51 | |
| stop | ||||
| 1/87 | F016F03952 | 1.00 | 1.21 | |
| Buitenhuis | ||||
| 1/88/1 | F016F03981 | 16.79 | 20.32 | |
| LEID VOOR NETAANSLUITING | ||||
| 1/88/2 | F016F03982 | 98.18 | 118.80 | |
| TROMMELEENHEID | ||||
| 1/88/3 | F016F03990 | 136.48 | 165.14 | |
| HOGEDRUKSLANG | ||||
| 1/88/3/4 | F016F03983 | 136.48 | 165.14 | |
| Afdekdop | ||||
| 1/88/5 | F016F03985 | 11.37 | 13.76 | |
| O-RING | ||||
| 1/89 | F016F03509 | 1.00 | 1.21 | |
| SCHAKELKAST | ||||
| 1/90 | F016F04118 | 5.81 | 7.03 | |
| SCHAKELAARDEKSEL | ||||
| 1/91 | F016F04119 | 2.08 | 2.52 | |
| VEER | ||||
| 1/92 | F016F03937 | 1.00 | 1.21 | |
| PLATTE SCHAKELAAR | ||||
| 1/93 | F016F03931 | 6.73 | 8.14 | |
| SCHAKELAARKNOP | ||||
| 1/94 | F016F04122 | 2.86 | 3.46 | |
| VERBINDINGSKABEL | ||||
| 1/95 | F016F03930 | 8.35 | 10.10 | |
| Schroef 4x16 | ||||
| 1/97 | F016F03079 | 1.00 | 1.21 | |
| Behuizing | ||||
| 1/98 | F016F03949 | 9.67 | 11.70 | |
| HANDGREEP | ||||
| 2/1 | F016F03978 | 47.53 | 57.51 | |
| AANSLAGPLAAT | ||||
| 2/1/2 | F016F03988 | 1.00 | 1.21 | |
| LANS | ||||
| 2/3 | F016F03979 | 88.83 | 107.48 | |
| Niet meer leverbaar, geen vervanging | ||||
| 2/3/4 | F016F03541 | |||
| SLANG | ||||
| 805 | F016L72004 | 5.81 | 7.03 | |
