Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3611J13000 ( GBH18V-45C )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

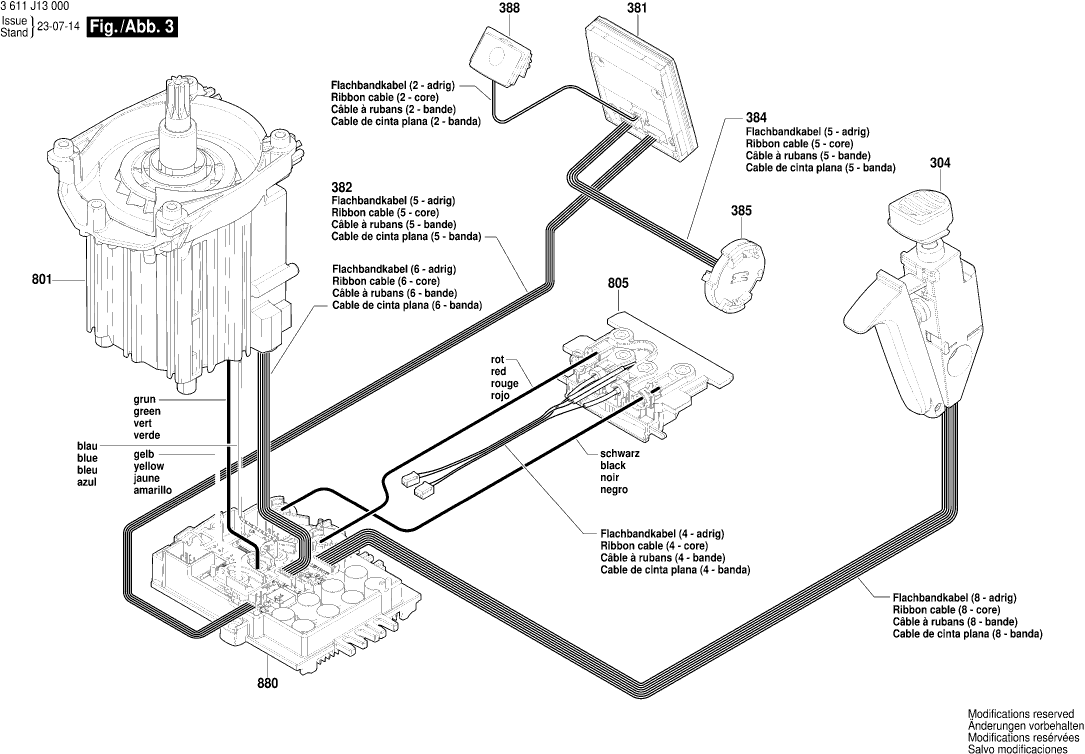

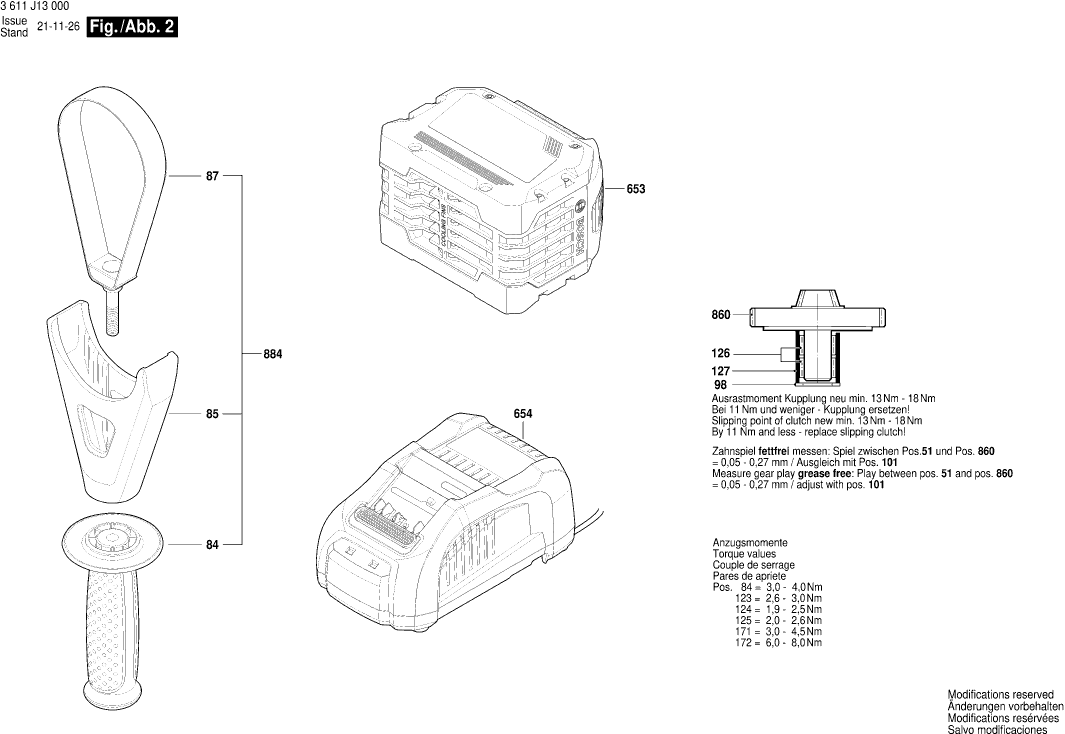

Tekeningen van de Bosch 3611J13000 ( GBH18V-45C )
Onderdelen lijst van de Bosch 3611J13000 ( GBH18V-45C )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Firmaplaat | ||||
| 9 | 160111C375@32 | 1.84 | 2.23 | |
| Firmaplaat | ||||
| 10 | 160111C376@32 | 1.84 | 2.23 | |
| Naaldlager | ||||
| 14 | 1610910096@32 | 17.13 | 20.73 | |
| Veiligheidsdop | ||||
| 21 | 1610508038@32 | 5.50 | 6.66 | |
| Beschermhuls | ||||
| 22 | 1610591051@32 | 7.96 | 9.63 | |
| Aanslaghuls | ||||
| 23 | 1610520006@32 | 13.11 | 15.86 | |
| Flensbus | ||||
| 24 | 1610500025@32 | 7.13 | 8.63 | |
| Blokkeerelement | ||||
| 25 | 1612300027@32 | 7.96 | 9.63 | |
| SCHAKELSCHIJF | ||||
| 26 | 1600A019WL@32 | 2.11 | 2.55 | |
| Drukveer | ||||
| 28 | 1614621010@32 | 3.12 | 3.78 | |
| Dempingsring | ||||
| 31 | 1610290129@32 | 5.02 | 6.07 | |
| Hamberbuis | ||||
| 35 | 1615806249@32 | 95.99 | 116.15 | |
| Stuurhuls | ||||
| 37 | 1610322018@32 | 5.50 | 6.66 | |
| Afdekkap | ||||
| 38 | 1615190177@32 | 25.28 | 30.59 | |
| MOTORKAP | ||||
| 39 | 1600A01D7B@32 | 11.68 | 14.13 | |
| MOTORAFSCHERMING | ||||
| 42 | 1600A01D7C@32 | 13.11 | 15.86 | |
| Ventilatordeksel | ||||
| 43 | 1600A01D7D@32 | 14.80 | 17.91 | |
| Drukveer | ||||
| 44 | 1614621020@32 | 1.84 | 2.23 | |
| Aandrukker | ||||
| 45 | 1610591052@32 | 1.60 | 1.94 | |
| Steunelement | ||||
| 46 | 1600A01S8V@32 | 1.60 | 1.94 | |
| Tandhuls | ||||
| 47 | 1610300076@32 | 6.16 | 7.45 | |
| Schakelring | ||||
| 48 | 1619990177@32 | 7.13 | 8.63 | |
| Kroonwiel | ||||
| 51 | 161633329D@32 | 28.01 | 33.89 | |
| Borgring | ||||
| 52 | 1610224015@32 | 0.83 | 1.00 | |
| Afstandshuls | ||||
| 54 | 1600A019Z4@32 | 2.11 | 2.55 | |
| Recht Tandwiel | ||||
| 58 | 1616317620@32 | 10.10 | 12.22 | |
| Lagerblok | ||||
| 59 | 1615805074@32 | 7.13 | 8.63 | |
| Excentertandwiel | ||||
| 72 | 1616317090@32 | 63.33 | 76.63 | |
| Extra Handgreep | ||||
| 84 | 160202507H@32 | 7.96 | 9.63 | |
| Extra Handgreep | ||||
| 84 | 160202509C@32 | 3.85 | 4.66 | |
| Gereedschapsklem | ||||
| 85 | 1618040095@32 | 4.43 | 5.36 | |
| Klemring | ||||
| 87 | 1617000807@32 | 13.11 | 15.86 | |
| Steunschijf | ||||
| 94 | 1610290111@32 | 1.60 | 1.94 | |
| Meeneembout | ||||
| 95 | 1613120023@32 | 3.12 | 3.78 | |
| Afstandsschijf | ||||
| 98 | 1610101015@32 | 1.10 | 1.33 | |
| Steun Ring | ||||
| 99 | 1600220029@32 | 2.11 | 2.55 | |
| Wig Tegen Wegrollen | ||||
| 116 | 1610190027@32 | 4.43 | 5.36 | |
| Naaldkrans | ||||
| 117 | 1610913023@32 | 13.11 | 15.86 | |
| Naaldlager | ||||
| 119 | 1610910081@32 | 11.18 | 13.53 | |
| Afstandshuls | ||||
| 120 | 1610190080@32 | 8.98 | 10.87 | |
| Afstandsring | ||||
| 122 | 1610290128@32 | 5.50 | 6.66 | |
| Schroef | ||||
| 123 | 160343003T@32 | 0.83 | 1.00 | |
| Torx-lenskopschroef | ||||
| 124 | 2603490022@32 | 0.83 | 1.00 | |
| Torx-lenskopschroef | ||||
| 125 | 1613435040@32 | 0.83 | 1.00 | |
| Lagerbus | ||||
| 127 | 1610300079@32 | 3.12 | 3.78 | |
| Lagerbus | ||||
| 129 | 1610300080@32 | 3.12 | 3.78 | |
| Afdichtschijf | ||||
| 138 | 1611015064@32 | 5.02 | 6.07 | |
| Radiaale Asafdichtring | ||||
| 142 | 1610290112@32 | 3.12 | 3.78 | |
| Snapring | ||||
| 143 | 1614601072@32 | 1.60 | 1.94 | |
| Steunschijf | ||||
| 144 | 1610103025@32 | 2.56 | 3.10 | |
| O-ring | ||||
| 151 | 1610210222@32 | 0.83 | 1.00 | |
| Snapring | ||||
| 152 | 1614601073@32 | 1.10 | 1.33 | |
| Snapring | ||||
| 153 | 2916540017@32 | 1.10 | 1.33 | |
| Borgring | ||||
| 154 | 2916660027@32 | 3.12 | 3.78 | |
| Snapring | ||||
| 155 | 1614601074@32 | 1.10 | 1.33 | |
| O-ring | ||||
| 157 | 1610210103@32 | 1.84 | 2.23 | |
| O-ring | ||||
| 158 | 1610210224@32 | 0.83 | 1.00 | |
| O-ring | ||||
| 160 | 1610210246@32 | 1.10 | 1.33 | |
| Dempingsring | ||||
| 161 | 1610210227@32 | 6.16 | 7.45 | |
| O-ring | ||||
| 162 | 1600210080@32 | 1.84 | 2.23 | |
| Afdichtring | ||||
| 165 | 1610290125@32 | 7.96 | 9.63 | |
| Cilinderton | ||||
| 166 | 1613200020@32 | 1.84 | 2.23 | |
| Radiaale Asafdichtring | ||||
| 167 | 161029012A@32 | 3.12 | 3.78 | |
| Dichtlip | ||||
| 168 | 1610206027@32 | 1.84 | 2.23 | |
| Torx-platkopschroef | ||||
| 171 | 1613414026@32 | 1.60 | 1.94 | |
| Torx-lenskopschroef | ||||
| 172 | 1613435041@32 | 1.10 | 1.33 | |
| Handgreep | ||||
| 189 | 160513217Z@32 | 6.16 | 7.45 | |
| Hendelplaat | ||||
| 190 | 1600A015RL@32 | 7.13 | 8.63 | |
| KANTELHEVELVOET | ||||
| 192 | 1600A015RV@32 | 2.11 | 2.55 | |
| Dempingsrubber | ||||
| 196 | 1600A002PC@32 | 1.10 | 1.33 | |
| Bladveer | ||||
| 197 | 160120000C@32 | 7.13 | 8.63 | |
| Achterkant Behuizing | ||||
| 204 | 1600A01A78@32 | 25.28 | 30.59 | |
| Bevestigingsstrip | ||||
| 206 | 1612386006@32 | 0.83 | 1.00 | |
| Contragewicht | ||||
| 240 | 1600A000K3@32 | 7.13 | 8.63 | |
| Geleider | ||||
| 241 | 1615190181@32 | 1.84 | 2.23 | |
| Geleider | ||||
| 242 | 1615190182@32 | 1.84 | 2.23 | |
| Drukveer | ||||
| 243 | 1614621013@32 | 1.84 | 2.23 | |
| Schakelaar | ||||
| 304 | 2607202360@32 | 6.16 | 7.45 | |
| Elektronische Module | ||||
| 381 | 16072335EP@32 | 25.28 | 30.59 | |
| Vlakke kabel | ||||
| 382 | 1607503566@32 | 1.84 | 2.23 | |
| El.module | ||||
| 383 | 1600A016CY@32 | 7.13 | 8.63 | |
| Vlakke kabel | ||||
| 384 | 1607503567@32 | 1.84 | 2.23 | |
| Elektronische Module | ||||
| 385 | 1600A013WF@32 | 28.01 | 33.89 | |
| Dekseleenheid | ||||
| 387 | 1600A01N8R@32 | 1.10 | 1.33 | |
| LED-Module | ||||
| 388 | 1600A01P8Z@32 | 4.43 | 5.36 | |
| Compensatieschijf | ||||
| 800 | 1610102096@32 | 1.10 | 1.33 | |
| Compensatieschijf | ||||
| 800 | 1610102095@32 | 0.83 | 1.00 | |
| Borstelloze DC-motor | ||||
| 801 | 1607000DN4@32 | 139.96 | 169.35 | |
| Vlakke kabel | ||||
| 802 | 1600A01R8P@32 | 3.12 | 3.78 | |
| Contacthouder | ||||
| 805 | 1607000DN6@32 | 34.69 | 41.97 | |
| Contacthouder | ||||
| 805/1 | 1607000DL8@32 | 13.11 | 15.86 | |
| Rail | ||||
| 806 | 1607000DF6@32 | 25.28 | 30.59 | |
| Typeplaat | ||||
| 808 | 160111A3H5@32 | 1.84 | 2.23 | |
| Geleidingsband | ||||
| 820 | 1618597102@32 | 106.68 | 129.08 | |
| Glijlager | ||||
| 821 | 1610508058@32 | 22.36 | 27.06 | |
| Slagwerkhuis | ||||
| 840 | 1617000A29@32 | 159.00 | 192.39 | |
| Slagbout | ||||
| 841 | 1617000A4R@32 | 46.67 | 56.47 | |
| Schakelvork | ||||
| 849 | 1617000A31@32 | 5.50 | 6.66 | |
| Geleidingsbus | ||||
| 853 | 1610231004@32 | 22.36 | 27.06 | |
| Hamerzuiger | ||||
| 856 | 1617000A32@32 | 42.20 | 51.06 | |
| Slagblok | ||||
| 857 | 1617000A33@32 | 22.36 | 27.06 | |
| Koppeling | ||||
| 860 | 1607000EL4@32 | 159.00 | 192.39 | |
| Excentriek | ||||
| 872 | 1617000A35@32 | 76.72 | 92.83 | |
| Carterdeksel | ||||
| 873 | 1617000A36@32 | 42.20 | 51.06 | |
| El.module | ||||
| 880 | 1607000DN5@32 | 159.00 | 192.39 | |
| Extra Handgreep | ||||
| 884 | 16070312E7@32 | 28.01 | 33.89 | |
| Kiphefboom | ||||
| 891 | 1607000DF1@32 | 11.18 | 13.53 | |
| SCHROEFPLAAT | ||||
| 894 | 1607000DF2@32 | 11.18 | 13.53 | |
| Veerplaat | ||||
| 895 | 1607000DF3@32 | 28.01 | 33.89 | |
| Harmonica | ||||
| 897 | 1607000DF4@32 | 13.11 | 15.86 | |
| Harmonica | ||||
| 898 | 1607000DF5@32 | 13.11 | 15.86 | |
