Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3601M51000 ( GCM18V-216D )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

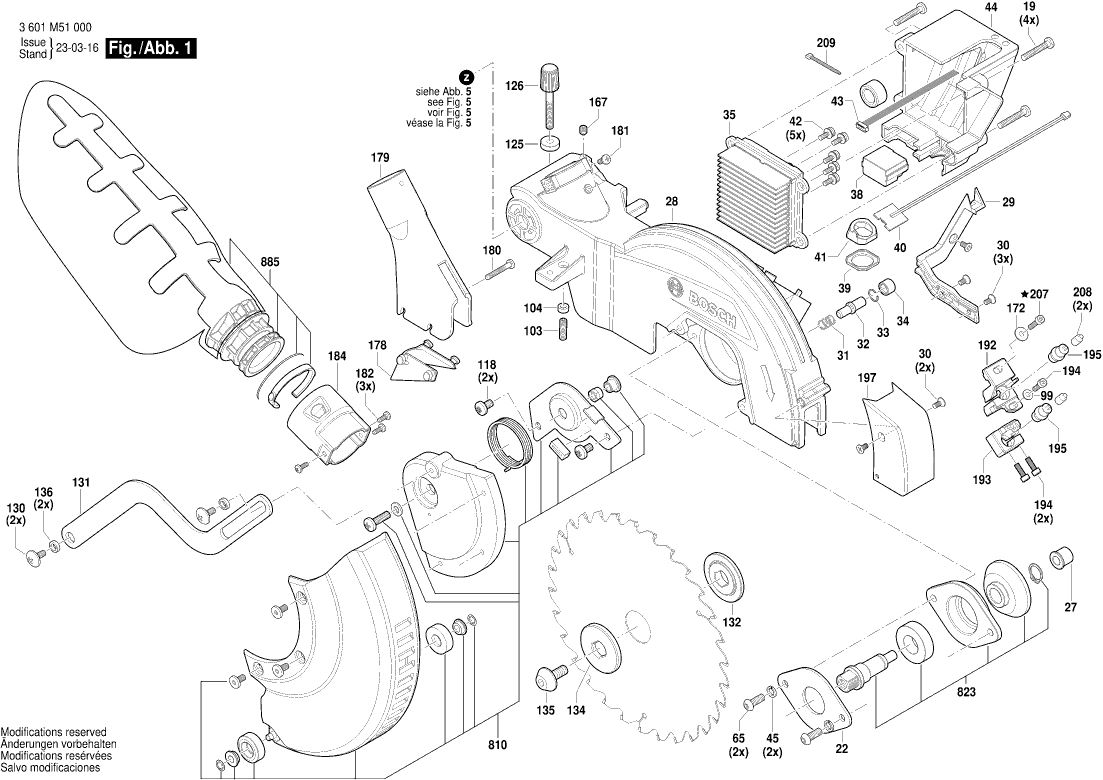

Tekeningen van de Bosch 3601M51000 ( GCM18V-216D )
Onderdelen lijst van de Bosch 3601M51000 ( GCM18V-216D )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| MOTORHUIS F30 | ||||
| 1 | 1609B07536 | 9.47 | 11.46 | |
| SCHAKELAAR | ||||
| 4 | 2607202558 | 11.02 | 13.33 | |
| SCHROEF /4.8 | ||||
| 19 | 1609B07540 | 1.00 | 1.21 | |
| ALARMSTICKER 0.3 | ||||
| 20 | 1609B07541 | 1.32 | 1.60 | |
| OPSPANPLAAT 235A | ||||
| 22 | 1609B07542 | 2.52 | 3.05 | |
| GESINTERD LAGER | ||||
| 27 | 1609B07547 | 3.71 | 4.49 | |
| ARM | ||||
| 28 | 1609B07548 | 75.38 | 91.21 | |
| KABELAFDEKKING | ||||
| 29 | 1609B07549 | 1.00 | 1.21 | |
| SCHROEF | ||||
| 30 | 1609B07550 | 1.00 | 1.21 | |
| DRUKVEER WIRE 0.65 | ||||
| 31 | 1609B07551 | 1.00 | 1.21 | |
| VERGRENDELINGSSTIFT | ||||
| 32 | 1609B07552 | 1.90 | 2.30 | |
| SNAPRING *?1 | ||||
| 33 | 1609B07553 | 1.00 | 1.21 | |
| Niet meer leverbaar, geen vervanging | ||||
| 34 | 1609B07554 | |||
| EL.MODULE | ||||
| 35 | 16072335NJ | 126.98 | 153.65 | |
| LAMPHUIS F30 | ||||
| 38 | 1609B07557 | 1.32 | 1.60 | |
| Niet meer leverbaar, geen vervanging | ||||
| 39 | 1609B07558 | |||
| LEDPLAAT | ||||
| 40 | 1609B07560 | 6.53 | 7.90 | |
| REFLECTOR F30 | ||||
| 41 | 1609B07559 | 1.32 | 1.60 | |
| COMBINATIESCHROEF /8.8 | ||||
| 42 | 1609B07561 | 1.00 | 1.21 | |
| SYNCHROONLEIDING | ||||
| 43 | 1609B07562 | 1.90 | 2.30 | |
| DEKSEL F30 | ||||
| 44 | 1609B07563 | 4.58 | 5.54 | |
| VERENDE SLUITRING | ||||
| 45 | 1609B07564 | 1.00 | 1.21 | |
| HANDVAT F30+TPE | ||||
| 46 | 1609B07565 | 13.90 | 16.82 | |
| SCHROEF *13/1022A | ||||
| 47 | 1609B07566 | 1.00 | 1.21 | |
| VERWARMINGSELEMENT F30 | ||||
| 48 | 1609B07567 | 2.52 | 3.05 | |
| KABELSET | ||||
| 49 | 1609B06831 | 13.90 | 16.82 | |
| VERWARMINGSELEMENT F30 | ||||
| 50 | 1609B07568 | 3.04 | 3.68 | |
| TOETS | ||||
| 51 | 1609B07569 | 1.32 | 1.60 | |
| DRUKVEER G STEEL WIRE | ||||
| 52 | 1609B07570 | 1.00 | 1.21 | |
| LUCHTGELEIDINGSRING F30 | ||||
| 53 | 1609B07571 | 1.90 | 2.30 | |
| HANDVAT F30+TPE | ||||
| 54 | 1609B07572 | 12.21 | 14.77 | |
| PLAATSCHROEF | ||||
| 55 | 1609B07573 | 1.00 | 1.21 | |
| COMBINATIESCHROEF /4.8 | ||||
| 56 | 1609B07574 | 1.00 | 1.21 | |
| DRUKVEER G STEEL WIRE | ||||
| 62 | 1609B07580 | 1.00 | 1.21 | |
| SCHROEF /8.8 | ||||
| 65 | 1609B07537 | 1.00 | 1.21 | |
| STELMOER | ||||
| 66 | 1609B07583 | 1.00 | 1.21 | |
| AANSLAGPLAAT 45 | ||||
| 69 | 1609B07586 | 1.90 | 2.30 | |
| SCHROEF /4.8 | ||||
| 72 | 1609B07633 | 1.00 | 1.21 | |
| SCHROEF /4.8 | ||||
| 74 | 1609B08161 | 1.00 | 1.21 | |
| KNOP 235A | ||||
| 75 | 1609B07592 | 1.32 | 1.60 | |
| DRAAGVOET | ||||
| 76 | 1609B07593 | 1.32 | 1.60 | |
| VULRING | ||||
| 77 | 1609B07594 | 1.00 | 1.21 | |
| VERENDE SLUITRING MN | ||||
| 78 | 1609B07595 | 1.00 | 1.21 | |
| STELMOER | ||||
| 79 | 1609B07596 | 1.00 | 1.21 | |
| SOKKEL | ||||
| 80 | 1609B07597 | 114.26 | 138.25 | |
| AANSLAGPLAAT 45 | ||||
| 81 | 1609B07598 | 1.32 | 1.60 | |
| HULPSTEUN | ||||
| 82 | 1609B07599 | 7.32 | 8.86 | |
| BOUT | ||||
| 84 | 1609B07600 | 1.00 | 1.21 | |
| SCHAALPLAAT | ||||
| 85 | 1609B07601 | 1.90 | 2.30 | |
| SLIJTPLAAT | ||||
| 86 | 1609B07602 | 5.27 | 6.38 | |
| VERSTEKLINIAAL | ||||
| 87 | 1609B07603 | 26.62 | 32.21 | |
| VERSTEKLINIAAL | ||||
| 92 | 1609B07608 | 12.21 | 14.77 | |
| VERSTEKLINIAAL | ||||
| 93 | 1609B07609 | 12.21 | 14.77 | |
| SCHROEF /8.8 | ||||
| 94 | 1609B07610 | 1.00 | 1.21 | |
| SCHOUDERSCHROEF /4.8 | ||||
| 95 | 1609B08159 | 1.32 | 1.60 | |
| ARRETEERPAL | ||||
| 96 | 1609B07612 | 4.58 | 5.54 | |
| KNOP 235A | ||||
| 97 | 1609B07613 | 5.27 | 6.38 | |
| VEERPLAAT | ||||
| 98 | 1609B07614 | 1.90 | 2.30 | |
| VULRING | ||||
| 99 | 1609B07615 | 1.00 | 1.21 | |
| STANG | ||||
| 100 | 1609B07616 | 3.04 | 3.68 | |
| BEVESTIGINGSPLAAT 65MN | ||||
| 101 | 1609B07617 | 1.00 | 1.21 | |
| DRUKSCHROEF /45H | ||||
| 103 | 1609B07619 | 1.00 | 1.21 | |
| RUBBEREN OPSLUITRING | ||||
| 104 | 1609B07620 | 1.00 | 1.21 | |
| STEUNPLAAT | ||||
| 106 | 1609B07622 | 1.90 | 2.30 | |
| WIJZER | ||||
| 107 | 1609B07623 | 1.00 | 1.21 | |
| VERENDE SLUITRING N | ||||
| 112 | 1609B07628 | 1.00 | 1.21 | |
| VULRING 5A | ||||
| 113 | 1609B07629 | 1.00 | 1.21 | |
| SCHROEF /4.8 | ||||
| 118 | 1609B07634 | 1.00 | 1.21 | |
| SCHROEF | ||||
| 119 | 1609B07635 | 1.00 | 1.21 | |
| KARTELMOER | ||||
| 125 | 1609B07639 | 1.00 | 1.21 | |
| KNOP | ||||
| 126 | 1609B07640 | 2.18 | 2.64 | |
| VASTHOUDPEN 23A | ||||
| 127 | 1609B07641 | 3.04 | 3.68 | |
| STELMOER | ||||
| 128 | 1609B07642 | 1.00 | 1.21 | |
| SCHOUDERSCHROEF 35A | ||||
| 130 | 1609B07644 | 1.32 | 1.60 | |
| VERBINDINGSELEMENT | ||||
| 131 | 1609B07645 | 10.68 | 12.92 | |
| FLENS | ||||
| 132 | 1609B07604 | 5.96 | 7.21 | |
| FLENS | ||||
| 134 | 1609B07606 | 4.58 | 5.54 | |
| SCHROEFDRVOERINGSSCHROEF | ||||
| 135 | 1619PA4354 | 1.32 | 1.60 | |
| BUS J | ||||
| 136 | 1609B07649 | 1.00 | 1.21 | |
| SLIJTPLAAT | ||||
| 137 | 1609B07650 | 1.32 | 1.60 | |
| BUS | ||||
| 138 | 1609B07651 | 2.52 | 3.05 | |
| TORSIEVEER | ||||
| 139 | 1609B07611 | 30.08 | 36.40 | |
| PERSSCHIJFAS | ||||
| 140 | 1609B07653 | 3.04 | 3.68 | |
| AANSLAGPLAAT 35A | ||||
| 141 | 1609B07654 | 1.32 | 1.60 | |
| ASVEER N | ||||
| 143 | 1609B07655 | 1.00 | 1.21 | |
| SLUITPEN 0CR | ||||
| 145 | 1609B07657 | 3.71 | 4.49 | |
| PERSSCHIJFAS | ||||
| 146 | 1609B07658 | 3.04 | 3.68 | |
| DOP VOOR SLEUTEL | ||||
| 147 | 1609B07659 | 1.00 | 1.21 | |
| WIJZER | ||||
| 148 | 1609B07660 | 1.00 | 1.21 | |
| SCHROEF | ||||
| 149 | 1609B07661 | 1.00 | 1.21 | |
| AFDEKPLAAT | ||||
| 150 | 1609B07662 | 1.90 | 2.30 | |
| VILTRING | ||||
| 151 | 1609B07663 | 1.00 | 1.21 | |
| ONDERLEGRUBBER | ||||
| 152 | 1609B07664 | 1.00 | 1.21 | |
| HOUDERARM | ||||
| 153 | 1609B07665 | 67.98 | 82.26 | |
| DRUKVEER N SPRING STEEL | ||||
| 154 | 1609B07666 | 1.00 | 1.21 | |
| KNOP 235A | ||||
| 155 | 1609B07667 | 1.32 | 1.60 | |
| DRUKVEER N SPRING STEEL | ||||
| 156 | 1609B07668 | 1.00 | 1.21 | |
| VULRING | ||||
| 157 | 1609B07669 | 1.00 | 1.21 | |
| DRUKSCHROEF | ||||
| 158 | 1609B07670 | 1.32 | 1.60 | |
| HANDWIEL 235A | ||||
| 160 | 1609B07672 | 3.71 | 4.49 | |
| SCHROEF /10.9 | ||||
| 164 | 1609B07676 | 1.00 | 1.21 | |
| SCHOUDERSCHROEF | ||||
| 165 | 1609B07677 | 1.00 | 1.21 | |
| DRUKSCHROEF 45H | ||||
| 167 | 1609B07679 | 1.00 | 1.21 | |
| DOP VOOR SLEUTEL | ||||
| 168 | 1609B07680 | 1.00 | 1.21 | |
| DRUKSCHROEF /45H | ||||
| 169 | 1609B07681 | 1.00 | 1.21 | |
| DRUKVEER N SPRING STEEL | ||||
| 171 | 1609B07683 | 1.00 | 1.21 | |
| VULRING | ||||
| 172 | 1609B07684 | 1.00 | 1.21 | |
| KNOP 235A | ||||
| 173 | 1609B07685 | 1.32 | 1.60 | |
| AANSLUITPLAAT 35A | ||||
| 174 | 1609B07686 | 3.04 | 3.68 | |
| HANDGREEP VC | ||||
| 175 | 1609B07687 | 7.32 | 8.86 | |
| PLAATSCHROEF *16-F | ||||
| 176 | 1609B07688 | 1.00 | 1.21 | |
| VASTHOUDPLAAT | ||||
| 177 | 1609B07689 | 5.96 | 7.21 | |
| RUBBER LIP | ||||
| 178 | 1609B07690 | 1.00 | 1.21 | |
| STOFAFZUIGING | ||||
| 179 | 1609B07691 | 3.04 | 3.68 | |
| PLAATSCHROEF *25-F | ||||
| 180 | 1609B07692 | 1.00 | 1.21 | |
| PLAATSCHROEF *9.5-F | ||||
| 181 | 1609B07693 | 1.00 | 1.21 | |
| PLAATSCHROEF *9.5-F | ||||
| 182 | 1609B07694 | 1.00 | 1.21 | |
| STEKER | ||||
| 184 | 1609B07696 | 1.32 | 1.60 | |
| BUS | ||||
| 187 | 1609B07699 | 1.32 | 1.60 | |
| SNAPRING 5MN | ||||
| 188 | 1609B07700 | 1.00 | 1.21 | |
| KNOP 235A | ||||
| 189 | 1609B07701 | 1.32 | 1.60 | |
| KNOP 235A | ||||
| 190 | 1609B07702 | 1.32 | 1.60 | |
| SCHROEF /4.8 | ||||
| 191 | 1609B07703 | 1.00 | 1.21 | |
| BEVESTIGING F30 | ||||
| 192 | 1609B07704 | 1.32 | 1.60 | |
| BEVESTIGING F30 | ||||
| 193 | 1609B07705 | 1.32 | 1.60 | |
| SCHROEF /8.8 | ||||
| 194 | 1609B07706 | 1.00 | 1.21 | |
| LASERMODULE | ||||
| 195 | 1609B07707 | 13.90 | 16.82 | |
| DEKSEL | ||||
| 197 | 1609B07709 | 1.32 | 1.60 | |
| INBUSSLUITINGEN | ||||
| 200 | 1609B07712 | 2.52 | 3.05 | |
| BEVESTIGING | ||||
| 201 | 1619PA7028 | 1.00 | 1.21 | |
| REGELHEFBOOM | ||||
| 202 | 1609B07714 | 1.32 | 1.60 | |
| STELMOER | ||||
| 203 | 1609B07715 | 1.00 | 1.21 | |
| STEUNPLAAT Q235A | ||||
| 204 | 1609B07716 | 1.32 | 1.60 | |
| O-RING .8 | ||||
| 205 | 1609B07717 | 1.90 | 2.30 | |
| SCHROEF /8.8 | ||||
| 207 | 1609B07719 | 1.00 | 1.21 | |
| KABELSCHOEN | ||||
| 208 | 1609B07720 | 1.00 | 1.21 | |
| KABELBINDER | ||||
| 209 | 1609B07721 | 1.32 | 1.60 | |
| INPLAKVEL PET | ||||
| 211 | 1609B07722 | 1.32 | 1.60 | |
| INPLAKVEL PET | ||||
| 212 | 1609B07723 | 1.32 | 1.60 | |
| INPLAKVEL PET | ||||
| 213 | 1609B07724 | 1.32 | 1.60 | |
| INPLAKVEL PET | ||||
| 214 | 1609B07725 | 1.32 | 1.60 | |
| INPLAKVEL PET | ||||
| 215 | 1609B07726 | 1.32 | 1.60 | |
| BORSTELLOZE DC-MOTOR | ||||
| 802 | 1609B08350 | 102.63 | 124.18 | |
| TYPEPLAAT | ||||
| 808 | 1609B08264 | 2.18 | 2.64 | |
| AFSCHERMONDERSTUK | ||||
| 810 | 1609B08166 | 30.08 | 36.40 | |
| TAFEL | ||||
| 812 | 1609B08268 | 67.98 | 82.26 | |
| UITGAANDE AS | ||||
| 823 | 1609B07605 | 37.50 | 45.38 | |
| HOUDERARM | ||||
| 829 | 1609B08267 | 50.23 | 60.78 | |
| LINEAIRKOGELLAGER | ||||
| 861 | 1609B08352 | 10.68 | 12.92 | |
| UITBREIDINGSFRAME | ||||
| 870 | 1609B08167 | 30.08 | 36.40 | |
| STOFZAK | ||||
| 885 | 1609B07930 | 8.48 | 10.26 | |
| LIJMTANG | ||||
| 890 | 1609B06930 | 15.61 | 18.89 | |
| STEUN | ||||
| 898 | 1609B07675 | 30.08 | 36.40 | |
