Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3601M51100 (GCM18V-254D)'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

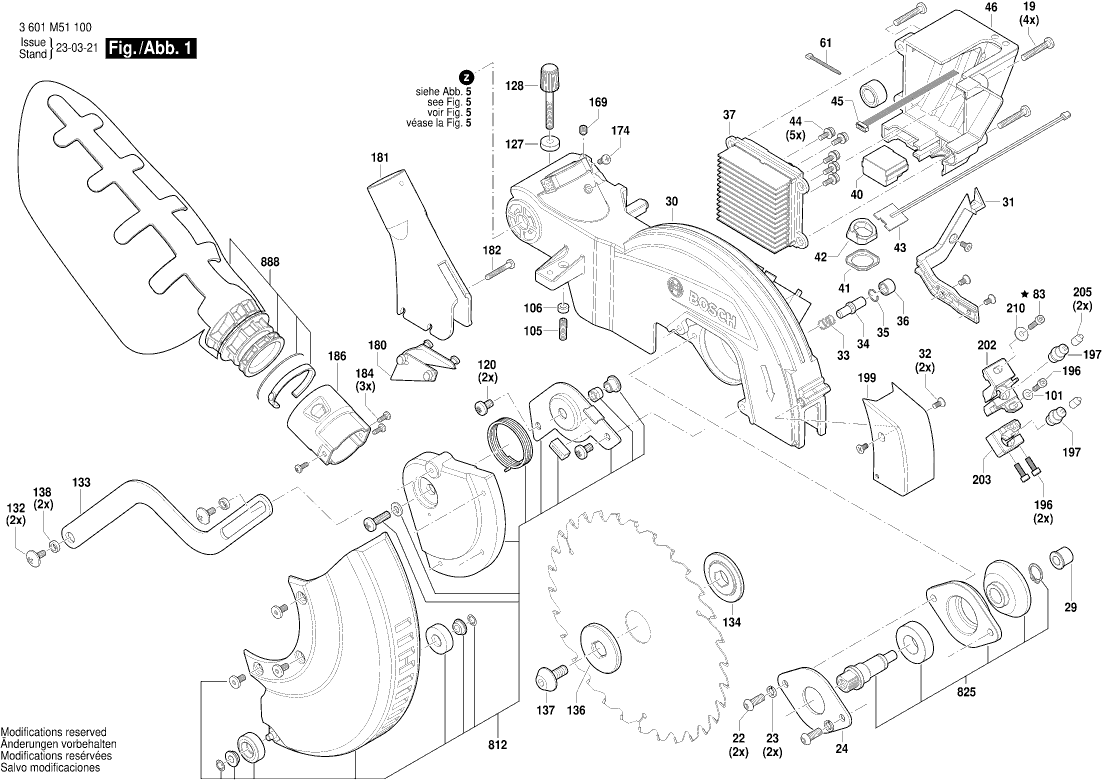

Tekeningen van de Bosch 3601M51100 (GCM18V-254D)
Onderdelen lijst van de Bosch 3601M51100 (GCM18V-254D)
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| MOTORHUIS F30 | ||||
| 1 | 1609B07536 | 10.90 | 13.19 | |
| SCHAKELAAR | ||||
| 4 | 2607202558 | 12.82 | 15.51 | |
| SCHROEF /4.8 | ||||
| 19 | 1609B07540 | 1.00 | 1.21 | |
| ALARMSTICKER 0.3 | ||||
| 20 | 1609B07541 | 1.49 | 1.80 | |
| SCHROEF /8.8 | ||||
| 22 | 1609B07537 | 1.00 | 1.21 | |
| VERENDE SLUITRING | ||||
| 23 | 1609B07564 | 1.00 | 1.21 | |
| OPSPANPLAAT 235A | ||||
| 24 | 1609B07542 | 2.86 | 3.46 | |
| GESINTERD LAGER | ||||
| 29 | 1609B07547 | 4.18 | 5.06 | |
| ARM | ||||
| 30 | 1609B08065 | 88.83 | 107.48 | |
| KABELAFDEKKING | ||||
| 31 | 1609B08066 | 1.00 | 1.21 | |
| SCHROEF | ||||
| 32 | 1609B07550 | 1.00 | 1.21 | |
| DRUKVEER WIRE 0.65 | ||||
| 33 | 1609B07551 | 1.00 | 1.21 | |
| VERGRENDELINGSSTIFT | ||||
| 34 | 1609B07552 | 2.04 | 2.47 | |
| SNAPRING *?1 | ||||
| 35 | 1609B07553 | 1.00 | 1.21 | |
| Niet meer leverbaar, geen vervanging | ||||
| 36 | 1609B07554 | |||
| EL.MODULE | ||||
| 37 | 16072335NH | 136.48 | 165.14 | |
| LAMPHUIS F30 | ||||
| 40 | 1609B07557 | 1.49 | 1.80 | |
| Niet meer leverbaar, geen vervanging | ||||
| 41 | 1609B07558 | |||
| REFLECTOR F30 | ||||
| 42 | 1609B07559 | 1.49 | 1.80 | |
| LEDPLAAT | ||||
| 43 | 1609B07560 | 7.46 | 9.03 | |
| COMBINATIESCHROEF /8.8 | ||||
| 44 | 1609B07561 | 1.00 | 1.21 | |
| SYNCHROONLEIDING | ||||
| 45 | 1609B07562 | 2.08 | 2.52 | |
| DEKSEL F30 | ||||
| 46 | 1609B07563 | 4.94 | 5.98 | |
| HANDVAT F30+TPE | ||||
| 48 | 1609B07565 | 14.94 | 18.08 | |
| SCHROEF *13/1022A | ||||
| 49 | 1609B07566 | 1.00 | 1.21 | |
| VERWARMINGSELEMENT F30 | ||||
| 50 | 1609B07567 | 2.86 | 3.46 | |
| KABELSET | ||||
| 51 | 1609B06831 | 14.94 | 18.08 | |
| VERWARMINGSELEMENT F30 | ||||
| 52 | 1609B07568 | 3.44 | 4.16 | |
| TOETS | ||||
| 53 | 1609B07569 | 1.49 | 1.80 | |
| DRUKVEER G STEEL WIRE | ||||
| 54 | 1609B07570 | 1.00 | 1.21 | |
| LUCHTGELEIDINGSRING F30 | ||||
| 55 | 1609B07571 | 2.08 | 2.52 | |
| HANDVAT F30+TPE | ||||
| 56 | 1609B07572 | 13.13 | 15.89 | |
| PLAATSCHROEF | ||||
| 57 | 1609B07573 | 1.00 | 1.21 | |
| COMBINATIESCHROEF /4.8 | ||||
| 58 | 1609B07574 | 1.00 | 1.21 | |
| KABELBINDER | ||||
| 61 | 1609B07721 | 1.49 | 1.80 | |
| DRUKVEER G STEEL WIRE | ||||
| 64 | 1609B07580 | 1.00 | 1.21 | |
| VULRING | ||||
| 68 | 1609B07669 | 1.00 | 1.21 | |
| AANSLAGPLAAT 45 | ||||
| 69 | 1609B07586 | 2.08 | 2.52 | |
| SCHROEF /4.8 | ||||
| 72 | 1609B07633 | 1.00 | 1.21 | |
| SCHROEF /4.8 | ||||
| 74 | 1609B07703 | 1.00 | 1.21 | |
| KNOP 235A | ||||
| 75 | 1609B07592 | 1.49 | 1.80 | |
| DRAAGVOET | ||||
| 76 | 1609B07593 | 1.49 | 1.80 | |
| VULRING | ||||
| 77 | 1609B07594 | 1.00 | 1.21 | |
| VERENDE SLUITRING MN | ||||
| 78 | 1609B07595 | 1.00 | 1.21 | |
| STELMOER | ||||
| 79 | 1609B07642 | 1.00 | 1.21 | |
| SOKKEL | ||||
| 80 | 1609B08068 | 122.80 | 148.59 | |
| AANSLAGPLAAT 45 | ||||
| 81 | 1609B07598 | 1.49 | 1.80 | |
| HULPSTEUN | ||||
| 82 | 1609B07599 | 8.35 | 10.10 | |
| SCHROEF /8.8 | ||||
| 83 | 1609B07719 | 1.00 | 1.21 | |
| BOUT 5/4.6 | ||||
| 84 | 1609B08070 | 1.00 | 1.21 | |
| SCHAALPLAAT | ||||
| 85 | 1609B08071 | 2.08 | 2.52 | |
| SLIJTPLAAT LESS STEEL | ||||
| 86 | 1609B08072 | 4.18 | 5.06 | |
| VERSTEKLINIAAL | ||||
| 87 | 1609B08073 | 43.12 | 52.18 | |
| VERSTEKLINIAAL | ||||
| 94 | 1609B08076 | 13.13 | 15.89 | |
| VERSTEKLINIAAL | ||||
| 95 | 1609B08077 | 14.94 | 18.08 | |
| SCHROEF /8.8 | ||||
| 96 | 1609B07610 | 1.00 | 1.21 | |
| SCHOUDERSCHROEF /4.8 | ||||
| 97 | 1609B08159 | 1.49 | 1.80 | |
| ARRETEERPAL F30 | ||||
| 98 | 1609B08078 | 4.18 | 5.06 | |
| KNOP 235A | ||||
| 99 | 1609B07613 | 5.81 | 7.03 | |
| VEERPLAAT 65MN | ||||
| 100 | 1609B08080 | 1.49 | 1.80 | |
| VULRING | ||||
| 101 | 1609B07615 | 1.00 | 1.21 | |
| STANG | ||||
| 102 | 1609B08081 | 3.44 | 4.16 | |
| BEVESTIGINGSPLAAT 65MN | ||||
| 103 | 1609B07617 | 1.00 | 1.21 | |
| DRUKSCHROEF /45H | ||||
| 105 | 1609B07619 | 1.00 | 1.21 | |
| RUBBEREN OPSLUITRING | ||||
| 106 | 1609B07620 | 1.00 | 1.21 | |
| STEUNPLAAT | ||||
| 108 | 1609B07622 | 2.08 | 2.52 | |
| WIJZER | ||||
| 109 | 1609B07623 | 1.00 | 1.21 | |
| VERENDE SLUITRING N | ||||
| 114 | 1609B07628 | 1.00 | 1.21 | |
| SCHROEF /10.9 | ||||
| 115 | 1609B07676 | 1.00 | 1.21 | |
| SCHROEF /4.8 | ||||
| 120 | 1609B07634 | 1.00 | 1.21 | |
| SCHROEF /8.8 | ||||
| 121 | 1609B08087 | 1.00 | 1.21 | |
| STELMOER | ||||
| 123 | 1609B08089 | 1.49 | 1.80 | |
| STELMOER | ||||
| 124 | 1609B07715 | 1.00 | 1.21 | |
| KARTELMOER | ||||
| 127 | 1609B07639 | 1.00 | 1.21 | |
| KNOP 23A | ||||
| 128 | 1609B08091 | 2.08 | 2.52 | |
| VASTHOUDPEN 23A | ||||
| 129 | 1609B07641 | 3.44 | 4.16 | |
| VULRING | ||||
| 130 | 1609B08092 | 1.00 | 1.21 | |
| SCHOUDERSCHROEF 35A | ||||
| 132 | 1609B07644 | 1.49 | 1.80 | |
| VERBINDINGSELEMENT MN | ||||
| 133 | 1609B08094 | 14.94 | 18.08 | |
| FLENS | ||||
| 134 | 1609B07631 | 8.35 | 10.10 | |
| OPSPANFLENS | ||||
| 136 | 1619PA6973 | 3.44 | 4.16 | |
| SCHROEFDRVOERINGSSCHROEF | ||||
| 137 | 1619PA4354 | 1.49 | 1.80 | |
| BUS J | ||||
| 138 | 1609B07649 | 1.00 | 1.21 | |
| SLIJTPLAAT 04 | ||||
| 139 | 1609B08095 | 1.49 | 1.80 | |
| BUS F30 | ||||
| 140 | 1609B08096 | 2.86 | 3.46 | |
| TORSIEVEER | ||||
| 141 | 1609B07591 | 27.81 | 33.65 | |
| PERSSCHIJFAS 235A | ||||
| 142 | 1609B08097 | 4.94 | 5.98 | |
| AANSLAGPLAAT 35A | ||||
| 143 | 1609B07654 | 1.49 | 1.80 | |
| ASVEER N | ||||
| 145 | 1609B07655 | 1.00 | 1.21 | |
| SLUITPEN 0CR | ||||
| 147 | 1609B07657 | 4.18 | 5.06 | |
| PERSSCHIJFAS 5 | ||||
| 148 | 1609B08098 | 3.44 | 4.16 | |
| DOP VOOR SLEUTEL | ||||
| 149 | 1609B07659 | 1.00 | 1.21 | |
| WIJZER | ||||
| 150 | 1609B07660 | 1.00 | 1.21 | |
| AFDEKPLAAT Q235A | ||||
| 152 | 1609B08101 | 2.08 | 2.52 | |
| VILTRING | ||||
| 153 | 1609B07663 | 1.00 | 1.21 | |
| ONDERLEGRUBBER | ||||
| 154 | 1609B07664 | 1.00 | 1.21 | |
| HOUDERARM | ||||
| 155 | 1609B08102 | 80.26 | 97.11 | |
| DRUKVEER N SPRING STEEL | ||||
| 156 | 1609B07666 | 1.00 | 1.21 | |
| KNOP 235A | ||||
| 157 | 1609B07667 | 1.49 | 1.80 | |
| DRUKVEER N SPRING STEEL | ||||
| 158 | 1609B07668 | 1.00 | 1.21 | |
| BEVESTIGING | ||||
| 159 | 1619PA7028 | 1.00 | 1.21 | |
| DRUKSCHROEF 10/45H | ||||
| 160 | 1609B08103 | 1.49 | 1.80 | |
| HANDWIEL 235A | ||||
| 162 | 1609B07672 | 4.18 | 5.06 | |
| SCHOUDERSCHROEF | ||||
| 167 | 1609B07677 | 1.00 | 1.21 | |
| DRUKSCHROEF 45H | ||||
| 169 | 1609B07679 | 1.00 | 1.21 | |
| DOP VOOR SLEUTEL | ||||
| 170 | 1609B07680 | 1.00 | 1.21 | |
| DRUKSCHROEF /45H | ||||
| 171 | 1609B07681 | 1.00 | 1.21 | |
| KNOP | ||||
| 172 | 1609B08266 | 1.00 | 1.21 | |
| DRUKVEER N SPRING STEEL | ||||
| 173 | 1609B07683 | 1.00 | 1.21 | |
| PLAATSCHROEF *9.5-F | ||||
| 174 | 1609B07693 | 1.00 | 1.21 | |
| KNOP 235A | ||||
| 175 | 1609B07685 | 1.49 | 1.80 | |
| AANSLUITPLAAT 35A | ||||
| 176 | 1609B07686 | 3.44 | 4.16 | |
| HANDGREEP VC | ||||
| 177 | 1609B07687 | 8.35 | 10.10 | |
| PLAATSCHROEF *16-F | ||||
| 178 | 1609B07688 | 1.00 | 1.21 | |
| VASTHOUDPLAAT J | ||||
| 179 | 1609B08106 | 9.67 | 11.70 | |
| RUBBER LIP | ||||
| 180 | 1609B07690 | 1.00 | 1.21 | |
| STOFAFZUIGING | ||||
| 181 | 1609B08107 | 4.18 | 5.06 | |
| PLAATSCHROEF *25-F | ||||
| 182 | 1609B07692 | 1.00 | 1.21 | |
| VULRING | ||||
| 183 | 1609B08108 | 1.00 | 1.21 | |
| PLAATSCHROEF *9.5-F | ||||
| 184 | 1609B07694 | 1.00 | 1.21 | |
| STEKER | ||||
| 186 | 1609B07696 | 1.49 | 1.80 | |
| O-RING .8 | ||||
| 189 | 1609B07717 | 2.08 | 2.52 | |
| SNAPRING 5MN | ||||
| 190 | 1609B07700 | 1.00 | 1.21 | |
| KNOP | ||||
| 191 | 1609B08258 | 1.00 | 1.21 | |
| SCHROEF /4.8 | ||||
| 192 | 1609B08161 | 1.00 | 1.21 | |
| REGELHEFBOOM | ||||
| 193 | 1609B07714 | 1.49 | 1.80 | |
| VULRING 5A | ||||
| 194 | 1609B07629 | 1.00 | 1.21 | |
| INBUSSLUITINGEN | ||||
| 195 | 1609B07712 | 2.86 | 3.46 | |
| SCHROEF /8.8 | ||||
| 196 | 1609B07706 | 1.00 | 1.21 | |
| LASERMODULE | ||||
| 197 | 1609B07707 | 14.94 | 18.08 | |
| DEKSEL F30 | ||||
| 199 | 1609B08109 | 1.49 | 1.80 | |
| BEVESTIGING F30 | ||||
| 202 | 1609B07704 | 1.49 | 1.80 | |
| BEVESTIGING F30 | ||||
| 203 | 1609B07705 | 1.49 | 1.80 | |
| STEUNPLAAT Q235A | ||||
| 204 | 1609B07716 | 1.49 | 1.80 | |
| KABELSCHOEN | ||||
| 205 | 1609B07720 | 1.00 | 1.21 | |
| INPLAKVEL PET | ||||
| 206 | 1609B07724 | 1.49 | 1.80 | |
| INPLAKVEL PET | ||||
| 207 | 1609B07722 | 1.49 | 1.80 | |
| INPLAKVEL PET | ||||
| 208 | 1609B07723 | 1.49 | 1.80 | |
| INPLAKVEL PET | ||||
| 209 | 1609B07726 | 1.49 | 1.80 | |
| VULRING | ||||
| 210 | 1609B07684 | 1.00 | 1.21 | |
| INPLAKVEL PET | ||||
| 216 | 1609B07725 | 1.49 | 1.80 | |
| STELMOER | ||||
| 217 | 1609B07583 | 1.00 | 1.21 | |
| SCHROEF | ||||
| 218 | 1609B07661 | 1.00 | 1.21 | |
| BORSTELLOZE DC-MOTOR | ||||
| 802 | 1609B08351 | 110.30 | 133.46 | |
| TAFEL | ||||
| 804 | 1609B08155 | 122.80 | 148.59 | |
| TYPEPLAAT | ||||
| 808 | 1609B08265 | 2.40 | 2.90 | |
| AFSCHERMONDERSTUK | ||||
| 812 | 1609B08120 | 34.82 | 42.13 | |
| UITGAANDE AS | ||||
| 825 | 1609B07605 | 39.14 | 47.36 | |
| HOUDERARM | ||||
| 831 | 1609B08129 | 98.18 | 118.80 | |
| STEUN | ||||
| 861 | 1609B07675 | 31.42 | 38.02 | |
| LINEAIRKOGELLAGER | ||||
| 863 | 1609B08353 | 11.37 | 13.76 | |
| UITBREIDINGSFRAME | ||||
| 870 | 1609B08121 | 39.14 | 47.36 | |
| STOFZAK | ||||
| 888 | 1609B07930 | 9.67 | 11.70 | |
| LIJMTANG | ||||
| 892 | 1609B06932 | 16.79 | 20.32 | |
