Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3601M33000 (GCM216)'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

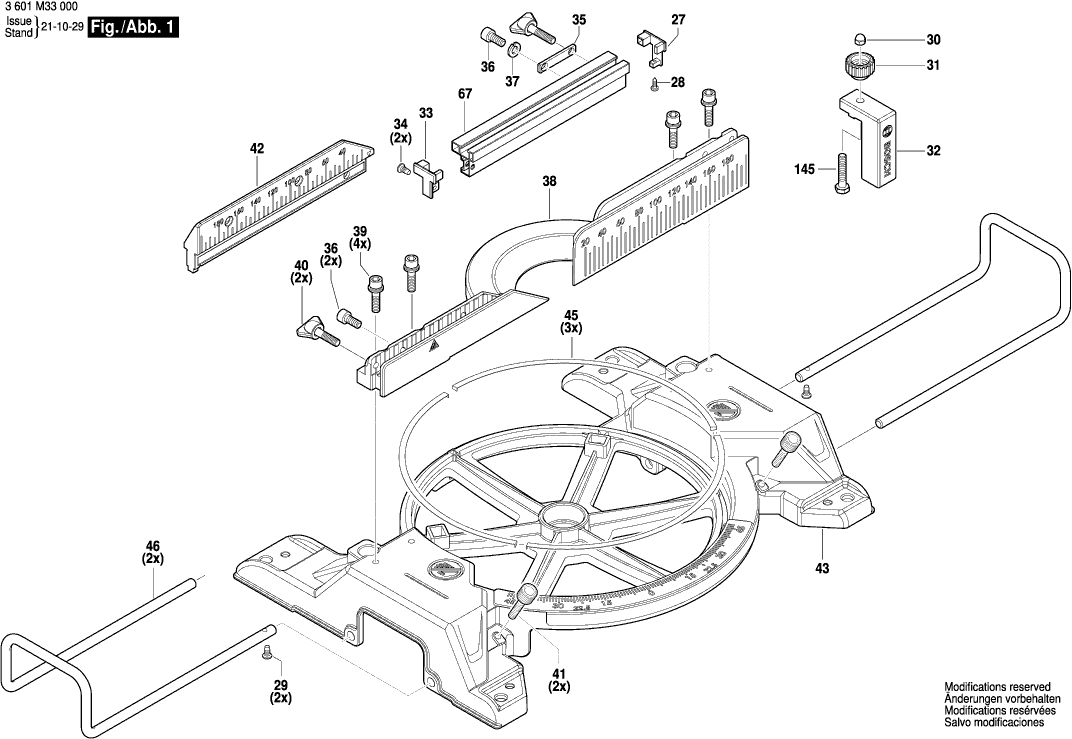

Tekeningen van de Bosch 3601M33000 (GCM216)
Onderdelen lijst van de Bosch 3601M33000 (GCM216)
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| POOLSCHOEN | ||||
| 2 | 1619PB6108 | 39.14 | 47.36 | |
| SCHAKELAAR | ||||
| 4 | 1619PB6110 | 9.67 | 11.70 | |
| LEID VOOR NETAANSLUITING | ||||
| 5 | 1619PS5697 | 12.82 | 15.51 | |
| LEID VOOR NETAANSLUITING | ||||
| 5 | 1619PB6111 | 7.32 | 8.86 | |
| DOORVOERBUISJE | ||||
| 6 | 1619PB6112 | 1.49 | 1.80 | |
| KLEMBEVESTIGING | ||||
| 7 | 1619PB6113 | 1.00 | 1.21 | |
| TYPEPLAAT | ||||
| 8 | 1619PB6114 | 2.40 | 2.90 | |
| KOOLBORSTELSET | ||||
| 10 | 1619PB6115 | 11.37 | 13.76 | |
| ONTSTORINGSCONDENSATOR | ||||
| 12 | 1619PB6116 | 2.86 | 3.46 | |
| PLATKOPSCHROEF | ||||
| 19 | 1619PB6120 | 1.00 | 1.21 | |
| WAARSCHUWINGSPLAATJE | ||||
| 20 | 1619PB6121 | 2.18 | 2.64 | |
| ALARMSTICKER | ||||
| 20 | 1600A02S1Y | 1.49 | 1.80 | |
| AFDEKDOP | ||||
| 27 | 1619PB6128 | 1.49 | 1.80 | |
| VERZONKEN SCHROEF | ||||
| 28 | 1619PB6129 | 1.00 | 1.21 | |
| PLATKOPSCHROEF | ||||
| 29 | 1619PB6130 | 1.00 | 1.21 | |
| ZESKANT MOER | ||||
| 30 | 1619PB6131 | 1.49 | 1.80 | |
| KNOPGREEP | ||||
| 31 | 1619PB6132 | 1.00 | 1.21 | |
| AANSLAGBLOK | ||||
| 32 | 1619PB6133 | 4.18 | 5.06 | |
| AFDEKDOP | ||||
| 33 | 1619PB6134 | 1.49 | 1.80 | |
| PLATKOPSCHROEF | ||||
| 34 | 1619PB6135 | 1.00 | 1.21 | |
| GELEIDESCHOEN | ||||
| 35 | 1619PB6136 | 1.49 | 1.80 | |
| CILINDERKOPSCHROEF | ||||
| 36 | 1619PB6137 | 1.00 | 1.21 | |
| VERENDE SLUITRING | ||||
| 37 | 1619PB6138 | 1.00 | 1.21 | |
| VERSTEKLINIAAL | ||||
| 38 | 1619PB6139 | 31.42 | 38.02 | |
| CILINDERKOPSCHROEF | ||||
| 39 | 1619PB6140 | 1.00 | 1.21 | |
| DRAAIKNOP | ||||
| 40 | 1619PB6141 | 1.49 | 1.80 | |
| KNOPGREEP | ||||
| 41 | 1619PB6142 | 1.49 | 1.80 | |
| VERSTEKLINIAAL | ||||
| 42 | 1619PB6143 | 8.35 | 10.10 | |
| BASISELEMENT | ||||
| 43 | 1619PB6144 | 52.45 | 63.46 | |
| BOUT | ||||
| 44 | 1619PB6145 | 1.00 | 1.21 | |
| GELEIDESCHOEN | ||||
| 45 | 1619PB6146 | 2.40 | 2.90 | |
| UITBREIDINGSFRAME | ||||
| 46 | 1619PB6147 | 7.46 | 9.03 | |
| AANTREKBOUT | ||||
| 47 | 1619PB6148 | 2.86 | 3.46 | |
| ZESKANT MOER | ||||
| 48 | 1619PB6149 | 1.00 | 1.21 | |
| VERGRENDELINGSHENDEL | ||||
| 49 | 1619PB6150 | 1.49 | 1.80 | |
| VEER | ||||
| 50 | 1619PB6151 | 1.00 | 1.21 | |
| BOUT | ||||
| 51 | 1619PB6152 | 1.00 | 1.21 | |
| PLATKOPSCHROEF | ||||
| 52 | 1619PB6153 | 1.00 | 1.21 | |
| ASBORGING | ||||
| 53 | 1619PB6154 | 1.49 | 1.80 | |
| SCHROEFDRAADPEN | ||||
| 54 | 1619PB6155 | 1.00 | 1.21 | |
| DRAAISCHIJF | ||||
| 55 | 1619PB6156 | 43.12 | 52.18 | |
| CONTACTHULS | ||||
| 56 | 1619PB6157 | 1.00 | 1.21 | |
| ONDERLEGSCHIJF | ||||
| 57 | 1619PB6158 | 8.35 | 10.10 | |
| AS | ||||
| 58 | 1619PB6159 | 3.44 | 4.16 | |
| CONTACTHULS | ||||
| 59 | 1619PB6160 | 1.00 | 1.21 | |
| LOOPBOUT | ||||
| 60 | 1619PB6161 | 16.79 | 20.32 | |
| SPANBUS | ||||
| 61 | 1619PB6162 | 1.00 | 1.21 | |
| AS | ||||
| 62 | 1619PB6163 | 2.08 | 2.52 | |
| ONDERLEGSCHIJF | ||||
| 63 | 1619PB6164 | 1.00 | 1.21 | |
| LAGERAS | ||||
| 64 | 1619PB6165 | 2.40 | 2.90 | |
| ONDERLEGSCHIJF | ||||
| 65 | 1619PB6166 | 1.00 | 1.21 | |
| MOER | ||||
| 66 | 1619PB6167 | 1.00 | 1.21 | |
| RAIL | ||||
| 67 | 1619PB6168 | 10.90 | 13.19 | |
| VERGRENDELINGSHENDEL | ||||
| 68 | 1619PB6169 | 2.08 | 2.52 | |
| BOUT | ||||
| 69 | 1619PB6170 | 1.00 | 1.21 | |
| SCHROEFDRAADPEN | ||||
| 70 | 1619PB6171 | 1.00 | 1.21 | |
| VEER | ||||
| 71 | 1619PB6172 | 3.44 | 4.16 | |
| AANSLAGBOUT | ||||
| 72 | 1619PB6173 | 1.49 | 1.80 | |
| O-RING | ||||
| 73 | 1619PB6174 | 1.00 | 1.21 | |
| SCHROEFDRAADPEN | ||||
| 74 | 1619PB6175 | 1.00 | 1.21 | |
| ONDERLEGSCHIJF | ||||
| 75 | 1619PB6176 | 1.00 | 1.21 | |
| VERENDE SLUITRING | ||||
| 76 | 1619PB6177 | 1.00 | 1.21 | |
| ZESKANT MOER | ||||
| 77 | 1619PB6178 | 1.00 | 1.21 | |
| PLATKOPSCHROEF | ||||
| 78 | 1619PB6179 | 1.00 | 1.21 | |
| AFLEESINSTRUMENT | ||||
| 79 | 1619PB6180 | 1.49 | 1.80 | |
| INLEGSTUK | ||||
| 80 | 1619PB6181 | 2.08 | 2.52 | |
| STOFAFSCHEIDER | ||||
| 81 | 1619PB6182 | 1.00 | 1.21 | |
| STOFAFSCHEIDER | ||||
| 82 | 1619PB6183 | 1.49 | 1.80 | |
| PLATKOPSCHROEF | ||||
| 83 | 1619PB6184 | 1.00 | 1.21 | |
| AFDEKDOP | ||||
| 84 | 1619PB6185 | 1.49 | 1.80 | |
| VERZONKEN SCHROEF | ||||
| 85 | 1619PB6186 | 1.00 | 1.21 | |
| LENS | ||||
| 86 | 1619PB6188 | 1.00 | 1.21 | |
| HUISONDERDEEL | ||||
| 88 | 1619PB6190 | 1.49 | 1.80 | |
| LASERMODULE | ||||
| 89 | 1619PB6191 | 7.46 | 9.03 | |
| SCHROEFDRAADPEN | ||||
| 90 | 1619PB6192 | 1.49 | 1.80 | |
| AFDEKDOP | ||||
| 91 | 1619PB6193 | 1.49 | 1.80 | |
| DRUKTOETS | ||||
| 92 | 1619PB6194 | 1.00 | 1.21 | |
| VEER | ||||
| 93 | 1619PB6195 | 1.49 | 1.80 | |
| ASBORGING | ||||
| 94 | 1619PB6196 | 2.40 | 2.90 | |
| LUCHTGELEIDINGSRING | ||||
| 95 | 1619PB6197 | 1.49 | 1.80 | |
| PLATKOPSCHROEF | ||||
| 96 | 1619PB6198 | 1.00 | 1.21 | |
| LAGERDEKSEL | ||||
| 97 | 1619PB6199 | 2.08 | 2.52 | |
| BORSTELDEKSEL | ||||
| 98 | 1619PB6200 | 2.40 | 2.90 | |
| SCHROEFDRAADPEN | ||||
| 99 | 1619PB6201 | 1.00 | 1.21 | |
| PLATKOPSCHROEF | ||||
| 100 | 1619PB6202 | 1.00 | 1.21 | |
| EINDKAP | ||||
| 101 | 1619PB6203 | 2.08 | 2.52 | |
| AANZETSCHROEF | ||||
| 102 | 1619PB6204 | 1.00 | 1.21 | |
| BUISCONSTRUCTIE | ||||
| 103 | 1619PB6205 | 4.58 | 5.54 | |
| PLATKOPSCHROEF | ||||
| 104 | 1619PB6206 | 1.00 | 1.21 | |
| PLAAT | ||||
| 105 | 1619PB6207 | 1.49 | 1.80 | |
| BORGRING | ||||
| 106 | 1619PB6208 | 1.00 | 1.21 | |
| WIEL | ||||
| 107 | 1619PB6209 | 1.00 | 1.21 | |
| MOER | ||||
| 108 | 1619PB6210 | 1.00 | 1.21 | |
| VEILIGHEIDSDEKSEL | ||||
| 109 | 1619PB6211 | 13.13 | 15.89 | |
| DRUKVEER | ||||
| 110 | 1619PB6212 | 1.00 | 1.21 | |
| VERZONKEN TORX-SCHROEF | ||||
| 111 | 1619PB6213 | 1.00 | 1.21 | |
| AFDEKPLAAT | ||||
| 112 | 1619PB6214 | 2.08 | 2.52 | |
| BOUT | ||||
| 113 | 1619PB6215 | 1.49 | 1.80 | |
| OPSPANFLENS | ||||
| 114 | 1619PB6216 | 2.40 | 2.90 | |
| OPSPANFLENS | ||||
| 116 | 1619PB6218 | 2.86 | 3.46 | |
| PLATKOPSCHROEF | ||||
| 117 | 1619PB6219 | 1.00 | 1.21 | |
| GROEFSTEEN | ||||
| 122 | 1619PB6224 | 1.00 | 1.21 | |
| TRANSMISSIE | ||||
| 123 | 1619PB6225 | 16.79 | 20.32 | |
| CLIP | ||||
| 124 | 1619PB6226 | 1.00 | 1.21 | |
| VERGRENDELING | ||||
| 126 | 1619PB6228 | 1.00 | 1.21 | |
| ELEKTRONISCHE MODULE | ||||
| 127 | 1619PB6229 | 7.46 | 9.03 | |
| SMOORKLEPSPOEL | ||||
| 128 | 1619PB6230 | 1.49 | 1.80 | |
| BUISCONSTRUCTIE | ||||
| 129 | 1619PB6231 | 1.00 | 1.21 | |
| KLEMMENBLOK | ||||
| 130 | 1619PB6232 | 1.49 | 1.80 | |
| PLATKOPSCHROEF | ||||
| 131 | 1619PB6233 | 1.00 | 1.21 | |
| HANDGREEP | ||||
| 132 | 1619PB6234 | 4.94 | 5.98 | |
| PLATKOPSCHROEF | ||||
| 133 | 1619PB6235 | 1.00 | 1.21 | |
| PLATKOPSCHROEF | ||||
| 134 | 1619PB6236 | 1.00 | 1.21 | |
| HANDGREEP | ||||
| 135 | 1619PB6237 | 2.86 | 3.46 | |
| PLATKOPSCHROEF | ||||
| 136 | 1619PB6238 | 1.00 | 1.21 | |
| SCHAKELAAR | ||||
| 137 | 1619PB6239 | 2.40 | 2.90 | |
| ACTIVATOR | ||||
| 138 | 1619PB6240 | 1.00 | 1.21 | |
| VEER | ||||
| 139 | 1619PB6241 | 1.00 | 1.21 | |
| BUISCONSTRUCTIE | ||||
| 141 | 1619PB6243 | 1.00 | 1.21 | |
| VEER | ||||
| 142 | 1619PB6244 | 1.00 | 1.21 | |
| HANDGREEP | ||||
| 143 | 1619PB6245 | 4.94 | 5.98 | |
| BOUT | ||||
| 145 | 1619PB8621 | 1.00 | 1.21 | |
| SCHROEF | ||||
| 146 | 1619PB8622 | 1.00 | 1.21 | |
| ZESKANTSTEEKSLEUTEL | ||||
| 651 | 1619PB6247 | 3.44 | 4.16 | |
| KLEM | ||||
| 652 | 1619PB6250 | 4.94 | 5.98 | |
| STOFZAK | ||||
| 669 | 1619PB6246 | 3.04 | 3.68 | |
| MOTORHUIS | ||||
| 801 | 1619PB6251 | 17.60 | 21.30 | |
| ANKER | ||||
| 803 | 1619PB6285 | 58.03 | 70.22 | |
| TRANSMISSIEHUIS | ||||
| 814 | 1619PB6252 | 43.12 | 52.18 | |
| LAGERDEKSEL | ||||
| 818 | 1619PB6217 | 16.79 | 20.32 | |
