Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3601A899E0 ( GDB350WE )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

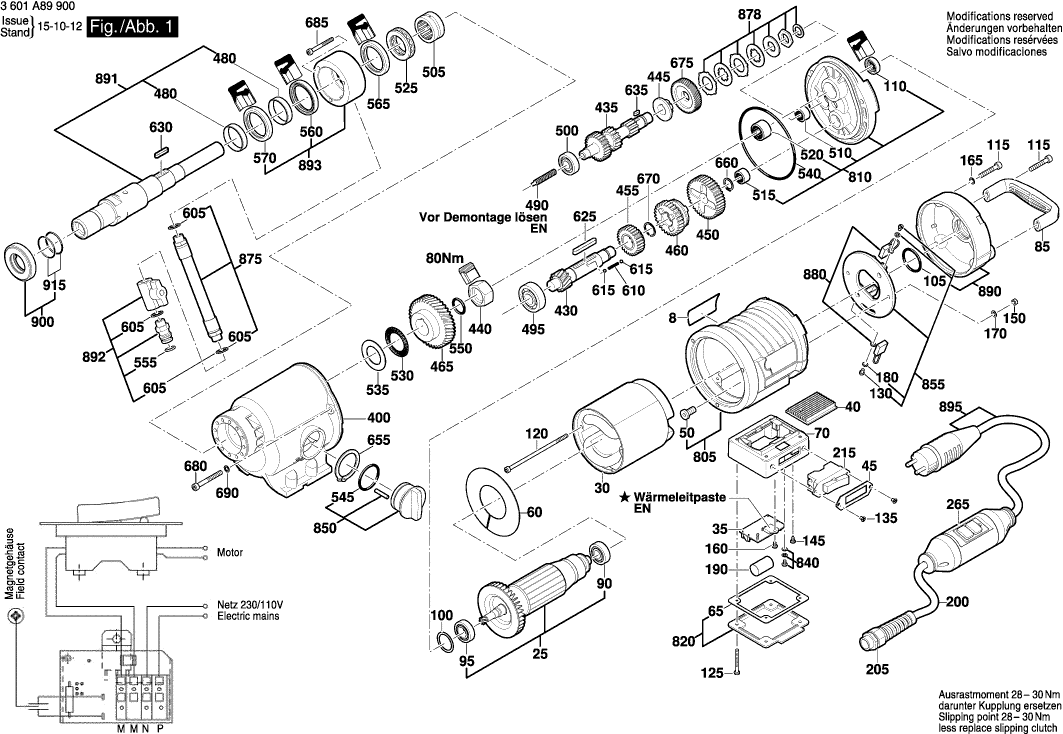

Tekeningen van de Bosch 3601A899E0 ( GDB350WE )
Onderdelen lijst van de Bosch 3601A899E0 ( GDB350WE )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Typeplaat | ||||
| 8 | 160111A1VF | 0.83 | 1.00 | |
| Anker | ||||
| 25 | 1600A0073D | 551.30 | 667.07 | |
| Poolschoen | ||||
| 30 | 160422053E | 342.01 | 413.83 | |
| Printplaat | ||||
| 35 | 1600A01AM1 | 91.56 | 110.79 | |
| Koelplaat | ||||
| 40 | 1600A0073F | 36.85 | 44.59 | |
| Afdichting | ||||
| 45 | 1600A00742 | 9.53 | 11.53 | |
| Isolatiehuls | ||||
| 50 | 1600325008 | 8.45 | 10.22 | |
| Luchtgeleidingsring | ||||
| 60 | 160059105P | 10.73 | 12.98 | |
| Afdichting | ||||
| 65 | 1600A0073G | 6.54 | 7.91 | |
| Klemkast | ||||
| 70 | 1600A0073H | 73.72 | 89.20 | |
| Handgreep | ||||
| 85 | 1600A0073K | 26.84 | 32.48 | |
| Groefkogellager | ||||
| 90 | 160090004R | 33.45 | 40.47 | |
| Groefkogellager | ||||
| 95 | 160090004S | 33.45 | 40.47 | |
| Compensatieschijf | ||||
| 100 | 1600A0073L | 4.70 | 5.69 | |
| O-ring | ||||
| 105 | 1600210067 | 2.71 | 3.28 | |
| Radiaale Asafdichtring | ||||
| 110 | 1600A004Y0 | 18.19 | 22.01 | |
| Inbusbout | ||||
| 115 | 1600A0073N | 1.70 | 2.06 | |
| Inbusbout | ||||
| 120 | 1600A0073P | 9.53 | 11.53 | |
| Cilinderkopschroef | ||||
| 125 | 160341001D | 1.70 | 2.06 | |
| Cilinderkopschroef | ||||
| 130 | 160341001E | 1.18 | 1.43 | |
| Verzonken Schroef | ||||
| 135 | 1603490A0D | 1.18 | 1.43 | |
| Lenskopschroef | ||||
| 145 | 1600A019B5 | 1.70 | 2.06 | |
| Zeskant moer | ||||
| 150 | 1600A0073S | 0.83 | 1.00 | |
| Lenskopschroef | ||||
| 160 | 1601A013TB | 1.70 | 2.06 | |
| Verende Sluitring | ||||
| 170 | 1600150021 | 0.83 | 1.00 | |
| Onderlegschijf | ||||
| 180 | 1600A0073W | 0.83 | 1.00 | |
| Ontstoringscondensator | ||||
| 190 | 1600A0073X | 18.19 | 22.01 | |
| Netkabel | ||||
| 200 | 1600A00DK9 | 40.61 | 49.14 | |
| Kabelschroefbevestiging | ||||
| 205 | 1600A0073Z | 15.71 | 19.01 | |
| Netschakelaar | ||||
| 215 | 1600A00741 | 101.94 | 123.35 | |
| Schakelaar | ||||
| 265 | 1607200329 | 255.50 | 309.16 | |
| Schakelaar | ||||
| 265 | 160720038P | 148.65 | 179.87 | |
| Transmissiehuis | ||||
| 400 | 160580659Y | 493.58 | 597.23 | |
| Rondselas | ||||
| 430 | 1600A00743 | 233.78 | 282.87 | |
| Tandwielas | ||||
| 435 | 1600A00744 | 304.19 | 368.07 | |
| Zeskant moer | ||||
| 440 | 1600A0077E | 29.75 | 36.00 | |
| Lagerbus | ||||
| 445 | 160030010H | 44.82 | 54.23 | |
| Recht Tandwiel | ||||
| 450 | 1600A0076R | 168.86 | 204.32 | |
| Recht Tandwiel | ||||
| 455 | 1600A0076S | 130.32 | 157.69 | |
| Recht Tandwiel | ||||
| 460 | 1600A0076T | 233.78 | 282.87 | |
| Recht Tandwiel | ||||
| 465 | 1600A0076U | 130.32 | 157.69 | |
| Beschermhuls | ||||
| 480 | 1600A00746 | 20.42 | 24.71 | |
| Wormas | ||||
| 490 | 1600A0076V | 40.61 | 49.14 | |
| Groefkogellager | ||||
| 495 | 160090004U | 40.61 | 49.14 | |
| Groefkogellager | ||||
| 500 | 160090004V | 36.85 | 44.59 | |
| Naaldlager | ||||
| 505 | 160090004W | 101.94 | 123.35 | |
| Naaldbus | ||||
| 510 | 1600A0076W | 40.61 | 49.14 | |
| Naaldhuls | ||||
| 515 | 1600A0076X | 33.45 | 40.47 | |
| Naaldhuls | ||||
| 520 | 1600A0076Y | 36.85 | 44.59 | |
| Naald-axiaal kogellager | ||||
| 525 | 1600A0076Z | 81.47 | 98.58 | |
| Axiaalnaaldkrans | ||||
| 530 | 1600A00770 | 23.75 | 28.74 | |
| Axiaallagerschijf | ||||
| 535 | 1600A00771 | 9.53 | 11.53 | |
| O-ring | ||||
| 540 | 1600210068 | 6.54 | 7.91 | |
| O-ring | ||||
| 545 | 1600210069 | 1.70 | 2.06 | |
| O-ring | ||||
| 550 | 1600210063 | 1.70 | 2.06 | |
| O-ring | ||||
| 555 | 1600210064 | 1.70 | 2.06 | |
| Asafdichtring | ||||
| 560 | 1600A00772 | 20.42 | 24.71 | |
| Asafdichtring | ||||
| 565 | 1600A00773 | 20.42 | 24.71 | |
| Asafdichtring | ||||
| 570 | 1600A00774 | 20.42 | 24.71 | |
| Afdichtring | ||||
| 605 | 1600A004YF | 1.18 | 1.43 | |
| Schroefdrukveer | ||||
| 610 | 1600A00777 | 3.31 | 4.01 | |
| Kogel | ||||
| 615 | 1600A0077A | 1.18 | 1.43 | |
| Afstelveer | ||||
| 625 | 1600A0077B | 2.71 | 3.28 | |
| Afstelveer | ||||
| 630 | 1600A0077C | 2.24 | 2.71 | |
| Afstelveer | ||||
| 635 | 1600A0077D | 1.94 | 2.35 | |
| Borgring | ||||
| 655 | 1600150022 | 6.54 | 7.91 | |
| Borgring | ||||
| 660 | 1600150023 | 1.18 | 1.43 | |
| Snapring | ||||
| 670 | 160460102P | 1.18 | 1.43 | |
| Recht Tandwiel | ||||
| 675 | 1600A0079B | 101.94 | 123.35 | |
| Inbusbout | ||||
| 680 | 1600A0077G | 1.94 | 2.35 | |
| Inbusbout | ||||
| 685 | 1600A0077H | 2.24 | 2.71 | |
| Borgring | ||||
| 690 | 1600A0073V | 0.83 | 1.00 | |
| Motorhuis | ||||
| 805 | 16051082C1 | 304.19 | 368.07 | |
| Tussenflens | ||||
| 810 | 1600A0077L | 342.01 | 413.83 | |
| Deksel | ||||
| 820 | 1600A0077M | 36.85 | 44.59 | |
| Schroefbevestiging | ||||
| 840 | 1600A0077N | 5.83 | 7.05 | |
| Knevelgreep | ||||
| 850 | 1602026102 | 81.47 | 98.58 | |
| Borstelhouder | ||||
| 855 | 1600A0077P | 91.56 | 110.79 | |
| Slang | ||||
| 875 | 1600A008WC | 60.65 | 73.39 | |
| Slipkoppeling | ||||
| 878 | 1600A0077R | 113.29 | 137.08 | |
| Koolborstelset | ||||
| 880 | 160701417M | 36.85 | 44.59 | |
| Lagerdeksel | ||||
| 890 | 160582023B | 101.94 | 123.35 | |
| Boorspil | ||||
| 891 | 1600A0077S | 342.01 | 413.83 | |
| Afsluiter | ||||
| 892 | 1600A005AY | 67.25 | 81.37 | |
| Wateraansluiting | ||||
| 893 | 1600A0077U | 130.32 | 157.69 | |
| Netkabel | ||||
| 895 | 1600A00DK8 | 55.25 | 66.85 | |
| Glijring | ||||
| 900 | 1600A00780 | 130.32 | 157.69 | |
| O-ring | ||||
| 915 | 160021006D | 2.24 | 2.71 | |
