Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3601JL7000 (GNB18V-38)'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

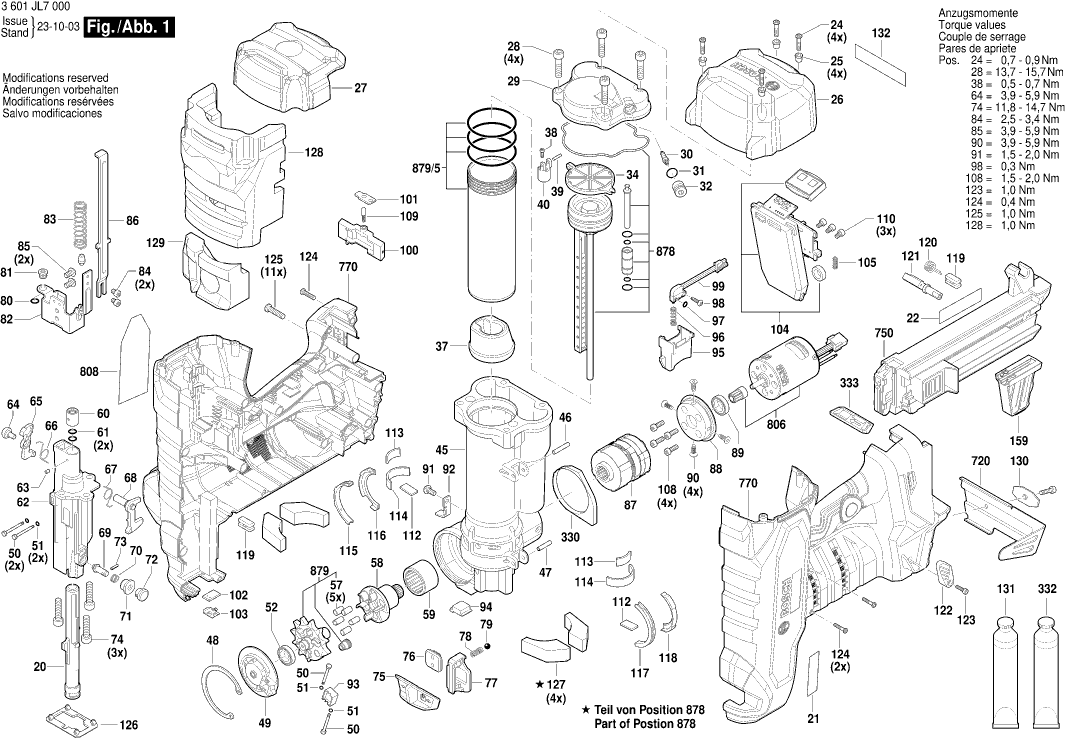

Tekeningen van de Bosch 3601JL7000 (GNB18V-38)
Onderdelen lijst van de Bosch 3601JL7000 (GNB18V-38)
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| VEILIGHEIDSHENDEL | ||||
| 20 | 1600A02HL3 | 47.53 | 57.51 | |
| TYPEPLAAT | ||||
| 21 | 160111A9ZM | 2.40 | 2.90 | |
| ALARMSTICKER | ||||
| 22 | 1600A02LK8 | 2.40 | 2.90 | |
| PLAATSCHROEF | ||||
| 24 | 16034300BF | 1.00 | 1.21 | |
| VULRING | ||||
| 25 | 1600A02HD9 | 1.00 | 1.21 | |
| DEKSEL TOP | ||||
| 26 | 16055002L0 | 5.81 | 7.03 | |
| SUPPORTING FOAM | ||||
| 27 | 1600A02HE0 | 10.90 | 13.19 | |
| INBUSBOUT | ||||
| 28 | 1600A02HE1 | 1.00 | 1.21 | |
| CILINDERDEKSEL | ||||
| 29 | 1600A02HE2 | 23.90 | 28.92 | |
| LAADVENTIEL | ||||
| 30 | 1600A02HE3 | 1.49 | 1.80 | |
| O-RING | ||||
| 31 | 16002100AW | 1.00 | 1.21 | |
| SLUITSCHROEF | ||||
| 32 | 1600A02HE4 | 3.44 | 4.16 | |
| AFSLUITER HEAD (TILTING) | ||||
| 34 | 1600A02HE8 | 4.18 | 5.06 | |
| AANSLAGBUFFER | ||||
| 37 | 1600A02HG5 | 9.67 | 11.70 | |
| ZESKANT SCHROEF (SOCKET) | ||||
| 38 | 160343509T | 1.00 | 1.21 | |
| SCHARNIERPEN | ||||
| 39 | 1600A02HG6 | 1.00 | 1.21 | |
| HOUDER (HEAD VALVE) | ||||
| 40 | 1600A02HG7 | 1.00 | 1.21 | |
| BEHUIZING | ||||
| 45 | 16058066GY | 110.30 | 133.46 | |
| SCHARNIERPEN | ||||
| 46 | 1600A02HH0 | 1.00 | 1.21 | |
| SPANSTIFT | ||||
| 47 | 1600A02HH1 | 1.00 | 1.21 | |
| BORGRING (DRIVE COVER) | ||||
| 48 | 1600150045 | 2.08 | 2.52 | |
| TRANSMISSIEDEKSEL | ||||
| 49 | 1600A02HH2 | 13.13 | 15.89 | |
| BEVESTIGINGSBOUT | ||||
| 50 | 1600A02HH3 | 2.08 | 2.52 | |
| O-RING | ||||
| 51 | 16002100B0 | 1.00 | 1.21 | |
| KOGELLAGER SINGLE ROW DEEP GROOVE | ||||
| 52 | 16009000AJ | 10.90 | 13.19 | |
| AANSLAGBUFFER | ||||
| 57 | 1600A02HH8 | 1.00 | 1.21 | |
| AS MET TANDWIEL | ||||
| 58 | 1600A02HH4 | 43.12 | 52.18 | |
| NAALDHULS CLUTCH | ||||
| 59 | 1600A02HH9 | 23.90 | 28.92 | |
| GELEIDINGSBUS | ||||
| 60 | 1600A02HJ0 | 5.81 | 7.03 | |
| O-RING DRIVE BLADE BUSHING | ||||
| 61 | 16002100B1 | 1.00 | 1.21 | |
| NOK | ||||
| 62 | 1600A02HJ1 | 136.48 | 165.14 | |
| VEERRAND | ||||
| 63 | 1600A02HJ2 | 1.00 | 1.21 | |
| ZESKANT SCHROEF | ||||
| 64 | 160343509U | 1.00 | 1.21 | |
| STOP LATCH | ||||
| 65 | 1600A02HJ3 | 6.73 | 8.14 | |
| TORSIEVEER B (MAGAZINE LOCKOUT) | ||||
| 66 | 1600A02HJ4 | 1.00 | 1.21 | |
| TORSIEVEER A (DRYFIRE LOCKOUT) | ||||
| 67 | 1600A02HJ5 | 1.00 | 1.21 | |
| STOP LATCH | ||||
| 68 | 1600A02HJ6 | 12.82 | 15.51 | |
| AANTREKBOUT (NOSEPIECE PIN) | ||||
| 69 | 1600A02HJ7 | 3.44 | 4.16 | |
| TRILVEER | ||||
| 70 | 1600A02HJ8 | 1.00 | 1.21 | |
| AKTUATORFEDERHALTER | ||||
| 71 | 1600A02HJ9 | 4.18 | 5.06 | |
| EINDKAP | ||||
| 72 | 1600A02HK0 | 1.00 | 1.21 | |
| RUBBERBUFFER (SPRING PIN) | ||||
| 73 | 1600A02HK1 | 1.00 | 1.21 | |
| ZESKANT SCHROEF SOCKET (NOSEPIECE) | ||||
| 74 | 160343509V | 1.49 | 1.80 | |
| STELSCHUIF | ||||
| 75 | 1600A02HK2 | 1.49 | 1.80 | |
| VASTHOUDPLAAT (DEPTH ADJUSTMENT) | ||||
| 76 | 1600A02HK3 | 12.82 | 15.51 | |
| STELSCHUIF | ||||
| 77 | 1600A02HK4 | 34.82 | 42.13 | |
| TRILVEER (DEPTH ADJUSTMENT) | ||||
| 78 | 1600A02HK5 | 1.00 | 1.21 | |
| KOGEL | ||||
| 79 | 1600A02HK6 | 1.00 | 1.21 | |
| O-RING (MAGNET RETENTION) | ||||
| 80 | 16002100B2 | 1.00 | 1.21 | |
| MAGNEETGROEP (WCE ACTUATION) | ||||
| 81 | 1600A02HK7 | 4.94 | 5.98 | |
| VEILIGHEIDSHENDEL NOSE PIECE | ||||
| 82 | 1600A02HK8 | 18.94 | 22.92 | |
| TRILVEER (WCE) | ||||
| 83 | 1600A02HL0 | 1.00 | 1.21 | |
| INBUSBOUT | ||||
| 84 | 1600A02HL1 | 1.00 | 1.21 | |
| INBUSBOUT MET PLATTE KOP | ||||
| 85 | 1600A02HL2 | 1.00 | 1.21 | |
| VEILIGHEIDSSCHERM (UPPER WCE LINKAGE) | ||||
| 86 | 1600A02HK9 | 5.81 | 7.03 | |
| PLANEETDRIJFWERK | ||||
| 87 | 1600A02HL5 | 88.83 | 107.48 | |
| ADAPTERPLAAT (MOTOR) | ||||
| 88 | 1600A02HL6 | 13.13 | 15.89 | |
| KOGELLAGER SINGLE ROW DEEP GROOVE BALL | ||||
| 89 | 16009000AK | 11.37 | 13.76 | |
| TORX-SCHROEF | ||||
| 90 | 1600A02HL7 | 1.00 | 1.21 | |
| INBUSBOUT MET PLATTE KOP | ||||
| 91 | 1600A02J1W | 1.00 | 1.21 | |
| KABELDRAGER | ||||
| 92 | 1600A02J1X | 2.08 | 2.52 | |
| HALL SENSOR | ||||
| 93 | 1600A02HL8 | 16.79 | 20.32 | |
| HALL SENSOR | ||||
| 94 | 1600A02HL9 | 16.79 | 20.32 | |
| ACTIVATOR | ||||
| 95 | 1600A02HM0 | 1.00 | 1.21 | |
| TRILVEER (TRIGGER) | ||||
| 96 | 1600A02HM1 | 1.00 | 1.21 | |
| O-RING | ||||
| 97 | 16002100B3 | 1.00 | 1.21 | |
| Niet meer leverbaar, geen vervanging | ||||
| 98 | 1600A02HM3 | |||
| SCHAKELAAR | ||||
| 99 | 2607202769 | 10.90 | 13.19 | |
| VERGRENDELINGSHENDEL (TRIGGER) | ||||
| 100 | 1600A02HM4 | 1.49 | 1.80 | |
| VASTHOUDPLAAT (TRIGGER LOCKOUT) | ||||
| 101 | 1600A02HM5 | 2.08 | 2.52 | |
| LED LIGHTING | ||||
| 102 | 1600A02HM6 | 1.49 | 1.80 | |
| LENS | ||||
| 103 | 1600A02HM7 | 1.49 | 1.80 | |
| EL.MODULE | ||||
| 104 | 1600A02G8F | 219.55 | 265.66 | |
| TRILVEER (BATTERY RETAINER) | ||||
| 105 | 1600A02HP2 | 1.00 | 1.21 | |
| INBUSBOUT | ||||
| 108 | 1600A02HP5 | 1.00 | 1.21 | |
| AANSLAGBOUT | ||||
| 109 | 1603123085 | 4.18 | 5.06 | |
| INBUSBOUT (PCBA) | ||||
| 110 | 1600A02J1Y | 1.00 | 1.21 | |
| RUBBERBUFFER (VERTICAL SUPPORT) | ||||
| 112 | 1600A02HP7 | 1.00 | 1.21 | |
| RUBBERBUFFER B (DRIVE HOUSING) | ||||
| 113 | 1600A02HP8 | 1.00 | 1.21 | |
| RUBBERBUFFER B (DRIVE HOUSING) | ||||
| 114 | 1600A02HP9 | 1.00 | 1.21 | |
| RUBBERBUFFER A (MOTOR) | ||||
| 115 | 1600A02HR0 | 1.00 | 1.21 | |
| RUBBERBUFFER B (MOTOR) | ||||
| 116 | 1600A02HR1 | 1.00 | 1.21 | |
| RUBBERBUFFER A (MOTOR) | ||||
| 117 | 1600A02HR2 | 1.00 | 1.21 | |
| RUBBERBUFFER B (MOTOR) | ||||
| 118 | 1600A02HR3 | 1.00 | 1.21 | |
| RUBBERBUFFER HOUSING (H-SECTION) | ||||
| 119 | 1600A02HR4 | 1.00 | 1.21 | |
| TORSIEVEER (MAGAZINE RELEASE LEVER) | ||||
| 120 | 1600A02HR5 | 1.00 | 1.21 | |
| LAGERAS (MAGAZINE RELEASE) | ||||
| 121 | 1600A02HR6 | 12.82 | 15.51 | |
| ACTIVEERHENDEL | ||||
| 122 | 1600A02HR7 | 1.49 | 1.80 | |
| INBUSBOUT (RELEASE LVR) | ||||
| 123 | 1600A02HR8 | 1.00 | 1.21 | |
| SELF-TAPPING SCREW (HOUSING) | ||||
| 124 | 1600A02HS0 | 1.00 | 1.21 | |
| PLAATSCHROEF | ||||
| 125 | 16034300BF | 1.00 | 1.21 | |
| STOFDEKSEL | ||||
| 126 | 1600A02J1Z | 1.00 | 1.21 | |
| LUCHTFILTER | ||||
| 127 | 1600A02HS2 | 1.49 | 1.80 | |
| SUPPORTING FOAM | ||||
| 128 | 1600A02HS3 | 11.37 | 13.76 | |
| SUPPORTING FOAM | ||||
| 129 | 1600A02HS4 | 10.90 | 13.19 | |
| OPSPANPLAAT | ||||
| 130 | 1600A02HS5 | 2.08 | 2.52 | |
| VET | ||||
| 131 | 2610005257 | 7.46 | 9.03 | |
| ALARMSTICKER | ||||
| 132 | 1600A02JD6 | 2.40 | 2.90 | |
| DRAAGVOET | ||||
| 159 | 1600A02HT9 | 9.67 | 11.70 | |
| LUCHTFILTER | ||||
| 330 | 1600A02U8T | 2.08 | 2.52 | |
| VET (MOS2) | ||||
| 332 | 60828010CA | 4.18 | 5.06 | |
| STOPPING PIN UPPER POKAYOKE FOR BOSCH NA | ||||
| 333 | 1600A02U8S | 1.49 | 1.80 | |
| HAAK | ||||
| 720 | 1600A02K07 | 16.66 | 20.16 | |
| NAGELPATROON COLLATED MAGAZINE ASM | ||||
| 750 | 1600A02K00 | 88.83 | 107.48 | |
| BEHUIZING ASSEMBLY | ||||
| 770 | 16058066HX | 98.18 | 118.80 | |
| MOTORBOUWGROEP | ||||
| 806 | 1605A002BP | 173.95 | 210.48 | |
| TYPE-ETIKET REA | ||||
| 808 | 1600A0303R | 2.40 | 2.90 | |
| ZUIGERMONTAGE DRIVER LIFTER | ||||
| 878 | 1607000F3C | 244.89 | 296.32 | |
| TANDWIEL | ||||
| 879 | 1607000F3D | 47.53 | 57.51 | |
| CILINDER | ||||
| 879/5 | 1600A02W49 | 71.68 | 86.73 | |
