Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Bosch 3601M44000 ( GTS18V-216 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

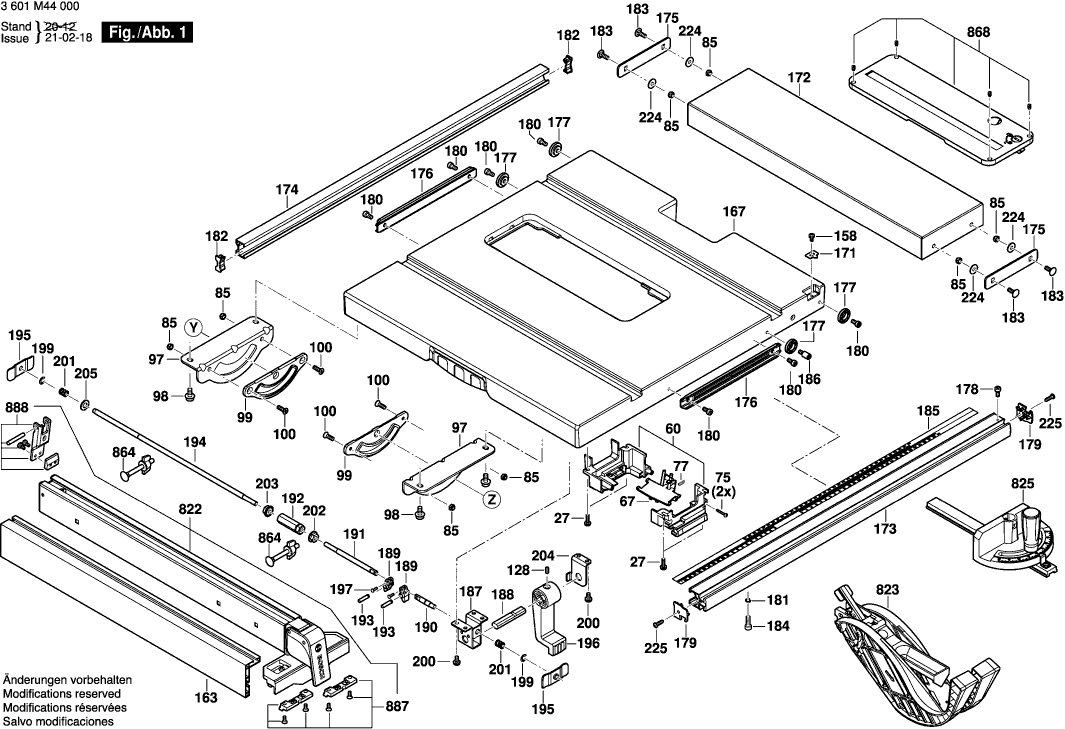

Tekeningen van de Bosch 3601M44000 ( GTS18V-216 )
Onderdelen lijst van de Bosch 3601M44000 ( GTS18V-216 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Borstelloze DC-motor 0 | ||||
| 2 | 160702267K | 148.65 | 179.87 | |
| Schakelaar | ||||
| 4 | 2607202394 | 13.93 | 16.86 | |
| Typeplaat | ||||
| 8 | 1609BN0407 | 1.94 | 2.35 | |
| Schroef | ||||
| 18 | 1609B06380 | 0.83 | 1.00 | |
| Schroef | ||||
| 19 | 1609B00655 | 0.83 | 1.00 | |
| Motormantel | ||||
| 21 | 1609B06685 | 1.94 | 2.35 | |
| Schakelaardeksel | ||||
| 23 | 1609B06340 | 1.18 | 1.43 | |
| Schakelaardeksel | ||||
| 24 | 1609B06341 | 1.18 | 1.43 | |
| Schakelkast | ||||
| 25 | 1609B06333 | 1.18 | 1.43 | |
| Cable | ||||
| 26 | 1609B06265 | 1.70 | 2.06 | |
| Schroef | ||||
| 27 | 1609B01281 | 0.83 | 1.00 | |
| Elektronische Module | ||||
| 28 | 16072335GB | 148.65 | 179.87 | |
| Plaat | ||||
| 29 | 1609B06697 | 3.31 | 4.01 | |
| Schroef | ||||
| 30 | 1609B03361 | 0.83 | 1.00 | |
| Afdekking | ||||
| 31 | 1609B06223 | 1.70 | 2.06 | |
| Afdekking | ||||
| 32 | 1609B06686 | 0.83 | 1.00 | |
| Afdekking | ||||
| 33 | 1609B06698 | 0.83 | 1.00 | |
| RUBBER SPANELEMENT | ||||
| 34 | 1609B06352 | 0.83 | 1.00 | |
| Uitgaande As | ||||
| 38 | 1609B03947 | 6.54 | 7.91 | |
| Spiraaltandwiel | ||||
| 39 | 1609B06362 | 10.73 | 12.98 | |
| Transmissiedeksel | ||||
| 40 | 1609B03944 | 8.45 | 10.22 | |
| Schroef | ||||
| 41 | 1609B01050 | 0.83 | 1.00 | |
| Lager | ||||
| 42 | 1609B06547 | 3.31 | 4.01 | |
| Lagerdeksel | ||||
| 43 | 1609B03948 | 1.18 | 1.43 | |
| VERGRENDELINGSHENDEL | ||||
| 44 | 1609B06785 | 4.10 | 4.96 | |
| Torsieveren | ||||
| 45 | 1609B03937 | 0.83 | 1.00 | |
| SCHOUDERSCHROEF | ||||
| 46 | 1609B03923 | 0.83 | 1.00 | |
| Stelschroef | ||||
| 47 | 1609B03929 | 0.83 | 1.00 | |
| Moer | ||||
| 48 | 1609BT4033 | 0.83 | 1.00 | |
| Binnenring | ||||
| 49 | 1609B03913 | 4.10 | 4.96 | |
| Elektrische Leiding | ||||
| 50 | 1609B06217 | 3.31 | 4.01 | |
| Flens | ||||
| 51 | 1609B03915 | 3.31 | 4.01 | |
| Moer | ||||
| 52 | 1609B03916 | 0.83 | 1.00 | |
| Beschermingsplaat | ||||
| 53 | 1609B05720 | 0.83 | 1.00 | |
| Schroef | ||||
| 54 | 1609B01690 | 0.83 | 1.00 | |
| Remhoudersteun | ||||
| 55 | 1609B06687 | 1.18 | 1.43 | |
| Blaasbalg | ||||
| 56 | 1609B06694 | 0.83 | 1.00 | |
| Afdekking | ||||
| 57 | 1609B06688 | 1.18 | 1.43 | |
| Afdekking | ||||
| 58 | 1609B06707 | 0.83 | 1.00 | |
| Plaatschroef | ||||
| 59 | 1609B00637 | 0.83 | 1.00 | |
| Verwarmingselement | ||||
| 60 | 1609B06706 | 2.71 | 3.28 | |
| Aandrijfas | ||||
| 61 | 1609B04525 | 1.94 | 2.35 | |
| Schijf | ||||
| 62 | 1609B00675 | 0.83 | 1.00 | |
| Inbusbout | ||||
| 63 | 1609B05390 | 0.83 | 1.00 | |
| Schroeflijst | ||||
| 64 | 1609B06704 | 5.33 | 6.45 | |
| Steunplaat | ||||
| 65 | 1609B04522 | 2.24 | 2.71 | |
| Wijzer | ||||
| 66 | 1609B06220 | 0.83 | 1.00 | |
| Contacthouder | ||||
| 67 | 1609B06200 | 23.75 | 28.74 | |
| Schroef | ||||
| 68 | 1609B00650 | 0.83 | 1.00 | |
| Riem | ||||
| 69 | 1609B04253 | 15.71 | 19.01 | |
| Borgbeugel | ||||
| 70 | 1609B01287 | 0.83 | 1.00 | |
| Spanbus | ||||
| 71 | 1609B04524 | 1.70 | 2.06 | |
| Niet meer leverbaar, geen vervanging | ||||
| 72 | 1609B04520 | |||
| Schroef | ||||
| 73 | 1609B00624 | 0.83 | 1.00 | |
| Geleideprofiel | ||||
| 74 | 1609B04519 | 2.24 | 2.71 | |
| Torx-lenskopschroef | ||||
| 75 | 2609110353 | 1.70 | 2.06 | |
| Drukveer | ||||
| 77 | 1609280477 | 1.18 | 1.43 | |
| Schijf | ||||
| 78 | 1609B06808 | 0.83 | 1.00 | |
| Schijfhandwiel | ||||
| 79 | 1609B04528 | 2.71 | 3.28 | |
| Combinatieschroef | ||||
| 80 | 1619P03825 | 0.83 | 1.00 | |
| Onderlegschijf | ||||
| 81 | 1609B00757 | 0.83 | 1.00 | |
| CENTRALE REKENMODULE | ||||
| 82 | 1609B04529 | 0.83 | 1.00 | |
| Schroef | ||||
| 83 | 1609B00689 | 1.18 | 1.43 | |
| Schroef | ||||
| 84 | 1609B06368 | 0.83 | 1.00 | |
| Borgmoer | ||||
| 85 | 1609BP7039 | 0.83 | 1.00 | |
| STOFKAST | ||||
| 86 | 1609B03863 | 1.18 | 1.43 | |
| AFSCHERMONDERSTUK | ||||
| 87 | 1609B06718 | 6.54 | 7.91 | |
| Steunpaneel | ||||
| 88 | 1609B04530 | 0.83 | 1.00 | |
| Drukveer | ||||
| 91 | 1609B04531 | 0.83 | 1.00 | |
| Wagen | ||||
| 92 | 1609B04517 | 40.61 | 49.14 | |
| Schroef | ||||
| 93 | 1609B04560 | 0.83 | 1.00 | |
| Vormschijf | ||||
| 94 | 1609B03829 | 0.83 | 1.00 | |
| Stopper | ||||
| 95 | 1609B04551 | 1.18 | 1.43 | |
| Schroef | ||||
| 96 | 1609B06561 | 0.83 | 1.00 | |
| Bevestigingshoek | ||||
| 97 | 1609B06705 | 8.45 | 10.22 | |
| Schroef | ||||
| 98 | 1609B04541 | 0.83 | 1.00 | |
| Lagerbus | ||||
| 99 | 1609B01186 | 6.54 | 7.91 | |
| Cilinderkopschroef | ||||
| 100 | 1609B01196 | 0.83 | 1.00 | |
| STOFAFZUIGING | ||||
| 101 | 1609B06363 | 0.83 | 1.00 | |
| Afdekking | ||||
| 103 | 1609B06708 | 0.83 | 1.00 | |
| Kunststof Zelftapschroef | ||||
| 105 | 1609B01046 | 0.83 | 1.00 | |
| Opspanplaat | ||||
| 109 | 1609B06689 | 2.24 | 2.71 | |
| Schijf | ||||
| 112 | 1609B06809 | 0.83 | 1.00 | |
| Opspanplaat | ||||
| 113 | 1609B06690 | 1.70 | 2.06 | |
| Stofwerende Mantel | ||||
| 114 | 1609B06691 | 4.10 | 4.96 | |
| Schroefdraadpen | ||||
| 128 | 1609B04562 | 0.83 | 1.00 | |
| Inplakvel | ||||
| 141 | 1609B06711 | 0.83 | 1.00 | |
| Schroef | ||||
| 158 | 1609B01282 | 0.83 | 1.00 | |
| Lichaam | ||||
| 163 | 1609B03874 | 12.41 | 15.02 | |
| TAFELPLAAT | ||||
| 167 | 1609B06699 | 130.32 | 157.69 | |
| Veerplaat | ||||
| 169 | 1609B06422 | 0.83 | 1.00 | |
| Wijzer | ||||
| 171 | 1609B06218 | 0.83 | 1.00 | |
| Verlengbuis | ||||
| 172 | 1609B03959 | 15.71 | 19.01 | |
| Rail | ||||
| 173 | 1609B03960 | 15.71 | 19.01 | |
| Rail | ||||
| 174 | 1609B03961 | 7.58 | 9.17 | |
| Tekstplaat | ||||
| 175 | 1609B03963 | 1.18 | 1.43 | |
| Rail | ||||
| 176 | 1609B06801 | 1.70 | 2.06 | |
| Rail | ||||
| 177 | 1609B06802 | 0.83 | 1.00 | |
| Schroef | ||||
| 178 | 1609B02751 | 0.83 | 1.00 | |
| Schijf | ||||
| 179 | 1609B06382 | 0.83 | 1.00 | |
| Schroef | ||||
| 180 | 1609B00627 | 1.70 | 2.06 | |
| Wig Tegen Wegrollen | ||||
| 181 | 1609B02181 | 0.83 | 1.00 | |
| Schijf | ||||
| 182 | 1609B06400 | 0.83 | 1.00 | |
| SCHOUDERSCHROEF | ||||
| 183 | 1609B03990 | 0.83 | 1.00 | |
| Flensbout | ||||
| 184 | 1609B01322 | 0.83 | 1.00 | |
| SCHAALVERDELING | ||||
| 185 | 1609B03886 | 1.94 | 2.35 | |
| SCHOUDERSCHROEF | ||||
| 186 | 1609B06589 | 0.83 | 1.00 | |
| Opspanhaak | ||||
| 187 | 1609B03964 | 1.94 | 2.35 | |
| GREEPSTANG | ||||
| 188 | 1609B03965 | 1.70 | 2.06 | |
| Nokkenschijf | ||||
| 189 | 1609B03966 | 2.71 | 3.28 | |
| Scharnierhelft | ||||
| 190 | 1609B03967 | 1.18 | 1.43 | |
| Scharnierhelft | ||||
| 191 | 1609B03968 | 1.70 | 2.06 | |
| Moer | ||||
| 192 | 1609B03969 | 1.70 | 2.06 | |
| Stift | ||||
| 193 | 1609B03970 | 0.83 | 1.00 | |
| Staaf | ||||
| 194 | 1609B03971 | 3.31 | 4.01 | |
| Veerplaat | ||||
| 195 | 1609B03972 | 1.18 | 1.43 | |
| Spanhefboom | ||||
| 196 | 1609B03973 | 1.70 | 2.06 | |
| Vergrendelniet | ||||
| 197 | 1609B03974 | 0.83 | 1.00 | |
| Eindclip | ||||
| 199 | 1609B01992 | 0.83 | 1.00 | |
| Schroef | ||||
| 200 | 1609B00647 | 1.18 | 1.43 | |
| Drukveer | ||||
| 201 | 1609B03976 | 0.83 | 1.00 | |
| Flensbouwpakket | ||||
| 202 | 1609B03975 | 0.83 | 1.00 | |
| Flensbouwpakket | ||||
| 203 | 1609B06406 | 0.83 | 1.00 | |
| Houderarm | ||||
| 204 | 1609B03993 | 0.83 | 1.00 | |
| Schijf | ||||
| 205 | 1609B00670 | 1.18 | 1.43 | |
| Voet | ||||
| 206 | 1609B03983 | 60.65 | 73.39 | |
| Voorfrontplaat | ||||
| 207 | 1609B03979 | 11.88 | 14.37 | |
| Tubus | ||||
| 208 | 1609B03984 | 26.84 | 32.48 | |
| ONDERPLAAT | ||||
| 209 | 1609B03985 | 11.88 | 14.37 | |
| Voetdeksel | ||||
| 210 | 1609B03986 | 0.83 | 1.00 | |
| Schijf | ||||
| 211 | 1609B03988 | 4.10 | 4.96 | |
| Veerplaat | ||||
| 212 | 1609B03995 | 0.83 | 1.00 | |
| Handgreep | ||||
| 213 | 1609B06702 | 2.71 | 3.28 | |
| Schroef | ||||
| 214 | 1609B01243 | 0.83 | 1.00 | |
| Houderarm | ||||
| 215 | 1609B03981 | 1.18 | 1.43 | |
| Rubbersluitring | ||||
| 216 | 1609BP7098 | 0.83 | 1.00 | |
| Tekstplaat | ||||
| 217 | 1609B06378 | 0.83 | 1.00 | |
| Schroef | ||||
| 218 | 1609B06405 | 0.83 | 1.00 | |
| Houderarm | ||||
| 220 | 1609B03994 | 1.70 | 2.06 | |
| Houderarm | ||||
| 221 | 1609B06413 | 0.83 | 1.00 | |
| Combinatieschroef | ||||
| 222 | 1609B00969 | 0.83 | 1.00 | |
| Niet meer leverbaar, geen vervanging | ||||
| 223 | 1609B04082 | |||
| Onderlegschijf | ||||
| 224 | 1609B01253 | 0.83 | 1.00 | |
| Plaatschroef | ||||
| 225 | 1609BP7138 | 0.83 | 1.00 | |
| Plaatschroef | ||||
| 229 | 1609B00636 | 1.94 | 2.35 | |
| Spanbus | ||||
| 231 | 1609B06383 | 0.83 | 1.00 | |
| Schroef | ||||
| 232 | 1609B06385 | 0.83 | 1.00 | |
| Werkstukschuif | ||||
| 234 | 1609B06410 | 2.71 | 3.28 | |
| VOORZETSCHROEVENDRAAIER | ||||
| 235 | 1609B06384 | 1.18 | 1.43 | |
| VOORZETSCHROEVENDRAAIER | ||||
| 236 | 1609B03891 | 3.31 | 4.01 | |
| KNOPGREEP | ||||
| 237 | 1609B06421 | 0.83 | 1.00 | |
| MACHINE-CLIP | ||||
| 238 | 1609B05286 | 0.83 | 1.00 | |
| Inplakvel | ||||
| 241 | 1609B06715 | 0.83 | 1.00 | |
| Snapring | ||||
| 242 | 1609B04626 | 0.83 | 1.00 | |
| Snapring | ||||
| 243 | 1609B00644 | 1.70 | 2.06 | |
| Schroef | ||||
| 246 | 1609B06560 | 0.83 | 1.00 | |
| Schroef | ||||
| 247 | 1609B00631 | 1.94 | 2.35 | |
| Schroef | ||||
| 261 | 1609B06807 | 2.24 | 2.71 | |
| STOFZAK | ||||
| 651 | 1609B06703 | 11.88 | 14.37 | |
| LENGTEAANSLAG | ||||
| 822 | 1609B04590 | 44.82 | 54.23 | |
| AFSCHERMBOVENSTUK | ||||
| 823 | 1609B06781 | 20.42 | 24.71 | |
| VERSTEKLINIAAL | ||||
| 825 | 1609B06423 | 9.53 | 11.53 | |
| SPOUWMES | ||||
| 828 | 1609B06782 | 20.42 | 24.71 | |
| AANDRIJFKAST | ||||
| 835 | 1609B06214 | 29.75 | 36.00 | |
| Bevestigingsset | ||||
| 864 | 1609B06424 | 0.83 | 1.00 | |
| TAFELPLAAT | ||||
| 868 | 1609B06415 | 13.93 | 16.86 | |
| VERGRENDELINGSHENDEL | ||||
| 876 | 1609B05713 | 3.31 | 4.01 | |
| Vulling | ||||
| 887 | 1609B05715 | 1.70 | 2.06 | |
| Spaneenheid | ||||
| 888 | 1609B05657 | 4.10 | 4.96 | |
