Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Fein 72708506230 ( KBU35QW )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

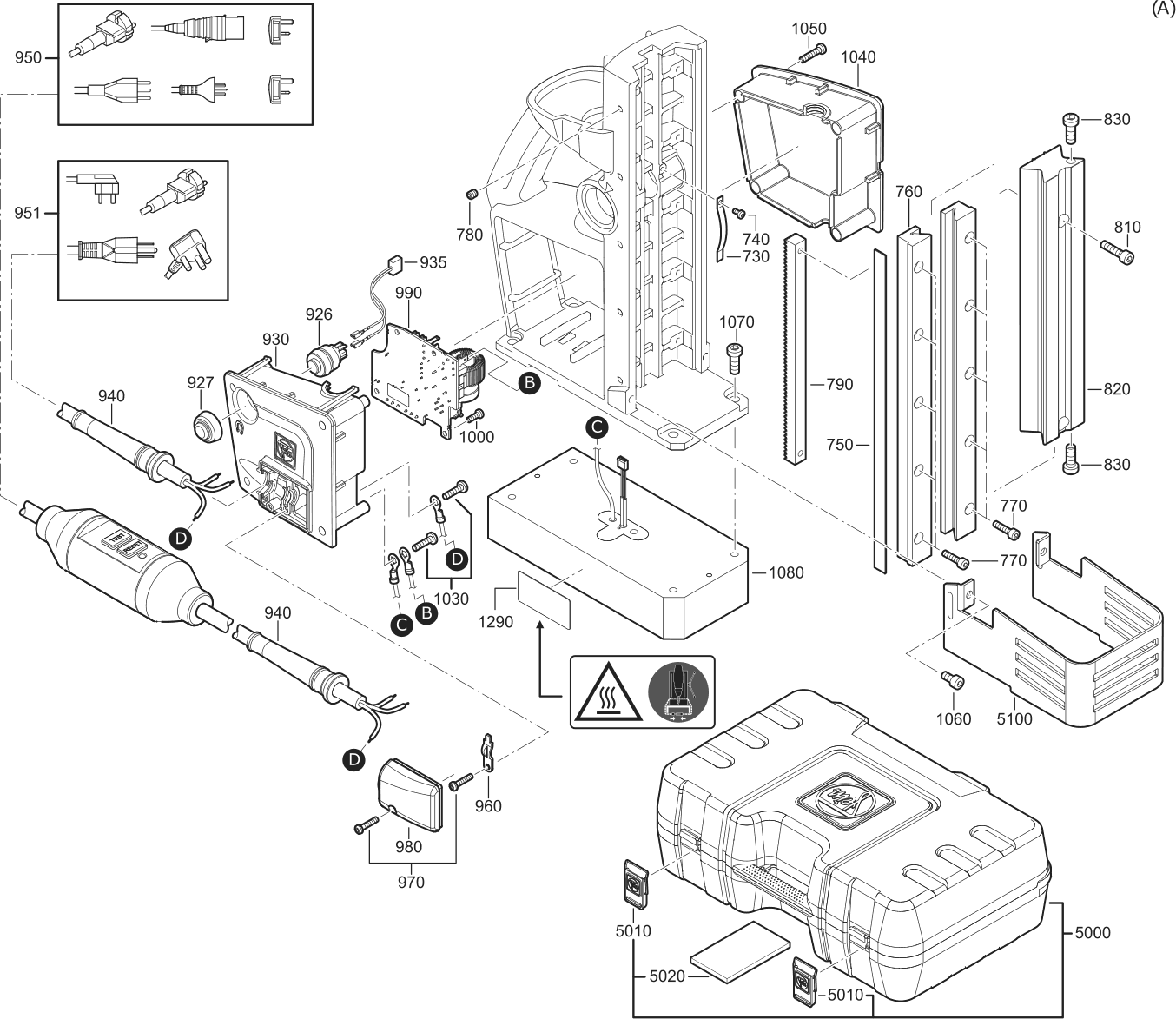

Tekeningen van de Fein 72708506230 ( KBU35QW )
Onderdelen lijst van de Fein 72708506230 ( KBU35QW )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| VELD 50HZ 230V | ||||
| 20 | 51282002230 | 70.18 | 84.92 | |
| LUCHTRING | ||||
| 40 | 31428196000 | 6.61 | 8.00 | |
| ANKER | ||||
| 50 | 53281007230 | 136.53 | 165.20 | |
| GROEFKOGELLAGER | ||||
| 60 | 41701001172 | 8.21 | 9.93 | |
| LAGER | ||||
| 62 | 41701001260 | 5.77 | 6.98 | |
| MAGNEETRING | ||||
| 70 | 32172014010 | 7.66 | 9.27 | |
| AFSLUITPLAAT | ||||
| 80 | 32416098005 | 1.67 | 2.02 | |
| LAGER | ||||
| 90 | 41701207260 | 6.19 | 7.49 | |
| AFDICHTING | ||||
| 100 | 32612135000 | 5.57 | 6.74 | |
| NILOSRING | ||||
| 110 | 42639028003 | 5.15 | 6.23 | |
| BESCHERMROOSTER | ||||
| 125 | 32411089000 | 2.29 | 2.77 | |
| KOOLBORSTEL P/STUK | ||||
| 135 | 30711158000 | 7.38 | 8.93 | |
| SCHROEF | ||||
| 140 | 43072000000 | 1.04 | 1.26 | |
| DEKSEL | ||||
| 150 | 32427157000 | 5.57 | 6.74 | |
| 160 | 30762562990 | 140.36 | 169.84 | |
| MOTORHUIS | ||||
| 185 | 31901202030 | 47.85 | 57.90 | |
| BESCHERMSLANG | ||||
| 191 | 31414072000 | 20.74 | 25.10 | |
| AANSLUITSTUK | ||||
| 192 | 32429146010 | 17.86 | 21.61 | |
| STUURKABEL | ||||
| 193 | 30719936010 | 9.32 | 11.28 | |
| STICKER | ||||
| 195 | 32217468060 | 3.90 | 4.72 | |
| KABELBOOM | ||||
| 196 | 30719943010 | 8.90 | 10.77 | |
| KLEMVEER | ||||
| 200 | 30728445000 | 3.34 | 4.04 | |
| PRINT KLEIN KBU35 | ||||
| 210 | 30762560990 | 61.89 | 74.89 | |
| SCHAKELKNOPPEN | ||||
| 220 | 32816078000 | 37.64 | 45.54 | |
| DEKSEL | ||||
| 230 | 32429141000 | 13.08 | 15.83 | |
| Tussenlager | ||||
| 250 | 31506428010 | 41.80 | 50.58 | |
| GROEFKOGELLAGER | ||||
| 260 | 41701006034 | 7.38 | 8.93 | |
| GROEFKOGELLAGER | ||||
| 270 | 41701202018 | 5.77 | 6.98 | |
| SCHROEF | ||||
| 290 | 43072006001 | 1.04 | 1.26 | |
| TANDWIELHUIS | ||||
| 295 | 31508311020 | 151.84 | 183.73 | |
| GROEFKOGELLAGER | ||||
| 340 | 41701000015 | 14.67 | 17.75 | |
| BORGRING | ||||
| 350 | 42616014009 | 1.04 | 1.26 | |
| QUADRING | ||||
| 360 | 40608000005 | 5.57 | 6.74 | |
| SEEGERING | ||||
| 370 | 42644019001 | 4.32 | 5.23 | |
| AS | ||||
| 385 | 33403132000 | 173.54 | 209.98 | |
| TANDWIEL | ||||
| 400 | 33663174000 | 28.71 | 34.74 | |
| BORGRING | ||||
| 410 | 42616007001 | 1.04 | 1.26 | |
| AS | ||||
| 420 | 33763064000 | 29.03 | 35.13 | |
| TANDWIEL | ||||
| 440 | 33661002000 | 15.95 | 19.30 | |
| AS VERTAND | ||||
| 470 | 33761002000 | 43.38 | 52.49 | |
| TANDWIEL | ||||
| 480 | 33657190000 | 33.81 | 40.91 | |
| DICHTING | ||||
| 530 | 30610048000 | 6.19 | 7.49 | |
| SLANGNIPPEL | ||||
| 550 | 41138025006 | 6.82 | 8.25 | |
| DRUKSTUK | ||||
| 560 | 33218134000 | 38.28 | 46.32 | |
| HENDEL | ||||
| 570 | 32170025000 | 20.42 | 24.71 | |
| DRUKVEER | ||||
| 580 | 30901341000 | 5.36 | 6.49 | |
| HULS | ||||
| 590 | 30503145006 | 3.34 | 4.04 | |
| SCHIJF | ||||
| 600 | 32408389000 | 1.25 | 1.51 | |
| BORGRING | ||||
| 615 | 42616033009 | 1.04 | 1.26 | |
| STIFT | ||||
| 625 | 30240330000 | 11.10 | 13.43 | |
| SPANHULS | ||||
| 635 | 30501371000 | 31.26 | 37.82 | |
| BUS | ||||
| 645 | 30501373000 | 27.43 | 33.19 | |
| VEER | ||||
| 655 | 30901401000 | 5.36 | 6.49 | |
| HULS | ||||
| 665 | 30501372000 | 18.18 | 22.00 | |
| SEEGERING | ||||
| 670 | 42616076000 | 1.04 | 1.26 | |
| HUIS | ||||
| 705 | 31207320020 | 299.86 | 362.83 | |
| LAGERBUS | ||||
| 720 | 31602089009 | 4.10 | 4.96 | |
| BLADVEER | ||||
| 730 | 30904047000 | 5.57 | 6.74 | |
| SCHROEF | ||||
| 740 | 43076001030 | 1.04 | 1.26 | |
| DRUKSTRIP | ||||
| 750 | 33216047000 | 4.73 | 5.72 | |
| GELEIDERSTRIP | ||||
| 760 | 34300000002 | 52.32 | 63.31 | |
| SCHROEF | ||||
| 770 | 43035076041 | 1.04 | 1.26 | |
| DRAADSTIFT ZELFBORG | ||||
| 780 | 43058008051 | 2.51 | 3.04 | |
| TANDHEUGEL | ||||
| 790 | 33812007004 | 91.87 | 111.16 | |
| SCHROEF CILINDER | ||||
| 810 | 43035017057 | 1.04 | 1.26 | |
| GELEIDER | ||||
| 820 | 34300000003 | 81.66 | 98.81 | |
| SCHROEF | ||||
| 830 | 43041041053 | 1.88 | 2.27 | |
| AS VERTAND | ||||
| 840 | 33713073000 | 103.36 | 125.07 | |
| RING | ||||
| 850 | 42446003009 | 1.25 | 1.51 | |
| BORGRING | ||||
| 860 | 42616065008 | 1.25 | 1.51 | |
| AANSLUITSTUK | ||||
| 870 | 30109201010 | 55.51 | 67.17 | |
| HANDGREEP | ||||
| 890 | 32119114014 | 15.63 | 18.91 | |
| SKALA | ||||
| 900 | 32636046000 | 7.24 | 8.76 | |
| SCHROEF CILINDER | ||||
| 910 | 43035084062 | 1.04 | 1.26 | |
| DICHTING | ||||
| 920 | 40612171000 | 1.25 | 1.51 | |
| DRUKKNOP | ||||
| 926 | 30701223005 | 13.40 | 16.21 | |
| AFDEK KAP | ||||
| 927 | 30701224003 | 5.36 | 6.49 | |
| DEKSEL | ||||
| 930 | 32424032000 | 19.78 | 23.93 | |
| VERBINDINGSKABEL | ||||
| 935 | 30719935010 | 8.50 | 10.28 | |
| BESCHERMSLANG | ||||
| 940 | 31413237000 | 2.29 | 2.77 | |
| Kabel | ||||
| 950 | 30707581010 | 86.90 | 105.15 | |
| KABEL KLEMSTUK | ||||
| 960 | 32431043002 | 1.04 | 1.26 | |
| SCHROEF | ||||
| 970 | 43074010000 | 1.04 | 1.26 | |
| DEKSEL | ||||
| 980 | 32424031000 | 11.10 | 13.43 | |
| PRINT GROOT KBU35 | ||||
| 990 | 30762641980 | 274.34 | 331.95 | |
| SCHROEF | ||||
| 1000 | 43074013000 | 1.04 | 1.26 | |
| SCHROEF MET VERGR. | ||||
| 1030 | 43064023045 | 0.90 | 1.09 | |
| DEKSEL KBU35 | ||||
| 1040 | 32424033000 | 19.78 | 23.93 | |
| SCHROEF TORX20 4.0X18 | ||||
| 1050 | 43074008000 | 1.04 | 1.26 | |
| SCHROEF CILINDER | ||||
| 1060 | 43035013058 | 1.04 | 1.26 | |
| SCHROEF CILINDER | ||||
| 1070 | 43033064066 | 1.04 | 1.26 | |
| MAGNEETVOET | ||||
| 1080 | 32172040040 | 516.78 | 625.30 | |
| RESERVOIR | ||||
| 1090 | 32132035010 | 40.83 | 49.40 | |
| KOGELKRAAN SET | ||||
| 1095 | 30240357010 | 25.20 | 30.49 | |
| FLEXIBELE SLANG | ||||
| 1096 | 31414070010 | 18.98 | 22.97 | |
| SLANG | ||||
| 1100 | 31414073000 | 2.93 | 3.55 | |
| HULS | ||||
| 1105 | 30501377000 | 3.48 | 4.21 | |
| MOER | ||||
| 1110 | 42015000000 | 6.19 | 7.49 | |
| STICKER | ||||
| 1260 | 32217514000 | 2.71 | 3.28 | |
| STICKER | ||||
| 1270 | 32217406002 | 1.25 | 1.51 | |
| STICKER | ||||
| 1290 | 32217507060 | 4.73 | 5.72 | |
| INSTRUCTIE STICKER | ||||
| 1310 | 32217466060 | 4.10 | 4.96 | |
| AANWIJSBORD | ||||
| 1350 | 32217552000 | 1.04 | 1.26 | |
| RFID CHIP | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| KOFFER KBU35 | ||||
| 5000 | 33901174060 | 124.30 | 150.40 | |
| Smeermiddeldoos | ||||
| 6000 | 32132041000 | 85.23 | 103.13 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 6020 | 04012803000 | |||
