Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Festool 491966 ( CS50EB230V )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

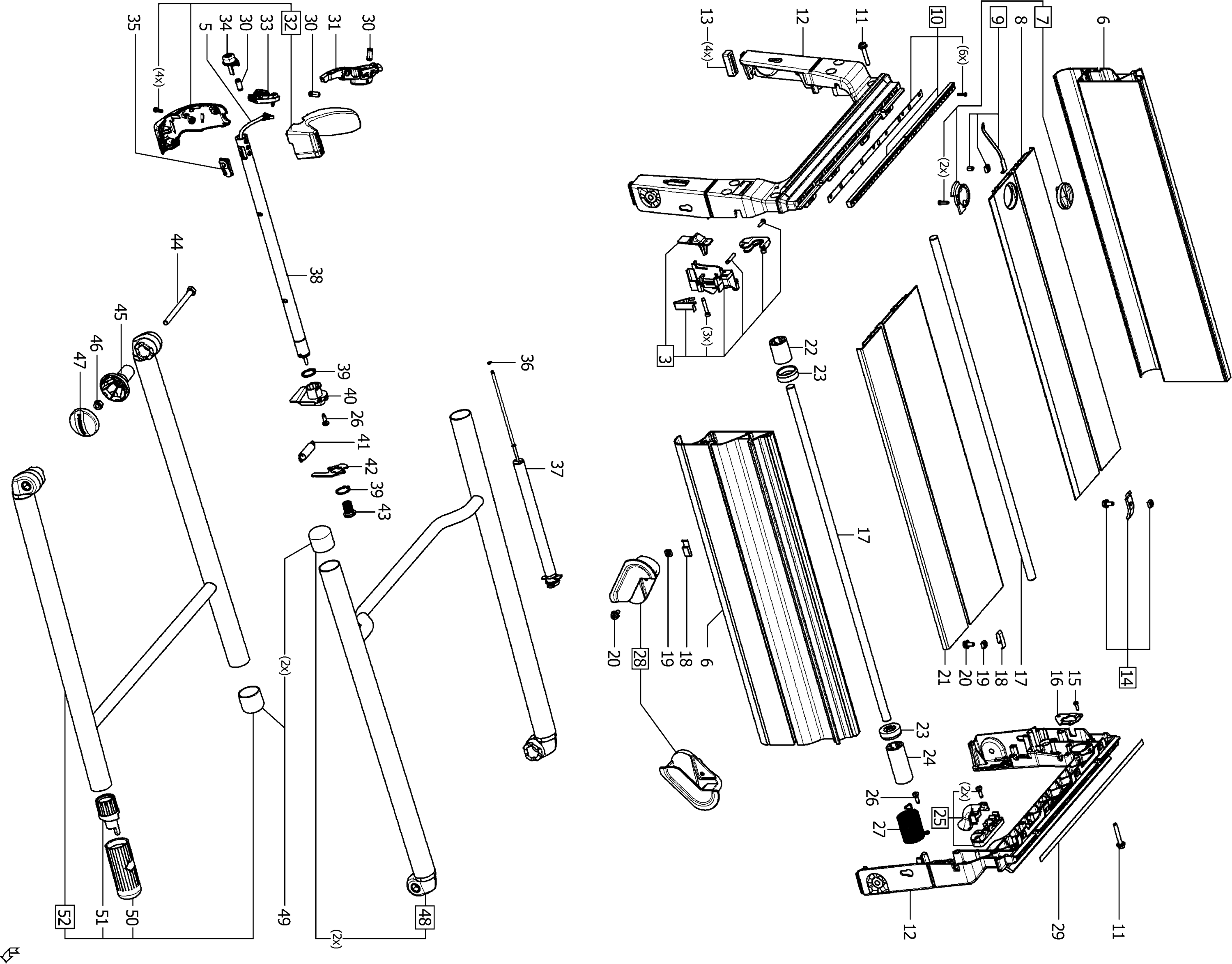

Tekeningen van de Festool 491966 ( CS50EB230V )
Onderdelen lijst van de Festool 491966 ( CS50EB230V )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Anker CS 50 EB 230V | ||||
| 1 | 205200 | 130.92 | 158.41 | |
| VELD TS 55 EBQ 230 V | ||||
| 2 | 491713 | 64.13 | 77.60 | |
| schakelaar CS 50 EB ET-BG | ||||
| 3 | 492254 | 54.93 | 66.47 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 4 | 466680 | |||
| CABLE CS 50 EB | ||||
| 5 | 464736 | 24.32 | 29.43 | |
| Zijwand CS 50 EB | ||||
| 6 | 463205 | 98.86 | 119.62 | |
| DRAAISLUITING CS 50 EB ET-BG | ||||
| 7 | 492257 | 17.67 | 21.38 | |
| Tafelinlegstuk/ CS 50 EB | ||||
| 8 | 463169 | 69.21 | 83.74 | |
| VEER CS 50 EB ET-BG | ||||
| 9 | 492259 | 13.07 | 15.81 | |
| SCALA CS 50 EB ET-BG | ||||
| 10 | 492256 | 26.02 | 31.48 | |
| Lenskopschroef CS 50-M6x40-DUO-TAPTITE | ||||
| 11 | 401137 | 1.39 | 1.68 | |
| Portal CS 50 | ||||
| 12 | 10029970 | 89.90 | 108.78 | |
| RUBBER FOOT CS 50 EB | ||||
| 13 | 492255 | 17.42 | 21.08 | |
| VEER CS 50 EB ET-BG | ||||
| 14 | 492258 | 12.95 | 15.67 | |
| lenskopschroef TS 55 DG 40x12 | ||||
| 15 | 400691 | 1.39 | 1.68 | |
| BEARING SHEET CS 70 EB | ||||
| 16 | 448236 | 2.11 | 2.55 | |
| As CS 50 ET-BG | ||||
| 17 | 10711272 | 47.67 | 57.68 | |
| FIXING SPRING CS 70 EB fixIER | ||||
| 18 | 447262 | 1.39 | 1.68 | |
| Vierkantmoer DIN 557-M6-05 | ||||
| 19 | 228566 | 1.39 | 1.68 | |
| Inbusbout CS 70 EB M6X12 SG-RIPP | ||||
| 20 | 449888 | 1.39 | 1.68 | |
| Bodemplaat CS 50 EBG ET-BG | ||||
| 21 | 10703146 | 68.12 | 82.43 | |
| Bus CS 50 EB KURZ | ||||
| 22 | 464027 | 1.85 | 2.24 | |
| Demper CS 50 | ||||
| 23 | 465528 | 2.64 | 3.19 | |
| Bus CS 50 EB LANG | ||||
| 24 | 464028 | 2.04 | 2.47 | |
| klemming CS 50 EB KABEL ET-BG | ||||
| 25 | 492262 | 13.55 | 16.40 | |
| schroef CS 50 DG 50x16 | ||||
| 26 | 400709 | 1.39 | 1.68 | |
| Trekveer CS 50 EB | ||||
| 27 | 465456 | 11.28 | 13.65 | |
| KABELHOUDERS CS 50 EB ET-BG | ||||
| 28 | 492260 | 13.67 | 16.54 | |
| KLEEFSTRIP CS 50 | ||||
| 29 | 463724 | 3.70 | 4.48 | |
| Veer CS 50 EB | ||||
| 30 | 463590 | 1.39 | 1.68 | |
| Schakelmechanie CS 50 EB | ||||
| 31 | 492117 | 6.60 | 7.99 | |
| hendel CS 50 EB ET-BG | ||||
| 32 | 492250 | 15.00 | 18.15 | |
| SCHAKELMODULE CS 50 EB ET-BAUGRUPPE | ||||
| 33 | 492274 | 54.09 | 65.45 | |
| Taster CS 50 EB | ||||
| 34 | 463673 | 1.39 | 1.68 | |
| coulisse CS 50 EB | ||||
| 35 | 463918 | 12.83 | 15.52 | |
| Borgring Din 6799-3,2 | ||||
| 36 | 222490 | 1.39 | 1.68 | |
| Demper CS 50 VOLLST. | ||||
| 37 | 491760 | 33.28 | 40.27 | |
| Buis CS 50 | ||||
| 38 | 463522 | 56.14 | 67.93 | |
| Borgring DIN 471-20x1,2 | ||||
| 39 | 200352 | 1.39 | 1.68 | |
| Flens CS 50 | ||||
| 40 | 463260 | 4.88 | 5.90 | |
| Trekveer CS 50 EB | ||||
| 41 | 464031 | 3.30 | 3.99 | |
| Plaat CS 50 EB | ||||
| 42 | 464030 | 1.72 | 2.08 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 43 | 463180 | |||
| Zeskantbout DIN 933-M8x100-8.8 | ||||
| 44 | 464713 | 1.39 | 1.68 | |
| Knop onderdeel CS 50 EB | ||||
| 45 | 492148 | 4.36 | 5.28 | |
| Zeskantbout DIN 985-M8-04 | ||||
| 46 | 200735 | 1.39 | 1.68 | |
| Knophelft CS 70 EB | ||||
| 47 | 447534 | 1.78 | 2.15 | |
| Opklappoot CS 50 ET-BG | ||||
| 48 | 10703079 | 79.01 | 95.60 | |
| Opklappoot Klappbein | ||||
| 48 | 10195127 | 78.53 | 95.02 | |
| RUBBER FOOT CS 50 EB | ||||
| 49 | 465163 | 3.30 | 3.99 | |
| Stel voet CS 50 EB | ||||
| 50 | 465883 | 13.07 | 15.81 | |
| scale cs 70 eb | ||||
| 51 | 448178 | 2.51 | 3.04 | |
| Opklappoot CS 50 | ||||
| 52 | 10198251 | 89.66 | 108.49 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 53 | xxx | |||
| Schroef CS 50 DG 50X30 | ||||
| 54 | 401038 | 1.39 | 1.68 | |
| Stoter CS 50 | ||||
| 55 | 463934 | 1.39 | 1.68 | |
| dichting CS 50 | ||||
| 56 | 463933 | 2.30 | 2.78 | |
| ELECTRO CS 50 EB 230V UMBAUSATZ | ||||
| 57 | 493785 | 169.88 | 205.55 | |
| Lenskopschroef PT-4,0x16-KT15 | ||||
| 58 | 228713 | 1.39 | 1.68 | |
| Kabelschelle SYMMETRIC 70 | ||||
| 59 | 761618 | 1.39 | 1.68 | |
| SCHAKELRELAIS CS 50 EB | ||||
| 60 | 463936 | 31.94 | 38.65 | |
| BESCHERMKAP CS 50 | ||||
| 61 | 492132 | 27.95 | 33.82 | |
| Cilinderschroef DIN 6912-M8x16-8.8 | ||||
| 62 | 774346 | 1.39 | 1.68 | |
| RIVING KNIFE CS 50 EB | ||||
| 63 | 463751 | 2.98 | 3.61 | |
| SPOUWMES CS 50 B | ||||
| 64 | 463201 | 24.68 | 29.86 | |
| Cilinderschroef DIN 6912-M8x35-8.8 | ||||
| 65 | 400735 | 1.39 | 1.68 | |
| RIVING KNIFE CS 50 EB VOLLST. | ||||
| 66 | 492010 | 16.82 | 20.35 | |
| Afstelplaat CS 50 EB ET-BG | ||||
| 67 | 492307 | 13.79 | 16.69 | |
| Geleideplaat CS 50 EB | ||||
| 68 | 463197 | 1.98 | 2.40 | |
| Zeskantbout DIN 934-M8-08 | ||||
| 69 | 200719 | 1.39 | 1.68 | |
| lever CS 50 EB | ||||
| 70 | 470064 | 2.64 | 3.19 | |
| SNELSPANMOER CS CS 50 M14x1 LI. BEDRUCKT | ||||
| 71 | 465326 | 54.45 | 65.88 | |
| FLENS CS 50 | ||||
| 72 | 463195 | 8.11 | 9.81 | |
| Tandwielkastdek CS 50 EB | ||||
| 73 | 202487 | 27.22 | 32.94 | |
| GROEF-KOGELLAGE 6002 DDU CM D8 AS2LM | ||||
| 74 | 789595 | 9.24 | 11.18 | |
| KOGELLAGER 607 Z DIN 625 | ||||
| 75 | 401518 | 8.58 | 10.38 | |
| Borgring DIN 472-32x1,2 | ||||
| 76 | 401246 | 1.39 | 1.68 | |
| Tandwielas CS 50 | ||||
| 77 | 465606 | 60.14 | 72.77 | |
| dichting CS 50 | ||||
| 78 | 463990 | 2.11 | 2.55 | |
| tandwielkast CS 50 EB ET-BG | ||||
| 79 | 492321 | 84.58 | 102.34 | |
| Lenskopschroef PT-4,0x70-KT15 | ||||
| 80 | 442415 | 1.39 | 1.68 | |
| Groefkogellager 6001 DDU CM D8SSM | ||||
| 81 | 401576 | 7.52 | 9.10 | |
| Borgring DIN 471-12x1 | ||||
| 82 | 200619 | 1.39 | 1.68 | |
| Ventilator CS 50 EB | ||||
| 83 | 463280 | 4.15 | 5.02 | |
| Luchtgeleiding CS 50 | ||||
| 84 | 463512 | 2.45 | 2.96 | |
| Groefkogellager 608 Z1D1 MC5E D8SL | ||||
| 85 | 400626 | 5.35 | 6.47 | |
| DIEPGR.KOGELLAG 608 2Z C3 DIN 625 | ||||
| 85 | 228559 | 4.30 | 5.20 | |
| motorhuis CS 50 EB | ||||
| 86 | 463199 | 11.22 | 13.58 | |
| TACHO TS 55 EBQ | ||||
| 87 | 491723 | 27.95 | 33.82 | |
| KOOLBORSTELS TS 55 EBQ | ||||
| 88 | 491704 | 17.30 | 20.93 | |
| Lenskopschroef PT-3,5x8-T15 | ||||
| 89 | 219047 | 1.39 | 1.68 | |
| Huisdeksel CS 50 | ||||
| 90 | 463200 | 8.26 | 9.99 | |
| PTC-weerstand ET-BG | ||||
| 91 | 491722 | 19.60 | 23.72 | |
| deksel CS 50 EB ET-BG | ||||
| 92 | 492249 | 26.50 | 32.06 | |
| Kap CS 50 | ||||
| 93 | 463190 | 17.79 | 21.53 | |
| Schuif CS 50 | ||||
| 94 | 463350 | 3.36 | 4.07 | |
| Lenskopschroef M4x14-TAPTITE-KT15 | ||||
| 95 | 445566 | 1.39 | 1.68 | |
| Plaat CS 50 EB | ||||
| 96 | 463299 | 1.39 | 1.68 | |
| SPLINTERSTEUN CS 50EB | ||||
| 97 | 465449 | 9.31 | 11.27 | |
| KUNSTSTOF PLAAT CS 50 | ||||
| 98 | 10023855 | 24.44 | 29.57 | |
| KNOP CS 50 | ||||
| 99 | 463178 | 9.96 | 12.05 | |
| Zeskantbout DIN 985-M6-04 | ||||
| 100 | 228541 | 1.39 | 1.68 | |
| Schijf DIN 125-B-6,4-140 HV | ||||
| 101 | 200578 | 1.39 | 1.68 | |
| WINDER CS 70 EB ET-BAUGRUPP | ||||
| 102 | 488159 | 16.58 | 20.06 | |
| DISC CS 70 EB | ||||
| 103 | 447790 | 1.39 | 1.68 | |
| Draaiknop Basis Plus D 40 M8 5+12T | ||||
| 104 | 483162 | 5.41 | 6.55 | |
| Afdekking CS 50 BEDRUCKT | ||||
| 105 | 491925 | 8.52 | 10.31 | |
| Naald CS 50 | ||||
| 106 | 463181 | 1.72 | 2.08 | |
| Printers CS 50 EB ET-BG | ||||
| 107 | 492248 | 20.69 | 25.03 | |
| Eindaanslag CS 50 EB | ||||
| 108 | 463281 | 4.30 | 5.20 | |
| bus CS 50 EB | ||||
| 109 | 463400 | 10.43 | 12.62 | |
| tandwiel CS 50 EB Z=14 | ||||
| 110 | 463179 | 7.13 | 8.63 | |
| Zeskantbout DIN 931-M8x110-8.8 | ||||
| 111 | 400734 | 1.39 | 1.68 | |
| Diepte-afstelli CS 50 EB ET-BG | ||||
| 112 | 492253 | 31.10 | 37.63 | |
| GELEIDING CS 50 EB | ||||
| 113 | 463189 | 1.72 | 2.08 | |
| Klemplaat CS 50 EB | ||||
| 114 | 463251 | 2.38 | 2.88 | |
| sliding block CS 50 | ||||
| 115 | 463176 | 2.11 | 2.55 | |
| Borgring DIN 471-18x1,2 | ||||
| 116 | 400788 | 1.39 | 1.68 | |
| ZWENKSEGMENT CS 50 EB ET-BG | ||||
| 117 | 492322 | 103.21 | 124.88 | |
| Sluiting CS 50 | ||||
| 118 | 463725 | 3.24 | 3.92 | |
| Klem CS 50 EB | ||||
| 119 | 464456 | 1.45 | 1.75 | |
| Drager CS 50 EB | ||||
| 120 | 202485 | 94.98 | 114.93 | |
| LAGERBUSSEN CS 50 EB | ||||
| 121 | 492251 | 75.38 | 91.21 | |
| Geleidebuis CS 50 EB | ||||
| 122 | 202486 | 42.83 | 51.82 | |
| Draaiknop D34 Exz.10 blau | ||||
| 123 | 487755 | 8.45 | 10.22 | |
| Draaiknop D34 M6/8T blue | ||||
| 124 | 440713 | 2.71 | 3.28 | |
| SCHROEF M6x20 DIN 938 5.8 | ||||
| 125 | 464525 | 1.39 | 1.68 | |
| Schijf DIN 9021-6,4-100 HV | ||||
| 126 | 228546 | 1.39 | 1.68 | |
| Verzinkschroef M4x8-TAPTITE-T15 | ||||
| 127 | 219043 | 1.39 | 1.68 | |
| Cilinderschroef DIN 912-M6x12-10.9 | ||||
| 128 | 200684 | 1.39 | 1.68 | |
| OPNAME CS 70 E | ||||
| 129 | 489181 | 26.86 | 32.50 | |
| Spanstift DIN 7346-5x12-ST | ||||
| 130 | 228692 | 1.39 | 1.68 | |
| Platkopschroef DIN 603-M6x40-4.6 | ||||
| 131 | 228534 | 1.39 | 1.68 | |
| PIM CS 70 EB | ||||
| 132 | 448066 | 8.52 | 10.31 | |
| Klemstuk CS 70 EB | ||||
| 133 | 488433 | 40.78 | 49.34 | |
| Klemklauw CS 70 | ||||
| 134 | 10031568 | 14.16 | 17.13 | |
| HANDLE CS 70 EB VOLLST. | ||||
| 135 | 487893 | 7.66 | 9.27 | |
| WASHER CS 70 EB | ||||
| 136 | 448471 | 3.30 | 3.99 | |
| Platkopschroef CS 70 EB | ||||
| 137 | 448065 | 4.03 | 4.88 | |
| Lenskopschroef M4x6-DUO-TAPTITE-PZV | ||||
| 138 | 400348 | 1.39 | 1.68 | |
| GRADUATED SCALE CS 70 EB ET-BG | ||||
| 139 | 488156 | 21.78 | 26.35 | |
| Zwenksegment CS 70 EB ET-BG | ||||
| 140 | 10699976 | 43.56 | 52.71 | |
| Zwenksegment CS 70 EB | ||||
| 140 | 448014 | 30.13 | 36.46 | |
| CLAMP CS 50 EB | ||||
| 141 | 10023711 | 4.68 | 5.66 | |
| Geleideprofiel CS 50 ET-BG | ||||
| 142 | 10703236 | 28.56 | 34.56 | |
| Aanslagprofiel CS 50 ET-BG | ||||
| 143 | 10711276 | 25.29 | 30.60 | |
| Spanstift DIN 7346-6x36-ST | ||||
| 144 | 400289 | 1.39 | 1.68 | |
| Draaiknop BASIS 2 D34 M6/11T | ||||
| 145 | 483350 | 6.67 | 8.07 | |
| SPRING CS 70 EB B.-NR. VD-1 | ||||
| 146 | 448064 | 1.85 | 2.24 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 147 | 202346 | |||
| SLANG CT D27x2M | ||||
| 148 | 459250 | 43.44 | 52.56 | |
| HOSE CLAMP CS 70 EB | ||||
| 149 | 450158 | 1.85 | 2.24 | |
| DUWSTOK CS 70 EB | ||||
| 150 | 450199 | 6.60 | 7.99 | |
| REDUCEERMOF D 3 | ||||
| 151 | 452358 | 25.29 | 30.60 | |
| SLANG CT D36x1,5M | ||||
| 152 | 459251 | 43.44 | 52.56 | |
| Y-PIECE CS 70 EB | ||||
| 153 | 450575 | 24.68 | 29.86 | |
