Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Festool 495287 (DF500Q230V-240V)'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

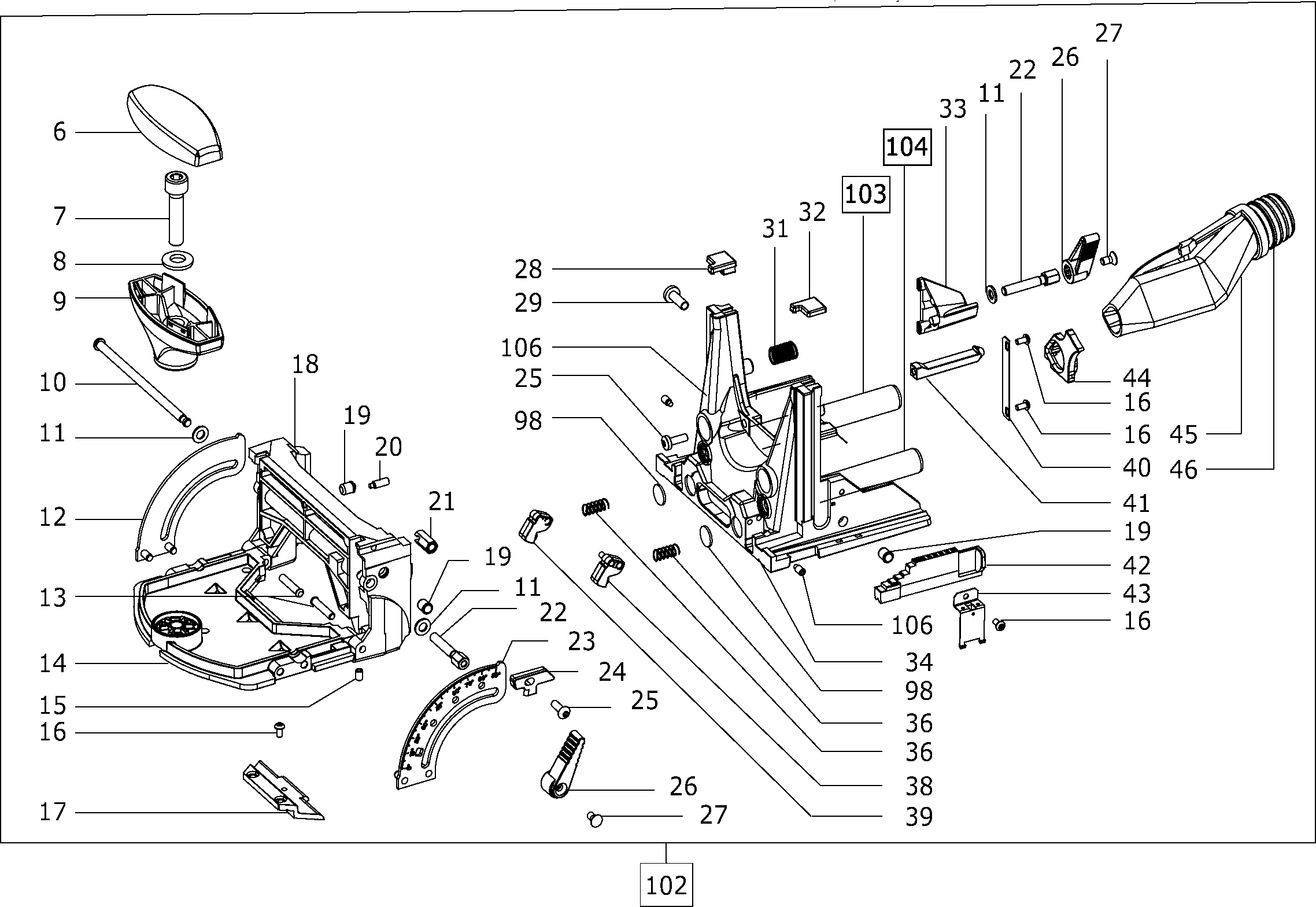

Tekeningen van de Festool 495287 (DF500Q230V-240V)
Onderdelen lijst van de Festool 495287 (DF500Q230V-240V)
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| ANKER DF 500 Q | ||||
| 1 | 493904 | 105.18 | 127.27 | |
| VELDPAKKET DF 500 Q ET-BG | ||||
| 2 | 493906 | 78.58 | 95.08 | |
| SCHAKELAAR DF 500 Q | ||||
| 3 | 494014 | 30.86 | 37.34 | |
| PLUG IT-KABEL H05 RN-F-4 | ||||
| 4 | 203914 | 24.00 | 29.04 | |
| STECKERGEHAEUSE DF 500 Q | ||||
| 5 | 492643 | 13.38 | 16.19 | |
| HANDGREEPBOVEND RS 1 | ||||
| 6 | 434597 | 1.66 | 2.01 | |
| SCHROEF DF 700 EQ | ||||
| 7 | 401076 | 4.36 | 5.28 | |
| HANGREEPONDERDE RS 1 | ||||
| 9 | 434596 | 2.16 | 2.61 | |
| STANG DF 500 Q | ||||
| 10 | 469040 | 5.18 | 6.27 | |
| SCHIJF DIN 125-A-5,3-140 HV | ||||
| 11 | 761515 | 1.51 | 1.83 | |
| R - SEGMENT DF 500 Q VOLLST. | ||||
| 12 | 493779 | 12.03 | 14.56 | |
| KRAAGBOUT DF 500 Q | ||||
| 13 | 469141 | 10.10 | 12.22 | |
| TAFEL DF 700 | ||||
| 14 | 10001284 | 44.17 | 53.45 | |
| DRAADPEN DIN 913-M4X4-45H-PR30 | ||||
| 15 | 401104 | 11.75 | 14.22 | |
| LENSKOPSCHROEF M3X6-DUO-TAPTITE-TORX | ||||
| 16 | 400983 | 12.41 | 15.02 | |
| SCHAAL DF 700 | ||||
| 17 | 10962858 | 5.62 | 6.80 | |
| Schaal DF 700 | ||||
| 17 | 701458 | 5.15 | 6.23 | |
| V - SLEDE DF 500 Q ET-BG | ||||
| 18 | 493928 | 62.19 | 75.25 | |
| FEDERDRUCKSTUCK CS 70 EB 2208.006 | ||||
| 19 | 400286 | 11.22 | 13.58 | |
| DRAADPEN DIN 915-M4X12-45H-TUF | ||||
| 20 | 203387 | 4.56 | 5.52 | |
| MOF DF 500 Q | ||||
| 21 | 469075 | 9.65 | 11.68 | |
| SCHROEFDRAADBOU DF 500 Q | ||||
| 22 | 465575 | 3.67 | 4.44 | |
| SEGMENT DF 500 | ||||
| 23 | 499023 | 34.00 | 41.14 | |
| SEGMENT DF 500 | ||||
| 24 | 499023 | 34.00 | 41.14 | |
| LENSKOPSCHROEF DIN 7380-M4X12-10.9 | ||||
| 25 | 470216 | 5.94 | 7.19 | |
| HENDEL DF500Q | ||||
| 26 | 10881222 | 1.51 | 1.83 | |
| hevel DF 500 Q | ||||
| 26 | 465079 | 1.44 | 1.74 | |
| VERZINKSCHROEF DIN 965-M4X8-8.8-PR30 | ||||
| 27 | 400211 | 1.51 | 1.83 | |
| KAP DF 500 Q RECHTS | ||||
| 28 | 466094 | 1.51 | 1.83 | |
| LENSKOPSCHROEF DIN 7985-M5X12-8.8 | ||||
| 29 | 400901 | 4.09 | 4.95 | |
| DRUKVEER DIN 2098 0,75X9,25X25 | ||||
| 31 | 464334 | 1.51 | 1.83 | |
| KAP DF 500 Q LINKS | ||||
| 32 | 466093 | 1.51 | 1.83 | |
| KLEMSTUK DF 500 | ||||
| 33 | 10775877 | 8.93 | 10.81 | |
| BEARER DF 500 Q ET-BG | ||||
| 34 | 495829 | 132.13 | 159.88 | |
| DRUCKFEDER DIN 2098-0,50X6,50X15,0 | ||||
| 36 | 436528 | 2.04 | 2.47 | |
| OPKLAPBARE AANS DF 500 Q LINKS | ||||
| 38 | 495008 | 2.16 | 2.61 | |
| OPKLAPBARE AANS DF 500 Q RECHTS | ||||
| 39 | 495007 | 2.16 | 2.61 | |
| SCHAAL DF 500 | ||||
| 40 | 10036126 | 2.38 | 2.88 | |
| TREKBOUT DF 500 Q | ||||
| 41 | 471202 | 3.82 | 4.62 | |
| SCHUIF DF 500 BEDRUCKT | ||||
| 42 | 10515490 | 6.94 | 8.40 | |
| HOEKPLAAT DF 500 Q | ||||
| 43 | 464821 | 4.49 | 5.43 | |
| ZUIGFLENS DF 500 Q | ||||
| 44 | 465203 | 4.94 | 5.98 | |
| AFZUIG STUK DF 500 Q | ||||
| 45 | 465204 | 8.58 | 10.38 | |
| AFZUIGAANSLUITI DF 500 CT | ||||
| 46 | 10027879 | 7.99 | 9.67 | |
| LENSKOPSCHROEF M4X8-TAPTITE-KT15 | ||||
| 47 | 467961 | 6.53 | 7.90 | |
| DEKSEL DF 500 Q BEDRUCKT | ||||
| 48 | 493153 | 9.90 | 11.98 | |
| SCHAKELGREEP DF 500 Q | ||||
| 49 | 493815 | 9.64 | 11.66 | |
| ROL DF 500 Q | ||||
| 50 | 464837 | 4.36 | 5.28 | |
| DRUKVEER DIN 2098 0,70X7,80X24,7 | ||||
| 51 | 467959 | 4.22 | 5.11 | |
| HEFBOOM DF 500 Q | ||||
| 52 | 464839 | 4.94 | 5.98 | |
| STOP DF 500 Q | ||||
| 53 | 466890 | 10.63 | 12.86 | |
| LENSKOPSCHROEF M4X18-TAPTITE-T20 | ||||
| 54 | 400904 | 11.48 | 13.89 | |
| PENDELBEHUIZING DF 500 Q ET-BG | ||||
| 55 | 493921 | 80.71 | 97.66 | |
| NOKSPIL DF 500 Q | ||||
| 56 | 465947 | 17.18 | 20.79 | |
| SCHERM DF 500 Q BLENDE 1 | ||||
| 57 | 466015 | 5.09 | 6.16 | |
| SLINGERARM DF 500 Q | ||||
| 58 | 464840 | 52.64 | 63.69 | |
| SCHERM DF 500 Q BLENDE 2 | ||||
| 59 | 466262 | 5.47 | 6.62 | |
| DRUKVEER DIN 2098 1,25X8,25X16,4 | ||||
| 60 | 472015 | 6.79 | 8.22 | |
| GELEIDINGCARTER | ||||
| 61 | 493895 | 111.08 | 134.41 | |
| LENSKOPSCHROEF M4X8-TAPTITE-T15 | ||||
| 62 | 228570 | 9.17 | 11.10 | |
| BINNENPAN DF 500 Q ET-BG | ||||
| 63 | 493920 | 106.06 | 128.33 | |
| KOGELLAGER DF 700 | ||||
| 64 | 401073 | 27.35 | 33.09 | |
| PENDELPOT DF 500 Q ET-BG | ||||
| 65 | 493898 | 98.01 | 118.59 | |
| LENSKOPSCHROEF M4X30-10.9-T20-IPR-PR80 | ||||
| 66 | 10946232 | 1.51 | 1.83 | |
| Lenskopschroef M4x30TORX -PLUS-IPR20 | ||||
| 66 | 400094 | 1.44 | 1.74 | |
| SCHIJF 5,3X10X1 DIN 125 PA | ||||
| 67 | 465024 | 7.06 | 8.54 | |
| SLAGVERDEELER DF 500 Q ET-BG | ||||
| 68 | 493897 | 57.84 | 69.99 | |
| EXCENTRISCH WIE DF 500 Q ET-BG | ||||
| 69 | 493896 | 84.58 | 102.34 | |
| VENTILATOR RO 2 E | ||||
| 70 | 485108 | 7.52 | 9.10 | |
| LENSKOPSCHROEF M4X14-TAPTITE-KT15 | ||||
| 71 | 445566 | 14.59 | 17.65 | |
| TUSSENFLENS DF 500 Q | ||||
| 72 | 493893 | 73.69 | 89.16 | |
| STELLSCHIEBER DF 500 Q | ||||
| 73 | 492418 | 9.64 | 11.66 | |
| CILINDERPEN DIN 7-2,5M6X18-ST | ||||
| 74 | 469645 | 4.03 | 4.88 | |
| BOUT DF 500 Q | ||||
| 75 | 469643 | 5.47 | 6.62 | |
| TANDWIELOVERBRE DF 500 Q | ||||
| 76 | 205156 | 180.77 | 218.73 | |
| FREESSPINDEL DF 500 Q | ||||
| 77 | 201683 | 50.03 | 60.54 | |
| KOGELLAGER 625 ZZ 1MC3 J2 EA3LN | ||||
| 78 | 479254 | 6.73 | 8.14 | |
| BORGRING DIN 6799-4 | ||||
| 79 | 400106 | 3.89 | 4.71 | |
| STOP DF 500 Q | ||||
| 80 | 464847 | 4.49 | 5.43 | |
| VEILIGHEIDSSCHR RS 400 | ||||
| 81 | 400552 | 6.34 | 7.67 | |
| KOOLBORSTELS RO 150 E ET-BG | ||||
| 82 | 492629 | 11.52 | 13.94 | |
| LUCHTGELEIDING DF 500 Q | ||||
| 83 | 465193 | 5.68 | 6.87 | |
| O-RING 16X1,5-NBR-70SHORE | ||||
| 84 | 400982 | 3.89 | 4.71 | |
| LENSKOPSCHROEF PT-4,0X16-KT15 | ||||
| 85 | 228713 | 5.94 | 7.19 | |
| KOGELLAGER 626 DD M5MTLY 121 | ||||
| 86 | 228672 | 6.79 | 8.22 | |
| MOTORGEHAEUSE DF 500 Q | ||||
| 87 | 493154 | 11.69 | 14.14 | |
| LENSKOPSCHROEF PT-3,5X10-KT15 | ||||
| 88 | 219031 | 7.32 | 8.86 | |
| SCHALTERMODUL DF 500 Q | ||||
| 89 | 492779 | 16.09 | 19.47 | |
| KAPPE DF 500 Q | ||||
| 90 | 465032 | 7.26 | 8.78 | |
| O-RING 4X1,5-NBR-75SHORE | ||||
| 91 | 200911 | 5.74 | 6.95 | |
| AANSLAGHOEK SA-DF 500 | ||||
| 92 | 476348 | 5.40 | 6.53 | |
| KLEMBOUT AW-DF500 | ||||
| 93 | 469620 | 7.73 | 9.35 | |
| ZIJAANSLAG ZA-DF 500/700 | ||||
| 94 | 495666 | 27.00 | 32.67 | |
| TREKKAP DF 500 Q | ||||
| 95 | 465006 | 1.51 | 1.83 | |
| DRUCKFEDER DIN 2098-0,50X6,50X15,0 | ||||
| 96 | 436528 | 2.04 | 2.47 | |
| AANSLAGBOUT DF 500 Q | ||||
| 97 | 701474 | 16.87 | 20.41 | |
| ANTISLIP DF 500 Q | ||||
| 98 | 469763 | 2.74 | 3.32 | |
| SCHUIFSCHAKELAA RO 2 E | ||||
| 99 | 446002 | 4.88 | 5.90 | |
| BORGRING DIN 471-12X1 | ||||
| 100 | 761559 | 1.51 | 1.83 | |
| Kogellager DF 500 Q NSK 6901 VV C3 | ||||
| 101 | 464873 | 12.83 | 15.52 | |
| GROEFKOGELLAGER 6901 VV C3U 246T HA1S9 | ||||
| 101 | 10779006 | 12.83 | 15.52 | |
| GELEIDER DF 500 Q | ||||
| 102 | 202470 | 244.78 | 296.18 | |
| GELEIDE AS LANG DF 500 Q ET-BG | ||||
| 103 | 494703 | 51.67 | 62.52 | |
| GELEIDE AS KORT DF 500 Q ET-GB | ||||
| 104 | 494704 | 45.98 | 55.64 | |
| STEEKSLEUTELTJE SW 8 DIN894 | ||||
| 105 | 401739 | 8.18 | 9.90 | |
| DRAADPEN DIN 915-M4X8-45H | ||||
| 106 | 229949 | 1.51 | 1.83 | |
| AANSLAG SA-DF 500 RECHTS | ||||
| 107 | 476350 | 1.87 | 2.26 | |
| SCHIJF DIN 125-A-5,3-140 HV | ||||
| 108 | 761515 | 1.51 | 1.83 | |
| AS D 5X90 | ||||
| 109 | 477253 | 2.30 | 2.78 | |
| DRUKVEER 0,80X6,30X23,00X8,50 | ||||
| 110 | 464087 | 1.51 | 1.83 | |
| AANSLAG SA-DF 500 LINKS | ||||
| 111 | 476349 | 1.87 | 2.26 | |
