Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Festool 495610 ( KS120EB230V )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

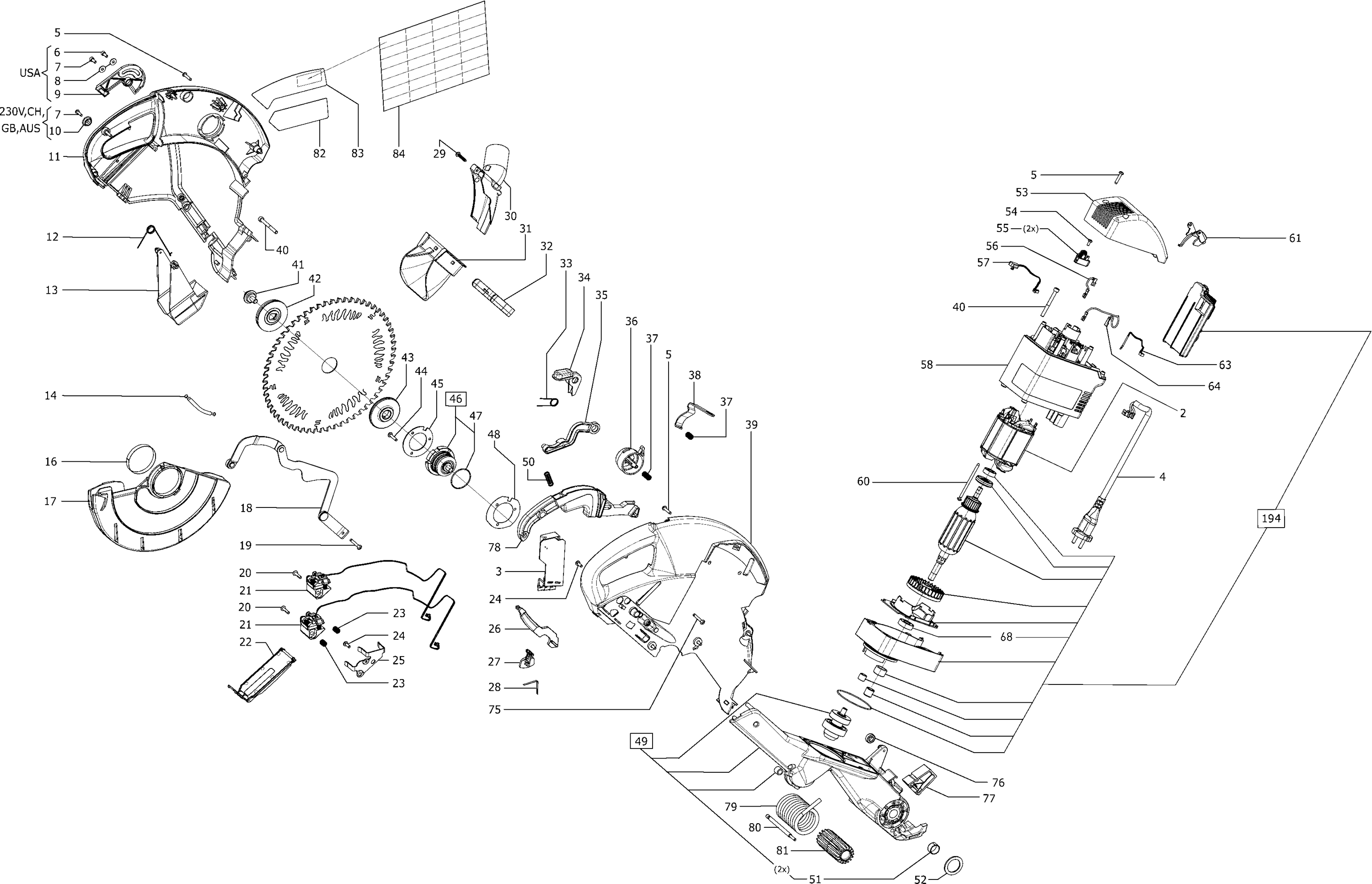

Tekeningen van de Festool 495610 ( KS120EB230V )
Onderdelen lijst van de Festool 495610 ( KS120EB230V )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 1 | 202925 | |||
| Veldpakket KS 120 EB 230V ET-BG | ||||
| 2 | 494970 | 89.42 | 108.20 | |
| Schakelaarmodul KS 120 REB 230V | ||||
| 3 | 204244 | 54.09 | 65.45 | |
| KABEL M. STEKKE KS 120 EB H07 RN-F | ||||
| 4 | 494103 | 24.32 | 29.43 | |
| Lenskopschroef PT-4,0x20-KT15 | ||||
| 5 | 228567 | 1.39 | 1.68 | |
| Lenskopschroef PT-3,5x14-KT15 | ||||
| 7 | 400468 | 1.39 | 1.68 | |
| Afdekking KS 120 EB | ||||
| 10 | 471820 | 1.39 | 1.68 | |
| Handgreepschaal KS 120 ET-BG | ||||
| 11 | 10801592 | 24.08 | 29.14 | |
| Beenveer KS 120 EB | ||||
| 12 | 470772 | 2.45 | 2.96 | |
| Afzuigkap KS 120 konform DIN EN 6 | ||||
| 13 | 10037680 | 7.00 | 8.47 | |
| Trekveer KS 120 | ||||
| 14 | 709050 | 2.11 | 2.55 | |
| LEHRENBAND KS 120 EB | ||||
| 16 | 473432 | 1.98 | 2.40 | |
| Beschermkap KS 120 | ||||
| 17 | 10037697 | 13.55 | 16.40 | |
| Zwenkhendel KS 120 EB VOLLST. | ||||
| 18 | 497504 | 22.14 | 26.79 | |
| Lenskopschroef M4x25-TAPTITE-T15 | ||||
| 19 | 400928 | 1.39 | 1.68 | |
| Lenskopschroef M4x18 | ||||
| 20 | 400922 | 1.39 | 1.68 | |
| Lasereenheid KS 120 | ||||
| 21 | 204545 | 69.09 | 83.60 | |
| LASER VENSTER KS 120 EB | ||||
| 22 | 470717 | 2.28 | 2.76 | |
| Drukveer 0,9x7,5x22 DIN 2098 | ||||
| 23 | 470783 | 1.39 | 1.68 | |
| Lenskopschroef M4x10-TAPTITE-KT15 | ||||
| 24 | 228738 | 1.39 | 1.68 | |
| Bevestigingspla KS 120 EB | ||||
| 25 | 471209 | 3.83 | 4.63 | |
| Grendel KS 120 EB SCHUTZHAUBE | ||||
| 26 | 470647 | 2.45 | 2.96 | |
| Klink KS 120 EB | ||||
| 27 | 473479 | 1.39 | 1.68 | |
| Bladveer KS 120 EB | ||||
| 28 | 473480 | 1.39 | 1.68 | |
| Lenskopschroef PT-4,0x25-T15 | ||||
| 29 | 400695 | 1.39 | 1.68 | |
| Afzuigaansluiti KS 120 EB VOLLST. | ||||
| 30 | 494307 | 9.24 | 11.18 | |
| Stofkap KS 120 EB | ||||
| 31 | 471316 | 9.37 | 11.34 | |
| Klem KS 120 EB | ||||
| 32 | 471315 | 2.18 | 2.64 | |
| Torsieveer KS 120 EB | ||||
| 33 | 470762 | 1.51 | 1.83 | |
| Vergrendeling KS 120 EB | ||||
| 34 | 470646 | 1.39 | 1.68 | |
| Hefboom KS 120 EB SCHALTER | ||||
| 35 | 471448 | 1.58 | 1.91 | |
| Draaiknop KS 120 EB | ||||
| 36 | 470648 | 2.04 | 2.47 | |
| DRUKVEER KS 120 EB | ||||
| 37 | 470978 | 1.58 | 1.91 | |
| Blokkeer hevel KS 120 EB | ||||
| 38 | 470767 | 8.90 | 10.77 | |
| Handgreepschaal KS 120 ET-BG | ||||
| 39 | 10801593 | 24.08 | 29.14 | |
| Cilinderschroef M5x50-TAPTITE | ||||
| 40 | 219057 | 1.39 | 1.68 | |
| Speciale schroe KS 120 E M8 L | ||||
| 41 | 10015550 | 11.81 | 14.29 | |
| TEGENFLENS KS 120 EB ET-BG | ||||
| 42 | 494966 | 75.38 | 91.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 43 | 494096 | |||
| Lenskopschroef M4x20-TAPTITE-T15 | ||||
| 44 | 228569 | 1.39 | 1.68 | |
| Bevestigingspla KS 120 EB | ||||
| 45 | 470774 | 3.89 | 4.71 | |
| Niet meer leverbaar, geen vervanging | ||||
| 46 | 495627 | |||
| O-ring 35x1,5-NBR-70SHORE | ||||
| 47 | 470760 | 1.39 | 1.68 | |
| Tuimelschuif KS 120 EB ET-BG | ||||
| 48 | 494787 | 33.64 | 40.70 | |
| Tandwieloverbre KS 120 ET-BG(EB) | ||||
| 49 | 205177 | 193.84 | 234.55 | |
| drukveer KS 120 EB | ||||
| 50 | 474284 | 1.39 | 1.68 | |
| Aansluitbus 16x18x10 GGB 1610 DP4 | ||||
| 51 | 400994 | 1.39 | 1.68 | |
| Pasring DIN 988-25x35x2 | ||||
| 52 | 400244 | 1.72 | 2.08 | |
| Kap KS 120 EB | ||||
| 53 | 470652 | 7.58 | 9.17 | |
| Lenskopschroef PT-3,5x8-T15 | ||||
| 54 | 219047 | 1.39 | 1.68 | |
| KOOLBORSTEL MET KS 120 EB | ||||
| 55 | 494785 | 29.63 | 35.85 | |
| Draad KS 120 EB | ||||
| 56 | 494131 | 1.39 | 1.68 | |
| TACHO COIL RTM OF | ||||
| 57 | 457920 | 7.46 | 9.03 | |
| Motorhuis KS 120 EB | ||||
| 58 | 470650 | 16.46 | 19.92 | |
| Groefkogellager 608 DD1 MC3 DIN625 NSK | ||||
| 59 | 401525 | 4.75 | 5.75 | |
| Lenskopschroef PT-4,0x70-KT15 | ||||
| 60 | 442415 | 1.39 | 1.68 | |
| Drukker KS 120 EB LASER | ||||
| 61 | 470649 | 1.85 | 2.24 | |
| Electronic KS 88 | ||||
| 62 | 494267 | 140.60 | 170.13 | |
| PTC-weerstand ET-BG | ||||
| 63 | 491722 | 19.79 | 23.95 | |
| Draad KS 120 EB VOLLST. | ||||
| 64 | 471013 | 2.18 | 2.64 | |
| MAGNEETRING AT 55 E D28 K2 VOLLST. | ||||
| 65 | 488965 | 3.56 | 4.31 | |
| Ventilator KS 120 EB | ||||
| 66 | 470703 | 3.50 | 4.24 | |
| Luchtgeleidings KS 120 EB | ||||
| 67 | 470651 | 2.57 | 3.11 | |
| BALL BEARING 6000 DDU-C3 D8S L | ||||
| 68 | 789575 | 6.34 | 7.67 | |
| Eindschild KS 120 EB ET-BG | ||||
| 69 | 495647 | 98.86 | 119.62 | |
| Bus KS 120 EB | ||||
| 70 | 478302 | 2.57 | 3.11 | |
| Naaldlager HK 1412 | ||||
| 71 | 400918 | 7.32 | 8.86 | |
| Naaldlager HK 0810 159.271 | ||||
| 72 | 400008 | 3.77 | 4.56 | |
| Binnenring KS 120 EB D10/14x13 | ||||
| 73 | 471948 | 14.16 | 17.13 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 74 | 470761 | |||
| Lenskopschroef PT-3,5x12-PZV | ||||
| 75 | 454296 | 1.39 | 1.68 | |
| Rol KS | ||||
| 76 | 10018118 | 5.28 | 6.39 | |
| Buffer KS 120 EB | ||||
| 77 | 470776 | 2.04 | 2.47 | |
| Printers KS 120 EB | ||||
| 78 | 470645 | 5.02 | 6.07 | |
| Beenveer KS 120 | ||||
| 79 | 10436999 | 11.22 | 13.58 | |
| Bout KS 120 EB | ||||
| 80 | 471428 | 3.30 | 3.99 | |
| Afstandsbus KS 88/KS 120 ET-BG | ||||
| 81 | 200001 | 22.51 | 27.24 | |
| SCHILD KS 120 EB | ||||
| 82 | 471450 | 3.04 | 3.68 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 83 | 10810573 | |||
| Waarschuwingssc KS 120 EB Laser | ||||
| 84 | 706974 | 1.85 | 2.24 | |
| Cilinderschroef DIN 6912-M8x20-8.8 | ||||
| 101 | 774347 | 1.39 | 1.68 | |
| Cilinderschroef DIN 912-M3x10-12.9-PR30 | ||||
| 102 | 400934 | 1.39 | 1.68 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 103 | 470620 | |||
| TAFELINLEGSTUK KS 120 EB | ||||
| 104 | 470657 | 5.02 | 6.07 | |
| Lenskopschroef DIN 7985-M4x10-8.8-PR30+ | ||||
| 105 | 228733 | 1.39 | 1.68 | |
| Zeskantbout DIN 934-M8-08 | ||||
| 106 | 200719 | 1.39 | 1.68 | |
| Schijf DIN 9021-8,4-100 HV | ||||
| 107 | 219049 | 1.39 | 1.68 | |
| Schijfveer 31,5x16,3x0,5 lo=1,85mm | ||||
| 108 | 479669 | 1.92 | 2.32 | |
| Lenskopschroef PT-3,5x14-KT15 | ||||
| 109 | 228584 | 1.39 | 1.68 | |
| Naald KS 120 EB | ||||
| 110 | 470660 | 2.30 | 2.78 | |
| Tafel KS 120 EB ET-BG | ||||
| 111 | 494968 | 234.14 | 283.31 | |
| CATCH KS 120 EB | ||||
| 112 | 470664 | 13.31 | 16.11 | |
| schroef CS 50 DG 50x16 | ||||
| 113 | 400709 | 1.39 | 1.68 | |
| Hendel KS 120 Rastung vollst . | ||||
| 114 | 10607946 | 16.58 | 20.06 | |
| Veerplaat KS 120 EB | ||||
| 115 | 470665 | 9.43 | 11.41 | |
| Deksel KS 120 EB | ||||
| 116 | 471318 | 4.62 | 5.59 | |
| Geraamte KS 120 | ||||
| 117 | 10027727 | 235.34 | 284.76 | |
| Gradenboog KS 120 EB | ||||
| 118 | 470663 | 33.64 | 40.70 | |
| Aanslag KS120 | ||||
| 119 | 204073 | 69.44 | 84.02 | |
| Bout KS 120 EB | ||||
| 120 | 470687 | 1.39 | 1.68 | |
| ECCENTRIC LEVER KS 120 EB | ||||
| 121 | 470661 | 3.96 | 4.79 | |
| Schijf DIN 9021-8,4-140 HV-A2 | ||||
| 122 | 400996 | 1.39 | 1.68 | |
| Spanbout KS 120 | ||||
| 123 | 10218444 | 6.47 | 7.83 | |
| Aanslag KS120 | ||||
| 124 | 204074 | 60.02 | 72.62 | |
| RETAINING INSER KS 120 EB | ||||
| 125 | 470685 | 2.38 | 2.88 | |
| Zeskantbout DIN 985-M6-04 | ||||
| 126 | 228541 | 1.39 | 1.68 | |
| Bout KS 120 | ||||
| 127 | 10016971 | 13.79 | 16.69 | |
| Zeskantbout DIN 985-M8-04 | ||||
| 128 | 200735 | 1.39 | 1.68 | |
| lenskopschroef TS 55 DG 40x12 | ||||
| 129 | 400691 | 1.39 | 1.68 | |
| Geleideplaat KS 120 EB | ||||
| 130 | 470662 | 2.57 | 3.11 | |
| Aansluitbus 15x17x10 GGB 1510 DP4 | ||||
| 131 | 473215 | 1.51 | 1.83 | |
| Buffer KS 120 EB SET ET-BG | ||||
| 132 | 494780 | 37.03 | 44.81 | |
| Zeskantbout DIN 931-M8x45-8.8 | ||||
| 133 | 400937 | 1.39 | 1.68 | |
| Diepteaanslag KS 120 EB | ||||
| 134 | 495266 | 14.76 | 17.86 | |
| Klemplaat KS 120 EB | ||||
| 135 | 470640 | 3.83 | 4.63 | |
| Cilinderschroef DIN 6912-M8x65-8.8-PR80 | ||||
| 136 | 400925 | 2.45 | 2.96 | |
| Draaiknop D34 M6x27,5 blau | ||||
| 137 | 486202 | 2.57 | 3.11 | |
| O-ring 5x2-NBR-70SHORE | ||||
| 138 | 204551 | 1.39 | 1.68 | |
| SEALING TRK 100300 | ||||
| 139 | 470892 | 3.17 | 3.84 | |
| Lager KS 120 EB | ||||
| 140 | 470894 | 35.33 | 42.75 | |
| Cilinderstift 6 M6x22 DIN 6325 ST | ||||
| 141 | 400949 | 1.39 | 1.68 | |
| Torsieveer KS 120 EB KAPPSTELLUNG | ||||
| 142 | 471027 | 1.39 | 1.68 | |
| Eind Aanslag KS 120 EB | ||||
| 143 | 473656 | 3.50 | 4.24 | |
| Knop KS 120 EB | ||||
| 144 | 470639 | 1.39 | 1.68 | |
| Lenskopschroef M4x12-TAPTITE-KT15 | ||||
| 145 | 400050 | 1.39 | 1.68 | |
| Wagen KS 120 EB ET-BG | ||||
| 146 | 496035 | 85.79 | 103.81 | |
| Stift KS 120 EB | ||||
| 147 | 470514 | 5.74 | 6.95 | |
| Klemring KS 120 | ||||
| 148 | 475116 | 7.58 | 9.17 | |
| DIEPTEINSTELLIN KS 120 EB KAPPSTELLUNG | ||||
| 149 | 470509 | 7.06 | 8.54 | |
| Printers KS 120 EB | ||||
| 150 | 470631 | 1.39 | 1.68 | |
| Deksel KS 120 EB WAGEN | ||||
| 151 | 470630 | 6.41 | 7.76 | |
| Bladveer KS 120 EB | ||||
| 152 | 470513 | 1.39 | 1.68 | |
| Stop KS 120 EB BEDRUCKT | ||||
| 153 | 471192 | 3.30 | 3.99 | |
| Stop KS 120 EB ROHTEIL | ||||
| 154 | 501549 | 1.58 | 1.91 | |
| Draadstang KS 120 EB | ||||
| 155 | 470561 | 11.37 | 13.76 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 156 | 494967 | |||
| FLEXIBLE KNIFE CS 70 EB 2208.008 | ||||
| 157 | 400287 | 5.02 | 6.07 | |
| TANDWIEL KS 120 EB Z=45 | ||||
| 158 | 470886 | 2.51 | 3.04 | |
| Stelknop KS 120 EB | ||||
| 159 | 471313 | 2.83 | 3.42 | |
| Drukveer 2,5x16x61 DIN 2098 | ||||
| 160 | 471024 | 1.39 | 1.68 | |
| Remhendel KS 120 EB | ||||
| 161 | 470508 | 5.74 | 6.95 | |
| Lagerplaat KS 120 EB | ||||
| 162 | 470510 | 4.62 | 5.59 | |
| Draaiknop KS 120 EB | ||||
| 163 | 494172 | 14.52 | 17.57 | |
| KLEMHEVEL KS 120 EB | ||||
| 164 | 470634 | 6.86 | 8.30 | |
| Klembrug KS 120 EB | ||||
| 165 | 470641 | 1.39 | 1.68 | |
| Retainer KS 120 EB | ||||
| 166 | 470636 | 1.58 | 1.91 | |
| Schijf KS 120 EB | ||||
| 167 | 471193 | 1.39 | 1.68 | |
| Draaigreep KS 120 EB | ||||
| 168 | 470632 | 4.36 | 5.28 | |
| Schijfveer RO 150 FEQ | ||||
| 169 | 469785 | 1.39 | 1.68 | |
| Bus KS 120 EB | ||||
| 170 | 470560 | 1.39 | 1.68 | |
| Arr teerpen KS 120 | ||||
| 171 | 10218799 | 5.74 | 6.95 | |
| Zwenkhendel KS 120 EB | ||||
| 172 | 494171 | 8.78 | 10.62 | |
| Haak KS 120 EB | ||||
| 173 | 470518 | 8.18 | 9.90 | |
| Borgring Din 6799-5 | ||||
| 174 | 208623 | 1.39 | 1.68 | |
| Drukveer KS 120 EB | ||||
| 175 | 471026 | 1.72 | 2.08 | |
| Platkopschroef PT-3,5x14-KOMBI-TORX-60 | ||||
| 176 | 400981 | 1.39 | 1.68 | |
| Naald KS 120 EB LINKS | ||||
| 177 | 470627 | 1.39 | 1.68 | |
| Naald KS 120 EB RECHTS | ||||
| 178 | 470628 | 1.39 | 1.68 | |
| Meenemer KS 120 EB | ||||
| 179 | 470511 | 2.98 | 3.61 | |
| Schijfveer 34x14,3x1,5 DIN 2093 | ||||
| 180 | 761692 | 1.98 | 2.40 | |
| Tandwiel KS 120 EB | ||||
| 181 | 470885 | 6.47 | 7.83 | |
| Rem KS 120 EB | ||||
| 182 | 473904 | 4.15 | 5.02 | |
| Deksel KS 120 EB SCHWENKARM | ||||
| 183 | 470635 | 9.77 | 11.82 | |
| SKT.STIFTSCHL. AT 55 E SW 6 | ||||
| 184 | 439274 | 3.77 | 4.56 | |
| SCHAALVERDELING KS 120 EB | ||||
| 185 | 495758 | 53.24 | 64.42 | |
| Schijf DIN 125-B-8,4-140 HV | ||||
| 186 | 228601 | 1.39 | 1.68 | |
| Cilinderschroef DIN 912-M8x16-10.9 | ||||
| 187 | 200201 | 1.39 | 1.68 | |
| Drukveer KS 120 EB | ||||
| 188 | 473505 | 1.58 | 1.91 | |
| BRACKET KS 120 EB VOLLST. | ||||
| 189 | 494170 | 22.14 | 26.79 | |
| Kabelopwikkelin KS 120 EB | ||||
| 190 | 470642 | 12.33 | 14.92 | |
| Schijf KS 120 EB 4,3x20x1,25 | ||||
| 191 | 400929 | 1.39 | 1.68 | |
| Anker + Elektro KS 120 | ||||
| 194 | 205565 | 166.07 | 200.94 | |
