Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Festool 495693 (OF1400EBQCN230V)'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

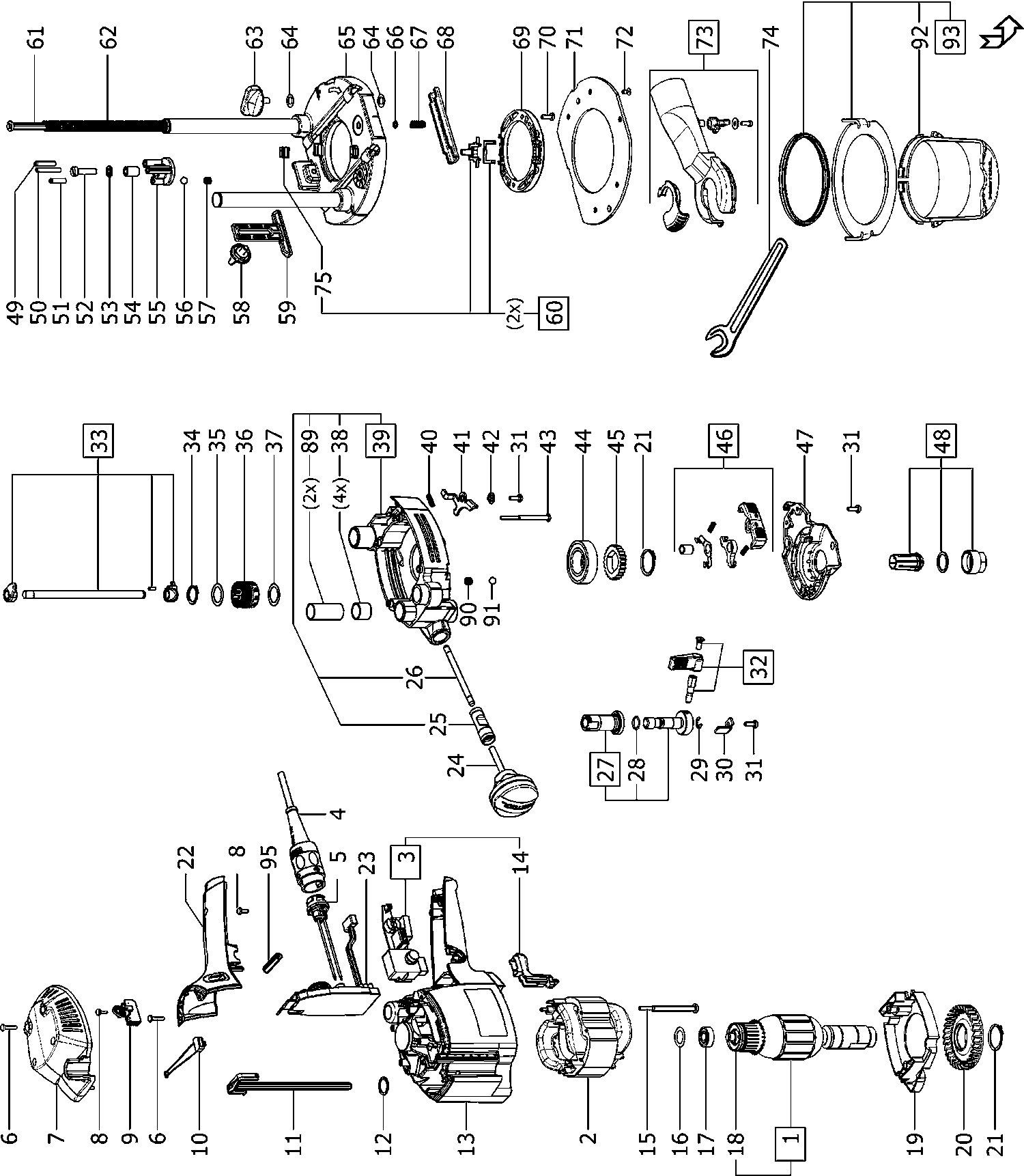

Tekeningen van de Festool 495693 (OF1400EBQCN230V)
Onderdelen lijst van de Festool 495693 (OF1400EBQCN230V)
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| LENSKOPSCHROEF PT-3,5X14-KT15 | ||||
| 6 | 400468 | 1.51 | 1.83 | |
| BEHUIZINGSDEKSE OF 1400 EBQ | ||||
| 7 | 462603 | 6.26 | 7.57 | |
| LENSKOPSCHROEF PT-3,5X10-KT15 | ||||
| 8 | 219031 | 7.32 | 8.86 | |
| TACHO COIL RTM OF | ||||
| 10 | 457920 | 8.14 | 9.85 | |
| RETAINER OF 1400 EBQ | ||||
| 11 | 462604 | 2.02 | 2.44 | |
| BORGRING AV 16-BLS-SEEGER | ||||
| 12 | 400725 | 1.94 | 2.35 | |
| MOTORHUIS OF 1400 EBQ | ||||
| 13 | 491940 | 25.41 | 30.75 | |
| DRUKKER OF 1400 EBQ | ||||
| 14 | 462606 | 2.74 | 3.32 | |
| LENSKOPSCHROEF PT-5,0X70-KT15 | ||||
| 15 | 228709 | 1.51 | 1.83 | |
| KULA-AUSGL.SCH. 14X21,8X0,3 L+MN 1100 | ||||
| 16 | 203777 | 1.51 | 1.83 | |
| GROEFKOGELLAGER 608 D1 MC3 E U152 J2 HA1 | ||||
| 17 | 10775821 | 5.54 | 6.70 | |
| MAGNEETRING OF 1400 VOLLST. | ||||
| 18 | 491353 | 9.79 | 11.85 | |
| LUCHTGELEIDINGS OF 1400 | ||||
| 19 | 462619 | 3.17 | 3.84 | |
| VENTILATOR OF 1400 EBQ | ||||
| 20 | 462620 | 11.75 | 14.22 | |
| BORGRING DIN 471-25X1,2 | ||||
| 21 | 400636 | 1.51 | 1.83 | |
| BOVENGREEP OF 1400 EBQ | ||||
| 22 | 462602 | 5.62 | 6.80 | |
| KNOP OF 1400 | ||||
| 24 | 491590 | 9.79 | 11.85 | |
| KLEMSTUK OF 1400 | ||||
| 25 | 10712440 | 18.63 | 22.54 | |
| AS OF 1400 EBQ | ||||
| 26 | 462608 | 4.82 | 5.83 | |
| FEINEINSTELLUNG OF 1400 EBQ VOLLST. | ||||
| 27 | 492416 | 27.71 | 33.53 | |
| O-RING 11,5X1,5-NBR-70SHORE | ||||
| 28 | 200929 | 1.51 | 1.83 | |
| BORGRING DIN 6799-6 | ||||
| 29 | 228518 | 1.51 | 1.83 | |
| AANSLAGHOEK OF 1400 EBQ | ||||
| 30 | 463998 | 1.51 | 1.83 | |
| LENSKOPSCHROEF M4X12-TAPTITE-KT15 | ||||
| 31 | 400050 | 1.51 | 1.83 | |
| HEVEL OF 1400 | ||||
| 32 | 492004 | 25.17 | 30.46 | |
| DIEPTESTOP OF 1400 EBQ VOLLST.ET-BG | ||||
| 33 | 492086 | 28.19 | 34.11 | |
| BORGRING DIN 471-17X1 | ||||
| 34 | 401191 | 1.51 | 1.83 | |
| PASRING DIN 988-17X24X0,3 | ||||
| 35 | 462628 | 1.51 | 1.83 | |
| STELKNOP OF 1400 EBQ | ||||
| 36 | 462621 | 4.82 | 5.83 | |
| ONTLASTINGSSCHI 17,3X23,8X0,3 L+MN 1100 | ||||
| 37 | 400220 | 1.51 | 1.83 | |
| AANSLUITBUS 16X18X15 GGB 1615 DP4 | ||||
| 38 | 462653 | 1.66 | 2.01 | |
| LAGERFLENS OF 1400 EBQ ET-BG | ||||
| 39 | 492003 | 102.49 | 124.01 | |
| DRUKVEER OF 1400 EBQ | ||||
| 40 | 462615 | 1.51 | 1.83 | |
| SCHAKELPLAAT OF 1400 EBQ | ||||
| 41 | 462616 | 3.60 | 4.36 | |
| KRAAGBUS OF 1400 EBQ | ||||
| 42 | 462613 | 2.09 | 2.53 | |
| LENSKOPSCHROEF PT-4,0X50-KT15 | ||||
| 43 | 228707 | 1.51 | 1.83 | |
| LAGER 6005 DIN 625 | ||||
| 44 | 400635 | 13.13 | 15.89 | |
| TANDWIEL OF 1400 EBQ | ||||
| 45 | 465184 | 4.61 | 5.58 | |
| WIPPE OF 1400 EBQ ET-BG | ||||
| 46 | 492001 | 44.17 | 53.45 | |
| AFDEKKING OF 1400 EBQ | ||||
| 47 | 462611 | 4.46 | 5.40 | |
| DRAADPEN DIN 551-M5X25-14H-LONG | ||||
| 49 | 451536 | 1.58 | 1.91 | |
| DRAADPEN DIN 551-M5X30-14H-LONG | ||||
| 50 | 451537 | 1.51 | 1.83 | |
| DRAADPEN DIN 551-M5X20-14H-LONG | ||||
| 51 | 451535 | 1.58 | 1.91 | |
| CILINDERSCHROEF DIN 912-M6X25-8.8-TUF | ||||
| 52 | 400859 | 1.51 | 1.83 | |
| SCHIJF DIN 125-B-6,4-140 HV | ||||
| 53 | 200578 | 1.51 | 1.83 | |
| AANSLUITBUS KF 4 E | ||||
| 54 | 436300 | 1.94 | 2.35 | |
| LIMIT STOP KF 4 E | ||||
| 55 | 436520 | 13.67 | 16.54 | |
| KOGEL DIN 5401-7-100CR6 | ||||
| 56 | 783305 | 1.51 | 1.83 | |
| DRUCKFEDER DIN 2098-0,50X6,50X15,0 | ||||
| 57 | 436528 | 2.04 | 2.47 | |
| KNOP KF 4 E D 23 M6X10 BLAU | ||||
| 58 | 436195 | 1.80 | 2.18 | |
| AFSTEUNPOOT OF 1010 | ||||
| 59 | 438608 | 2.95 | 3.57 | |
| BEUGEL OF 1400 EBQ ET-BG | ||||
| 60 | 492007 | 45.13 | 54.61 | |
| BOUT OF 1010 EB | ||||
| 61 | 455791 | 1.51 | 1.83 | |
| DRUKVEER OF 1400 EBQ | ||||
| 62 | 465842 | 2.74 | 3.32 | |
| DRAAIKNOP OF1400EBQ D34 M6X17,4BLA | ||||
| 63 | 462668 | 4.18 | 5.06 | |
| PASRING DIN 988-6X12X0,1 | ||||
| 64 | 400643 | 1.51 | 1.83 | |
| BODEMPLAAT OF 1400 EBQ ET-BG | ||||
| 65 | 492006 | 101.16 | 122.40 | |
| O-RING 5X1,5-NBR-55SHORE | ||||
| 66 | 400648 | 1.51 | 1.83 | |
| DRUKVEER DIN 2098 0,7X6,8X14,7 | ||||
| 67 | 444754 | 1.51 | 1.83 | |
| CLIP OF 1400 EBQ | ||||
| 68 | 462635 | 6.05 | 7.32 | |
| AFSTELSCHIJF OF 1400 EBQ | ||||
| 69 | 462647 | 23.11 | 27.96 | |
| LENSKOPSCHROEF M4X10-TAPTITE-KT15 | ||||
| 70 | 228738 | 1.51 | 1.83 | |
| PLAAT OF 1400 EBQ | ||||
| 71 | 462637 | 15.37 | 18.60 | |
| VERZINKSCHROEF M4X8-TAPTITE-KT15 | ||||
| 72 | 228737 | 1.51 | 1.83 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 73 | 492000 | |||
| MAULSCHLUESSEL SW 24 DIN894 | ||||
| 74 | 772051 | 13.13 | 15.89 | |
| MAULSCHLUESSEL SW 22 DIN894 | ||||
| 74 | 401745 | 9.36 | 11.33 | |
| KAP OF 1400 EBQ ET-BG | ||||
| 75 | 492635 | 21.54 | 26.06 | |
| GRIFF OF 1400 EBQ VOLLST. | ||||
| 77 | 492412 | 8.28 | 10.02 | |
| VEERRING DIN 137-B-6 | ||||
| 79 | 228700 | 1.51 | 1.83 | |
| DRAAIKNOP D34 M6X15,5 BLAU | ||||
| 80 | 482110 | 2.38 | 2.88 | |
| ANGLE PIECE OF 1400 EBQ | ||||
| 81 | 493183 | 53.24 | 64.42 | |
| BACKEN OF 1400 EBQ | ||||
| 83 | 463148 | 2.16 | 2.61 | |
| LENSKOPSCHROEF DIN 7985-M6X18-4.8-PZV | ||||
| 85 | 400142 | 1.51 | 1.83 | |
| THUMBWHEEL OF 1400 | ||||
| 86 | 492311 | 14.40 | 17.42 | |
| KAP SF-OF 2000 | ||||
| 87 | 445497 | 11.30 | 13.67 | |
| SPACER A 10X8X32 | ||||
| 88 | 465333 | 3.46 | 4.19 | |
| CLAMP SLEEVE OF 1400 EBQ | ||||
| 89 | 465165 | 8.64 | 10.45 | |
| DRUKVEER DIN 2098-0,45X2,90X10,0 | ||||
| 90 | 444127 | 1.51 | 1.83 | |
| KOGEL DIN 5401-3-X40CR13 | ||||
| 91 | 200861 | 1.51 | 1.83 | |
| HOOD OF 1400 EBQ | ||||
| 92 | 466390 | 3.10 | 3.75 | |
| STANG OF 1400 | ||||
| 94 | 463147 | 9.79 | 11.85 | |
| DICHTING OF 1400 | ||||
| 95 | 469725 | 3.10 | 3.75 | |
