Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki A25EB'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

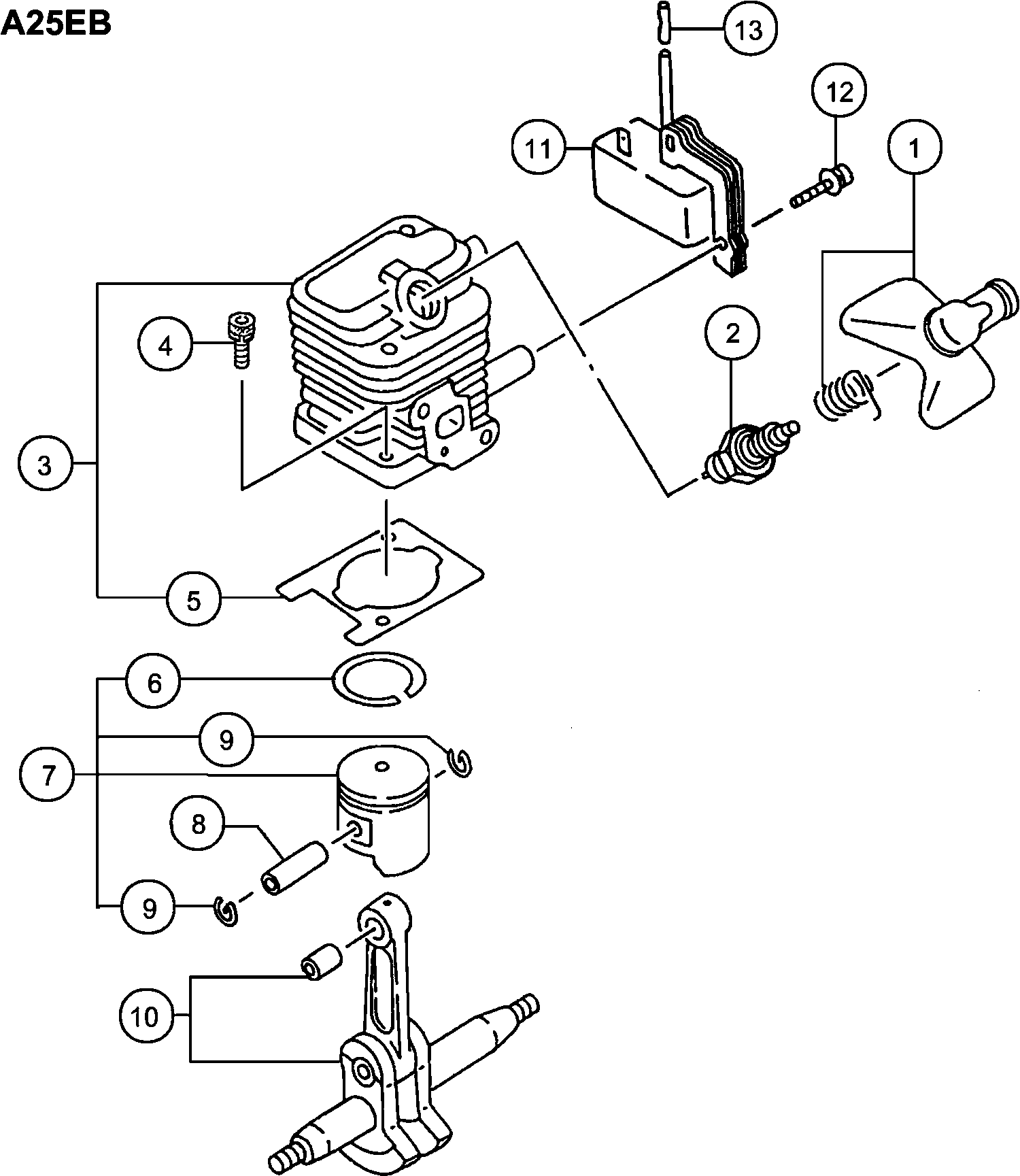

Tekeningen van de Hikoki A25EB
Onderdelen lijst van de Hikoki A25EB
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SPARK PLUG CAP ASS'Y (OLD 157-06500-91) | ||||
| 1 | 6687476 | 4.45 | 5.38 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 2 | 6699320 | |||
| CYLINDER SET (OLD 001-0650A-90) | ||||
| 3 | 6685480 | 40.24 | 48.69 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 4 | 6684668 | |||
| CYLINDER GASKET (OLD 017-06500-20) | ||||
| 5 | 6685744 | 1.15 | 1.39 | |
| PISTON RING (OLD 041-00601-21/ 6686117) | ||||
| 6 | 6686118 | 4.45 | 5.38 | |
| PISTON SET (OLD 030-0650A-90) | ||||
| 7 | 6685892 | 20.11 | 24.34 | |
| ZUIGER PIN | ||||
| 8 | 6696944 | 3.33 | 4.02 | |
| PISTON PIN CIRCLIP (OLD 039-01620-20) | ||||
| 9 | 6686028 | 1.15 | 1.39 | |
| CRANK SHAFT COMP. (OLD 046-0650A-80) | ||||
| 10 | 6686206 | 80.31 | 97.18 | |
| BOBINE | ||||
| 11 | 6695939 | 38.26 | 46.30 | |
| HIGH TENSION SCREW 4X18WS (OLD 994-16040-186) | ||||
| 12 | 6695407 | 1.15 | 1.39 | |
| INSULATOR TUBE 50L (OLD 250-06500-20) | ||||
| 13 | 6684597 | 2.15 | 2.60 | |
| CRANK CASE ASS'Y (OLD 072-0650A-90) | ||||
| 21 | 6686576 | 40.24 | 48.69 | |
| CRANK CASE GASKET (OLD 090-06500-20) | ||||
| 22 | 6686720 | 1.15 | 1.39 | |
| OLIE KEERRING | ||||
| 23 | 6684607 | 4.29 | 5.19 | |
| BALL BEARING 6001 C3 (OLD 999-61600-132/6695535) | ||||
| 24 | 6684608 | 3.80 | 4.60 | |
| GEAR SHAFT SHIM 0.20 (OUD 330-00200-23) | ||||
| 25 | 6684604 | 2.15 | 2.60 | |
| GEAR SHAFT SHIM 0.30 (OUD 330-00200-24) | ||||
| 25 | 6684605 | 2.15 | 2.60 | |
| ANTI-VIBE RUBBER (OLD 599-00601-20) | ||||
| 26 | 6691822 | 1.15 | 1.39 | |
| HEX. SOCKET HD. BOLT M5X30 S (OLD 994-61050-304) | ||||
| 27 | 6684786 | 2.15 | 2.60 | |
| VLIEGWIEL | ||||
| 28 | 6687389 | 26.16 | 31.66 | |
| RING M8 (OLD 992-01080-011) | ||||
| 29 | 6684611 | 2.15 | 2.60 | |
| RING | ||||
| 30 | 6684971 | 1.04 | 1.26 | |
| NUT M8 (OLD 991-01080-011/327325/332299/726603) | ||||
| 31 | 6684612 | 2.15 | 2.60 | |
| INTAKE PIPE GASKET (OLD 403-06500-20) | ||||
| 41 | 6689891 | 1.15 | 1.39 | |
| CARB. INSULATOR SET,SPARE (OLD 404-06500-90) | ||||
| 42 | 6689966 | 6.93 | 8.38 | |
| Niet meer leverbaar, geen vervanging | ||||
| 43 | 6696988 | |||
| CARBURETOR GASKET (OLD 402-06500-20) | ||||
| 44 | 6689839 | 1.15 | 1.39 | |
| O-RING P-15 | ||||
| 45 | 6698966 | 1.04 | 1.26 | |
| CLEANER BODY COMP. (OLD 423-06500-81/6690118) FOR | ||||
| 46 | 6690119 | 4.45 | 5.38 | |
| COLLAR 7.5 (OLD 470-06500-20) | ||||
| 47 | 6690804 | 1.15 | 1.39 | |
| CHOKE VALVE (OLD 528-06500-20) | ||||
| 48 | 6691272 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 49 | 6684658 | |||
| BLOW OVER CHECK BOARD (OLD 476-01700-20/790189) | ||||
| 50 | 6690843 | 1.15 | 1.39 | |
| RING (OUD 992-10050-012) | ||||
| 51 | 6684662 | 2.15 | 2.60 | |
| SCREW M5X60 (OUD 990-11050-602) | ||||
| 52 | 6684660 | 2.15 | 2.60 | |
| REINIGINGSSPONS | ||||
| 53 | 6690364 | 1.15 | 1.39 | |
| LUCHTFILTERKAP | ||||
| 54 | 6690415 | 5.28 | 6.38 | |
| SPECIAL SCREW (OLD 380-0637C-20) | ||||
| 55 | 6689737 | 1.15 | 1.39 | |
| CARBURATEURSET | ||||
| 56 | 6690483 | 54.30 | 65.70 | |
| SHIELD TUBE ASS'Y (OLD 223-06500-90) | ||||
| 57 | 6685247 | 2.31 | 2.80 | |
| CLIP D6 (OLD 680-00070-20/6685311) | ||||
| 58 | 6685198 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 59 | 6684620 | |||
| FUEL TANK, WHITE (OLD 591-0650D-21/6691566) | ||||
| 60 | 6691569 | 9.40 | 11.37 | |
| COLLAR 5.8 (OLD 659-00801-20) | ||||
| 61 | 6692244 | 1.15 | 1.39 | |
| HEX. HOLE BOLT 5X18PS (OLD 994-63050-185) | ||||
| 62 | 6695505 | 1.15 | 1.39 | |
| TANKDOP, ZWART (OLD 595-06516-90/6691712) | ||||
| 63 | 6691763 | 7.59 | 9.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 64 | 6684625 | |||
| MUFFLER PROTECTOR (OLD 738-0650A-20) | ||||
| 71 | 6692796 | 6.28 | 7.59 | |
| MUFFLER GASKET (OLD 737-06500-20) | ||||
| 72 | 6692744 | 1.15 | 1.39 | |
| WARMTESCHILD | ||||
| 73 | 6687252 | 2.31 | 2.80 | |
| MUFFLER SET (OLD 704-0650B-90) | ||||
| 76 | 6692478 | 15.28 | 18.48 | |
| RING | ||||
| 77 | 6684661 | 2.15 | 2.60 | |
| HEX. SOCKET HD. BOLT M5X50 (OLD 990-51050-503) | ||||
| 78 | 6685114 | 1.15 | 1.39 | |
| MUFFLER SPECIAL GASKET (OLD 751-04200-20) | ||||
| 79 | 6692883 | 1.15 | 1.39 | |
| TALE PIPE SET (OLD 721-0650C-90) | ||||
| 80 | 6692663 | 4.79 | 5.79 | |
| SCREW 4X8/S (OLD 994-14040-081) | ||||
| 81 | 6695325 | 1.15 | 1.39 | |
| TAPSCHROEF D4.5X16 | ||||
| 82 | 6684636 | 2.15 | 2.60 | |
| BOLT 4X12PS (OLD 994-25040-128) | ||||
| 83 | 6695441 | 1.15 | 1.39 | |
| VENTILATORHUIS | ||||
| 84 | 6687012 | 16.79 | 20.31 | |
| RECOIL SPRING (OLD 780-06097-20/6697591) | ||||
| 85 | 6684675 | 11.55 | 13.98 | |
| STARTER ROPE REEL (OLD 774-06097-20) | ||||
| 86 | 6693066 | 3.30 | 3.99 | |
| SET SCREW (OLD 839-02010-20/6693638) | ||||
| 87 | 6693633 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 88 | 6693405 | |||
| GROMMET (OLD 203-0604A-20) | ||||
| 89 | 6688050 | 1.15 | 1.39 | |
| STARTER ROPE (OLD 783-06097-20/6693174/6693173) | ||||
| 90 | 6693168 | 2.31 | 2.80 | |
| STARTHENDEL | ||||
| 91 | 6693237 | 1.15 | 1.39 | |
| SCREW 4X16/PS (OLD 994-15040-162) | ||||
| 92 | 6695374 | 1.15 | 1.39 | |
| STARTER PAWL SPRING (OLD 790-06097-20) | ||||
| 93 | 6684684 | 4.29 | 5.19 | |
| STARTER PAWL (OLD 788-06500-20) | ||||
| 94 | 6693319 | 2.31 | 2.80 | |
| THROTTLE SET SCREW (OLD 548-25140-20) | ||||
| 121 | 6684698 | 4.29 | 5.19 | |
| SWIVEL (OUD 539-25120-20) | ||||
| 122 | 6684697 | 6.44 | 7.79 | |
| STOP RING (OUD 489-25100-20) | ||||
| 123 | 6684696 | 2.15 | 2.60 | |
| O-RING (OUD 550-25100-20) | ||||
| 124 | 6684695 | 4.29 | 5.19 | |
| MAIN JET #40 (OLD 599-2000W-40) | ||||
| 125 | 6691845 | 4.45 | 5.38 | |
| PUMP GASKET (OLD 577-25100-20) | ||||
| 126 | 6691457 | 7.10 | 8.59 | |
| PUMP DIAPHRAGM (OLD 576-25100-20 & 6696325) | ||||
| 127 | 6684693 | 8.58 | 10.38 | |
| INLET SCREEN (OUD 578-25007-20) | ||||
| 128 | 6684700 | 4.29 | 5.19 | |
| PUMP BODY COMP. (OLD 575-25152-80) | ||||
| 129 | 6691432 | 34.19 | 41.37 | |
| Niet meer leverbaar, geen vervanging | ||||
| 130 | 6685220 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 131 | 6690827 | |||
| DIAPHRAGM COVER (OLD 476-25004-20) | ||||
| 132 | 6685222 | 4.45 | 5.38 | |
| SET SCREW (OLD 548-25101-20) | ||||
| 133 | 6691312 | 1.15 | 1.39 | |
| END PLATE A (OLD 300-31249-20) | ||||
| 151 | 6688640 | 34.19 | 41.37 | |
| O-RING G140 (OLD 999-67140-010) | ||||
| 152 | 6695688 | 4.45 | 5.38 | |
| HANDLE A (OLD 090-31249-20) | ||||
| 153 | 6686732 | 19.36 | 23.43 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 154 | 6694976 | |||
| RING | ||||
| 155 | 6689684 | 2.31 | 2.80 | |
| FLENSMOER | ||||
| 156 | 6695171 | 1.15 | 1.39 | |
| COUPLING FLANGE (OLD 333-0650A-20) | ||||
| 157 | 6689247 | 5.78 | 6.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 158 | 6695358 | |||
| GASKABEL | ||||
| 159 | 6693909 | 4.45 | 5.38 | |
| THROTTLE LEVER, 16 DIA. (OLD 870-02201-91) | ||||
| 160 | 6693683 | 5.11 | 6.19 | |
| CASING A (OLD 330-31249-20) | ||||
| 171 | 6689180 | 56.26 | 68.08 | |
| VOLUTE CHAMBER A (OLD 310-31249-20) | ||||
| 172 | 6689002 | 24.20 | 29.28 | |
| IMPELLER A (OLD 031-31249-20) | ||||
| 173 | 6685958 | 24.20 | 29.28 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 174 | 6689132 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 175 | 6687496 | |||
| VOLUTE CHAMBER GASKET A (OLD 311-31249-20/6689038) | ||||
| 176 | 6689039 | 4.95 | 5.99 | |
| SUCTION PALTE PACKING (OLD 350-31249-80) | ||||
| 177 | 6689535 | 11.55 | 13.98 | |
| PRIMING PLUG ASS'Y (OLD 360-31249-90/6689659) | ||||
| 178 | 6689660 | 13.36 | 16.17 | |
| FLANGE BOLT 8X35 (OLD 994-51080-350) | ||||
| 179 | 6695480 | 1.15 | 1.39 | |
| FLANGE BOLT 6X16 (OLD 994-51060-160) | ||||
| 180 | 6695477 | 1.15 | 1.39 | |
| WATER COUPLING ASS'Y A (OLD 050-31249-90/6686318+6 | ||||
| 181 | 6686258 | 14.06 | 17.02 | |
| IMPELLER SHAFT SHIM A 0.3 (OLD 034-31249-20) | ||||
| 182 | 6685978 | 2.31 | 2.80 | |
| BED A (OLD 080-31249-20) | ||||
| 201 | 6686629 | 28.14 | 34.05 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 202 | 6689060 | |||
| TAPSCHROEF D5X14 | ||||
| 203 | 6695251 | 1.15 | 1.39 | |
| WIRE BAND 33 (OLD 132-31223-20/6687219) | ||||
| 204 | 6687218 | 1.15 | 1.39 | |
| FILTER COMP. A (OLD 100-31249-80) | ||||
| 205 | 6686782 | 7.59 | 9.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 206 | 6687937 | |||
| COMBI BOX SPANNER 13X19 PLUS (OLD 829-20000-80) | ||||
| 501 | 6684979 | 4.29 | 5.19 | |
| NAME PLATE A25EB (OLD 906-51751-20) NEW | ||||
| 601 | 6695731 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 602 | 6695730 | |||
