Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki CF18DSAL'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

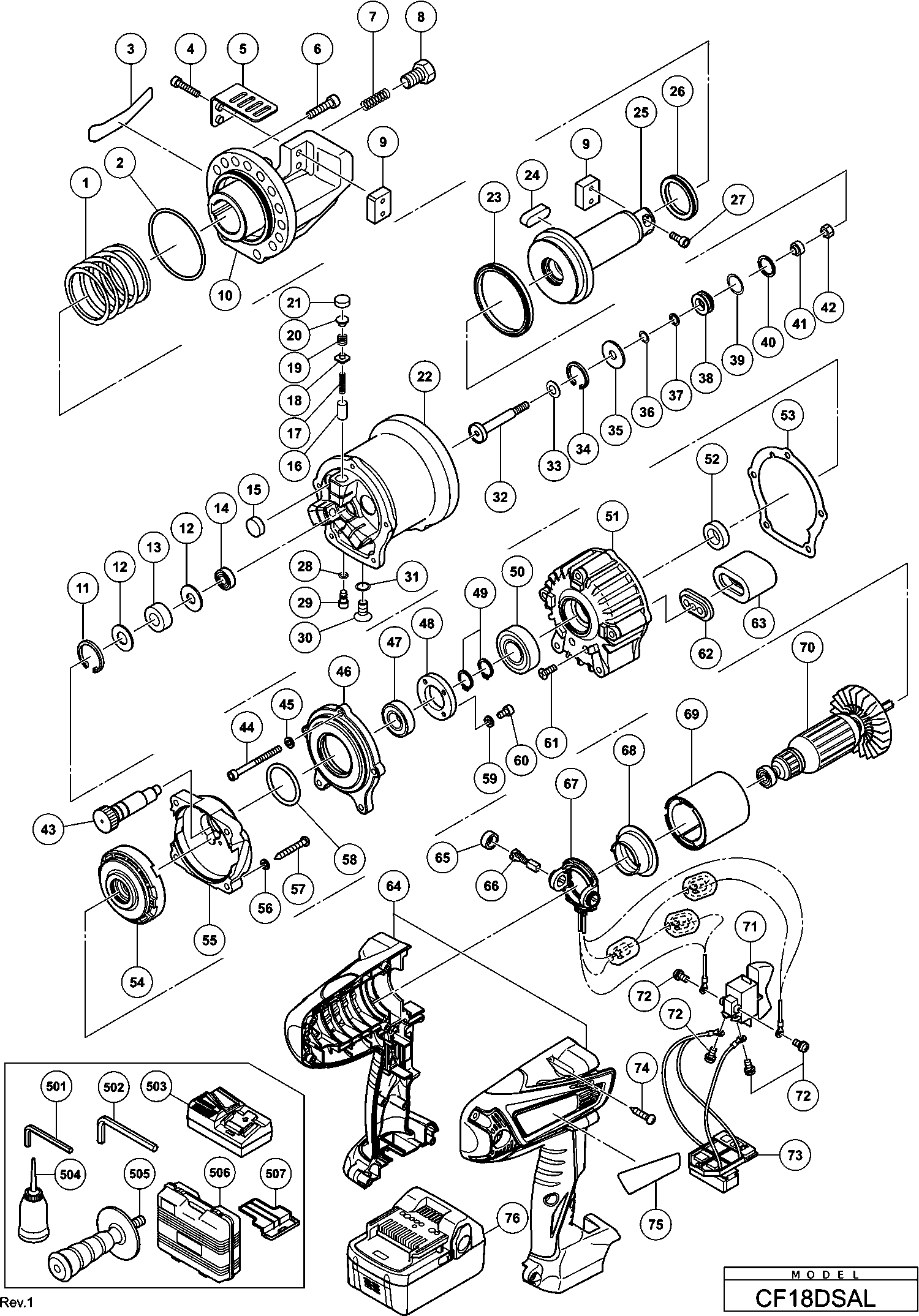

Tekeningen van de Hikoki CF18DSAL
Onderdelen lijst van de Hikoki CF18DSAL
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Return Spring | ||||
| 1 | 339456 | 33.41 | 40.43 | |
| O-ring | ||||
| 2 | 339455 | 7.35 | 8.89 | |
| Hex.socket Hd.bolt M5x25 | ||||
| 4 | 339453 | 2.55 | 3.09 | |
| Scatter Prevent Guard | ||||
| 5 | 339494 | 7.35 | 8.89 | |
| Hex.socket Hd.bolt M8x20 | ||||
| 6 | 339452 | 2.55 | 3.09 | |
| Lock Spring | ||||
| 7 | 339391 | 11.40 | 13.79 | |
| Hex.bolt M12x20 | ||||
| 8 | 339454 | 2.55 | 3.09 | |
| Cutter Block (2 Pcs) | ||||
| 9 | 339450 | 170.09 | 205.81 | |
| Housing | ||||
| 10 | 339451 | 1113.06 | 1346.81 | |
| Retaining Ring | ||||
| 11 | 339475 | 2.55 | 3.09 | |
| Bearing Guide | ||||
| 12 | 339473 | 2.55 | 3.09 | |
| Needle Bearing | ||||
| 13 | 339474 | 44.55 | 53.91 | |
| Kogellager 608cm3 | ||||
| 14 | 339472 | 6.15 | 7.44 | |
| Magnet Filter 18x8 | ||||
| 15 | 339417 | 5.85 | 7.08 | |
| Ram Set | ||||
| 16 | 339466 | 22.28 | 26.95 | |
| Ram Return Spring | ||||
| 17 | 339467 | 2.55 | 3.09 | |
| Delivery Valve | ||||
| 18 | 339468 | 22.28 | 26.95 | |
| Delivery Valve Spring | ||||
| 19 | 306215 | 2.70 | 3.27 | |
| Veergeleider | ||||
| 20 | 334023 | 14.44 | 17.47 | |
| Pump Head Seal | ||||
| 21 | 334022 | 14.40 | 17.42 | |
| Cylinder | ||||
| 22 | 339465 | 1068.51 | 1292.90 | |
| Seal Packing | ||||
| 23 | 339460 | 8.25 | 9.98 | |
| Key 10x8x29.5 | ||||
| 24 | 339459 | 7.35 | 8.89 | |
| Piston | ||||
| 25 | 339458 | 779.08 | 942.68 | |
| Sky Packing | ||||
| 26 | 339457 | 12.30 | 14.88 | |
| Hex.socket Hd.bolt M5x15 | ||||
| 27 | 339398 | 1.95 | 2.36 | |
| O-ring | ||||
| 28 | 339416 | 4.65 | 5.63 | |
| Release Valve | ||||
| 29 | 339471 | 22.28 | 26.95 | |
| Hex.socket Flat Hd.bolt M8x12 | ||||
| 30 | 339470 | 1.95 | 2.36 | |
| O-ring | ||||
| 31 | 339469 | 4.95 | 5.99 | |
| Niet meer leverbaar | ||||
| 32 | 339461 | |||
| Belleville Spring Washer 8 | ||||
| 33 | 339402 | 1.04 | 1.26 | |
| Retaining Ring | ||||
| 34 | 339403 | 2.55 | 3.09 | |
| Guide Clamp | ||||
| 35 | 339404 | 20.08 | 24.29 | |
| Back-up Ring | ||||
| 36 | 339406 | 11.55 | 13.98 | |
| Packing | ||||
| 37 | 339405 | 14.70 | 17.79 | |
| Return Valve Guide | ||||
| 38 | 339462 | 26.81 | 32.44 | |
| Back-up Ring | ||||
| 39 | 339409 | 11.70 | 14.16 | |
| O-ring | ||||
| 40 | 339408 | 4.65 | 5.63 | |
| Niet meer leverbaar | ||||
| 41 | 339463 | |||
| Niet meer leverbaar | ||||
| 42 | 339464 | |||
| Cam Shaft | ||||
| 43 | 339493 | 244.89 | 296.31 | |
| Hex.socket Hd.bolt M5x60 | ||||
| 44 | 339489 | 2.55 | 3.09 | |
| Notch Washer D5 | ||||
| 45 | 339435 | 1.04 | 1.26 | |
| Distance Piece P | ||||
| 46 | 339488 | 222.61 | 269.36 | |
| Kogellager 6902zz | ||||
| 47 | 339487 | 20.08 | 24.29 | |
| Ring | ||||
| 48 | 339484 | 40.15 | 48.58 | |
| Retaining Ring | ||||
| 49 | 339483 | 2.55 | 3.09 | |
| Kogellager 6002ru | ||||
| 50 | 339482 | 4.20 | 5.08 | |
| Pump Case | ||||
| 51 | 339477 | 333.99 | 404.12 | |
| Oil Seal | ||||
| 52 | 339481 | 11.70 | 14.16 | |
| Pump Case Packing | ||||
| 53 | 339476 | 7.35 | 8.89 | |
| Inner Cover | ||||
| 54 | 339448 | 67.79 | 82.02 | |
| Distance Piece M | ||||
| 55 | 339490 | 333.99 | 404.12 | |
| Spring Washer 57sw005 D5 | ||||
| 56 | 339446 | 1.04 | 1.26 | |
| Tapping Srew D5x30 | ||||
| 57 | 339491 | 2.55 | 3.09 | |
| O-ring Jas02037 | ||||
| 58 | 339492 | 8.55 | 10.35 | |
| Notch Washer D4 | ||||
| 59 | 339486 | 1.04 | 1.26 | |
| Hex.socket Hd.bolt M4x10 | ||||
| 60 | 339485 | 1.35 | 1.63 | |
| Flat Hd.tapping Screw D6x12 | ||||
| 61 | 339480 | 1.35 | 1.63 | |
| Air Back Nut | ||||
| 62 | 339479 | 12.30 | 14.88 | |
| Air Back | ||||
| 63 | 339478 | 15.68 | 18.97 | |
| Motor Housing Set | ||||
| 64 | 339447 | 275.41 | 333.25 | |
| Koolborsteldop | ||||
| 65 | 319847 | 1.65 | 2.00 | |
| Koolborstels (2 Stuks) | ||||
| 66 | 999100 | 4.20 | 5.08 | |
| Koolborstelblok | ||||
| 67 | 334311 | 4.65 | 5.63 | |
| Stofring | ||||
| 68 | 333797 | 2.10 | 2.54 | |
| Magneet | ||||
| 69 | 333796 | 14.30 | 17.30 | |
| Anker | ||||
| 70 | 360922 | 117.84 | 142.58 | |
| Schakelaar | ||||
| 71 | 333795 | 22.83 | 27.62 | |
| Machineschroef M3,5x6 | ||||
| 72 | 307887 | 1.04 | 1.26 | |
| Controller Terminal Set | ||||
| 73 | 334313 | 40.01 | 48.42 | |
| Tapschroef D4x20 Met Ring Zwart (oud 305095) | ||||
| 74 | 301653 | 1.04 | 1.26 | |
| Niet meer leverbaar | ||||
| 76 | 336385 | |||
| Niet meer leverbaar | ||||
| 501 | 944458 | |||
| Niet meer leverbaar | ||||
| 502 | 944459 | |||
| Smeerolie (70cc) | ||||
| 504 | 306295 | 10.05 | 12.16 | |
| Niet meer leverbaar | ||||
| 505 | 306254 | |||
| Niet meer leverbaar | ||||
| 506 | 312831 | |||
| Beschermkapje Voor Batterij | ||||
| 507 | 329897 | 1.80 | 2.18 | |
