Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki CG25EUP2'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

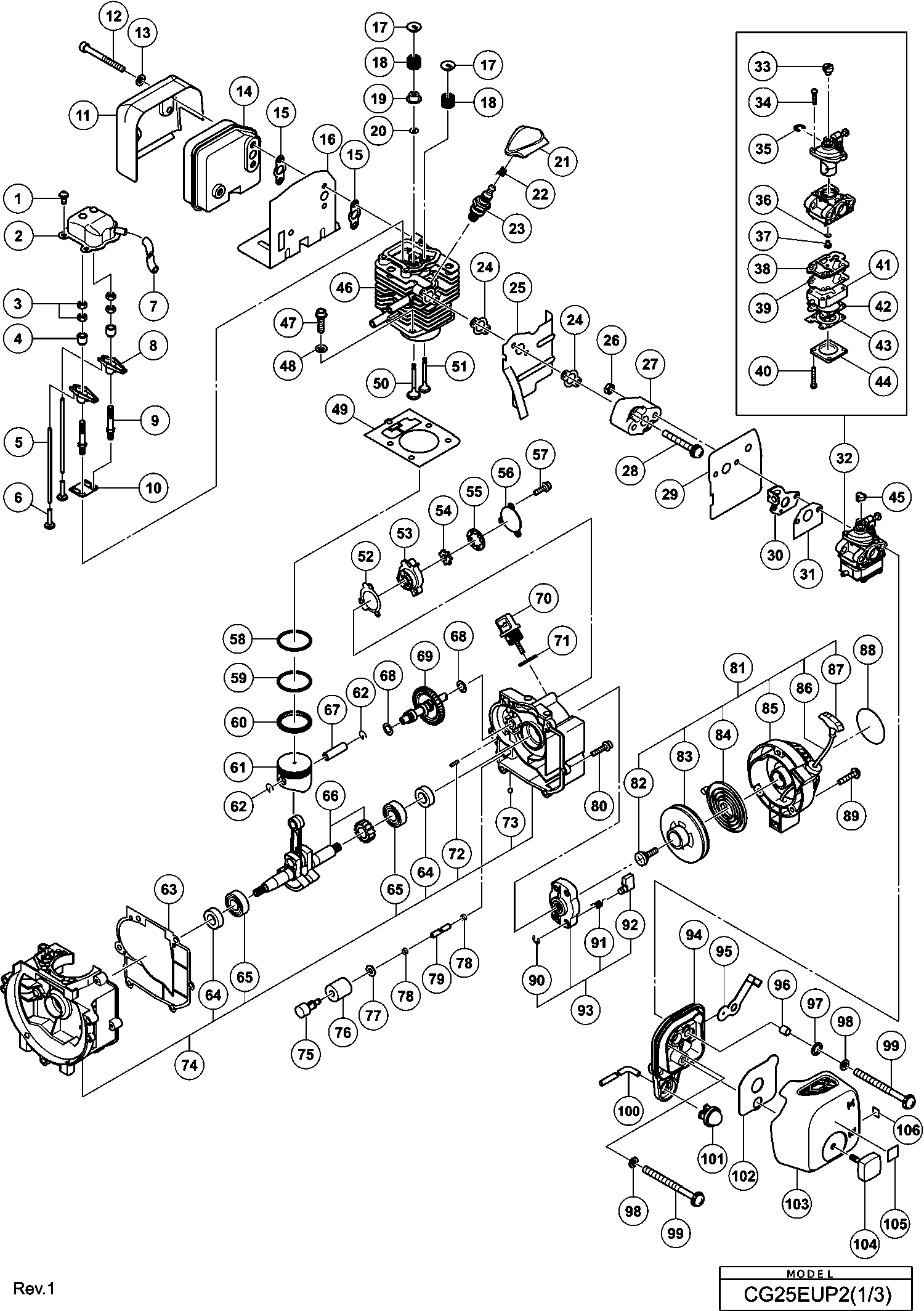

Tekeningen van de Hikoki CG25EUP2
Onderdelen lijst van de Hikoki CG25EUP2
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Machineschroef M4x10 | ||||
| 1 | 307635 | 1.05 | 1.27 | |
| Cylinder Head Cover Ass'y | ||||
| 2 | 6696440 | 1.80 | 2.18 | |
| Borgmoer M5 (oud 949566z)(10 Stuks ) | ||||
| 3 | 949566 | 1.04 | 1.26 | |
| Pivot Rocker Arm | ||||
| 4 | 6696438 | 1.04 | 1.26 | |
| Push Rod | ||||
| 5 | 6696437 | 1.80 | 2.18 | |
| Tappet | ||||
| 6 | 6696432 | 3.75 | 4.54 | |
| Breather Pipe | ||||
| 7 | 6696442 | 41.25 | 49.91 | |
| Rocker Arm | ||||
| 8 | 6696439 | 1.80 | 2.18 | |
| Shaft Bolt | ||||
| 9 | 6696415 | 1.04 | 1.26 | |
| Push Rod Guide | ||||
| 10 | 6696414 | 1.04 | 1.26 | |
| Muffler Heat Cover Since 11 2013 New | ||||
| 11 | 6600329 | 4.80 | 5.81 | |
| Hex. Socket Bolt M5 | ||||
| 12 | 6685409 | 1.05 | 1.27 | |
| Ring | ||||
| 13 | 6685408 | 1.05 | 1.27 | |
| Knaldemper | ||||
| 14 | 6696462 | 6.45 | 7.80 | |
| Muffler Gasket (a) | ||||
| 15 | 6696460 | 1.04 | 1.26 | |
| Wind Guide Plate (b) | ||||
| 16 | 6696461 | 2.55 | 3.09 | |
| Retainer Valve | ||||
| 17 | 6696421 | 1.04 | 1.26 | |
| Valve Spring | ||||
| 18 | 6696420 | 1.04 | 1.26 | |
| Stem Seal Base | ||||
| 19 | 6696418 | 1.04 | 1.26 | |
| Stem Seal | ||||
| 20 | 6696419 | 1.04 | 1.26 | |
| Spark Plug Cap | ||||
| 21 | 6696465 | 5.55 | 6.72 | |
| Metal Fitting Of Plug Cap | ||||
| 22 | 6696996 | 1.05 | 1.27 | |
| Bougie (oud 6696473) | ||||
| 23 | 6699310 | 17.40 | 21.05 | |
| Insulator Gasket | ||||
| 24 | 6696450 | 1.04 | 1.26 | |
| Wind Guide Plate (a) | ||||
| 25 | 6696451 | 2.55 | 3.09 | |
| Borgmoer M5 (oud 949566z)(10 Stuks ) | ||||
| 26 | 949566 | 1.04 | 1.26 | |
| Insulator | ||||
| 27 | 6696452 | 3.45 | 4.17 | |
| Machineschroef M5x30 | ||||
| 28 | 880561 | 1.05 | 1.27 | |
| Carburetor Gasket | ||||
| 29 | 6696954 | 1.05 | 1.27 | |
| Throttle Wire Fixing Plate (old 878-06620-20) | ||||
| 30 | 6684629 | 4.29 | 5.19 | |
| Insulator Gasket | ||||
| 31 | 6696956 | 1.05 | 1.27 | |
| Carburetor | ||||
| 32 | 6696957 | 76.04 | 92.01 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 45 | 6691337 | 1.15 | 1.39 | |
| Cylinder Ass'y (a) | ||||
| 46 | 6696413 | 66.96 | 81.02 | |
| Hex. Socket Bolt M5 | ||||
| 47 | 6696958 | 2.10 | 2.54 | |
| Ring | ||||
| 48 | 6685408 | 1.05 | 1.27 | |
| Cylinder Gasket | ||||
| 49 | 6696436 | 1.04 | 1.26 | |
| Intake Valve | ||||
| 50 | 6696417 | 3.75 | 4.54 | |
| Exhaust Valve | ||||
| 51 | 6696416 | 41.25 | 49.91 | |
| Pump Gasket | ||||
| 52 | 6696444 | 1.04 | 1.26 | |
| Base Pump | ||||
| 53 | 6696443 | 4.05 | 4.90 | |
| Inner Rotor | ||||
| 54 | 6696445 | 1.80 | 2.18 | |
| Outer Rotor | ||||
| 55 | 6696446 | 1.80 | 2.18 | |
| Cover Pump | ||||
| 56 | 6696447 | 1.04 | 1.26 | |
| Hex.hole Bolt 4x15/ps (old 994-63040-154) | ||||
| 57 | 6684682 | 2.15 | 2.60 | |
| Eerste ring | ||||
| 58 | 6696429 | 8.85 | 10.71 | |
| Tweede ring | ||||
| 59 | 6696430 | 9.60 | 11.62 | |
| Oil Ring | ||||
| 60 | 6696431 | 19.80 | 23.96 | |
| Zuiger | ||||
| 61 | 6696427 | 7.65 | 9.26 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 62 | 6684590 | 2.15 | 2.60 | |
| Crank Case Gasket | ||||
| 63 | 6696425 | 1.04 | 1.26 | |
| Olie Keerring | ||||
| 64 | 6684607 | 4.29 | 5.19 | |
| Kogellager 6001 C3 | ||||
| 65 | 6684608 | 3.80 | 4.60 | |
| Krukas | ||||
| 66 | 6696426 | 51.29 | 62.06 | |
| Piston Pin (old 037-07045-20) | ||||
| 67 | 6684591 | 4.29 | 5.19 | |
| Chim | ||||
| 68 | 6696434 | 1.04 | 1.26 | |
| Cam Shaft Ass'y | ||||
| 69 | 6696433 | 11.85 | 14.34 | |
| Oil Cap | ||||
| 70 | 6696449 | 1.04 | 1.26 | |
| O-ring (i.d. 13.8) | ||||
| 71 | 6696959 | 1.05 | 1.27 | |
| D3 Needle Roller | ||||
| 72 | 6685391 | 1.05 | 1.27 | |
| Stalen Kogel D4 | ||||
| 73 | 321905 | 4.80 | 5.81 | |
| Crank Case Ass'y (b) | ||||
| 74 | 6696960 | 66.55 | 80.53 | |
| Oil Filter Body | ||||
| 75 | 6685310 | 1.05 | 1.27 | |
| Oil Filter (old 487-32712-20/6696804) | ||||
| 76 | 6690919 | 1.15 | 1.39 | |
| Ring | ||||
| 77 | 6685407 | 1.05 | 1.27 | |
| D6 Clip | ||||
| 78 | 6685311 | 1.05 | 1.27 | |
| Brandstofleiding | ||||
| 79 | 6696435 | 1.04 | 1.26 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 80 | 6698388 | 1.05 | 1.27 | |
| Recoil Starter Body Ass'y | ||||
| 81 | 6696470 | 10.65 | 12.89 | |
| Starter Rope (old 783-06097-20/6693174) | ||||
| 86 | 6693168 | 2.31 | 2.80 | |
| Seal Lock Screw M4 | ||||
| 89 | 6696472 | 1.04 | 1.26 | |
| Starter Pulley | ||||
| 93 | 6696471 | 5.10 | 6.17 | |
| Cleaner Body Ass'y | ||||
| 94 | 6696455 | 1.80 | 2.18 | |
| Choke Plate Comp. | ||||
| 95 | 6697368 | 2.10 | 2.54 | |
| Collar 8 (old 657-3252a-20) | ||||
| 96 | 6684659 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 97 | 6684658 | |||
| Ring | ||||
| 98 | 6685407 | 1.05 | 1.27 | |
| Machine Schroef M5 | ||||
| 99 | 6696961 | 1.05 | 1.27 | |
| Brandstofleiding L70 | ||||
| 100 | 6699014 | 1.65 | 2.00 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 101 | 6685139 | 5.94 | 7.18 | |
| Luchtfilter Element | ||||
| 102 | 6696459 | 1.04 | 1.26 | |
| Cleaner Cover | ||||
| 103 | 6696458 | 2.55 | 3.09 | |
| Bout | ||||
| 104 | 6684655 | 6.44 | 7.79 | |
| Primer Label | ||||
| 105 | 6699000 | 1.04 | 1.26 | |
| Mark Plate (t) | ||||
| 106 | 6600327 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 121 | 6699176 | 1.04 | 1.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 122 | 305583 | |||
| Anti Vibe Rubber (a) | ||||
| 123 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 124 | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 125 | 6698644 | 2.10 | 2.54 | |
| Anti Vibe Rubber (b) | ||||
| 126 | 6696964 | 3.33 | 4.02 | |
| Tapping Screw D4.5x16 | ||||
| 128 | 6698878 | 1.20 | 1.45 | |
| Engine Cover (w/aluminum Tape) | ||||
| 129 | 6600421 | 18.98 | 22.96 | |
| Step Bolt | ||||
| 131 | 6696469 | 1.04 | 1.26 | |
| Ring | ||||
| 132 | 6684648 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 133 | 6696965 | |||
| Clutch | ||||
| 134 | 6696948 | 11.64 | 14.08 | |
| Ring | ||||
| 135 | 6684642 | 2.15 | 2.60 | |
| Moer | ||||
| 136 | 6685337 | 1.05 | 1.27 | |
| Ring | ||||
| 137 | 6685410 | 1.05 | 1.27 | |
| Magnet Rotor | ||||
| 138 | 6696464 | 14.40 | 17.42 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 139 | 6698388 | 1.05 | 1.27 | |
| Bobine | ||||
| 140 | 6696463 | 16.78 | 20.30 | |
| Stop Cord | ||||
| 141 | 6696467 | 2.55 | 3.09 | |
| Cord Insulation Tube | ||||
| 142 | 6696966 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 143 | 6696466 | |||
| Veerring D12 (10 Stuks) | ||||
| 144 | 939542 | 1.50 | 1.82 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 146 | 305583 | |||
| Ring | ||||
| 147 | 6685408 | 1.05 | 1.27 | |
| Fan Case (a) Since 11 2013 | ||||
| 148 | 6600330 | 14.71 | 17.80 | |
| Clutch Shaft (old 6696481) | ||||
| 149 | 6698793 | 10.20 | 12.34 | |
| Tapschroef D4x16 Met Ring Zwart | ||||
| 150 | 305812 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 151 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 152 | 6696490 | 1.04 | 1.26 | |
| Lever | ||||
| 153 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 154 | 6696489 | 1.04 | 1.26 | |
| Handle (a) | ||||
| 155 | 6696486 | 3.45 | 4.17 | |
| Stop Switch | ||||
| 156A | 6601275 | 1.35 | 1.63 | |
| Stop Switch Cord | ||||
| 157 | 6696491 | 1.80 | 2.18 | |
| Protection Tube | ||||
| 158 | 6696967 | 1.05 | 1.27 | |
| Throttle Wire (eu) | ||||
| 159 | 6696492 | 6.45 | 7.80 | |
| Tank | ||||
| 160 | 6696474 | 4.05 | 4.90 | |
| Pump Filter Body Ass'y (old 675-11600-90/6692275/6 | ||||
| 161 | 6685199 | 4.45 | 5.38 | |
| Stand | ||||
| 162 | 6696477 | 1.80 | 2.18 | |
| Coller | ||||
| 163 | 6696478 | 1.04 | 1.26 | |
| Ring | ||||
| 164 | 6685408 | 1.05 | 1.27 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 165 | 6684709 | 2.15 | 2.60 | |
| D6 Clip | ||||
| 166 | 6685311 | 1.05 | 1.27 | |
| Brandstofleiding | ||||
| 167 | 6698717 | 9.75 | 11.80 | |
| Brandstofleiding L70 | ||||
| 168A | 6699014 | 1.65 | 2.00 | |
| Return Grommet (old 6684627) | ||||
| 169 | 6697846 | 1.04 | 1.26 | |
| Fuel Pipe Grommet (old 222-06300-20) | ||||
| 170 | 6688156 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 171 | 6696479 | |||
| Tapschroef D4x20 Met Ring (zwart) | ||||
| 191 | 302086 | 1.05 | 1.27 | |
| Einschlagende Schraube (w/Flansch) D4x30 | ||||
| 192 | 323837 | 1.68 | 2.03 | |
| Handle (b) | ||||
| 193 | 6696590 | 3.13 | 3.78 | |
| Machineschroef M5x30 Zwart | ||||
| 194 | 323041 | 1.05 | 1.27 | |
| Stop Switch Cord | ||||
| 195 | 6696592 | 2.10 | 2.54 | |
| Gaskabel | ||||
| 196 | 6696593 | 5.10 | 6.17 | |
| Protection Tube | ||||
| 197 | 6696594 | 2.10 | 2.54 | |
| Handle Right | ||||
| 198 | 6698637 | 19.11 | 23.13 | |
| Handle Holder (b) (old 6696577) | ||||
| 199 | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) | ||||
| 200 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 201 | 6684714 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 202 | 6684709 | 2.15 | 2.60 | |
| Handle Holder (a) (old 6696576) | ||||
| 203 | 6600500 | 4.20 | 5.08 | |
| Handle (a) | ||||
| 204 | 6696588 | 2.10 | 2.54 | |
| Moer M5 (zwart) | ||||
| 205 | 302012 | 1.05 | 1.27 | |
| Handle Left | ||||
| 206 | 6698638 | 22.83 | 27.62 | |
| Barrier | ||||
| 207 | 6696973 | 3.33 | 4.02 | |
| Bolt (black) M6 | ||||
| 208 | 6696974 | 1.68 | 2.03 | |
| Borgmoer M5 (oud 949566z)(10 Stuks ) | ||||
| 209 | 949566 | 1.04 | 1.26 | |
| Loop Handle | ||||
| 210 | 6696975 | 8.98 | 10.86 | |
| Tandwielhuis | ||||
| 211 | 6699402 | 50.33 | 60.89 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 212 | 6684737 | 2.15 | 2.60 | |
| Cutter Holder (a) | ||||
| 213 | 6696977 | 13.33 | 16.12 | |
| Cutter Holder (b) | ||||
| 214 | 6698659 | 13.04 | 15.78 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 215 | 6699188 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 216 | 335759 | 1.04 | 1.26 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 217 | 6695414 | 1.15 | 1.39 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 218 | 949664 | 3.75 | 4.54 | |
| Cover Blacket | ||||
| 219 | 6696494 | 1.80 | 2.18 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 220 | 6684714 | 2.15 | 2.60 | |
| Caution Label (hedge) | ||||
| 221 | 6600328 | 1.04 | 1.26 | |
| Caution Mark Hitachi | ||||
| 222 | 6600450 | 1.80 | 2.18 | |
| Level Mark (b) | ||||
| 223 | 6600446 | 1.80 | 2.18 | |
| Level Mark (old 923-33700-20) | ||||
| 224 | 6684851 | 2.15 | 2.60 | |
| Main Pipe Comp (old 6696483) | ||||
| 225 | 6696558 | 17.69 | 21.40 | |
| Drive Shaft (old 6696484) | ||||
| 226 | 6698514 | 15.60 | 18.88 | |
| Hanger | ||||
| 227A | 6600504 | 1.20 | 1.45 | |
| Cap (a) | ||||
| 228 | 6698515 | 2.10 | 2.54 | |
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 229 | 6698794 | 9.30 | 11.25 | |
| Set Screw | ||||
| 231 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 232 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 233 | 6698797 | 1.05 | 1.27 | |
| Button | ||||
| 234 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 235 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 236 | 6698800 | 6.60 | 7.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 237 | 6696454 | |||
| Cover Guard | ||||
| 238 | 6696950 | 10.98 | 13.28 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 239 | 6684751 | 2.15 | 2.60 | |
| Mesje (oud 797-37714-20) | ||||
| 240 | 6684750 | 4.29 | 5.19 | |
| Safety Cover Holder | ||||
| 241 | 6696951 | 3.33 | 4.02 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 242 | 6696980 | |||
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 243 | 6600499 | 10.65 | 12.89 | |
| Machineschroef M5x10 (10 Stuks) | ||||
| 244 | 949236 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 6696457 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 6696596 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 503 | 944458 | |||
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504A | 6684768 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 505 | 875769 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 506A | 6601420 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 507 | 6698711 | |||
