Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki CG25EUS'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

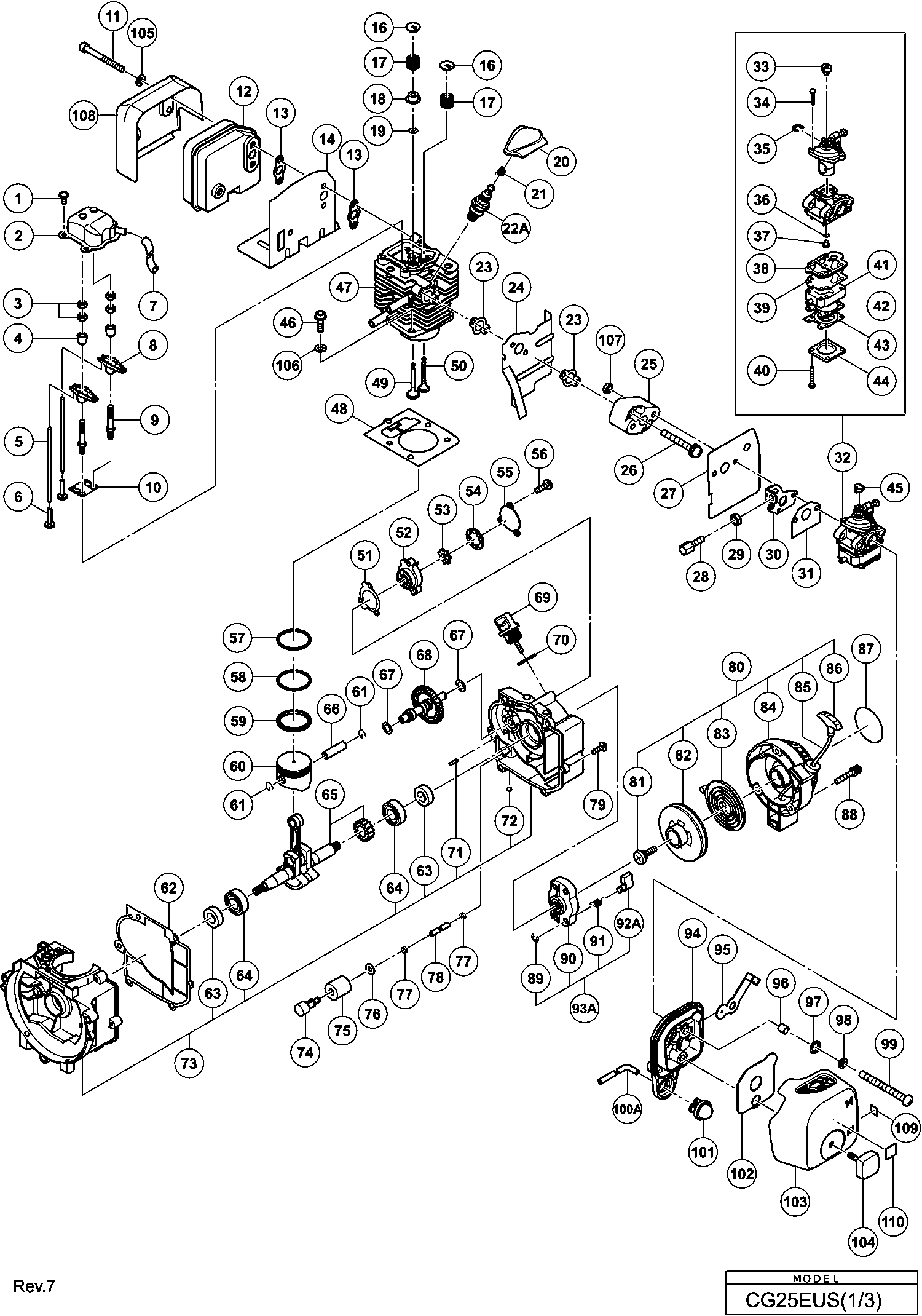

Tekeningen van de Hikoki CG25EUS
Onderdelen lijst van de Hikoki CG25EUS
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Machineschroef M4x10 | ||||
| 1 | 307635 | 1.05 | 1.27 | |
| Cylinder Head Cover Ass'y | ||||
| 2 | 6696440 | 1.80 | 2.18 | |
| Borgmoer M5 (oud 949566z)(10 Stuks ) | ||||
| 3 | 949566 | 1.04 | 1.26 | |
| Pivot Rocker Arm | ||||
| 4 | 6696438 | 1.04 | 1.26 | |
| Push Rod | ||||
| 5 | 6696437 | 1.80 | 2.18 | |
| Tappet | ||||
| 6 | 6696432 | 3.75 | 4.54 | |
| Breather Pipe | ||||
| 7 | 6696442 | 41.25 | 49.91 | |
| Rocker Arm | ||||
| 8 | 6696439 | 1.80 | 2.18 | |
| Shaft Bolt | ||||
| 9 | 6696415 | 1.04 | 1.26 | |
| Push Rod Guide | ||||
| 10 | 6696414 | 1.04 | 1.26 | |
| Hex. Socket Bolt M5 | ||||
| 11 | 6685409 | 1.05 | 1.27 | |
| Muffler | ||||
| 12 | 6696952 | 7.35 | 8.89 | |
| Knaldemper | ||||
| 12 | 6696462 | 6.45 | 7.80 | |
| Muffler Gasket (a) | ||||
| 13 | 6696460 | 1.04 | 1.26 | |
| Wind Guide Plate (b) | ||||
| 14 | 6696461 | 2.55 | 3.09 | |
| Retainer Valve | ||||
| 16 | 6696421 | 1.04 | 1.26 | |
| Valve Spring | ||||
| 17 | 6696420 | 1.04 | 1.26 | |
| Stem Seal Base | ||||
| 18 | 6696418 | 1.04 | 1.26 | |
| Stem Seal | ||||
| 19 | 6696419 | 1.04 | 1.26 | |
| Spark Plug Cap | ||||
| 20 | 6696465 | 5.55 | 6.72 | |
| Metal Fitting Of Plug Cap | ||||
| 21 | 6696996 | 1.05 | 1.27 | |
| Bougie (oud 6696473) | ||||
| 22A | 6699310 | 17.40 | 21.05 | |
| Insulator Gasket | ||||
| 23 | 6696450 | 1.04 | 1.26 | |
| Wind Guide Plate (a) | ||||
| 24 | 6696451 | 2.55 | 3.09 | |
| Insulator | ||||
| 25 | 6696452 | 3.45 | 4.17 | |
| Machineschroef M5x30 | ||||
| 26 | 880561 | 1.05 | 1.27 | |
| Carburetor Gasket | ||||
| 27 | 6696954 | 1.05 | 1.27 | |
| Cable Adjuster | ||||
| 28 | 6696955 | 1.05 | 1.27 | |
| Lock Nut M6 (oud 991-01060-013) | ||||
| 29 | 6684872 | 2.15 | 2.60 | |
| Throttle Wire Fixing Plate (old 878-06620-20) | ||||
| 30 | 6684629 | 4.29 | 5.19 | |
| Insulator Gasket | ||||
| 31 | 6696956 | 1.05 | 1.27 | |
| Carburetor | ||||
| 32 | 6696957 | 76.04 | 92.01 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 45 | 6684628 | |||
| Hex. Socket Bolt M5 | ||||
| 46 | 6696958 | 2.10 | 2.54 | |
| Cylinder Ass'y (a) | ||||
| 47 | 6696413 | 66.96 | 81.02 | |
| Cylinder Gasket | ||||
| 48 | 6696436 | 1.04 | 1.26 | |
| Intake Valve | ||||
| 49 | 6696417 | 3.75 | 4.54 | |
| Exhaust Valve | ||||
| 50 | 6696416 | 41.25 | 49.91 | |
| Pump Gasket | ||||
| 51 | 6696444 | 1.04 | 1.26 | |
| Base Pump | ||||
| 52 | 6696443 | 4.05 | 4.90 | |
| Inner Rotor | ||||
| 53 | 6696445 | 1.80 | 2.18 | |
| Outer Rotor | ||||
| 54 | 6696446 | 1.80 | 2.18 | |
| Cover Pump | ||||
| 55 | 6696447 | 1.04 | 1.26 | |
| Machineschroef M4x16 Zwart | ||||
| 56 | 696997 | 1.80 | 2.18 | |
| Eerste ring | ||||
| 57 | 6696429 | 8.85 | 10.71 | |
| Tweede ring | ||||
| 58 | 6696430 | 9.60 | 11.62 | |
| Oil Ring | ||||
| 59 | 6696431 | 19.80 | 23.96 | |
| Zuiger | ||||
| 60 | 6696427 | 7.65 | 9.26 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 61 | 6684590 | 2.15 | 2.60 | |
| Crank Case Gasket | ||||
| 62 | 6696425 | 1.04 | 1.26 | |
| Olie Keerring | ||||
| 63 | 6684607 | 4.29 | 5.19 | |
| Kogellager 6001 C3 | ||||
| 64 | 6684608 | 3.80 | 4.60 | |
| Krukas | ||||
| 65 | 6696426 | 51.29 | 62.06 | |
| Piston Pin (old 037-07045-20) | ||||
| 66 | 6684591 | 4.29 | 5.19 | |
| Chim | ||||
| 67 | 6696434 | 1.04 | 1.26 | |
| Cam Shaft Ass'y | ||||
| 68 | 6696433 | 11.85 | 14.34 | |
| Oil Cap | ||||
| 69 | 6696449 | 1.04 | 1.26 | |
| O-ring (i.d. 13.8) | ||||
| 70 | 6696959 | 1.05 | 1.27 | |
| D3 Needle Roller | ||||
| 71 | 6685391 | 1.05 | 1.27 | |
| Stalen Kogel D4 | ||||
| 72 | 321905 | 4.80 | 5.81 | |
| Crank Case Ass'y (b) | ||||
| 73 | 6696960 | 66.55 | 80.53 | |
| Oil Filter Body | ||||
| 74 | 6685310 | 1.05 | 1.27 | |
| Oil Filter (old 487-32712-20/6696804) | ||||
| 75 | 6690919 | 1.15 | 1.39 | |
| Ring | ||||
| 76 | 6685407 | 1.05 | 1.27 | |
| D6 Clip | ||||
| 77 | 6685311 | 1.05 | 1.27 | |
| Brandstofleiding | ||||
| 78 | 6696435 | 1.04 | 1.26 | |
| Hex.hole Bolt M4x18/ws (oud 994-64040-184) | ||||
| 79 | 6684599 | 2.15 | 2.60 | |
| Recoil Starter Body Ass'y | ||||
| 80 | 6696470 | 10.65 | 12.89 | |
| Starter Rope (old 783-06097-20/6693174) | ||||
| 85 | 6693168 | 2.31 | 2.80 | |
| Seal Lock Screw M4 | ||||
| 88 | 6696472 | 1.04 | 1.26 | |
| Starter Pulley | ||||
| 93 | 6696471 | 5.10 | 6.17 | |
| Starter Pulley | ||||
| 93A | 6696471 | 5.10 | 6.17 | |
| Cleaner Body Ass'y | ||||
| 94 | 6696455 | 1.80 | 2.18 | |
| Choke Valve (old 528-07143-81) | ||||
| 95 | 6684657 | 4.29 | 5.19 | |
| Collar 8 (old 657-3252a-20) | ||||
| 96 | 6684659 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 97 | 6684658 | |||
| Ring | ||||
| 98 | 6685407 | 1.05 | 1.27 | |
| Machine Schroef M5 | ||||
| 99 | 6696961 | 1.05 | 1.27 | |
| Brandstofleiding (oud 6696962) | ||||
| 100A | 6698720 | 3.45 | 4.17 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 101 | 6685139 | 5.94 | 7.18 | |
| Luchtfilter Element | ||||
| 102 | 6696459 | 1.04 | 1.26 | |
| Cleaner Cover | ||||
| 103 | 6696458 | 2.55 | 3.09 | |
| Bout | ||||
| 104 | 6684655 | 6.44 | 7.79 | |
| Ring | ||||
| 105 | 6685408 | 1.05 | 1.27 | |
| Ring | ||||
| 106 | 6685408 | 1.05 | 1.27 | |
| Borgmoer M5 (oud 949566z)(10 Stuks ) | ||||
| 107 | 949566 | 1.04 | 1.26 | |
| Muffler Heat Cover Since 11 2013 New | ||||
| 108 | 6600329 | 4.80 | 5.81 | |
| Mark Plate (t) | ||||
| 109 | 6600327 | 1.04 | 1.26 | |
| Primer Label | ||||
| 110 | 6699000 | 1.04 | 1.26 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 121 | 6684667 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 122 | 305583 | |||
| Anti Vibe Rubber (a) | ||||
| 123 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 124A | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 125A | 6698644 | 2.10 | 2.54 | |
| Anti Vibe Rubber (b) | ||||
| 126 | 6696964 | 3.33 | 4.02 | |
| Tapping Screw D4.5x16 (old 990-72045-164/790451) | ||||
| 128 | 6684636 | 2.15 | 2.60 | |
| Engine Cover Since 11 2013 (old 6696482) | ||||
| 129A | 6600331 | 16.36 | 19.80 | |
| Step Bolt | ||||
| 131 | 6696469 | 1.04 | 1.26 | |
| Ring | ||||
| 132 | 6684648 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 133 | 6696965 | |||
| Clutch | ||||
| 134 | 6696948 | 11.64 | 14.08 | |
| Ring | ||||
| 135 | 6684642 | 2.15 | 2.60 | |
| Moer | ||||
| 136 | 6685337 | 1.05 | 1.27 | |
| Ring | ||||
| 137 | 6685410 | 1.05 | 1.27 | |
| Magnet Rotor | ||||
| 138 | 6696464 | 14.40 | 17.42 | |
| Hex.hole Bolt M4x18/ws (oud 994-64040-184) | ||||
| 139 | 6684599 | 2.15 | 2.60 | |
| Bobine | ||||
| 140 | 6696463 | 16.78 | 20.30 | |
| Stop Cord | ||||
| 141 | 6696467 | 2.55 | 3.09 | |
| Cord Insulation Tube | ||||
| 142 | 6696966 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 143 | 6696466 | |||
| Veerring D12 (10 Stuks) | ||||
| 144 | 939542 | 1.50 | 1.82 | |
| Fan Case (a) Since 11 2013 | ||||
| 146B | 6600330 | 14.71 | 17.80 | |
| Clutch Shaft (old 6696481) | ||||
| 147B | 6698793 | 10.20 | 12.34 | |
| Handle (b) | ||||
| 149 | 6696942 | 5.01 | 6.07 | |
| Handle (b) | ||||
| 149 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 150 | 6696490 | 1.04 | 1.26 | |
| Lever | ||||
| 151 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 152 | 6696489 | 1.04 | 1.26 | |
| Handle (a) | ||||
| 153 | 6696941 | 5.01 | 6.07 | |
| Handle (a) | ||||
| 153 | 6696486 | 3.45 | 4.17 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 154 | 6696940 | |||
| Stop Switch | ||||
| 154A | 6601275 | 1.35 | 1.63 | |
| Stop Switch Cord | ||||
| 155 | 6696491 | 1.80 | 2.18 | |
| Protection Tube | ||||
| 156 | 6696967 | 1.05 | 1.27 | |
| Throttle Wire (eu) | ||||
| 157 | 6696492 | 6.45 | 7.80 | |
| Tank | ||||
| 158 | 6696474 | 4.05 | 4.90 | |
| Pump Filter Body Ass'y (old 675-11600-90/6692275/6 | ||||
| 159 | 6685199 | 4.45 | 5.38 | |
| Stand | ||||
| 160 | 6696477 | 1.80 | 2.18 | |
| Coller | ||||
| 161 | 6696478 | 1.04 | 1.26 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 162 | 6684709 | 2.15 | 2.60 | |
| Brandstofleiding | ||||
| 163A | 6698717 | 9.75 | 11.80 | |
| Niet meer leverbaar, geen vervanging | ||||
| 164 | 6696476 | |||
| Brandstofleiding L70 | ||||
| 164A | 6699014 | 1.65 | 2.00 | |
| Return Grommet (old 6684627) | ||||
| 165A | 6697846 | 1.04 | 1.26 | |
| Fuel Pipe Grommet (old 222-06300-20) | ||||
| 166A | 6688156 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 167 | 6696971 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 168 | 305583 | |||
| Ring | ||||
| 169 | 6685408 | 1.05 | 1.27 | |
| D6 Clip | ||||
| 170 | 6685311 | 1.05 | 1.27 | |
| Ring | ||||
| 171 | 6685408 | 1.05 | 1.27 | |
| Rear Cover Since 11 2013 | ||||
| 172 | 6600333 | 7.05 | 8.53 | |
| Tapping Screw D4 Since 11 2013 | ||||
| 173 | 6600332 | 1.04 | 1.26 | |
| Einschlagende Schraube (w/Flansch) D4x30 | ||||
| 181 | 323837 | 1.68 | 2.03 | |
| Handle (b) | ||||
| 182 | 6696590 | 3.13 | 3.78 | |
| Machineschroef M5x30 Zwart | ||||
| 183 | 323041 | 1.05 | 1.27 | |
| Handle Right | ||||
| 184 | 6698637 | 19.11 | 23.13 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 185 | 6696577 | |||
| Handle Holder (b) (old 6696577) | ||||
| 185A | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) | ||||
| 186 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 187 | 6684714 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 188 | 6684709 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 189 | 6696576 | |||
| Handle Holder (a) (old 6696576) | ||||
| 189A | 6600500 | 4.20 | 5.08 | |
| Handle (a) | ||||
| 190 | 6696588 | 2.10 | 2.54 | |
| Moer M5 (zwart) | ||||
| 191 | 302012 | 1.05 | 1.27 | |
| Handle Left | ||||
| 192 | 6698638 | 22.83 | 27.62 | |
| Handle Holder (a) | ||||
| 193 | 6696972 | 1.20 | 1.45 | |
| Barrier | ||||
| 194 | 6696973 | 3.33 | 4.02 | |
| Bolt (black) M6 | ||||
| 195 | 6696974 | 1.68 | 2.03 | |
| Loop Handle | ||||
| 197 | 6696975 | 8.98 | 10.86 | |
| Tandwielhuis | ||||
| 198 | 6696976 | 88.39 | 106.95 | |
| Tandwielhuis | ||||
| 198A | 6699402 | 50.33 | 60.89 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 199 | 6684737 | 2.15 | 2.60 | |
| Cutter Holder (a) | ||||
| 206 | 6696977 | 13.33 | 16.12 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 208A | 6699188 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 209A | 335759 | 1.04 | 1.26 | |
| Cover Blacket | ||||
| 216 | 6696494 | 1.80 | 2.18 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 217 | 6684714 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530 | ||||
| 218 | 6685064 | 1.15 | 1.39 | |
| Veerring M6 (oud 949455z , 10st.) | ||||
| 219 | 949455 | 1.05 | 1.27 | |
| Cover Bracket Not For Europe | ||||
| 220 | 6696978 | 2.10 | 2.54 | |
| Level Mark (old 923-37286-20) | ||||
| 221 | 6685061 | 2.10 | 2.54 | |
| Level Mark(old 923-3738f-20) | ||||
| 223 | 6684852 | 2.15 | 2.60 | |
| Level Mark (old 923-33700-20) | ||||
| 224 | 6684851 | 2.15 | 2.60 | |
| Main Pipe Comp (old 6696483) | ||||
| 225 | 6696558 | 17.69 | 21.40 | |
| Drive Shaft (old 6696484) | ||||
| 226A | 6698514 | 15.60 | 18.88 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 227 | 6696493 | |||
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 228 | 6698794 | 9.30 | 11.25 | |
| Set Screw | ||||
| 230 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 231 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 232 | 6698797 | 1.05 | 1.27 | |
| Button | ||||
| 233 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 234 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 235 | 6698800 | 6.60 | 7.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 236 | 6696454 | |||
| Cover Guard | ||||
| 237 | 6696950 | 10.98 | 13.28 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 238 | 6684751 | 2.15 | 2.60 | |
| Mesje (oud 797-37714-20) | ||||
| 239 | 6684750 | 4.29 | 5.19 | |
| Safety Cover Holder | ||||
| 240 | 6696951 | 3.33 | 4.02 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 241 | 6696980 | |||
| Ring | ||||
| 242 | 6685068 | 1.15 | 1.39 | |
| Mesje (oud 797-37820-20) | ||||
| 243 | 6685067 | 5.28 | 6.38 | |
| Safety Cover Comp. (old 441-37820-80) | ||||
| 244 | 6685066 | 14.53 | 17.58 | |
| Ring | ||||
| 245 | 6685070 | 1.15 | 1.39 | |
| Nut M4 (old 991-01040-011) | ||||
| 246 | 6685069 | 1.15 | 1.39 | |
| Tapschroef D4x16 Met Ring Zwart | ||||
| 247 | 305812 | 1.04 | 1.26 | |
| Stop Switch Cord | ||||
| 248 | 6696592 | 2.10 | 2.54 | |
| Gaskabel | ||||
| 249 | 6696593 | 5.10 | 6.17 | |
| Protection Tube | ||||
| 250 | 6696594 | 2.10 | 2.54 | |
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 251 | 6600499 | 10.65 | 12.89 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 6696457 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 6684766 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 503 | 944458 | |||
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504 | 6684768 | 2.15 | 2.60 | |
| Cutter Cover | ||||
| 504A | 6699756 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 505 | 875769 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 506 | 6696448 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 507 | 6698711 | |||
| Reparatieset | ||||
| 601 | 6600040 | 33.83 | 40.93 | |
| Reparatieset | ||||
| 610 | 6600040 | 33.83 | 40.93 | |
