HikokiOp het typeplaatje hoort referentie CM75EAP hoort te staan. Er kunnen verschillen zijn per typenummer waardoor onderdelen niet passen. Bestel alleen als deze referentie overeenkomt. Hikoki Powertools is de nieuwe naam van Hitachi Powertools.

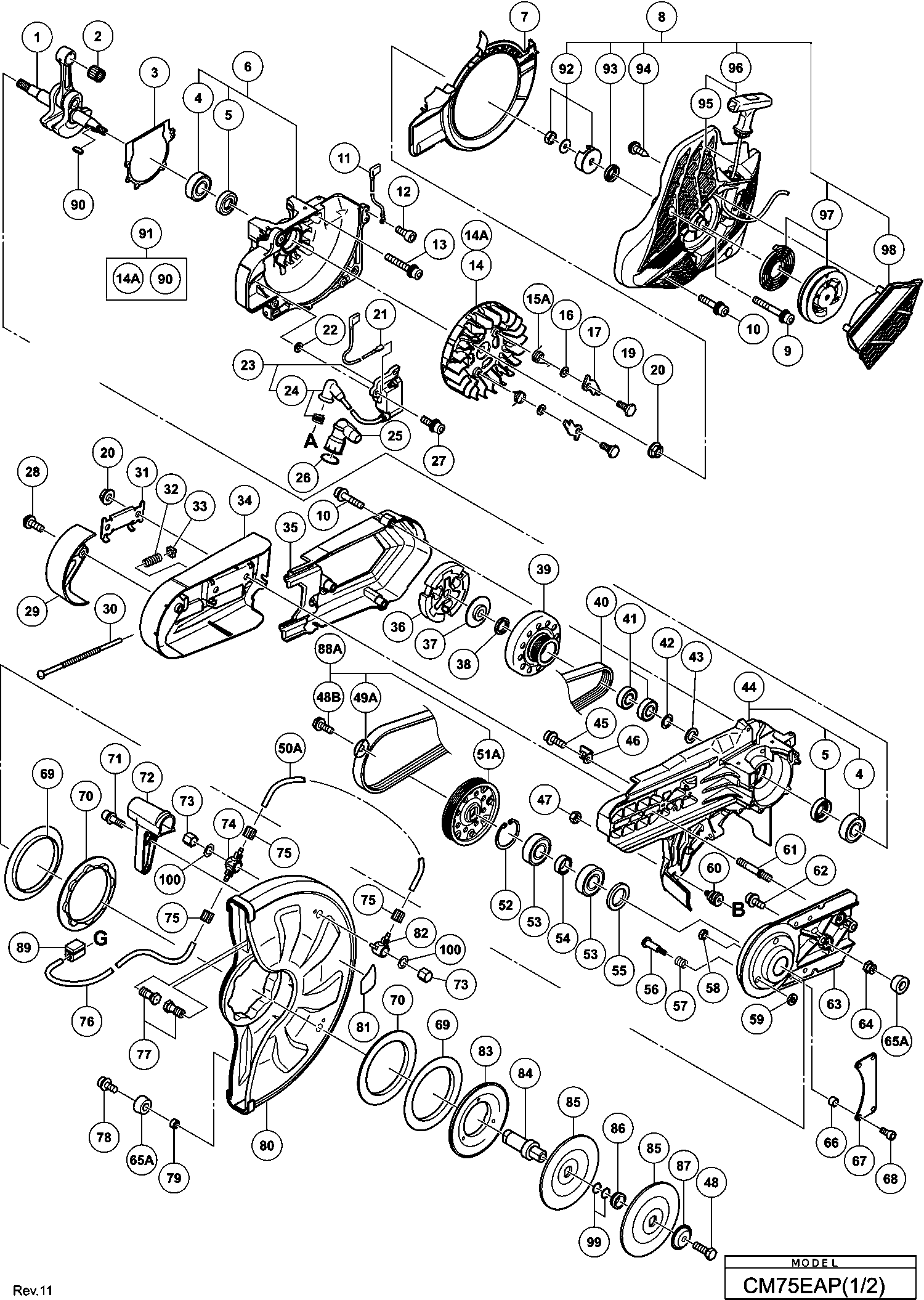

Tekeningen van de HIKOKI CM75EAP

Onderdelen lijst van de Hikoki CM75EAP

Op deze pagina kunt u onderdelen toevoegen aan de winkelwagen, door het aantal te selecteren en daarna de knop erachter te klikken. Wanneer u klaar bent met het uitzoeken van de juiste onderdelen, kunt u onder aan de pagina op de knop "Uw winkelwagen" klikken. De prijzen hieronder zijn inclusief btw.
Krukas
16699801Krukas€ 29.55
Naaldlager (a)
26699803Naaldlager (a)€ 3.48
Crank Case Packing
36699800Crank Case Packing€ 1.00
Kogellager 6202c3
46202C3Kogellager 6202c3€ 4.21
Olie Keerring
56698914Olie Keerring€ 3.05
Crank Case (a)
66600364Crank Case (a)€ 91.57
Fan Guide
76699875Fan Guide€ 3.05
Recoil Starter Ass'y
86699876Recoil Starter Ass'y€ 57.10
Set Bolt M5
96600374Set Bolt M5€ 1.74
Set Bolt M5x25
106699871Set Bolt M5x25€ 1.16
Earth Cord
11A6696567Earth Cord€ 2.03
Bout ( 10 Stuks )
12949812Bout ( 10 Stuks )€ 2.32
Seal Lock Hex. Socket Hd. Bolt M5
136600365Seal Lock Hex. Socket Hd. Bolt M5€ 1.74
Magneto Rotor (old 6699808)
14A6600458Magneto Rotor (old 6699808)€ 12.49
Starter Pawl Spring
15A6600477Starter Pawl Spring€ 1.02
Ring 0.8
166696857Ring 0.8€ 1.02
Starter Pawl
176699811Starter Pawl€ 1.00
Bout
196696878Bout€ 1.02
Moer M8
206698581Moer M8€ 1.16
Cord
216699812Cord€ 1.00
Ring
226698700Ring€ 1.16
Ignition Coil Ass'y
236699809Ignition Coil Ass'y€ 25.56
Cord Set
246600434Cord Set€ 10.89
Hex. Socket Hd Bolt M4x18 (w/washers)
276698388Hex. Socket Hd Bolt M4x18 (w/washers)€ 1.02
Seal Lock Hex. Socket Button Bolt M5x10
286699909Seal Lock Hex. Socket Button Bolt M5x10€ 1.16
Cover Plate
296699908Cover Plate€ 4.07
Tensioner Bolt
306699907Tensioner Bolt€ 2.03
Tensioner Plate
316699904Tensioner Plate€ 2.03
Tensioner Spring
326699906Tensioner Spring€ 1.16
Tension Nut
336699905Tension Nut€ 1.16
Arm Cover
346699903Arm Cover€ 6.39
Clutch Cover
356699878Clutch Cover€ 8.57
Clutch
366699823Clutch€ 20.23
Clutch Flange
376699822Clutch Flange€ 4.07
Vilt Pakking
38301946Vilt Pakking€ 1.00
Clutch Housing
396699821Clutch Housing€ 12.49
Belt
406699877Belt€ 10.31
Kogellager 6001dducmps2s (oud 980925)
416001DDKogellager 6001dducmps2s (oud 980925)€ 6.24
Shim
426696946Shim€ 1.62
Ring
436685072Ring€ 1.11
Crank Case (b)
446600366Crank Case (b)€ 123.92
Hex. Socket Hd. Bolt M5x16 (w/washers)
456699826Hex. Socket Hd. Bolt M5x16 (w/washers)€ 1.02
Tensioner Base
466699825Tensioner Base€ 1.16
Moer M6
47A329934Moer M6€ 1.67
Bolt M8
486699902Bolt M8€ 1.16
Water Supply Hose
50A6600462Water Supply Hose€ 1.02
Veerring D40
52948391Veerring D40€ 1.60
Kogellager 6203dducmav2s
536203DDKogellager 6203dducmav2s€ 7.41
Bb Collar
546699880Bb Collar€ 2.03
Felt
556699879Felt€ 1.16
Bolt M5 (s)
566699896Bolt M5 (s)€ 1.16
Wheel Guard Spring
576699895Wheel Guard Spring€ 1.16
Borgmoer M5 (oud 949566z)(10 Stuks )
58949566Borgmoer M5 (oud 949566z)(10 Stuks )€ 1.00
Ring M6 ( Oud 949425z , 10 St )
59949425Ring M6 ( Oud 949425z , 10 St )€ 1.02
Spring Holder
60A6601390Spring Holder€ 2.76
Chain Bar Bolt
616699881Chain Bar Bolt€ 2.03
Hex. Socket Hd. Bolt M5x12 (w/sp.washer)
626699176Hex. Socket Hd. Bolt M5x12 (w/sp.washer)€ 1.00
Arm
636600367Arm€ 62.02
Stopper Holder
646699883Stopper Holder€ 1.16
Stopper Rubber (2 Pcs) (old 6600368)
65A6600442Stopper Rubber (2 Pcs) (old 6600368)€ 2.03
Collar
666699866Collar€ 1.16
Arm Plate
676600396Arm Plate€ 1.74
Hex. Socket Hd. Bolt M5x12 (precote)
686696836Hex. Socket Hd. Bolt M5x12 (precote)€ 1.16
Plate (a)
696699885Plate (a)€ 2.03
Damper (a)
706699886Damper (a)€ 2.03
Set Bolt M5x16
716699889Set Bolt M5x16€ 1.16
Handle (w)
726699888Handle (w)€ 2.03
Cap Nut
736699892Cap Nut€ 2.03
Water Supply Joint (b)
746699891Water Supply Joint (b)€ 1.16
Lock Nut
756699912Lock Nut€ 1.16
Water Supply Hose
766699911Water Supply Hose€ 1.16
Nozzle Bolt
776699893Nozzle Bolt€ 4.07
Bout
78996399Bout€ 1.00
Stopper Holder
796600375Stopper Holder€ 1.74
Wheel Guard (12')
806699887Wheel Guard (12')€ 84.65
Wheel Mark Label (12")
816600376Wheel Mark Label (12")€ 1.74
Water Supply Joint (a)
826699890Water Supply Joint (a)€ 1.16
Flange (a)
836699894Flange (a)€ 17.97
Spindle
846699882Spindle€ 11.47
Wheel Washer
856699897Wheel Washer€ 5.52
Spindle Collar
866699898Spindle Collar€ 3.05
Flange Washer
876699901Flange Washer€ 1.16
Hose Holder
896600457Hose Holder€ 1.00
Woodruff Key
906600459Woodruff Key€ 1.00
Magneto Rotor Set
916600460Magneto Rotor Set€ 13.21
Cam Complete Set
926600469Cam Complete Set€ 6.82
Starter Grommet
936600471Starter Grommet€ 5.66
Tapping Screw D4x16
946600466Tapping Screw D4x16€ 1.00
Starter Rope
956600468Starter Rope€ 7.41
Rope Ass'y
966600467Rope Ass'y€ 8.57
Reel Complete Set
976600470Reel Complete Set€ 20.36
Fan Case Cover
986600464Fan Case Cover€ 18.77
O-ring (s-12)
99875638O-ring (s-12)€ 1.60
Pulley Washer
1006600495Pulley Washer€ 1.00
Tank Dop
1016600369Tank Dop€ 4.94
Tank Cap Packing (old 630-3252k-20/6685386)
1026685179Tank Cap Packing (old 630-3252k-20/6685386)€ 1.11
Square Nut M5
1036699828Square Nut M5€ 1.16
Priming Pump Comp. (old 442-25143-80)
1046685139Priming Pump Comp. (old 442-25143-80)€ 5.75
BRANDSTOFLEIDING
1056698722BRANDSTOFLEIDING€ 9.44
Fuel Pipe
106A6601460Fuel Pipe€ 2.18
Schroef D4x25 Zwart
107304035Schroef D4x25 Zwart€ 1.00
Tank Mark Label
1086698921Tank Mark Label€ 1.16
Tank Mark Label (25:1)
1086698922Tank Mark Label (25:1)€ 1.16
Tapschroef D4x16 Met Ring Zwart
109305812Tapschroef D4x16 Met Ring Zwart€ 1.00
Air Vent Cap
1106699838Air Vent Cap€ 1.16
Tank Dop Compleet
1116600370Tank Dop Compleet€ 14.23
Fuel Grommet
1126698931Fuel Grommet€ 3.34
Return Grommet (old 6684627)
1136697846Return Grommet (old 6684627)€ 1.00
Achtergreep
1146699827Achtergreep€ 25.82
Long Nut M6
1166699852Long Nut M6€ 1.16
Front Handle
1176699842Front Handle€ 22.09
Tapschroef D6
1186696872Tapschroef D6€ 1.02
Inbus Bout M6x20
119881722Inbus Bout M6x20€ 1.74
Anti-trilveer
1206699849Anti-trilveer€ 1.16
Front Adapter
1216699847Front Adapter€ 13.79
Grip End (b)
1226699844Grip End (b)€ 1.16
Hex. Socket Hd. Bolt M6x50
1236699819Hex. Socket Hd. Bolt M6x50€ 1.00
Uitlaat
1246699816Uitlaat€ 30.08
Hitteschild
1256699815Hitteschild€ 1.74
Seal Lock Hex. Socket Hd. Bolt M6x20
1266698899Seal Lock Hex. Socket Hd. Bolt M6x20€ 1.16
Ring
1276685068Ring€ 1.11
Exhaust Pipe
1286699818Exhaust Pipe€ 1.00
Exhaust Gasket
1296699817Exhaust Gasket€ 1.00
Trigger Lockout Collar
1306699836Trigger Lockout Collar€ 1.16
Trigger Lockout
1316699835Trigger Lockout€ 1.16
Needle Pin D3
1326699834Needle Pin D3€ 1.16
Throttle Lever Spring
1336699833Throttle Lever Spring€ 1.16
Throttle Lever
1346699832Throttle Lever€ 1.16
Throttle Rod
1356699863Throttle Rod€ 1.16
Cilinder Afdekkap
1366699865Cilinder Afdekkap€ 8.86
Brandstofleiding
1376698908Brandstofleiding€ 4.50
D6 Clip
1386685311D6 Clip€ 1.02
Pump Filter Body Ass'y (old 675-11657-90/6692282/6
1396692285Pump Filter Body Ass'y (old 675-11657-90/6692282/6€ 7.03
Veerhouder
1406699851Veerhouder€ 2.03
Anti-trilveer
1416699824Anti-trilveer€ 2.03
Niet bestelbaar
1426699320Niet bestelbaar
Decomp Cap
1436600378Decomp Cap€ 3.34
Decomp.
1446698541Decomp.€ 22.09
Grip End (a)
1456699843Grip End (a)€ 1.16
Cylinder (old 6600371)
146A6600478Cylinder (old 6600371)€ 58.70
Insulator Clip
1476699862Insulator Clip€ 1.16
Insulator Plate
1486699858Insulator Plate€ 2.03
Carburetor Insulator
1496699860Carburetor Insulator€ 8.57
Brandstofleiding (fkm)
1506699857Brandstofleiding (fkm)€ 5.95
Carburetor Ass'y (c3m)
1516699856Carburetor Ass'y (c3m)€ 60.69
Screw (d)
1526600385Screw (d)€ 3.34
Pump Cover
1536600386Pump Cover€ 10.02
Pump Gasket
1546600387Pump Gasket€ 3.34
Pump Diaphragm
1556600388Pump Diaphragm€ 3.34
Strainer
1566600389Strainer€ 4.94
Screw (e)
1576600390Screw (e)€ 3.34
Pin
1586699082Pin€ 1.02
Metealing Lever Spring
1596600391Metealing Lever Spring€ 3.34
Inlet Needle Valve
1606699081Inlet Needle Valve€ 6.82
Metering Lever
1616699084Metering Lever€ 1.60
Metealing Chamber Gasket
1626600392Metealing Chamber Gasket€ 4.94
Metealing Diaphragm
1636600393Metealing Diaphragm€ 9.44
Metealing Chamber Cover
1646600394Metealing Chamber Cover€ 41.39
Set Screw (c)
1656699094Set Screw (c)€ 1.02
Brandstofleiding
1666698873Brandstofleiding€ 4.94
Square Nut (b) M5
1676699859Square Nut (b) M5€ 1.16
Inbusbout M6x25
168991712Inbusbout M6x25€ 1.02
Cylinder Packing
1696600397Cylinder Packing€ 3.34
Piston Ring
1706699806Piston Ring€ 2.03
Cir Clip
1716699805Cir Clip€ 1.00
Piston (51.5)
1726699804Piston (51.5)€ 8.42
Zuiger Pin
1736699802Zuiger Pin€ 1.60
Water Supply Connector
1746699913Water Supply Connector€ 9.29
Mounting Plate
1756699914Mounting Plate€ 1.16
Valve
1766699915Valve€ 10.31
Coupler
1776699916Coupler€ 3.05
Grommet
1786698787Grommet€ 1.74
Throttle Lock Pin
1796699829Throttle Lock Pin€ 1.16
Carbureteur Pakking
1806699855Carbureteur Pakking€ 1.16
Carburetor Bracket
1816699854Carburetor Bracket€ 4.07
Pre Filter
1826699872Pre Filter€ 4.94
Caution Label (eng)
1836600382Caution Label (eng)€ 3.34
Niet bestelbaar
1836600383Niet bestelbaar
Cleaner Knob
1846699874Cleaner Knob€ 2.03
Knob Packing
1856698570Knob Packing€ 1.16
Start Label (cm75) (ex)
1866600381Start Label (cm75) (ex)€ 1.74
Cleaner Box (b)
1876699873Cleaner Box (b)€ 9.87
Rubber Rope
1886699870Rubber Rope€ 2.03
Cleaner Box (a)
1896699869Cleaner Box (a)€ 13.79
RUBBEREN PEN
190931701RUBBEREN PEN€ 1.02
Choke Button
1916699864Choke Button€ 1.16
Choke Rod Rubber
1926685369Choke Rod Rubber€ 1.02
Paper Filter
1936699868Paper Filter€ 6.68
Nylon Filter
1946699867Nylon Filter€ 4.07
Hex. Socket Hd. Bolt M5x55 (w/washers)
1956699861Hex. Socket Hd. Bolt M5x55 (w/washers)€ 1.16
Stop Switch
196A6601275Stop Switch€ 1.31
Switch Cover
1976698400Switch Cover€ 1.02
Throttle Lock Pin Spring
1986699830Throttle Lock Pin Spring€ 1.16
Throttle Lock Cap
1996699831Throttle Lock Cap€ 1.16
Rear Foot
2006699839Rear Foot€ 2.03
Anti-trilveer
2016699840Anti-trilveer€ 1.16
Lower Guard
2026699841Lower Guard€ 6.39
Muffler Guard (old 6600395)
203A6600443Muffler Guard (old 6600395)€ 41.13
FRONT FOOT RUBBER (B)
205A6601393FRONT FOOT RUBBER (B)€ 1.45
FRONT FOOT PLATE (B)
206A6601392FRONT FOOT PLATE (B)€ 2.18
Hex. Socket Hd. Bolt M5 (w/washers)
2076600372Hex. Socket Hd. Bolt M5 (w/washers)€ 1.74
Hex. Socket Hd Bolt M5x18 (w/sp.washer)
207A6698386Hex. Socket Hd Bolt M5x18 (w/sp.washer)€ 1.02
Idle Sponge
2086600056Idle Sponge€ 1.02
Band
2096698943Band€ 1.16
Earth Cord Set
2106601373Earth Cord Set€ 1.31
Spring Holder
2116601391Spring Holder€ 3.63
Ring (b)
2126699112Ring (b)€ 1.00
Front Foot Holder (old 6601365)
2136601394Front Foot Holder (old 6601365)€ 5.95
Combi Box Spanner 13x19
5016698582Combi Box Spanner 13x19€ 4.50
HEX. BAR WRENCH 4MMX135L
5026699918HEX. BAR WRENCH 4MMX135L€ 3.05
Niet bestelbaar
503875769Niet bestelbaar
Adapter Collar
5046699919Adapter Collar€ 6.10
Niet bestelbaar
505402327Niet bestelbaar
Er bevinden zich 0 artikelen in uw winkelwagen.
