Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki CR36DA'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

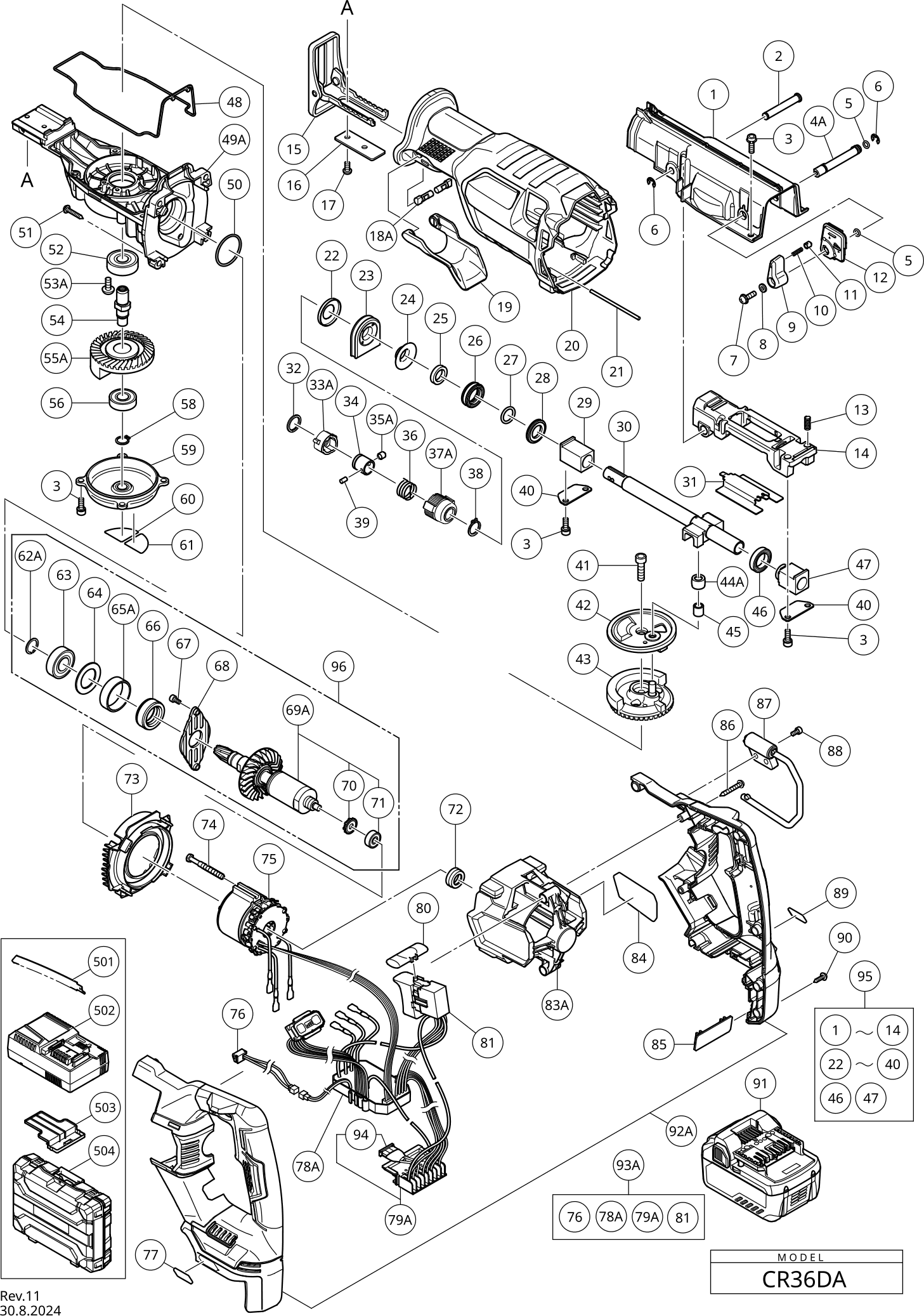

Tekeningen van de Hikoki CR36DA
Onderdelen lijst van de Hikoki CR36DA
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| BEHUIZING | ||||
| *83A | 373519 | 5.70 | 6.90 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| *91 | 373320 | |||
| GEAR BOX COMPLETE CR36DA | ||||
| *95 | 382498 | 55.50 | 67.16 | |
| UPPER COVER | ||||
| 1 | 373501 | 10.20 | 12.34 | |
| SHAFT (A) | ||||
| 2 | 373488 | 1.65 | 2.00 | |
| INBUSBOUT M5X16 (OUD 993985) | ||||
| 3 | 305574 | 1.05 | 1.27 | |
| CHANGE SHAFT (OLD 373497) | ||||
| 4A | 375185 | 5.10 | 6.17 | |
| O-RING (S-5) | ||||
| 5 | 872822 | 3.00 | 3.63 | |
| RETAINING RING D6 | ||||
| 6 | 955479 | 1.05 | 1.27 | |
| SEAL LOCK SCHROEF M4X12 | ||||
| 7 | 307127 | 1.05 | 1.27 | |
| BOLT WASHER M4 (BLACK) | ||||
| 8 | 323210 | 1.05 | 1.27 | |
| CHANGE KNOB | ||||
| 9 | 373503 | 1.04 | 1.26 | |
| SPRING (B) | ||||
| 10 | 373499 | 1.04 | 1.26 | |
| SPRING CAP | ||||
| 11 | 373500 | 1.04 | 1.26 | |
| LEVER PLATE | ||||
| 12 | 373508 | 1.04 | 1.26 | |
| SPRING (A) | ||||
| 13 | 373490 | 1.04 | 1.26 | |
| PLUNGER HOLDER | ||||
| 14 | 373487 | 8.25 | 9.98 | |
| BASE | ||||
| 15 | 371382 | 4.05 | 4.90 | |
| BASE PLATE | ||||
| 16 | 371383 | 1.04 | 1.26 | |
| BOUT M5X12 | ||||
| 17 | 332662 | 3.45 | 4.17 | |
| BASE LEVER SHAFT (OLD 373502) | ||||
| 18A | 375186 | 2.70 | 3.27 | |
| BASE LEVER | ||||
| 19 | 373504 | 1.04 | 1.26 | |
| FRONT COVER | ||||
| 20 | 373506 | 14.58 | 17.64 | |
| ADJUSTING PIN | ||||
| 21 | 373507 | 1.04 | 1.26 | |
| SEAL WASHER | ||||
| 22 | 373477 | 1.04 | 1.26 | |
| DUST SEAL | ||||
| 23 | 373478 | 1.65 | 2.00 | |
| SLEEVE PLATE | ||||
| 24 | 373479 | 1.04 | 1.26 | |
| FELT WASHER | ||||
| 25 | 373480 | 1.04 | 1.26 | |
| SEAL SLEEVE (A) | ||||
| 26 | 373481 | 1.05 | 1.27 | |
| O-RING | ||||
| 27 | 373482 | 1.04 | 1.26 | |
| SEAL SLEEVE (B) | ||||
| 28 | 373483 | 1.04 | 1.26 | |
| METAL (A) | ||||
| 29 | 373484 | 1.05 | 1.27 | |
| PLUNGER | ||||
| 30 | 373486 | 34.38 | 41.59 | |
| PLATE (A) | ||||
| 31 | 373489 | 1.04 | 1.26 | |
| SPIRAL RETAINING RING D16 | ||||
| 32 | 371368 | 1.04 | 1.26 | |
| BLADE HOLDER NEW | ||||
| 33A | 379227 | 1.00 | 1.21 | |
| SLEEVE | ||||
| 34 | 371381 | 5.70 | 6.90 | |
| HOLDER PIN (A) | ||||
| 35A | 374951 | 1.04 | 1.26 | |
| BLADE SPRING | ||||
| 36 | 371379 | 1.04 | 1.26 | |
| BLADE HOLDER COVER NEW | ||||
| 37A | 379226 | 1.00 | 1.21 | |
| RETAINING RING FOR D13 SHAFT | ||||
| 38 | 371367 | 1.04 | 1.26 | |
| PIN | ||||
| 39 | 371380 | 1.04 | 1.26 | |
| METAL PLATE | ||||
| 40 | 373491 | 1.04 | 1.26 | |
| SEAL LOCK HEX.SOCKET HD. BOLT M6X20 | ||||
| 41 | 371991 | 1.04 | 1.26 | |
| ORBITAL GUIDE | ||||
| 42 | 373492 | 5.55 | 6.72 | |
| GEAR | ||||
| 43 | 373494 | 16.09 | 19.47 | |
| CONNECTING PIECE (OLD 373495) | ||||
| 44A | 375191 | 4.20 | 5.08 | |
| NEEDLE BEARING | ||||
| 45 | 373959 | 5.55 | 6.72 | |
| KOGELLAGER 6803 | ||||
| 46 | 6803BB | 12.30 | 14.88 | |
| METAL (A) | ||||
| 47 | 373485 | 1.65 | 2.00 | |
| PACKING | ||||
| 48 | 373498 | 1.50 | 1.82 | |
| GEAR COVER | ||||
| 49A | 375192 | 19.39 | 23.46 | |
| O-RING (I.D 31.5) | ||||
| 50 | 373527 | 1.04 | 1.26 | |
| TAPSCHROEF D5X30 MET RING ZWART | ||||
| 51 | 328707 | 1.05 | 1.27 | |
| KOGELLAGER 6201VVCMPS2S | ||||
| 52 | 6201VV | 6.45 | 7.80 | |
| SCHROEF HD M4X10 SEAL LOCK | ||||
| 53A | 314430 | 1.05 | 1.27 | |
| SPINDLE | ||||
| 54 | 373493 | 3.90 | 4.72 | |
| COUNTER GEAR | ||||
| 55A | 375194 | 13.05 | 15.79 | |
| KOGELLAGER 6001VVCMPS2L | ||||
| 56 | 6001VV | 6.60 | 7.99 | |
| VEERRING D12 (10 STUKS) | ||||
| 58 | 939542 | 1.50 | 1.82 | |
| UNDER COVER | ||||
| 59 | 373510 | 4.95 | 5.99 | |
| RETAINING RING D15 | ||||
| 62A | 375195 | 1.04 | 1.26 | |
| KOGELLAGER 6002VVCMPS2L | ||||
| 63 | 6002VV | 7.35 | 8.89 | |
| WASHER D34.8 | ||||
| 64 | 373511 | 1.04 | 1.26 | |
| BUSHING (OLD 373512) | ||||
| 65A | 375196 | 2.10 | 2.54 | |
| DAMPER | ||||
| 66 | 373513 | 1.04 | 1.26 | |
| HEX.SOCKET HD.BOLT M5X8 (10 PCS) | ||||
| 67 | 949818 | 2.40 | 2.90 | |
| BEARING COVER | ||||
| 68 | 373514 | 1.05 | 1.27 | |
| ROTOR ASS'Y (OLD 361096) | ||||
| 69A | 376165 | 28.88 | 34.94 | |
| DUST SEAL (606) | ||||
| 70 | 373515 | 1.04 | 1.26 | |
| KOGELLAGER 606ZZMC3PS2S | ||||
| 71 | 606ZZM | 15.40 | 18.63 | |
| RUBBER BUSH | ||||
| 72 | 373516 | 1.04 | 1.26 | |
| FAN GUIDE | ||||
| 73 | 373517 | 1.05 | 1.27 | |
| SCHROEF D4X45 | ||||
| 74 | 981824 | 1.05 | 1.27 | |
| STATOR SENSOR PCB | ||||
| 75 | 341012 | 19.66 | 23.79 | |
| LED | ||||
| 76 | 373528 | 12.75 | 15.43 | |
| CONTROLLER | ||||
| 78A | 373524 | 122.38 | 148.07 | |
| BATTERIJ CONTACTPUNT | ||||
| 79A | 377278 | 11.28 | 13.65 | |
| SCHAKELKNOP (L+R) | ||||
| 80 | 319760 | 1.05 | 1.27 | |
| DC-SPEED CONTROL SWITCH | ||||
| 81 | 373522 | 19.25 | 23.29 | |
| BATTERY RUBBER (B) | ||||
| 85 | 373521 | 1.65 | 2.00 | |
| TAPSCHROEF D4X30 MET RING ZWART | ||||
| 86 | 305490 | 1.04 | 1.26 | |
| HAAK | ||||
| 87 | 371387 | 12.15 | 14.70 | |
| SEAL LOCK HEX.SOCKET HD. BOLT M5X10 | ||||
| 88 | 371992 | 1.04 | 1.26 | |
| TAPSCHROEF D4X20 MET RING | ||||
| 90 | 339250 | 1.04 | 1.26 | |
| HANDGREEP SET (A+B) (OUD 373520) | ||||
| 92A | 376844 | 13.20 | 15.97 | |
| SCHAKELAAR CONTROLLER ASS'Y (OUD 373523) | ||||
| 93A | 377280 | 102.24 | 123.71 | |
| ZEKERING | ||||
| 94 | 377279 | 2.70 | 3.27 | |
| GEAR BOX COMPLETE CR36DA | ||||
| 95 | 382498 | 55.50 | 67.16 | |
| ROTOR COMPLETE CR36DA | ||||
| 96 | 382499 | 28.05 | 33.94 | |
| BESCHERMKAPJE VOOR BATTERIJ | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 504 | 373526 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 601 | 959611 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 614 | 318620 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 618 | 372121M | |||
