Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

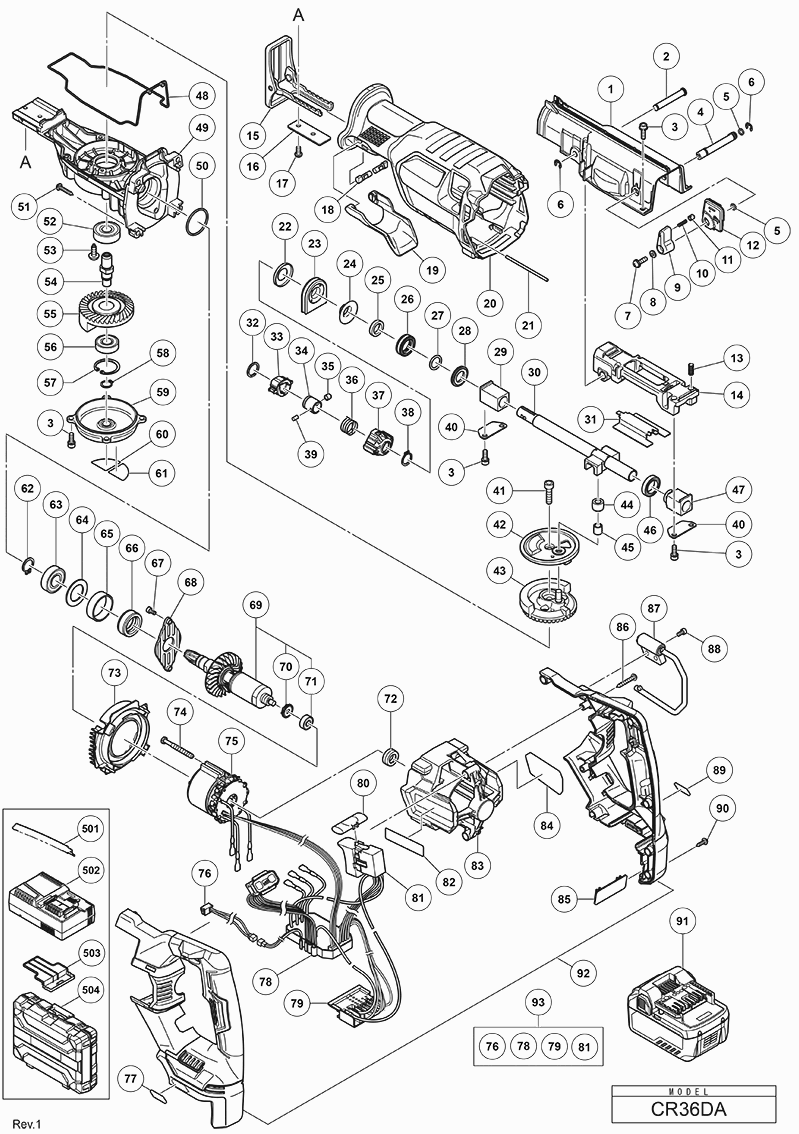

Tekeningen van de Hikoki CR36DAWGZ
Onderdelen lijst van de Hikoki CR36DAWGZ
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| UPPER COVER | ||||
| 1 | 373501 | 10.20 | 12.34 | |
| SHAFT (A) | ||||
| 2 | 373488 | 1.65 | 2.00 | |
| Inbusbout M5x16 (oud 993985) | ||||
| 3 | 305574 | 1.05 | 1.27 | |
| Niet meer leverbaar | ||||
| 4 | 373497 | |||
| O-ring (s-5) | ||||
| 5 | 872822 | 3.00 | 3.63 | |
| Retaining Ring D6 | ||||
| 6 | 955479 | 1.05 | 1.27 | |
| Seal Lock Schroef M4x12 | ||||
| 7 | 307127 | 1.05 | 1.27 | |
| Bolt Washer M4 (black) | ||||
| 8 | 323210 | 1.05 | 1.27 | |
| CHANGE KNOB | ||||
| 9 | 373503 | 1.04 | 1.26 | |
| SPRING (B) | ||||
| 10 | 373499 | 1.04 | 1.26 | |
| SPRING CAP | ||||
| 11 | 373500 | 1.04 | 1.26 | |
| LEVER PLATE | ||||
| 12 | 373508 | 1.04 | 1.26 | |
| SPRING (A) | ||||
| 13 | 373490 | 1.04 | 1.26 | |
| PLUNGER HOLDER | ||||
| 14 | 373487 | 8.25 | 9.98 | |
| Base | ||||
| 15 | 371382 | 4.05 | 4.90 | |
| Base Plate | ||||
| 16 | 371383 | 1.04 | 1.26 | |
| Bout M5x12 | ||||
| 17 | 332662 | 3.45 | 4.17 | |
| Niet meer leverbaar | ||||
| 18 | 373502 | |||
| BASE LEVER | ||||
| 19 | 373504 | 1.04 | 1.26 | |
| FRONT COVER | ||||
| 20 | 373506 | 14.58 | 17.64 | |
| ADJUSTING PIN | ||||
| 21 | 373507 | 1.04 | 1.26 | |
| SEAL WASHER | ||||
| 22 | 373477 | 1.04 | 1.26 | |
| DUST SEAL | ||||
| 23 | 373478 | 1.65 | 2.00 | |
| SLEEVE PLATE | ||||
| 24 | 373479 | 1.04 | 1.26 | |
| FELT WASHER | ||||
| 25 | 373480 | 1.04 | 1.26 | |
| SEAL SLEEVE (A) | ||||
| 26 | 373481 | 1.05 | 1.27 | |
| O-RING | ||||
| 27 | 373482 | 1.04 | 1.26 | |
| SEAL SLEEVE (B) | ||||
| 28 | 373483 | 1.04 | 1.26 | |
| METAL (A) | ||||
| 29 | 373484 | 1.05 | 1.27 | |
| PLUNGER | ||||
| 30 | 373486 | 34.38 | 41.59 | |
| PLATE (A) | ||||
| 31 | 373489 | 1.04 | 1.26 | |
| Spiral Retaining Ring D16 | ||||
| 32 | 371368 | 1.04 | 1.26 | |
| BLADE HOLDER | ||||
| 33 | 373475 | 6.60 | 7.99 | |
| Sleeve | ||||
| 34 | 371381 | 5.70 | 6.90 | |
| HOLDER PIN (A) | ||||
| 35 | 374951 | 1.04 | 1.26 | |
| Blade Spring | ||||
| 36 | 371379 | 1.04 | 1.26 | |
| BLADE HOLDER COVER | ||||
| 37 | 373476 | 1.04 | 1.26 | |
| Retaining Ring For D13 Shaft | ||||
| 38 | 371367 | 1.04 | 1.26 | |
| Pin | ||||
| 39 | 371380 | 1.04 | 1.26 | |
| METAL PLATE | ||||
| 40 | 373491 | 1.04 | 1.26 | |
| Seal Lock Hex.socket Hd. Bolt M6x20 | ||||
| 41 | 371991 | 1.04 | 1.26 | |
| ORBITAL GUIDE | ||||
| 42 | 373492 | 5.55 | 6.72 | |
| GEAR | ||||
| 43 | 373494 | 16.09 | 19.47 | |
| Niet meer leverbaar | ||||
| 44 | 373495 | |||
| NEEDLE BEARING | ||||
| 45 | 373959 | 5.55 | 6.72 | |
| KOGELLAGER 6803 | ||||
| 46 | 6803BB | 12.30 | 14.88 | |
| METAL (A) | ||||
| 47 | 373485 | 1.65 | 2.00 | |
| PACKING | ||||
| 48 | 373498 | 1.50 | 1.82 | |
| GEAR COVER | ||||
| 49 | 373518 | 14.85 | 17.97 | |
| O-RING (I.D 31.5) | ||||
| 50 | 373527 | 1.04 | 1.26 | |
| Tapschroef D5x30 Met Ring Zwart | ||||
| 51 | 328707 | 1.05 | 1.27 | |
| Kogellager 6201vvcmps2s | ||||
| 52 | 6201VV | 6.45 | 7.80 | |
| Niet meer leverbaar | ||||
| 53 | 301936 | |||
| SPINDLE | ||||
| 54 | 373493 | 3.90 | 4.72 | |
| Niet meer leverbaar | ||||
| 55 | 373509 | |||
| Kogellager 6001vvcmps2l | ||||
| 56 | 6001VV | 6.60 | 7.99 | |
| Veerring D28 (10 Stuks) | ||||
| 57 | 939555 | 4.35 | 5.26 | |
| Veerring D12 (10 Stuks) | ||||
| 58 | 939542 | 1.50 | 1.82 | |
| UNDER COVER | ||||
| 59 | 373510 | 4.95 | 5.99 | |
| Veerring D15 (10 Stuks) | ||||
| 62 | 939544 | 2.13 | 2.57 | |
| Kogellager 6002vvcmps2l | ||||
| 63 | 6002VV | 7.35 | 8.89 | |
| WASHER D34.8 | ||||
| 64 | 373511 | 1.04 | 1.26 | |
| Niet meer leverbaar | ||||
| 65 | 373512 | |||
| DAMPER | ||||
| 66 | 373513 | 1.04 | 1.26 | |
| Hex.socket Hd.bolt M5x8 (10 Pcs) | ||||
| 67 | 949818 | 2.40 | 2.90 | |
| BEARING COVER | ||||
| 68 | 373514 | 1.05 | 1.27 | |
| Niet meer leverbaar | ||||
| 69 | 361096 | |||
| DUST SEAL (606) | ||||
| 70 | 373515 | 1.04 | 1.26 | |
| Kogellager 606zzmc3ps2s | ||||
| 71 | 606ZZM | 15.40 | 18.63 | |
| RUBBER BUSH | ||||
| 72 | 373516 | 1.04 | 1.26 | |
| FAN GUIDE | ||||
| 73 | 373517 | 1.05 | 1.27 | |
| Schroef D4x45 | ||||
| 74 | 981824 | 1.05 | 1.27 | |
| STATOR SENSOR PCB | ||||
| 75 | 341012 | 19.66 | 23.79 | |
| LED | ||||
| 76 | 373528 | 12.75 | 15.43 | |
| CONTROLLER | ||||
| 78 | 373524 | 122.38 | 148.07 | |
| BATTERY TERMINAL | ||||
| 79 | 372228 | 8.25 | 9.98 | |
| Schakelknop (l+r) | ||||
| 80 | 319760 | 1.05 | 1.27 | |
| DC-SPEED CONTROL SWITCH | ||||
| 81 | 373522 | 19.25 | 23.29 | |
| HOUSING | ||||
| 83 | 373519 | 5.70 | 6.90 | |
| Tapschroef D4x30 Zwart | ||||
| 86 | 305490 | 1.04 | 1.26 | |
| Hook | ||||
| 87 | 371387 | 12.15 | 14.70 | |
| Seal Lock Hex.socket Hd. Bolt M5x10 | ||||
| 88 | 371992 | 1.04 | 1.26 | |
| Tapping Screw D4x20 (w/flange) | ||||
| 90 | 339250 | 1.04 | 1.26 | |
| HANDLE SET (A+B) | ||||
| 92 | 373520 | 30.53 | 36.94 | |
| SWITCH CONTROLLER ASS'Y | ||||
| 93 | 373523 | 139.84 | 169.20 | |
| Beschermkapje Voor Batterij | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| Niet meer leverbaar | ||||
| 504 | 373526 | |||
