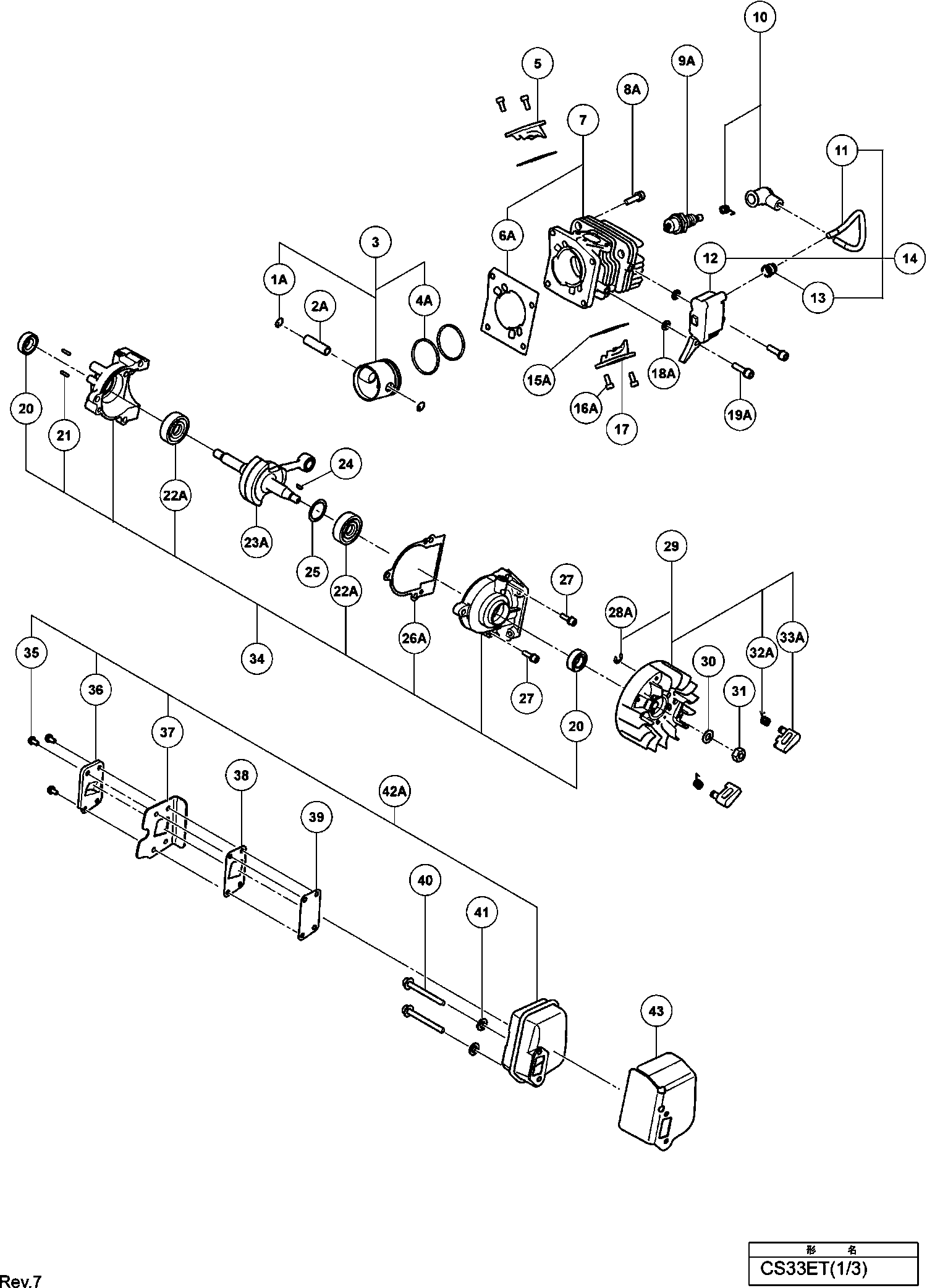

Tekeningen van de Hikoki CS33ET
Onderdelen lijst van de Hikoki CS33ET
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Cir Clip | ||||
| 1A | 6685326 | 1.05 | 1.27 | |
| Zuiger Pin (oud 6685079) | ||||
| 2A | 6696764 | 1.20 | 1.45 | |
| Piston Set (old 030-5631m-90) | ||||
| 3 | 6685080 | 22.24 | 26.91 | |
| Zuiger Ring (xr1-1856) | ||||
| 4A | 6685331 | 4.05 | 4.90 | |
| Niet meer leverbaar, geen vervanging | ||||
| 5 | 6685082 | |||
| Cylinder Packing | ||||
| 6A | 6698697 | 1.20 | 1.45 | |
| Cylinder Set (old 001-56300-90) | ||||
| 7 | 6685084 | 38.26 | 46.30 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 8A | 305583 | |||
| Bougie (oud 6685086) | ||||
| 9A | 6699319 | 8.91 | 10.78 | |
| Bougie (oud 6685085) | ||||
| 9A | 6699317 | 6.76 | 8.18 | |
| Spark Plug Cap Ass'y (old 157-56300-90) | ||||
| 10 | 6685087 | 2.31 | 2.80 | |
| High Voltage Cord (old 178-20560-20) | ||||
| 11 | 6685088 | 2.31 | 2.80 | |
| Bobine | ||||
| 12 | 6685089 | 36.15 | 43.74 | |
| Rubber Beschermkapje | ||||
| 13 | 6684602 | 2.15 | 2.60 | |
| Bobine (oud 167-20560-90) | ||||
| 14 | 6685091 | 36.15 | 43.74 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 15A | 6698698 | |||
| Bout ( 10 Stuks ) | ||||
| 16A | 949812 | 2.40 | 2.90 | |
| Niet meer leverbaar, geen vervanging | ||||
| 17 | 6685094 | |||
| Ring | ||||
| 18A | 6698700 | 1.20 | 1.45 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 19A | 6698388 | 1.05 | 1.27 | |
| Olie Keerring | ||||
| 20 | 6684607 | 4.29 | 5.19 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 21 | 6685095 | |||
| Ball Bearing | ||||
| 22A | 6685328 | 3.00 | 3.63 | |
| Krukas | ||||
| 23A | 6698693 | 55.14 | 66.72 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 24 | 6684899 | 2.15 | 2.60 | |
| Shim S T0.2 (old 071-04063-23) | ||||
| 25 | 6685098 | 1.15 | 1.39 | |
| Shim S T0.3 (old 071-04063-24) | ||||
| 25 | 6685099 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 26A | 6698694 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 27 | 6684668 | |||
| Retaining Ring D4 | ||||
| 28A | 6685336 | 1.05 | 1.27 | |
| Magneto Rotor Ass'y (old 155-20544-90) | ||||
| 29 | 6685102 | 17.40 | 21.05 | |
| Ring | ||||
| 30 | 6685103 | 1.15 | 1.39 | |
| Flywheel Nut (old 066-00000-20) | ||||
| 31 | 6685104 | 1.15 | 1.39 | |
| Veer | ||||
| 32A | 6685335 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 33A | 6685334 | 1.05 | 1.27 | |
| Crank Case Ass'y (old 072-56300-90) | ||||
| 34 | 6685107 | 28.14 | 34.05 | |
| Ring | ||||
| 35 | 6685109 | 1.15 | 1.39 | |
| Machineschroef M4x10 | ||||
| 35 | 986662 | 1.05 | 1.27 | |
| Exhaust Pipe (old 734-56300-20) | ||||
| 36 | 6685110 | 2.31 | 2.80 | |
| Muffler Special Packing (old 751-56300-20) | ||||
| 37 | 6685111 | 3.30 | 3.99 | |
| Gauze Fixing Plate (old 745-56300-20) | ||||
| 38 | 6685112 | 3.30 | 3.99 | |
| Muffler Gauze (old 732-56300-20) | ||||
| 39 | 6685113 | 2.31 | 2.80 | |
| Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | ||||
| 40 | 6685114 | 1.15 | 1.39 | |
| Ring | ||||
| 41 | 6684661 | 2.15 | 2.60 | |
| Muffler Comp. (old 706-56300-81) | ||||
| 42 | 6685115 | 34.19 | 41.37 | |
| Knaldemper (oud 705-56301-90) | ||||
| 42A | 6697102 | 16.19 | 19.59 | |
| Muffler Packing (old 737-56300-20) | ||||
| 43 | 6685117 | 3.30 | 3.99 | |
| Brake Support Plate Comp. (old 386-32901-80) | ||||
| 71 | 6685119 | 4.45 | 5.38 | |
| Collar (old 031-32901-20) | ||||
| 72 | 6685120 | 1.15 | 1.39 | |
| Brake Link Ass'y | ||||
| 73A | 6685388 | 4.05 | 4.90 | |
| Brake Lever Spring | ||||
| 74A | 6696783 | 1.20 | 1.45 | |
| Brake Handle (old 365-72930-80) | ||||
| 75 | 6685123 | 6.30 | 7.62 | |
| Brake Link Cover (old 375-72930-20) | ||||
| 77 | 6685126 | 1.15 | 1.39 | |
| Oil Adjust Grommet (old 488-72930-20) | ||||
| 78 | 6685127 | 1.15 | 1.39 | |
| Oil Pump Adjuster (old 501-72000-20) | ||||
| 79 | 6685128 | 1.15 | 1.39 | |
| Adjuster Spring (old 502-72000-20) | ||||
| 80 | 6685129 | 1.15 | 1.39 | |
| Ring | ||||
| 81 | 6685070 | 1.15 | 1.39 | |
| Oil Pump Adjust Cap (old 503-72000-20) | ||||
| 82A | 6685130 | 1.15 | 1.39 | |
| Pump Gear Spring (old 099-72000-20) | ||||
| 83 | 6685131 | 1.15 | 1.39 | |
| Pump Gear Comp. (old 085-72000-80) | ||||
| 84 | 6685132 | 11.71 | 14.17 | |
| Machine Screw M3x8 (old 990-11030-081) | ||||
| 85 | 6685133 | 1.15 | 1.39 | |
| Oil Pump Case Comp. | ||||
| 86 | 6685134 | 13.20 | 15.97 | |
| Oil Pump Case Ass'y (old 088-72000-90) | ||||
| 87A | 6685135 | 19.06 | 23.07 | |
| Seal Lock Bolt M5x15 (old 990-54050-155) | ||||
| 88 | 6685136 | 1.15 | 1.39 | |
| Protective Coil | ||||
| 89A | 6698699 | 1.20 | 1.45 | |
| Fuel Pipe 2.5x4x42 (old 700-02504-042 & 6698850) | ||||
| 90 | 6685138 | 1.15 | 1.39 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 91 | 6685139 | 5.94 | 7.18 | |
| Remband | ||||
| 92 | 6685140 | 14.53 | 17.58 | |
| D3 Needle Roller | ||||
| 93A | 6685391 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 94A | 6685362 | |||
| Naaldlager | ||||
| 95A | 6685361 | 4.05 | 4.90 | |
| Clutch Housing | ||||
| 96A | 6685403 | 10.20 | 12.34 | |
| Ring | ||||
| 97A | 6685414 | 1.05 | 1.27 | |
| Krukas Ring | ||||
| 98A | 6685360 | 2.10 | 2.54 | |
| Oil Pump Cover (old 097-72930-20) | ||||
| 99 | 6685147 | 1.15 | 1.39 | |
| Tapping Screw D4x15 (old 993-41040-151) | ||||
| 100 | 6685148 | 1.15 | 1.39 | |
| Ring | ||||
| 101 | 6685149 | 1.15 | 1.39 | |
| Oil Pipe (a) (old 515-72000-20) | ||||
| 102 | 6685150 | 2.31 | 2.80 | |
| Screw Gear (old 084-72000-20) | ||||
| 103 | 6685151 | 9.24 | 11.18 | |
| Tapping Screw D4.5x14 (old 990-75045-144) | ||||
| 104 | 6685152 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 (old 990-73045-144) | ||||
| 105 | 6685153 | 1.15 | 1.39 | |
| Fuel Pipe (old 700-07105-02) | ||||
| 106 | 6685154 | 1.15 | 1.39 | |
| Chain Catcher (old 125-32710-20) | ||||
| 107 | 6685155 | 1.15 | 1.39 | |
| Air Vent Sponge | ||||
| 108 | 6685156 | 1.15 | 1.39 | |
| Geleidingsplaat (b) (oud 6685157) | ||||
| 109A | 6696784 | 2.10 | 2.54 | |
| Tapping Screw D3x8 (old 993-11030-801) | ||||
| 110 | 6685158 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 111 | 6685295 | |||
| Tapping Screw D4x10 (old 993-41040-101) | ||||
| 112 | 6685161 | 1.15 | 1.39 | |
| Geleidingsplaat (a) | ||||
| 113A | 6698692 | 4.20 | 5.08 | |
| Side Cover Comp. (old 039-72930-80) | ||||
| 115 | 6685165 | 10.89 | 13.17 | |
| Chain Bar Clamp Nut | ||||
| 116A | 6685416 | 1.05 | 1.27 | |
| Brake Spring (old 6685167) | ||||
| 117A | 6685389 | 1.05 | 1.27 | |
| Gear (a) (old 301-72000-20) | ||||
| 118 | 6685168 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 119 | 6685169 | |||
| Chain Puller | ||||
| 119B | 6698986 | 13.35 | 16.15 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 120A | 6697854 | |||
| Tapping Screw D4x10 (old 993-41040-101) | ||||
| 121 | 6685161 | 1.15 | 1.39 | |
| Air Vent Valve (b) (old 562-04060-20) | ||||
| 123 | 6685173 | 2.31 | 2.80 | |
| Engine Case Ass'y (old 560-72930-90) | ||||
| 124 | 6685174 | 44.16 | 53.44 | |
| Inner Cap Set (old 629-01750-90) | ||||
| 125A | 6685175 | 6.93 | 8.38 | |
| Niet meer leverbaar, geen vervanging | ||||
| 126 | 6685176 | |||
| Tank Cap Packing (old 630-3252k-20/6685386) | ||||
| 129 | 6685179 | 1.15 | 1.39 | |
| Tank Dop Compleet | ||||
| 130 | 6685180 | 3.30 | 3.99 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 131 | 6684679 | 2.15 | 2.60 | |
| CAM PLATE (OLD 759-0174M-20) | ||||
| 132 | 6685182 | 3.30 | 3.99 | |
| Damper Spring (old 758-01761-20) | ||||
| 133 | 6685183 | 4.45 | 5.38 | |
| STARTER PULLEY (OLD 774-01761-20) | ||||
| 134 | 6685184 | 4.95 | 5.99 | |
| SPRING CASE ASS'Y (OLD 778-01761-90) | ||||
| 135 | 6685185 | 9.24 | 11.18 | |
| Rope (old 783-01761-20) | ||||
| 136 | 6685186 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 137 | 6685187 | |||
| Starthendel | ||||
| 138 | 6685188 | 2.31 | 2.80 | |
| Plate (old 795-04063-20) | ||||
| 139 | 6685189 | 1.15 | 1.39 | |
| Recoil Starter Ass'y (old 756-56300-90) | ||||
| 140 | 6685190 | 25.58 | 30.95 | |
| Tapping Screw D4.5x20 (old 990-72045-204) | ||||
| 141 | 6685191 | 1.15 | 1.39 | |
| Engine Case Cover (old 563-72930-20) | ||||
| 161 | 6685194 | 4.45 | 5.38 | |
| Tapping Screw D4.5x14 (old 990-75045-144) | ||||
| 162 | 6685152 | 1.15 | 1.39 | |
| Pipe Joint (old 497-32970-20) | ||||
| 164 | 6685196 | 1.15 | 1.39 | |
| Shield Tube Ass'y (old 223-72930-90) | ||||
| 165 | 6685197 | 7.26 | 8.79 | |
| D6 Clip | ||||
| 166A | 6685311 | 1.05 | 1.27 | |
| Pump Filter Body Ass'y (old 675-11600-90/6692275/6 | ||||
| 167 | 6685199 | 4.45 | 5.38 | |
| Fuel Pipe 2.5x4x260 (old 700-02504-260) | ||||
| 168 | 6685200 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 (old 990-73045-144) | ||||
| 169 | 6685153 | 1.15 | 1.39 | |
| Cleaner Body Comp. (old 155-72930-80) | ||||
| 170 | 6685201 | 7.26 | 8.79 | |
| Inlet Manifold Spacer (old 400-32970-20) | ||||
| 171 | 6685202 | 3.30 | 3.99 | |
| Hex. Hole Bolt M4 | ||||
| 172A | 6698792 | 1.20 | 1.45 | |
| Pulse Guide (old 431-32970-20) | ||||
| 173 | 6685203 | 1.15 | 1.39 | |
| Intake Comp. (old 391-56300-80) | ||||
| 174 | 6685204 | 9.24 | 11.18 | |
| Intake Packing (old 403-56300-20) | ||||
| 175 | 6685205 | 1.15 | 1.39 | |
| Choke Lever (green) | ||||
| 176 | 6698349 | 1.20 | 1.45 | |
| Choke Lever (old 495-56300-20) | ||||
| 176 | 6685206 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 177 | 6685207 | |||
| Carburetor Ass'y Wt-940 (old 455-25344-90) | ||||
| 178 | 6685208 | 102.40 | 123.90 | |
| Carburetor Ass'y Wt-949 For Aus & Rus (old 455-253 | ||||
| 178 | 6685209 | 102.40 | 123.90 | |
| Screw (old 514-25001-20) | ||||
| 179 | 6685210 | 1.15 | 1.39 | |
| Pump Body (old 575-25028-20/6696844) | ||||
| 180 | 6685211 | 8.41 | 10.18 | |
| Pump Gasket (old 577-25007-20) | ||||
| 181 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm (old 576-25006-20) | ||||
| 182 | 6685213 | 4.45 | 5.38 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 183 | 6684700 | 4.29 | 5.19 | |
| Needle Valve (old 603-25012-20) | ||||
| 184 | 6685215 | 5.28 | 6.38 | |
| Valve Spring (old 477-25343-20) | ||||
| 185 | 6685216 | 2.31 | 2.80 | |
| Control Lever (old 473-25001-20) | ||||
| 186 | 6685217 | 3.30 | 3.99 | |
| Hinge Pin Set Screw (old 546-25001-20) | ||||
| 187 | 6685218 | 2.31 | 2.80 | |
| Hinge Pin (old 605-25001-20) | ||||
| 188 | 6685219 | 1.15 | 1.39 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 189 | 6685220 | 2.31 | 2.80 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 190 | 6684690 | 18.00 | 21.78 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 191 | 6685222 | 4.45 | 5.38 | |
| Set Screw (old 548-25012-20) | ||||
| 192 | 6685223 | 1.15 | 1.39 | |
| Idle Sponge (old 191-32970-20) | ||||
| 193 | 6685224 | 1.15 | 1.39 | |
| Air Cleaner Base (old 436-56300-20) | ||||
| 194 | 6685225 | 1.15 | 1.39 | |
| Ring | ||||
| 195 | 6685226 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | ||||
| 196 | 6685114 | 1.15 | 1.39 | |
| Luchtfilterkap | ||||
| 197 | 6685227 | 4.05 | 4.90 | |
| Cleaner Knob (old 175-72000-20) | ||||
| 198 | 6685228 | 2.31 | 2.80 | |
| Reinigingsspons (b) (old 470-72930-20) | ||||
| 199 | 6685229 | 1.15 | 1.39 | |
| Luchtfilter Element | ||||
| 200 | 6685230 | 3.30 | 3.99 | |
| Luchtfilter Element | ||||
| 201 | 6685231 | 3.30 | 3.99 | |
| Reinigingsspons | ||||
| 202 | 6685232 | 2.31 | 2.80 | |
| Tapping Screw D5x45 (old 990-73050-454) | ||||
| 203 | 6685233 | 1.15 | 1.39 | |
| Ring 1.0 (old 6685234) | ||||
| 204A | 6696799 | 1.20 | 1.45 | |
| Collar 28.2 (old 6685235) | ||||
| 205A | 6696800 | 2.10 | 2.54 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 206 | 6685236 | |||
| Tapping Screw D4.5x14 (old 990-73045-144) | ||||
| 207 | 6685153 | 1.15 | 1.39 | |
| Hook Holder Plate | ||||
| 208A | 6698695 | 2.10 | 2.54 | |
| Hook | ||||
| 209A | 6698696 | 2.10 | 2.54 | |
| STOP SWITCH (OLD 170-04063-80) | ||||
| 210 | 6685239 | 3.30 | 3.99 | |
| Rear Handle (b) Comp. (old 011-72930-80) | ||||
| 211 | 6685240 | 10.89 | 13.17 | |
| Gaskabel | ||||
| 212 | 6685241 | 7.26 | 8.79 | |
| Regulateur Groen | ||||
| 213 | 6698346 | 1.20 | 1.45 | |
| Throttle Lever (old 060-72930-20) | ||||
| 213 | 6685242 | 1.15 | 1.39 | |
| Throttle Lever Spring | ||||
| 214A | 6698691 | 1.20 | 1.45 | |
| Trigger Lock Out (green) | ||||
| 215 | 6698347 | 1.20 | 1.45 | |
| Schakelaar Blokkering | ||||
| 215 | 6685244 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 (old 990-75045-144) | ||||
| 216 | 6685152 | 1.15 | 1.39 | |
| Knaldemper Afdekkap (oud 737-72933-20) | ||||
| 217 | 6685245 | 9.24 | 11.18 | |
| PROTECTIVE COIL (A) | ||||
| 218A | 6696806 | 1.20 | 1.45 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 219 | 6685247 | 2.31 | 2.80 | |
| D6 Clip | ||||
| 220A | 6685311 | 1.05 | 1.27 | |
| Ring | ||||
| 221 | 6684661 | 2.15 | 2.60 | |
| Oil Filter Body | ||||
| 222A | 6685310 | 1.05 | 1.27 | |
| Oil Filter Body Ass'y (old 486-32710-90) | ||||
| 223 | 6685249 | 2.31 | 2.80 | |
| Tapping Screw D4x15 (old 993-41040-152) | ||||
| 224 | 6685250 | 1.05 | 1.27 | |
| Cord 325mm (old 178-56301-80) | ||||
| 225 | 6685251 | 2.31 | 2.80 | |
| Cord 180mm (old 274-01750-80) | ||||
| 226 | 6685252 | 2.31 | 2.80 | |
| Rear Handle (a) Comp. (old 010-72930-80) | ||||
| 227 | 6685253 | 6.44 | 7.79 | |
| Tapping Screw D5x16 (old 990-73050-164) | ||||
| 228 | 6685074 | 1.15 | 1.39 | |
| Front Handle (old 209-72930-20) | ||||
| 229 | 6685254 | 8.41 | 10.18 | |
| Idle Adjust Spring (old 463-25006-20) | ||||
| 230 | 6685297 | 2.31 | 2.80 | |
| Idle Adjust Screw (old 462-25016-20) | ||||
| 231 | 6685298 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501A | 6685439 | |||
| Combi Box Spanner | ||||
| 502A | 6685402 | 3.15 | 3.81 | |
