Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki CS35EH'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

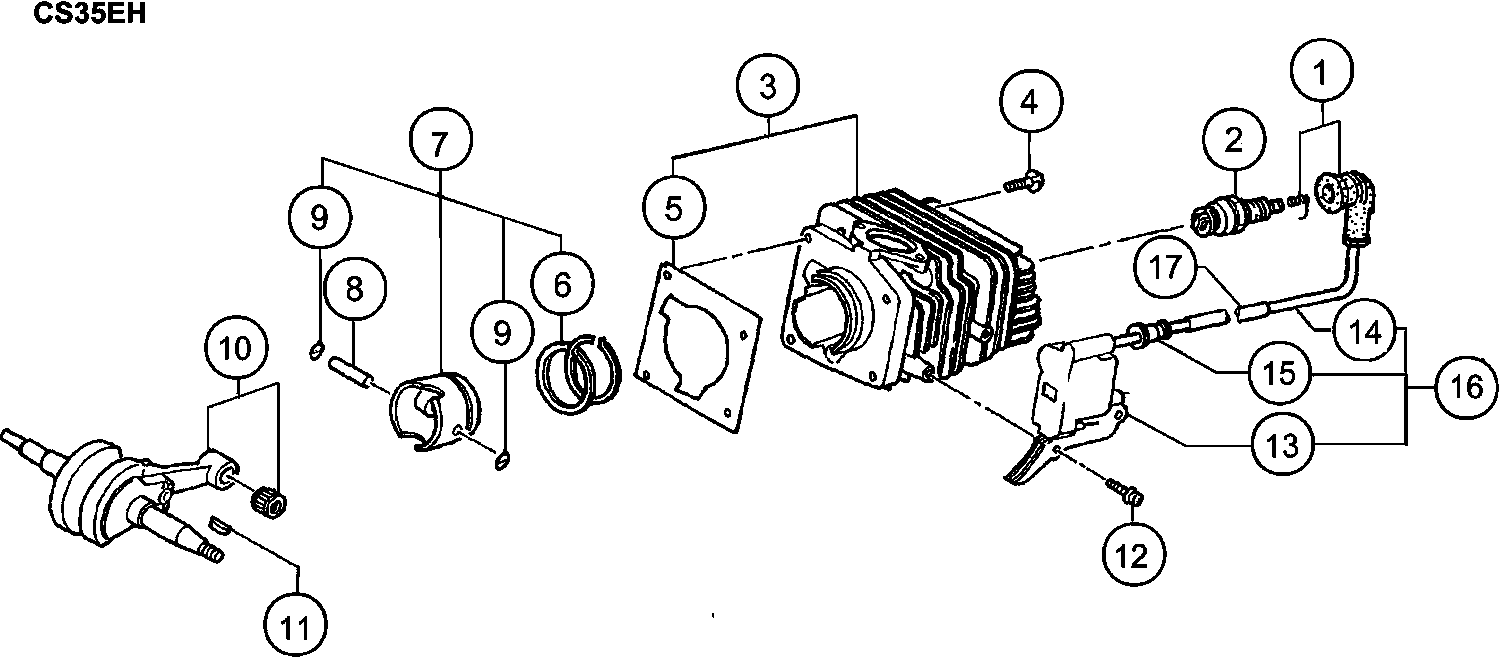

Tekeningen van de Hikoki CS35EH
Onderdelen lijst van de Hikoki CS35EH
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SPARK PLUG CAP ASS'Y (OLD 157-01570-90/6687470/668 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| BOUGIE RCJ8Y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| CYLINDER SET (OLD 001-01750-90) | ||||
| 3 | 6685460 | 58.39 | 70.65 | |
| HEX.HOLE BOLT M5X18/S(OUD 994-61050-184) | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| CYLINDER GASKET (OLD 017-01750-20) | ||||
| 5 | 6685725 | 1.15 | 1.39 | |
| PISTON RING (OLD 041-04000-20) | ||||
| 6 | 6686122 | 4.45 | 5.38 | |
| PISTON SET,SPARE (OLD 030-01750-90) | ||||
| 7 | 6685880 | 24.20 | 29.28 | |
| PISTON PIN 9 X 31 (OLD 037-01400-20/791170) | ||||
| 8 | 6686008 | 2.31 | 2.80 | |
| CIRCLIP (OLD 039-00000-20) | ||||
| 9 | 6685078 | 1.15 | 1.39 | |
| CRANK SHAFT COMP. (OLD 046-01751-80) | ||||
| 10 | 6686172 | 64.28 | 77.77 | |
| WOODRUFF KEY 3X13X4.5 (OUD 068-10100-20) | ||||
| 11 | 6684899 | 2.15 | 2.60 | |
| HIGH TENSION SCREW 4X18WS (OLD 994-16040-186) | ||||
| 12 | 6695407 | 1.15 | 1.39 | |
| BOBINE | ||||
| 13 | 6685089 | 36.15 | 43.74 | |
| Niet meer leverbaar, geen vervanging | ||||
| 14 | 6687890 | |||
| RUBBER BESCHERMKAPJE | ||||
| 15 | 6684602 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 16 | 6687667 | |||
| CORD INSULATOR TUBE (OLD 755-32050-20) | ||||
| 17 | 6692900 | 1.15 | 1.39 | |
| SHIM S T0.2 (OLD 071-04063-23) | ||||
| 21 | 6685098 | 1.15 | 1.39 | |
| SHIM S T0.3 (OLD 071-04063-24) | ||||
| 21 | 6685099 | 1.15 | 1.39 | |
| FLYWHEEL NUT (OLD 066-00000-20) | ||||
| 22 | 6685104 | 1.15 | 1.39 | |
| RING | ||||
| 23 | 6695222 | 1.15 | 1.39 | |
| RING | ||||
| 24 | 6685103 | 1.15 | 1.39 | |
| MAGNETO ROTOR ASS'Y (OLD 155-20544-90) | ||||
| 25 | 6685102 | 17.40 | 21.05 | |
| STARTER PAWL SPRING (OLD 790-01740-20) | ||||
| 27 | 6685105 | 1.15 | 1.39 | |
| D4E RETAINING RING (OLD 993-55040-001) | ||||
| 28 | 6685101 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 29 | 6684668 | |||
| CRANK CASE ASS'Y (OLD 072-01750-90) | ||||
| 30 | 6686524 | 44.31 | 53.62 | |
| OLIE KEERRING | ||||
| 31 | 6684607 | 4.29 | 5.19 | |
| CRANK CASE GASKET (OLD 090-01750-20) | ||||
| 32 | 6686702 | 1.15 | 1.39 | |
| BALL BEARING 6201 A2C3 (OLD 999-61620-106/6696387) | ||||
| 33 | 6685096 | 5.28 | 6.38 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 34 | 6685095 | |||
| CLEANER BODY COMP. (OLD 155-32970-81) | ||||
| 51 | 6687421 | 8.41 | 10.18 | |
| INLAATPAKKING | ||||
| 52 | 6689876 | 1.15 | 1.39 | |
| INLET MANIFOLD SPACER (OLD 400-32970-20) | ||||
| 53 | 6685202 | 3.30 | 3.99 | |
| INLET MANIFOLD COMP. (OLD 391-01750-81) | ||||
| 54 | 6689787 | 12.05 | 14.58 | |
| ENGINE CASE ASS'Y (OLD 560-32970-90) | ||||
| 55 | 6691367 | 60.35 | 73.02 | |
| AIR VENT VALVE (B) (OLD 562-04060-20) | ||||
| 56 | 6685173 | 2.31 | 2.80 | |
| PULSE GUIDE (OLD 431-32970-20) | ||||
| 57 | 6685203 | 1.15 | 1.39 | |
| INNER CAP SET (OLD 629-01750-90) | ||||
| 58 | 6685175 | 6.93 | 8.38 | |
| HEX. HOLE BOLT 5X20/PS (OLD 994-63050-204) | ||||
| 59 | 6684634 | 2.15 | 2.60 | |
| BLOW OVER CHECK BOARD (OLD 476-01700-20/790189) | ||||
| 60 | 6690843 | 1.15 | 1.39 | |
| CHOKE VALVE (OLD 700-32970-20) | ||||
| 61 | 6692411 | 1.15 | 1.39 | |
| CHOKE SHIM 0.8 (OLD 708-32350-20) | ||||
| 62 | 6692596 | 1.15 | 1.39 | |
| CHOKE ROD RUBBER (OLD 707-32970-20) | ||||
| 63 | 6692591 | 1.15 | 1.39 | |
| CHOKE BUTTON COMP. (OLD 704-32970-80) | ||||
| 64 | 6692514 | 3.30 | 3.99 | |
| ADJUSTER CAP (OLD 190-3297U-20) | ||||
| 65 | 6687959 | 2.31 | 2.80 | |
| IDLE SPONGE (OLD 191-32970-20) | ||||
| 66 | 6685224 | 1.15 | 1.39 | |
| LUCHTFILTERKAP | ||||
| 67 | 6686304 | 5.61 | 6.79 | |
| Niet meer leverbaar, geen vervanging | ||||
| 68 | 6689735 | |||
| LUCHTFILTER ELEMENT | ||||
| 69 | 6690074 | 3.30 | 3.99 | |
| HEX. HOLE BOLT M4X12/S (OLD 994-61040-124/6698385) | ||||
| 70 | 6684595 | 2.15 | 2.60 | |
| TAPSCHROEF D4.5X14 | ||||
| 71 | 6685153 | 1.15 | 1.39 | |
| SCREW 5X42/WS (OLD 994-16050-422) | ||||
| 72 | 6695428 | 1.15 | 1.39 | |
| HEX. HOLE BOLT 5X18PS (OLD 994-63050-185) | ||||
| 73 | 6695505 | 1.15 | 1.39 | |
| COLLAR (OLD 027-0630A-20) | ||||
| 74 | 6685853 | 2.31 | 2.80 | |
| RING 5 (OUD 992-00050-011) | ||||
| 75 | 6684864 | 2.15 | 2.60 | |
| HEX. HOLE BOLT 5X40 (OLD 990-51050-403) | ||||
| 81 | 6695054 | 1.15 | 1.39 | |
| RING (OUD 992-10050-012) | ||||
| 82 | 6684662 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 83 | 6692448 | |||
| MUFFLER BODY B COMP. (OLD 717-01750-80) | ||||
| 84 | 6692628 | 6.44 | 7.79 | |
| Niet meer leverbaar, geen vervanging | ||||
| 85 | 6692679 | |||
| MUFFLER JOINT GASKET (OLD 739-01750-20) | ||||
| 86 | 6692834 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 87 | 6692608 | |||
| MUFFLER GASKET (OLD 737-01750-20) | ||||
| 88 | 6692735 | 2.31 | 2.80 | |
| OIL PIPE B (OLD 505-32710-20) | ||||
| 101 | 6691121 | 4.45 | 5.38 | |
| CLIP 7 (OLD 680-04019-21) | ||||
| 102 | 6692312 | 1.15 | 1.39 | |
| RING | ||||
| 103 | 6684661 | 2.15 | 2.60 | |
| OIL FILTER (OLD 487-32712-20/6696804) | ||||
| 104 | 6690919 | 1.15 | 1.39 | |
| OIL FILTER BODY ASS'Y (OLD 486-32710-90) | ||||
| 105 | 6685249 | 2.31 | 2.80 | |
| PIPE JOINT (OLD 497-32970-20) | ||||
| 106 | 6685196 | 1.15 | 1.39 | |
| PRIMING PUMP COMP. (OLD 442-25143-80) | ||||
| 107 | 6685139 | 5.94 | 7.18 | |
| FUEL PIPE 2.5X4X90 (OLD 700-02504-09) | ||||
| 108 | 6685267 | 1.15 | 1.39 | |
| FUEL PIPE 2.5X4X210 (OLD 700-02504-21) | ||||
| 109 | 6692353 | 1.15 | 1.39 | |
| RUBBER PIPE (OLD 678-56300-20/6685272) | ||||
| 110 | 6697174 | 1.98 | 2.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 110A | 6697632 | |||
| SHIELD TUBE (OLD 222-01750-20) | ||||
| 111 | 6688155 | 5.94 | 7.18 | |
| PUMP FILTER BODY ASS'Y (OLD 675-11600-90/6692275/6 | ||||
| 112 | 6685199 | 4.45 | 5.38 | |
| Niet meer leverbaar, geen vervanging | ||||
| 113 | 6685180 | |||
| TANK CAP PACKING (OLD 630-3252K-20/6685386) | ||||
| 114 | 6685179 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 115 | 6697756 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 116 | 6697888 | |||
| S-STARTER ASS'Y (OLD 756-0175D-90) | ||||
| 121 | 6692911 | 28.14 | 34.05 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 122 | 6684679 | 2.15 | 2.60 | |
| STARTER PULLEY (OLD 774-01761-20) | ||||
| 124 | 6685184 | 4.95 | 5.99 | |
| ROPE (OLD 783-01761-20) | ||||
| 125 | 6685186 | 2.31 | 2.80 | |
| SPRING CASE ASS'Y (OLD 778-01761-90) | ||||
| 126 | 6685185 | 9.24 | 11.18 | |
| DAMPER SPRING (OLD 758-01761-20) | ||||
| 127 | 6685183 | 4.45 | 5.38 | |
| STARTHENDEL | ||||
| 128 | 6685188 | 2.31 | 2.80 | |
| VENTILATORHUIS | ||||
| 129 | 6686952 | 17.55 | 21.24 | |
| TAPSCHROEF D4.5X20 | ||||
| 130 | 6685191 | 1.15 | 1.39 | |
| CAM PLATE (OLD 759-0174M-20) | ||||
| 131 | 6685182 | 3.30 | 3.99 | |
| PLATE (OLD 795-04063-20) | ||||
| 132 | 6685189 | 1.15 | 1.39 | |
| TAPSCHROEF D4.5X14 | ||||
| 133 | 6685153 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 134 | 6687481 | |||
| SEAL COVER (OLD 129-01750-20) | ||||
| 135 | 6687183 | 2.31 | 2.80 | |
| AIR DEFLECTOR (OLD 145-01750-20) | ||||
| 136 | 6687327 | 4.45 | 5.38 | |
| CARBURETOR ASS'Y WT553 WALBRO (OLD 455-25306-90) | ||||
| 141 | 6690650 | 86.36 | 104.50 | |
| INLET SCREEN (OUD 578-25007-20) | ||||
| 142 | 6684700 | 4.29 | 5.19 | |
| PUMP BODY (OLD 575-25006-20) | ||||
| 143 | 6691416 | 8.91 | 10.78 | |
| SCREW (OLD 514-25001-20) | ||||
| 144 | 6685210 | 1.15 | 1.39 | |
| PUMP GASKET (OLD 577-25007-20) | ||||
| 145 | 6685212 | 2.31 | 2.80 | |
| PUMP DIAPHRAGM (OLD 576-25006-20) | ||||
| 146 | 6685213 | 4.45 | 5.38 | |
| CONTROL LEVER (OLD 473-25001-20) | ||||
| 147 | 6685217 | 3.30 | 3.99 | |
| HINGE PIN SET SCREW (OLD 546-25001-20) | ||||
| 148 | 6685218 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 149 | 6690872 | |||
| HINGE PIN (OLD 605-25001-20) | ||||
| 150 | 6685219 | 1.15 | 1.39 | |
| DIAPHRAGM COVER (OLD 476-25004-20) | ||||
| 151 | 6685222 | 4.45 | 5.38 | |
| Niet meer leverbaar, geen vervanging | ||||
| 152 | 6690827 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 153 | 6685220 | |||
| NEEDLE VALVE (OLD 603-25012-20) | ||||
| 154 | 6685215 | 5.28 | 6.38 | |
| IDLE ADJUST SPRING (OLD 463-25006-20) | ||||
| 155 | 6685297 | 2.31 | 2.80 | |
| IDLE ADJUST SCREW (OLD 462-25016-20) | ||||
| 156 | 6685298 | 2.31 | 2.80 | |
| SET SCREW (OLD 548-25012-20) | ||||
| 157 | 6685223 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 161 | 6695416 | |||
| OIL PUMP COVER (OLD 097-32970-20) | ||||
| 162 | 6686764 | 2.31 | 2.80 | |
| OIL PIPE A (OLD 515-32710-20) | ||||
| 163 | 6691223 | 3.30 | 3.99 | |
| SCREW GEAR (OLD 084-32900-20) | ||||
| 164 | 6686645 | 10.40 | 12.58 | |
| AIR VENT SPONGE | ||||
| 165 | 6685156 | 1.15 | 1.39 | |
| OIL PUMP ASS'Y (OLD 144-32970-90) | ||||
| 166 | 6687325 | 11.71 | 14.17 | |
| OIL ADJUST GROMMET (OLD 488-32970-20) | ||||
| 167 | 6690957 | 1.15 | 1.39 | |
| OIL PUMP ADJUSTER (OLD 501-32710-21) | ||||
| 168 | 6691070 | 1.15 | 1.39 | |
| O-RING P-6 (OLD 6695663) | ||||
| 169 | 6697917 | 1.04 | 1.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 170 | 6686681 | |||
| O-RING P-6 (OLD 6695663) | ||||
| 171 | 6697917 | 1.04 | 1.26 | |
| TAPSCHROEF D5X14 | ||||
| 172 | 6685275 | 1.15 | 1.39 | |
| FUEL PIPE (OLD 700-07105-02) | ||||
| 173 | 6685154 | 1.15 | 1.39 | |
| CHAIN CATCHER (OLD 125-32710-20) | ||||
| 174 | 6685155 | 1.15 | 1.39 | |
| TAPSCHROEF D4.5X14 | ||||
| 175 | 6685152 | 1.15 | 1.39 | |
| NUT (OLD 121-32530-20) | ||||
| 191 | 6685166 | 2.31 | 2.80 | |
| CLUTCH COMP. (OLD 6688559/6685362) | ||||
| 192 | 6685142 | 14.38 | 17.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 193 | 6685143 | |||
| CLUTCH HOUSING COMP. (OLD 310-32710-20/6695996) | ||||
| 194 | 6685144 | 14.53 | 17.58 | |
| RING | ||||
| 195 | 6685145 | 2.31 | 2.80 | |
| TAPSCHROEF D4X10 | ||||
| 196 | 6685161 | 1.15 | 1.39 | |
| GUIDE PLATE A (OLD 6690733) | ||||
| 197 | 6697599 | 2.80 | 3.39 | |
| CRANK SHAFT COLLAR (OLD 511-32900-20) | ||||
| 199 | 6685146 | 2.31 | 2.80 | |
| TAPSCHROEF D4X10 | ||||
| 200 | 6685161 | 1.15 | 1.39 | |
| SIDE CASE ASS'Y (OLD 040-32970-91/6686109) | ||||
| 201 | 6686110 | 64.28 | 77.77 | |
| GUIDE PLATE B (OLD 462-32911-21/6690755) | ||||
| 202 | 6690756 | 2.31 | 2.80 | |
| SCREW 2.6X5 (OLD 993-30026-050) | ||||
| 203 | 6695269 | 1.15 | 1.39 | |
| BRAKE HANDLE COMP. (OLD 6689676) | ||||
| 204 | 6697958 | 8.58 | 10.38 | |
| Niet meer leverbaar, geen vervanging | ||||
| 205B | 6698986 | |||
| BRAKE LINK COVER, BLACK (OLD 375-32900-21/6689711) | ||||
| 206 | 6689712 | 2.31 | 2.80 | |
| BRAKE SPRING (OLD 374-32970-20) | ||||
| 207 | 6689705 | 2.31 | 2.80 | |
| BRAKE SUPPORT PLATE COMP. (OLD 386-32901-80) | ||||
| 208 | 6685119 | 4.45 | 5.38 | |
| NAALDROLLER 3X9.8 (OUD 999-05300-980) | ||||
| 209 | 6685141 | 1.15 | 1.39 | |
| BRAKE LINK ASS'Y | ||||
| 210 | 6685388 | 4.05 | 4.90 | |
| REMBAND | ||||
| 211 | 6689728 | 8.41 | 10.18 | |
| CLEANER FIXING COLLAR (OLD 470-10246-20) | ||||
| 212 | 6690805 | 1.15 | 1.39 | |
| COLLAR (OLD 031-32901-20) | ||||
| 213 | 6685120 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 214 | 6686046 | |||
| BRAKE LEVER SPRING (OLD 388-32900-20) | ||||
| 215 | 6685122 | 2.31 | 2.80 | |
| TAPSCHROEF D4X15 | ||||
| 216 | 6685148 | 1.15 | 1.39 | |
| TAPSCHROEF D5X35 | ||||
| 221 | 6695107 | 1.15 | 1.39 | |
| CLEANER FIXING COLLAR (OLD 470-10246-20) | ||||
| 222 | 6690805 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 223 | 6688263 | |||
| TAPSCHROEF D5X40 | ||||
| 224 | 6695108 | 1.15 | 1.39 | |
| DAMPER COLLAR A (OLD 275-32970-20) | ||||
| 225 | 6688481 | 1.15 | 1.39 | |
| TAPSCHROEF D5X16 | ||||
| 226 | 6685074 | 1.15 | 1.39 | |
| REAR HANDLE B (OLD 011-32970-80) | ||||
| 227 | 6685651 | 6.60 | 7.99 | |
| PUSH PIN CAP (OLD 725-32161-20) | ||||
| 228 | 6692680 | 1.15 | 1.39 | |
| STOPPER SPRING (OLD 066-32300-20) | ||||
| 229 | 6686447 | 1.15 | 1.39 | |
| PUSH PIN (OLD 064-32530-20) | ||||
| 230 | 6686430 | 1.15 | 1.39 | |
| SAFETY LEVER (OLD 257-32910-20) | ||||
| 231 | 6688363 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 232 | 6686395 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 233 | 6686416 | |||
| REAR HANDLE (OLD 010-32970-20) | ||||
| 234 | 6685623 | 4.45 | 5.38 | |
| TAPSCHROEF D4X15 | ||||
| 235 | 6685148 | 1.15 | 1.39 | |
| FRONT HANDLE (OLD 209-32970-21) | ||||
| 236 | 6688085 | 6.28 | 7.59 | |
| CORD 180MM (OLD 274-01750-80) | ||||
| 237 | 6685252 | 2.31 | 2.80 | |
| CORD 325L (OLD 178-01751-80) | ||||
| 238 | 6687838 | 2.31 | 2.80 | |
| STOP SWITCH (OLD 170-04063-80) | ||||
| 239 | 6685239 | 3.30 | 3.99 | |
| GASKABEL | ||||
| 240 | 6693874 | 4.45 | 5.38 | |
| CORD CLAMP COMP. (OLD 198-11600-80/6691462/6691463 | ||||
| 241 | 6688011 | 1.15 | 1.39 | |
| ENGINE CASE COVER (OLD 563-32970-20) | ||||
| 242 | 6691379 | 3.30 | 3.99 | |
| TAPSCHROEF D4.5X14 | ||||
| 243 | 6685153 | 1.15 | 1.39 | |
| COMBI BOX SPANNER 10/19MM (OLD 013-29323-50/668566 | ||||
| 501 | 6685257 | 3.30 | 3.99 | |
| 4X50 MINUS DRIVER (OUD 081-29329-7U) | ||||
| 502 | 6686632 | 3.06 | 3.71 | |
| VELKAM | ||||
| 503 | 6685270 | 7.65 | 9.26 | |
| TAPSCHROEF D5X14 | ||||
| 504 | 6685275 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 505 | 6697854 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 506 | 6685295 | |||
| KETTINGBESCHERMER 14" | ||||
| 507 | 6685256 | 6.44 | 7.79 | |
| NAME PLATE CS35EH(S) (OLD 906-72102-21) NEW | ||||
| 601 | 6694397 | 1.05 | 1.27 | |
| STARTER MARK CS35EH(S) (OLD 915-72102-21) NEW | ||||
| 602 | 6694500 | 1.05 | 1.27 | |
