Tekeningen van de Hikoki ECS-3301B

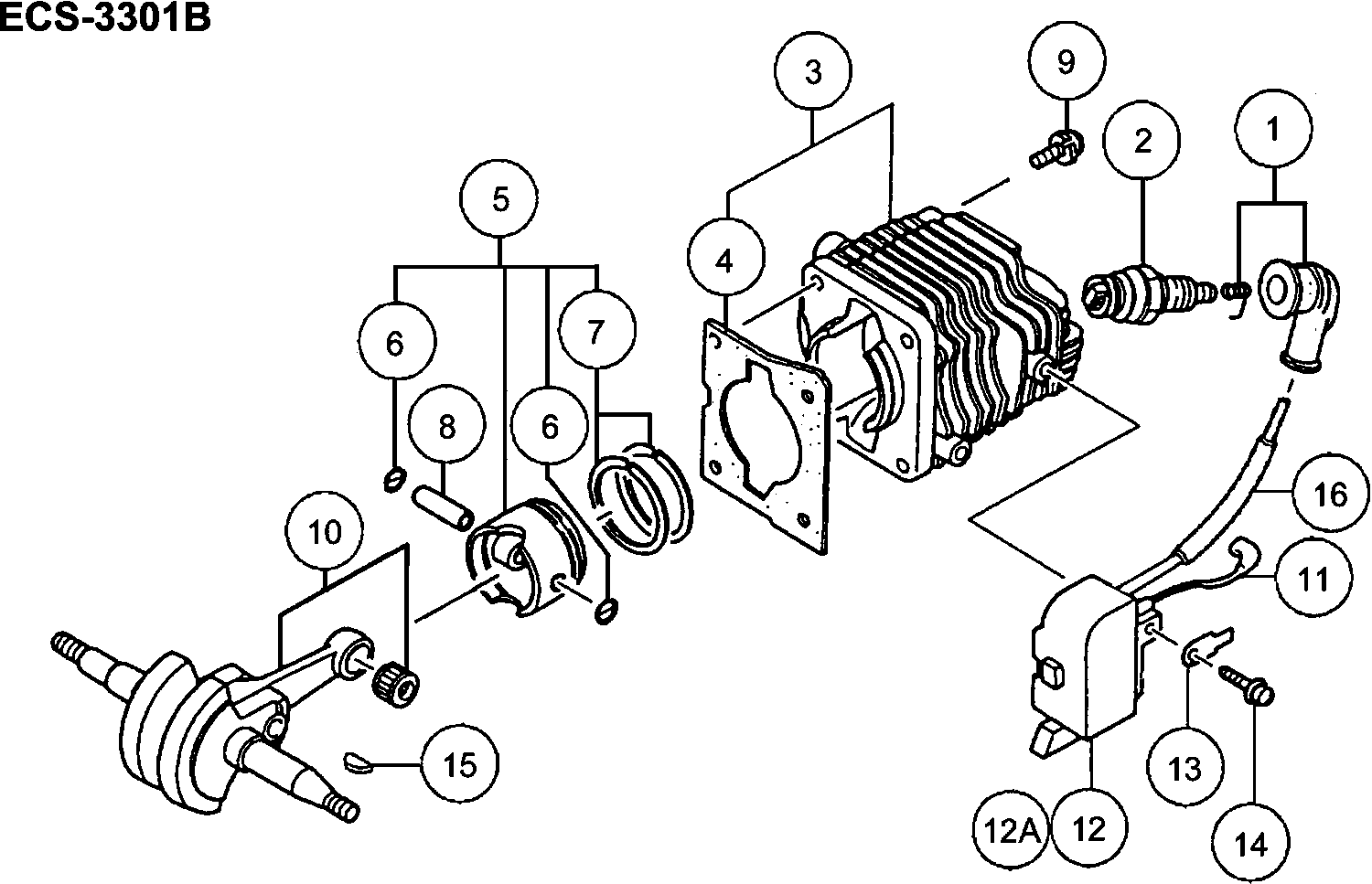

Onderdelen tekening 1

Onderdelen lijst van de Hikoki ECS-3301B

Pos. Omschrijving Prijs excl. BTW Prijs incl. BTW
Getoonde prijzen zijn inclusief btw

Spark Plug Cap Ass'y (old 157-01570-90/6687470/668
1 6687468 2.31 2.80

Spark Plug Cj8 (old 6685771)
2 6699324 3.30 3.99

Cylinder Set (old 001-01740-91/6685458)
3 6685457 44.31 53.62

Cylinder Gasket (old 017-01740-20)
4 6685724 1.15 1.39

Piston Set (old 030-01741-90)
5 6685879 22.24 26.91

Circlip (old 039-00000-20)
6 6685078 1.15 1.39

Zuiger Ring (xr1-1856)
7 6685331 4.05 4.90

Piston Pin 9 X 31 (old 037-01400-20/791170)
8 6686008 2.31 2.80

Hex.hole Bolt M5x16/s (old 994-61050-164)
9 6684903 2.15 2.60

Niet meer leverbaar
10 6697636

Cord, B 70m (old 178-01740-80)
11 6687837 2.31 2.80

Bobine
12 6687697 36.15 43.74

Bobine
12A 6687700 44.31 53.62

Tab (old 205-01700-20)
13 6688060 1.15 1.39

High Tension Screw 4x18ws (old 994-16040-186)
14 6695407 1.15 1.39

Woodruff Key 3x13x4.5 (oud 068-10100-20)
15 6684899 2.15 2.60

Cord Insulator Tube (old 755-32050-20)
16 6692900 1.15 1.39

Olie Keerring
21 6684607 4.29 5.19

Niet meer leverbaar
22 6685095

Kogellager 6201 A2c3
23 6685096 5.28 6.38

Crank Case Gasket (old 090-01740-21)
24 6686699 1.15 1.39

Niet meer leverbaar
25 6684668

Magneto Rotor Ass'y (old 155-21529-91)
26 6687393 19.51 23.61

Magneto Rotor Ass'y (old 155-21540-90)
26A 6687394 24.20 29.28

D4e Retaining Ring (old 993-55040-001)
27 6685101 1.15 1.39

Starter Pawl Spring (old 790-01740-20)
28 6685105 1.15 1.39

Starter Pawl
29A 6685334 1.05 1.27

Ring
30 6685103 1.15 1.39

Flywheel Nut (old 066-00000-20)
31 6685104 1.15 1.39

Shim S T0.2 (old 071-04063-23)
32 6685098 1.15 1.39

Shim S T0.3 (old 071-04063-24)
32 6685099 1.15 1.39

Shim 0.1 (old 071-04063-21)
32 6686474 1.15 1.39

Shim 0.4 (old 071-04063-25)
32 6686475 1.15 1.39

Ring
33 6695222 1.15 1.39

Engine Case Ass'y, Vermilion (old 560-32910-90)
40 6691363 34.19 41.37

Air Vent Valve (b) (old 562-04060-20)
41 6685173 2.31 2.80

Air Vent Valve Set (old 6692164)
42 6697231 5.45 6.59

Hex. Hole Bolt 5x20/ps (old 994-63050-204)
43 6684634 2.15 2.60

Aardedraad 90mm (oud 6688444)
44 6697602 1.98 2.39

Stop Switch Ass'y (old 6687502)
45A 6601374 11.71 14.17

Switch Name Plate (old 183-01300-20/6689113)
46 6687949 1.15 1.39

Grommet A (old 052-32900-21/6686328)
47 6686329 1.15 1.39

Luchtfilterkap
50 6686299 3.30 3.99

Luchtfilterkap
51 6689735 1.15 1.39

Luchtfilter Element
52 6690064 3.30 3.99

Carburetor Insulator Rubber (old 409-01700-20)
55 6690001 1.15 1.39

Niet meer leverbaar
58 6694964

Carburetor Gasket
59 6698108 1.80 2.18

Carburateurset
60 6690664 60.35 73.02

Screw 5x45s (old 994-14050-451)
61 6695350 1.15 1.39

Choke Shim 1.0 (old 708-32911-20) New
62 6692597 1.05 1.27

Ring 5 (oud 992-00050-011)
63 6684864 2.15 2.60

Choke Valve (old 700-32918-20/6692409)
64 6692410 2.31 2.80

Tapping Screw D4.5x14 (old 990-75045-144)
65 6685152 1.15 1.39

Luchtfilterkap
66 6687344 4.45 5.38

Niet meer leverbaar
67 6684668

Ring 5 (oud 992-00050-011)
68 6684864 2.15 2.60

Idle Sponge (old 191-32970-20)
69 6685224 1.15 1.39

Aircleaner Sponge (old 446-01740-20)
71 6690355 1.15 1.39

Seal Cover (old 129-01730-20)
72 6687182 1.15 1.39

Hex. Hole Bolt 5x40 (old 990-51050-403)
81 6695054 1.15 1.39

Ring
82 6684661 2.15 2.60

Muffler Set, Spare (old 704-01742-91)
83 6692445 52.34 63.33

Muffler Set (old 704-01742-92) New
83A 6692446 31.08 37.60

Niet meer leverbaar
84 6692627

Niet meer leverbaar
85A 6692677

Spark Arrestor (old 732-01740-20) New
86 6692691 4.45 5.38

Niet meer leverbaar
87 6692607

Muffler Gasket (old 737-01700-20)
88 6692734 1.15 1.39

Muffler Coupling Gasket (old 739-01709-20)
89 6692833 1.15 1.39

Oil Pipe B (old 505-32710-20)
101 6691121 4.45 5.38

Clip 7 (old 680-04019-21)
102 6692312 1.15 1.39

Ring
103 6684661 2.15 2.60

Oil Filter (old 487-32712-20/6696804)
104 6690919 1.15 1.39

Oil Filter Body Ass'y (old 486-32710-90)
105 6685249 2.31 2.80

Throttle Rod (old 490-32910-20)
106 6690974 4.45 5.38

Throttle Guide (old 491-32710-20)
107 6690982 1.15 1.39

Rubber Pipe (old 678-01740-20/6692291)
110 6692292 4.45 5.38

Pump Filter Body Ass'y (old 675-11600-90/6692275/6
111 6685199 4.45 5.38

Niet meer leverbaar
114 6697780

Adjuster Cap (old 190-3290g-20)
115 6687957 3.30 3.99

Grommet (old 707-32710-20)
116 6692590 1.15 1.39

Choke Button Comp. (old 704-32710-80)
117 6692513 2.31 2.80

Grommet (old 191-32710-20)
118 6687976 1.15 1.39

O-ring
119 6697898 1.04 1.26

Oil Tank Cap Ass'y (old 642-32719-90)
120 6692159 5.11 6.19

Tank Dop Compleet
121 6692118 5.11 6.19

Recoil Starter Ass'y (old 756-01740-90)
131 6692906 44.31 53.62

Tapping Screw D5x14 (old 990-72050-144)
132 6685275 1.15 1.39

Ring
133 6689681 1.15 1.39

Starter Pully (old 774-01740-20)
134 6693060 3.30 3.99

Starter Rope 3 X 890 (old 783-01740-20)
135 6693159 1.15 1.39

Recoil Spring Case Ass'y (old 778-01740-90)
136 6693093 7.75 9.38

Starthendel
137 6693228 2.31 2.80

Ventilatorhuis
138 6686947 8.58 10.38

Tapping Screw D4.5x20 (old 990-72045-204)
139 6685191 1.15 1.39

Inlet Screen (oud 578-25007-20)
151 6684700 4.29 5.19

Pump Body (old 575-25006-20)
152 6691416 8.91 10.78

Screw (old 514-25001-20)
153 6685210 1.15 1.39

Pump Gasket (old 577-25007-20)
154 6685212 2.31 2.80

Pump Diaphragm (old 576-25006-20)
155 6685213 4.45 5.38

Control Lever (old 473-25001-20)
158 6685217 3.30 3.99

Hinge Pin Set Screw (old 546-25001-20)
159 6685218 2.31 2.80

Valve Spring (old 477-25088-20)
160 6690873 4.45 5.38

Hinge Pin (old 605-25001-20)
161 6685219 1.15 1.39

Diaphragm Cover (old 476-25004-20)
162 6685222 4.45 5.38

Metering Diaphragm Comp. (old 474-25001-80/6690826
163 6690827 11.71 14.17

Diaphragm Packing (old 475-25038-20)
164 6685220 2.31 2.80

Needle Valve (old 603-25012-20)
165 6685215 5.28 6.38

Idle Adjust Spring (old 463-25006-20)
166 6685297 2.31 2.80

Idle Adjust Screw (old 462-25016-20)
167 6685298 2.31 2.80

Set Screw (old 548-25012-20)
170 6685223 1.15 1.39

Screw 5x14/ws (old 994-16050-141)
191 6695416 1.15 1.39

Oil Pump Cover (old 097-32900-20)
192 6686763 2.31 2.80

Oil Pipe A (old 515-32710-20)
193 6691223 3.30 3.99

Screw Gear (old 084-32900-20)
194 6686645 10.40 12.58

Air Vent Sponge (old 567-01700-20)
195 6691400 1.15 1.39

Oil Pump Ass'y (old 144-32902-90/6686678/6686652/6
196 6687324 10.56 12.78

Oil Adjust Grommet (old 488-32710-21/6690955)
197 6690956 1.15 1.39

Oil Pump Adjuster (old 501-32710-21)
198 6691070 1.15 1.39

O-ring P-6 (old 6695663)
199 6697917 1.04 1.26

Oil Pump Case Set, Spare (old 088-3277a-91/6686677
200 6686681 9.74 11.78

O-ring P-6 (old 6695663)
201 6697917 1.04 1.26

Tapping Screw D5x14 (old 990-72050-144)
202 6685275 1.15 1.39

Fuel Pipe (old 700-07105-02)
203 6685154 1.15 1.39

Chain Catcher (old 125-32710-20)
204 6685155 1.15 1.39

Tapping Screw D4.5x14 (old 990-75045-144)
205 6685152 1.15 1.39

Nut (old 121-32530-20)
221 6685166 2.31 2.80

Nut (old 121-32530-20)
221A 6685166 2.31 2.80

Clutch Comp. (old 6688559/6685362)
222 6685142 14.38 17.39

Needle Bearing (old 999-62101-301)
223 6685143 4.45 5.38

Clutch Housing Comp. (old 310-32710-20/6695996)
224 6685144 14.53 17.58

Ring
225 6685145 2.31 2.80

Tapping Screw D4x10 (old 993-41040-101)
226 6685161 1.15 1.39

Crank Shaft Collar (old 511-32900-20)
228 6685146 2.31 2.80

Brake Handle Comp. (old 6689676)
235 6697958 8.58 10.38

Brake Link Cover, Black (old 375-32900-21/6689711)
236 6689712 2.31 2.80

BRAKE SPRING
237 6697694 2.10 2.54

Brake Support Plate Comp. (old 386-32901-80)
238 6685119 4.45 5.38

Needle Roller 3x9.8 (old 999-05300-980)
239 6685141 1.15 1.39

Brake Link Ass'y
240 6685388 4.05 4.90

Remband
241 6689728 8.41 10.18

Cleaner Fixing Collar (old 470-10246-20)
242 6690805 1.15 1.39

Collar (old 031-32901-20)
243 6685120 1.15 1.39

Side Cover Comp.
244 6697614 10.89 13.17

Brake Lever Spring (old 388-32900-20)
245 6685122 2.31 2.80

Tapping Screw D4x15 (old 993-41040-151)
246 6685148 1.15 1.39

Nylon Lock Nut 4 (old 991-78040-010)
261 6695163 1.15 1.39

Tapping Screw 5x40 (old 990-73050-404)
262 6695108 1.15 1.39

Damper Collar A (old 275-32710-20) New
263 6688480 1.15 1.39

Damper A (old 219-32750-20)
264 6688117 1.15 1.39

Screw 4x30ps (old 994-15040-302)
265 6695378 1.15 1.39

Rear Handle B Comp. (old 011-32900-80)
266 6685645 5.61 6.79

Push Pin Cap (old 725-32161-20)
267 6692680 1.15 1.39

Stopper Spring (old 066-32300-20)
268 6686447 1.15 1.39

Push Pin (old 064-32530-20)
269 6686430 1.15 1.39

Safety Lever (old 257-32910-20)
270 6688363 1.15 1.39

Throttle Lever (old 060-32910-20)
271 6686392 1.15 1.39

Throttle Lever Spring (old 061-32710-20)
272 6686416 2.31 2.80

Rear Handle (old 010-32900-20)
273 6685620 7.59 9.18

Tapping Screw 5x35 (old 990-73050-354)
274 6695107 1.15 1.39

Tapping Screw D4x15 (old 993-41040-151)
275 6685148 1.15 1.39

Front Handle (old 209-32946-20/6688076)
276 6688083 6.28 7.59

Damper B (old 266-32750-20/6688412)
277 6688412 1.15 1.39

Damper Collar B (old 276-32710-20)
278 6688485 1.15 1.39

Tapping Screw 5x35 (old 990-73050-354)
279 6695107 1.15 1.39

Combi Box Spanner 10/19mm (old 013-29323-50/668566
501 6685257 3.30 3.99

Combi Box Spanner 13x19 Minus (old 883-32600-20)
501A 6693809 4.45 5.38

Niet meer leverbaar
503A 6685401

Minus Driver
505 6686632 3.06 3.71
