Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki HTD-2530PF'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

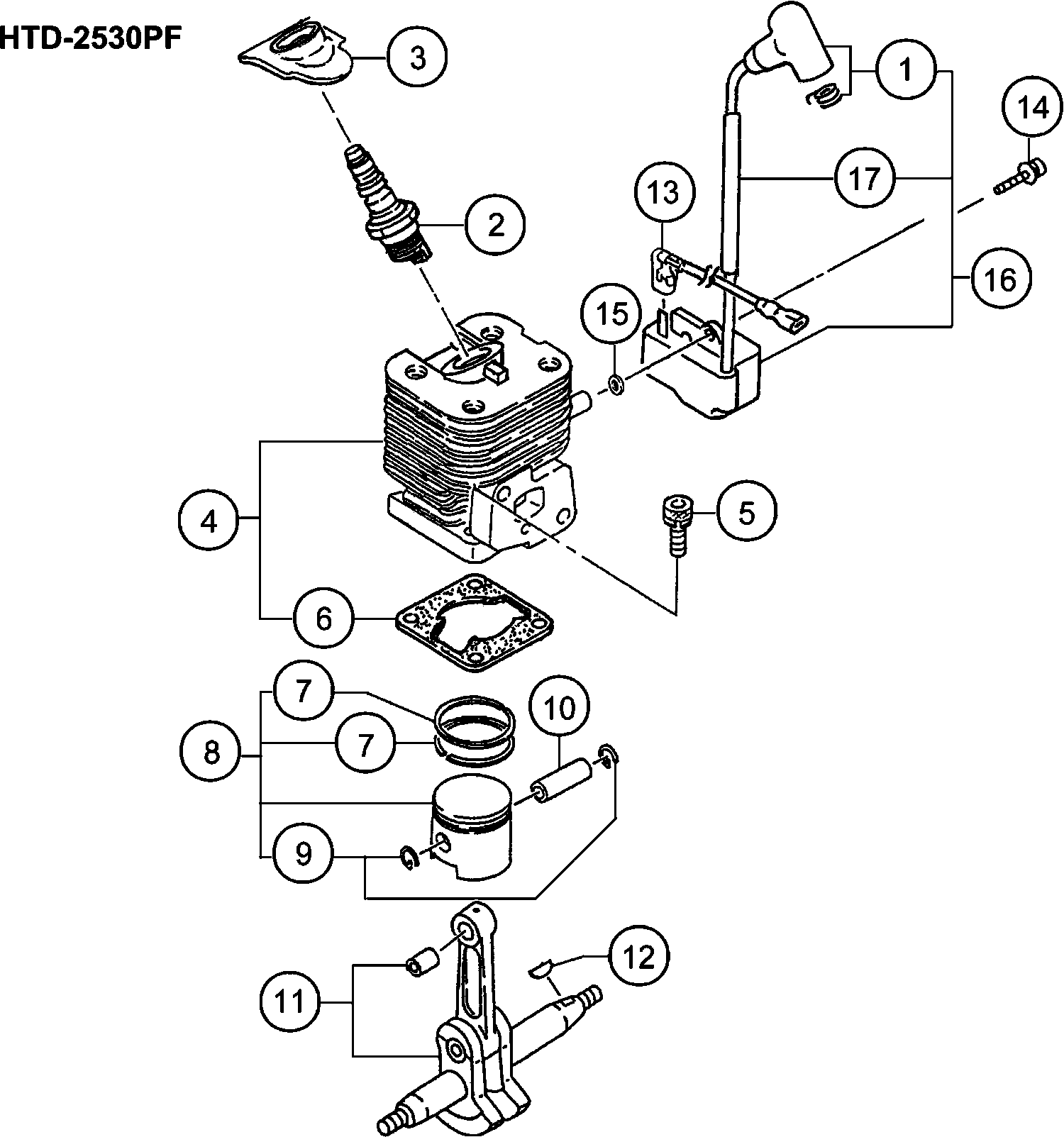

Tekeningen van de Hikoki HTD-2530PF
Onderdelen lijst van de Hikoki HTD-2530PF
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Plug Cap Ass'y (oud 157-01680-90) | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Bougie Rcj8y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| Spark Plug Rubber Cover (old 255-01680-20) | ||||
| 3 | 6688334 | 3.30 | 3.99 | |
| Cylinder Set (old 001-03002-90) | ||||
| 4 | 6685462 | 66.40 | 80.34 | |
| Hex.hole Bolt M5x18/s(oud 994-61050-184) | ||||
| 5 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket (old 017-03002-21) | ||||
| 6 | 6685728 | 1.15 | 1.39 | |
| Piston Ring (oud 041-01601-20) | ||||
| 7 | 6684588 | 8.58 | 10.38 | |
| Piston Set (old 030-01680-90) | ||||
| 8 | 6685877 | 28.14 | 34.05 | |
| Circlip (old 039-00000-20) | ||||
| 9 | 6685078 | 1.15 | 1.39 | |
| Piston Pin (old 037-07020-20/6686011) | ||||
| 10 | 6686016 | 2.31 | 2.80 | |
| Niet meer leverbaar, geen vervanging | ||||
| 11 | 6686176 | |||
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 12 | 6684899 | 2.15 | 2.60 | |
| Cord, B 140m (old 178-03002-80) | ||||
| 13 | 6687840 | 3.30 | 3.99 | |
| Hex.hole Bolt M4x18/ws (oud 994-64040-184) | ||||
| 14 | 6684599 | 2.15 | 2.60 | |
| Ring (old 182-0186a-20) | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 16 | 6687704 | |||
| Insulator Tube (old 250-01680-20) | ||||
| 17 | 6688316 | 1.05 | 1.27 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.10 (old 330-00200-21) | ||||
| 31 | 6689177 | 1.15 | 1.39 | |
| Gear Shaft Shim 0.15 (old 330-00200-22) | ||||
| 31 | 6689178 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 32 | 6688047 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 33 | 6686529 | |||
| Olie Keerring | ||||
| 34 | 6684607 | 4.29 | 5.19 | |
| Kogellager 6001 C3 | ||||
| 35 | 6684608 | 3.80 | 4.60 | |
| Niet meer leverbaar, geen vervanging | ||||
| 36 | 6686705 | |||
| Stud Bolt 6x22 (old 100-02100-20) | ||||
| 37 | 6686771 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 38 | 6684786 | 2.15 | 2.60 | |
| Screw 5x45s (old 994-14050-451) | ||||
| 39 | 6695350 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x45 (old 990-51050-453) | ||||
| 39A | 6695055 | 1.15 | 1.39 | |
| Ring 5 (old 992-10050-062) | ||||
| 40 | 6684834 | 2.15 | 2.60 | |
| Vliegwiel | ||||
| 41 | 6687418 | 28.14 | 34.05 | |
| Ring | ||||
| 42 | 6684971 | 1.04 | 1.26 | |
| Ring M8 (old 992-01080-011) | ||||
| 43 | 6684611 | 2.15 | 2.60 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 44 | 6684612 | 2.15 | 2.60 | |
| Intake Manifold Gasket (old 403-03002-20) | ||||
| 51 | 6689874 | 2.31 | 2.80 | |
| Insulator Set,spare (old 404-03002-91) | ||||
| 52 | 6689937 | 6.60 | 7.99 | |
| Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513) | ||||
| 53 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket (old 402-03002-20) | ||||
| 54 | 6689828 | 3.30 | 3.99 | |
| O-ring P-15 | ||||
| 55 | 6698966 | 1.04 | 1.26 | |
| Cleaner Body Comp. (old 423-06500-81/6690118) For | ||||
| 56 | 6690119 | 4.45 | 5.38 | |
| Collar 7.5 (old 470-06500-20) | ||||
| 57 | 6690804 | 1.15 | 1.39 | |
| Choke Valve (old 528-03002-20) | ||||
| 58 | 6691261 | 3.30 | 3.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 59 | 6684658 | |||
| Blow Over Check Board (old 476-01700-20/790189) | ||||
| 60 | 6690843 | 1.15 | 1.39 | |
| Ring (oud 992-10050-012) | ||||
| 61 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 (oud 990-11050-602) | ||||
| 62 | 6684660 | 2.15 | 2.60 | |
| Reinigingsspons | ||||
| 63 | 6690364 | 1.15 | 1.39 | |
| Luchtfilterkap | ||||
| 64 | 6690415 | 5.28 | 6.38 | |
| Special Screw (old 380-0637c-20) | ||||
| 65 | 6689737 | 1.15 | 1.39 | |
| Carburateurset | ||||
| 66 | 6690461 | 62.31 | 75.40 | |
| Shield Tube Ass'y | ||||
| 67 | 6601195 | 26.48 | 32.03 | |
| Clip.6.3 Dia. (old 680-00731-20) | ||||
| 68 | 6684619 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 69 | 6684620 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 70 | 6699738 | |||
| Collar 5.8 (old 659-00801-20) | ||||
| 73 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps (old 994-63050-185) | ||||
| 75 | 6695505 | 1.15 | 1.39 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 76 | 6691337 | 1.15 | 1.39 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 77 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
| 78 | 6692347 | 1.15 | 1.39 | |
| Fuel Pipe 2.5x4x70 (old 700-02504-07) | ||||
| 79 | 6692346 | 1.15 | 1.39 | |
| Return Grommet (old 6684627) | ||||
| 80 | 6697846 | 1.04 | 1.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 82 | 6685049 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 83 | 6684625 | |||
| Muffler Protector (old 738-03002-21) | ||||
| 91 | 6692772 | 9.90 | 11.98 | |
| Hex. Hole Screw 6x55 (old 990-53060-553) | ||||
| 95 | 6695086 | 1.15 | 1.39 | |
| Tail Pipe (old 721-03003-20) | ||||
| 96 | 6692646 | 3.30 | 3.99 | |
| Ventilatorhuis | ||||
| 97 | 6686957 | 16.79 | 20.31 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 98 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel (old 774-06097-20) | ||||
| 99 | 6693066 | 3.30 | 3.99 | |
| Set Screw (old 839-02010-20/6693638) | ||||
| 100 | 6693633 | 1.15 | 1.39 | |
| Starter Pulley Ass'y (old 798-06500-90 & 6693401) | ||||
| 101 | 6693405 | 4.45 | 5.38 | |
| Primary Cord Grommet (old 203-06000-20) | ||||
| 102 | 6688049 | 1.15 | 1.39 | |
| Starter Rope (old 783-06097-20/6693174) | ||||
| 103 | 6693168 | 2.31 | 2.80 | |
| Starthendel | ||||
| 104 | 6693237 | 1.15 | 1.39 | |
| Hex.hole Bolt 4x15/ps (old 994-63040-154) | ||||
| 105 | 6684682 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 106 | 6692718 | |||
| Muffler Arrestor (old 732-04400-20) | ||||
| 107 | 6692696 | 2.31 | 2.80 | |
| Ring | ||||
| 108 | 6684661 | 2.15 | 2.60 | |
| Screw 4x8ps (old 994-35040-081) New | ||||
| 109 | 6695471 | 1.15 | 1.39 | |
| Screw 5x8/s (old 994-14050-081) | ||||
| 110 | 6695332 | 1.05 | 1.27 | |
| Slipkoppeling Kompleet | ||||
| 111 | 6688494 | 9.74 | 11.78 | |
| Tapping Screw 4.5x10 (old 990-73045-104) | ||||
| 112 | 6695104 | 1.15 | 1.39 | |
| Bolt 4x12ps (old 994-25040-128) | ||||
| 113 | 6695441 | 1.15 | 1.39 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 114 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-06500-20) | ||||
| 115 | 6693319 | 2.31 | 2.80 | |
| Muffler Set (old 704-03014-91) | ||||
| 116 | 6692455 | 93.09 | 112.64 | |
| Ring | ||||
| 117 | 6684639 | 2.15 | 2.60 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 121 | 6684698 | 4.29 | 5.19 | |
| Swivel (oud 539-25120-20) | ||||
| 122 | 6684697 | 6.44 | 7.79 | |
| Stop Ring (oud 489-25100-20) | ||||
| 123 | 6684696 | 2.15 | 2.60 | |
| O-RING (OUD 550-25100-20) | ||||
| 124 | 6684695 | 4.29 | 5.19 | |
| Main Jet #35 (old 599-2001w-35) | ||||
| 125 | 6691873 | 6.28 | 7.59 | |
| Pump Gasket (old 577-25100-20) | ||||
| 126 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 127 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 128 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. (old 575-25225-80) New | ||||
| 129 | 6691435 | 15.26 | 18.47 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 130 | 6685220 | 2.31 | 2.80 | |
| Metering Diaphragm Comp. (old 474-25241-80) | ||||
| 131 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 132 | 6685222 | 4.45 | 5.38 | |
| Set Screw (old 548-25101-20) | ||||
| 133 | 6691312 | 1.15 | 1.39 | |
| Gear Case Comp. (old 300-33160-82/6688667/6688668) | ||||
| 301 | 6688669 | 28.14 | 34.05 | |
| Gear Case Comp. (old 300-33290-81 & 6695770) | ||||
| 301A | 6688684 | 15.13 | 18.30 | |
| Stop Ring C-15, Outer (old 993-50015-002) | ||||
| 302 | 6695285 | 1.15 | 1.39 | |
| Kogellager 6002z | ||||
| 303 | 6695538 | 6.60 | 7.99 | |
| Kogellager 6002z | ||||
| 304 | 6695538 | 6.60 | 7.99 | |
| Clutch Drum Comp. (old 288-33180-80) | ||||
| 305 | 6688570 | 17.70 | 21.42 | |
| Gear Shaft (old 305-33160-20) | ||||
| 306 | 6688960 | 2.31 | 2.80 | |
| Guide Plate (old 075-33160-20) | ||||
| 307 | 6686612 | 1.15 | 1.39 | |
| Cam Rod (old 101-33190-20) | ||||
| 308 | 6686811 | 5.78 | 6.99 | |
| Gear 2 (old 307-33180-20) | ||||
| 309 | 6688974 | 26.16 | 31.66 | |
| Gear 2 Comp. (old 292-33194-80) | ||||
| 309A | 6688625 | 30.25 | 36.60 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 310 | 6688909 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 311 | 6692100 | |||
| Cutter Guide 845l M6 (old 122-33191-20) | ||||
| 312 | 6687144 | 26.16 | 31.66 | |
| Protection Plate (old 136-33190-20) | ||||
| 313 | 6687289 | 12.88 | 15.58 | |
| Hex Hole Flush Screw 6x16 (old 990-52060-165) | ||||
| 314 | 6695073 | 1.15 | 1.39 | |
| Hex. Hole Flush Bolt 6x25 (old 990-52060-255) | ||||
| 314A | 6695075 | 1.15 | 1.39 | |
| Bovenmes (a) | ||||
| 315 | 6687092 | 60.35 | 73.02 | |
| AFDICHT RUBBER | ||||
| 316 | 6686654 | 1.15 | 1.39 | |
| Ring | ||||
| 317 | 6687187 | 1.15 | 1.39 | |
| Bout | ||||
| 318 | 6687158 | 1.15 | 1.39 | |
| Flensmoer | ||||
| 319 | 6695170 | 1.15 | 1.39 | |
| Hex. Hole Bolt M4x12/s (old 994-61040-124) | ||||
| 320 | 6684595 | 2.15 | 2.60 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 321 | 6688643 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s (old 994-61060-184) | ||||
| 322 | 6695495 | 1.15 | 1.39 | |
| Support Plate (old 462-33290-20) | ||||
| 323 | 6690762 | 3.30 | 3.99 | |
| Nut 6 Ups-p (old 991-87060-001 & 6698766) | ||||
| 324 | 6695175 | 1.15 | 1.39 | |
| Ring | ||||
| 325 | 6684639 | 2.15 | 2.60 | |
| Gear Case B (old 301-33191-21) | ||||
| 326 | 6688850 | 11.88 | 14.37 | |
| Cord Clamp Comp. (old 198-11600-80/6691462/6691463 | ||||
| 327 | 6688011 | 1.15 | 1.39 | |
| Spring Nut 6 (old 994-40060-011) | ||||
| 329 | 6695475 | 1.15 | 1.39 | |
| Support Plate (old 462-33191-20) | ||||
| 330 | 6690759 | 10.40 | 12.58 | |
| Hex. Hole Bolt 4x10s (old 994-61040-104) | ||||
| 331 | 6695484 | 1.15 | 1.39 | |
| Guard Plate (old 135-33191-20) | ||||
| 332 | 6687275 | 2.31 | 2.80 | |
| Kogellager 608 Zz C3 | ||||
| 333 | 6695547 | 3.30 | 3.99 | |
| Hex. Hole Bolt 4x10s (old 994-61040-104) | ||||
| 334 | 6695484 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 6684813 | |||
| Combi Box Spanner 10x19 ,plus (old 036-29331-50) | ||||
| 502 | 6685997 | 4.45 | 5.38 | |
