Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki NC50H'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

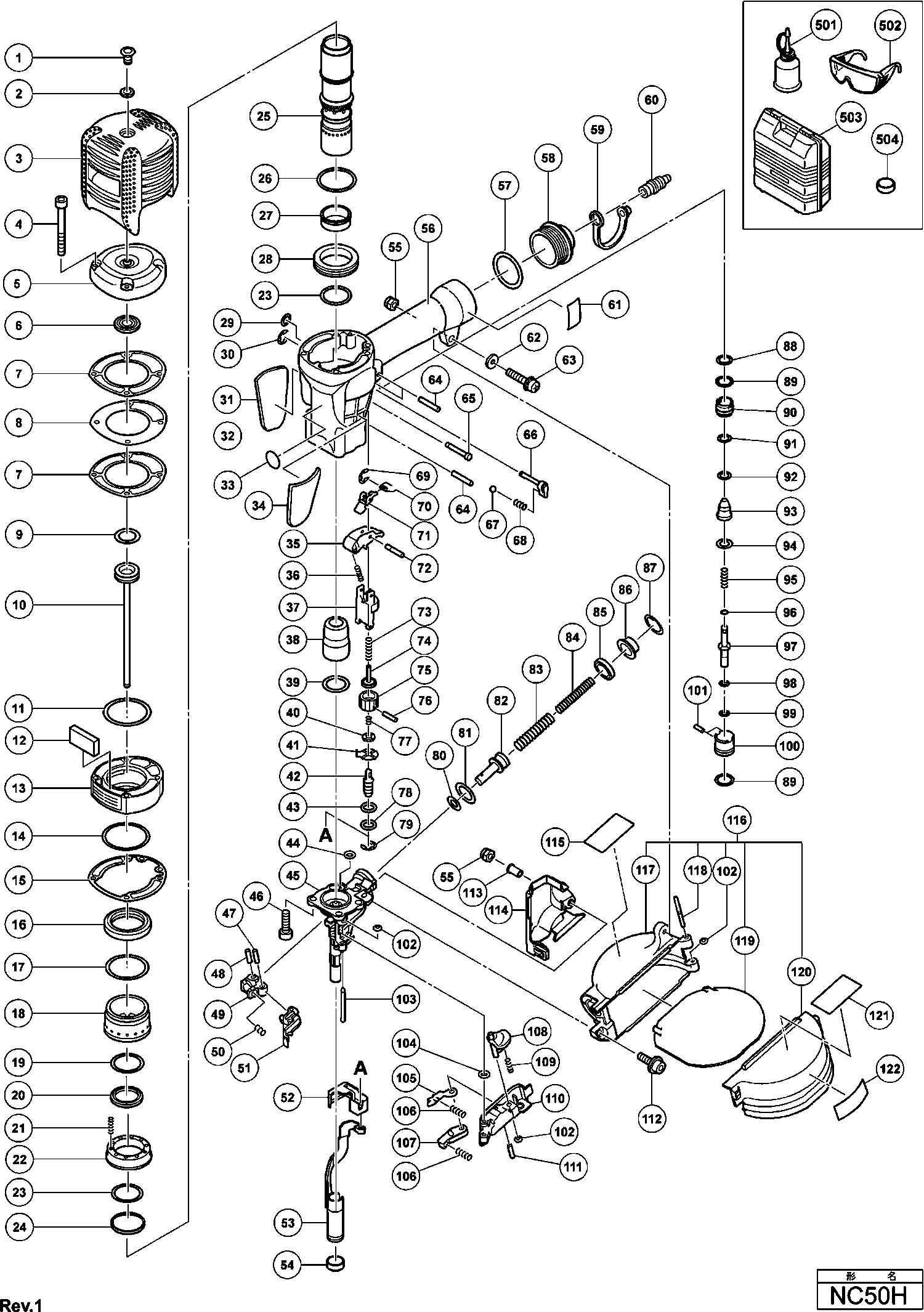

Tekeningen van de Hikoki NC50H
Onderdelen lijst van de Hikoki NC50H
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 1 | 885265 | |||
| RING | ||||
| 2 | 885264 | 5.10 | 6.17 | |
| HEAD GUARD | ||||
| 3 | 885593 | 8.52 | 10.31 | |
| NYLOCK BOUT M5X55 | ||||
| 4 | 883403 | 9.00 | 10.89 | |
| UPPER COVER (GOLD) | ||||
| 5 | 886632 | 67.10 | 81.19 | |
| HEAD BUMPER | ||||
| 6 | 883423 | 7.05 | 8.53 | |
| PAKKING (B) | ||||
| 7 | 883130 | 10.05 | 12.16 | |
| PLATE | ||||
| 8 | 883132 | 5.10 | 6.17 | |
| PISTON O-RING | ||||
| 9 | 885253 | 8.10 | 9.80 | |
| SLAGPEN | ||||
| 10 | 885597 | 293.20 | 354.77 | |
| O-RING (I.D. 45.5) | ||||
| 11 | 883401 | 21.18 | 25.62 | |
| MUFFLER (A) | ||||
| 12 | 883402 | 4.20 | 5.08 | |
| UITLAATKAP | ||||
| 13 | 886634 | 107.80 | 130.44 | |
| O-RING (S-48) | ||||
| 14 | 980715 | 2.40 | 2.90 | |
| PAKKING (C) | ||||
| 15 | 885188 | 13.05 | 15.79 | |
| SLEEVE VALVE RUBBER | ||||
| 16 | 883121 | 8.10 | 9.80 | |
| O-RING (I.D. 41.5) FKM | ||||
| 17 | 885678 | 13.58 | 16.43 | |
| SLEEVE VALVE | ||||
| 18 | 883118 | 45.21 | 54.70 | |
| O-RING (I.D. 35.5) FKM | ||||
| 19 | 885679 | 11.06 | 13.38 | |
| UITLAAT RUBBER | ||||
| 20 | 883120 | 5.10 | 6.17 | |
| SLEEVE VALVE SPRING | ||||
| 21 | 883123 | 1.80 | 2.18 | |
| VALVE PLATE | ||||
| 22 | 885861 | 80.24 | 97.09 | |
| O-RING (I.D. 29.7) | ||||
| 23 | 880865 | 1.35 | 1.63 | |
| CYLINDER BUMPER | ||||
| 24 | 885862 | 13.05 | 15.79 | |
| CYLINDER | ||||
| 25 | 885863 | 167.97 | 203.24 | |
| O-RING (I.D. 45.5) | ||||
| 26 | 883418 | 1.80 | 2.18 | |
| CYLINDER RING | ||||
| 27 | 881244 | 10.05 | 12.16 | |
| CYLINDER PLATE | ||||
| 28 | 883117 | 19.25 | 23.29 | |
| O-RING (I.D. 1.8) | ||||
| 29 | 883405 | 5.10 | 6.17 | |
| RETAININGRING D4 | ||||
| 30 | 968643 | 1.95 | 2.36 | |
| BEHUIZING | ||||
| 32 | 887976 | 105.22 | 127.32 | |
| WARNING LABEL (A) | ||||
| 33 | 883513 | 1.65 | 2.00 | |
| TRIGGER (S) | ||||
| 35 | 886052 | 9.00 | 10.89 | |
| TRIGGER SPRING | ||||
| 36 | 884916 | 1.80 | 2.18 | |
| PUSHING LEVER GUIDE | ||||
| 37 | 886047 | 18.29 | 22.13 | |
| SLAGPEN BUMPER | ||||
| 38 | 885254 | 13.35 | 16.15 | |
| O-RING (S-34) | ||||
| 39 | 980879 | 1.05 | 1.27 | |
| ADJUSTER PLATE | ||||
| 40 | 884973 | 1.65 | 2.00 | |
| ADJUSTER PLATE | ||||
| 41 | 882886 | 3.30 | 3.99 | |
| PUSHING LEVER (B) | ||||
| 42 | 882888 | 17.33 | 20.96 | |
| O-RING (S-4) | ||||
| 43 | 981317 | 1.05 | 1.27 | |
| O-RING (1AP-3) | ||||
| 44 | 873093 | 1.05 | 1.27 | |
| NEUSSTUK | ||||
| 45 | 886050 | 368.28 | 445.62 | |
| PAKKINGBOUT M7X25 (OUD 991696) | ||||
| 46 | 993040 | 2.40 | 2.90 | |
| AS (B) | ||||
| 47 | 883093 | 3.30 | 3.99 | |
| ROL PIN D4X16 (10 STUKS) | ||||
| 48 | 949497 | 2.55 | 3.09 | |
| FEEDER ARM (B) | ||||
| 49 | 883144 | 46.75 | 56.57 | |
| VEER VOOR TOEVOERMECHANISME | ||||
| 50 | 883143 | 1.65 | 2.00 | |
| TOEVOERMECHANISME | ||||
| 51 | 885604 | 57.64 | 69.74 | |
| PUSHING LEVER COVER (B) | ||||
| 52 | 883113 | 5.10 | 6.17 | |
| PUSHING LEVER (A) | ||||
| 53 | 886058 | 152.90 | 185.01 | |
| NEUSKAP | ||||
| 54 | 886057 | 16.83 | 20.36 | |
| NYLON MOER M5 | ||||
| 55 | 877371 | 1.05 | 1.27 | |
| O-RING (I.D. 37.2) | ||||
| 57 | 880183 | 1.05 | 1.27 | |
| CAP (GOLD) | ||||
| 58 | 886426 | 20.21 | 24.46 | |
| STOFKAPJE | ||||
| 59 | 877914 | 1.95 | 2.36 | |
| AIR PLUG L-PT 1/4 | ||||
| 60 | 883135 | 14.99 | 18.13 | |
| HULS (A) | ||||
| 62 | 886059 | 19.58 | 23.69 | |
| MACHINE SCREW M5X35 BLACK (W/WASHERS) | ||||
| 63 | 885266 | 1.50 | 1.82 | |
| ROL PIN D3X28 (10 STUKS) | ||||
| 64 | 949865 | 2.55 | 3.09 | |
| TRIGGER PIN | ||||
| 65 | 885268 | 13.05 | 15.79 | |
| LOCK KNOB | ||||
| 66 | 885865 | 18.70 | 22.63 | |
| STALEN KOGEL D3.175 (10 STUKS) | ||||
| 67 | 959148 | 1.05 | 1.27 | |
| LOCK SPRING | ||||
| 68 | 882923 | 1.80 | 2.18 | |
| VEERRING | ||||
| 69 | 886056 | 1.50 | 1.82 | |
| VEER | ||||
| 70 | 886054 | 14.16 | 17.14 | |
| TRIGGER ARM (S) | ||||
| 71 | 886053 | 161.56 | 195.49 | |
| TRIGGER ARM PIN | ||||
| 72 | 886055 | 22.00 | 26.62 | |
| PUSHING LEVER SPRING (A) | ||||
| 73 | 883305 | 1.50 | 1.82 | |
| PUSHING LEVER (C) | ||||
| 74 | 882891 | 18.15 | 21.96 | |
| ADJUSTER | ||||
| 75 | 882889 | 3.45 | 4.17 | |
| ROL PIN D2X16 | ||||
| 76 | 880093 | 1.04 | 1.26 | |
| ADJUSTER SPRING | ||||
| 77 | 882890 | 1.65 | 2.00 | |
| O-RING (S-5) | ||||
| 78 | 872822 | 3.00 | 3.63 | |
| STOPRING | ||||
| 79 | 872971 | 1.05 | 1.27 | |
| O-RING (P-9) | ||||
| 80 | 872645 | 1.65 | 2.00 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 81 | 877763 | 1.05 | 1.27 | |
| FEED PISTON | ||||
| 82 | 883094 | 22.00 | 26.62 | |
| VEER (A) | ||||
| 83 | 883095 | 1.80 | 2.18 | |
| VEER (B) | ||||
| 84 | 883096 | 1.80 | 2.18 | |
| BUMPER | ||||
| 85 | 885681 | 7.35 | 8.89 | |
| FEED PISTON COVER | ||||
| 86 | 883098 | 3.45 | 4.17 | |
| BORGRING VOOR D24 | ||||
| 87 | 983748 | 1.05 | 1.27 | |
| O-RING (S-14) | ||||
| 88 | 876319 | 1.65 | 2.00 | |
| O-RING (S-16) | ||||
| 89 | 876031 | 1.65 | 2.00 | |
| VALVE BUSHING B) | ||||
| 90 | 883100 | 6.75 | 8.17 | |
| O-RING (P7-U) | ||||
| 91 | 883105 | 3.45 | 4.17 | |
| O-RING (P9-U) | ||||
| 92 | 883104 | 3.45 | 4.17 | |
| VALVE PISTON | ||||
| 93 | 883101 | 30.25 | 36.60 | |
| O-RING (1AP-11) | ||||
| 94 | 878764 | 1.04 | 1.26 | |
| PLUNGER SPRING | ||||
| 95 | 883103 | 1.80 | 2.18 | |
| O-RING (I.D. 1.8) | ||||
| 96 | 883405 | 5.10 | 6.17 | |
| PLUNGER (S) | ||||
| 97 | 886051 | 55.00 | 66.55 | |
| O-RING (1AP-5) | ||||
| 98 | 873407 | 1.04 | 1.26 | |
| O-RING (S-6) | ||||
| 99 | 997218 | 1.05 | 1.27 | |
| VALVE BUSHING (A) | ||||
| 100 | 883099 | 8.10 | 9.80 | |
| PIN D2X8 (10 PCS) | ||||
| 101 | 949778 | 1.80 | 2.18 | |
| RING VOOR SCHACHT | ||||
| 102 | 880319 | 1.65 | 2.00 | |
| NAIL GUIDE SHAFT | ||||
| 103 | 885603 | 15.26 | 18.47 | |
| O-RING (P-4) | ||||
| 104 | 874436 | 1.05 | 1.27 | |
| NAIL STOPPER (A) | ||||
| 105 | 885601 | 20.49 | 24.79 | |
| STOPPER SPRING | ||||
| 106 | 885602 | 5.10 | 6.17 | |
| SHEET STOPPER | ||||
| 107 | 885600 | 37.62 | 45.52 | |
| GUIDE LOCK NV50AE | ||||
| 108 | 886107 | 5.10 | 6.17 | |
| VEER (OUD 878308) | ||||
| 109 | 880446 | 1.35 | 1.63 | |
| GELEIDER | ||||
| 110 | 885599 | 117.76 | 142.49 | |
| ROL PIN D3X14 (10 STUKS) | ||||
| 111 | 949900 | 2.40 | 2.90 | |
| BOUT M5X25 | ||||
| 112 | 992253 | 1.05 | 1.27 | |
| SLEEVE | ||||
| 113 | 885605 | 11.10 | 13.43 | |
| PUSHING LEVER COVER (A) | ||||
| 114 | 887964 | 6.66 | 8.06 | |
| WAARSCHUWINGS LABEL | ||||
| 115 | 887175 | 5.10 | 6.17 | |
| MAGAZIJN KOMPLEET | ||||
| 116 | 885612 | 82.36 | 99.66 | |
| MAGAZIJN | ||||
| 117 | 885613 | 22.00 | 26.62 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 118 | 883111 | |||
| NAGELHOUDER | ||||
| 119 | 880438 | 7.05 | 8.53 | |
| MAGAZIJN DEKSEL | ||||
| 120 | 885614 | 19.58 | 23.69 | |
| WAARSCHUWINGS LABEL | ||||
| 121 | 887174 | 5.10 | 6.17 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 883136 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 875769 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 503A | 888666 | |||
| NEUSKAP | ||||
| 504 | 886057 | 16.83 | 20.36 | |
| GRIP TAPE (OLD 880349) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 602A | 888213 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 603 | 876212 | |||
| GRIP GUIDE | ||||
| 604 | 887133 | 41.36 | 50.05 | |
| HANGER PARTS SET | ||||
| 605 | 887978 | 721.66 | 873.21 | |
