Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki TBC-225CS'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

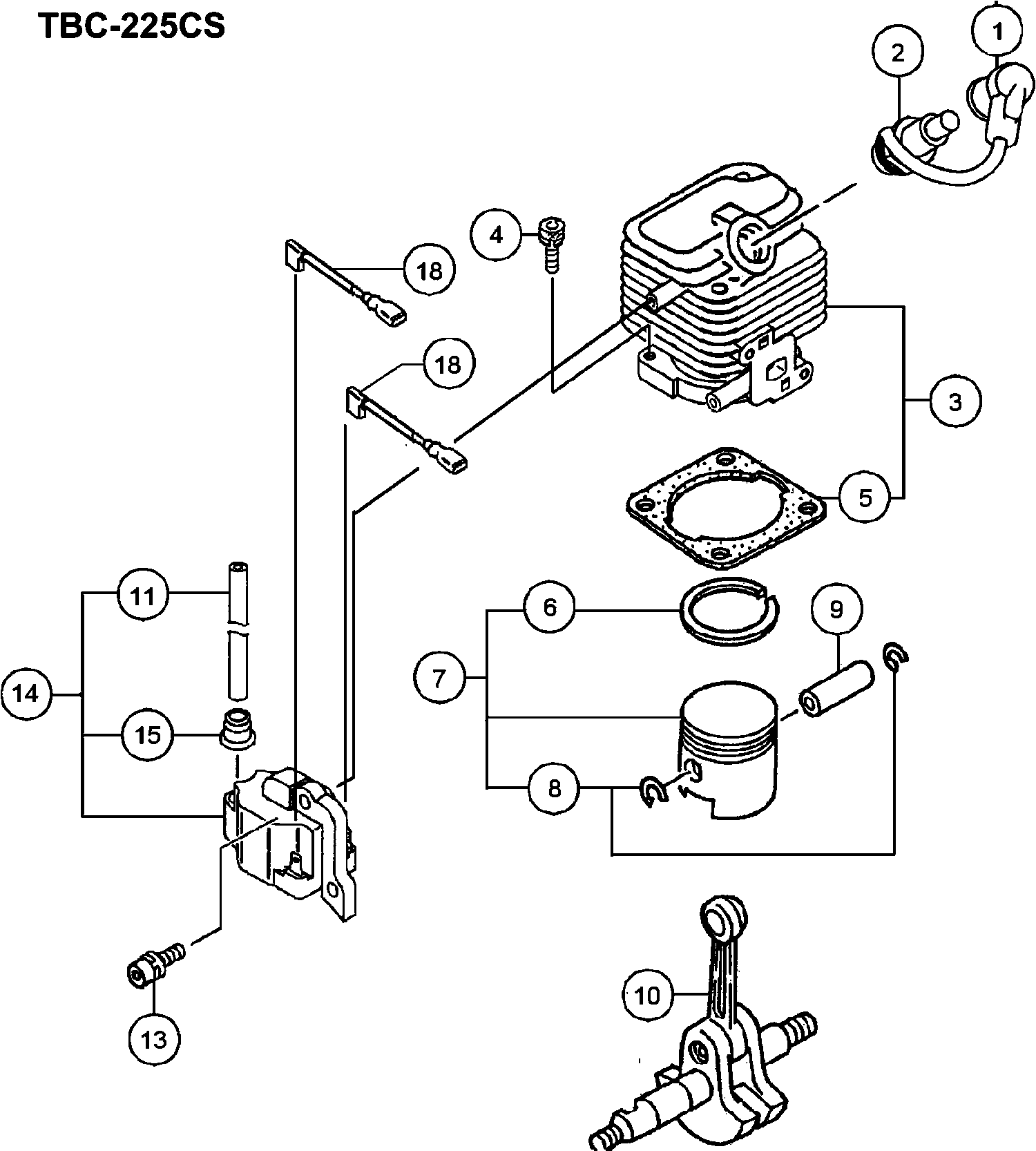

Tekeningen van de Hikoki TBC-225CS
Onderdelen lijst van de Hikoki TBC-225CS
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Bougie (oud 6685085) | ||||
| 2 | 6699317 | 6.76 | 8.18 | |
| Cylinder Set (old 001-07130-91) | ||||
| 3 | 6685489 | 34.19 | 41.37 | |
| Hex.hole Bolt M5x18/s(oud 994-61050-184) | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket (old 017-00980-20 & 6685743) | ||||
| 5 | 6685709 | 1.15 | 1.39 | |
| Piston Ring (old 041-00601-21/ 6686117) | ||||
| 6 | 6686118 | 4.45 | 5.38 | |
| Piston Set (old 030-00070-90) | ||||
| 7 | 6685869 | 15.58 | 18.85 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Zuiger Pin | ||||
| 9 | 6696944 | 3.33 | 4.02 | |
| Crank Shaft Comp. (old 046-07135-80) | ||||
| 10 | 6686217 | 42.20 | 51.06 | |
| High Tension Cord 140l (old 178-20549-20/6687887) | ||||
| 11 | 6687888 | 2.31 | 2.80 | |
| Hex.hole Bolt 4x15/ps (old 994-63040-154) | ||||
| 13 | 6684682 | 2.15 | 2.60 | |
| Ignition Coil Ass'y (old 6687665/6699774) | ||||
| 14 | 6699772 | 17.85 | 21.60 | |
| Rubber Beschermkapje | ||||
| 15 | 6684602 | 2.15 | 2.60 | |
| Stop Cord Comp. (old 178-0136m-80) | ||||
| 18 | 6687826 | 2.31 | 2.80 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| Crank Case Ass'y (old 072-07120-92) | ||||
| 32 | 6686585 | 36.15 | 43.74 | |
| Olie Keerring | ||||
| 33 | 6684607 | 4.29 | 5.19 | |
| Kogellager 6001 C3 | ||||
| 34 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket (old 090-06410-20) | ||||
| 35 | 6686719 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x18/s(oud 994-61050-184) | ||||
| 36 | 6684586 | 2.15 | 2.60 | |
| Vliegwiel | ||||
| 37 | 6601171 | 22.99 | 27.81 | |
| Ring M8 (old 992-01080-011) | ||||
| 38 | 6684611 | 2.15 | 2.60 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 39 | 6684612 | 2.15 | 2.60 | |
| Inlaatpakking | ||||
| 51 | 6689890 | 1.15 | 1.39 | |
| Carb Insulator Set (old 404-0099f-90) | ||||
| 52 | 6689914 | 5.94 | 7.18 | |
| CARBURETOR GASKET (OLD 402-0602K-21/6689836) | ||||
| 53 | 6684615 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x22/ws (old 994-64050-224) | ||||
| 54 | 6695514 | 1.15 | 1.39 | |
| Shield Tube (old 223-07000-90) | ||||
| 57 | 6688174 | 2.31 | 2.80 | |
| Clip.6.3 Dia. (old 680-00731-20) | ||||
| 58 | 6684619 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 59 | 6684620 | |||
| Tank (evapo) (old 591-0717f-20) | ||||
| 60 | 6691595 | 30.25 | 36.60 | |
| Tank Cap D Ass'y (old 595-03002-90/6685071) | ||||
| 61 | 6691748 | 7.59 | 9.18 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 62 | 6692244 | 1.15 | 1.39 | |
| Carburateurset | ||||
| 63 | 6690512 | 66.40 | 80.34 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 64 | 6691337 | 1.15 | 1.39 | |
| Hex.hole Bolt 5x16/ps (old 994-63050-164) | ||||
| 65 | 6695504 | 1.15 | 1.39 | |
| Screw 5x20ws (old 994-65050-205) | ||||
| 66 | 6695516 | 1.15 | 1.39 | |
| Fuel Pipe 3x5x80 (oud 700-03005-08) | ||||
| 68 | 6684880 | 2.15 | 2.60 | |
| Return Grommet (old 6684627) | ||||
| 69 | 6697846 | 1.04 | 1.26 | |
| Plus Screw 5x60ws (old 994-16050-601) | ||||
| 71 | 6695431 | 1.15 | 1.39 | |
| O-ring P-15 | ||||
| 72 | 6698966 | 1.04 | 1.26 | |
| Muffler Protector Black (old 738-07162-20) | ||||
| 91 | 6692809 | 5.11 | 6.19 | |
| Screw 4x15ps (old 994-15040-151) | ||||
| 92 | 6695373 | 1.15 | 1.39 | |
| Tapping Screw D4.5x12 (old 990-73045-124) | ||||
| 94 | 6684637 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | ||||
| 95 | 6685114 | 1.15 | 1.39 | |
| Ring M5 (oud 992-01050-061) | ||||
| 96 | 6684918 | 2.15 | 2.60 | |
| Muffler Set (old 704-07139-90 & 6692433) | ||||
| 98 | 6692496 | 12.54 | 15.17 | |
| Muffler Gasket (old 737-07000-20 & 6692743) | ||||
| 100 | 6692745 | 1.15 | 1.39 | |
| Warmteschild | ||||
| 101 | 6687253 | 2.31 | 2.80 | |
| Ring | ||||
| 103 | 6684642 | 2.15 | 2.60 | |
| Koppeling Schoen | ||||
| 104 | 6688616 | 7.59 | 9.18 | |
| Clutch Spring (old 342-06410-20) | ||||
| 105 | 6689430 | 2.31 | 2.80 | |
| Clutch Plate A 0.5 (old 348-0630a-20/6689529) | ||||
| 106 | 6684645 | 2.15 | 2.60 | |
| Step Bolt (old 357-00601-20) | ||||
| 107 | 6689627 | 1.15 | 1.39 | |
| Ring | ||||
| 108 | 6684648 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x18/ws (old 994-64050-184) | ||||
| 110 | 6684647 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x30/ws (old 994-64050-304) | ||||
| 112 | 6684973 | 2.15 | 2.60 | |
| Cord Clamp Comp. (old 198-11600-80/6691462/6691463 | ||||
| 113 | 6688011 | 1.15 | 1.39 | |
| Muffler Special Gasket (old 751-04200-20) | ||||
| 114 | 6692883 | 1.15 | 1.39 | |
| Exhaust Pipe Set, Spare (old 734-0099k-90) New | ||||
| 115 | 6692709 | 2.31 | 2.80 | |
| Ring | ||||
| 116 | 6685109 | 1.15 | 1.39 | |
| Muffler Wire Net Set (old 732-0099f-90) New | ||||
| 117 | 6692688 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 131A | 6699995 | |||
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 132 | 6684673 | 19.06 | 23.07 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 133 | 6684674 | 4.29 | 5.19 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 134 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 135A | 6699997 | 8.41 | 10.18 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 136 | 6684677 | 8.58 | 10.38 | |
| Cam Plate | ||||
| 137A | 6699996 | 2.55 | 3.09 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 138 | 6684679 | 2.15 | 2.60 | |
| Starthendel | ||||
| 139 | 6684680 | 2.15 | 2.60 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 140 | 6684681 | 13.20 | 15.97 | |
| Hex. Hole Bolt 4x18ws (old 994-64040-185) | ||||
| 141 | 6695508 | 1.15 | 1.39 | |
| Stop Ring E-5 (old 993-55050-000) | ||||
| 142 | 6684683 | 2.15 | 2.60 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 143 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 144 | 6684685 | 4.29 | 5.19 | |
| Cam Plate Ass'y | ||||
| 145 | 6699691 | 6.10 | 7.38 | |
| Air Cleaner Ass'y (old 410-00025-90) | ||||
| 171 | 6690005 | 9.58 | 11.59 | |
| Air Cleaner Cap (old 424-00025-20) | ||||
| 172 | 6690139 | 4.45 | 5.38 | |
| Luchtfilter Element | ||||
| 173 | 6690347 | 4.45 | 5.38 | |
| Collar (old 470-00025-20) | ||||
| 175 | 6690801 | 2.31 | 2.80 | |
| Cleaner Body Comp. (old 423-00025-80) | ||||
| 176 | 6690085 | 8.91 | 10.78 | |
| Pump Body Comp. (old 575-25153-80) | ||||
| 191 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. (oud 442-25151-80) | ||||
| 192 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover (oud 476-25151-20) | ||||
| 193 | 6684688 | 8.58 | 10.38 | |
| Priming Body (oud 447-25108-20) | ||||
| 194 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. (old 474-25241-80) | ||||
| 195 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket (oud 475-25153-20) | ||||
| 196 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 197 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 198 | 6691457 | 7.10 | 8.59 | |
| Main Jet #38 (old 599-2000w-38) | ||||
| 199 | 6691844 | 4.45 | 5.38 | |
| O-RING (OUD 550-25100-20) | ||||
| 200 | 6684695 | 4.29 | 5.19 | |
| Stop Ring (oud 489-25100-20) | ||||
| 201 | 6684696 | 2.15 | 2.60 | |
| Swivel (oud 539-25120-20) | ||||
| 202 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 203 | 6684698 | 4.29 | 5.19 | |
| Set Screw (old 548-25151-20 & 6696324) | ||||
| 204 | 6684699 | 2.15 | 2.60 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 205 | 6684700 | 4.29 | 5.19 | |
| Clutch Drum Comp (old 6688603) | ||||
| 221 | 6697713 | 11.05 | 13.37 | |
| Tapping Screw D4.5x14 (old 990-75045-144) | ||||
| 222 | 6685152 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x30/ws (old 994-64050-304) | ||||
| 223 | 6684973 | 2.15 | 2.60 | |
| Ventilatorhuis | ||||
| 224 | 6687031 | 14.53 | 17.58 | |
| Square Nut 5 (old 991-91050-001) | ||||
| 225 | 6695176 | 1.15 | 1.39 | |
| Spacer (old 249-0712k-20) New | ||||
| 226 | 6688311 | 1.05 | 1.27 | |
| Main Pipe Set (old 353-38474-91) | ||||
| 261 | 6689610 | 88.33 | 106.87 | |
| Cutter Case Ass'y (old 300-38474-90) | ||||
| 262 | 6685044 | 58.39 | 70.65 | |
| Main Pipe (old 341-38474-21) | ||||
| 263 | 6689413 | 50.21 | 60.76 | |
| Flexible Liner (old 350-38474-20) | ||||
| 264 | 6685037 | 17.70 | 21.42 | |
| Flexible Shaft (old 344-38474-20) | ||||
| 265 | 6685038 | 17.70 | 21.42 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 266 | 6698339 | |||
| Kogellager 608 Zz C3 | ||||
| 267 | 6695547 | 3.30 | 3.99 | |
| Collar 5 (old 348-38474-20) | ||||
| 268 | 6685014 | 2.10 | 2.54 | |
| Bolt M5x10 (old 990-21050-101) | ||||
| 269 | 6684994 | 1.15 | 1.39 | |
| Cutter Case (old 300-38474-20) | ||||
| 270 | 6685042 | 24.20 | 29.28 | |
| Hex. Bolt M5x30 (old 990-21050-301) New Jul | ||||
| 271 | 6684996 | 1.15 | 1.39 | |
| Ring | ||||
| 272 | 6684971 | 1.04 | 1.26 | |
| Ring | ||||
| 273 | 6685001 | 1.15 | 1.39 | |
| Cutter Holder (old 310-38474-20) | ||||
| 274 | 6685073 | 4.45 | 5.38 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 275 | 6685016 | |||
| Safety Cover (old 441-38452-21) | ||||
| 276 | 6685030 | 12.05 | 14.58 | |
| Ring | ||||
| 277 | 6684639 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 278 | 6684792 | |||
| Plus Bolt M6x45 (old 990-23060-451) New Jun | ||||
| 279 | 6684995 | 1.15 | 1.39 | |
| Mesje (oud 797-38452-20) | ||||
| 280 | 6685015 | 2.31 | 2.80 | |
| Tapping Screw D5x16 (old 990-73050-164) | ||||
| 281 | 6685074 | 1.15 | 1.39 | |
| Holder, Pipe Blk (old 346-3737a-20) | ||||
| 282 | 6689501 | 2.31 | 2.80 | |
| Shaft Grip (old 509-38474-20) New | ||||
| 283 | 6685032 | 14.68 | 17.76 | |
| Front Handle 22 (old 500-38452-20) New | ||||
| 321 | 6685041 | 20.11 | 24.34 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 322 | 6685075 | |||
| Hex.hole Bolt 5x30s (old 994-16050-301) New | ||||
| 323 | 6695426 | 1.15 | 1.39 | |
| Throttle Lever Ass'y 22 (old 870-38474-90) | ||||
| 324 | 6693772 | 30.25 | 36.60 | |
| Throttle Wire (old 885-38451-81) | ||||
| 325 | 6693983 | 3.30 | 3.99 | |
| Throttle Lever (old 880-38451-20) New | ||||
| 326 | 6685006 | 1.15 | 1.39 | |
| Return Spring (old 832-38451-20) | ||||
| 327 | 6684998 | 1.15 | 1.39 | |
| Stop Switch (old 162-38451-20) New | ||||
| 328 | 6685009 | 2.31 | 2.80 | |
| Switch Mark (old 925-38451-20) New | ||||
| 329 | 6685003 | 1.15 | 1.39 | |
| Stop Switch Comp. (old 156-38451-80/6685028) New | ||||
| 330 | 6687462 | 9.40 | 11.37 | |
| Machine Screw M5x30 (old 990-11050-301) | ||||
| 331 | 6685076 | 1.15 | 1.39 | |
| Hex. Nut 5 (old 991-01050-011) | ||||
| 332 | 6684965 | 1.04 | 1.26 | |
| Tapping Screw D5x14 (old 990-72050-144) | ||||
| 333 | 6685275 | 1.15 | 1.39 | |
| Protection Tube D7x170 (old 164-07017-01) New | ||||
| 334 | 6685007 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 6684813 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 6684764 | |||
| Symbol Mark,tbc-225cs (old 929-07177-20) New | ||||
| 601 | 6694648 | 1.15 | 1.39 | |
