Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki TBC-340D'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

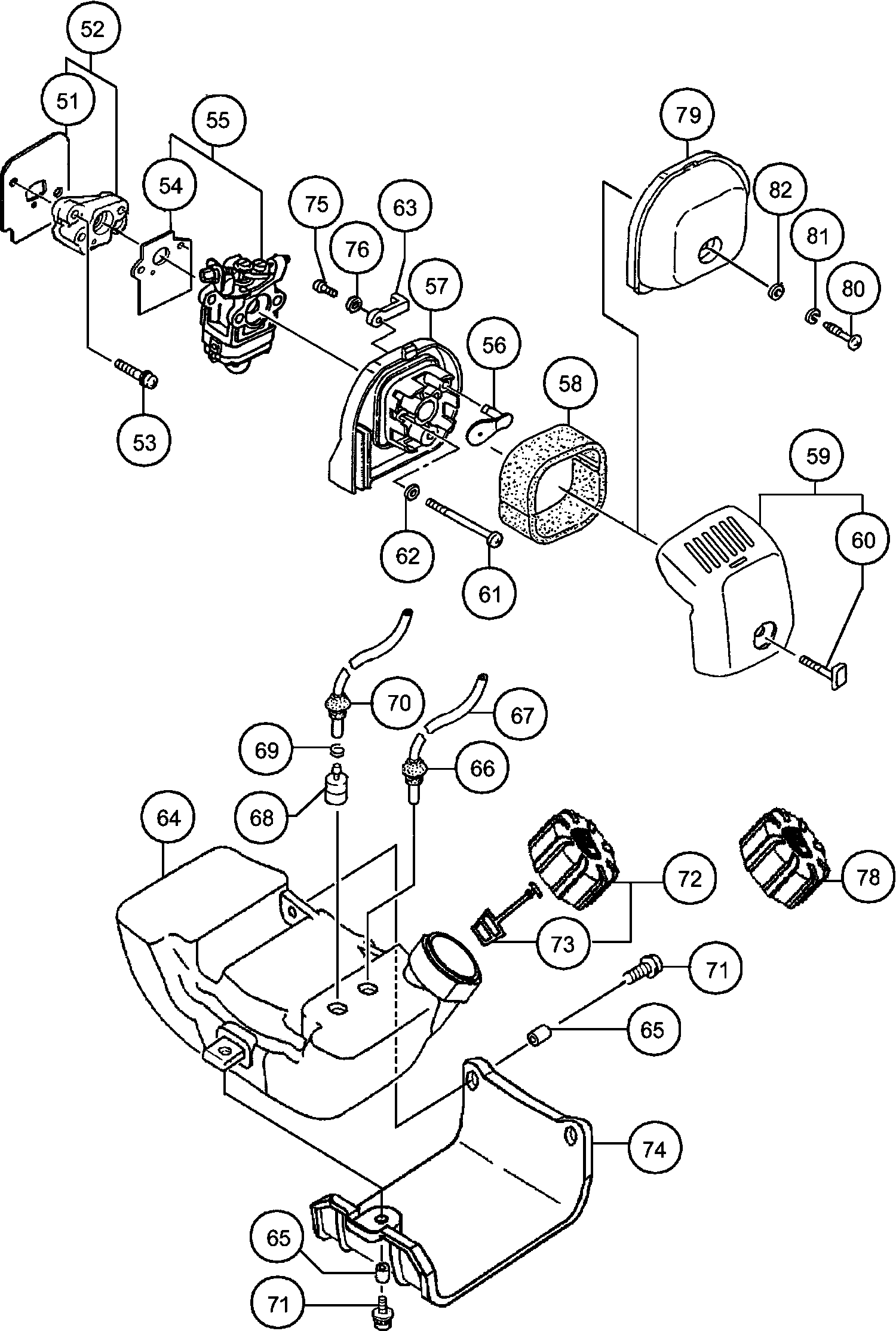

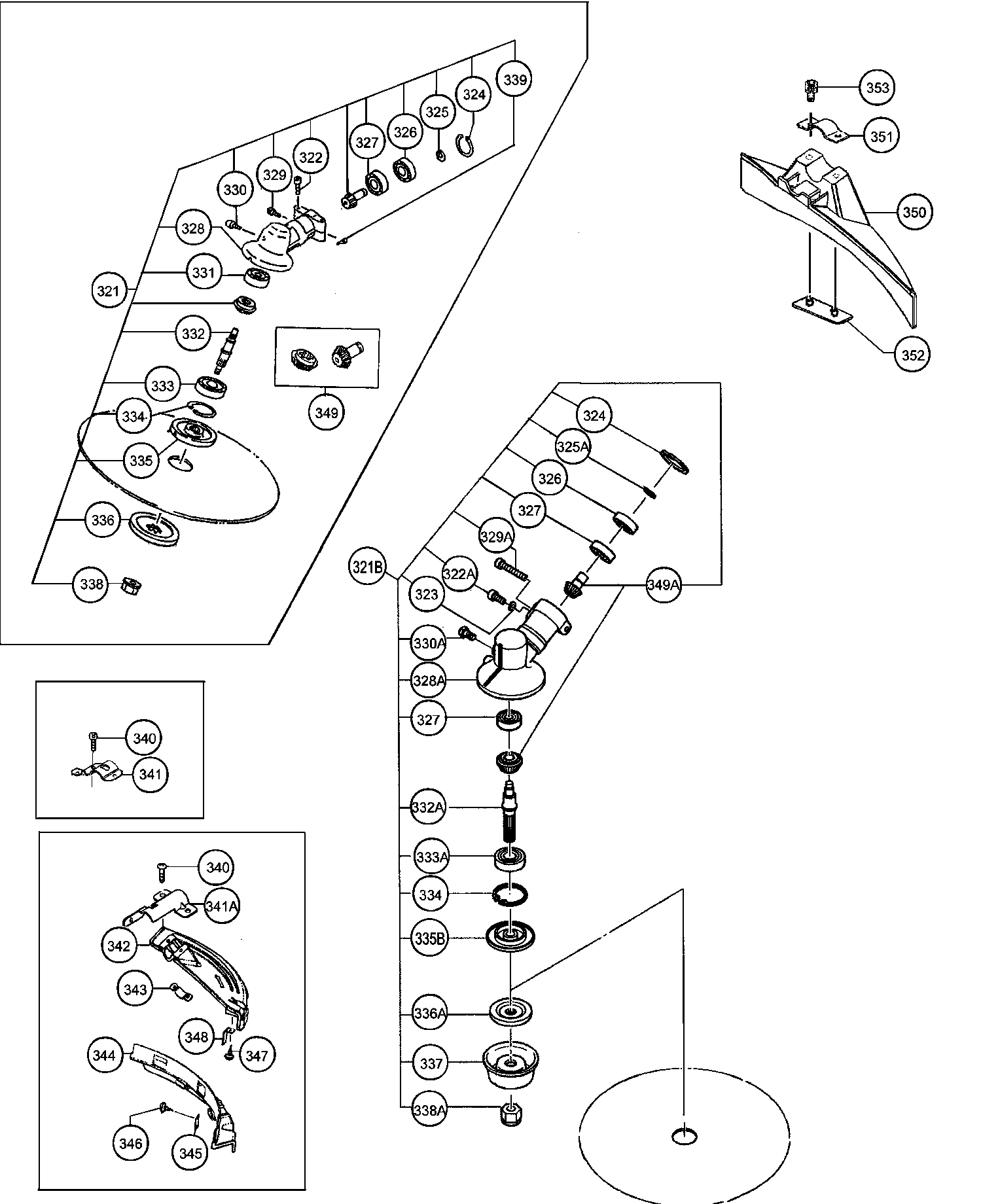

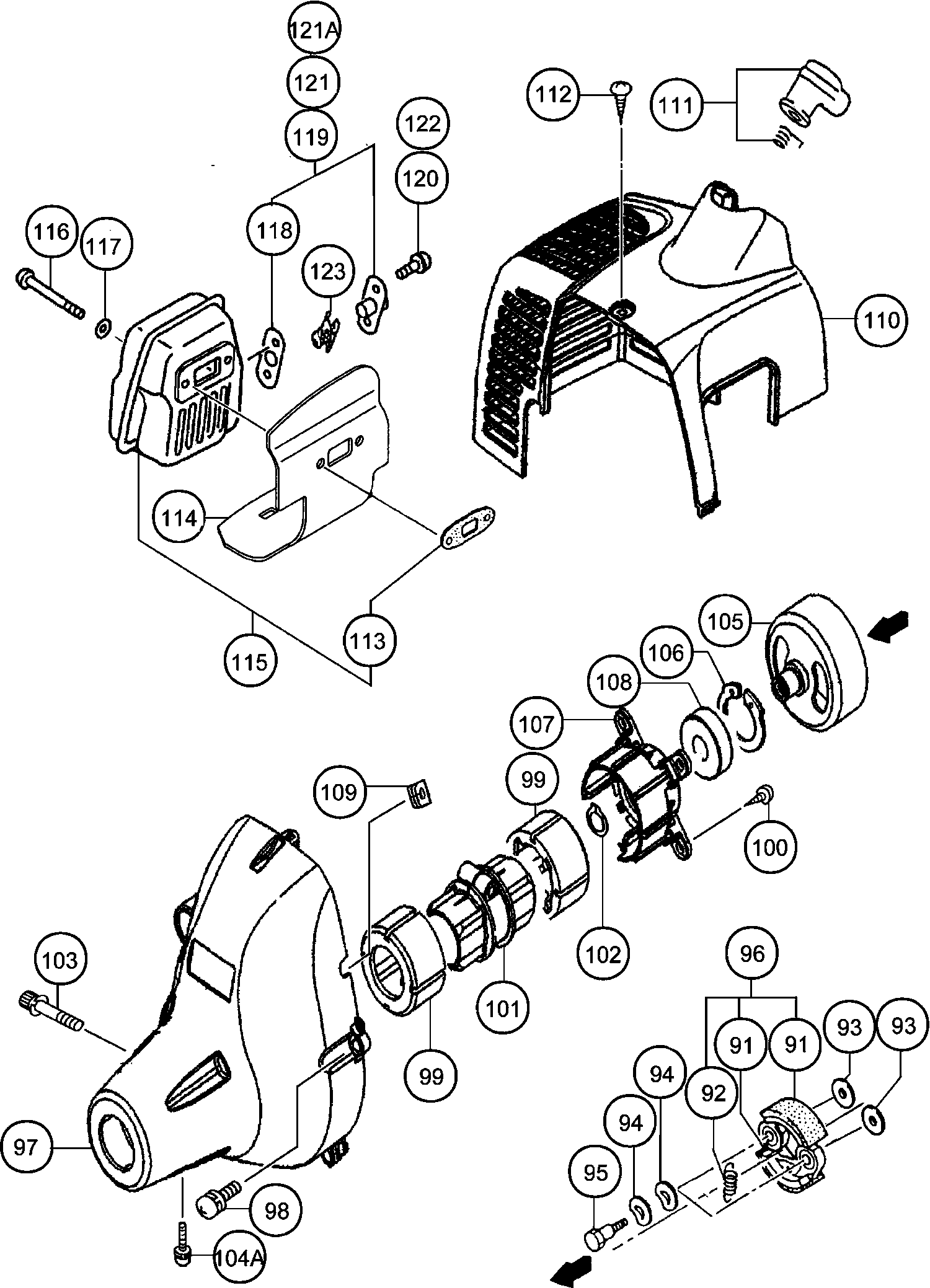

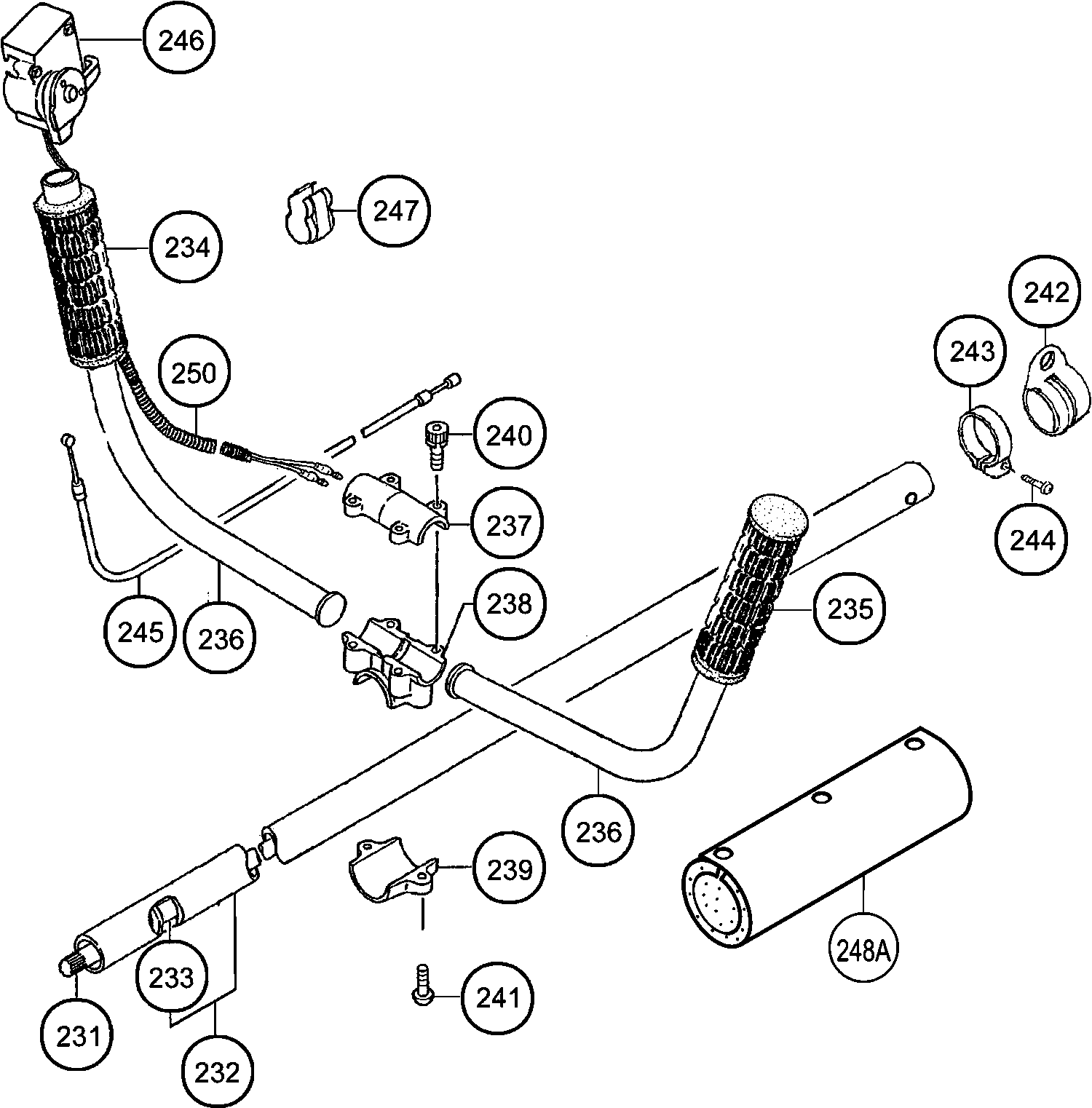

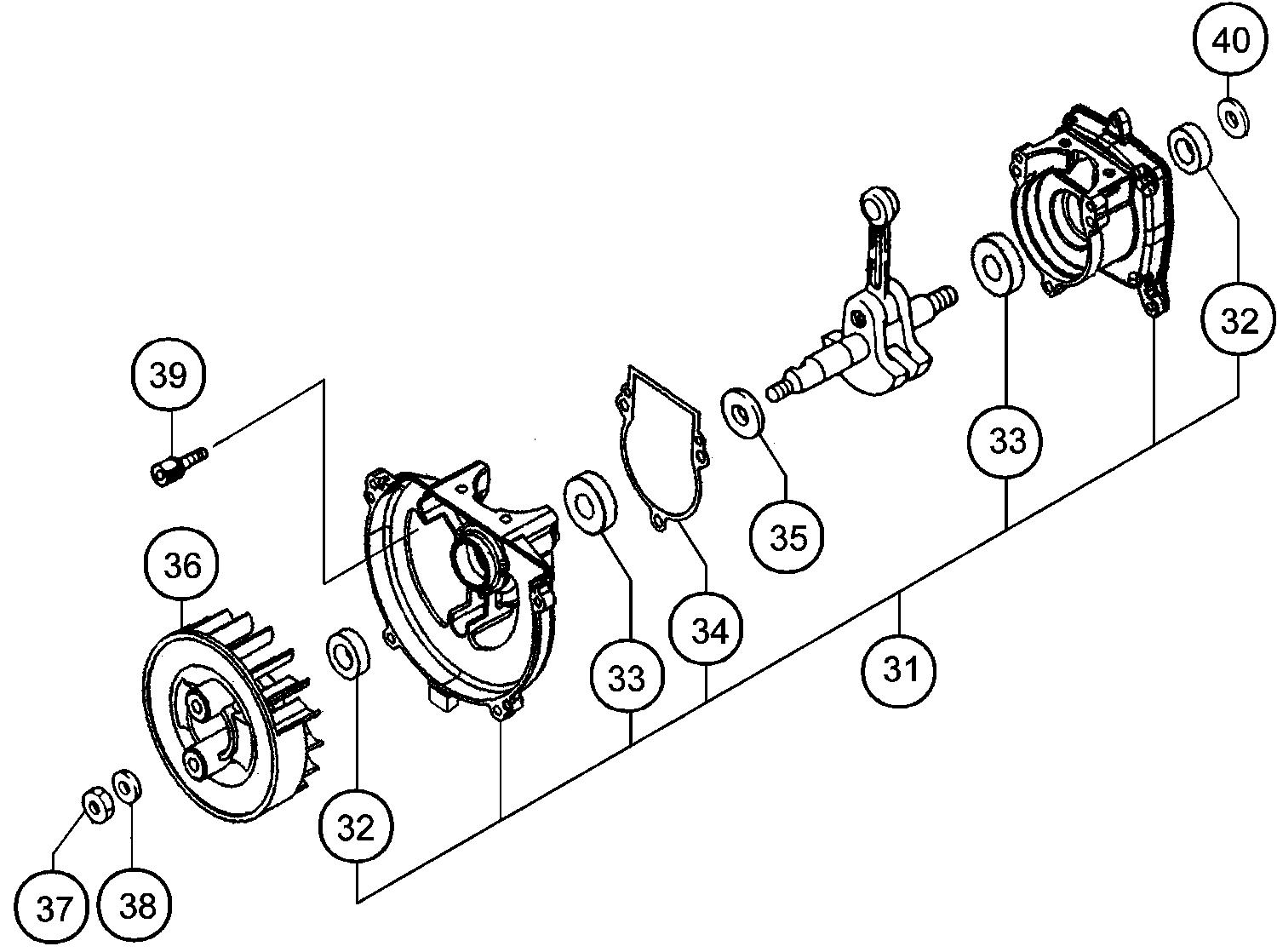

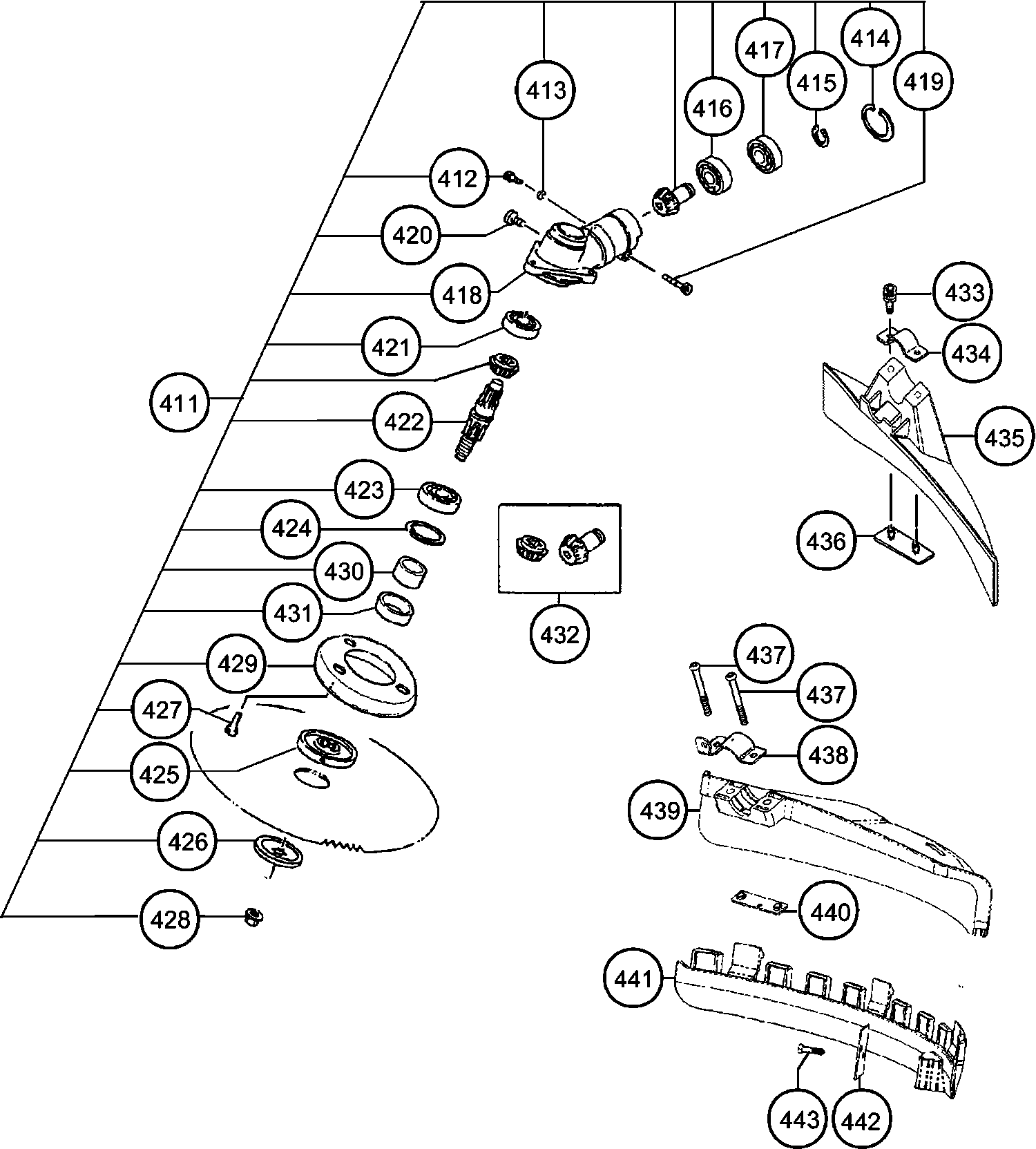

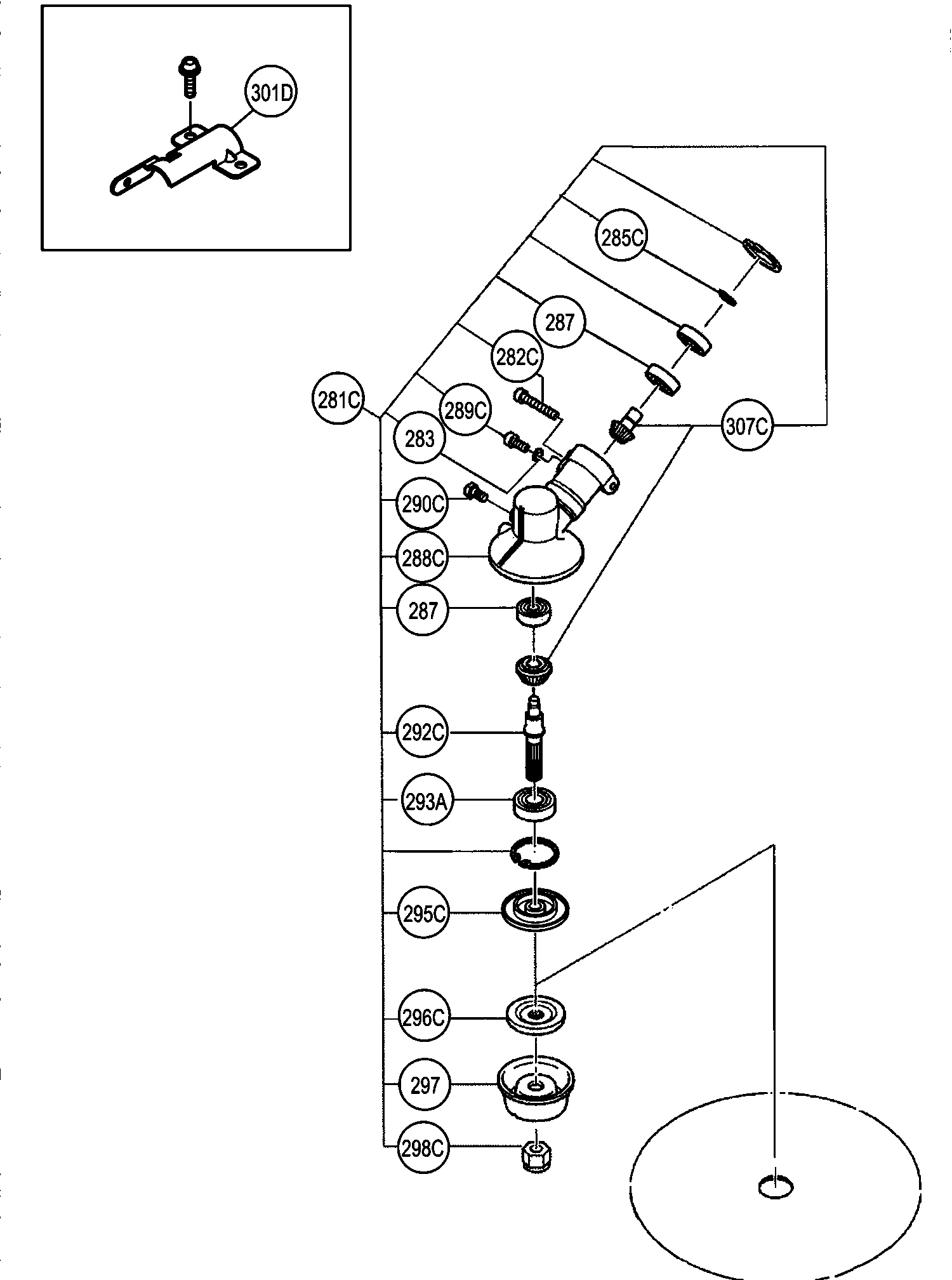

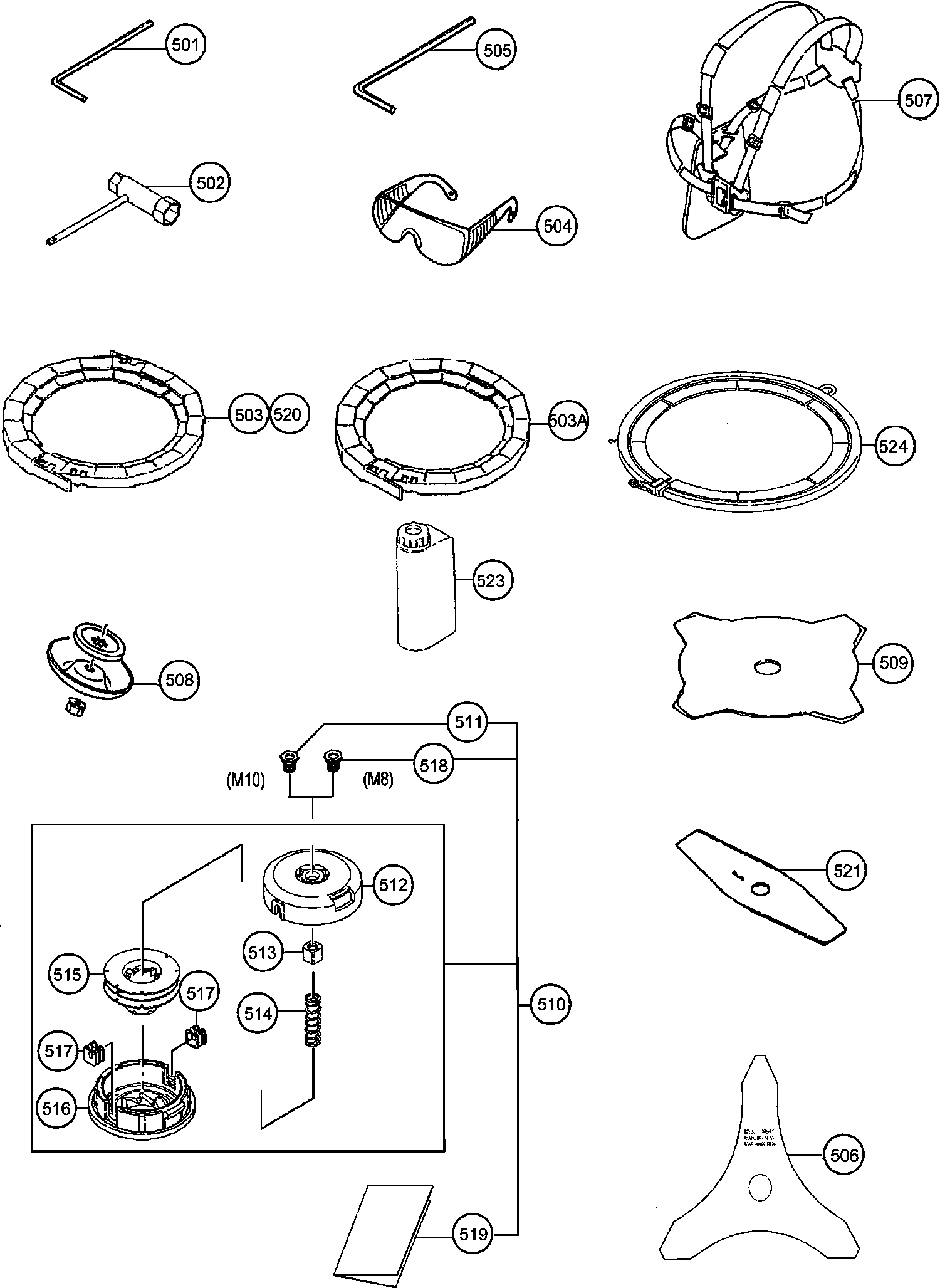

Tekeningen van de Hikoki TBC-340D
Onderdelen lijst van de Hikoki TBC-340D
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Bougie (oud 6685775) | ||||
| 1 | 6699326 | 3.30 | 3.99 | |
| Spark Plug Cj6y (old 6685772) | ||||
| 1 | 6699323 | 2.48 | 2.99 | |
| Cylinder Set (old 001-07031-91/6685486) | ||||
| 2 | 6685487 | 52.34 | 63.33 | |
| Hex.hole Bolt M5x16/s (old 994-61050-164) | ||||
| 3 | 6684903 | 2.15 | 2.60 | |
| Cylinder Gasket (old 017-07020-20) | ||||
| 4 | 6685746 | 1.15 | 1.39 | |
| Zuiger Ring (xr1-1856) | ||||
| 5 | 6685331 | 4.05 | 4.90 | |
| Piston Set (old 030-07030-91/6685897) | ||||
| 6 | 6685898 | 24.20 | 29.28 | |
| Piston Pin 9 X 31 (old 037-01400-20/791170) | ||||
| 7 | 6686008 | 2.31 | 2.80 | |
| Circlip (old 039-00000-20) | ||||
| 8 | 6685078 | 1.15 | 1.39 | |
| Crank Shaft Comp. (old 046-07221-80/6686210) | ||||
| 9 | 6696499 | 67.00 | 81.07 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 10 | 6684899 | 2.15 | 2.60 | |
| High Tension Screw 4x18ws (old 994-16040-186) | ||||
| 11 | 6695407 | 1.15 | 1.39 | |
| Insulator Tube, 110l (old 250-07020-20) | ||||
| 12 | 6688319 | 1.15 | 1.39 | |
| Ignition Coil Ass'y (old 6687665/6699774) | ||||
| 14A | 6699772 | 17.85 | 21.60 | |
| High Tension Cord 140l (old 178-20549-20/6687887) | ||||
| 15 | 6687888 | 2.31 | 2.80 | |
| Rubber Beschermkapje | ||||
| 16 | 6684602 | 2.15 | 2.60 | |
| Lead Wire Ass'y | ||||
| 17 | 6697836 | 5.45 | 6.59 | |
| Ring (old 182-0186a-20) | ||||
| 18 | 6684600 | 2.15 | 2.60 | |
| Stop Cord B160m (old 178-0703b-80) | ||||
| 19 | 6687874 | 2.31 | 2.80 | |
| Crank Case Ass'y (old 072-07020-90) | ||||
| 31 | 6686580 | 38.26 | 46.30 | |
| Olie Keerring | ||||
| 32 | 6684607 | 4.29 | 5.19 | |
| Kogellager 6001 C3 | ||||
| 33 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket (old 090-07020-20) | ||||
| 34 | 6686721 | 1.15 | 1.39 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 35 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 35 | 6684605 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.10 (old 330-00200-21) | ||||
| 35 | 6689177 | 1.15 | 1.39 | |
| Gear Shaft Shim 0.15 (old 330-00200-22) | ||||
| 35 | 6689178 | 1.15 | 1.39 | |
| Vliegwiel | ||||
| 36 | 6687375 | 20.11 | 24.34 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 37 | 6684612 | 2.15 | 2.60 | |
| Ring | ||||
| 38 | 6695184 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x16/s (old 994-61050-164) | ||||
| 39 | 6684903 | 2.15 | 2.60 | |
| Ring | ||||
| 40 | 6689645 | 1.15 | 1.39 | |
| Inlaatpakking | ||||
| 51 | 6689864 | 1.15 | 1.39 | |
| Carburetor Insulator Set,spare (old 404-0143c-90) | ||||
| 52 | 6689924 | 6.60 | 7.99 | |
| Hex.hole Bolt 5x22/ws (old 994-64050-224) | ||||
| 53 | 6695514 | 1.15 | 1.39 | |
| Carburetor Gasket (old 402-0656a-20) | ||||
| 54 | 6684616 | 2.15 | 2.60 | |
| Carburateurset | ||||
| 55 | 6690503 | 86.36 | 104.50 | |
| Carburateurset | ||||
| 55 | 6690505 | 67.65 | 81.86 | |
| Choke Plate 1.0 (old 528-07020-22/6691277) | ||||
| 56 | 6691278 | 1.15 | 1.39 | |
| Cleaner Body Comp. (old 423-0652n-80) | ||||
| 57 | 6690120 | 4.45 | 5.38 | |
| Reinigingsspons | ||||
| 58 | 6690365 | 1.15 | 1.39 | |
| Luchtfilterkap | ||||
| 59 | 6690421 | 13.86 | 16.77 | |
| Cover Fixing Bolt Comp. | ||||
| 60 | 6698730 | 3.15 | 3.81 | |
| Screw M5x57/s (old 994-14050-571/790190) | ||||
| 61 | 6695353 | 1.15 | 1.39 | |
| Ring 5 (oud 992-00050-011) | ||||
| 62 | 6684864 | 2.15 | 2.60 | |
| Choke Control Lever (old 523-0652n-20) | ||||
| 63 | 6691239 | 1.15 | 1.39 | |
| Tank Comp. Wht (old 591-07039-80/6691587) | ||||
| 64 | 6691588 | 11.71 | 14.17 | |
| Collar C (old 659-04300-20) | ||||
| 65 | 6684623 | 2.15 | 2.60 | |
| Fuel Pipe Grommet (old 222-06300-20) | ||||
| 66 | 6688156 | 1.15 | 1.39 | |
| Fuel Pipe 3x5x80 (oud 700-03005-08) | ||||
| 67 | 6684880 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 68 | 6684620 | |||
| Clip D6 (old 680-00070-20) | ||||
| 69 | 6685198 | 1.15 | 1.39 | |
| Fuel Pipe Ass'y (old 223-0162v-90) | ||||
| 70 | 6688169 | 2.31 | 2.80 | |
| Hex Hole Bolt 5x20ps (old 994-63050-205) | ||||
| 71 | 6695506 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 72 | 6685049 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 73 | 6684625 | |||
| Stand (old 941-07035-20) | ||||
| 74 | 6694793 | 3.30 | 3.99 | |
| Tap Screw 4x14 P (old 993-49040-142/6695112) | ||||
| 75 | 6695280 | 1.15 | 1.39 | |
| Ring | ||||
| 76 | 6685070 | 1.15 | 1.39 | |
| Tank Cap D Ass'y (old 595-03002-90/6685071) | ||||
| 78 | 6691748 | 7.59 | 9.18 | |
| Cleaner Cap (old 424-0652n-21) New | ||||
| 79 | 6690154 | 4.45 | 5.38 | |
| Special Screw (old 380-06410-20) New | ||||
| 80 | 6689738 | 4.45 | 5.38 | |
| Ring | ||||
| 81 | 6684633 | 2.15 | 2.60 | |
| Ring | ||||
| 82 | 6684632 | 2.15 | 2.60 | |
| Koppelingsvoering Compleet (oud 290-0138a-80/66886 | ||||
| 91 | 6688610 | 7.59 | 9.18 | |
| Clutch Spring (old 342-0138a-20) | ||||
| 92 | 6689420 | 2.31 | 2.80 | |
| Ring | ||||
| 93 | 6689645 | 1.15 | 1.39 | |
| RING | ||||
| 94 | 6695203 | 1.15 | 1.39 | |
| Clutch Step Bolt (old 357-0136u-20) | ||||
| 95 | 6689628 | 2.31 | 2.80 | |
| Clutch Set Ass'y (old 276-0138a-90) | ||||
| 96 | 6688482 | 12.88 | 15.58 | |
| Ventilatorhuis | ||||
| 97 | 6687019 | 11.05 | 13.37 | |
| Hex. Hole Bolt 5x15ws (old 994-64050-154) | ||||
| 98 | 6695512 | 1.15 | 1.39 | |
| Anti-viberatie rubber | ||||
| 99 | 6691838 | 3.30 | 3.99 | |
| Tapping Screw D5x14 (old 990-72050-144) | ||||
| 100 | 6685275 | 1.15 | 1.39 | |
| Pipe Holder (old 360-07030-20) | ||||
| 101 | 6689656 | 8.91 | 10.78 | |
| Stop Ring C-12 Outer | ||||
| 102 | 6684664 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 103 | 6684709 | 2.15 | 2.60 | |
| Hex. Hole Bolt 4x12ws (old 994-64040-125) | ||||
| 104A | 6695507 | 1.15 | 1.39 | |
| Clutch Shaft Comp. 78 (old 289-07031-80) | ||||
| 105 | 6688598 | 15.73 | 19.03 | |
| Stop Ring R-32 Inner (old 993-53032-002) | ||||
| 106 | 6695304 | 1.15 | 1.39 | |
| Bearing Case (old 088-07020-20) | ||||
| 107 | 6686667 | 7.75 | 9.38 | |
| Kogellager #6201zz | ||||
| 108 | 6695553 | 6.28 | 7.59 | |
| Primary Cord Grommet (old 203-11660-20) | ||||
| 109 | 6688057 | 1.15 | 1.39 | |
| Muffler Protector (old 738-07021-20) | ||||
| 110 | 6692803 | 7.75 | 9.38 | |
| Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | ||||
| 111 | 6687468 | 2.31 | 2.80 | |
| Tapping Screw D4.5x12 (old 990-73045-124) | ||||
| 112 | 6684637 | 2.15 | 2.60 | |
| Muffler Gasket (old 737-0165a-20) | ||||
| 113 | 6692732 | 1.15 | 1.39 | |
| Warmteschild | ||||
| 114 | 6687260 | 3.30 | 3.99 | |
| Muffler Set (old 704-07020-90) | ||||
| 115 | 6692489 | 22.24 | 26.91 | |
| Muffler Set (old 704-0703j-90) | ||||
| 115 | 6692493 | 19.21 | 23.25 | |
| Hex. Hole Bolt M6x55 (old 990-51060-553/6696819) | ||||
| 116 | 6684638 | 2.15 | 2.60 | |
| Ring | ||||
| 117 | 6684639 | 2.15 | 2.60 | |
| Muffler Special Gasket (old 751-07020-20) New | ||||
| 118 | 6692887 | 1.15 | 1.39 | |
| Tailpipe Set (old 721-07020-90) New | ||||
| 119 | 6692669 | 4.45 | 5.38 | |
| Screw 4x8/s (old 994-14040-081) | ||||
| 120 | 6695325 | 1.15 | 1.39 | |
| Tailpipe Set (old 721-07020-90) New | ||||
| 121 | 6692669 | 4.45 | 5.38 | |
| Tail Pipe Set (old 734-07037-90) New | ||||
| 121A | 6692712 | 2.31 | 2.80 | |
| Ring | ||||
| 122 | 6685109 | 1.15 | 1.39 | |
| Spark Arrestor, Usa Only (old 732-0631a-21) | ||||
| 123 | 6692699 | 1.15 | 1.39 | |
| Recoil Starter Ass'y (old 762-0162v-91/6692968) | ||||
| 131 | 6692969 | 22.24 | 26.91 | |
| Starthendel | ||||
| 132 | 6693227 | 3.30 | 3.99 | |
| Rope Guide (old 780-06150-20) | ||||
| 133 | 6693135 | 3.30 | 3.99 | |
| Recoil Starter Body (old 772-06150-21/6693035) | ||||
| 134 | 6693036 | 10.23 | 12.37 | |
| Recoil Spring (old 779-0136u-20) | ||||
| 135 | 6693111 | 7.93 | 9.59 | |
| Rope 3.5x890 (old 783-0162v-20/6693171) | ||||
| 136 | 6693157 | 2.31 | 2.80 | |
| Starter Rope Reel (old 774-0162v-20) | ||||
| 137 | 6693057 | 4.45 | 5.38 | |
| Ring | ||||
| 138 | 6693419 | 1.15 | 1.39 | |
| Set Screw (old 839-00025-20) | ||||
| 139 | 6693632 | 1.15 | 1.39 | |
| Hex.hole Bolt 4x18ps (old 994-63040-184) | ||||
| 140 | 6695502 | 1.15 | 1.39 | |
| Starter Pulley Ass'y (old 798-0166r-90) | ||||
| 141 | 6693394 | 7.59 | 9.18 | |
| Starter Pawl (old 788-0138a-20) | ||||
| 142 | 6693299 | 2.31 | 2.80 | |
| Starter Pawl Spring (old 790-0162v-20) | ||||
| 143 | 6693345 | 2.31 | 2.80 | |

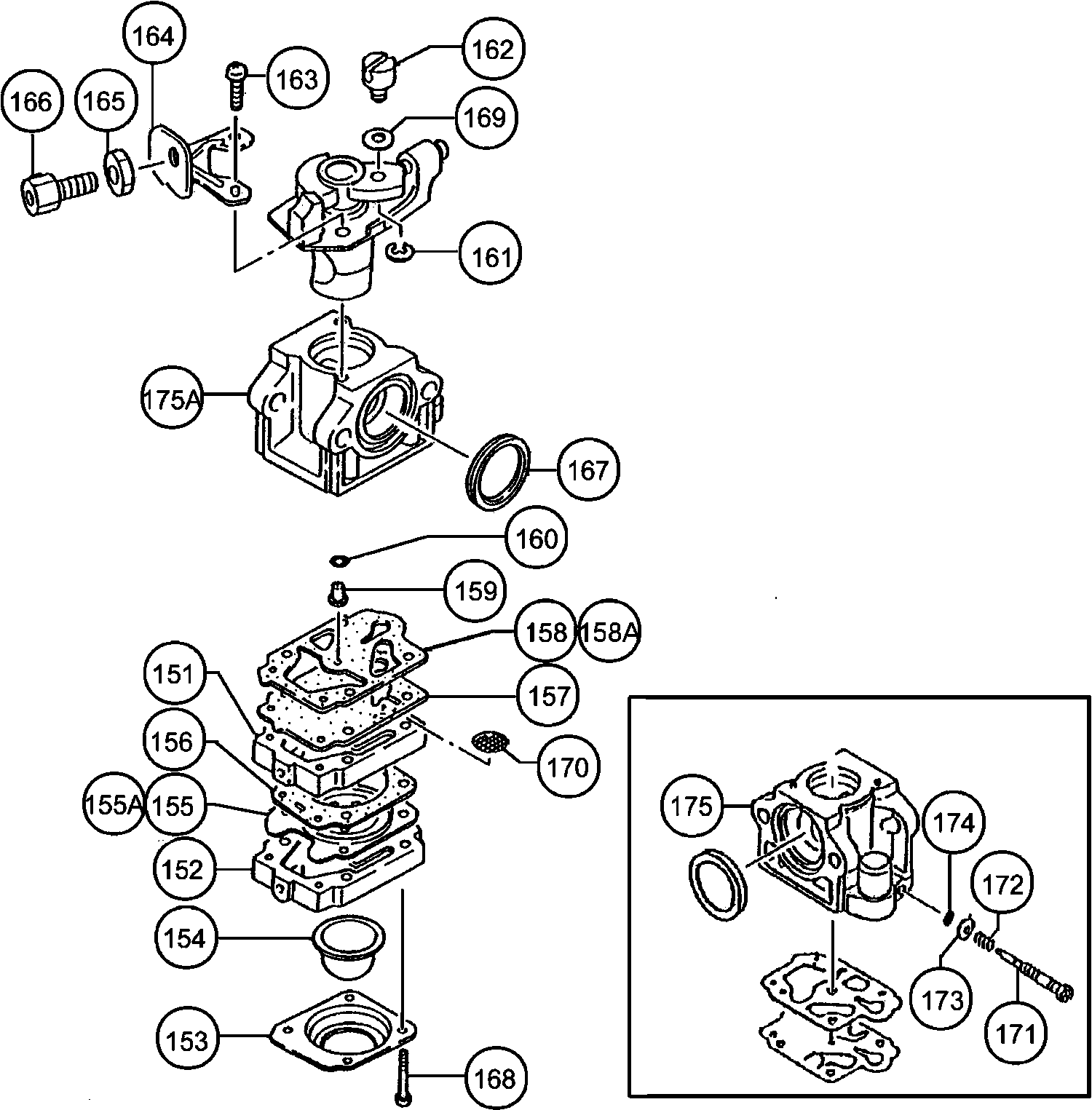

| Pump Body Comp. (old 575-25153-80) | ||||
| 151 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. (oud 442-25151-80) | ||||
| 152 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover (oud 476-25151-20) | ||||
| 153 | 6684688 | 8.58 | 10.38 | |
| Priming Body (oud 447-25108-20) | ||||
| 154 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. (old 474-25001-80/6690826 | ||||
| 155 | 6690827 | 11.71 | 14.17 | |
| Metering Diaphragm Comp. (old 474-25241-80) | ||||
| 155A | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket (oud 475-25153-20) | ||||
| 156 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 157 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 158 | 6691457 | 7.10 | 8.59 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 158A | 6684692 | 29.19 | 35.32 | |
| Main Jet #43 (old 599-2000w-43/6691847/6691849) | ||||
| 159 | 6691848 | 4.45 | 5.38 | |
| Main Jet #45 (old 599-2000w-45) New | ||||
| 159 | 6691850 | 4.05 | 4.90 | |
| O-RING (OUD 550-25100-20) | ||||
| 160 | 6684695 | 4.29 | 5.19 | |
| Stop Ring (oud 489-25100-20) | ||||
| 161 | 6684696 | 2.15 | 2.60 | |
| Swivel (oud 539-25120-20) | ||||
| 162 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw (oud 514-25100-20) | ||||
| 163 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay (oud 544-25164-20) | ||||
| 164 | 6684873 | 6.44 | 7.79 | |
| Lock Nut M6 (oud 991-01060-013) | ||||
| 165 | 6684872 | 2.15 | 2.60 | |
| Cable Adjuster (oud 614-25137-20) | ||||
| 166 | 6684871 | 4.29 | 5.19 | |
| Cleaner Packing (oud 431-0634c-20) | ||||
| 167 | 6684875 | 4.29 | 5.19 | |
| Set Screw (old 548-25151-20 & 6696324) | ||||
| 168 | 6684699 | 2.15 | 2.60 | |
| Ring (oud 549-25165-20) | ||||
| 169 | 6684874 | 2.15 | 2.60 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 170 | 6684700 | 4.29 | 5.19 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 171 | 6690700 | |||
| High/low Adjust Spring (old 623-25032-20) | ||||
| 172 | 6692048 | 2.31 | 2.80 | |
| Ring | ||||
| 173 | 6691317 | 1.05 | 1.27 | |
| O-ring (old 550-25137-20) New | ||||
| 174 | 6691322 | 2.10 | 2.54 | |
| Throttle Valve (old 488-25199-90) | ||||
| 175 | 6690947 | 36.15 | 43.74 | |
| Throttle Valve Comp. (old 488-25170-80) | ||||
| 175A | 6690940 | 24.20 | 29.28 | |

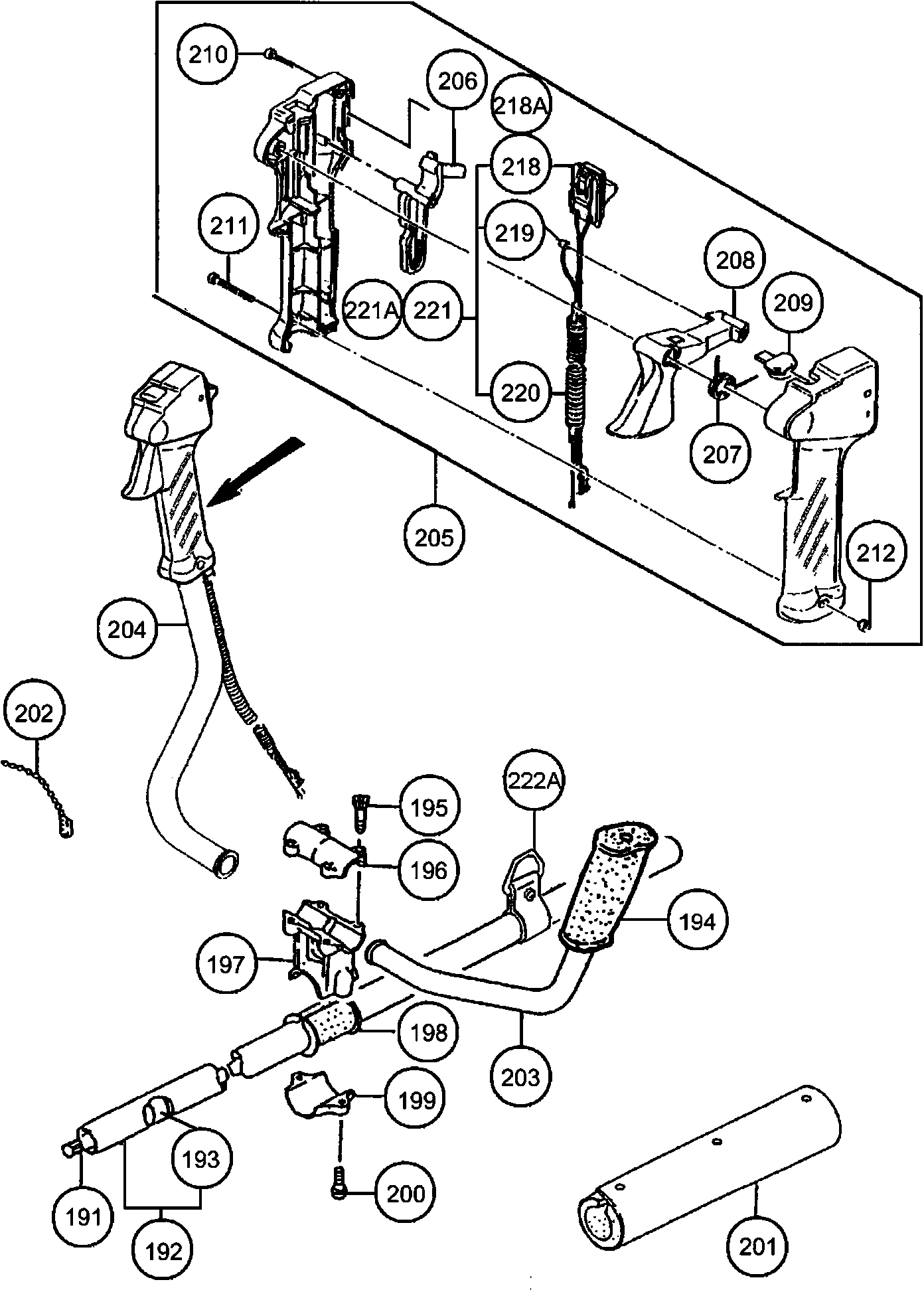

| Drive Shaft 1533l (old 343-38302-20 & 6684701) | ||||
| 191 | 6689478 | 14.98 | 18.12 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 192 | 6689407 | |||
| Bushing Ass'y | ||||
| 193 | 6697866 | 1.98 | 2.39 | |
| Handle Grip (old 165-37590-20) | ||||
| 194 | 6684708 | 6.44 | 7.79 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 195 | 6684709 | 2.15 | 2.60 | |
| Handle Bracket A (old 506-37623-20) | ||||
| 196 | 6684710 | 13.20 | 15.97 | |
| Handle Bracket B (old 507-37623-20) | ||||
| 197 | 6684711 | 18.00 | 21.78 | |
| Cushion Rubber (old 510-37352-20) | ||||
| 198 | 6691187 | 2.31 | 2.80 | |
| Handle Bracket C (old 508-37623-20) | ||||
| 199 | 6684713 | 12.38 | 14.97 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 200 | 6684714 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 201 | 6689291 | |||
| Clamp B. (old 460-33111-20) | ||||
| 202 | 6684715 | 2.15 | 2.60 | |
| Left Handle (old 502-37867-20) | ||||
| 203 | 6696093 | 13.76 | 16.65 | |
| Right Handle (old 501-37867-20) | ||||
| 204 | 6691080 | 13.53 | 16.37 | |
| Throttle Lever Ass'y 19 | ||||
| 205 | 6693766 | 42.20 | 51.06 | |
| Safety Lever (old 253-38400-20) | ||||
| 206 | 6684721 | 6.44 | 7.79 | |
| Return Spring (old 832-38400-20) | ||||
| 207 | 6684722 | 2.15 | 2.60 | |
| Throttle Lever (old 880-38401-20) | ||||
| 208 | 6684723 | 10.23 | 12.37 | |
| Blind Plug (old 322-38400-20) | ||||
| 209 | 6684724 | 2.15 | 2.60 | |
| Screw M4x20 (black) (old 993-46040-202) | ||||
| 210 | 6684725 | 2.15 | 2.60 | |
| Screw 5x30 (black) (old 994-31050-303) | ||||
| 211 | 6684726 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 212 | 6684727 | |||
| Stop Switch (old 156-38401-80) | ||||
| 218 | 6687460 | 13.86 | 16.77 | |
| Stop Switch (old 156-38401-81) | ||||
| 218A | 6687461 | 13.86 | 16.77 | |
| Throttle Wire (old 887-38401-80) | ||||
| 219 | 6694023 | 12.54 | 15.17 | |
| Protection Tube (old 164-07086-50) | ||||
| 220 | 6687546 | 2.31 | 2.80 | |
| Gaskabel | ||||
| 221 | 6693979 | 28.14 | 34.05 | |
| Gaskabel | ||||
| 221A | 6693980 | 28.14 | 34.05 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 222A | 6689275 | |||
| Drive Shaft 1533l (old 343-38302-20 & 6684701) | ||||
| 231 | 6689478 | 14.98 | 18.12 | |
| Handle Grip Right (old 503-38340-20) New | ||||
| 234 | 6691101 | 4.05 | 4.90 | |
| Grip (old 165-38340-20) New | ||||
| 235 | 6687628 | 4.45 | 5.38 | |
| Handle (old 500-38340-20) New | ||||
| 236 | 6691055 | 9.74 | 11.78 | |
| Handle Bracket A (old 506-37623-20) | ||||
| 237 | 6684710 | 13.20 | 15.97 | |
| Handle Bracket B,26dia. (old 507-37589-20) New | ||||
| 238 | 6691156 | 4.05 | 4.90 | |
| Handle Bracket C, 26 Dia. (old 508-37589-20) New | ||||
| 239 | 6691174 | 3.30 | 3.99 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 240 | 6684709 | 2.15 | 2.60 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 241 | 6684714 | 2.15 | 2.60 | |
| Hanger (old 335-38360-80) | ||||
| 242 | 6689281 | 12.88 | 15.58 | |
| Hanger Fixing Bracket (old 337-38360-80) | ||||
| 243 | 6689294 | 1.15 | 1.39 | |
| Machine Screw M5x25 (w/washers) Black | ||||
| 244 | 6696988 | 1.04 | 1.26 | |
| Gaskabel | ||||
| 245 | 6693966 | 9.58 | 11.59 | |
| Throttle Lever Ass'y (old 870-38340-90) New | ||||
| 246 | 6693763 | 14.19 | 17.17 | |
| Wire Clamp (old 198-38340-20) New | ||||
| 247 | 6688026 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 248A | 6689291 | |||
| Protection Tube 720l (old 164-07072-01) New | ||||
| 250 | 6687539 | 2.10 | 2.54 | |

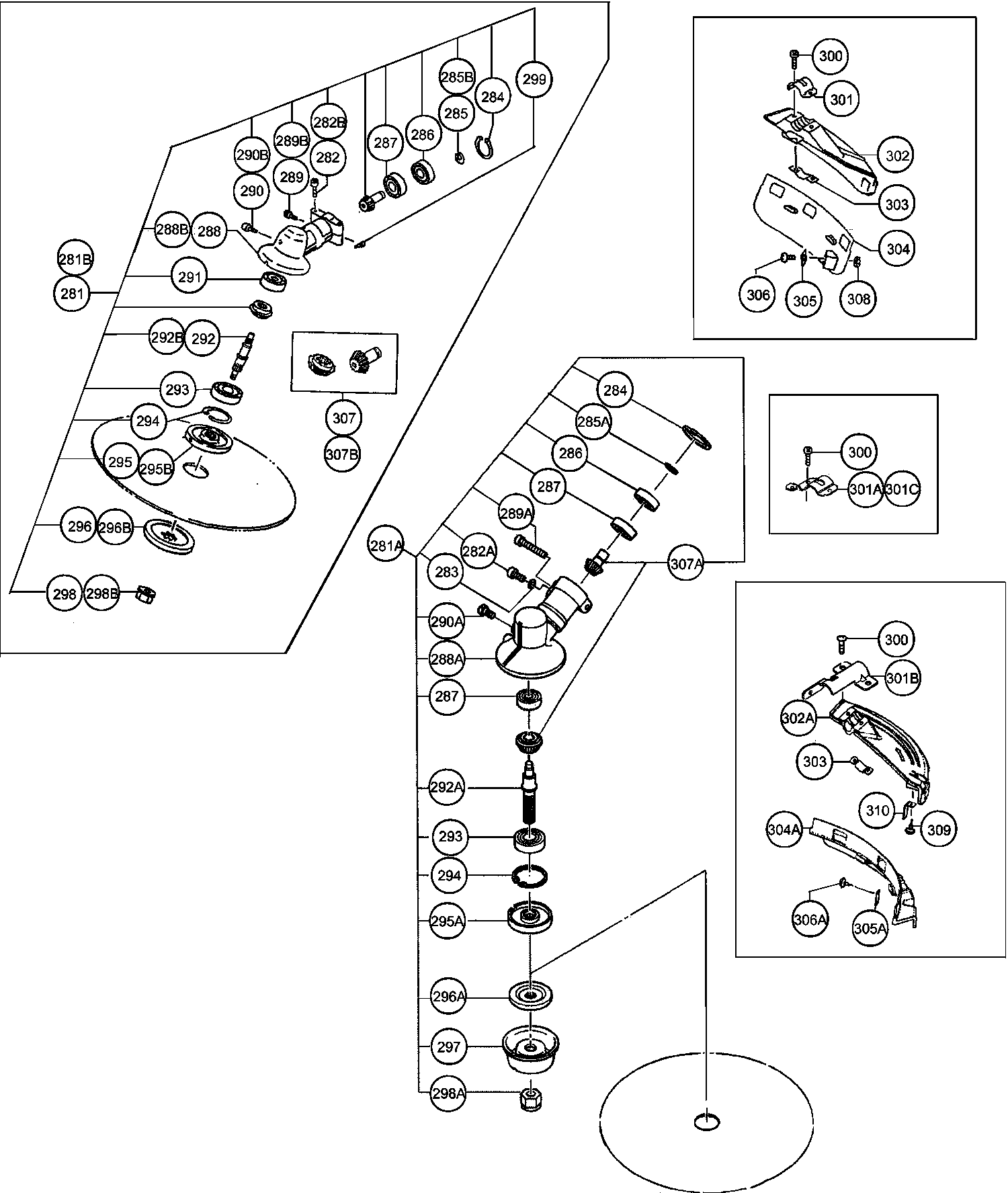

| Gear Case Set Pn (old 300-3338r-00/6688696) | ||||
| 281 | 6696497 | 60.35 | 73.02 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 281A | 6697660 | |||
| Gear Case Set Pn (old 300-3338r-00/6688696) | ||||
| 281B | 6696497 | 60.35 | 73.02 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 281C | 6601215 | |||
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 282 | 6684709 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x12 (old 990-51050-123) | ||||
| 282A | 6684829 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 282B | 6684709 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 282C | 6684786 | 2.15 | 2.60 | |
| Ring 5 (old 992-10050-062) | ||||
| 283 | 6684834 | 2.15 | 2.60 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 284 | 6695294 | 1.15 | 1.39 | |
| Stop Ring Outer 10 (old 993-57010-002) | ||||
| 285 | 6695315 | 1.15 | 1.39 | |
| Stop Ring C-10, Outer (old 993-50010-002) | ||||
| 285A | 6684821 | 2.15 | 2.60 | |
| Stop Ring Outer 10 (old 993-57010-002) | ||||
| 285B | 6695315 | 1.15 | 1.39 | |
| Stop Ring C-10, Outer (old 993-50010-002) | ||||
| 285C | 6684821 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 286 | 6695526 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 287 | 6695524 | |||
| Gear Case 26 Dia (old 300-37480-20) | ||||
| 288 | 6688770 | 15.88 | 19.21 | |
| Gear Case | ||||
| 288A | 6697738 | 12.88 | 15.58 | |
| Gear Case 26 Dia (old 300-37480-20) | ||||
| 288B | 6688770 | 15.88 | 19.21 | |
| Gear Case | ||||
| 288C | 6697738 | 12.88 | 15.58 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 289 | 6684667 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 289A | 6684786 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 289B | 6684667 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x12 (old 990-51050-123) | ||||
| 289C | 6684829 | 2.15 | 2.60 | |
| Oiling Bolt (old 316-38150-20) | ||||
| 290 | 6689109 | 1.15 | 1.39 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 290A | 6684737 | 2.15 | 2.60 | |
| Oiling Bolt (old 316-38150-20) | ||||
| 290B | 6689109 | 1.15 | 1.39 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 290C | 6684737 | 2.15 | 2.60 | |
| Kogellager 609 | ||||
| 291 | 6684734 | 8.58 | 10.38 | |
| Gear Shaft (old 304-3338r-20) | ||||
| 292 | 6688924 | 18.15 | 21.96 | |
| Gear Shaft | ||||
| 292A | 6697739 | 14.53 | 17.58 | |
| Gear Shaft (old 304-3338r-20) | ||||
| 292B | 6688924 | 18.15 | 21.96 | |
| Gear Shaft | ||||
| 292C | 6697739 | 14.53 | 17.58 | |
| Kogellager 6201d | ||||
| 293 | 6695554 | 5.94 | 7.18 | |
| Kogellager #6201dd | ||||
| 293A | 6695555 | 7.10 | 8.59 | |
| Stop Ring C-32, Inner (old 993-51032-002/791058) | ||||
| 294 | 6695295 | 1.15 | 1.39 | |
| Cutter Holder (old 310-38150-20) | ||||
| 295 | 6689032 | 11.71 | 14.17 | |
| Cutter Holder | ||||
| 295A | 6699008 | 13.04 | 15.78 | |
| Cutter Holder (old 310-38150-20) | ||||
| 295B | 6689032 | 11.71 | 14.17 | |
| Cutter Holder Ass'y | ||||
| 295C | 6601216 | 25.56 | 30.93 | |
| Cutter Holder Cap (old 311-38150-20) | ||||
| 296 | 6689055 | 5.11 | 6.19 | |
| Cutter Holder Cap | ||||
| 296A | 6699009 | 3.80 | 4.60 | |
| Cutter Holder Cap (old 311-38150-20) | ||||
| 296B | 6689055 | 5.11 | 6.19 | |
| Cutter Holder Cap | ||||
| 296C | 6699009 | 3.80 | 4.60 | |
| Nut Cover | ||||
| 297 | 6697792 | 2.80 | 3.39 | |
| Fixing Nut L M10x1.25 (oud 313-38150-20) | ||||
| 298 | 6689073 | 4.63 | 5.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 298A | 6698658 | |||
| Fixing Nut L M10x1.25 (oud 313-38150-20) | ||||
| 298B | 6689073 | 4.63 | 5.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 298C | 6698658 | |||
| Ring | ||||
| 299 | 6689159 | 1.15 | 1.39 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 300 | 6684714 | 2.15 | 2.60 | |
| Cover Bracket D26 (old 442-33699-20/6690307) | ||||
| 301 | 6690294 | 1.15 | 1.39 | |
| Cover Bracket D26 (old 442-38331-20) | ||||
| 301A | 6690315 | 4.45 | 5.38 | |
| Cover Bracket D26 | ||||
| 301B | 6697867 | 4.29 | 5.19 | |
| Cover Bracket D26 (old 442-38331-20) | ||||
| 301C | 6690315 | 4.45 | 5.38 | |
| Cover Bracket D26 | ||||
| 301D | 6697867 | 4.29 | 5.19 | |
| Blade Guard 26 Ce (old 441-37380-21/6690241) | ||||
| 302 | 6690242 | 16.64 | 20.13 | |
| Blade Guard 26ce (old 441-38331-20) | ||||
| 302A | 6690276 | 17.55 | 21.24 | |
| Safety Cover Holder (old 445-37380-20) | ||||
| 303 | 6684748 | 4.29 | 5.19 | |
| Cover Guard (old 447-37380-20) | ||||
| 304 | 6690372 | 9.58 | 11.59 | |
| Blade Guard (old 447-38331-20) | ||||
| 304A | 6690376 | 9.40 | 11.37 | |
| Mesje (oud 797-37380-21/6693385) | ||||
| 305 | 6693386 | 4.45 | 5.38 | |
| Mesje (oud 797-37714-20) | ||||
| 305A | 6684750 | 4.29 | 5.19 | |
| Screw 5x12/s (old 994-14050-121) | ||||
| 306 | 6695334 | 1.15 | 1.39 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 306A | 6684751 | 2.15 | 2.60 | |
| Gear/pinion Set, Spare (old 301-37480-00) | ||||
| 307 | 6688875 | 22.24 | 26.91 | |
| Gear Pinion Set | ||||
| 307A | 6697741 | 20.11 | 24.34 | |
| Gear/pinion Set, Spare (old 301-37480-00) | ||||
| 307B | 6688875 | 22.24 | 26.91 | |
| Gear Pinion Set | ||||
| 307C | 6697741 | 20.11 | 24.34 | |
| Hex. Nut 5 (old 991-01050-011) | ||||
| 308 | 6684965 | 1.04 | 1.26 | |
| Tapping Screw 5x20 (old 993-17052-002) | ||||
| 309 | 6684753 | 2.15 | 2.60 | |
| Mesje (oud 797-38331-20) | ||||
| 310 | 6684754 | 8.58 | 10.38 | |
| Gear Case Set Pn (old 300-3338r-00/6688696) | ||||
| 321 | 6696497 | 60.35 | 73.02 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 321B | 6601215 | |||
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 322 | 6684709 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x12 (old 990-51050-123) | ||||
| 322A | 6684829 | 2.15 | 2.60 | |
| Ring 5 (old 992-10050-062) | ||||
| 323 | 6684834 | 2.15 | 2.60 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 324 | 6695294 | 1.15 | 1.39 | |
| Stop Ring Outer 10 (old 993-57010-002) | ||||
| 325 | 6695315 | 1.15 | 1.39 | |
| Stop Ring C-10, Outer (old 993-50010-002) | ||||
| 325A | 6684821 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 326 | 6695526 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 327 | 6695524 | |||
| Gear Case 26 Dia (old 300-37480-20) | ||||
| 328 | 6688770 | 15.88 | 19.21 | |
| Gear Case | ||||
| 328A | 6697738 | 12.88 | 15.58 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 329 | 6684667 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 329A | 6684786 | 2.15 | 2.60 | |
| Oiling Bolt (old 316-38150-20) | ||||
| 330 | 6689109 | 1.15 | 1.39 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 330A | 6684737 | 2.15 | 2.60 | |
| Kogellager 609 | ||||
| 331 | 6684734 | 8.58 | 10.38 | |
| Gear Shaft (old 304-3338r-20) | ||||
| 332 | 6688924 | 18.15 | 21.96 | |
| Gear Shaft | ||||
| 332A | 6697739 | 14.53 | 17.58 | |
| Kogellager 6201d | ||||
| 333 | 6695554 | 5.94 | 7.18 | |
| Kogellager #6201dd | ||||
| 333A | 6695555 | 7.10 | 8.59 | |
| Stop Ring C-32, Inner (old 993-51032-002/791058) | ||||
| 334 | 6695295 | 1.15 | 1.39 | |
| Cutter Holder (old 310-38150-20) | ||||
| 335 | 6689032 | 11.71 | 14.17 | |
| Cutter Holder Ass'y | ||||
| 335B | 6601216 | 25.56 | 30.93 | |
| Cutter Holder Cap (old 311-38150-20) | ||||
| 336 | 6689055 | 5.11 | 6.19 | |
| Cutter Holder Cap | ||||
| 336A | 6699009 | 3.80 | 4.60 | |
| Nut Cover | ||||
| 337 | 6697792 | 2.80 | 3.39 | |
| Fixing Nut L M10x1.25 (oud 313-38150-20) | ||||
| 338 | 6689073 | 4.63 | 5.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 338A | 6698658 | |||
| Ring | ||||
| 339 | 6689159 | 1.15 | 1.39 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 340 | 6684714 | 2.15 | 2.60 | |
| Cover Bracket D26 (old 442-38331-20) | ||||
| 341 | 6690315 | 4.45 | 5.38 | |
| Cover Bracket D26 | ||||
| 341A | 6697867 | 4.29 | 5.19 | |
| Blade Guard 26ce (old 441-38331-20) | ||||
| 342 | 6690276 | 17.55 | 21.24 | |
| Safety Cover Holder (old 445-37380-20) | ||||
| 343 | 6684748 | 4.29 | 5.19 | |
| Blade Guard (old 447-38331-20) | ||||
| 344 | 6690376 | 9.40 | 11.37 | |
| Mesje (oud 797-37714-20) | ||||
| 345 | 6684750 | 4.29 | 5.19 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 346 | 6684751 | 2.15 | 2.60 | |
| Tapping Screw 5x20 (old 993-17052-002) | ||||
| 347 | 6684753 | 2.15 | 2.60 | |
| Mesje (oud 797-38331-20) | ||||
| 348 | 6684754 | 8.58 | 10.38 | |
| Gear/pinion Set, Spare (old 301-37480-00) | ||||
| 349 | 6688875 | 22.24 | 26.91 | |
| Gear Pinion Set | ||||
| 349A | 6697741 | 20.11 | 24.34 | |
| Blade Guard (old 441-38070-20) New | ||||
| 350 | 6690269 | 7.93 | 9.59 | |
| Cover Bracket D26 (old 442-38253-20) New | ||||
| 351 | 6690314 | 2.31 | 2.80 | |
| Safety Guard Holder (old 445-38253-20) | ||||
| 352 | 6690345 | 2.31 | 2.80 | |
| Hex Hole Screw 6x30 (old 990-53060-303) | ||||
| 353 | 6695082 | 1.15 | 1.39 | |

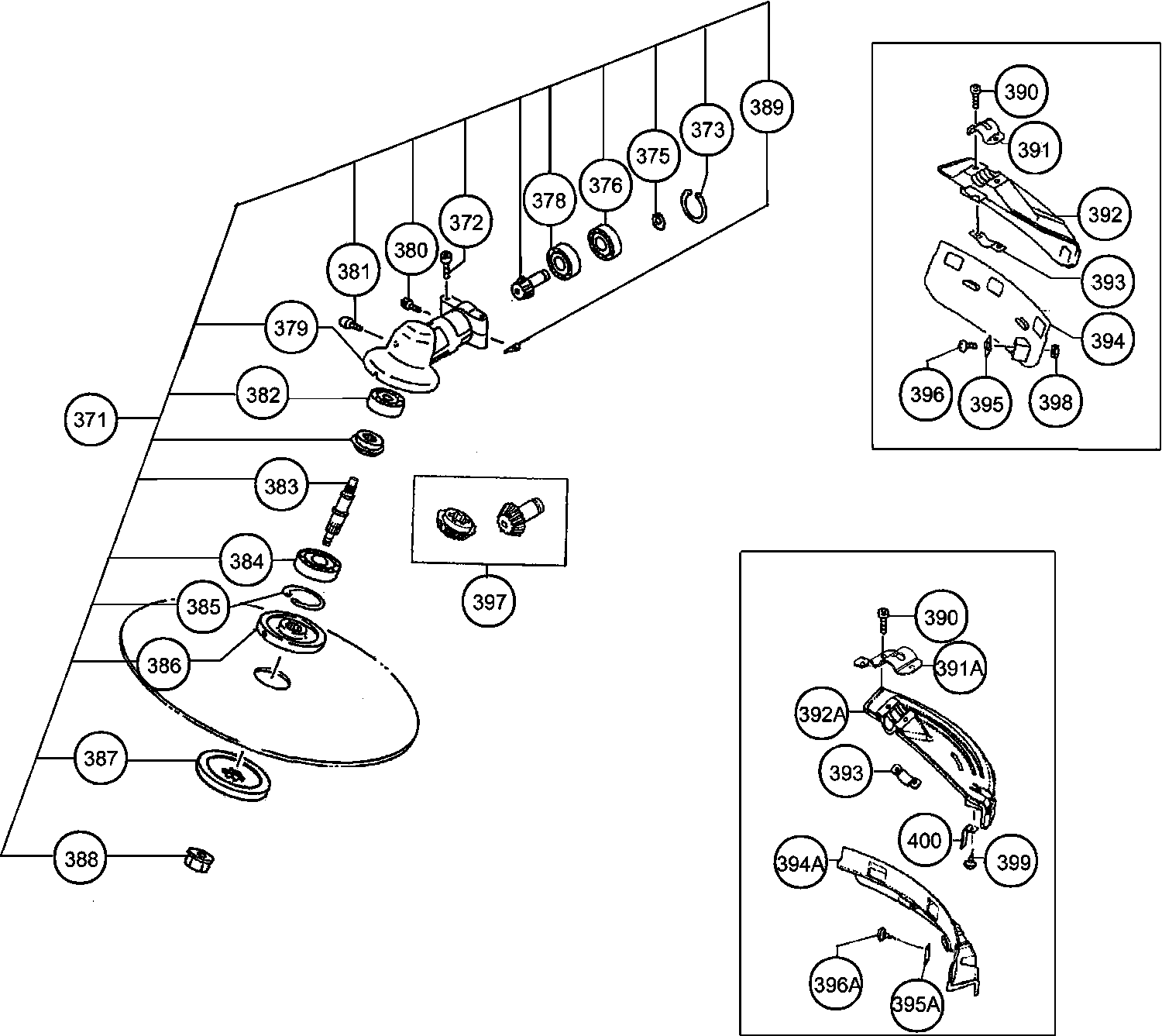

| Gear Case Set Pn (old 300-3338r-00/6688696) | ||||
| 371 | 6696497 | 60.35 | 73.02 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 372 | 6684709 | 2.15 | 2.60 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 373 | 6695294 | 1.15 | 1.39 | |
| Stop Ring Outer 10 (old 993-57010-002) | ||||
| 375 | 6695315 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 376 | 6695526 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 378 | 6695524 | |||
| Gear Case 26 Dia (old 300-37480-20) | ||||
| 379 | 6688770 | 15.88 | 19.21 | |
| Hex. Hole Bolt M5x12/s (old 994-61050-124) | ||||
| 380 | 6684667 | 2.15 | 2.60 | |
| Oiling Bolt (old 316-38150-20) | ||||
| 381 | 6689109 | 1.15 | 1.39 | |
| Kogellager 609 | ||||
| 382 | 6684734 | 8.58 | 10.38 | |
| Gear Shaft (old 304-3338r-20) | ||||
| 383 | 6688924 | 18.15 | 21.96 | |
| Kogellager 6201d | ||||
| 384 | 6695554 | 5.94 | 7.18 | |
| Stop Ring C-32, Inner (old 993-51032-002/791058) | ||||
| 385 | 6695295 | 1.15 | 1.39 | |
| Cutter Holder (old 310-38150-20) | ||||
| 386 | 6689032 | 11.71 | 14.17 | |
| Cutter Holder Cap (old 311-38150-20) | ||||
| 387 | 6689055 | 5.11 | 6.19 | |
| Fixing Nut L M10x1.25 (oud 313-38150-20) | ||||
| 388 | 6689073 | 4.63 | 5.60 | |
| Ring | ||||
| 389 | 6689159 | 1.15 | 1.39 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 390 | 6684714 | 2.15 | 2.60 | |
| Cover Bracket D26 (old 442-33699-20/6690307) | ||||
| 391 | 6690294 | 1.15 | 1.39 | |
| Cover Bracket D26 (old 442-38331-20) | ||||
| 391A | 6690315 | 4.45 | 5.38 | |
| Blade Guard 26 Ce (old 441-37380-21/6690241) | ||||
| 392 | 6690242 | 16.64 | 20.13 | |
| Blade Guard 26ce (old 441-38331-20) | ||||
| 392A | 6690276 | 17.55 | 21.24 | |
| Safety Cover Holder (old 445-37380-20) | ||||
| 393 | 6684748 | 4.29 | 5.19 | |
| Cover Guard (old 447-37380-20) | ||||
| 394 | 6690372 | 9.58 | 11.59 | |
| Blade Guard (old 447-38331-20) | ||||
| 394A | 6690376 | 9.40 | 11.37 | |
| Mesje (oud 797-37380-21/6693385) | ||||
| 395 | 6693386 | 4.45 | 5.38 | |
| Mesje (oud 797-37714-20) | ||||
| 395A | 6684750 | 4.29 | 5.19 | |
| Screw 5x12/s (old 994-14050-121) | ||||
| 396 | 6695334 | 1.15 | 1.39 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 396A | 6684751 | 2.15 | 2.60 | |
| Gear/pinion Set, Spare (old 301-37480-00) | ||||
| 397 | 6688875 | 22.24 | 26.91 | |
| Hex. Nut 5 (old 991-01050-011) | ||||
| 398 | 6684965 | 1.04 | 1.26 | |
| Tapping Screw 5x20 (old 993-17052-002) | ||||
| 399 | 6684753 | 2.15 | 2.60 | |
| Mesje (oud 797-38331-20) | ||||
| 400 | 6684754 | 8.58 | 10.38 | |
| Tandwielhuis | ||||
| 411 | 6688803 | 52.34 | 63.33 | |
| Hex. Hole Bolt 5x10 (old 990-51050-103) | ||||
| 412 | 6695042 | 1.15 | 1.39 | |
| Ring 5 (old 992-10050-062) | ||||
| 413 | 6684834 | 2.15 | 2.60 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 414 | 6695294 | 1.15 | 1.39 | |
| Clip | ||||
| 415 | 6695307 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 416 | 6695524 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 417 | 6695526 | |||
| Gear Case26 (old 300-38020-20) New | ||||
| 418 | 6688802 | 14.38 | 17.39 | |
| Hex Hole Bolt 6x28s (old 994-61060-284) New | ||||
| 419 | 6695498 | 1.05 | 1.27 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 420 | 6684737 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 421 | 6695524 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 422 | 6688944 | |||
| Kogellager #6201 | ||||
| 423 | 6695552 | 4.80 | 5.81 | |
| Stop Ring C-32, Inner (old 993-51032-002/791058) | ||||
| 424 | 6695295 | 1.15 | 1.39 | |
| Cutter Holder (old 310-38020-20) New | ||||
| 425 | 6689030 | 9.58 | 11.59 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 426 | 6689053 | |||
| Screw 4x8/s (old 994-14040-081) | ||||
| 427 | 6695325 | 1.15 | 1.39 | |
| Fixing Nut L M10x1.25 (oud 313-38150-20) | ||||
| 428 | 6689073 | 4.63 | 5.60 | |
| Gear Case Cover (old 303-38020-20) New | ||||
| 429 | 6688916 | 3.30 | 3.99 | |
| Collar (old 348-38455-20) New | ||||
| 430 | 6689532 | 4.45 | 5.38 | |
| Gear?pinion Set (old 301-38020-00) New | ||||
| 432 | 6688880 | 19.36 | 23.43 | |
| Hex.hole Button Screw 6x30s (old 994-81060-304) | ||||
| 433 | 6695518 | 1.15 | 1.39 | |
| Cover Bracket D26 (old 442-38253-20) New | ||||
| 434 | 6690314 | 2.31 | 2.80 | |
| Blade Guard (old 441-38070-20) New | ||||
| 435 | 6690269 | 7.93 | 9.59 | |
| Safety Guard Holder (old 445-38253-20) | ||||
| 436 | 6690345 | 2.31 | 2.80 | |
| Hex Hole Screw 6x30 (old 990-53060-303) | ||||
| 437 | 6695082 | 1.15 | 1.39 | |
| Cover Bracket D26 (old 442-33699-20/6690307) | ||||
| 438 | 6690294 | 1.15 | 1.39 | |
| Safety Cover (old 441-38302-20) New | ||||
| 439 | 6690275 | 13.05 | 15.79 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 440 | 6690342 | |||
| Cover Guard (old 447-37867-20) | ||||
| 441 | 6690374 | 6.44 | 7.79 | |
| Mesje (oud 797-37380-21/6693385) | ||||
| 442 | 6693386 | 4.45 | 5.38 | |
| Tapping Screw 5x20 (old 993-17052-002) | ||||
| 443 | 6684753 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 6684813 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 6684764 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 503 | 6699555 | |||
| Cutter Cover | ||||
| 503A | 6699756 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 504 | 6684765 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 505 | 6693520 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 506 | 6695791 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 507 | 6695796 | |||
| Protection Cover B (old 308-38150-20 & 6688993) | ||||
| 508 | 6688995 | 3.30 | 3.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 509 | 6695789 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 510 | 6695784 | |||
| Mounting Nut L-m10x1.25 (old 356-3383b-20) | ||||
| 511 | 6684756 | 9.08 | 10.98 | |
| Cutting Body (old 786-33830-20) | ||||
| 512 | 6684757 | 22.69 | 27.45 | |
| Special Nut (old 315-33830-20) | ||||
| 513 | 6684758 | 9.40 | 11.37 | |
| Reel Spring (old 793-33830-20) | ||||
| 514 | 6684759 | 4.29 | 5.19 | |
| Spool (old 787-33830-20) | ||||
| 515 | 6684760 | 15.58 | 18.85 | |
| Cutting Body Cap (old 789-33830-20) | ||||
| 516 | 6684761 | 36.15 | 43.74 | |
| Eyelet (old 788-33830-20) | ||||
| 517 | 6684762 | 4.29 | 5.19 | |
| Mounting Nut L-m8x1.25 (old 356-3383e-20) | ||||
| 518 | 6689624 | 7.75 | 9.38 | |
| Sure-tap Manual P/l 9 | ||||
| 519 | 6697805 | 1.98 | 2.39 | |
| Cutter Cover (old 615-37224-20/790290) | ||||
| 520 | 6684768 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 521 | 6693509 | |||
| Fuel Premix Canister (old 872-20000-20) New | ||||
| 523 | 6693785 | 3.30 | 3.99 | |
| Cutter Cover (old 615-38360-20) New | ||||
| 524 | 6692021 | 2.10 | 2.54 | |
| Name Plate Tbc340d (old 906-07035-20) New | ||||
| 601 | 6694204 | 1.15 | 1.39 | |
| Symbol Mark Tbc340d (old 929-07035-20) New | ||||
| 602 | 6694632 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 603 | 6697851 | |||
