Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki TBC26PFL'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

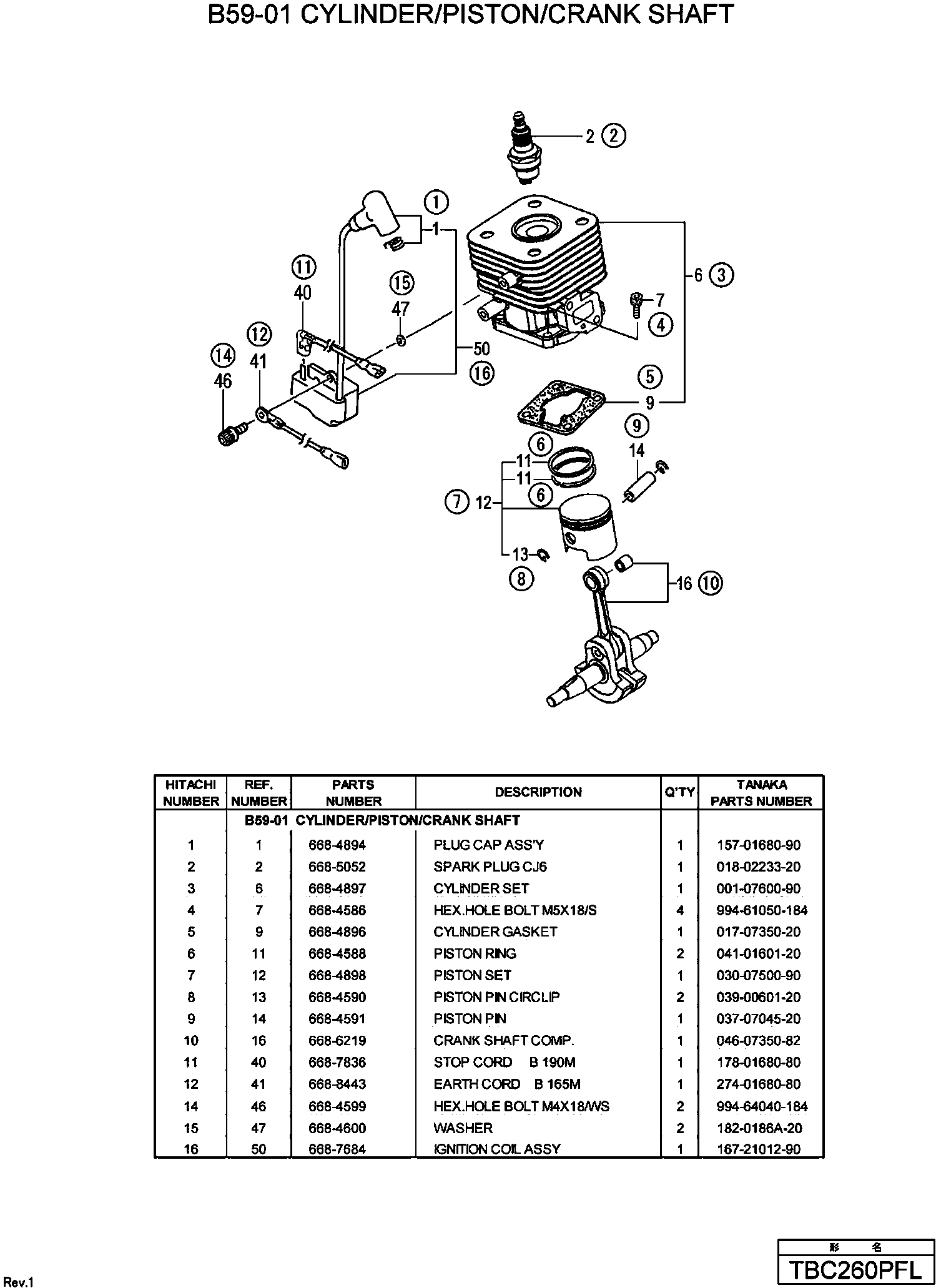

Tekeningen van de Hikoki TBC26PFL
Onderdelen lijst van de Hikoki TBC26PFL
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| PLUG CAP ASS'Y (OUD 157-01680-90) | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 2 | 6685052 | |||
| CYLINDER SET(OLD 001-07600-90) | ||||
| 3 | 6684897 | 77.74 | 94.06 | |
| HEX.HOLE BOLT M5X18/S(OUD 994-61050-184) | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| CYLINDER GASKET (OUD 017-07350-20) | ||||
| 5 | 6684896 | 2.15 | 2.60 | |
| PISTON RING (OUD 041-01601-20) | ||||
| 6 | 6684588 | 8.58 | 10.38 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 7 | 6684898 | |||
| PISTON PIN CIRCLIP (OLD 039-00601-20) | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| PISTON PIN (OLD 037-07045-20) | ||||
| 9 | 6684591 | 4.29 | 5.19 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 10 | 6686219 | |||
| STOP CORD B 190M (OLD 178-01680-80) | ||||
| 11 | 6687836 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 12 | 6688443 | |||
| HEX.HOLE BOLT M4X18/WS (OUD 994-64040-184) | ||||
| 14 | 6684599 | 2.15 | 2.60 | |
| RING (OLD 182-0186A-20) | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 16 | 6687684 | |||
| GEAR SHAFT SHIM 0.20 (OUD 330-00200-23) | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| GEAR SHAFT SHIM 0.30 (OUD 330-00200-24) | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| CRANK CASE ASS'Y (OLD 072-03045-94) | ||||
| 32 | 6684905 | 54.45 | 65.88 | |
| OLIE KEERRING | ||||
| 33 | 6684607 | 4.29 | 5.19 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 34 | 6695535 | |||
| CRANK CASE GASKET(OLD 090-07350-22) | ||||
| 35 | 6684904 | 2.15 | 2.60 | |
| HEX.HOLE BOLT M5X16/S (OLD 994-61050-164) | ||||
| 36 | 6684903 | 2.15 | 2.60 | |
| VLIEGWIEL | ||||
| 37 | 6687384 | 16.19 | 19.59 | |
| RING M8 (OLD 992-01080-011) | ||||
| 38 | 6684611 | 2.15 | 2.60 | |
| NUT M8 (OLD 991-01080-011/327325/332299/726603) | ||||
| 39 | 6684612 | 2.15 | 2.60 | |
| INLAATPAKKING | ||||
| 51 | 6689895 | 1.15 | 1.39 | |
| INSULATOR SET (OLD 404-07020-91) | ||||
| 52 | 6689972 | 6.28 | 7.59 | |
| HEX. HOLE BOLT 5X25/WS (OUD 994-64050-25) | ||||
| 53 | 6684617 | 2.15 | 2.60 | |
| CARBURETOR GASKET (OLD 402-0656A-20) | ||||
| 54 | 6684616 | 2.15 | 2.60 | |
| CHOKE PLATE 2.0 (OLD 528-0652N-22/6691275) | ||||
| 55 | 6691276 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 56 | 6690120 | |||
| REINIGINGSSPONS | ||||
| 57 | 6690365 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 58 | 6690402 | |||
| SCREW 5X55 (OLD 990-11050-552) | ||||
| 60 | 6694914 | 1.15 | 1.39 | |
| RING (OUD 992-10050-012) | ||||
| 61 | 6684662 | 2.15 | 2.60 | |
| RING 5 (OUD 992-00050-011) | ||||
| 62 | 6684864 | 2.15 | 2.60 | |
| CARBURATEURSET | ||||
| 63 | 6690465 | 58.39 | 70.65 | |
| CHOKE CONTROL LEVER (OLD 523-0652N-20) | ||||
| 64 | 6691239 | 1.15 | 1.39 | |
| STAND (OLD 940-07350-20) | ||||
| 66 | 6694787 | 3.30 | 3.99 | |
| COLLAR C (OLD 659-04300-20) | ||||
| 67 | 6684623 | 2.15 | 2.60 | |
| RETURN GROMMET (OLD 6684627) | ||||
| 68A | 6697846 | 1.04 | 1.26 | |
| Niet meer leverbaar, geen vervanging | ||||
| 69 | 6684626 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 70 | 6684620 | |||
| CLIP.6.3 DIA. (OLD 680-00731-20) | ||||
| 71 | 6684619 | 2.15 | 2.60 | |
| Niet meer leverbaar, geen vervanging | ||||
| 72 | 6684618 | |||
| HEX. HOLE BOLT 5X25/WS (OUD 994-64050-25) | ||||
| 73 | 6684617 | 2.15 | 2.60 | |
| HEX. HOLE BOLT 5X20/PS (OLD 994-63050-204) | ||||
| 74 | 6684634 | 2.15 | 2.60 | |
| TANK CAP D ASS'Y (OLD 595-03002-90/6685071) | ||||
| 75 | 6691748 | 7.59 | 9.18 | |
| TAP SCREW 4X14 P (OLD 993-49040-142/6695112) | ||||
| 76 | 6695280 | 1.15 | 1.39 | |
| RING | ||||
| 77 | 6685070 | 1.15 | 1.39 | |
| CILINDER AFDEKKAP ZWART (OUD 016-07500-20) | ||||
| 91 | 6685693 | 4.79 | 5.79 | |
| HEX.HOLE BOLT 5X16/PS (OLD 994-63050-164) | ||||
| 92 | 6695504 | 1.15 | 1.39 | |
| HEX.HOLE BOLT 6X65 (OLD 990-51060-653) | ||||
| 93 | 6695067 | 1.15 | 1.39 | |
| RING | ||||
| 94 | 6684639 | 2.15 | 2.60 | |
| MUFFLER COMP. (OLD 706-07500-80) | ||||
| 95 | 6692576 | 70.33 | 85.09 | |
| Niet meer leverbaar, geen vervanging | ||||
| 96 | 6692888 | |||
| TAIL PIPE SET (OLD 734-07255-90) | ||||
| 97 | 6692715 | 3.30 | 3.99 | |
| SCREW M4X8/WS (OLD 994-36040-081) | ||||
| 98 | 6684651 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 99 | 6692701 | |||
| WARMTESCHILD | ||||
| 100 | 6687265 | 4.45 | 5.38 | |
| MUFFLER PROTECTOR BLK (OLD 738-07500-20) | ||||
| 101 | 6692818 | 13.04 | 15.78 | |
| HEX. HOLE BOLT 4X18WS (OLD 994-64040-185) | ||||
| 102 | 6695508 | 1.15 | 1.39 | |
| PLUG COVER (OLD 257-03045-20) | ||||
| 103 | 6688344 | 3.30 | 3.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 104 | 6684642 | |||
| KOPPELING SCHOEN | ||||
| 105 | 6684643 | 11.55 | 13.98 | |
| CLUTCH SPRING (OLD 342-0630B-20) | ||||
| 106 | 6684644 | 2.15 | 2.60 | |
| CLUTCH PLATE A 0.5 (OLD 348-0630A-20/6689529) | ||||
| 107 | 6684645 | 2.15 | 2.60 | |
| STEP BOLT (OLD 357-0075T-20) | ||||
| 108 | 6684646 | 2.15 | 2.60 | |
| HEX. HOLE BOLT 5X20/PS (OLD 994-63050-204) | ||||
| 109 | 6684634 | 2.15 | 2.60 | |
| RING | ||||
| 110 | 6684648 | 2.15 | 2.60 | |
| TAPSCHROEF D4.5X16 | ||||
| 111 | 6684636 | 2.15 | 2.60 | |
| RECOIL STARTER BODY ASS'Y (OLD 762-03045-90) | ||||
| 131 | 6684938 | 23.45 | 28.37 | |
| RECOIL STARTER BODY COMP.(OUD 772-03045-80) | ||||
| 132 | 6684944 | 17.24 | 20.86 | |
| STARTER ROPE REEL (OLD 774-03045-20) | ||||
| 133 | 6684941 | 6.44 | 7.79 | |
| RECOIL SPRING (OLD 779-03045-20) | ||||
| 134 | 6684942 | 9.40 | 11.37 | |
| SWING ARM (OUD 777-03045-20) | ||||
| 135 | 6684940 | 2.15 | 2.60 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 136 | 6684679 | 2.15 | 2.60 | |
| PULLEY STAY (OUD 771-03045-20) | ||||
| 137 | 6684939 | 2.15 | 2.60 | |
| ROPE 3.0X800 (OLD 783-03045-20) | ||||
| 138 | 6684943 | 4.29 | 5.19 | |
| STARTHENDEL | ||||
| 139 | 6684680 | 2.15 | 2.60 | |
| Niet meer leverbaar, geen vervanging | ||||
| 140 | 6685000 | |||
| HEX. HOLE BOLT 4X18WS (OLD 994-64040-185) | ||||
| 141 | 6695508 | 1.15 | 1.39 | |
| STARTER PULLEY (OUD 798-03045-20) | ||||
| 142 | 6684937 | 6.44 | 7.79 | |
| PUMP BODY COMP. (OLD 575-25153-80) | ||||
| 161 | 6684879 | 62.16 | 75.22 | |
| PRIMING PUMP COMP. (OUD 442-25151-80) | ||||
| 162 | 6684687 | 16.34 | 19.77 | |
| DIAPHRAGM COVER (OUD 476-25151-20) | ||||
| 163 | 6684688 | 8.58 | 10.38 | |
| PRIMING BODY (OUD 447-25108-20) | ||||
| 164 | 6684689 | 6.44 | 7.79 | |
| METERING DIAPHRAGM COMP. (OLD 474-25241-80) | ||||
| 165 | 6690830 | 11.88 | 14.37 | |
| DIAPHRAGM GASKET (OUD 475-25153-20) | ||||
| 166 | 6684691 | 8.58 | 10.38 | |
| PUMP DIAPHRAGM (OLD 576-25100-20 & 6696325) | ||||
| 167 | 6684693 | 8.58 | 10.38 | |
| PUMP GASKET (OLD 577-25100-20) | ||||
| 168 | 6691457 | 7.10 | 8.59 | |
| MAIN JET #38.5 (OLD 599-200BW-38/6691874) | ||||
| 169 | 6696130 | 5.78 | 6.99 | |
| O-RING (OUD 550-25100-20) | ||||
| 170 | 6684695 | 4.29 | 5.19 | |
| STOP RING (OUD 489-25100-20) | ||||
| 171 | 6684696 | 2.15 | 2.60 | |
| SWIVEL (OUD 539-25120-20) | ||||
| 172 | 6684697 | 6.44 | 7.79 | |
| THROTTLE SET SCREW (OUD 514-25100-20) | ||||
| 173 | 6684870 | 2.15 | 2.60 | |
| CABLE ADJUSTER STAY (OUD 544-25164-20) | ||||
| 174 | 6684873 | 6.44 | 7.79 | |
| LOCK NUT M6 (OUD 991-01060-013) | ||||
| 175 | 6684872 | 2.15 | 2.60 | |
| CABLE ADJUSTER (OUD 614-25137-20) | ||||
| 176 | 6684871 | 4.29 | 5.19 | |
| CLEANER PACKING (OUD 431-0634C-20) | ||||
| 177 | 6684875 | 4.29 | 5.19 | |
| SET SCREW (OLD 548-25151-20 & 6696324) | ||||
| 178 | 6684699 | 2.15 | 2.60 | |
| RING (OUD 549-25165-20) | ||||
| 179 | 6684874 | 2.15 | 2.60 | |
| INLET SCREEN (OUD 578-25007-20) | ||||
| 180 | 6684700 | 4.29 | 5.19 | |
| CLUTCH DRUM COMP. (OLD 289-03070-80) | ||||
| 201 | 6688580 | 10.89 | 13.17 | |
| STOP RING C-12 OUTER | ||||
| 202 | 6684664 | 2.15 | 2.60 | |
| CUSHION RUBBER (OLD 599-00980-21) | ||||
| 203 | 6691823 | 3.30 | 3.99 | |
| HEX. HOLE BOLT 5X16 (OLD 990-51050-163) | ||||
| 204 | 6695046 | 1.15 | 1.39 | |
| HEX. HOLE BOLT M5X25/S (OLD 994-16050-252/790275) | ||||
| 205 | 6684709 | 2.15 | 2.60 | |
| VENTILATORHUIS | ||||
| 206 | 6686959 | 15.13 | 18.30 | |
| PIPE HOLDER, TPE (OLD 360-00996-20/6689650) | ||||
| 207 | 6689651 | 5.94 | 7.18 | |
| RING M5 (OUD 992-01050-061) | ||||
| 208 | 6684918 | 2.15 | 2.60 | |
| RING | ||||
| 209 | 6689159 | 1.15 | 1.39 | |
| METAL FITTING (OLD 361-00990-20) | ||||
| 210 | 6689664 | 3.30 | 3.99 | |
| DRIVE SHAFT 1829L (OLD 343-32346-20) | ||||
| 231 | 6689443 | 17.55 | 21.24 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 232 | 6689416 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 233 | 6684831 | |||
| HEX.NUT 6 (OLD 6684792/991-01060-041/790444) | ||||
| 234 | 6684835 | 2.15 | 2.60 | |
| LOOP HANDLE, 24 DIA.,BLACK (OLD 500-37286-20) | ||||
| 235 | 6691046 | 5.78 | 6.99 | |
| HANDLE BRACKET A (OLD 506-37300-20) | ||||
| 236 | 6691134 | 2.31 | 2.80 | |
| HANDLE GRIP (OLD 503-3738E-20) | ||||
| 237 | 6691098 | 6.44 | 7.79 | |
| BOLT 6X43/P (BLACK) (OLD 994-23060-432) | ||||
| 238 | 6684838 | 2.15 | 2.60 | |
| GASKABEL | ||||
| 239 | 6693963 | 3.30 | 3.99 | |
| TAPSCHROEF D5X20 | ||||
| 240 | 6695255 | 1.15 | 1.39 | |
| RING | ||||
| 241 | 6689681 | 1.15 | 1.39 | |
| THROTTLE LEVER ASS'Y (OLD 870-37286-90) | ||||
| 242 | 6693736 | 16.64 | 20.13 | |
| STOP SWITCH (OLD 162-37101-20) | ||||
| 243 | 6687515 | 2.31 | 2.80 | |
| TAPSCHROEF D3X8 | ||||
| 244 | 6695274 | 1.15 | 1.39 | |
| STOP SWITCH BASE (OLD 259-37101-20) | ||||
| 245 | 6688374 | 2.31 | 2.80 | |
| STOP SWITCH SPRING (OLD 262-37101-20) | ||||
| 246 | 6688385 | 2.31 | 2.80 | |
| EARTH TERMINAL B (OLD 177-37101-20) | ||||
| 247 | 6687805 | 2.31 | 2.80 | |
| EARTH TERMINAL A (OLD 176-37101-20) | ||||
| 248 | 6687801 | 2.31 | 2.80 | |
| Niet meer leverbaar, geen vervanging | ||||
| 249 | 6685000 | |||
| STOP RING E-6 (OLD 993-55060-001) | ||||
| 250 | 6695311 | 1.15 | 1.39 | |
| RETURN SPRING (OLD 832-37101-20) | ||||
| 251 | 6693601 | 1.15 | 1.39 | |
| THROTTLE ARM (OLD 880-37286-20) | ||||
| 252 | 6693804 | 3.30 | 3.99 | |
| SCREW 5X20 (OLD 994-31050-201) | ||||
| 253 | 6695453 | 1.15 | 1.39 | |
| LOCK BUTTON SHAFT (OLD 853-37101-20) | ||||
| 254 | 6693653 | 1.15 | 1.39 | |
| LOCK BUTTON SPRING (OLD 958-37101-20) | ||||
| 255 | 6694834 | 1.15 | 1.39 | |
| LOCK BUTTON (OLD 956-37101-20) | ||||
| 256 | 6694829 | 2.31 | 2.80 | |
| STOP CORD, B430M (OLD 178-37394-80) | ||||
| 258 | 6687915 | 2.31 | 2.80 | |
| PROTECTION TUBE 10X190L (OLD 164-10019-00) NEW | ||||
| 259 | 6687563 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 260 | 6691111 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 281 | 6688812 | |||
| HEX. HOLE BOLT M5X25/S (OLD 994-16050-252/790275) | ||||
| 282 | 6684709 | 2.15 | 2.60 | |
| STOP RING C-22, INNER (OLD 993-51022-002) | ||||
| 283 | 6695293 | 1.15 | 1.39 | |
| STOP RING OUTER 10 (OLD 993-57010-002) | ||||
| 284 | 6695315 | 1.15 | 1.39 | |
| BALL BEARING (OLD 999-61690-002) | ||||
| 285 | 6695579 | 5.78 | 6.99 | |
| BALL BEARING 6900, 22MM/OD (OLD 999-61690-000) | ||||
| 286 | 6695577 | 6.60 | 7.99 | |
| GEAR CASE 24 (OLD 300-38150-21) | ||||
| 287 | 6688808 | 15.88 | 19.21 | |
| HEX. HOLE BOLT M5X12/S (OLD 994-61050-124/6699176) | ||||
| 288 | 6684667 | 2.15 | 2.60 | |
| OILING BOLT (OLD 316-38150-20) | ||||
| 289 | 6689109 | 1.15 | 1.39 | |
| BALL BEARING 609 (OLD 999-61609-000) | ||||
| 290 | 6684734 | 8.58 | 10.38 | |
| GEAR SHAFT (OLD 304-38150-20) | ||||
| 291 | 6688946 | 19.06 | 23.07 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 292 | 6695554 | |||
| STOP RING C-32, INNER (OLD 993-51032-002/791058) | ||||
| 293 | 6695295 | 1.15 | 1.39 | |
| CUTTER HOLDER (OLD 310-38150-20) | ||||
| 294 | 6689032 | 11.71 | 14.17 | |
| RING | ||||
| 295 | 6689159 | 1.15 | 1.39 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 296 | 6684714 | 2.15 | 2.60 | |
| SAFETY GUARD BRACKET (OLD 442-37417-20) | ||||
| 297 | 6685065 | 2.31 | 2.80 | |
| SAFETY COVER, 24 DIA. (OLD 441-38150-20) | ||||
| 298 | 6690272 | 13.20 | 15.97 | |
| SAFETY GUARD HOLDER (OLD 445-38150-20/6697071) | ||||
| 299 | 6690343 | 3.30 | 3.99 | |
| MESJE (OUD 797-38150-20) | ||||
| 300 | 6693388 | 6.28 | 7.59 | |
| TAPSCHROEF D5X20 | ||||
| 301 | 6684753 | 2.15 | 2.60 | |
| GEAR PINION SET SPARE (OLD 301-38150-00) | ||||
| 302 | 6688882 | 18.15 | 21.96 | |
| HEX. HOLE BOLT M5X12/S (OLD 994-61050-124/6699176) | ||||
| 303 | 6684667 | 2.15 | 2.60 | |
| MOUNTING NUT L-M10X1.25 (OLD 356-3383B-20) | ||||
| 342 | 6684756 | 9.08 | 10.98 | |
| CUTTING BODY (OLD 786-33830-20) | ||||
| 343 | 6684757 | 22.69 | 27.45 | |
| SPECIAL NUT (OLD 315-33830-20) | ||||
| 344 | 6684758 | 9.40 | 11.37 | |
| REEL SPRING (OLD 793-33830-20) | ||||
| 345 | 6684759 | 4.29 | 5.19 | |
| SPOOL (OLD 787-33830-20) | ||||
| 346 | 6684760 | 15.58 | 18.85 | |
| CUTTING BODY CAP (OLD 789-33830-20) | ||||
| 347 | 6684761 | 36.15 | 43.74 | |
| EYELET (OLD 788-33830-20) | ||||
| 348 | 6684762 | 4.29 | 5.19 | |
| RING | ||||
| 349 | 6685072 | 1.15 | 1.39 | |
| MOUNTING NUT L-M8X1.25 (OLD 356-3383E-20) | ||||
| 350 | 6689624 | 7.75 | 9.38 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 6684813 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 6684764 | |||
