Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki TCG24EAP2'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

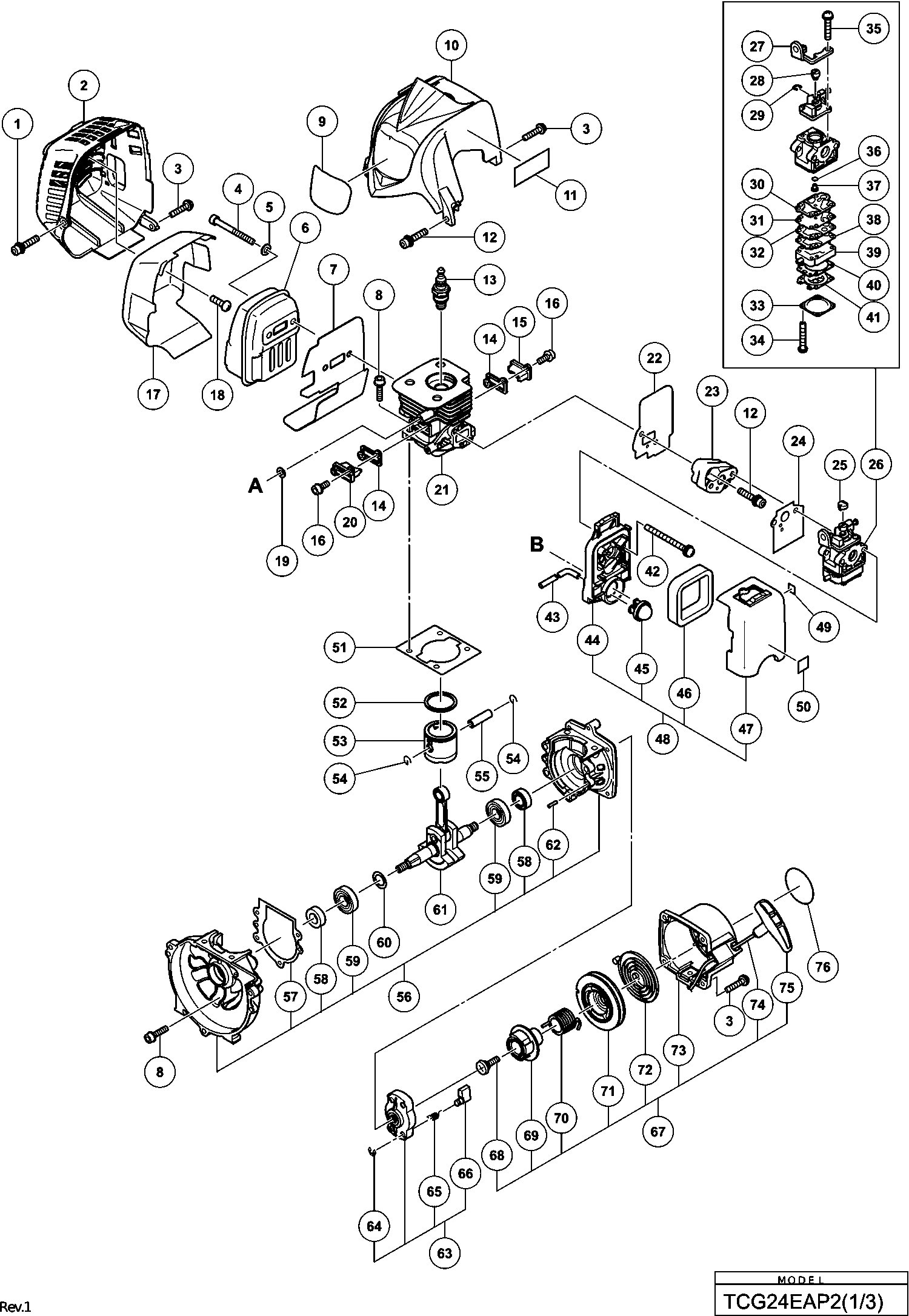

Tekeningen van de Hikoki TCG24EAP2
Onderdelen lijst van de Hikoki TCG24EAP2
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 1 | 6698950 | 1.20 | 1.45 | |
| Knaldemper Afdekkap | ||||
| 2 | 6600319 | 6.30 | 7.62 | |
| Machineschroef M4x20 Zwart | ||||
| 3 | 307606 | 1.05 | 1.27 | |
| Hex. Socket Hd Bolt M6x65 | ||||
| 4 | 6698384 | 1.05 | 1.27 | |
| Ring M6 (10 Stuks) | ||||
| 5 | 949432 | 1.05 | 1.27 | |
| Muffler (b) | ||||
| 6 | 6600004 | 25.85 | 31.28 | |
| Hitteschild | ||||
| 7 | 6600320 | 1.35 | 1.63 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 8 | 6698386 | |||
| Tanaka Label New | ||||
| 9 | 6696339 | 1.20 | 1.45 | |
| Cilinder Afdekkap | ||||
| 10 | 6699128 | 4.35 | 5.26 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 12 | 6698844 | 1.20 | 1.45 | |
| Bougie Bmr7a | ||||
| 13 | 6699316 | 8.91 | 10.78 | |
| Cover Packing | ||||
| 14 | 6698468 | 1.05 | 1.27 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 15 | 6698469 | 1.05 | 1.27 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 16 | 6698385 | 1.05 | 1.27 | |
| Muffler Heat Cover | ||||
| 17 | 6600422 | 5.70 | 6.90 | |
| Tapping Screw D4x10 | ||||
| 18 | 6600325 | 1.04 | 1.26 | |
| Ring | ||||
| 19 | 6698700 | 1.20 | 1.45 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 20 | 6698470 | 1.05 | 1.27 | |
| Cilinder | ||||
| 21 | 6698465 | 32.31 | 39.10 | |
| Pakking | ||||
| 22 | 6699437 | 1.04 | 1.26 | |
| Carburetor Insulator | ||||
| 23 | 6698387 | 3.15 | 3.81 | |
| Carbureteur Pakking | ||||
| 24 | 6698405 | 2.10 | 2.54 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 25 | 6691337 | 1.15 | 1.39 | |
| Carburetor Ass'y Wyc-28 | ||||
| 26 | 6698474 | 55.14 | 66.72 | |
| Cable Adjust Stay | ||||
| 27 | 6699287 | 4.13 | 4.99 | |
| Swivel | ||||
| 28 | 6696830 | 4.45 | 5.38 | |
| Stop Ring (oud 489-25100-20) | ||||
| 29 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 30 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 31 | 6684693 | 8.58 | 10.38 | |
| Pump Plate (old 523-25100-20) | ||||
| 32 | 6691242 | 2.31 | 2.80 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 33 | 6685222 | 4.45 | 5.38 | |
| Set Screw (old 548-25101-20) | ||||
| 34 | 6691312 | 1.15 | 1.39 | |
| Set Screw M3x12 | ||||
| 35 | 6696829 | 1.04 | 1.26 | |
| O-RING (OUD 550-25100-20) | ||||
| 36 | 6684695 | 4.29 | 5.19 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 37 | 6697842 | |||
| Circuit Plate (old 522-25100-20) | ||||
| 38 | 6691234 | 3.30 | 3.99 | |
| Pump Body | ||||
| 39 | 6696828 | 13.36 | 16.17 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 40 | 6685220 | 2.31 | 2.80 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 41 | 6684690 | 18.00 | 21.78 | |
| Machineschroef M5x60 (oud 943430) | ||||
| 42 | 307224 | 1.05 | 1.27 | |
| Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
| 43B | 6692347 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 44 | 6696832 | |||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 45 | 6685139 | 5.94 | 7.18 | |
| Cleaner Sponge | ||||
| 46 | 6600704 | 3.80 | 4.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 47 | 6696831 | |||
| Air Cleaner Ass'y | ||||
| 48 | 6696549 | 9.13 | 11.04 | |
| Mark Plate (t) | ||||
| 49 | 6600327 | 1.04 | 1.26 | |
| Primer Label | ||||
| 50 | 6699000 | 1.04 | 1.26 | |
| Cylinder Gasket (old 017-52200-20) | ||||
| 51 | 6684587 | 2.15 | 2.60 | |
| Zuiger Ring | ||||
| 52 | 6698404 | 4.20 | 5.08 | |
| Zuiger | ||||
| 53 | 6698368 | 7.28 | 8.80 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 54 | 6684590 | 2.15 | 2.60 | |
| Piston Pin (old 037-07045-20) | ||||
| 55 | 6684591 | 4.29 | 5.19 | |
| Crank Case Ass'y (old 072-52200-90) | ||||
| 56 | 6684606 | 54.45 | 65.88 | |
| Crank Case Gasket (old 090-52200-20) | ||||
| 57 | 6684609 | 2.15 | 2.60 | |
| Olie Keerring | ||||
| 58 | 6684607 | 4.29 | 5.19 | |
| Kogellager 6001 C3 | ||||
| 59 | 6684608 | 3.80 | 4.60 | |
| Shim | ||||
| 60 | 6696945 | 1.68 | 2.03 | |
| Shim | ||||
| 60 | 6696946 | 1.68 | 2.03 | |
| Krukas | ||||
| 61 | 6696533 | 32.31 | 39.10 | |
| Knock Pin 4x12 | ||||
| 62 | 6696947 | 1.05 | 1.27 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 63 | 6684681 | 13.20 | 15.97 | |
| Stop Ring E-5 (old 993-55050-000) | ||||
| 64 | 6684683 | 2.15 | 2.60 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 65 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 66 | 6684685 | 4.29 | 5.19 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 67 | 6699995 | |||
| SET SCREW (OLD 839-03045-20) | ||||
| 68 | 6684679 | 2.15 | 2.60 | |
| Cam Plate | ||||
| 69 | 6699996 | 2.55 | 3.09 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 70 | 6684677 | 8.58 | 10.38 | |
| Starter Rope Reel | ||||
| 71 | 6699997 | 8.41 | 10.18 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 72 | 6684675 | 11.55 | 13.98 | |
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 73 | 6684673 | 19.06 | 23.07 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 74 | 6684674 | 4.29 | 5.19 | |
| Starthendel | ||||
| 75 | 6684680 | 2.15 | 2.60 | |
| Tapschroef D4x20 Met Ring (zwart) | ||||
| 101 | 302086 | 1.05 | 1.27 | |
| Tapschroef D4x16 Met Ring Zwart | ||||
| 101 | 305812 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 102 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 103 | 6696490 | 1.04 | 1.26 | |
| Lever | ||||
| 104 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 105 | 6696489 | 1.04 | 1.26 | |
| Stop Switch | ||||
| 106A | 6601275 | 1.35 | 1.63 | |
| Stop Switch Cord | ||||
| 107 | 6696592 | 2.10 | 2.54 | |
| Stop Switch Cord | ||||
| 107 | 6696491 | 1.80 | 2.18 | |
| Protection Tube | ||||
| 108 | 6696594 | 2.10 | 2.54 | |
| Protection Tube | ||||
| 108 | 6696967 | 1.05 | 1.27 | |
| Gaskabel | ||||
| 109 | 6696593 | 5.10 | 6.17 | |
| Gaskabel | ||||
| 109 | 6696560 | 4.18 | 5.05 | |
| Handle (a) | ||||
| 110 | 6696486 | 3.45 | 4.17 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 111 | 6699176 | 1.04 | 1.26 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 112 | 6695492 | 1.15 | 1.39 | |
| Anti Vibe Rubber (a) | ||||
| 113 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 114 | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 115 | 6698644 | 2.10 | 2.54 | |
| Anti Vibe Rubber (b) | ||||
| 116 | 6696964 | 3.33 | 4.02 | |
| Veerring D12 (10 Stuks) | ||||
| 117 | 939542 | 1.50 | 1.82 | |
| Ventilatorhuis | ||||
| 118 | 6699129 | 8.25 | 9.98 | |
| Clutch Shaft | ||||
| 119 | 6699400 | 8.85 | 10.71 | |
| Step Bolt | ||||
| 120 | 6696469 | 1.04 | 1.26 | |
| Ring | ||||
| 121 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 122 | 6696546 | 1.05 | 1.27 | |
| Clutch | ||||
| 123 | 6696948 | 11.64 | 14.08 | |
| Ring (b) | ||||
| 124 | 6696547 | 1.05 | 1.27 | |
| Moer | ||||
| 125 | 6685337 | 1.05 | 1.27 | |
| Ring M8 (zwart) | ||||
| 126 | 323212 | 1.05 | 1.27 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 127 | 6698388 | 1.05 | 1.27 | |
| BOBINE | ||||
| 128 | 6699464 | 17.60 | 21.30 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 129A | 6601421 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 130 | 6699186 | |||
| Cord | ||||
| 131 | 6696544 | 1.05 | 1.27 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 132 | 6684899 | 2.15 | 2.60 | |
| Earth Cord | ||||
| 133 | 6696545 | 1.05 | 1.27 | |
| Vliegwiel | ||||
| 134 | 6699289 | 25.71 | 31.11 | |
| Spacer | ||||
| 135 | 6699558 | 1.04 | 1.26 | |
| Fuel Grommet | ||||
| 136 | 6600358 | 1.04 | 1.26 | |
| Brandstofleiding | ||||
| 137 | 6698716 | 3.45 | 4.17 | |
| Brandstofleiding L70 | ||||
| 138A | 6699014 | 1.65 | 2.00 | |
| Niet meer leverbaar, geen vervanging | ||||
| 140 | 6698402 | |||
| Tank Cap Chain | ||||
| 141 | 6698732 | 1.20 | 1.45 | |
| Tank (c) | ||||
| 142 | 6600354 | 3.45 | 4.17 | |
| Pomp Filter | ||||
| 143 | 6600351 | 2.70 | 3.27 | |
| Clip | ||||
| 144 | 6696949 | 1.68 | 2.03 | |
| Stand (old 940-07350-20) | ||||
| 145 | 6694787 | 3.30 | 3.99 | |
| Bout L27.8 | ||||
| 146 | 6698991 | 1.20 | 1.45 | |
| Einschlagende Schraube (w/Flansch) D4x30 | ||||
| 161 | 323837 | 1.68 | 2.03 | |
| Machineschroef M5x30 Zwart | ||||
| 162 | 323041 | 1.05 | 1.27 | |
| Handle Right | ||||
| 163 | 6698637 | 19.11 | 23.13 | |
| Handle (b) | ||||
| 164 | 6696590 | 3.13 | 3.78 | |
| Handle (a) | ||||
| 165 | 6696588 | 2.10 | 2.54 | |
| Moer M5 (zwart) | ||||
| 166 | 302012 | 1.05 | 1.27 | |
| Barrier | ||||
| 169 | 6696973 | 3.33 | 4.02 | |
| Handle Holder (b) (old 6696577) | ||||
| 172 | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) | ||||
| 173 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 174 | 6684714 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 175 | 6684709 | 2.15 | 2.60 | |
| Handle Holder (a) (old 6696576) | ||||
| 176 | 6600500 | 4.20 | 5.08 | |
| Handle Left | ||||
| 177 | 6698638 | 22.83 | 27.62 | |
| Tandwielhuis | ||||
| 178 | 6699402 | 50.33 | 60.89 | |
| Bolt (w/plus) M6x8 (old 990-23060-080) | ||||
| 179 | 6684737 | 2.15 | 2.60 | |
| Cutter Holder (a) | ||||
| 180 | 6696977 | 13.33 | 16.12 | |
| Cutter Holder (b) | ||||
| 181 | 6698659 | 13.04 | 15.78 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 182 | 6699188 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 183 | 335759 | 1.04 | 1.26 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 184 | 6695414 | 1.15 | 1.39 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 185 | 949664 | 3.75 | 4.54 | |
| Cover Blacket | ||||
| 186 | 6696494 | 1.80 | 2.18 | |
| Caution Label (hedge) | ||||
| 187 | 6600328 | 1.04 | 1.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 188 | 6600449 | |||
| Level Mark (old 923-33700-20) | ||||
| 193 | 6684851 | 2.15 | 2.60 | |
| Main Pipe Comp (old 6696483) | ||||
| 194 | 6696558 | 17.69 | 21.40 | |
| Drive Shaft (old 6696484) | ||||
| 195 | 6698514 | 15.60 | 18.88 | |
| Hanger | ||||
| 196A | 6600504 | 1.20 | 1.45 | |
| Cap (a) | ||||
| 197 | 6698515 | 2.10 | 2.54 | |
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 198 | 6698794 | 9.30 | 11.25 | |
| Set Screw | ||||
| 200 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 201 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 202 | 6698797 | 1.05 | 1.27 | |
| Button | ||||
| 203 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 204 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 205 | 6698800 | 6.60 | 7.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 206 | 6696454 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 207 | 6696980 | |||
| Safety Cover Holder | ||||
| 208 | 6696951 | 3.33 | 4.02 | |
| Cover Guard | ||||
| 209 | 6696950 | 10.98 | 13.28 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 210 | 6684751 | 2.15 | 2.60 | |
| Mesje (oud 797-37714-20) | ||||
| 211 | 6684750 | 4.29 | 5.19 | |
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 217 | 6600499 | 10.65 | 12.89 | |
| Machineschroef M5x10 (10 Stuks) | ||||
| 218 | 949236 | 1.05 | 1.27 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 501 | 6684764 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 6696596 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 503 | 944458 | |||
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504A | 6684768 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 505 | 6698711 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 507 | 875769 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 508A | 6601420 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 509 | 6696184 | |||
