Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki TED-250DLS'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

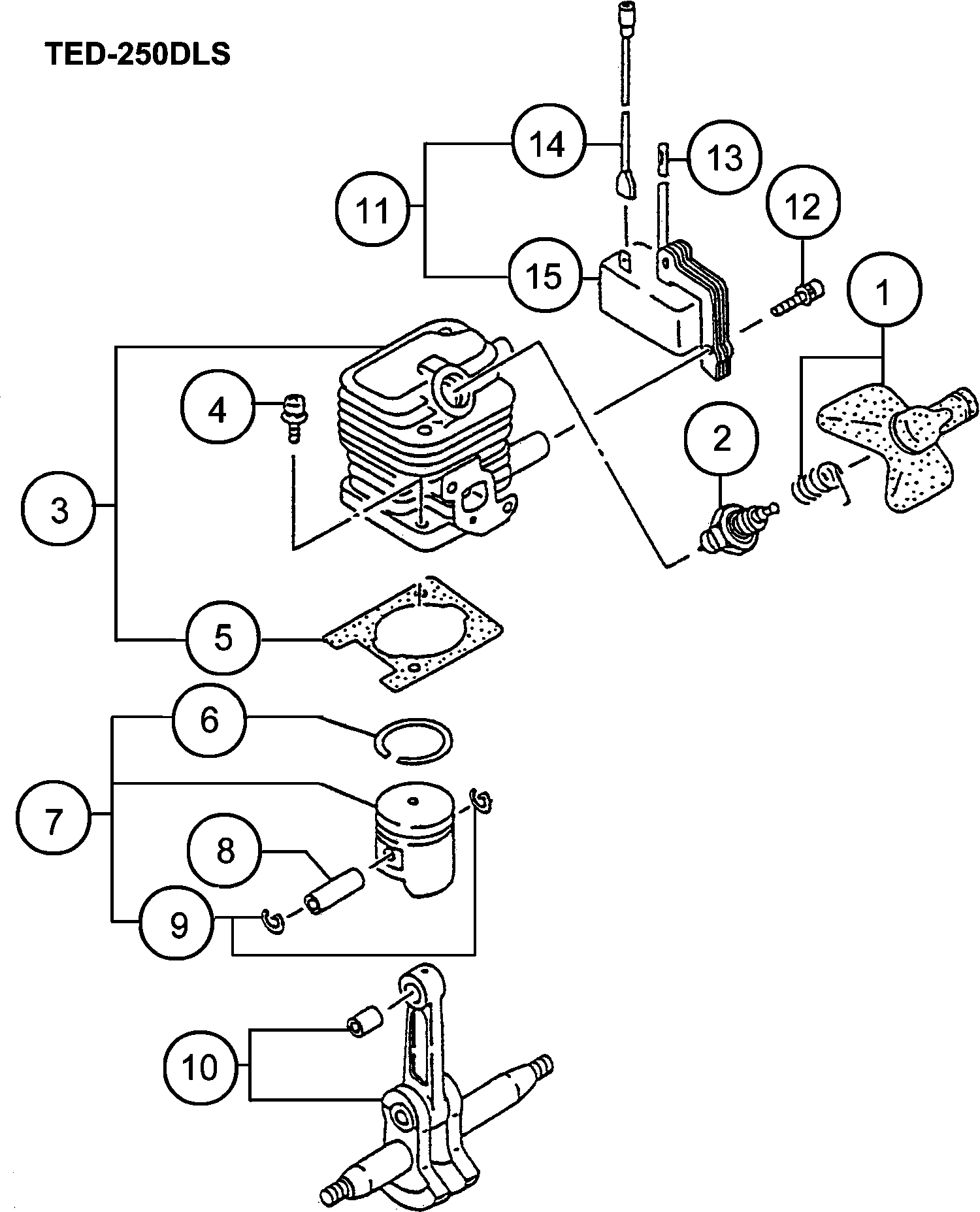

Tekeningen van de Hikoki TED-250DLS
Onderdelen lijst van de Hikoki TED-250DLS
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SPARK PLUG CAP ASS'Y (OLD 157-06500-91) | ||||
| 1 | 6687476 | 4.45 | 5.38 | |
| BOUGIE RCJ8Y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| CYLINDER SET (OLD 001-06600-90) | ||||
| 3 | 6685481 | 44.31 | 53.62 | |
| HEX.HOLE BOLT M5X18/S(OUD 994-61050-184) | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| CYLINDER GASKET (OLD 017-06500-20) | ||||
| 5 | 6685744 | 1.15 | 1.39 | |
| PISTON RING (OUD 041-01601-20) | ||||
| 6 | 6684588 | 8.58 | 10.38 | |
| PISTON SET, SPARE (OLD 030-06600-90) | ||||
| 7 | 6685893 | 22.24 | 26.91 | |
| PISTON PIN (OLD 037-07045-20) | ||||
| 8 | 6684591 | 4.29 | 5.19 | |
| PISTON PIN CIRCLIP (OLD 039-01620-20) | ||||
| 9 | 6686028 | 1.15 | 1.39 | |
| CRANK SHAFT COMP. (OLD 046-06500-80) | ||||
| 10 | 6686205 | 72.30 | 87.48 | |
| IGNITION COIL ASS'Y (OLD 153-21532-92 & 6687694) | ||||
| 11 | 6695927 | 34.19 | 41.37 | |
| HEX.HOLE BOLT M4X18/WS (OUD 994-64040-184) | ||||
| 12 | 6684599 | 2.15 | 2.60 | |
| INSULATOR TUBE 50L (OLD 250-06500-20) | ||||
| 13 | 6684597 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 14 | 6687866 | |||
| BOBINE | ||||
| 15 | 6695939 | 38.26 | 46.30 | |
| CRANK CASE GASKET (OLD 090-06500-20) | ||||
| 22 | 6686720 | 1.15 | 1.39 | |
| OLIE KEERRING | ||||
| 23 | 6684607 | 4.29 | 5.19 | |
| BALL BEARING 6001 C3 (OLD 999-61600-132/6695535) | ||||
| 24 | 6684608 | 3.80 | 4.60 | |
| GEAR SHAFT SHIM 0.20 (OUD 330-00200-23) | ||||
| 25 | 6684604 | 2.15 | 2.60 | |
| GEAR SHAFT SHIM 0.30 (OUD 330-00200-24) | ||||
| 25 | 6684605 | 2.15 | 2.60 | |
| GEAR SHAFT SHIM 0.10 (OLD 330-00200-21) | ||||
| 25 | 6689177 | 1.15 | 1.39 | |
| GEAR SHAFT SHIM 0.15 (OLD 330-00200-22) | ||||
| 25 | 6689178 | 1.15 | 1.39 | |
| ANTI-VIBE RUBBER (OLD 599-00601-20) | ||||
| 26 | 6691822 | 1.15 | 1.39 | |
| HEX. SOCKET HD. BOLT M5X30 S (OLD 994-61050-304) | ||||
| 27 | 6684786 | 2.15 | 2.60 | |
| VLIEGWIEL | ||||
| 28 | 6687389 | 26.16 | 31.66 | |
| RING M8 (OLD 992-01080-011) | ||||
| 29 | 6684611 | 2.15 | 2.60 | |
| RING | ||||
| 30 | 6684971 | 1.04 | 1.26 | |
| NUT M8 (OLD 991-01080-011/327325/332299/726603) | ||||
| 31 | 6684612 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 32 | 6686778 | |||
| INTAKE PIPE GASKET (OLD 403-06500-20) | ||||
| 41 | 6689891 | 1.15 | 1.39 | |
| CARB. INSULATOR SET,SPARE (OLD 404-06500-90) | ||||
| 42 | 6689966 | 6.93 | 8.38 | |
| HEX. HOLE BOLT 5X25WS (OLD 994-64050-254/6696513) | ||||
| 43 | 6695515 | 1.15 | 1.39 | |
| CARBURETOR GASKET (OLD 402-06500-20) | ||||
| 44 | 6689839 | 1.15 | 1.39 | |
| O-RING P-15 | ||||
| 45 | 6698966 | 1.04 | 1.26 | |
| CLEANER BODY COMP. (OLD 423-06500-81/6690118) FOR | ||||
| 46 | 6690119 | 4.45 | 5.38 | |
| COLLAR 7.5 (OLD 470-06500-20) | ||||
| 47 | 6690804 | 1.15 | 1.39 | |
| CHOKE VALVE (OLD 528-06500-20) | ||||
| 48 | 6691272 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 49 | 6684658 | |||
| BLOW OVER CHECK BOARD (OLD 476-01700-20/790189) | ||||
| 50 | 6690843 | 1.15 | 1.39 | |
| RING (OUD 992-10050-012) | ||||
| 51 | 6684662 | 2.15 | 2.60 | |
| SCREW M5X60 (OUD 990-11050-602) | ||||
| 52 | 6684660 | 2.15 | 2.60 | |
| REINIGINGSSPONS | ||||
| 53 | 6690364 | 1.15 | 1.39 | |
| LUCHTFILTERKAP | ||||
| 54 | 6690417 | 5.94 | 7.18 | |
| SPECIAL SCREW (OLD 380-0637C-20) | ||||
| 55 | 6689737 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 56 | 6690482 | |||
| CARBURATEURSET | ||||
| 56A | 6690493 | 60.35 | 73.02 | |
| SHIELD TUBE ASS'Y (OLD 223-06500-90) | ||||
| 57 | 6685247 | 2.31 | 2.80 | |
| CLIP.6.3 DIA. (OLD 680-00731-20) | ||||
| 58 | 6684619 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 59 | 6684620 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 60 | 6691582 | |||
| COLLAR 5.8 (OLD 659-00801-20) | ||||
| 61 | 6692244 | 1.15 | 1.39 | |
| HEX. HOLE BOLT 5X18PS (OLD 994-63050-185) | ||||
| 62 | 6695505 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 63 | 6691337 | |||
| TANKDOP, ZWART (OLD 595-06516-90/6691712) | ||||
| 64 | 6691763 | 7.59 | 9.18 | |
| PRIMING PUMP COMP. (OLD 442-25143-80) | ||||
| 65 | 6685139 | 5.94 | 7.18 | |
| FUEL PIPE 2.5X4X80 (OLD 700-02504-08/6601444) | ||||
| 66 | 6692347 | 1.15 | 1.39 | |
| FUEL PIPE 2.5X4X70 (OLD 700-02504-07) | ||||
| 67 | 6692346 | 1.15 | 1.39 | |
| RETURN GROMMET (OLD 6684627) | ||||
| 68 | 6697846 | 1.04 | 1.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 69 | 6684625 | |||
| MUFFLER PROTECTOR (OLD 738-06600-20) | ||||
| 81 | 6692799 | 5.61 | 6.79 | |
| MUFFLER GASKET (OLD 737-06500-20) | ||||
| 82 | 6692744 | 1.15 | 1.39 | |
| WARMTESCHILD | ||||
| 83 | 6687252 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 84 | 6692480 | |||
| RING | ||||
| 85 | 6684661 | 2.15 | 2.60 | |
| HEX. SOCKET HD. BOLT M5X50 (OLD 990-51050-503) | ||||
| 86 | 6685114 | 1.15 | 1.39 | |
| GROMMET (OLD 203-0604A-20) | ||||
| 87 | 6688050 | 1.15 | 1.39 | |
| HEX.HOLE BOLT 4X18PS (OLD 994-63040-184) | ||||
| 88 | 6695502 | 1.15 | 1.39 | |
| SLIPKOPPELING KOMPLEET | ||||
| 89 | 6688494 | 9.74 | 11.78 | |
| TAPSCHROEF D4.5X16 | ||||
| 90 | 6684636 | 2.15 | 2.60 | |
| BOLT 4X12PS (OLD 994-25040-128) | ||||
| 91 | 6695441 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 92 | 6687014 | |||
| STARTER ROPE REEL (OLD 774-0651H-20) | ||||
| 93 | 6693072 | 5.11 | 6.19 | |
| CAM PLATE (OLD 759-0651H-20) | ||||
| 94 | 6684678 | 6.44 | 7.79 | |
| DUMPER SPRING (OLD 758-0651H-20) | ||||
| 95 | 6684677 | 8.58 | 10.38 | |
| RECOIL SPRING (OLD 780-06097-20/6697591) | ||||
| 96 | 6684675 | 11.55 | 13.98 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 97 | 6684679 | 2.15 | 2.60 | |
| ROPE 3X890 (OLD 783-0651H-20) | ||||
| 98 | 6693172 | 2.31 | 2.80 | |
| STARTHENDEL | ||||
| 99 | 6693237 | 1.15 | 1.39 | |
| STARTER PULLEY ASS'Y (OLD 798-0651H-90) | ||||
| 100 | 6684681 | 13.20 | 15.97 | |
| DEFLECTOR (OLD 132-06602-20) | ||||
| 101 | 6687209 | 6.44 | 7.79 | |
| STARTER PAWL (OLD 788-0651H-20) | ||||
| 102 | 6684685 | 4.29 | 5.19 | |
| STARTER PAWL SPRING (OLD 790-06097-20) | ||||
| 103 | 6684684 | 4.29 | 5.19 | |
| STOP RING E-5 (OLD 993-55050-000) | ||||
| 104 | 6684683 | 2.15 | 2.60 | |
| THROTTLE SET SCREW (OLD 548-25140-20) | ||||
| 111 | 6684698 | 4.29 | 5.19 | |
| SWIVEL (OUD 539-25120-20) | ||||
| 112 | 6684697 | 6.44 | 7.79 | |
| STOP RING (OUD 489-25100-20) | ||||
| 113 | 6684696 | 2.15 | 2.60 | |
| O-RING (OUD 550-25100-20) | ||||
| 114 | 6684695 | 4.29 | 5.19 | |
| MAIN JET #40 (OLD 599-2000W-40) | ||||
| 115 | 6691845 | 4.45 | 5.38 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 115A | 6691872 | |||
| PUMP GASKET (OLD 577-25100-20) | ||||
| 116 | 6691457 | 7.10 | 8.59 | |
| PUMP DIAPHRAGM (OLD 576-25100-20 & 6696325) | ||||
| 117 | 6684693 | 8.58 | 10.38 | |
| INLET SCREEN (OUD 578-25007-20) | ||||
| 118 | 6684700 | 4.29 | 5.19 | |
| PUMP BODY COMP. (OLD 575-25147-80/6691428/6691431) | ||||
| 119 | 6691430 | 36.15 | 43.74 | |
| Niet meer leverbaar, geen vervanging | ||||
| 120 | 6685220 | |||
| METERING DIAPHRAGM COMP. (OLD 474-25241-80) | ||||
| 121 | 6690830 | 11.88 | 14.37 | |
| DIAPHRAGM COVER (OLD 476-25004-20) | ||||
| 122 | 6685222 | 4.45 | 5.38 | |
| SET SCREW (OLD 548-25101-20) | ||||
| 123 | 6691312 | 1.15 | 1.39 | |
| THROTTLE VALVE COMP. (OLD 488-25145-80) | ||||
| 124 | 6684883 | 18.75 | 22.69 | |
| GEAR CASE A COMP. (OLD 002-32182-80) | ||||
| 151 | 6685578 | 28.14 | 34.05 | |
| Niet meer leverbaar, geen vervanging | ||||
| 152 | 6685593 | |||
| CLUTCH HOUSING COMP. (OLD 226-32149-80) | ||||
| 153 | 6688201 | 17.09 | 20.68 | |
| GEAR 2 (OLD 012-32120-20) | ||||
| 154 | 6685655 | 30.25 | 36.60 | |
| GEAR 2 (OLD 012-32191-20) | ||||
| 154A | 6685656 | 28.44 | 34.41 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 155A | 6685702 | |||
| WOOD-RUFF KEY 3X10X3.7 (OLD 068-00300-20/791154) | ||||
| 156 | 6686454 | 1.15 | 1.39 | |
| BALL BEARING 6001Z, 28MM/OD (OLD 999-61600-102) | ||||
| 157 | 6695532 | 6.60 | 7.99 | |
| BALL BEARING 6001 C3 (OLD 999-61600-132/6695535) | ||||
| 158 | 6684608 | 3.80 | 4.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 158A | 6695534 | |||
| STOP RING C-12 OUTER | ||||
| 159 | 6684664 | 2.15 | 2.60 | |
| STOP RING C 11, OUTER (OLD 993-50011-002) | ||||
| 159A | 6695282 | 1.15 | 1.39 | |
| GEAR 4 (OLD 018-32182-20) | ||||
| 160 | 6685787 | 22.24 | 26.91 | |
| GEAR 4 (OLD 018-32192-20) | ||||
| 160A | 6685788 | 50.21 | 60.76 | |
| BALL BEARING #7202B, 35MM/OD (OLD 999-61720-221) | ||||
| 161 | 6695587 | 14.21 | 17.20 | |
| WASHER C 5.0 (OLD 040-32120-20) | ||||
| 162 | 6686065 | 3.30 | 3.99 | |
| BALL BEARING 6202Z 35MM/OD (OLD 999-61620-202) | ||||
| 163 | 6695559 | 6.44 | 7.79 | |
| RING | ||||
| 164 | 6695206 | 1.15 | 1.39 | |
| STOP RING C-35, INNER (OLD 993-51035-002/791059) | ||||
| 165 | 6695296 | 1.15 | 1.39 | |
| WOOD-RUFF KEY 3X13X5 (OLD 068-01006-20) | ||||
| 166 | 6686455 | 1.15 | 1.39 | |
| AANDRIJFAS | ||||
| 167 | 6685824 | 104.51 | 126.46 | |
| SCREW 5X18/S (OLD 994-14050-181) | ||||
| 168 | 6695339 | 1.15 | 1.39 | |
| STOP RING C-13, OUTER (OLD 993-50013-002) | ||||
| 169 | 6695283 | 1.15 | 1.39 | |
| LOCK LEVER SPRING (OLD 406-32182-20) | ||||
| 171 | 6689998 | 4.45 | 5.38 | |
| RING | ||||
| 172 | 6687942 | 1.15 | 1.39 | |
| RING | ||||
| 173 | 6685103 | 1.15 | 1.39 | |
| STEP BOLT (OLD 793-10200-20) | ||||
| 174 | 6693366 | 1.15 | 1.39 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 175 | 6688643 | 1.15 | 1.39 | |
| RING | ||||
| 176 | 6695219 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 177 | 6684792 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 191 | 6687577 | |||
| HANDLE COMP. (OLD 047-32175-82) | ||||
| 192 | 6686247 | 138.55 | 167.65 | |
| RING | ||||
| 193 | 6684639 | 2.15 | 2.60 | |
| RING | ||||
| 194 | 6695219 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 195 | 6695015 | |||
| RING | ||||
| 196 | 6695198 | 1.15 | 1.39 | |
| RING | ||||
| 197 | 6695225 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 198 | 6695005 | |||
| THROTTLE LEVER ASS'Y (OLD 101-32175-90) | ||||
| 199 | 6686800 | 9.40 | 11.37 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 200 | 6693916 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 201 | 6687759 | |||
| CORD CLAMP COMP. (OLD 198-10246-80) | ||||
| 202 | 6688008 | 1.15 | 1.39 | |
| STOP BUTTON BRACKET (OLD 640-32465-21) | ||||
| 203 | 6692138 | 3.30 | 3.99 | |
| BUTTON STOP (OLD 258-11650-20) | ||||
| 204 | 6688366 | 1.15 | 1.39 | |
| STOP BUTTON MARK (OLD 925-33176-20) | ||||
| 205 | 6694589 | 2.31 | 2.80 | |
| SCREW 3X10 (OLD 994-31030-101) | ||||
| 206 | 6684913 | 2.15 | 2.60 | |
| CORD CLAMP (OLD 198-33130-20) | ||||
| 207 | 6688015 | 1.15 | 1.39 | |
| CORD B 130M (OLD 274-0700D-80) | ||||
| 208 | 6688461 | 1.15 | 1.39 | |
| SPANNER 17X19 (OLD 049-29321-75) NEW | ||||
| 501 | 6686251 | 4.35 | 5.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 6684764 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 503 | 6693647 | |||
