Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki TED-262L'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

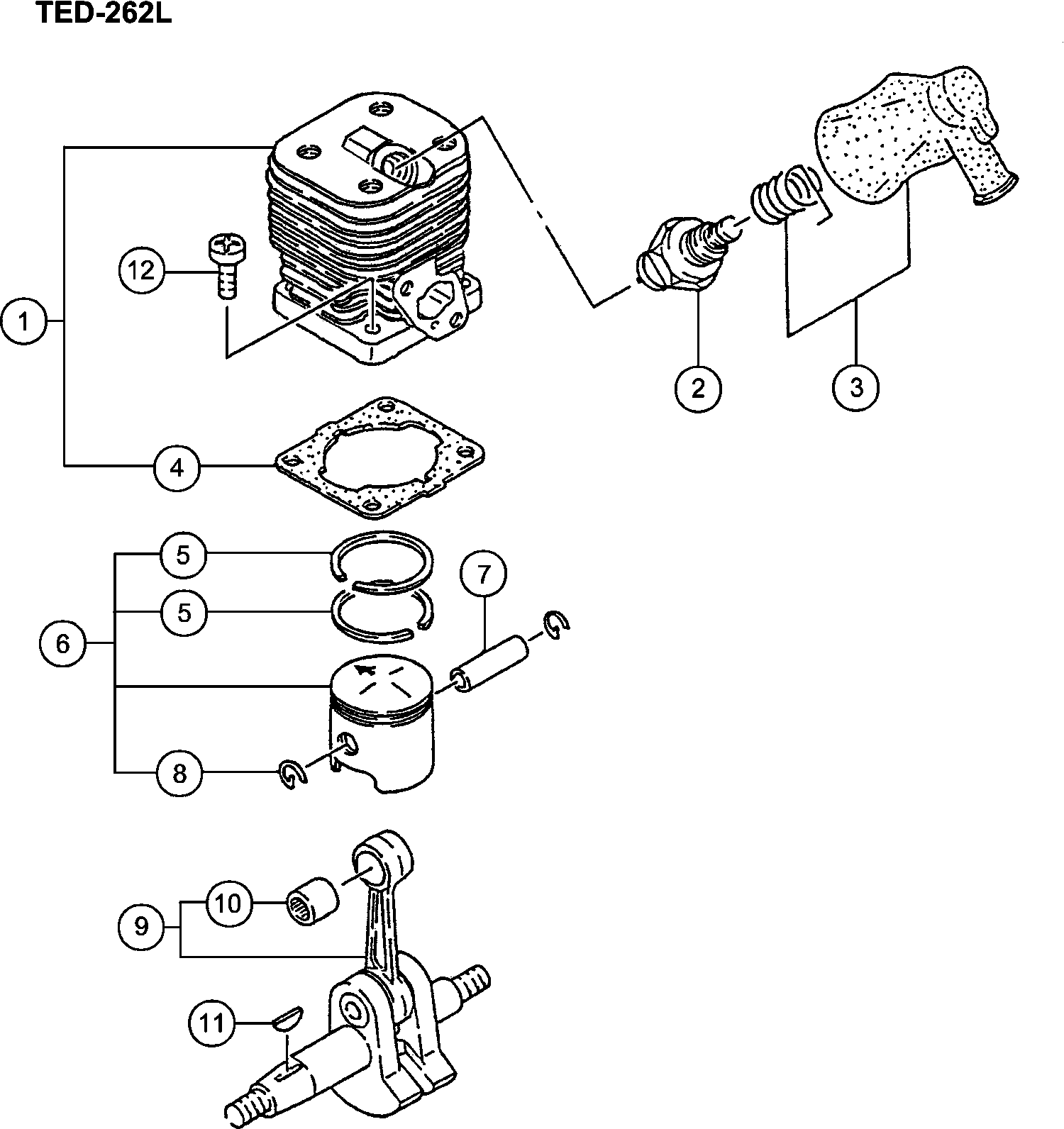

Tekeningen van de Hikoki TED-262L
Onderdelen lijst van de Hikoki TED-262L
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CYLINDER SET (OLD 001-01600-90) | ||||
| 1 | 6685453 | 50.21 | 60.76 | |
| SPARK PLUG ASS'Y BM6A | ||||
| 2 | 6699313 | 6.76 | 8.18 | |
| SPARK PLUG CAP ASS'Y (OLD 157-01570-90/6687470/668 | ||||
| 3 | 6687468 | 2.31 | 2.80 | |
| CYLINDER GASKET (OLD 017-01620-20) | ||||
| 4 | 6685720 | 1.15 | 1.39 | |
| PISTON RING (OUD 041-01601-20) | ||||
| 5 | 6684588 | 8.58 | 10.38 | |
| PISTON SET (OLD 030-01620-90) | ||||
| 6 | 6685876 | 24.20 | 29.28 | |
| PISTON PIN (OLD 037-07020-20/6686011) | ||||
| 7 | 6686016 | 2.31 | 2.80 | |
| CIRCLIP (OLD 039-00000-20) | ||||
| 8 | 6685078 | 1.15 | 1.39 | |
| CRANK SHAFT COMP. (OLD 046-0162S-81) | ||||
| 9 | 6686165 | 56.26 | 68.08 | |
| NEEDLE BEARING KTV91313 2X7.8 (OLD 999-62091-345/6 | ||||
| 10 | 6695595 | 5.11 | 6.19 | |
| WOODRUFF KEY 3X13X4.5 (OUD 068-10100-20) | ||||
| 11 | 6684899 | 2.15 | 2.60 | |
| HEX.HOLE BOLT M5X16/S (OLD 994-61050-164) | ||||
| 12 | 6684903 | 2.15 | 2.60 | |
| CRANK SHAFT SHIM 0.10 (OLD 071-02007-21) | ||||
| 21 | 6686470 | 1.15 | 1.39 | |
| CRANK SHAFT SHIM 0.20 (OLD 071-02007-23) | ||||
| 21 | 6686472 | 1.15 | 1.39 | |
| CRANK SHAFT SHIM 0.30 (OLD 071-02007-24) | ||||
| 21 | 6686473 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 22 | 6697745 | |||
| BALL BEARING 6001 C3 (OLD 999-61600-132/6695535) | ||||
| 23 | 6684608 | 3.80 | 4.60 | |
| OLIE KEERRING | ||||
| 24 | 6695637 | 3.30 | 3.99 | |
| OLIE KEERRING | ||||
| 25 | 6684607 | 4.29 | 5.19 | |
| CRANK CASE GASKET (OLD 090-00601-20) | ||||
| 26 | 6686687 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 27 | 6686514 | |||
| RING | ||||
| 28 | 6689645 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 29 | 6693393 | |||
| VLIEGWIEL | ||||
| 30 | 6687409 | 24.20 | 29.28 | |
| BOBINE | ||||
| 31 | 6687622 | 6.28 | 7.59 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 32 | 6687661 | |||
| NUT M8 (OLD 991-01080-011/327325/332299/726603) | ||||
| 33 | 6684612 | 2.15 | 2.60 | |
| RING | ||||
| 34 | 6695184 | 1.15 | 1.39 | |
| NUT M8 (OLD 991-01080-011/327325/332299/726603) | ||||
| 35 | 6684612 | 2.15 | 2.60 | |
| HEX. SOCKET HD. BOLT M5X30 S (OLD 994-61050-304) | ||||
| 36 | 6684786 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 37 | 6695337 | |||
| HIGH TENSION SCREW 4X18WS (OLD 994-16040-186) | ||||
| 38 | 6695407 | 1.15 | 1.39 | |
| STOP CORD COMP. (OLD 178-0136M-80) | ||||
| 39 | 6687826 | 2.31 | 2.80 | |
| RUBBER BESCHERMKAPJE | ||||
| 40 | 6684602 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 41 | 6687886 | |||
| TANK BRACKET (OLD 653-01620-20) | ||||
| 51 | 6692204 | 2.31 | 2.80 | |
| FUEL TANK CUSHION RUBBER (OLD 655-06100-20) | ||||
| 52 | 6692227 | 1.15 | 1.39 | |
| CARBURETOR GASKET (OLD 402-0602K-21/6689836) | ||||
| 55 | 6684615 | 2.15 | 2.60 | |
| CARBURATEURSET | ||||
| 56 | 6690455 | 78.35 | 94.80 | |
| SHIELD TUBE ASS'Y (OLD 223-06500-90) | ||||
| 57 | 6685247 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 58 | 6692279 | |||
| CLIP.6.3 DIA. (OLD 680-00731-20) | ||||
| 59 | 6684619 | 2.15 | 2.60 | |
| Niet meer leverbaar, geen vervanging | ||||
| 60 | 6691768 | |||
| TANK CAP D ASS'Y (OLD 595-03002-90/6685071) | ||||
| 60A | 6691748 | 7.59 | 9.18 | |
| FUEL TANK (OLD 591-01600-20) | ||||
| 61 | 6691500 | 9.58 | 11.59 | |
| TANK (OLD 591-01620-80) | ||||
| 61A | 6691504 | 11.23 | 13.58 | |
| TANK COMP. WHITE (OLD 591-01601-80) NEW | ||||
| 61B | 6691501 | 10.20 | 12.34 | |
| SCREW 4X18/PS (OLD 994-15040-182) | ||||
| 62 | 6695375 | 1.15 | 1.39 | |
| PLUS SCREW 5X60WS (OLD 994-16050-601) | ||||
| 63 | 6695431 | 1.15 | 1.39 | |
| FUEL PIPE 3X5X70 (OLD 700-03005-07) | ||||
| 64 | 6692357 | 1.15 | 1.39 | |
| RETURN GROMMET (OLD 6684627) | ||||
| 65 | 6697846 | 1.04 | 1.26 | |
| SCREW 4X14/PS (OLD 994-15040-142) | ||||
| 66 | 6695372 | 1.15 | 1.39 | |
| SCREW 5X24WS (OLD 994-16050-241) | ||||
| 67 | 6695423 | 1.15 | 1.39 | |
| AIR VENT ASS'Y (OLD 564-06611-90) | ||||
| 68 | 6691389 | 10.23 | 12.37 | |
| AIR VENT VALVE ASS'Y (OLD 646-06612-90) | ||||
| 70 | 6692171 | 4.95 | 5.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 81 | 6692770 | |||
| PRIMARY CORD GROMMET (OLD 203-0630B-20) NEW | ||||
| 82 | 6688051 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 83 | 6684642 | |||
| KOPPELING SCHOEN | ||||
| 84 | 6684643 | 11.55 | 13.98 | |
| CLUTCH SPRING (OLD 342-0630B-20) | ||||
| 85 | 6684644 | 2.15 | 2.60 | |
| RING | ||||
| 86 | 6689637 | 1.15 | 1.39 | |
| STEP BOLT (OLD 357-0075T-20) | ||||
| 87 | 6684646 | 2.15 | 2.60 | |
| VENTILATORHUIS | ||||
| 88 | 6686939 | 13.91 | 16.83 | |
| WARMTESCHILD | ||||
| 89 | 6687234 | 4.45 | 5.38 | |
| MUFFLER GASKET (OLD 737-01620-20) | ||||
| 90 | 6692731 | 1.15 | 1.39 | |
| MUFFLER COUPLING GASKET (OLD 739-01620-21) | ||||
| 92 | 6692832 | 2.31 | 2.80 | |
| Niet meer leverbaar, geen vervanging | ||||
| 93 | 6692622 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 95 | 6695415 | |||
| SCREW 5X16/PS (OLD 994-15050-162) | ||||
| 96 | 6695386 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 97 | 6695317 | |||
| HEX. HOLE BOLT 5X45 (OLD 990-51050-453) | ||||
| 98 | 6695055 | 1.15 | 1.39 | |
| RING M5 (OUD 992-01050-061) | ||||
| 99 | 6684918 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 100 | 6695337 | |||
| SCREW 5X10/P (OLD 994-13050-101) | ||||
| 101 | 6695319 | 1.15 | 1.39 | |
| AIR CLEANER ASS'Y (OLD 410-01600-90) | ||||
| 121 | 6690025 | 10.23 | 12.37 | |
| AIR CLEANER CAP (OLD 424-0072Z-20) | ||||
| 122 | 6690142 | 4.95 | 5.99 | |
| Niet meer leverbaar, geen vervanging | ||||
| 123 | 6690350 | |||
| SPACER (OUD 453-0602K-20) | ||||
| 124 | 6684859 | 2.15 | 2.60 | |
| COLLAR (OLD 470-00025-20) | ||||
| 125 | 6690801 | 2.31 | 2.80 | |
| CHOKE PLATE,W/1.5MM HOLE (OLD 528-0602K-20) | ||||
| 126 | 6691267 | 4.45 | 5.38 | |
| CLEANER BODY COMP. (OLD 423-0072Z-81) | ||||
| 127 | 6690091 | 5.78 | 6.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 141 | 6692962 | |||
| STARTHENDEL | ||||
| 142 | 6693224 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 143 | 6693019 | |||
| RECOIL SPRING (OLD 780-00940-20) | ||||
| 144 | 6693129 | 6.28 | 7.59 | |
| STARTER ROPE (OLD 783-00940-20) | ||||
| 145 | 6693152 | 3.30 | 3.99 | |
| STARTER PULLEY (OLD 774-01630-21) | ||||
| 146 | 6693058 | 3.30 | 3.99 | |
| STARTER PAWL (OLD 788-01630-21/6693298) | ||||
| 147 | 6693303 | 3.30 | 3.99 | |
| RING | ||||
| 148 | 6693420 | 1.15 | 1.39 | |
| FRICTION PLATE (OLD 837-04230-20) | ||||
| 149 | 6693623 | 2.31 | 2.80 | |
| STARTER PAWL SHIM (OLD 822-04230-20 & 6693566) | ||||
| 150 | 6693564 | 1.15 | 1.39 | |
| SET BOLT (OLD 839-04230-20) | ||||
| 151 | 6693635 | 2.31 | 2.80 | |
| THROTTLE SET SCREW (OUD 514-25100-20) | ||||
| 161 | 6684870 | 2.15 | 2.60 | |
| CABLE ADJUSTER STAY (OUD 544-25164-20) | ||||
| 162 | 6684873 | 6.44 | 7.79 | |
| SWIVEL (OUD 539-25120-20) | ||||
| 163 | 6684697 | 6.44 | 7.79 | |
| STOP RING (OUD 489-25100-20) | ||||
| 164 | 6684696 | 2.15 | 2.60 | |
| O-RING (OUD 550-25100-20) | ||||
| 165 | 6684695 | 4.29 | 5.19 | |
| MAIN JET #37.5 (OLD 599-200AW-37) | ||||
| 166 | 6691882 | 5.94 | 7.18 | |
| PUMP GASKET (OLD 577-25100-20) | ||||
| 167 | 6691457 | 7.10 | 8.59 | |
| PUMP DIAPHRAGM (OLD 576-25100-20 & 6696325) | ||||
| 168 | 6684693 | 8.58 | 10.38 | |
| INLET SCREEN (OUD 578-25007-20) | ||||
| 169 | 6684700 | 4.29 | 5.19 | |
| PUMP BODY COMP. (OLD 575-25152-80) | ||||
| 170 | 6691432 | 34.19 | 41.37 | |
| DIAPHRAGM GASKET (OLD 475-25001-20) | ||||
| 171 | 6690837 | 2.31 | 2.80 | |
| Niet meer leverbaar, geen vervanging | ||||
| 172 | 6690827 | |||
| DIAPHRAGM COVER (OLD 476-25004-20) | ||||
| 173 | 6685222 | 4.45 | 5.38 | |
| SET SCREW (OLD 548-25101-20) | ||||
| 174 | 6691312 | 1.15 | 1.39 | |
| CABLE ADJUSTER (OUD 614-25137-20) | ||||
| 175 | 6684871 | 4.29 | 5.19 | |
| LOCK NUT M6 (OUD 991-01060-013) | ||||
| 176 | 6684872 | 2.15 | 2.60 | |
| CLEANER PACKING (OUD 431-0634C-20) | ||||
| 177 | 6684875 | 4.29 | 5.19 | |
| RING (OUD 549-25165-20) | ||||
| 178 | 6684874 | 2.15 | 2.60 | |
| THROTTLE SET SCREW (OUD 514-25100-20) | ||||
| 181 | 6684870 | 2.15 | 2.60 | |
| CABLE ADJUSTER STAY (OUD 544-25164-20) | ||||
| 182 | 6684873 | 6.44 | 7.79 | |
| SWIVEL (OUD 539-25120-20) | ||||
| 183 | 6684697 | 6.44 | 7.79 | |
| STOP RING (OUD 489-25100-20) | ||||
| 184 | 6684696 | 2.15 | 2.60 | |
| O-RING (OUD 550-25100-20) | ||||
| 185 | 6684695 | 4.29 | 5.19 | |
| MAIN JET #37 (OLD 599-2000W-37) | ||||
| 186 | 6684877 | 3.30 | 3.99 | |
| PUMP GASKET (OLD 577-25100-20) | ||||
| 187 | 6691457 | 7.10 | 8.59 | |
| PUMP DIAPHRAGM (OLD 576-25100-20 & 6696325) | ||||
| 188 | 6684693 | 8.58 | 10.38 | |
| INLET SCREEN (OUD 578-25007-20) | ||||
| 189 | 6684700 | 4.29 | 5.19 | |
| PUMP BODY COMP. (OLD 575-25153-80) | ||||
| 190 | 6684879 | 62.16 | 75.22 | |
| DIAPHRAGM GASKET (OUD 475-25153-20) | ||||
| 191 | 6684691 | 8.58 | 10.38 | |
| METERING DIAPHRAGM COMP. (OLD 474-25241-80) | ||||
| 192 | 6690830 | 11.88 | 14.37 | |
| DIAPHRAGM COVER (OUD 476-25151-20) | ||||
| 193 | 6684688 | 8.58 | 10.38 | |
| SET SCREW (OLD 548-25151-20 & 6696324) | ||||
| 194 | 6684699 | 2.15 | 2.60 | |
| CABLE ADJUSTER (OUD 614-25137-20) | ||||
| 195 | 6684871 | 4.29 | 5.19 | |
| LOCK NUT M6 (OUD 991-01060-013) | ||||
| 196 | 6684872 | 2.15 | 2.60 | |
| CLEANER PACKING (OUD 431-0634C-20) | ||||
| 197 | 6684875 | 4.29 | 5.19 | |
| PRIMING PUMP COMP. (OUD 442-25151-80) | ||||
| 198 | 6684687 | 16.34 | 19.77 | |
| PRIMING BODY (OUD 447-25108-20) | ||||
| 199 | 6684689 | 6.44 | 7.79 | |
| RING (OUD 549-25165-20) | ||||
| 200 | 6684874 | 2.15 | 2.60 | |
| GEAR CASE A COMP. (OLD 002-32182-80) | ||||
| 211 | 6685578 | 28.14 | 34.05 | |
| Niet meer leverbaar, geen vervanging | ||||
| 212 | 6685593 | |||
| CLUTCH HOUSING COMP. (OLD 226-32120-80) | ||||
| 213 | 6688198 | 16.34 | 19.77 | |
| BALL BEARING 6001Z, 28MM/OD (OLD 999-61600-102) | ||||
| 214 | 6695532 | 6.60 | 7.99 | |
| BALL BEARING 6001 C3 (OLD 999-61600-132/6695535) | ||||
| 215 | 6684608 | 3.80 | 4.60 | |
| STOP RING C-12 OUTER | ||||
| 216 | 6684664 | 2.15 | 2.60 | |
| BALL BEARING #7202B, 35MM/OD (OLD 999-61720-221) | ||||
| 217 | 6695587 | 14.21 | 17.20 | |
| WASHER C 5.0 (OLD 040-32120-20) | ||||
| 218 | 6686065 | 3.30 | 3.99 | |
| BALL BEARING 6202Z 35MM/OD (OLD 999-61620-202) | ||||
| 219 | 6695559 | 6.44 | 7.79 | |
| STOP RING C-35, INNER (OLD 993-51035-002/791059) | ||||
| 220 | 6695296 | 1.15 | 1.39 | |
| WOOD-RUFF KEY 3X13X5 (OLD 068-01006-20) | ||||
| 221 | 6686455 | 1.15 | 1.39 | |
| PLUS BOLT 6X30 (OLD 990-23060-301) | ||||
| 222 | 6695022 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 223 | 6684792 | |||
| RING | ||||
| 224 | 6695219 | 1.15 | 1.39 | |
| SCREW 5X18/S (OLD 994-14050-181) | ||||
| 225 | 6695339 | 1.15 | 1.39 | |
| RING | ||||
| 226 | 6695206 | 1.15 | 1.39 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 227 | 6688643 | 1.15 | 1.39 | |
| STOP RING C-13, OUTER (OLD 993-50013-002) | ||||
| 228 | 6695283 | 1.15 | 1.39 | |
| GEAR 4 (OLD 018-32182-20) | ||||
| 229 | 6685787 | 22.24 | 26.91 | |
| GEAR 4 (OLD 018-32192-20) | ||||
| 229A | 6685788 | 50.21 | 60.76 | |
| AANDRIJFAS | ||||
| 230 | 6685824 | 104.51 | 126.46 | |
| LOCK LEVER COMP. (OLD 405-32182-81/6689991) | ||||
| 231 | 6689992 | 8.41 | 10.18 | |
| LOCK LEVER SPRING (OLD 406-32182-20) | ||||
| 232 | 6689998 | 4.45 | 5.38 | |
| RING | ||||
| 233 | 6687942 | 1.15 | 1.39 | |
| STEP BOLT (OLD 793-10200-20) | ||||
| 234 | 6693366 | 1.15 | 1.39 | |
| RING | ||||
| 235 | 6685103 | 1.15 | 1.39 | |
| HANDLE COMP.A (OLD 258-3210A-82) | ||||
| 251 | 6688369 | 36.15 | 43.74 | |
| HANDLE GRIP A (OLD 165-33130-20/6691224) | ||||
| 252 | 6687624 | 5.78 | 6.99 | |
| THROTTLE LEVER (OLD 101-32120-20) | ||||
| 253 | 6686799 | 2.31 | 2.80 | |
| SCREW 5X25 (OLD 990-11050-251/6694895) | ||||
| 254 | 6694896 | 1.15 | 1.39 | |
| HEX. NUT 5 (OLD 991-01050-011) | ||||
| 255 | 6684965 | 1.04 | 1.26 | |
| CORD CLAMP (OLD 198-33130-20) | ||||
| 256 | 6688015 | 1.15 | 1.39 | |
| PLUS BOLT 6X16 (OLD 990-23060-161/6695017) | ||||
| 257 | 6695019 | 1.15 | 1.39 | |
| RING | ||||
| 258 | 6695219 | 1.15 | 1.39 | |
| HANDLE COMP. B (OLD 259-32120-81) | ||||
| 259 | 6688373 | 17.55 | 21.24 | |
| RING | ||||
| 260 | 6695225 | 1.15 | 1.39 | |
| STOP SWITCH COMP. (OLD 156-3210A-80/6687757) | ||||
| 261 | 6687431 | 8.41 | 10.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 262 | 6687574 | |||
| CHUCK HANDLE HOLDER (OLD 155-3210A-20) | ||||
| 263 | 6687420 | 4.45 | 5.38 | |
| BUTTON STOP (OLD 258-11650-20) | ||||
| 264 | 6688366 | 1.15 | 1.39 | |
| SCREW 3X10 (OLD 994-31030-101) | ||||
| 265 | 6684913 | 2.15 | 2.60 | |
| STOP BUTTON MARK (OLD 925-33176-20) | ||||
| 266 | 6694589 | 2.31 | 2.80 | |
| GASKABEL | ||||
| 267 | 6693862 | 4.45 | 5.38 | |
| HANDLE SUPPORT COMP. (OLD 265-32182-80) | ||||
| 268 | 6688402 | 8.58 | 10.38 | |
| CHUCK HANDLE SET (OLD 059-32120-91) | ||||
| 501 | 6686372 | 44.31 | 53.62 | |
| DRILL CHUCK ASS'Y (OLD 060-32120-91) | ||||
| 502 | 6686377 | 80.31 | 97.18 | |
| CHUCK HANDLE COMP. (OLD 061-32120-81) | ||||
| 503 | 6686410 | 4.45 | 5.38 | |
| COMBI BOX SPANNER 13X19 PLUS (OLD 829-20000-80) | ||||
| 504 | 6684979 | 4.29 | 5.19 | |
