Hikoki TED-270LS tekeningen en onderdelen

Zoek naar onderdelen:
Hikoki
Exact typenummer:
TED-270LS

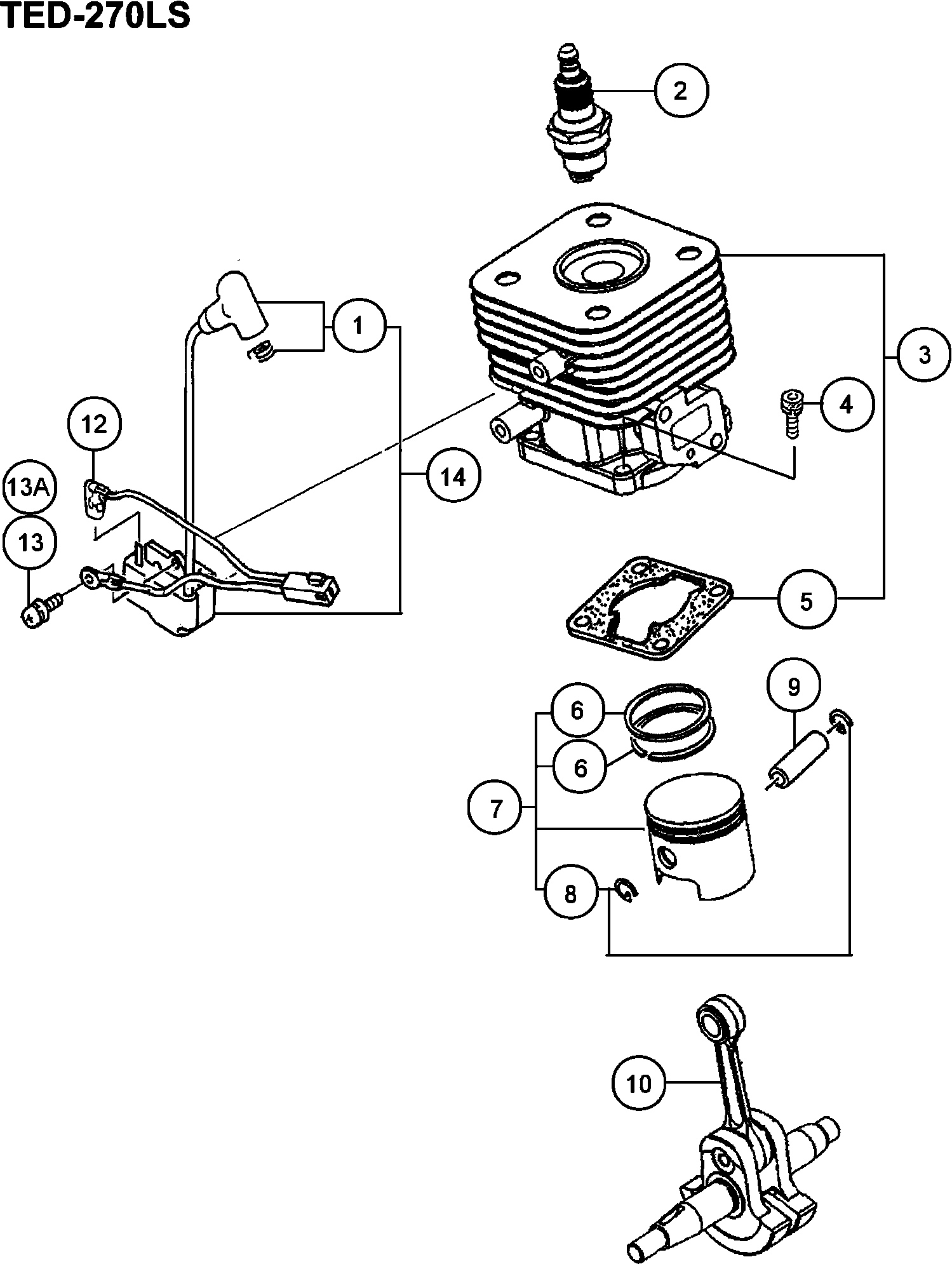

Tekeningen van de HIKOKI TED-270LS

Onderdelen lijst van de HIKOKI TED-270LS

Op deze pagina kunt u onderdelen toevoegen aan de winkelwagen, door het aantal te selecteren en daarna de knop erachter te klikken. Wanneer u klaar bent met het uitzoeken van de juiste onderdelen, kunt u onder aan de pagina op de knop "Uw winkelwagen" klikken. De prijzen hieronder zijn inclusief btw. Het exacte btw bedrag wordt in de winkelwagen berekend op basis van het land waarin u het pakket wenst te ontvangen.
Plug Cap Ass'y (oud 157-01680-90)
16684894Plug Cap Ass'y (oud 157-01680-90)€ 8.30
Bougie (oud 6685086)
26699319Bougie (oud 6685086)€ 8.63
Cylnder Set (old 001-07355-90)
36685493Cylnder Set (old 001-07355-90)€ 52.56
Hex.hole Bolt M5x18/s(oud 994-61050-184)
46684586Hex.hole Bolt M5x18/s(oud 994-61050-184)€ 2.08
Cylinder Gasket T=1.0 (old 017-07355-20)
56685750Cylinder Gasket T=1.0 (old 017-07355-20)€ 2.24
Piston Ring (old 041-01700-20)
66686121Piston Ring (old 041-01700-20)€ 4.31
Piston Set (old 030-07350-90)
76685902Piston Set (old 030-07350-90)€ 19.47
Piston Pin Circlip (old 039-00601-20)
86684590Piston Pin Circlip (old 039-00601-20)€ 2.08
Piston Pin (old 037-07045-20)
96684591Piston Pin (old 037-07045-20)€ 4.15
Crank Shaft Comp. (old 046-07350-82)
106686219Crank Shaft Comp. (old 046-07350-82)€ 69.99
Stop Cord B 190m (old 178-01680-80)
126687836Stop Cord B 190m (old 178-01680-80)€ 2.24
Hex.hole Bolt M4x18/ws (oud 994-64040-184)
136684599Hex.hole Bolt M4x18/ws (oud 994-64040-184)€ 2.08
High Tension Screw 4x18ws (old 994-16040-186)
13A6695407High Tension Screw 4x18ws (old 994-16040-186)€ 1.11
Bobine (oud 167-21013-90 & 6687685)
146687686Bobine (oud 167-21013-90 & 6687685)€ 23.43
Gear Shaft Shim 0.20 (oud 330-00200-23)
216684604Gear Shaft Shim 0.20 (oud 330-00200-23)€ 2.08
Gear Shaft Shim 0.30 (oud 330-00200-24)
216684605Gear Shaft Shim 0.30 (oud 330-00200-24)€ 2.08
Vliegwiel
226687384Vliegwiel€ 15.67
Nut M8 (old 991-01080-011/327325/332299/726603)
236684612Nut M8 (old 991-01080-011/327325/332299/726603)€ 2.08
Ring M8 (old 992-01080-011)
246684611Ring M8 (old 992-01080-011)€ 2.08
Crank Case Ass'y (old 072-03045-94)
256684905Crank Case Ass'y (old 072-03045-94)€ 52.71
Olie Keerring
266684607Olie Keerring€ 4.15
Kogellager 6001 C3
276684608Kogellager 6001 C3€ 3.68
Crank Case Gasket(old 090-07350-22)
286684904Crank Case Gasket(old 090-07350-22)€ 2.08
Hex.hole Bolt M5x16/s (old 994-61050-164)
296684903Hex.hole Bolt M5x16/s (old 994-61050-164)€ 2.08
Inlaatpakking
416689895Inlaatpakking€ 1.11
Insulator Set (old 404-07020-91)
426689972Insulator Set (old 404-07020-91)€ 6.07
Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)
436695515Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)€ 1.11
CARBURETOR GASKET (OLD 402-0602K-21/6689836)
446684615CARBURETOR GASKET (OLD 402-0602K-21/6689836)€ 2.08
Caburetor Set Wyj-431 Walbro (old 455-07355-90)
456690519Caburetor Set Wyj-431 Walbro (old 455-07355-90)€ 83.60
Cleaner Body Comp. (old 423-0652n-80)
466690120Cleaner Body Comp. (old 423-0652n-80)€ 4.31
Reinigingsspons
476690365Reinigingsspons€ 1.11
Luchtfilterkap
486690421Luchtfilterkap€ 13.42
Cover Fixing Bolt Comp.
496698730Cover Fixing Bolt Comp.€ 3.05
Screw M5x57/s (old 994-14050-571/790190)
506695353Screw M5x57/s (old 994-14050-571/790190)€ 1.11
Ring 5 (oud 992-00050-011)
516684864Ring 5 (oud 992-00050-011)€ 2.08
Choke Lever 1.5 (old 528-07355-22)
526691281Choke Lever 1.5 (old 528-07355-22)€ 1.11
Choke Control Lever (old 523-0652n-20)
536691239Choke Control Lever (old 523-0652n-20)€ 1.11
Tank White (old 591-07350-22/6691519/6691601/04)
546691602Tank White (old 591-07350-22/6691519/6691601/04)€ 14.64
Tank
54A6601167Tank€ 8.63
Collar 5.8 (old 659-00801-20)
556692244Collar 5.8 (old 659-00801-20)€ 1.11
Return Grommet (old 6684627)
566697846Return Grommet (old 6684627)€ 1.00
Fuel Grommet
56A6600358Fuel Grommet€ 1.00
Fuel Pipe 3x5x65 (old 700-03005-06)
576684626Fuel Pipe 3x5x65 (old 700-03005-06)€ 2.08
Niet meer leverbaar
586684620Niet meer leverbaar
Clip D6 (old 680-00070-20)
596685198Clip D6 (old 680-00070-20)€ 1.11
Fuel Pipe Ass'y (oud 223-0097a-90)
606684618Fuel Pipe Ass'y (oud 223-0097a-90)€ 4.15
Brandstofleiding
60A6601181Brandstofleiding€ 1.00
Ring
616689681Ring€ 1.11
Niet meer leverbaar
626685049Niet meer leverbaar
Niet meer leverbaar
636684625Niet meer leverbaar
Hex. Hole Bolt 5x20/ps (old 994-63050-204)
646684634Hex. Hole Bolt 5x20/ps (old 994-63050-204)€ 2.08
Bolt (w/flange)
64A6696574Bolt (w/flange)€ 1.02
Tap Screw 4x14 P (old 993-49040-142/6695112)
656695280Tap Screw 4x14 P (old 993-49040-142/6695112)€ 1.11
Ring
666685070Ring€ 1.11
Hex.hole Bolt 5x16/ps (old 994-63050-164)
676695504Hex.hole Bolt 5x16/ps (old 994-63050-164)€ 1.11
Bolt (w/flange)
67A6696574Bolt (w/flange)€ 1.02
Cilinder Afdekkap (oud 016-07350-20)
716685690Cilinder Afdekkap (oud 016-07350-20)€ 5.11
Hex.hole Bolt 5x16/ps (old 994-63050-164)
726695504Hex.hole Bolt 5x16/ps (old 994-63050-164)€ 1.11
Hex. Hole Bolt M6x55 (old 990-51060-553/6696819)
736684638Hex. Hole Bolt M6x55 (old 990-51060-553/6696819)€ 2.08
Ring
746684639Ring€ 2.08
Muffler Set (old 704-07365-90) New
756692501Muffler Set (old 704-07365-90) New€ 14.37
Muffler Gasket (old 737-0165a-20)
766692732Muffler Gasket (old 737-0165a-20)€ 1.11
Muffler Protector Or (old 738-0735a-20) New
776692815Muffler Protector Or (old 738-0735a-20) New€ 5.59
Hex. Hole Bolt 4x18ws (old 994-64040-185)
786695508Hex. Hole Bolt 4x18ws (old 994-64040-185)€ 1.11
Deflector (old 132-0735a-20) New
796687214Deflector (old 132-0735a-20) New€ 3.19
Ring
806684642Ring€ 2.08
Niet meer leverbaar
80A6697619Niet meer leverbaar
Koppeling Schoen
816684643Koppeling Schoen€ 11.18
Niet meer leverbaar
81A6697656Niet meer leverbaar
Clutch Spring (old 342-0630b-20)
826684644Clutch Spring (old 342-0630b-20)€ 2.08
Clutch Spring
82A6697657Clutch Spring€ 1.00
Clutch Plate A 0.5 (old 348-0630a-20/6689529)
836684645Clutch Plate A 0.5 (old 348-0630a-20/6689529)€ 2.08
Clutch Plate A (old 348-0602r-20)
83A6689528Clutch Plate A (old 348-0602r-20)€ 1.11
Step Bolt (old 357-0075t-20)
846684646Step Bolt (old 357-0075t-20)€ 2.08
Step Bolt (old 357-00601-20)
84A6689627Step Bolt (old 357-00601-20)€ 1.11
Hex. Hole Bolt M5x18/ws (old 994-64050-184)
856684647Hex. Hole Bolt M5x18/ws (old 994-64050-184)€ 2.08
Ring
866684648Ring€ 2.08
Clutch Set
876697655Clutch Set€ 6.55
Hex.hole Bolt 4x15/ps (old 994-63040-154)
886684682Hex.hole Bolt 4x15/ps (old 994-63040-154)€ 2.08
Warmteschild
896687264Warmteschild€ 3.19
Tapping Screw 4x14 (old 993-48040-142)
906684751Tapping Screw 4x14 (old 993-48040-142)€ 2.08
Ventilatorhuis
916687037Ventilatorhuis€ 19.18
Primary Cord Grommet (old 203-11660-20)
926688057Primary Cord Grommet (old 203-11660-20)€ 1.11
Niet meer leverbaar
101A6699995Niet meer leverbaar
Recoil Starter Body Comp. (old 772-07350-80)
1026684673Recoil Starter Body Comp. (old 772-07350-80)€ 18.45
Starter Rope 3.5x860 (old 783-0720f-20/6697590)
1036684674Starter Rope 3.5x860 (old 783-0720f-20/6697590)€ 4.15
Recoil Spring (old 780-06097-20/6697591)
1046684675Recoil Spring (old 780-06097-20/6697591)€ 11.18
Starter Rope Reel
105A6699997Starter Rope Reel€ 8.14
Dumper Spring (old 758-0651h-20)
1066684677Dumper Spring (old 758-0651h-20)€ 8.30
Cam Plate
107A6699996Cam Plate€ 2.47
SET SCREW (OLD 839-03045-20)
1086684679SET SCREW (OLD 839-03045-20)€ 2.08
Starthendel
1096684680Starthendel€ 2.08
Starter Pulley Ass'y (old 798-0651h-90)
1106684681Starter Pulley Ass'y (old 798-0651h-90)€ 12.78
D4e Retaining Ring (old 993-55040-001)
1116685101D4e Retaining Ring (old 993-55040-001)€ 1.11
Starter Pawl Spring (old 790-06097-20)
1126684684Starter Pawl Spring (old 790-06097-20)€ 4.15
Starter Pawl (old 788-0651h-20)
1136684685Starter Pawl (old 788-0651h-20)€ 4.15
Hex. Hole Bolt 4x18ws (old 994-64040-185)
1146695508Hex. Hole Bolt 4x18ws (old 994-64040-185)€ 1.11
Cam Plate Ass'y
1156699691Cam Plate Ass'y€ 5.90
Pump Body Comp. (old 575-25153-80)
1216684879Pump Body Comp. (old 575-25153-80)€ 60.17
Priming Pump Comp. (oud 442-25151-80)
1226684687Priming Pump Comp. (oud 442-25151-80)€ 15.81
Diaphragm Cover (oud 476-25151-20)
1236684688Diaphragm Cover (oud 476-25151-20)€ 8.30
Priming Body (oud 447-25108-20)
1246684689Priming Body (oud 447-25108-20)€ 6.23
Metering Diaphragm Comp. (old 474-25241-80)
1256690830Metering Diaphragm Comp. (old 474-25241-80)€ 11.50
Diaphragm Gasket (oud 475-25153-20)
1266684691Diaphragm Gasket (oud 475-25153-20)€ 8.30
Pump Diaphragm (old 576-25100-20 & 6696325)
1276684693Pump Diaphragm (old 576-25100-20 & 6696325)€ 8.30
Pump Gasket (old 577-25292-20 & 6696321)
1286684692Pump Gasket (old 577-25292-20 & 6696321)€ 28.25
Main Jet #43 (old 599-2000w-43/6691847/6691849)
1296691848Main Jet #43 (old 599-2000w-43/6691847/6691849)€ 4.31
O-RING (OUD 550-25100-20)
1306684695O-RING (OUD 550-25100-20)€ 4.15
Stop Ring (oud 489-25100-20)
1316684696Stop Ring (oud 489-25100-20)€ 2.08
Swivel (oud 539-25120-20)
1326684697Swivel (oud 539-25120-20)€ 6.23
Throttle Set Screw (oud 514-25100-20)
1336684870Throttle Set Screw (oud 514-25100-20)€ 2.08
Cable Adjuster Stay (oud 544-25164-20)
1346684873Cable Adjuster Stay (oud 544-25164-20)€ 6.23
Lock Nut M6 (oud 991-01060-013)
1356684872Lock Nut M6 (oud 991-01060-013)€ 2.08
Cable Adjuster (oud 614-25137-20)
1366684871Cable Adjuster (oud 614-25137-20)€ 4.15
Cleaner Packing (oud 431-0634c-20)
1376684875Cleaner Packing (oud 431-0634c-20)€ 4.15
Set Screw (old 548-25151-20 & 6696324)
1386684699Set Screw (old 548-25151-20 & 6696324)€ 2.08
Ring (oud 549-25165-20)
1396684874Ring (oud 549-25165-20)€ 2.08
Inlet Screen (oud 578-25007-20)
1406684700Inlet Screen (oud 578-25007-20)€ 4.15
Gear Case A Comp. (old 002-32182-80)
1516685578Gear Case A Comp. (old 002-32182-80)€ 27.24
Niet meer leverbaar
1526685593Niet meer leverbaar
Clutch Housing Comp. (old 226-71010-80)
1536688210Clutch Housing Comp. (old 226-71010-80)€ 18.89
Gear 2 (old 012-32191-20)
1546685656Gear 2 (old 012-32191-20)€ 27.53
Niet meer leverbaar
1556685702Niet meer leverbaar
Wood-ruff Key 3x10x3.7 (old 068-00300-20)
1566686454Wood-ruff Key 3x10x3.7 (old 068-00300-20)€ 1.11
Kogellager 6001z
1576695532Kogellager 6001z€ 6.39
Niet meer leverbaar
1586695534Niet meer leverbaar
Stop Ring C 11, Outer (old 993-50011-002)
1596695282Stop Ring C 11, Outer (old 993-50011-002)€ 1.11
Gear 4 (old 018-32192-20)
1606685788Gear 4 (old 018-32192-20)€ 48.61
Kogellager #7202b
1616695587Kogellager #7202b€ 13.76
Washer C 5.0 (old 040-32120-20)
1626686065Washer C 5.0 (old 040-32120-20)€ 3.19
Kogellager 6202z
1636695559Kogellager 6202z€ 6.23
Ring
1646695206Ring€ 1.11
Stop Ring C-35, Inner (old 993-51035-002/791059)
1656695296Stop Ring C-35, Inner (old 993-51035-002/791059)€ 1.11
Wood-ruff Key 3x13x5 (old 068-01006-20)
1666686455Wood-ruff Key 3x13x5 (old 068-01006-20)€ 1.11
Drive Shaft (old 022-32183-20)
1676685824Drive Shaft (old 022-32183-20)€ 101.17
Screw 5x18/s (old 994-14050-181)
1686695339Screw 5x18/s (old 994-14050-181)€ 1.11
Stop Ring C-13, Outer (old 993-50013-002)
1696695283Stop Ring C-13, Outer (old 993-50013-002)€ 1.11
Lock Lever Comp. (old 405-32182-81)
1706689992Lock Lever Comp. (old 405-32182-81)€ 8.14
Lock Lever Spring (old 406-32182-20)
1716689998Lock Lever Spring (old 406-32182-20)€ 4.31
Ring
1726687942Ring€ 1.11
Ring
1736685103Ring€ 1.11
Step Bolt (old 793-10200-20)
1746693366Step Bolt (old 793-10200-20)€ 1.11
Plus Bolt 6x30 (old 990-23060-301)
1756695022Plus Bolt 6x30 (old 990-23060-301)€ 1.11
Ring
1766695219Ring€ 1.11
GREASE NIPPLE COMP. (OLD 300-32250-80)
1776688643GREASE NIPPLE COMP. (OLD 300-32250-80)€ 1.11
Handle Comp.a (old 258-3210a-82)
1916688369Handle Comp.a (old 258-3210a-82)€ 34.99
Handle Grip A (old 165-33130-20/6691224)
1926687624Handle Grip A (old 165-33130-20/6691224)€ 5.59
Throttle Lever (old 101-32120-20)
1936686799Throttle Lever (old 101-32120-20)€ 2.24
Screw 5x25 (old 990-11050-251/6694895)
1946694896Screw 5x25 (old 990-11050-251/6694895)€ 1.11
Hex. Nut 5 (old 991-01050-011)
1956684965Hex. Nut 5 (old 991-01050-011)€ 1.00
Cord Clamp (old 198-33130-20)
1966688015Cord Clamp (old 198-33130-20)€ 1.11
Plus Bolt 6x16 (old 990-23060-161)
1976695019Plus Bolt 6x16 (old 990-23060-161)€ 1.11
Ring
1986695219Ring€ 1.11
Handle Comp. B (old 259-3210a-80)
1996688372Handle Comp. B (old 259-3210a-80)€ 12.78
Handle Grip (old 055-32130-20)
2006686350Handle Grip (old 055-32130-20)€ 5.11
Ring
2016695225Ring€ 1.11
Stop Switch Comp. (old 156-3210a-80/6687757)
2026687431Stop Switch Comp. (old 156-3210a-80/6687757)€ 8.14
Stop Button Mark (old 925-33176-20)
2036694589Stop Button Mark (old 925-33176-20)€ 2.24
Button Stop (old 258-11650-20)
2046688366Button Stop (old 258-11650-20)€ 1.11
Screw 3x10 (old 994-31030-101)
2056684913Screw 3x10 (old 994-31030-101)€ 2.08
Throttle Wire 370+45.5 (old 885-71010-80)
2066693987Throttle Wire 370+45.5 (old 885-71010-80)€ 4.63
Niet meer leverbaar
2076687532Niet meer leverbaar
Chuck Handle Holder (old 155-3210a-20)
2086687420Chuck Handle Holder (old 155-3210a-20)€ 4.31
Handle Support Comp. (old 265-71000-80)
2096688404Handle Support Comp. (old 265-71000-80)€ 15.37
Ring
2106695219Ring€ 1.11
Niet meer leverbaar
2116684792Niet meer leverbaar
Combi Box Spanner 10x19 (old 036-29710-11/6685998)
5016685999Combi Box Spanner 10x19 (old 036-29710-11/6685998)€ 4.95
Niet meer leverbaar
5026693647Niet meer leverbaar
Chuck Handle Set (old 059-32120-91)
5036686372Chuck Handle Set (old 059-32120-91)€ 42.89
Drill Chuck Ass'y (old 060-32120-91)
5046686377Drill Chuck Ass'y (old 060-32120-91)€ 77.74
Chuck Handle Comp. (old 061-32120-81)
5056686410Chuck Handle Comp. (old 061-32120-81)€ 4.31
Name Plate Ted270ls (old 906-07365-20) New
6016696407Name Plate Ted270ls (old 906-07365-20) New€ 1.74
Er bevinden zich 0 artikelen in uw winkelwagen.
