Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki THT-2530'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

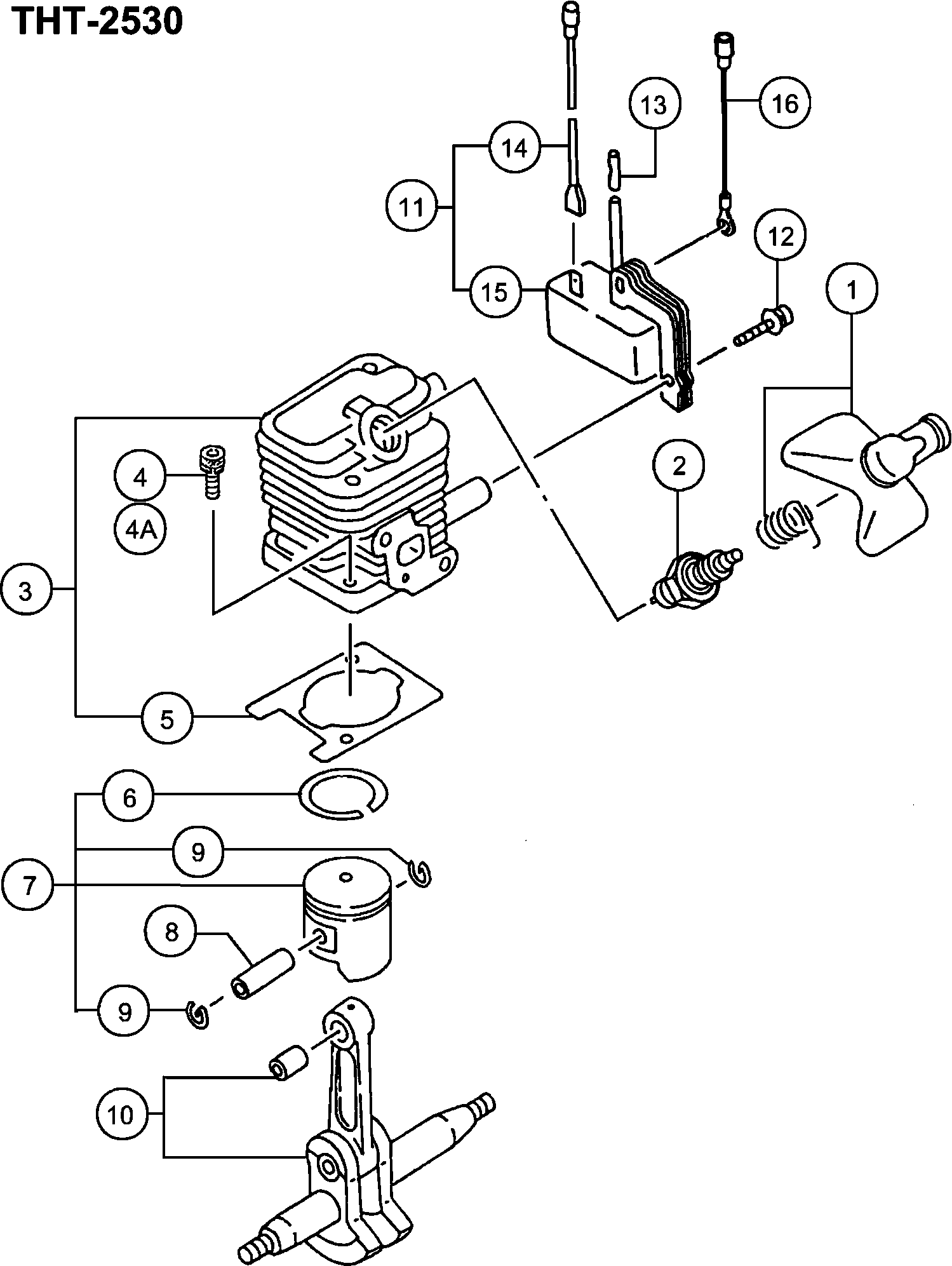

Tekeningen van de Hikoki THT-2530
Onderdelen lijst van de Hikoki THT-2530
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SPARK PLUG CAP ASS'Y (OLD 157-06500-91) | ||||
| 1 | 6687476 | 4.45 | 5.38 | |
| BOUGIE RCJ8Y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| CYLINDER SET (OLD 001-06600-90) | ||||
| 3 | 6685481 | 44.31 | 53.62 | |
| HEX.HOLE BOLT M5X18/S(OUD 994-61050-184) | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 4A | 6684668 | |||
| CYLINDER GASKET (OLD 017-06500-20) | ||||
| 5 | 6685744 | 1.15 | 1.39 | |
| PISTON RING (OUD 041-01601-20) | ||||
| 6 | 6684588 | 8.58 | 10.38 | |
| PISTON SET, SPARE (OLD 030-06600-90) | ||||
| 7 | 6685893 | 22.24 | 26.91 | |
| PISTON PIN (OLD 037-07045-20) | ||||
| 8 | 6684591 | 4.29 | 5.19 | |
| PISTON PIN CIRCLIP (OLD 039-01620-20) | ||||
| 9 | 6686028 | 1.15 | 1.39 | |
| CRANK SHAFT COMP. (OLD 046-06500-80) | ||||
| 10 | 6686205 | 72.30 | 87.48 | |
| IGNITION COIL ASS'Y (OLD 153-21532-92 & 6687694) | ||||
| 11 | 6695927 | 34.19 | 41.37 | |
| HEX.HOLE BOLT M4X18/WS (OUD 994-64040-184) | ||||
| 12 | 6684599 | 2.15 | 2.60 | |
| INSULATOR TUBE 50L (OLD 250-06500-20) | ||||
| 13 | 6684597 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 14 | 6687866 | |||
| BOBINE | ||||
| 15 | 6695939 | 38.26 | 46.30 | |
| CORD (OLD 274-51705-80) | ||||
| 16 | 6688477 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 21 | 6601159 | |||
| CRANK CASE GASKET (OLD 090-06500-20) | ||||
| 22 | 6686720 | 1.15 | 1.39 | |
| OLIE KEERRING | ||||
| 23 | 6684607 | 4.29 | 5.19 | |
| BALL BEARING 6001 C3 (OLD 999-61600-132/6695535) | ||||
| 24 | 6684608 | 3.80 | 4.60 | |
| GEAR SHAFT SHIM 0.20 (OUD 330-00200-23) | ||||
| 25 | 6684604 | 2.15 | 2.60 | |
| GEAR SHAFT SHIM 0.30 (OUD 330-00200-24) | ||||
| 25 | 6684605 | 2.15 | 2.60 | |
| GEAR SHAFT SHIM 0.10 (OLD 330-00200-21) | ||||
| 25 | 6689177 | 1.15 | 1.39 | |
| GEAR SHAFT SHIM 0.15 (OLD 330-00200-22) | ||||
| 25 | 6689178 | 1.15 | 1.39 | |
| ANTI-VIBE RUBBER (OLD 599-00601-20) | ||||
| 26 | 6691822 | 1.15 | 1.39 | |
| HEX. SOCKET HD. BOLT M5X30 S (OLD 994-61050-304) | ||||
| 27 | 6684786 | 2.15 | 2.60 | |
| VLIEGWIEL | ||||
| 28 | 6687389 | 26.16 | 31.66 | |
| RING M8 (OLD 992-01080-011) | ||||
| 29 | 6684611 | 2.15 | 2.60 | |
| RING | ||||
| 30 | 6684971 | 1.04 | 1.26 | |
| NUT M8 (OLD 991-01080-011/327325/332299/726603) | ||||
| 31 | 6684612 | 2.15 | 2.60 | |
| STUD BOLT 6X22 (OLD 100-02100-20) | ||||
| 32 | 6686771 | 1.15 | 1.39 | |
| INTAKE PIPE GASKET (OLD 403-06500-20) | ||||
| 41 | 6689891 | 1.15 | 1.39 | |
| CARB. INSULATOR SET,SPARE (OLD 404-06500-90) | ||||
| 42 | 6689966 | 6.93 | 8.38 | |
| HEX. HOLE BOLT 5X25WS (OLD 994-64050-254/6696513) | ||||
| 43 | 6695515 | 1.15 | 1.39 | |
| CARBURETOR GASKET (OLD 402-06500-20) | ||||
| 44 | 6689839 | 1.15 | 1.39 | |
| O-RING P-15 | ||||
| 45 | 6698966 | 1.04 | 1.26 | |
| CLEANER BODY COMP. (OLD 423-06500-81/6690118) FOR | ||||
| 46 | 6690119 | 4.45 | 5.38 | |
| COLLAR 7.5 (OLD 470-06500-20) | ||||
| 47 | 6690804 | 1.15 | 1.39 | |
| CHOKE VALVE (OLD 528-0650T-20) | ||||
| 48 | 6691274 | 2.31 | 2.80 | |
| CHOKE VALVE (OLD 528-06500-20) | ||||
| 48A | 6691272 | 2.31 | 2.80 | |
| CHOKE VALVE (OLD 528-0650T-20) | ||||
| 48B | 6691274 | 2.31 | 2.80 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 49 | 6684658 | |||
| BLOW OVER CHECK BOARD (OLD 476-01700-20/790189) | ||||
| 50 | 6690843 | 1.15 | 1.39 | |
| RING (OUD 992-10050-012) | ||||
| 51 | 6684662 | 2.15 | 2.60 | |
| SCREW M5X60 (OUD 990-11050-602) | ||||
| 52 | 6684660 | 2.15 | 2.60 | |
| REINIGINGSSPONS | ||||
| 53 | 6690364 | 1.15 | 1.39 | |
| LUCHTFILTERKAP | ||||
| 54 | 6690417 | 5.94 | 7.18 | |
| SPECIAL SCREW (OLD 380-0637C-20) | ||||
| 55 | 6689737 | 1.15 | 1.39 | |
| CARBURATEURSET | ||||
| 56 | 6690488 | 56.26 | 68.08 | |
| Niet meer leverbaar, geen vervanging | ||||
| 56A | 6690482 | |||
| CARBURATEURSET | ||||
| 56B | 6690487 | 72.30 | 87.48 | |
| SHIELD TUBE ASS'Y (OLD 223-06500-90) | ||||
| 57 | 6685247 | 2.31 | 2.80 | |
| CLIP D6 (OLD 680-00070-20/6685311) | ||||
| 58 | 6685198 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 59 | 6684620 | |||
| TANK WHT (OLD 6691562) | ||||
| 60 | 6697631 | 9.24 | 11.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 60A | 6691582 | |||
| COLLAR 5.8 (OLD 659-00801-20) | ||||
| 61 | 6692244 | 1.15 | 1.39 | |
| HEX. HOLE BOLT 5X18PS (OLD 994-63050-185) | ||||
| 62 | 6695505 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 63 | 6691337 | |||
| TANKDOP, ZWART (OLD 595-06516-90/6691712) | ||||
| 64 | 6691763 | 7.59 | 9.18 | |
| PRIMING PUMP COMP. (OLD 442-25143-80) | ||||
| 65 | 6685139 | 5.94 | 7.18 | |
| FUEL PIPE 2.5X4X80 (OLD 700-02504-08/6601444) | ||||
| 66 | 6692347 | 1.15 | 1.39 | |
| FUEL PIPE 2.5X4X70 (OLD 700-02504-07) | ||||
| 67 | 6692346 | 1.15 | 1.39 | |
| RETURN GROMMET (OLD 6684627) | ||||
| 68 | 6697846 | 1.04 | 1.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 69 | 6684625 | |||
| MUFFLER PROTECTOR (OLD 738-06600-20) | ||||
| 81 | 6692799 | 5.61 | 6.79 | |
| MUFFLER GASKET (OLD 737-06500-20) | ||||
| 82 | 6692744 | 1.15 | 1.39 | |
| WARMTESCHILD | ||||
| 83 | 6687252 | 2.31 | 2.80 | |
| MUFFLER SET (OLD 704-06504-91) | ||||
| 84 | 6692477 | 13.04 | 15.78 | |
| RING | ||||
| 85 | 6684661 | 2.15 | 2.60 | |
| HEX. SOCKET HD. BOLT M5X50 (OLD 990-51050-503) | ||||
| 86 | 6685114 | 1.15 | 1.39 | |
| VENTILATORHUIS | ||||
| 87 | 6687010 | 16.79 | 20.31 | |
| RECOIL SPRING (OLD 780-06097-20/6697591) | ||||
| 88 | 6684675 | 11.55 | 13.98 | |
| STARTER ROPE REEL (OLD 774-06097-20) | ||||
| 89 | 6693066 | 3.30 | 3.99 | |
| SET SCREW (OLD 839-02010-20/6693638) | ||||
| 90 | 6693633 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 91 | 6693405 | |||
| GROMMET (OLD 203-0604A-20) | ||||
| 92 | 6688050 | 1.15 | 1.39 | |
| STARTER ROPE (OLD 783-06097-20/6693174/6693173) | ||||
| 93 | 6693168 | 2.31 | 2.80 | |
| STARTHENDEL | ||||
| 94 | 6693237 | 1.15 | 1.39 | |
| HEX.HOLE BOLT 4X15/PS (OLD 994-63040-154) | ||||
| 95 | 6684682 | 2.15 | 2.60 | |
| SLIPKOPPELING KOMPLEET | ||||
| 96 | 6688494 | 9.74 | 11.78 | |
| TAPSCHROEF D4.5X16 | ||||
| 97 | 6684636 | 2.15 | 2.60 | |
| BOLT 4X12PS (OLD 994-25040-128) | ||||
| 98 | 6695441 | 1.15 | 1.39 | |
| STARTER PAWL SPRING (OLD 790-06097-20) | ||||
| 99 | 6684684 | 4.29 | 5.19 | |
| STARTER PAWL (OLD 788-06500-20) | ||||
| 100 | 6693319 | 2.31 | 2.80 | |
| THROTTLE SET SCREW (OLD 548-25140-20) | ||||
| 111 | 6684698 | 4.29 | 5.19 | |
| SWIVEL (OUD 539-25120-20) | ||||
| 112 | 6684697 | 6.44 | 7.79 | |
| STOP RING (OUD 489-25100-20) | ||||
| 113 | 6684696 | 2.15 | 2.60 | |
| THROTTLE VALVE COMP. (OLD 488-25145-80) | ||||
| 114 | 6684883 | 18.75 | 22.69 | |
| O-RING (OUD 550-25100-20) | ||||
| 115 | 6684695 | 4.29 | 5.19 | |
| MAIN JET #41.5 (OLD 599-200AW-41/6691846) | ||||
| 116 | 6691885 | 5.11 | 6.19 | |
| MAIN JET #40 (OLD 599-2000W-40) | ||||
| 116A | 6691845 | 4.45 | 5.38 | |
| MAIN JET #34.5 (OLD 599-200BW-34) | ||||
| 116B | 6691888 | 6.28 | 7.59 | |
| PUMP GASKET (OLD 577-25100-20) | ||||
| 117 | 6691457 | 7.10 | 8.59 | |
| PUMP DIAPHRAGM (OLD 576-25100-20 & 6696325) | ||||
| 118 | 6684693 | 8.58 | 10.38 | |
| INLET SCREEN (OUD 578-25007-20) | ||||
| 119 | 6684700 | 4.29 | 5.19 | |
| PUMP BODY COMP. (OLD 575-25152-80) | ||||
| 120 | 6691432 | 34.19 | 41.37 | |
| PUMP BODY COMP. (OLD 575-25147-80/6691428/6691431) | ||||
| 120A | 6691430 | 36.15 | 43.74 | |
| DIAPHRAGM GASKET (OLD 475-25001-20) | ||||
| 121 | 6690837 | 2.31 | 2.80 | |
| Niet meer leverbaar, geen vervanging | ||||
| 121A | 6685220 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 122 | 6690827 | |||
| DIAPHRAGM COVER (OLD 476-25004-20) | ||||
| 123 | 6685222 | 4.45 | 5.38 | |
| SET SCREW (OLD 548-25101-20) | ||||
| 124 | 6691312 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 131 | 6688672 | |||
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 132 | 6695294 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 133 | 6695524 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 134 | 6695526 | |||
| CLUTCH HOUSING COMP. (OLD 288-33185-80) | ||||
| 135 | 6688571 | 17.40 | 21.05 | |
| GEAR 1 (OLD 306-33185-20) NEW JUN | ||||
| 136 | 6688967 | 20.11 | 24.34 | |
| GEAR 1 (OLD 306-33280-20) | ||||
| 136A | 6688968 | 19.36 | 23.43 | |
| GEAR 2 (OLD 307-33280-20) NEW | ||||
| 137A | 6688978 | 14.38 | 17.39 | |
| CAM-ROD COMP. (OLD 101-33185-80) | ||||
| 138 | 6686810 | 34.19 | 41.37 | |
| CAM SHAFT (OLD 100-33185-20) | ||||
| 139 | 6686791 | 50.21 | 60.76 | |
| GEAR CASE GASKET (OLD 303-33185-20) | ||||
| 140 | 6688910 | 1.15 | 1.39 | |
| BALL BEARING #608.22MM/OD (OLD 999-61608-000) | ||||
| 141 | 6684738 | 8.58 | 10.38 | |
| AFDICHT RUBBER | ||||
| 142 | 6686655 | 1.15 | 1.39 | |
| COLLAR (OLD 247-33185-20) | ||||
| 143 | 6688293 | 3.30 | 3.99 | |
| HEX. HOLE BOLT M5X25/S (OLD 994-16050-252/790275) | ||||
| 144 | 6684709 | 2.15 | 2.60 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 145 | 6688643 | 1.15 | 1.39 | |
| HEX. HOLE BOLT 6X18/S (OLD 994-61060-184) | ||||
| 146 | 6695495 | 1.15 | 1.39 | |
| HEX HOLE BUTTON SCREW 6X15 (OLD 990-53060-153) | ||||
| 147 | 6695079 | 1.15 | 1.39 | |
| RING | ||||
| 148 | 6695183 | 1.15 | 1.39 | |
| FIXING PLATE (OLD 070-33185-21/6686466) | ||||
| 149 | 6686467 | 2.31 | 2.80 | |
| SUPPORT PLATE (OLD 462-33185-20) NEW JUN | ||||
| 150 | 6690758 | 2.31 | 2.80 | |
| HEX. SOCKET HD. BOLT M4X10 (OLD 990-51040-103) | ||||
| 151 | 6685093 | 1.15 | 1.39 | |
| SPRING NUT 6 (OLD 994-40060-011) | ||||
| 152 | 6695475 | 1.15 | 1.39 | |
| RING | ||||
| 154 | 6695219 | 1.15 | 1.39 | |
| SPRING NUT 6 (OLD 994-40060-011) | ||||
| 155 | 6695475 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 171 | 6687142 | |||
| CUTTER GUIDE 830L M6 (OLD 122-33285-20) | ||||
| 171A | 6687151 | 40.24 | 48.69 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 172 | 6687287 | |||
| PROTECTION PLATE (OLD 136-3318B-20) | ||||
| 172A | 6687288 | 17.40 | 21.05 | |
| HEX. HOLE SCREW 6X25 (OLD 990-52060-253) | ||||
| 173 | 6695074 | 1.15 | 1.39 | |
| RING | ||||
| 174 | 6684822 | 2.15 | 2.60 | |
| CUTTER B (OLD 121-73031-20) NEW | ||||
| 175 | 6695910 | 48.25 | 58.38 | |
| BOVENMES (A) | ||||
| 176 | 6695909 | 48.25 | 58.38 | |
| Niet meer leverbaar, geen vervanging | ||||
| 177 | 6687187 | |||
| BOUT | ||||
| 178 | 6687160 | 1.15 | 1.39 | |
| BOUT | ||||
| 178A | 6687158 | 1.15 | 1.39 | |
| BLADE HOLDER (OLD 128-37904-20) | ||||
| 179 | 6687181 | 2.31 | 2.80 | |
| BLADE HOLDER (OLD 128-33202-20) | ||||
| 179A | 6687180 | 2.31 | 2.80 | |
| BOUT | ||||
| 180 | 6687167 | 1.15 | 1.39 | |
| BOUT | ||||
| 180A | 6687168 | 1.15 | 1.39 | |
| HANDLE B COMP. (OLD 051-33185-81 & 6686310) | ||||
| 181 | 6686311 | 14.21 | 17.20 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 182 | 6691225 | |||
| HANDLE GRIP (OLD 165-37590-20) | ||||
| 182A | 6684708 | 6.44 | 7.79 | |
| CUTTER FIXING NUT (OLD 123-33202-20) | ||||
| 183 | 6687156 | 1.15 | 1.39 | |
| FLENSMOER | ||||
| 183A | 6695170 | 1.15 | 1.39 | |
| RING | ||||
| 184 | 6684639 | 2.15 | 2.60 | |
| RING | ||||
| 185 | 6695219 | 1.15 | 1.39 | |
| RING | ||||
| 186 | 6684639 | 2.15 | 2.60 | |
| CUTTER COVER, L-773 (OLD 138-33215-20) | ||||
| 187A | 6687308 | 5.11 | 6.19 | |
| GATHERING PLATE, OBLONG (OLD 350-33210-20) | ||||
| 188 | 6689539 | 17.55 | 21.24 | |
| HANDLE GRIP A (OLD 053-33231-22) | ||||
| 201 | 6686338 | 4.95 | 5.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 202 | 6686349 | |||
| THROTTLE LEVER (OLD 230-33210-20) | ||||
| 203 | 6688229 | 2.31 | 2.80 | |
| SAFETY LEVER (OLD 231-33210-20) | ||||
| 204 | 6688238 | 2.31 | 2.80 | |
| THROTTLE LEVER SPRING (OLD 061-32600-20) | ||||
| 205 | 6686414 | 2.31 | 2.80 | |
| STOP SWITCH COMP. (OLD 170-32465-80) | ||||
| 206 | 6687758 | 8.91 | 10.78 | |
| STOP BUTTON MARK (OLD 925-32530-20) | ||||
| 207 | 6694585 | 1.15 | 1.39 | |
| PUSH PIN CAP (OLD 725-32600-20) | ||||
| 208 | 6692681 | 1.15 | 1.39 | |
| CAP (OLD 765-32120-20) | ||||
| 208A | 6693002 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 209 | 6695412 | |||
| SCREW 4X25/WS (OLD 994-16040-251) | ||||
| 210 | 6695411 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 211 | 6686355 | |||
| HANDLE GRIP ASS'Y (OLD 055-33185-90) | ||||
| 211A | 6686354 | 28.14 | 34.05 | |
| HANDLE A COMP. (OLD 050-33185-80) | ||||
| 212 | 6686275 | 22.24 | 26.91 | |
| THROTTLE WIRE 270+49 (OLD 885-03014-80 & 6693877) | ||||
| 213 | 6693877 | 4.45 | 5.38 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 214 | 6687558 | |||
| SCREW 4X16WS (OLD 994-16040-161) | ||||
| 215 | 6695404 | 1.15 | 1.39 | |
| NYLON LOCK NUT 4 (OLD 991-78040-010) | ||||
| 216 | 6695163 | 1.15 | 1.39 | |
| SCREW 3X10 (OLD 994-31030-101) | ||||
| 217 | 6684913 | 2.15 | 2.60 | |
| BUTTON STOP (OLD 258-11650-20) | ||||
| 218 | 6688366 | 1.15 | 1.39 | |
| CORD CLAMP (OLD 198-33130-20) | ||||
| 219 | 6688015 | 1.15 | 1.39 | |
| HEX. HOLE BOLT M5X12/S (OLD 994-61050-124/6699176) | ||||
| 220 | 6684667 | 2.15 | 2.60 | |
| HANDLE BRACKET (OLD 058-33185-20) | ||||
| 221 | 6686370 | 6.28 | 7.59 | |
| HANDLE DUMPER RUBBER (OLD 060-33185-20) | ||||
| 222 | 6686396 | 2.31 | 2.80 | |
| PUSH PIN (OLD 064-33225-20) | ||||
| 223 | 6686433 | 1.15 | 1.39 | |
| STOPPER SPRING (OLD 066-32300-20) | ||||
| 224 | 6686447 | 1.15 | 1.39 | |
| COMBI BOX SPANNER 10/19MM (OLD 013-29323-50/668566 | ||||
| 501 | 6685257 | 3.30 | 3.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 6684813 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 601 | 6699687 | |||
