Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki THT2000'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

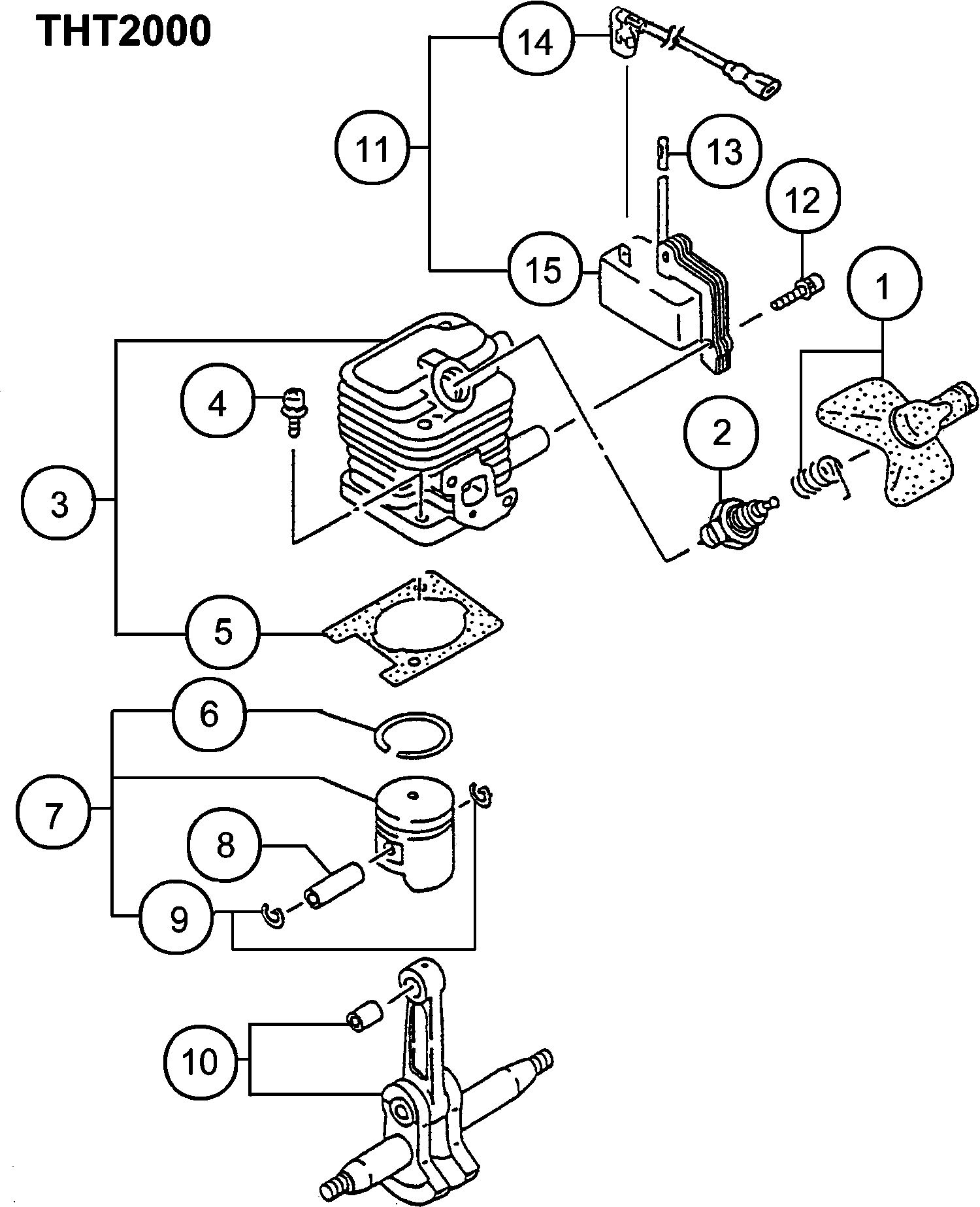

Tekeningen van de Hikoki THT2000
Onderdelen lijst van de Hikoki THT2000
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SPARK PLUG CAP ASS'Y (OLD 157-06500-91) | ||||
| 1 | 6687476 | 4.45 | 5.38 | |
| BOUGIE (OUD 6685085) | ||||
| 2 | 6699317 | 6.76 | 8.18 | |
| CYLINDER SET (OLD 001-0650A-90) | ||||
| 3 | 6685480 | 40.24 | 48.69 | |
| HEX.HOLE BOLT M5X18/S(OUD 994-61050-184) | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| CYLINDER GASKET (OLD 017-06500-20) | ||||
| 5 | 6685744 | 1.15 | 1.39 | |
| PISTON RING (OLD 041-00601-21/ 6686117) | ||||
| 6 | 6686118 | 4.45 | 5.38 | |
| PISTON SET (OLD 030-00070-90) | ||||
| 7 | 6685869 | 15.58 | 18.85 | |
| ZUIGER PIN | ||||
| 8 | 6696944 | 3.33 | 4.02 | |
| PISTON PIN CIRCLIP (OLD 039-00601-20) | ||||
| 9 | 6684590 | 2.15 | 2.60 | |
| CRANK SHAFT COMP (OLD 046-06621-80) | ||||
| 10 | 6686208 | 40.24 | 48.69 | |
| IGNITIONCOIL ASS'Y (OLD 153-21550-91 & 6687353) | ||||
| 11 | 6697150 | 26.78 | 32.40 | |
| HEX.HOLE BOLT M4X18/WS (OUD 994-64040-184) | ||||
| 12 | 6684599 | 2.15 | 2.60 | |
| INSULATOR TUBE 50L (OLD 250-06500-20) | ||||
| 13 | 6684597 | 2.15 | 2.60 | |
| Niet meer leverbaar, geen vervanging | ||||
| 14 | 6687918 | |||
| BOBINE | ||||
| 15 | 6695939 | 38.26 | 46.30 | |
| CRANK CASE ASS'Y (OLD 072-06500-90) | ||||
| 21 | 6686574 | 42.20 | 51.06 | |
| CRANK CASE GASKET (OLD 090-06500-20) | ||||
| 22 | 6686720 | 1.15 | 1.39 | |
| OLIE KEERRING | ||||
| 23 | 6684607 | 4.29 | 5.19 | |
| BALL BEARING 6001 C3 (OLD 999-61600-132/6695535) | ||||
| 24 | 6684608 | 3.80 | 4.60 | |
| GEAR SHAFT SHIM 0.20 (OUD 330-00200-23) | ||||
| 25 | 6684604 | 2.15 | 2.60 | |
| GEAR SHAFT SHIM 0.30 (OUD 330-00200-24) | ||||
| 25 | 6684605 | 2.15 | 2.60 | |
| GEAR SHAFT SHIM 0.10 (OLD 330-00200-21) | ||||
| 25 | 6689177 | 1.15 | 1.39 | |
| GEAR SHAFT SHIM 0.15 (OLD 330-00200-22) | ||||
| 25 | 6689178 | 1.15 | 1.39 | |
| ANTI-VIBE RUBBER (OLD 599-00601-20) | ||||
| 26 | 6691822 | 1.15 | 1.39 | |
| HEX. SOCKET HD. BOLT M5X30 S (OLD 994-61050-304) | ||||
| 27 | 6684786 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 28 | 6687396 | |||
| NUT M8 (OLD 991-01080-011/327325/332299/726603) | ||||
| 31 | 6684612 | 2.15 | 2.60 | |
| STUD BOLT 6X22 (OLD 100-02100-20) | ||||
| 32 | 6686771 | 1.15 | 1.39 | |
| INTAKE PIPE GASKET (OLD 403-06500-20) | ||||
| 51 | 6689891 | 1.15 | 1.39 | |
| CARB. INSULATOR SET,SPARE (OLD 404-06500-90) | ||||
| 52 | 6689966 | 6.93 | 8.38 | |
| HEX. HOLE BOLT 5X25WS (OLD 994-64050-254/6696513) | ||||
| 53 | 6695515 | 1.15 | 1.39 | |
| CARBURETOR GASKET (OLD 402-0602K-21/6689836) | ||||
| 54 | 6684615 | 2.15 | 2.60 | |
| CLEANER BODY COMP. (OLD 423-0072Z-81) | ||||
| 55 | 6690091 | 5.78 | 6.99 | |
| COLLAR (OLD 470-00025-20) | ||||
| 56 | 6690801 | 2.31 | 2.80 | |
| CHOKE PLATE,W/1.5MM HOLE (OLD 528-0602K-20) | ||||
| 57 | 6691267 | 4.45 | 5.38 | |
| SPACER (OUD 453-0602K-20) | ||||
| 58 | 6684859 | 2.15 | 2.60 | |
| RING (OUD 992-10050-012) | ||||
| 59 | 6684662 | 2.15 | 2.60 | |
| SCREW 5X65 (OLD 990-11050-652) | ||||
| 60 | 6694918 | 1.15 | 1.39 | |
| RING | ||||
| 61 | 6684661 | 2.15 | 2.60 | |
| Niet meer leverbaar, geen vervanging | ||||
| 62 | 6690350 | |||
| AIR CLEANER CAP (OLD 424-0072Z-20) | ||||
| 63 | 6690142 | 4.95 | 5.99 | |
| CARBURATEURSET | ||||
| 64 | 6690495 | 62.31 | 75.40 | |
| THROTTLE WIRE FIXING PLATE (OLD 878-06620-20) | ||||
| 65 | 6684629 | 4.29 | 5.19 | |
| CARBURETOR GASKET (OLD 402-06500-20) | ||||
| 66 | 6689839 | 1.15 | 1.39 | |
| CLEANER GASKET (OLD 431-06020-20/791187) | ||||
| 67 | 6690184 | 1.15 | 1.39 | |
| SHIELD TUBE ASS'Y (OLD 223-06500-90) | ||||
| 68 | 6685247 | 2.31 | 2.80 | |
| CLIP D6 (OLD 680-00070-20/6685311) | ||||
| 69 | 6685198 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 70 | 6684620 | |||
| TANK WHITE (OLD 591-51604-20/6691572) | ||||
| 71 | 6691647 | 9.74 | 11.78 | |
| TANK CAP D ASS'Y,BLACK (OLD 595-00073-90/6691768) | ||||
| 72 | 6691715 | 6.60 | 7.99 | |
| COLLAR 5.8 (OLD 659-00801-20) | ||||
| 73 | 6692244 | 1.15 | 1.39 | |
| HEX. HOLE BOLT 5X18PS (OLD 994-63050-185) | ||||
| 74 | 6695505 | 1.15 | 1.39 | |
| CABLE ADJUSTER (OUD 614-25137-20) | ||||
| 75 | 6684871 | 4.29 | 5.19 | |
| LOCK NUT M6 (OUD 991-01060-013) | ||||
| 76 | 6684872 | 2.15 | 2.60 | |
| Niet meer leverbaar, geen vervanging | ||||
| 77 | 6691337 | |||
| FUEL PIPE 3X5X70 (OLD 700-03005-07) | ||||
| 78 | 6692357 | 1.15 | 1.39 | |
| RETURN GROMMET (OLD 6684627) | ||||
| 79 | 6697846 | 1.04 | 1.26 | |
| MUFFLER PROTECTOR (OLD 738-06500-20) | ||||
| 91 | 6692795 | 6.93 | 8.38 | |
| MUFFLER GASKET (OLD 737-06500-20) | ||||
| 92 | 6692744 | 1.15 | 1.39 | |
| WARMTESCHILD | ||||
| 93 | 6687252 | 2.31 | 2.80 | |
| MUFFLER SET (OLD 704-0651C-91) | ||||
| 94 | 6692483 | 17.70 | 21.42 | |
| RING | ||||
| 95 | 6684661 | 2.15 | 2.60 | |
| HEX. SOCKET HD. BOLT M5X50 (OLD 990-51050-503) | ||||
| 96 | 6685114 | 1.15 | 1.39 | |
| VENTILATORHUIS | ||||
| 97 | 6687010 | 16.79 | 20.31 | |
| RECOIL SPRING (OLD 780-06097-20/6697591) | ||||
| 98 | 6684675 | 11.55 | 13.98 | |
| STARTER ROPE REEL (OLD 774-06097-20) | ||||
| 99 | 6693066 | 3.30 | 3.99 | |
| SET SCREW (OLD 839-02010-20/6693638) | ||||
| 100 | 6693633 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 101 | 6693405 | |||
| GROMMET (OLD 203-0604A-20) | ||||
| 102 | 6688050 | 1.15 | 1.39 | |
| STARTER ROPE (OLD 783-06097-20/6693174/6693173) | ||||
| 103 | 6693168 | 2.31 | 2.80 | |
| STARTHENDEL | ||||
| 104 | 6693237 | 1.15 | 1.39 | |
| HEX.HOLE BOLT 4X15/PS (OLD 994-63040-154) | ||||
| 105 | 6684682 | 2.15 | 2.60 | |
| MUFFLER SPECIAL GASKET (OLD 751-06500-20) | ||||
| 106 | 6692886 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 107 | 6692657 | |||
| RING | ||||
| 108 | 6685109 | 1.15 | 1.39 | |
| SLIPKOPPELING KOMPLEET | ||||
| 109 | 6688494 | 9.74 | 11.78 | |
| TAPSCHROEF D4.5X16 | ||||
| 110 | 6684636 | 2.15 | 2.60 | |
| BOLT 4X12PS (OLD 994-25040-128) | ||||
| 111 | 6695441 | 1.15 | 1.39 | |
| STARTER PAWL SPRING (OLD 790-06097-20) | ||||
| 112 | 6684684 | 4.29 | 5.19 | |
| STARTER PAWL (OLD 788-06500-20) | ||||
| 113 | 6693319 | 2.31 | 2.80 | |
| PUMP BODY COMP. (OLD 575-25157-80) | ||||
| 121 | 6691433 | 36.15 | 43.74 | |
| PRIMING PUMP COMP. (OUD 442-25151-80) | ||||
| 122 | 6684687 | 16.34 | 19.77 | |
| DIAPHRAGM COVER (OUD 476-25151-20) | ||||
| 123 | 6684688 | 8.58 | 10.38 | |
| PRIMING BODY (OUD 447-25108-20) | ||||
| 124 | 6684689 | 6.44 | 7.79 | |
| METERING DIAPHRAGM COMP. (OLD 474-25241-80) | ||||
| 125 | 6690830 | 11.88 | 14.37 | |
| DIAPHRAGM GASKET (OUD 475-25153-20) | ||||
| 126 | 6684691 | 8.58 | 10.38 | |
| MAIN JET #39 (OLD 599-2000W-39) | ||||
| 127 | 6684878 | 4.45 | 5.38 | |
| STOP RING (OUD 489-25100-20) | ||||
| 128 | 6684696 | 2.15 | 2.60 | |
| SWIVEL (OUD 539-25120-20) | ||||
| 129 | 6684697 | 6.44 | 7.79 | |
| THROTTLE VALVE COMP. (OLD 488-25145-80) | ||||
| 130 | 6684883 | 18.75 | 22.69 | |
| O-RING (OUD 550-25100-20) | ||||
| 131 | 6684695 | 4.29 | 5.19 | |
| PUMP GASKET (OLD 577-25100-20) | ||||
| 132 | 6691457 | 7.10 | 8.59 | |
| PUMP DIAPHRAGM (OLD 576-25100-20 & 6696325) | ||||
| 133 | 6684693 | 8.58 | 10.38 | |
| THROTTLE SET SCREW (OLD 548-25140-20) | ||||
| 134 | 6684698 | 4.29 | 5.19 | |
| SET SCREW (OLD 548-25151-20 & 6696324) | ||||
| 135 | 6684699 | 2.15 | 2.60 | |
| INLET SCREEN (OUD 578-25007-20) | ||||
| 136 | 6684700 | 4.29 | 5.19 | |
| HANDLE A (OLD 050-33150-22) | ||||
| 191 | 6686270 | 9.08 | 10.98 | |
| STOP SWITCH COMP. (OLD 170-3317A-80) | ||||
| 192 | 6687764 | 10.56 | 12.78 | |
| BUTTON STOP (OLD 258-11650-20) | ||||
| 193 | 6688366 | 1.15 | 1.39 | |
| SCREW 3X10 (OLD 994-31030-101) | ||||
| 194 | 6684913 | 2.15 | 2.60 | |
| THROTTLE LEVER (OLD 230-33150-20) | ||||
| 195 | 6688226 | 2.31 | 2.80 | |
| SAFETY LEVER (OLD 231-33150-20) | ||||
| 196 | 6688235 | 2.31 | 2.80 | |
| THROTTLE LEVER SPRING (OLD 232-33150-20) | ||||
| 197 | 6688243 | 2.31 | 2.80 | |
| HANDLE B (OLD 051-33150-23) | ||||
| 198 | 6686307 | 9.08 | 10.98 | |
| CAP (OLD 765-32120-20) | ||||
| 199 | 6693002 | 1.15 | 1.39 | |
| TAPSCHROEF D4X18 | ||||
| 200 | 6695263 | 1.05 | 1.27 | |
| GASKABEL | ||||
| 201 | 6693917 | 3.30 | 3.99 | |
| STOP BUTTON MARK (OLD 925-32530-20) | ||||
| 202 | 6694585 | 1.15 | 1.39 | |
| HEX. HOLE BOLT 5X45 (OLD 990-51050-453) | ||||
| 203 | 6695055 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 204 | 6696987 | |||
| HEX. HOLE BOLT 6X18/S (OLD 994-61060-184) | ||||
| 205 | 6695495 | 1.15 | 1.39 | |
| RING 5 (OUD 992-00050-011) | ||||
| 206 | 6684864 | 2.15 | 2.60 | |
| FRONT HANDLE (OLD 210-33160-22/6688095/6688094) | ||||
| 207 | 6688096 | 7.75 | 9.38 | |
| RING | ||||
| 208 | 6689680 | 1.15 | 1.39 | |
| RING 5 (OLD 992-10050-062) | ||||
| 209 | 6684834 | 2.15 | 2.60 | |
| HEX. HOLE BOLT 5X40 (OLD 990-51050-403) | ||||
| 210 | 6695054 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 211 | 6687558 | |||
| COLLAR 5.8 (OLD 659-00801-20) | ||||
| 212 | 6692244 | 1.15 | 1.39 | |
| RING (OUD 992-10050-012) | ||||
| 213 | 6684662 | 2.15 | 2.60 | |
| RING | ||||
| 214 | 6684639 | 2.15 | 2.60 | |
| GEAR CASE COMP. (OLD 300-33287-81) | ||||
| 231 | 6688683 | 24.20 | 29.28 | |
| STOP RING C-15, OUTER (OLD 993-50015-002) | ||||
| 232 | 6695285 | 1.15 | 1.39 | |
| BALL BEARING 6002Z, 32MM/OD (OLD 999-61600-202) | ||||
| 233 | 6695538 | 6.60 | 7.99 | |
| BALL BEARING 6002Z, 32MM/OD (OLD 999-61600-202) | ||||
| 234 | 6695538 | 6.60 | 7.99 | |
| Niet meer leverbaar, geen vervanging | ||||
| 235 | 6688570 | |||
| GEAR SHAFT (OLD 305-33160-20) | ||||
| 236 | 6688960 | 2.31 | 2.80 | |
| GUIDE PLATE (OLD 075-33287-20) | ||||
| 237 | 6686614 | 4.45 | 5.38 | |
| GEAR 2 (OLD 307-33287-20) | ||||
| 238 | 6688979 | 26.16 | 31.66 | |
| GEAR CASE GASKET (OLD 303-33160-20) | ||||
| 239 | 6688909 | 1.15 | 1.39 | |
| GEAR CASE COVER (OLD 630-33287-20) | ||||
| 240 | 6692102 | 5.78 | 6.99 | |
| CUTTER GUIDE 590 (OLD 6687152) | ||||
| 241A | 6697700 | 11.23 | 13.58 | |
| RING | ||||
| 242 | 6684639 | 2.15 | 2.60 | |
| NUT 6 UPS-P (OLD 991-87060-001 & 6698766) | ||||
| 243 | 6695175 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 244 | 6697674 | |||
| AFDICHT RUBBER | ||||
| 245 | 6686658 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 246 | 6687187 | |||
| BOUT | ||||
| 247 | 6687158 | 1.15 | 1.39 | |
| FLENSMOER | ||||
| 248 | 6695170 | 1.15 | 1.39 | |
| HEX. HOLE BOLT 4X10S (OLD 994-61040-104) | ||||
| 249 | 6695484 | 1.15 | 1.39 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 250 | 6688643 | 1.15 | 1.39 | |
| HEX. HOLE BOLT 6X18/S (OLD 994-61060-184) | ||||
| 251 | 6695495 | 1.15 | 1.39 | |
| Niet meer leverbaar, geen vervanging | ||||
| 252 | 6687162 | |||
| BOVENMES (A) (OLD 6687095) | ||||
| 253 | 6697675 | 33.58 | 40.63 | |
| SUPPORT PLATE (OLD 462-33287-20) | ||||
| 254 | 6690761 | 3.30 | 3.99 | |
| RING 5 (OUD 992-00050-011) | ||||
| 255 | 6684864 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 256 | 6696987 | |||
| HOLDING PLATE (OLD 070-33287-20) | ||||
| 257 | 6686468 | 1.15 | 1.39 | |
| CORD CLAMP COMP. (OLD 198-10246-80) | ||||
| 258 | 6688008 | 1.15 | 1.39 | |
| CUTTER COVER (OLD 138-33258-20) | ||||
| 259 | 6687311 | 7.59 | 9.18 | |
| SPRING NUT 6 (OLD 994-40060-011) | ||||
| 260 | 6695475 | 1.15 | 1.39 | |
| COMBI BOX SPANNER 10X19 ,PLUS (OLD 036-29331-50) | ||||
| 501 | 6685997 | 4.45 | 5.38 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 502 | 6684813 | |||
