Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki TPS-200H'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

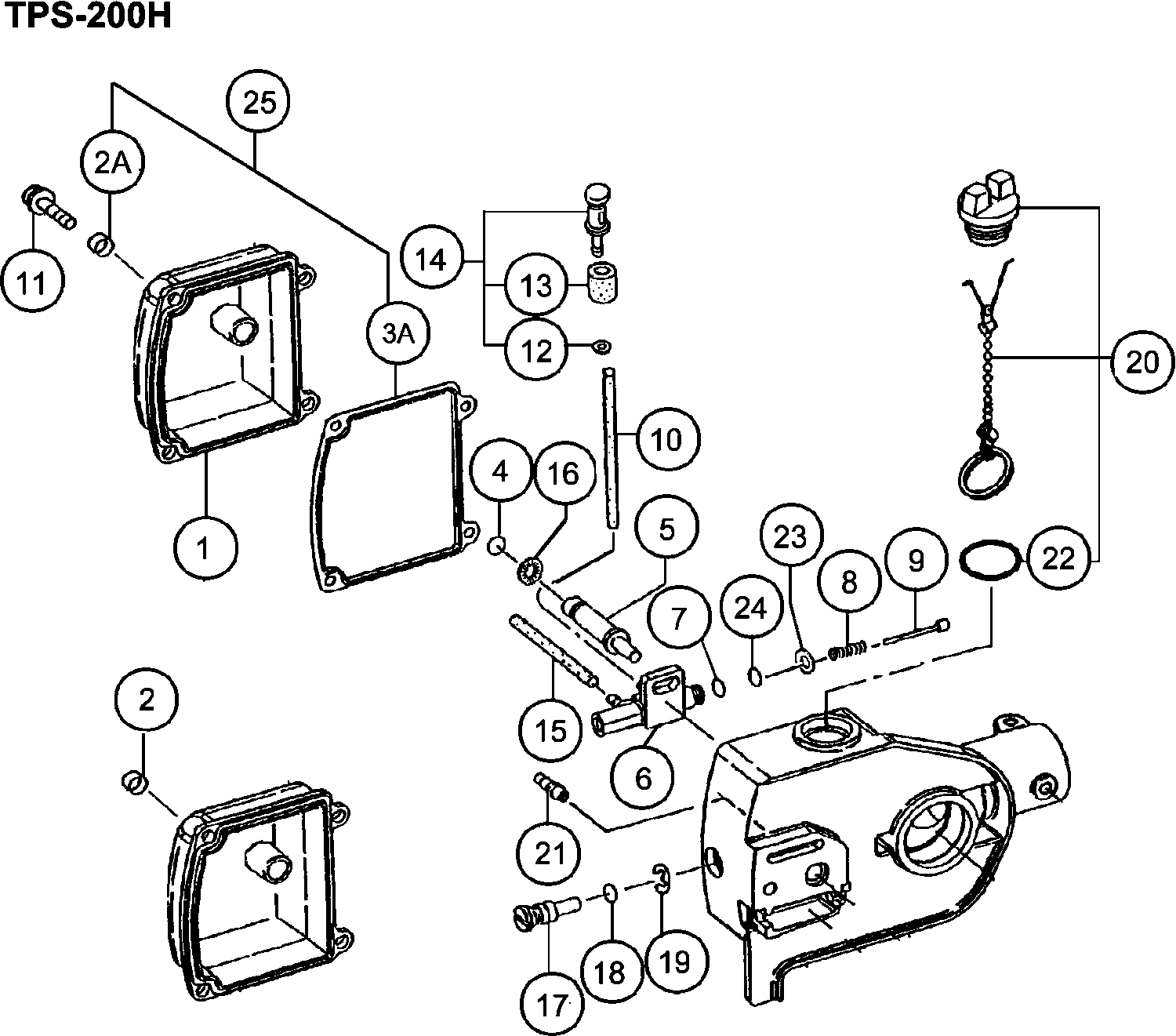

Tekeningen van de Hikoki TPS-200H
Onderdelen lijst van de Hikoki TPS-200H
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Olie Tank Omhulsel | ||||
| 1 | 6686138 | 2.31 | 2.80 | |
| Collar 3 (old 031-32304-20) | ||||
| 2 | 6685961 | 1.15 | 1.39 | |
| Collar 3 | ||||
| 2A | 6699273 | 1.15 | 1.39 | |
| Oil Tank Gasket (old 6690084) | ||||
| 3A | 6699567 | 2.15 | 2.60 | |
| O-ring P-5 (old 999-67005-000/6698965) | ||||
| 4 | 6695661 | 1.15 | 1.39 | |
| Step Bolt A (old 382-32304-20) | ||||
| 5 | 6689757 | 4.45 | 5.38 | |
| Oil Pump Comp. (old 071-32344-80) | ||||
| 6 | 6686487 | 17.09 | 20.68 | |
| O-ring P-5 (old 999-67005-000/6698965) | ||||
| 7 | 6695661 | 1.15 | 1.39 | |
| Oil Pump Spring (old 449-32304-20) | ||||
| 8 | 6690381 | 1.15 | 1.39 | |
| Oil Pump Piston Comp. (old 073-32304-81/6686607) | ||||
| 9 | 6686608 | 2.31 | 2.80 | |
| Fuel Pipe 3x5x60 (old 700-53005-06) | ||||
| 10 | 6692414 | 1.15 | 1.39 | |
| Small Screw 4x12ws (old 994-16040-126) | ||||
| 11 | 6695403 | 1.15 | 1.39 | |
| Ring | ||||
| 12 | 6684661 | 2.15 | 2.60 | |
| Oil Filter (old 487-32345-20) | ||||
| 13 | 6690917 | 1.15 | 1.39 | |
| Filter Ass'y (old 486-32345-90) | ||||
| 14 | 6690913 | 2.31 | 2.80 | |
| Fuel Pipe 3x5x75 (old 700-53005-07) | ||||
| 15 | 6692415 | 1.15 | 1.39 | |
| Push Nut | ||||
| 16 | 6695239 | 1.15 | 1.39 | |
| Oil Pump Adjuster (old 501-32304-21) | ||||
| 17 | 6691066 | 4.45 | 5.38 | |
| O-ring P-5 (old 999-67005-000/6698965) | ||||
| 18 | 6695661 | 1.15 | 1.39 | |
| Stop Ring E-6 (old 993-55060-001) | ||||
| 19 | 6695311 | 1.15 | 1.39 | |
| Oil Tank Cap Ass'y (old 624-32304-92) | ||||
| 20 | 6692050 | 12.05 | 14.58 | |
| Banjo, Oil Pump (old 082-32304-20) | ||||
| 21 | 6686637 | 1.15 | 1.39 | |
| O-ring P-15 | ||||
| 22 | 6698966 | 1.04 | 1.26 | |
| Ring | ||||
| 23 | 6695187 | 1.15 | 1.39 | |
| O-ring 1.4 (old 999-67001-413) | ||||
| 24 | 6695656 | 1.15 | 1.39 | |
| Tank Packing Ass'y | ||||
| 25 | 6699566 | 2.31 | 2.80 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 41 | 6695492 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x10 (old 990-51050-103) | ||||
| 42 | 6695042 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 43 | 6695458 | |||
| Case (old 019-32304-22) | ||||
| 44 | 6685793 | 14.35 | 17.36 | |
| Gear Pinion Set Spare (old 301-32344-00) | ||||
| 45 | 6688836 | 36.15 | 43.74 | |
| Kogellager 609 | ||||
| 46 | 6684734 | 8.58 | 10.38 | |
| Kogellager 609z St | ||||
| 47 | 6684735 | 8.58 | 10.38 | |
| Stop Ring C-9, Outer (old 993-50009-002) | ||||
| 48 | 6695281 | 1.15 | 1.39 | |
| Stop Ring C-24.inner (old 993-51024-002) | ||||
| 49 | 6684732 | 2.15 | 2.60 | |
| Ring | ||||
| 50 | 6693248 | 1.15 | 1.39 | |
| Kogellager 627 C3 | ||||
| 51 | 6695568 | 5.61 | 6.79 | |
| Kogellager 638zz | ||||
| 52 | 6697603 | 4.63 | 5.60 | |
| Stop Ring C-28.inner (old 993-51028-002) | ||||
| 53 | 6684741 | 2.15 | 2.60 | |
| Sprocket Comp.,3/8"(old 319-32304-80) | ||||
| 54 | 6689117 | 36.15 | 43.74 | |
| Flensmoer | ||||
| 55 | 6695170 | 1.15 | 1.39 | |
| Side Cover Comp. (old 039-32304-80) | ||||
| 56 | 6686038 | 5.11 | 6.19 | |
| Chain Bar Clamp Nut (old 121-32600-20) | ||||
| 57 | 6687105 | 1.15 | 1.39 | |
| Chain Bar Knock Pin (old 122-32344-21) | ||||
| 58 | 6687130 | 4.45 | 5.38 | |
| Guide Plate (old 6690726) | ||||
| 59 | 6697596 | 3.30 | 3.99 | |
| Chain Bar Tightening Bolt (old 101-32344-21) | ||||
| 60 | 6686803 | 4.45 | 5.38 | |
| Chian Tensioner Ass'y (old 116-32304-90) | ||||
| 61 | 6687063 | 4.45 | 5.38 | |
| Cam (old 452-32344-20) | ||||
| 62 | 6690428 | 1.15 | 1.39 | |
| Collar (old 031-32344-20) | ||||
| 63 | 6685962 | 3.30 | 3.99 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 64 | 6699679 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 65 | 6686875 | |||
| Drive Shaft Comp. (old 343-32331-80) | ||||
| 81 | 6689441 | 24.20 | 29.28 | |
| Stuurbuis | ||||
| 82 | 6689311 | 18.30 | 22.14 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 83 | 6684831 | |||
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 84 | 6684709 | 2.15 | 2.60 | |
| Handle Knob (old 512-3338p-20) | ||||
| 85 | 6684823 | 4.29 | 5.19 | |
| Joint Case (old 280-32331-22/6697615) | ||||
| 86 | 6688517 | 32.21 | 38.98 | |
| Lock Pin Comp. (old 352-32331-80) | ||||
| 87 | 6689601 | 7.93 | 9.59 | |
| Hex.bolt 6x50 (old 990-21060-504) | ||||
| 88 | 6684824 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x10 (old 990-51050-103) | ||||
| 89 | 6695042 | 1.15 | 1.39 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 90 | 6685075 | |||
| Stop Ring C-10, Outer (old 993-50010-002) | ||||
| 91 | 6684821 | 2.15 | 2.60 | |
| Kogellager 6900zz | ||||
| 92 | 6695578 | 7.59 | 9.18 | |
| Collar B (old 348-33130-20) | ||||
| 93 | 6689530 | 4.45 | 5.38 | |
| Ring | ||||
| 94 | 6684642 | 2.15 | 2.60 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 95 | 6684792 | |||
| Cap Nut 6 (old 991-42060-012) | ||||
| 96 | 6684828 | 2.15 | 2.60 | |
| Combi Box Spanner 13x19 Minus (old 883-32600-20) | ||||
| 501 | 6693809 | 4.45 | 5.38 | |
| Chain Cover 10" (old 941-32333-20) | ||||
| 502 | 6694796 | 6.28 | 7.59 | |
