Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita 2012NB'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

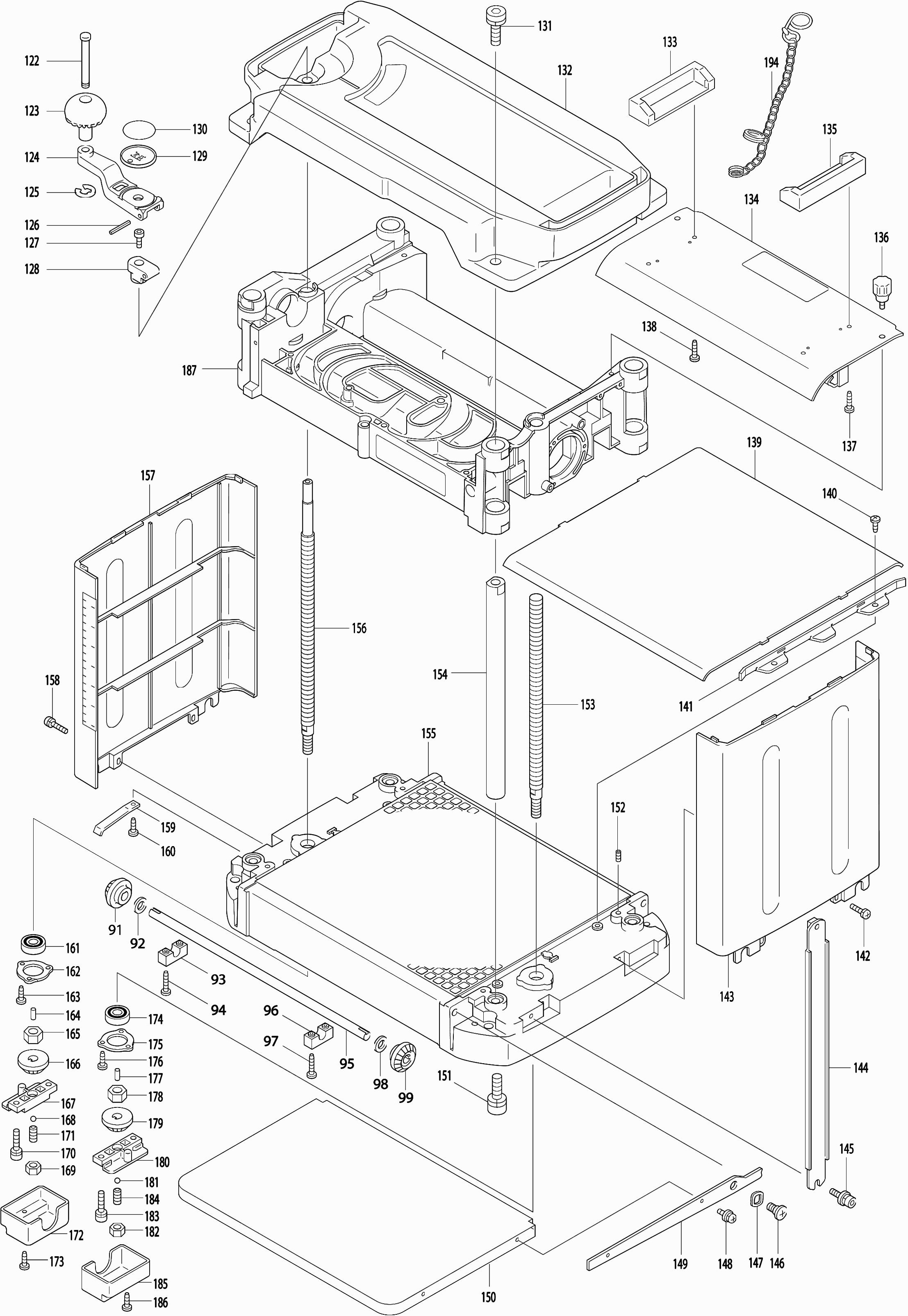

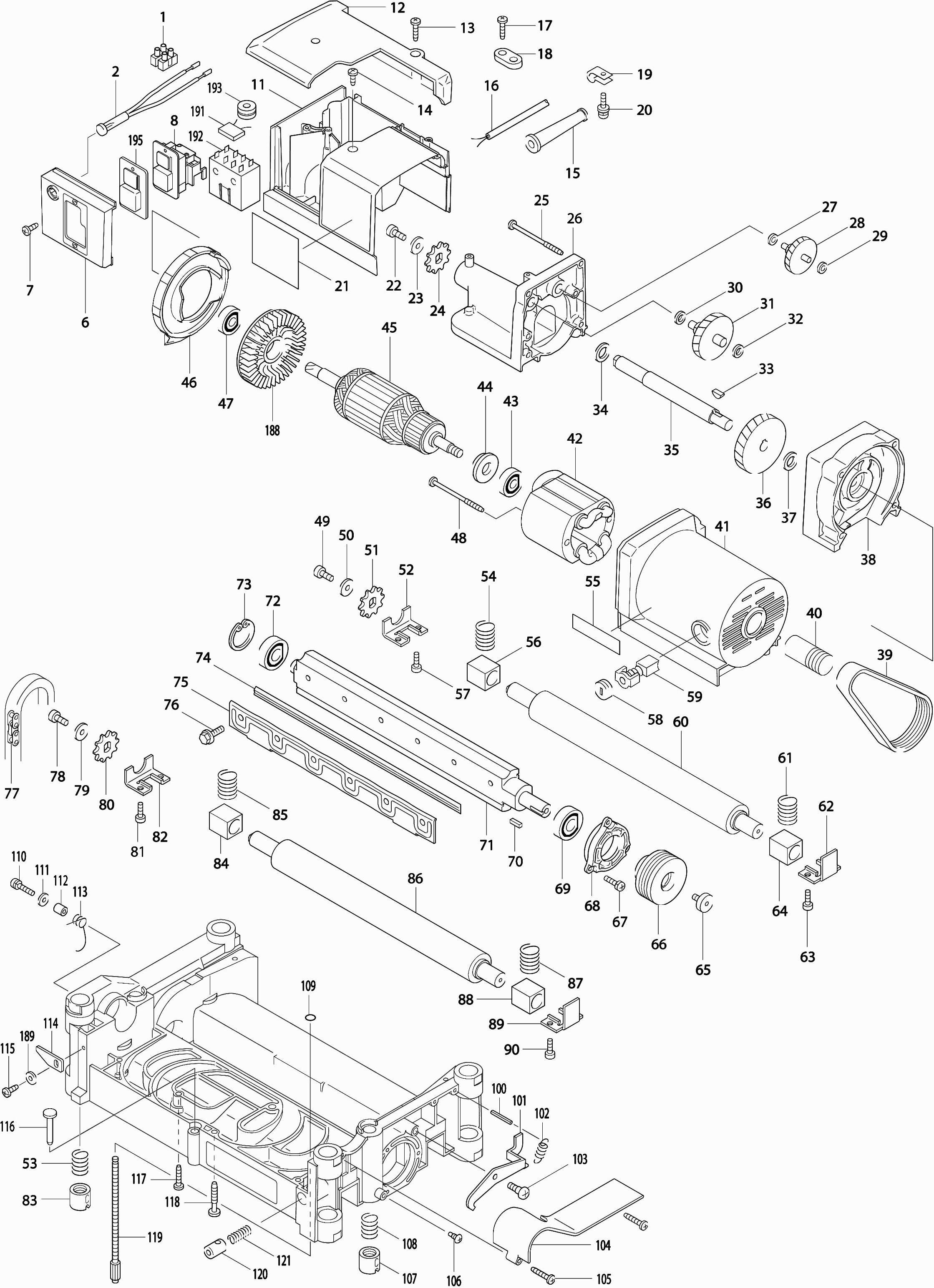

Tekeningen van de Makita 2012NB
Onderdelen lijst van de Makita 2012NB
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Kroonsteen Lh1040F | ||||
| 001 | 654561-8 | 3.28 | 3.97 | |
| Indicatielamp 2012Nb | ||||
| 002 | 631371-0 | 9.26 | 11.20 | |
| Schakelpaneel 2012Nb | ||||
| 006 | 418416-9 | 1.67 | 2.02 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 007 | 251991-0 | |||
| Schakelunit 2012Nb | ||||
| 008 | 632519-7 | 24.16 | 29.23 | |
| Schakelkast 2012Nb | ||||
| 011 | 417041-3 | 7.21 | 8.72 | |
| Schakelkastdeksel 2012Nb | ||||
| 012 | 417038-2 | 3.44 | 4.16 | |
| Tapschroef 4X18 A | ||||
| 013 | 265A48-7 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 014 | 266026-4 | 0.83 | 1.00 | |
| Kabeltule 10-85 A | ||||
| 015 | 682504-0 | 1.67 | 2.02 | |
| Kabeltule 9.3-85 P | ||||
| 015 | 682516-3 | 0.98 | 1.19 | |
| Netsnoer 2X1.50 4.0Mtr A | ||||
| 016 | 695123-3 | 21.08 | 25.51 | |
| Tapschroef 4X18 A | ||||
| 017 | 265A48-7 | 0.83 | 1.00 | |
| Klemstrip P | ||||
| 018 | 687053-2 | 0.83 | 1.00 | |
| Klemstrip 9555Nb/Bo3711 A | ||||
| 018-2 | 687124-5 | 0.83 | 1.00 | |
| Trekontlasting | ||||
| 019 | 687042-7 | 0.83 | 1.00 | |
| Schroef 4X16 A | ||||
| 020 | 911526-6 | 0.83 | 1.00 | |
| Naampaat 2012Nb* | ||||
| 021 | 851968-1 | 2.71 | 3.28 | |
| Inbusbout M6X12 | ||||
| 022 | 922312-0 | 0.83 | 1.00 | |
| Sluitring 6 2012Nb | ||||
| 023 | 267080-1 | 0.83 | 1.00 | |
| Tandwiel 10 2012Nb | ||||
| 024 | 221525-3 | 0.83 | 1.00 | |
| Zelftappende Schroef Pt M5X75 | ||||
| 025 | 266059-9 | 1.24 | 1.50 | |
| Tandwielhuis 2012Nb | ||||
| 026 | 151739-9 | 17.40 | 21.05 | |
| Glijlager 6* | ||||
| 026A | 214014-5 | 6.38 | 7.72 | |
| Glijlager 8 6905H * | ||||
| 026B | 214022-6 | 1.02 | 1.23 | |
| Glijlager 14 2012Nb | ||||
| 026C | 214156-5 | 1.00 | 1.21 | |
| Pen 6 2012Nb | ||||
| 026D | 256041-6 | 0.83 | 1.00 | |
| Sluitring 6 | ||||
| 027 | 253715-0 | 0.83 | 1.00 | |
| Tandwielunit 8-50 2012Nb | ||||
| 028 | 226134-3 | 10.50 | 12.70 | |
| Sluitring 6 | ||||
| 029 | 253715-0 | 0.83 | 1.00 | |
| Sluitring 8X14X0,5 Mm | ||||
| 030 | 253215-0 | 0.83 | 1.00 | |
| Tandwielunit 8-46 2012Nb | ||||
| 031 | 226135-1 | 10.52 | 12.73 | |
| Sluitring 8X14X0,5 Mm | ||||
| 032 | 253215-0 | 0.83 | 1.00 | |
| Inlegspie 4 | ||||
| 033 | 254001-2 | 0.83 | 1.00 | |
| Sluitring 14 2012Nb | ||||
| 034 | 253760-5 | 0.83 | 1.00 | |
| Aandrijfas 2012Nb | ||||
| 035 | 323923-8 | 9.67 | 11.70 | |
| Tandwiel 47 2012Nb | ||||
| 036 | 226518-5 | 10.36 | 12.54 | |
| Sluitring 12 | ||||
| 037 | 253744-3 | 0.83 | 1.00 | |
| Tandwielhuis 2012Nb | ||||
| 038 | 151738-1 | 19.29 | 23.34 | |
| Glijlager 6* | ||||
| 038A | 214014-5 | 6.38 | 7.72 | |
| Glijlager 8 6905H * | ||||
| 038B | 214022-6 | 1.02 | 1.23 | |
| Glijlager 12 * | ||||
| 038C | 214109-4 | 1.18 | 1.43 | |
| V-Snaar 8-341 2012Nb | ||||
| 039 | 225083-1 | 13.82 | 16.72 | |
| V-Poelie 8-23,5 2012Nb | ||||
| 040 | 222155-3 | 3.54 | 4.28 | |
| Motorhuis 2012Nb | ||||
| 041 | 151737-3 | 19.12 | 23.14 | |
| Koolborstelhouder A | ||||
| 041A | 643536-2 | 1.49 | 1.80 | |
| Veld 2012Nb | ||||
| 042 | 526104-5 | 45.49 | 55.04 | |
| Statorveertje Cb5 | ||||
| 042A | 654020-2 | 0.83 | 1.00 | |
| Klembus 2Mm Tbv Stat.Veer | ||||
| 042B | 654502-4 | 0.83 | 1.00 | |
| Kogellager 6200Dw P | ||||
| 043 | 211087-9 | 7.22 | 8.74 | |
| Kogellager 6200Llb | ||||
| 043 | 211066-7 | 4.45 | 5.38 | |
| Isolatiering A | ||||
| 044 | 681623-9 | 0.83 | 1.00 | |
| Anker 2012Nb P | ||||
| 045 | 516813-4 | 45.49 | 55.04 | |
| Tussenplaat 2012Nb | ||||
| 046 | 417033-2 | 1.00 | 1.21 | |
| Kogellager 6200Dw P | ||||
| 047 | 211087-9 | 7.22 | 8.74 | |
| Kogellager 6200Llb | ||||
| 047 | 211066-7 | 4.45 | 5.38 | |
| Zelftappende Schroef Pt M5X75 | ||||
| 048 | 266059-9 | 1.24 | 1.50 | |
| Inbusbout M6X12 | ||||
| 049 | 922312-0 | 0.83 | 1.00 | |
| Sluitring 6 2012Nb | ||||
| 050 | 267080-1 | 0.83 | 1.00 | |
| Tandwiel 10 2012Nb | ||||
| 051 | 221525-3 | 0.83 | 1.00 | |
| Beschermkap 2012Nb | ||||
| 052 | 343844-8 | 1.54 | 1.86 | |
| Drukveer 15 2012Nb | ||||
| 053 | 233016-2 | 0.83 | 1.00 | |
| Drukveer 13 2012Nb | ||||
| 054 | 231459-2 | 1.02 | 1.23 | |
| Makita Label A | ||||
| 055 | 819064-1 | 0.83 | 1.00 | |
| Glijlager 17 2012Nb | ||||
| 056 | 214251-1 | 1.67 | 2.02 | |
| Inbusbout M5X16 A | ||||
| 057 | 922221-3 | 0.83 | 1.00 | |
| Koolborstelhouderdop A | ||||
| 058 | 643650-4 | 0.83 | 1.00 | |
| Koolborstelhouderdop A | ||||
| 058-1 | 643650-4 | 0.83 | 1.00 | |
| Koolborstel Set Cb-153 A | ||||
| 059 | 194985-1 | 3.96 | 4.79 | |
| Aandrijfrol 2012Nb | ||||
| 060 | 162216-6 | 112.06 | 135.59 | |
| Drukveer 13A 2012Nb | ||||
| 061 | 233392-4 | 0.83 | 1.00 | |
| Beschermkap 2012Nb | ||||
| 062 | 341685-6 | 2.38 | 2.88 | |
| Inbusbout M5X16 A | ||||
| 063 | 922221-3 | 0.83 | 1.00 | |
| Glijlager 17 2012Nb | ||||
| 064 | 214251-1 | 1.67 | 2.02 | |
| Inusbout M6X12 2012Nb | ||||
| 065 | 265854-4 | 4.67 | 5.65 | |
| V-Poelie 8-54 2012Nb | ||||
| 066 | 222154-5 | 16.35 | 19.78 | |
| Schroef 4X16 A | ||||
| 067 | 911526-6 | 0.83 | 1.00 | |
| Kogellagerhuis 2012Nb | ||||
| 068 | 317259-5 | 5.98 | 7.24 | |
| Kogellager 6202Llb A | ||||
| 069 | 211228-7 | 7.22 | 8.74 | |
| Inlegspie 4 | ||||
| 070 | 254204-8 | 1.00 | 1.21 | |
| Beitelwals 2012Nb | ||||
| 071 | 323928-8 | 104.59 | 126.55 | |
| Kogellager 6202Llb A | ||||
| 072 | 211228-7 | 7.22 | 8.74 | |
| Borgring R-35 A | ||||
| 073 | 962153-2 | 0.83 | 1.00 | |
| HSS wisselbeitels 306mm | ||||
| 074 | 793346-8 | 32.70 | 39.57 | |
| Beitelklemplaat 2012Nb | ||||
| 075 | 343682-8 | 25.36 | 30.69 | |
| Flensbout M6X17 | ||||
| 076 | 251609-3 | 0.83 | 1.00 | |
| Ketting 35-46 2012Nb | ||||
| 077 | 225520-5 | 10.50 | 12.70 | |
| Inbusbout M6X12 | ||||
| 078 | 922312-0 | 0.83 | 1.00 | |
| Sluitring 6 2012Nb | ||||
| 079 | 267080-1 | 0.83 | 1.00 | |
| Tandwiel 10 2012Nb | ||||
| 080 | 221525-3 | 0.83 | 1.00 | |
| Inbusbout M5X16 A | ||||
| 081 | 922221-3 | 0.83 | 1.00 | |
| Beschermkap 2012Nb | ||||
| 082 | 343844-8 | 1.54 | 1.86 | |
| Moer M14 2012Nb | ||||
| 083 | 252426-4 | 10.99 | 13.30 | |
| Glijlager 17 2012Nb | ||||
| 084 | 214251-1 | 1.67 | 2.02 | |
| Drukveer 13 2012Nb | ||||
| 085 | 231459-2 | 1.02 | 1.23 | |
| Aandrijfrol 2012Nb | ||||
| 086 | 162216-6 | 112.06 | 135.59 | |
| Drukveer 13A 2012Nb | ||||
| 087 | 233392-4 | 0.83 | 1.00 | |
| Glijlager 17 2012Nb | ||||
| 088 | 214251-1 | 1.67 | 2.02 | |
| Beschermkap 2012Nb | ||||
| 089 | 341685-6 | 2.38 | 2.88 | |
| Inbusbout M5X16 A | ||||
| 090 | 922221-3 | 0.83 | 1.00 | |
| Tandwiel 15 2012Nb | ||||
| 091 | 226786-0 | 2.02 | 2.44 | |
| Sluitring 10 2012Nb | ||||
| 092 | 253828-7 | 0.83 | 1.00 | |
| As Montageblok 2012Nb* | ||||
| 093 | 417034-0 | 0.83 | 1.00 | |
| Tapschroef Ct 4X25 2704 | ||||
| 094 | 266040-0 | 0.83 | 1.00 | |
| As 2012Nb | ||||
| 095 | 323926-2 | 4.45 | 5.38 | |
| As Montageblok 2012Nb* | ||||
| 096 | 417034-0 | 0.83 | 1.00 | |
| Tapschroef Ct 4X25 2704 | ||||
| 097 | 266040-0 | 0.83 | 1.00 | |
| Sluitring 10 2012Nb | ||||
| 098 | 253828-7 | 0.83 | 1.00 | |
| Tandwiel 15 2012Nb | ||||
| 099 | 226786-0 | 2.02 | 2.44 | |
| Spanstift 4-28 | ||||
| 100 | 951122-8 | 0.83 | 1.00 | |
| Blokkeerplaat 2012Nb | ||||
| 101 | 344815-8 | 1.00 | 1.21 | |
| Trekveer 5 2012Nb | ||||
| 102 | 231793-0 | 1.46 | 1.77 | |
| Kruiskopschroef M5 2012Nb | ||||
| 103 | 251283-7 | 0.98 | 1.19 | |
| Snaardeksel 2012Nb | ||||
| 104 | 417035-8 | 0.98 | 1.19 | |
| Tapschroef Ct 4X25 2704 | ||||
| 105 | 266040-0 | 0.83 | 1.00 | |
| Schroef 5X12 | ||||
| 106 | 251322-3 | 0.83 | 1.00 | |
| Moer M14L 2012Nb | ||||
| 107 | 252427-2 | 10.99 | 13.30 | |
| Drukveer 15 2012Nb | ||||
| 108 | 233016-2 | 0.83 | 1.00 | |
| O-Ring 4 2012Nb | ||||
| 109 | 213009-5 | 0.83 | 1.00 | |
| Kruiskopschroef 5X20 | ||||
| 110 | 911233-1 | 0.83 | 1.00 | |
| Sluitring 5 | ||||
| 111 | 253194-2 | 0.83 | 1.00 | |
| Bus 6 2012Nb | ||||
| 112 | 257600-9 | 0.83 | 1.00 | |
| Torsieveer 9 2012Nb | ||||
| 113 | 231588-1 | 0.83 | 1.00 | |
| Markeerpunt 2012Nb | ||||
| 114 | 344068-9 | 1.99 | 2.41 | |
| Tapschroef M4X12Mm Ck A | ||||
| 115 | 266026-4 | 0.83 | 1.00 | |
| Diepte Aanslag 2012Nb | ||||
| 116 | 322229-1 | 2.27 | 2.75 | |
| Tapschroef Ct 4X25 2704 | ||||
| 117 | 266040-0 | 0.83 | 1.00 | |
| Tapschroef Pt 5X30 A | ||||
| 118 | 266173-1 | 0.83 | 1.00 | |
| Diepte Instelb.M6X135 2012Nb | ||||
| 119 | 265736-0 | 5.30 | 6.41 | |
| Moer 2012Nb * | ||||
| 120 | 323927-0 | 5.06 | 6.12 | |
| Drukveer 11 | ||||
| 121 | 231226-5 | 0.83 | 1.00 | |
| Pen 8 2012Nb | ||||
| 122 | 256688-6 | 3.28 | 3.97 | |
| Knop 45 2012Nb | ||||
| 123 | 271296-2 | 2.48 | 3.00 | |
| Handel 2012Nb | ||||
| 124 | 272028-0 | 3.12 | 3.78 | |
| Handel 2012Nb | ||||
| 124-1 | 272028-0 | 3.12 | 3.78 | |
| Stopring E-6 A | ||||
| 125 | 259053-8 | 0.83 | 1.00 | |
| Spanstift 4-28 | ||||
| 126 | 951122-8 | 0.83 | 1.00 | |
| Schroef 5X16 JR3051T A | ||||
| 127 | 265C32-4 | 0.83 | 1.00 | |
| Handelplaat 2012Nb | ||||
| 128 | 317760-0 | 2.10 | 2.54 | |
| Handelplaat 2012Nb | ||||
| 128-1 | 317760-0 | 2.10 | 2.54 | |
| Tussenplaat 2012Nb | ||||
| 129 | 417032-4 | 0.83 | 1.00 | |
| Schaalverdeling 2012Nb | ||||
| 130 | 816358-5 | 2.71 | 3.28 | |
| Inbusbout M10X25 2012Nb | ||||
| 131 | 266240-2 | 0.83 | 1.00 | |
| Bovendeksel 2012NB P | ||||
| 132 | 153781-6 | 58.04 | 70.23 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 132-2 | 153779-3 | |||
| Indicatielabel 2012Nb* | ||||
| 132A | 816359-3 | 2.71 | 3.28 | |
| Waarschuwingslabel 2012Nb* | ||||
| 132B | 817737-0 | 2.71 | 3.28 | |
| Gereedschapbakhouder 2012Nb | ||||
| 133 | 417036-6 | 1.39 | 1.68 | |
| Spaangeleider 2012Nb | ||||
| 134 | 165379-7 | 8.59 | 10.39 | |
| Spaangeleider 2012Nb | ||||
| 134-1 | 165379-7 | 8.59 | 10.39 | |
| Gereedschapbakhouder 2012Nb | ||||
| 135 | 417036-6 | 1.39 | 1.68 | |
| Vastzetschroef M5X10 | ||||
| 136 | 265716-6 | 2.84 | 3.44 | |
| Tapschroef 4X18 A | ||||
| 137 | 265A48-7 | 0.83 | 1.00 | |
| Tapschroef 4X18 A | ||||
| 138 | 265A48-7 | 0.83 | 1.00 | |
| Geleideplaat 2012Nb | ||||
| 139 | 344816-6 | 19.23 | 23.27 | |
| Tapschroef M4X12Mm Ck A | ||||
| 140 | 266026-4 | 0.83 | 1.00 | |
| Montageplaat 2012Nb | ||||
| 141 | 344819-0 | 1.39 | 1.68 | |
| Schroef 4X16 A | ||||
| 142 | 911526-6 | 0.83 | 1.00 | |
| Zijdeksel 2012Nb | ||||
| 143 | 417040-5 | 8.59 | 10.39 | |
| Verstevigingsboom 2012Nb | ||||
| 144 | 344820-5 | 2.71 | 3.28 | |
| Inbusbout M6X16 2012Nb | ||||
| 145 | 922323-5 | 0.83 | 1.00 | |
| Schroef M8 2012Nb | ||||
| 146 | 251217-0 | 2.02 | 2.44 | |
| Veerring 10 | ||||
| 147 | 253932-2 | 0.83 | 1.00 | |
| Schroef 4X8 | ||||
| 148 | 911109-2 | 0.83 | 1.00 | |
| Arm 2012Nb | ||||
| 149 | 344818-2 | 1.39 | 1.68 | |
| Onderplaat 2012Nb | ||||
| 150 | 344817-4 | 13.82 | 16.72 | |
| Inbusbout M10X25 2012Nb | ||||
| 151 | 266240-2 | 0.83 | 1.00 | |
| Zeskantbout M5X12 5621Rd * | ||||
| 152 | 266213-5 | 0.83 | 1.00 | |
| Schroef L 2012Nb | ||||
| 153 | 323925-4 | 7.22 | 8.74 | |
| Pilaar 20 2012Nb | ||||
| 154 | 331562-0 | 11.82 | 14.30 | |
| Ondertafel 2012Nb | ||||
| 155 | 317763-4 | 77.67 | 93.98 | |
| Ondertafel 2012Nb | ||||
| 155-1 | 317763-4 | 77.67 | 93.98 | |
| Schroef R 2012Nb | ||||
| 156 | 323924-6 | 11.82 | 14.30 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 157 | 151886-6 | |||
| Zijdeksel 2012Nb A | ||||
| 157-1 | 142383-3 | 8.21 | 9.93 | |
| Schaalverdeling 2012Nb | ||||
| 157A | 816354-3 | 2.84 | 3.44 | |
| Schroef 4X16 A | ||||
| 158 | 911526-6 | 0.83 | 1.00 | |
| Bladveer 2012Nb | ||||
| 159 | 232195-3 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 160 | 266026-4 | 0.83 | 1.00 | |
| Kogellager 6000Ddw P | ||||
| 161 | 211088-7 | 5.06 | 6.12 | |
| Lagerborging 33 2012Nb | ||||
| 162 | 285698-6 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 163 | 266026-4 | 0.83 | 1.00 | |
| Pen 4 Duc252 A | ||||
| 164 | 256184-4 | 0.83 | 1.00 | |
| Pin 4 6827 | ||||
| 164 | 268075-7 | 0.83 | 1.00 | |
| Moer M10X17 2012Nb | ||||
| 165 | 252164-8 | 0.83 | 1.00 | |
| Tandwiel 15 2012Nb | ||||
| 166 | 226791-7 | 1.67 | 2.02 | |
| Tandwielplaat 2012Nb | ||||
| 167 | 317260-0 | 5.06 | 6.12 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 168 | 216011-7 | |||
| Zeskantmoer M8 Vz Plat A | ||||
| 169 | 931403-6 | 0.83 | 1.00 | |
| Zeskant Bout 5X20 LF1000 A | ||||
| 170 | 265550-4 | 0.83 | 1.00 | |
| Inbusbout M8X16 2012Nb | ||||
| 171 | 265846-3 | 0.83 | 1.00 | |
| Tandwielkap 2012Nb | ||||
| 172 | 417030-8 | 1.18 | 1.43 | |
| Tapschroef M4X12Mm Ck A | ||||
| 173 | 266026-4 | 0.83 | 1.00 | |
| Kogellager 6000Ddw P | ||||
| 174 | 211088-7 | 5.06 | 6.12 | |
| Lagerborging 33 2012Nb | ||||
| 175 | 285698-6 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 176 | 266026-4 | 0.83 | 1.00 | |
| Pen 4 Duc252 A | ||||
| 177 | 256184-4 | 0.83 | 1.00 | |
| Pin 4 6827 | ||||
| 177 | 268075-7 | 0.83 | 1.00 | |
| Moer M10X17 2012Nb | ||||
| 178 | 252164-8 | 0.83 | 1.00 | |
| Tandwiel 15 2012Nb | ||||
| 179 | 226791-7 | 1.67 | 2.02 | |
| Tandwielplaat 2012Nb | ||||
| 180 | 317260-0 | 5.06 | 6.12 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 181 | 216011-7 | |||
| Zeskantmoer M8 Vz Plat A | ||||
| 182 | 931403-6 | 0.83 | 1.00 | |
| Zeskant Bout 5X20 LF1000 A | ||||
| 183 | 265550-4 | 0.83 | 1.00 | |
| Inbusbout M8X16 2012Nb | ||||
| 184 | 265846-3 | 0.83 | 1.00 | |
| Tandwielkap 2012Nb | ||||
| 185 | 417030-8 | 1.18 | 1.43 | |
| Tapschroef M4X12Mm Ck A | ||||
| 186 | 266026-4 | 0.83 | 1.00 | |
| Frame 2012Nb | ||||
| 187 | 153731-1 | 95.24 | 115.24 | |
| Frame 2012Nb | ||||
| 187-1 | 153731-1 | 95.24 | 115.24 | |
| Waarschuwingslabel Ls1013 | ||||
| 187A | 817283-3 | 0.83 | 1.00 | |
| Waaier 80Mm Da4031 | ||||
| 188 | 240003-4 | 3.12 | 3.78 | |
| Sluitring M4 | ||||
| 189 | 941051-3 | 0.83 | 1.00 | |
| Condensator 5704R 0,22Uf P | ||||
| 191 | 645190-8 | 2.36 | 2.86 | |
| Relais 2012Nb A | ||||
| 192 | 638897-3 | 58.04 | 70.23 | |
| Relais 2012Nb A | ||||
| 192-2 | 638897-3 | 58.04 | 70.23 | |
| Line Filter 2012Nb | ||||
| 193 | 688106-0 | 3.54 | 4.28 | |
| Lijn Filter Hm1810 | ||||
| 193-1 | 688131-1 | 0.83 | 1.00 | |
| Ketting 2012Nb | ||||
| 194 | 282017-7 | 1.75 | 2.12 | |
| Stofkap 2012Nb* | ||||
| 195 | 414301-4 | 1.18 | 1.43 | |
