Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita 2704'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

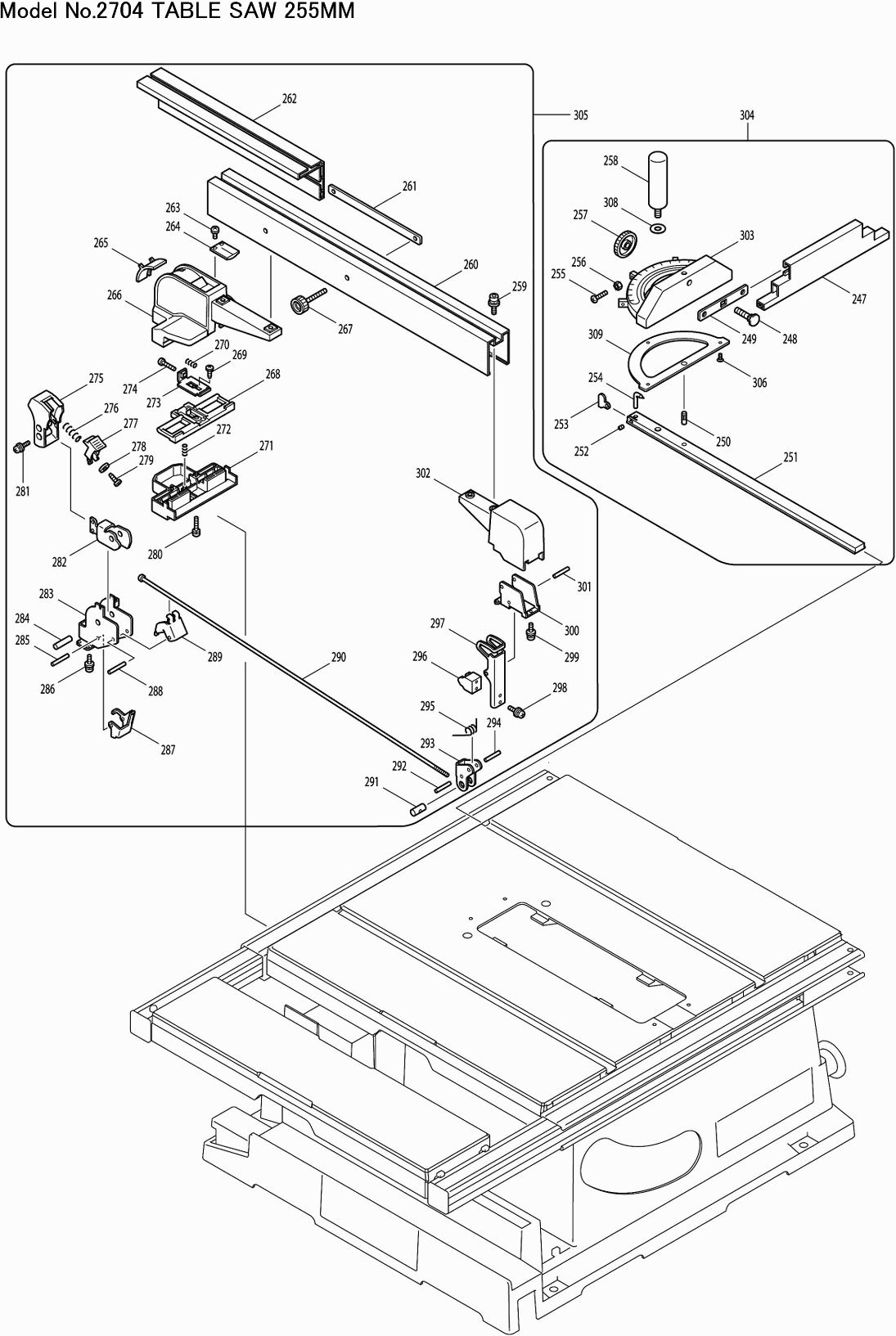

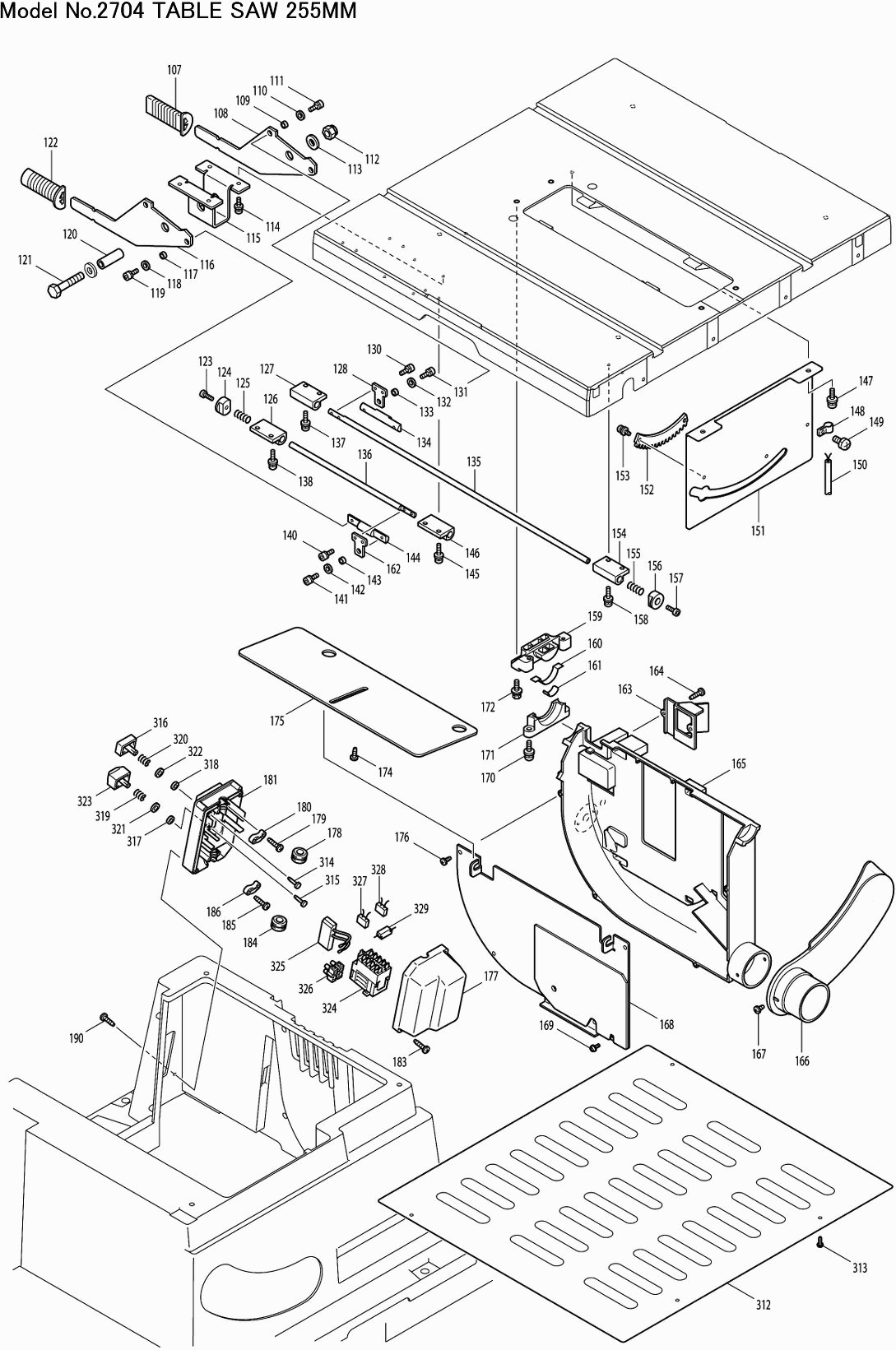

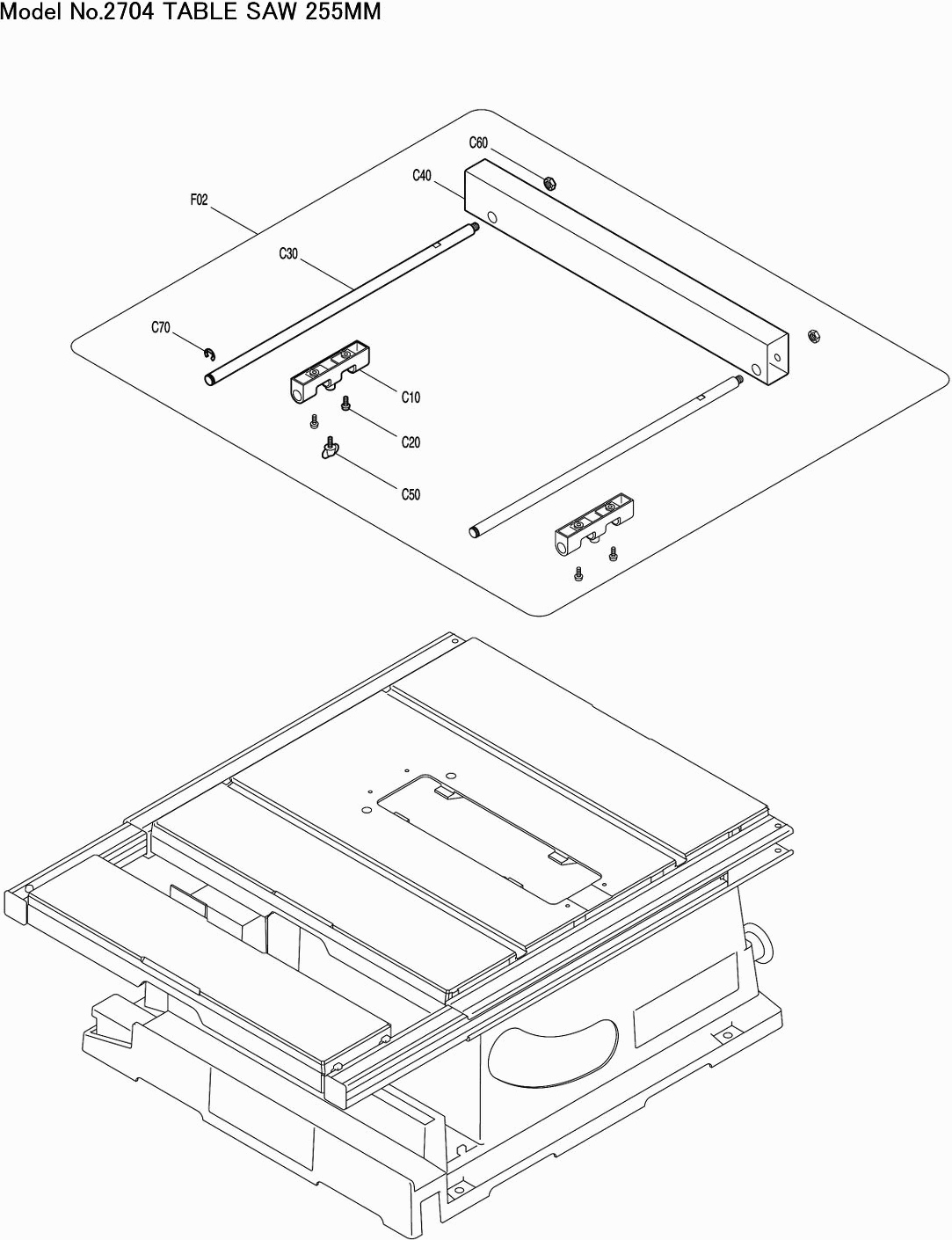

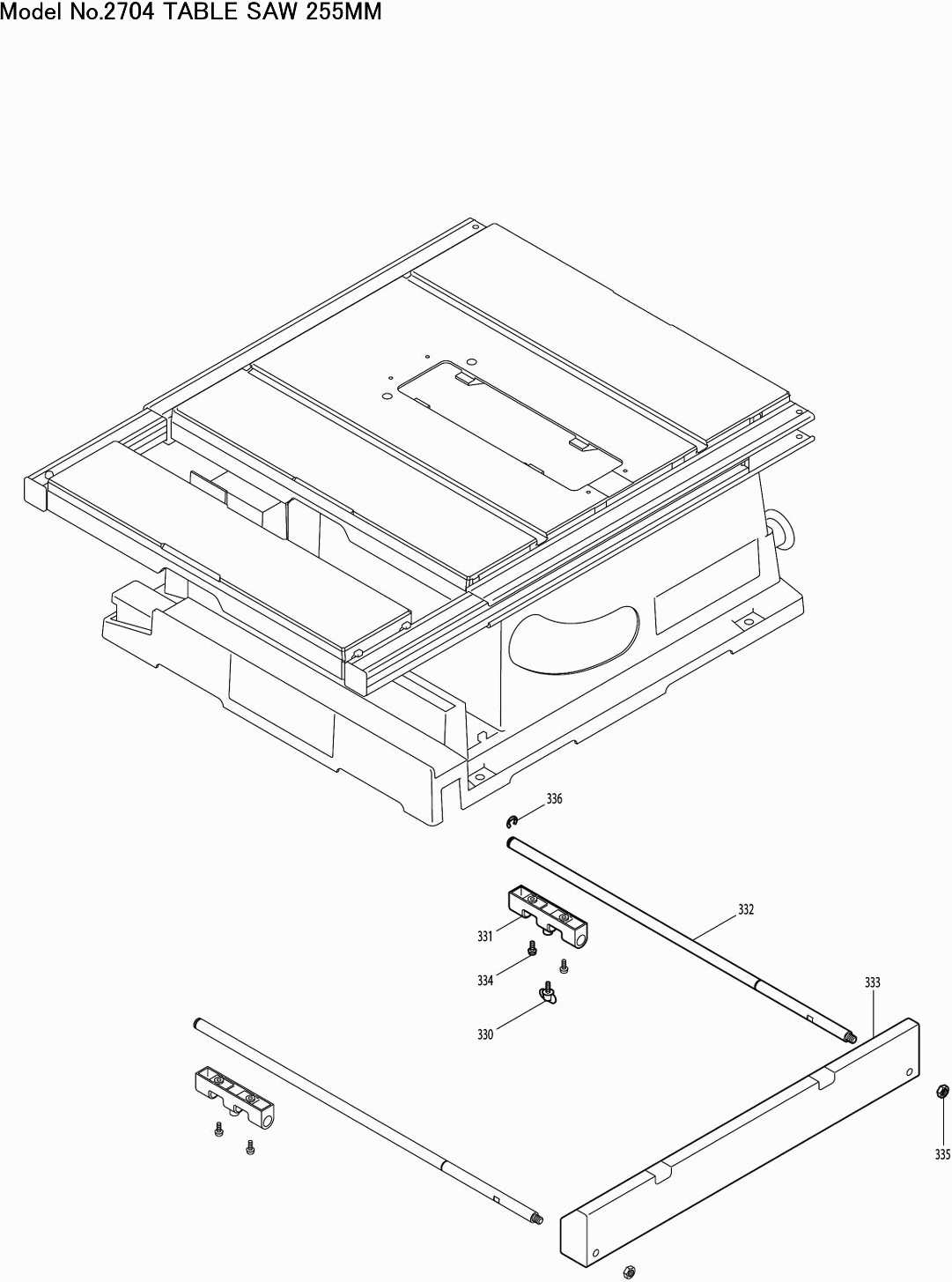

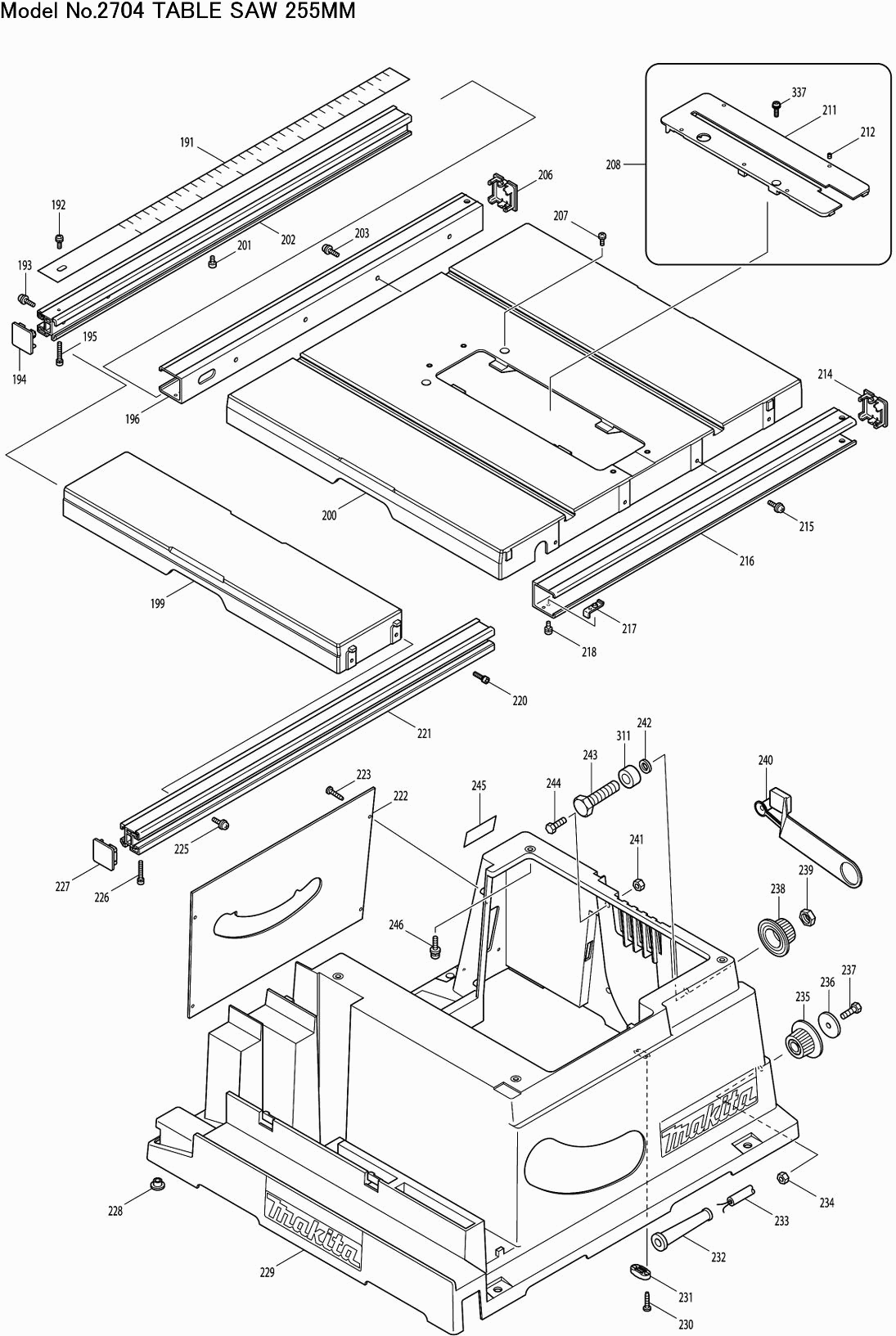

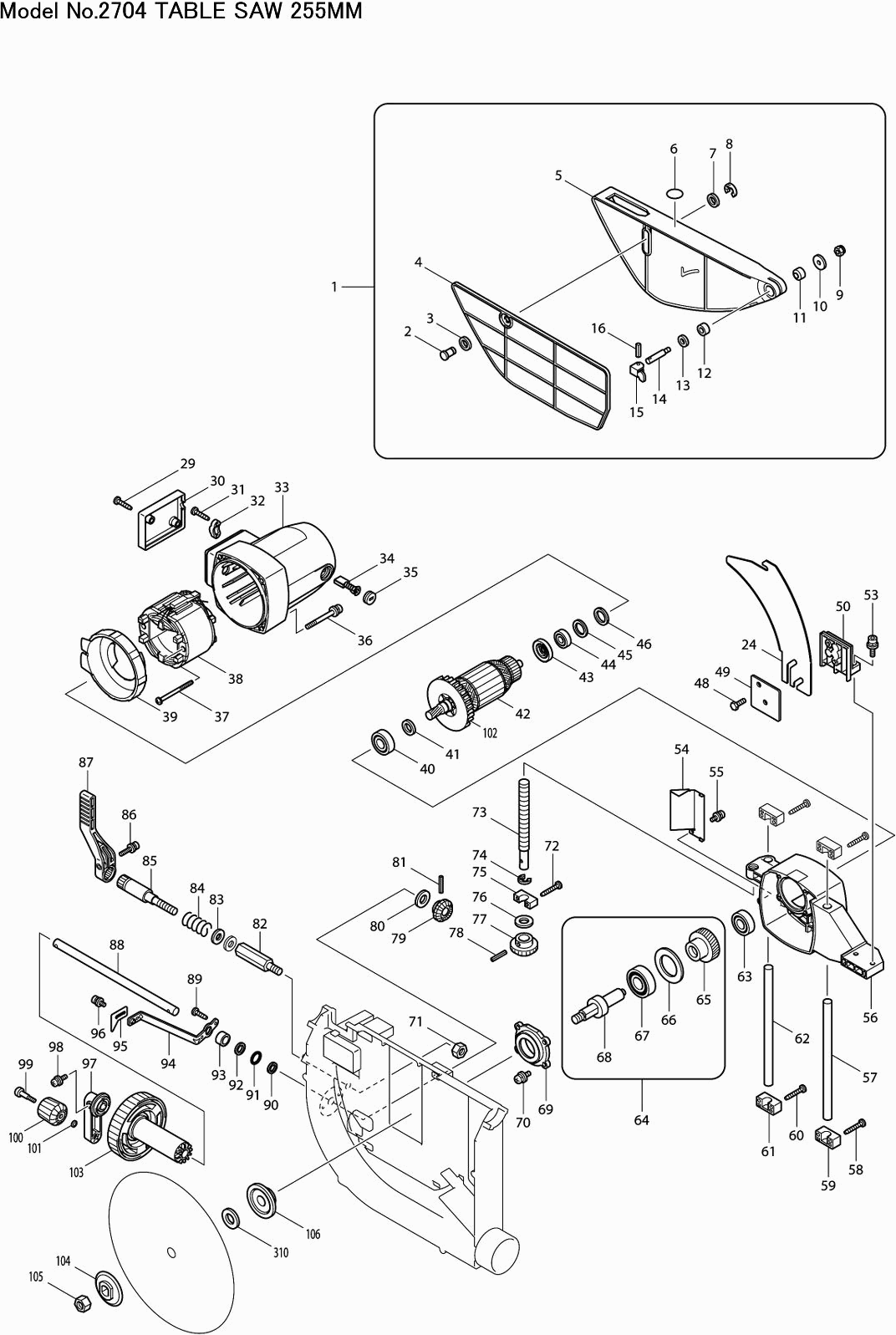

Tekeningen van de Makita 2704
Onderdelen lijst van de Makita 2704
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Beschermkap | ||||
| 001 | 122738-8@141 | 85.25 | 103.15 | |
| Kraagpin 10 | ||||
| 002 | 268135-5@141 | 4.08 | 4.94 | |
| Sluitring 10 | ||||
| 003 | 253758-2@141 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 004 | 418910-1@141 | |||
| Beschermkap | ||||
| 005 | 122738-8@141 | 85.25 | 103.15 | |
| Waarschuwingslabel | ||||
| 006 | 817283-3@141 | 0.83 | 1.00 | |
| Sluitring 10 | ||||
| 007 | 253758-2@141 | 0.83 | 1.00 | |
| Stopring E-9 | ||||
| 008 | 961015-1@141 | 0.83 | 1.00 | |
| Borgmoer 6-10 | ||||
| 009 | 252014-7@141 | 0.83 | 1.00 | |
| Sluitring 6 | ||||
| 010 | 253010-8@141 | 0.83 | 1.00 | |
| Bus 8 | ||||
| 011 | 257752-6@141 | 3.65 | 4.42 | |
| Bus 8 | ||||
| 012 | 257752-6@141 | 3.65 | 4.42 | |
| Sluitring 8 | ||||
| 013 | 253731-2@141 | 0.83 | 1.00 | |
| Veiligheidspal | ||||
| 014 | 324554-6@141 | 6.90 | 8.35 | |
| Blokkeerhandel | ||||
| 015 | 345583-6@141 | 1.01 | 1.22 | |
| Borgpen | ||||
| 016 | 951104-0@141 | 0.83 | 1.00 | |
| Spouwmes | ||||
| 024 | 345530-7@141 | 12.58 | 15.22 | |
| Tapschroef 4x18 | ||||
| 029 | 265A48-7@141 | 0.90 | 1.09 | |
| Afdekplaat 2704 | ||||
| 030 | 416341-8@141 | 4.81 | 5.82 | |
| Tapschroef 4x18 | ||||
| 031 | 265A48-7@141 | 0.90 | 1.09 | |
| Trekontlaster | ||||
| 032 | 687054-0@141 | 0.83 | 1.00 | |
| Motorhuis | ||||
| 033 | 154602-5@141 | 28.85 | 34.91 | |
| Koolborstelhouder A | ||||
| 033A | 643536-2@141 | 1.54 | 1.86 | |
| Koolborstel set Cb-153 | ||||
| 034 | 181044-0@141 | 4.08 | 4.94 | |
| Koolborstelhouderdop | ||||
| 035 | 643650-4@141 | 0.83 | 1.00 | |
| Schroef 6x60 | ||||
| 036 | 911383-2@141 | 0.83 | 1.00 | |
| Tapschroef Pt 5x65 | ||||
| 037 | 266029-8@141 | 1.72 | 2.08 | |
| Veld | ||||
| 038 | 599546-6@141 | 70.18 | 84.92 | |
| Statorveertje Cb5 | ||||
| 038A | 654020-2@141 | 0.83 | 1.00 | |
| Veldverbinder | ||||
| 038B | 654553-7@141 | 0.83 | 1.00 | |
| Tussenplaat | ||||
| 039 | 416331-1@141 | 2.08 | 2.52 | |
| Kogellager 6202llb | ||||
| 040 | 211228-7@141 | 7.44 | 9.00 | |
| Sluitring 15 | ||||
| 041 | 253147-1@141 | 0.83 | 1.00 | |
| Anker | ||||
| 042 | 518765-5@141 | 84.94 | 102.78 | |
| Isolatiering | ||||
| 043 | 681640-9@141 | 0.83 | 1.00 | |
| Kogellager 6000ddw | ||||
| 044 | 211088-7@141 | 5.22 | 6.32 | |
| Sluitring 18 | ||||
| 045 | 253198-4@141 | 0.83 | 1.00 | |
| Urethaan ring 18 | ||||
| 046 | 261129-9@141 | 1.01 | 1.22 | |
| Zeskant bout M6x20 | ||||
| 048 | 921331-3@141 | 0.83 | 1.00 | |
| Drukplaat | ||||
| 049 | 345525-0@141 | 1.01 | 1.22 | |
| Spouwmeshouder | ||||
| 050 | 317871-1@141 | 7.44 | 9.00 | |
| Inbusbout M6x20 | ||||
| 053 | 922334-0@141 | 1.24 | 1.50 | |
| Tandwielhuistussenplaat | ||||
| 054 | 344536-2@141 | 9.52 | 11.52 | |
| Schroef 5x12 | ||||
| 055 | 911213-7@141 | 0.83 | 1.00 | |
| Tandwielhuis | ||||
| 056 | 126760-7@141 | 49.85 | 60.32 | |
| Rubber pen 6 | ||||
| 056A | 263005-3@141 | 0.83 | 1.00 | |
| Stabiliteitspen | ||||
| 057 | 323736-7@141 | 9.52 | 11.52 | |
| Tapschroef Ct 4x25 | ||||
| 058 | 266040-0@141 | 0.83 | 1.00 | |
| Geleiderhouder | ||||
| 059 | 416340-0@141 | 1.01 | 1.22 | |
| Tapschroef Ct 4x25 | ||||
| 060 | 266040-0@141 | 0.83 | 1.00 | |
| Geleiderhouder | ||||
| 061 | 416340-0@141 | 1.01 | 1.22 | |
| Stabiliteitspen | ||||
| 062 | 323736-7@141 | 9.52 | 11.52 | |
| Kogellager 609 | ||||
| 063 | 211051-0@141 | 9.52 | 11.52 | |
| Zaagasset | ||||
| 064 | 154595-6@141 | 39.89 | 48.27 | |
| Tandwiel 42 | ||||
| 065 | 226602-6@141 | 11.32 | 13.70 | |
| Platte ring 34 | ||||
| 066 | 267170-0@141 | 2.16 | 2.61 | |
| Kogellager 6203dw | ||||
| 067 | 211278-2@141 | 9.52 | 11.52 | |
| Zaagas | ||||
| 068 | 324556-2@141 | 8.84 | 10.70 | |
| Lagerhuis | ||||
| 069 | 316933-2@141 | 5.46 | 6.61 | |
| Schroef Vk 20mm | ||||
| 070 | 911233-1@141 | 0.83 | 1.00 | |
| Zeskant moer M10 | ||||
| 071 | 931502-4@141 | 0.83 | 1.00 | |
| Tapschroef Ct 4x25 | ||||
| 072 | 266040-0@141 | 0.83 | 1.00 | |
| Draadeind | ||||
| 073 | 322968-3@141 | 9.52 | 11.52 | |
| Stopring E-10 | ||||
| 074 | 961016-9@141 | 0.83 | 1.00 | |
| Instelbouthouder | ||||
| 075 | 416339-5@141 | 1.06 | 1.28 | |
| Platte Ring 12 2704 | ||||
| 076 | 941302-4@141 | 0.83 | 1.00 | |
| Tandwiel | ||||
| 077 | 226747-0@141 | 9.52 | 11.52 | |
| Spanstift 4-20 | ||||
| 078 | 951116-3@141 | 0.83 | 1.00 | |
| Tandwiel | ||||
| 079 | 226747-0@141 | 9.52 | 11.52 | |
| Platte Ring 12 2704 | ||||
| 080 | 941302-4@141 | 0.83 | 1.00 | |
| Spanstift 4-20 | ||||
| 081 | 951116-3@141 | 0.83 | 1.00 | |
| Montagebus tbv blokkeerhandel | ||||
| 082 | 324562-7@141 | 2.16 | 2.61 | |
| Ring 10 | ||||
| 083 | 253024-7@141 | 0.83 | 1.00 | |
| Drukveer 14 2704 | ||||
| 084 | 231315-6@141 | 1.06 | 1.28 | |
| Blokkeerhandelas 2704 | ||||
| 085 | 322967-5@141 | 10.81 | 13.08 | |
| Inbusbout 5x20 | ||||
| 086 | 922232-8@141 | 1.01 | 1.22 | |
| Hefboom | ||||
| 087 | 272248-6@141 | 3.65 | 4.42 | |
| Verstelas 2704 | ||||
| 088 | 324563-5@141 | 2.56 | 3.10 | |
| Tapschroef Ct4x16 | ||||
| 089 | 266034-5@141 | 0.83 | 1.00 | |
| Sluitring 12 * | ||||
| 090 | 253143-9@141 | 0.83 | 1.00 | |
| O-ring 12 | ||||
| 091 | 213107-5@141 | 0.83 | 1.00 | |
| Sluitring 12 | ||||
| 092 | 253052-2@141 | 0.83 | 1.00 | |
| Glijlager 12 6410 | ||||
| 093 | 214114-1@141 | 0.83 | 1.00 | |
| Positie stang | ||||
| 094 | 345520-0@141 | 1.06 | 1.28 | |
| Centreerpunt | ||||
| 095 | 344543-5@141 | 1.51 | 1.83 | |
| Inbusbout M4x6 | ||||
| 096 | 922103-9@141 | 0.83 | 1.00 | |
| Verstelarm 60 | ||||
| 097 | 271074-0@141 | 3.20 | 3.87 | |
| Schroef 5x16 | ||||
| 098 | 911224-2@141 | 0.83 | 1.00 | |
| Zeskant bout M5 | ||||
| 099 | 251382-5@141 | 3.22 | 3.90 | |
| Knop 32 | ||||
| 100 | 271423-1@141 | 1.70 | 2.06 | |
| Sluitring 5 | ||||
| 101 | 267010-2@141 | 0.83 | 1.00 | |
| Waaier 80 | ||||
| 102 | 240003-4@141 | 3.22 | 3.90 | |
| Verstelknop 100 | ||||
| 103 | 271073-2@141 | 5.88 | 7.11 | |
| Buitenflens 2704 A | ||||
| 104 | 224482-4@141 | 2.80 | 3.39 | |
| Zaagborgmoer 12 | ||||
| 105 | 252155-9@141 | 1.43 | 1.73 | |
| Binnenflens 53 | ||||
| 106 | 224401-0@141 | 4.08 | 4.94 | |
| Handgreep | ||||
| 107 | 273523-3@141 | 0.83 | 1.00 | |
| Handgreepplaat | ||||
| 108 | 345534-9@141 | 4.08 | 4.94 | |
| Ring 4 | ||||
| 109 | 257161-9@141 | 2.44 | 2.95 | |
| Sluitring 4 | ||||
| 110 | 941051-3@141 | 0.83 | 1.00 | |
| Inbusbout M4x12 | ||||
| 111 | 922116-0@141 | 0.83 | 1.00 | |
| Moer M10-17 | ||||
| 112 | 264005-6@141 | 1.43 | 1.73 | |
| Sluitring 10Xx1,6Mm 1901/02 | ||||
| 113 | 941251-5@141 | 0.83 | 1.00 | |
| Schroef 5x16 | ||||
| 114 | 911224-2@141 | 0.83 | 1.00 | |
| Handgreepplaathouder | ||||
| 115 | 345539-9@141 | 3.22 | 3.90 | |
| Handgreepplaat | ||||
| 116 | 345534-9@141 | 4.08 | 4.94 | |
| Ring 4 | ||||
| 117 | 257161-9@141 | 2.44 | 2.95 | |
| Sluitring 4 | ||||
| 118 | 941051-3@141 | 0.83 | 1.00 | |
| Inbusbout M4x12 | ||||
| 119 | 922116-0@141 | 0.83 | 1.00 | |
| Bus 10 | ||||
| 120 | 257753-4@141 | 0.83 | 1.00 | |
| Inbusbout M16X65 2704 * | ||||
| 121 | 265536-8@141 | 3.20 | 3.87 | |
| Handgreep | ||||
| 122 | 273523-3@141 | 0.83 | 1.00 | |
| Zeskantbout M5x20 | ||||
| 123 | 265382-9@141 | 0.83 | 1.00 | |
| Stelring | ||||
| 124 | 324559-6@141 | 1.02 | 1.23 | |
| Drukveer 8 | ||||
| 125 | 233229-5@141 | 0.83 | 1.00 | |
| Ashouder | ||||
| 126 | 418655-1@141 | 1.72 | 2.08 | |
| Ashouder | ||||
| 127 | 418655-1@141 | 1.72 | 2.08 | |
| Adapter | ||||
| 128 | 345535-7@141 | 0.83 | 1.00 | |
| Inbusbout M4x12 | ||||
| 130 | 922116-0@141 | 0.83 | 1.00 | |
| Inbusbout M4x12 | ||||
| 131 | 922116-0@141 | 0.83 | 1.00 | |
| Sluitring 4 | ||||
| 132 | 941051-3@141 | 0.83 | 1.00 | |
| Ring 4 | ||||
| 133 | 257161-9@141 | 2.44 | 2.95 | |
| Verbindingsstang | ||||
| 134 | 324675-4@141 | 2.08 | 2.52 | |
| Verbindingsstang R | ||||
| 135 | 324673-8@141 | 3.65 | 4.42 | |
| Verbindingsstang F | ||||
| 136 | 324674-6@141 | 2.08 | 2.52 | |
| Schroef 4X16 A | ||||
| 137 | 911526-6@141 | 0.83 | 1.00 | |
| Schroef 4X16 A | ||||
| 138 | 911526-6@141 | 0.83 | 1.00 | |
| Inbusbout M4x12 | ||||
| 140 | 922116-0@141 | 0.83 | 1.00 | |
| Inbusbout M4x12 | ||||
| 141 | 922116-0@141 | 0.83 | 1.00 | |
| Sluitring 4 | ||||
| 142 | 941051-3@141 | 0.83 | 1.00 | |
| Ring 4 | ||||
| 143 | 257161-9@141 | 2.44 | 2.95 | |
| Verbindingsstang | ||||
| 144 | 324675-4@141 | 2.08 | 2.52 | |
| Schroef 4X16 A | ||||
| 145 | 911526-6@141 | 0.83 | 1.00 | |
| Ashouder | ||||
| 146 | 418655-1@141 | 1.72 | 2.08 | |
| Zeskant bout 6x16 | ||||
| 147 | 911323-0@141 | 0.83 | 1.00 | |
| Trekontlaster | ||||
| 148 | 687049-3@141 | 0.83 | 1.00 | |
| Kruiskopschroef 4x10 | ||||
| 149 | 251308-7@141 | 0.83 | 1.00 | |
| Netsnoer 5x0,5 1,5mtr | ||||
| 150 | 664094-5@141 | 10.81 | 13.08 | |
| Verstekplaat | ||||
| 151 | 345628-0@141 | 6.58 | 7.96 | |
| Kartelplaat | ||||
| 152 | 416333-7@141 | 2.44 | 2.95 | |
| Schroef 5x12 | ||||
| 153 | 911213-7@141 | 0.83 | 1.00 | |
| Ashouder | ||||
| 154 | 418655-1@141 | 1.72 | 2.08 | |
| Drukveer 8 | ||||
| 155 | 233229-5@141 | 0.83 | 1.00 | |
| Stelring | ||||
| 156 | 324559-6@141 | 1.02 | 1.23 | |
| Zeskantbout M5x20 | ||||
| 157 | 265382-9@141 | 0.83 | 1.00 | |
| Schroef 4X16 A | ||||
| 158 | 911526-6@141 | 0.83 | 1.00 | |
| Stelblok | ||||
| 159 | 318020-3@141 | 3.83 | 4.63 | |
| Geleiderzitting | ||||
| 160 | 344529-9@141 | 0.83 | 1.00 | |
| Bladveer | ||||
| 161 | 232174-1@141 | 0.83 | 1.00 | |
| Adapter | ||||
| 162 | 345535-7@141 | 0.83 | 1.00 | |
| Stofgeleider | ||||
| 163 | 416439-1@141 | 3.22 | 3.90 | |
| Tapschroef Ct4x16 | ||||
| 164 | 266034-5@141 | 0.83 | 1.00 | |
| Zaagkap | ||||
| 165 | 318253-0@141 | 39.89 | 48.27 | |
| Stofafzuig adapter | ||||
| 166 | 418917-7@141 | 8.84 | 10.70 | |
| Tapschroef 4x8 | ||||
| 167 | 266061-2@141 | 0.83 | 1.00 | |
| Zaagkapdeksel | ||||
| 168 | 154599-8@141 | 16.13 | 19.52 | |
| Schroef 4x10 | ||||
| 169 | 911114-9@141 | 0.83 | 1.00 | |
| Schroef 6x20 | ||||
| 170 | 911333-7@141 | 0.83 | 1.00 | |
| Frameplaat | ||||
| 171 | 416332-9@141 | 2.44 | 2.95 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 172 | 265460-5@141 | |||
| Tapschroef 4x18 | ||||
| 173 | 266300-0@141 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 174 | 266300-0@141 | 0.83 | 1.00 | |
| Schuifdeksel | ||||
| 175 | 413097-4@141 | 19.80 | 23.96 | |
| Tapschroef 5x12 | ||||
| 176 | 266035-3@141 | 0.83 | 1.00 | |
| Schakeldoos | ||||
| 177 | 418918-5@141 | 6.16 | 7.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 178 | 682511-3@141 | |||
| Tapschroef 4x18 | ||||
| 179 | 265A48-7@141 | 0.90 | 1.09 | |
| Trekontlaster | ||||
| 180 | 687054-0@141 | 0.83 | 1.00 | |
| Basisplaat schakeldoos | ||||
| 181 | 418912-7@141 | 9.96 | 12.05 | |
| Tapschroef 4x18 | ||||
| 182 | 265A48-7@141 | 0.90 | 1.09 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 184 | 682511-3@141 | |||
| Tapschroef 4x18 | ||||
| 185 | 265A48-7@141 | 0.90 | 1.09 | |
| Klemstrip | ||||
| 186 | 687124-5@141 | 0.83 | 1.00 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 190 | 266385-6@141 | 0.83 | 1.00 | |
| Schaalverdeling | ||||
| 191 | 816844-6@141 | 2.08 | 2.52 | |
| Kruiskopschroef 4x10 | ||||
| 192 | 251308-7@141 | 0.83 | 1.00 | |
| Schroef 5x30 | ||||
| 193 | 911253-5@141 | 0.83 | 1.00 | |
| Railkap Re | ||||
| 194 | 418908-8@141 | 1.72 | 2.08 | |
| Inbusbout 4x25 | ||||
| 195 | 922146-1@141 | 0.83 | 1.00 | |
| Buiten rail | ||||
| 196 | 154705-5@141 | 26.11 | 31.59 | |
| Schaalverdeling | ||||
| 196A | 816843-8@141 | 2.93 | 3.55 | |
| Verbredingtafel | ||||
| 199 | 317877-9@141 | 89.94 | 108.83 | |
| Tafelpaneel | ||||
| 200 | 317876-1@141 | 216.10 | 261.48 | |
| O-ring 4 | ||||
| 200A | 213023-1@141 | 0.83 | 1.00 | |
| Inbusbout M4x16 | ||||
| 201 | 922126-7@141 | 0.83 | 1.00 | |
| Front binnen rail | ||||
| 202 | 158104-3@141 | 49.85 | 60.32 | |
| Schroef Vk 20mm | ||||
| 203 | 911233-1@141 | 0.83 | 1.00 | |
| Railkap Li | ||||
| 206 | 418907-0@141 | 1.72 | 2.08 | |
| Kruiskopschroef M5x18 | ||||
| 207 | 265045-7@141 | 0.83 | 1.00 | |
| Afdekplaat assy 2704 A | ||||
| 208 | 126901-5@141 | 23.74 | 28.73 | |
| Afdekplaat assy 2704 A | ||||
| 211 | 126901-5@141 | 23.74 | 28.73 | |
| Zeskant bout 5x6 | ||||
| 212 | 266264-8@141 | 0.83 | 1.00 | |
| Railkap Li | ||||
| 214 | 418907-0@141 | 1.72 | 2.08 | |
| Schroef Vk 20mm | ||||
| 215 | 911233-1@141 | 0.83 | 1.00 | |
| Acher buiten rail | ||||
| 216 | 317867-2@141 | 26.11 | 31.59 | |
| Rail aanslag | ||||
| 217 | 345529-2@141 | 0.83 | 1.00 | |
| Kruiskopschroef 4x10 | ||||
| 218 | 251308-7@141 | 0.83 | 1.00 | |
| Inbusbout M4x16 | ||||
| 220 | 922126-7@141 | 0.83 | 1.00 | |
| Achter binnen rail | ||||
| 221 | 158103-5@141 | 49.85 | 60.32 | |
| Voorplaat | ||||
| 222 | 345533-1@141 | 9.52 | 11.52 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 223 | 266385-6@141 | 0.83 | 1.00 | |
| Schroef 5x30 | ||||
| 225 | 911253-5@141 | 0.83 | 1.00 | |
| Inbusbout 4x25 | ||||
| 226 | 922146-1@141 | 0.83 | 1.00 | |
| Railkap Re | ||||
| 227 | 418908-8@141 | 1.72 | 2.08 | |
| Afdekkap | ||||
| 228 | 416972-3@141 | 1.02 | 1.23 | |
| Behuizing | ||||
| 229 | 154608-3@141 | 166.57 | 201.55 | |
| Label "makita" | ||||
| 229 | 819176-0@141 | 3.55 | 4.30 | |
| Waarschuwingslabel | ||||
| 229A | 810107-2@141 | 5.24 | 6.34 | |
| Tapschroef 4x18 | ||||
| 230 | 265A48-7@141 | 0.90 | 1.09 | |
| Klemstrip | ||||
| 231 | 687124-5@141 | 0.83 | 1.00 | |
| Kabeltule 9.3-85 | ||||
| 232 | 682516-3@141 | 1.01 | 1.22 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 233 | 695123-3@141 | 21.70 | 26.26 | |
| Zeskant moer M6 | ||||
| 234 | 931302-2@141 | 0.83 | 1.00 | |
| Knop 32mm | ||||
| 235 | 271318-8@141 | 3.20 | 3.87 | |
| Sluitring 6x12mm | ||||
| 236 | 941151-9@141 | 0.83 | 1.00 | |
| Zeskant bout 6x25 | ||||
| 237 | 921342-8@141 | 0.83 | 1.00 | |
| Knop 37 | ||||
| 238 | 271320-1@141 | 3.83 | 4.63 | |
| Moer M14 | ||||
| 239 | 252197-3@141 | 1.80 | 2.18 | |
| Houder | ||||
| 240 | 421926-7@141 | 5.24 | 6.34 | |
| Moer M8 | ||||
| 241 | 931402-8@141 | 0.83 | 1.00 | |
| Sluitring 14 | ||||
| 242 | 253797-2@141 | 0.83 | 1.00 | |
| Bout M14X65Mm 2704 * | ||||
| 243 | 265537-6@141 | 7.43 | 8.99 | |
| Bout 8x40 | ||||
| 244 | 921462-8@141 | 0.83 | 1.00 | |
| Naamplaat 2704 | ||||
| 245 | 861373-4@141 | 2.93 | 3.55 | |
| Kruiskopschroef 6x25 | ||||
| 246 | 911344-2@141 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 247 | 317865-6@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 248 | 266364-4@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 249 | 345522-6@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 250 | 256769-6@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 251 | 317872-9@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 252 | 266378-3@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 253 | 345523-4@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 254 | 324530-0@141 | |||
| Schroef 4x20 | ||||
| 255 | 911138-5@141 | 0.83 | 1.00 | |
| Zeskant moer M4 | ||||
| 256 | 931102-0@141 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 257 | 252650-9@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 258 | 273524-1@141 | |||
| Inbusbout M6x20 | ||||
| 259 | 922333-2@141 | 1.24 | 1.50 | |
| Geleider | ||||
| 260 | 317897-3@141 | 46.85 | 56.69 | |
| Geleider | ||||
| 261 | 345521-8@141 | 5.24 | 6.34 | |
| Langsgeleiderdapter | ||||
| 262 | 317864-8@141 | 31.62 | 38.26 | |
| Schroef 4x8 | ||||
| 263 | 911109-2@141 | 0.83 | 1.00 | |
| Lens | ||||
| 264 | 418945-2@141 | 2.93 | 3.55 | |
| Afdekkap | ||||
| 265 | 418943-6@141 | 2.80 | 3.39 | |
| Langsgeleiderhouder | ||||
| 266 | 154699-4@141 | 65.59 | 79.36 | |
| Indicatielabel | ||||
| 266A | 816836-5@141 | 2.80 | 3.39 | |
| Vastzetschroef M6x52 | ||||
| 267 | 265768-7@141 | 2.80 | 3.39 | |
| Onderplaat 2704 | ||||
| 268 | 418948-6@141 | 3.65 | 4.42 | |
| Tapschroef Pt3X8 | ||||
| 269 | 265954-0@141 | 0.83 | 1.00 | |
| Drukveer 4 | ||||
| 270 | 231485-1@141 | 0.83 | 1.00 | |
| Geleider tbv langsgeleider | ||||
| 271 | 418947-8@141 | 11.68 | 14.13 | |
| Drukveer 4 | ||||
| 272 | 231485-1@141 | 0.83 | 1.00 | |
| Blokkeerplaat 2704 | ||||
| 273 | 345560-8@141 | 3.65 | 4.42 | |
| Kruiskop Schroef M5X25 2704 | ||||
| 274 | 265155-0@141 | 0.83 | 1.00 | |
| Hefboom | ||||
| 275 | 418946-0@141 | 3.20 | 3.87 | |
| Drukveer 9 | ||||
| 276 | 231297-2@141 | 0.83 | 1.00 | |
| Blokkeerhandel | ||||
| 277 | 418944-4@141 | 1.72 | 2.08 | |
| Sluitring 4 | ||||
| 278 | 253874-0@141 | 0.83 | 1.00 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 279 | 266385-6@141 | 0.83 | 1.00 | |
| Schroef 4x18 | ||||
| 280 | 911133-5@141 | 0.83 | 1.00 | |
| Schroef 5x22 | ||||
| 281 | 911238-1@141 | 0.83 | 1.00 | |
| Blokkeervork | ||||
| 282 | 345566-6@141 | 7.80 | 9.44 | |
| Blokkeervorkhouder | ||||
| 283 | 345559-3@141 | 9.96 | 12.05 | |
| Pen 8 | ||||
| 284 | 256029-6@141 | 1.43 | 1.73 | |
| Pen 5mm | ||||
| 285 | 256200-2@141 | 0.83 | 1.00 | |
| Schroef 4x12 | ||||
| 286 | 911116-5@141 | 0.83 | 1.00 | |
| Blokkeerplaathouder 2704 | ||||
| 287 | 345564-0@141 | 5.46 | 6.61 | |
| Pen 5mm | ||||
| 288 | 256200-2@141 | 0.83 | 1.00 | |
| Hoekgeleider | ||||
| 289 | 345565-8@141 | 4.58 | 5.54 | |
| Kruiskopschroef M5x655 | ||||
| 290 | 265154-2@141 | 6.90 | 8.35 | |
| Moer M5 | ||||
| 291 | 324555-4@141 | 2.80 | 3.39 | |
| Pen 5 | ||||
| 292 | 256262-0@141 | 0.83 | 1.00 | |
| Langsgeleider houder | ||||
| 293 | 345562-4@141 | 3.22 | 3.90 | |
| Pen 5 | ||||
| 294 | 256262-0@141 | 0.83 | 1.00 | |
| Torsieveer 8 | ||||
| 295 | 231683-7@141 | 1.02 | 1.23 | |
| Langsgeleiderbus 2704 | ||||
| 296 | 313123-8@141 | 4.26 | 5.15 | |
| Langsgeleiderblok | ||||
| 297 | 345563-2@141 | 8.84 | 10.70 | |
| Schroef 4x12 | ||||
| 298 | 911116-5@141 | 0.83 | 1.00 | |
| Schroef 4x12 | ||||
| 299 | 911116-5@141 | 0.83 | 1.00 | |
| Montageblok | ||||
| 300 | 345561-6@141 | 3.65 | 4.42 | |
| Pen 5 | ||||
| 301 | 256262-0@141 | 0.83 | 1.00 | |
| Eindkap langsgeleider 2704 | ||||
| 302 | 317895-7@141 | 11.19 | 13.54 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 303 | 317874-5@141 | |||
| Verstekgeleider Compleet | ||||
| 304 | 127069-0@141 | 34.22 | 41.41 | |
| Langsgeleider compleet | ||||
| 305 | 122739-6@141 | 74.68 | 90.36 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 306 | 265160-7@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 308 | 267305-3@141 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 309 | 419219-4@141 | |||
| Verloopring 30x15,88x4mm | ||||
| 310 | 257295-8@141 | 0.91 | 1.10 | |
| Bus 14 | ||||
| 311 | 262559-7@141 | 0.83 | 1.00 | |
| Onderplaat | ||||
| 312 | 345536-5@141 | 49.85 | 60.32 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 313 | 266385-6@141 | 0.83 | 1.00 | |
| Pin | ||||
| 314 | 418618-7@141 | 1.51 | 1.83 | |
| Pin | ||||
| 315 | 418618-7@141 | 1.51 | 1.83 | |
| Drukknop "aan" | ||||
| 316 | 418616-1@141 | 2.56 | 3.10 | |
| Afdichting vilt | ||||
| 317 | 443103-1@141 | 0.83 | 1.00 | |
| Afdichting vilt | ||||
| 318 | 443103-1@141 | 0.83 | 1.00 | |
| Drukveer 8 | ||||
| 319 | 231025-5@141 | 0.83 | 1.00 | |
| Drukveer 8 | ||||
| 320 | 231025-5@141 | 0.83 | 1.00 | |
| Sluitring 7 LF1000 A | ||||
| 321 | 267322-3@141 | 0.83 | 1.00 | |
| Sluitring 7 LF1000 A | ||||
| 322 | 267322-3@141 | 0.83 | 1.00 | |
| Drukknop "uit" | ||||
| 323 | 418617-9@141 | 2.56 | 3.10 | |
| Relais | ||||
| 324 | 652772-9@141 | 49.85 | 60.32 | |
| Soft start circuit | ||||
| 325 | 631613-2@141 | 21.70 | 26.26 | |
| Kroonsteen | ||||
| 326 | 654561-8@141 | 3.37 | 4.08 | |
| Condensator 0,47uf | ||||
| 327 | 645006-7@141 | 1.72 | 2.08 | |
| Condensator 0,1uf | ||||
| 328 | 645105-5@141 | 2.80 | 3.39 | |
| Condensator | ||||
| 329 | 646049-2@141 | 5.88 | 7.11 | |
| Schroef 5x15 | ||||
| 330 | 265740-9@141 | 3.22 | 3.90 | |
| Verbindingsstanghouder | ||||
| 331 | 317879-5@141 | 5.22 | 6.32 | |
| Zijstang | ||||
| 332 | 324564-3@141 | 11.68 | 14.13 | |
| Tafelverlenging | ||||
| 333 | 345537-3@141 | 18.76 | 22.70 | |
| Schroef 5x16 | ||||
| 334 | 911224-2@141 | 0.83 | 1.00 | |
| Zeskant moer M10 | ||||
| 335 | 931502-4@141 | 0.83 | 1.00 | |
| Stopring E-10 | ||||
| 336 | 961016-9@141 | 0.83 | 1.00 | |
| Schroef Vk 20mm | ||||
| 337 | 911233-1@141 | 0.83 | 1.00 | |
