Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita 2712'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

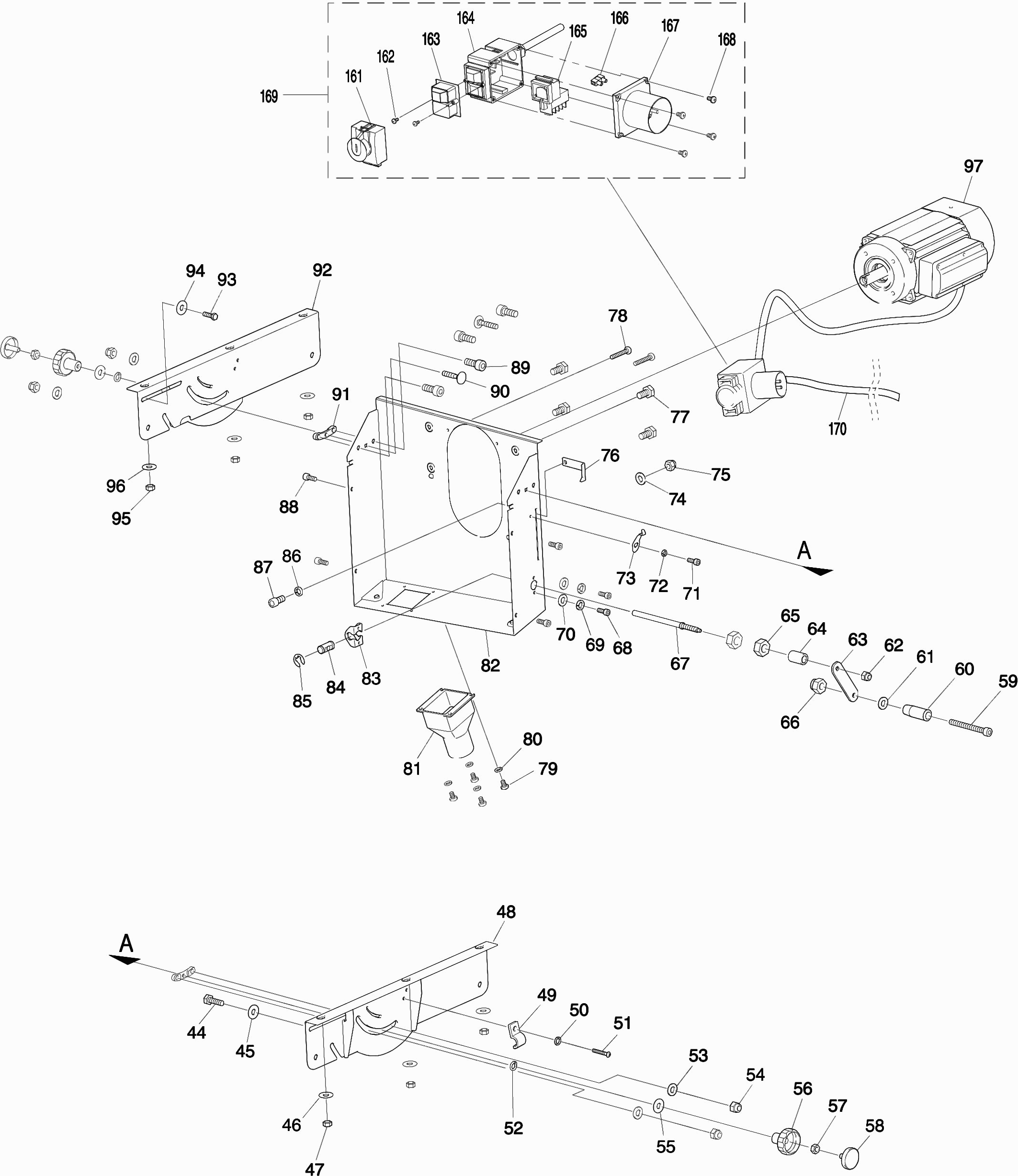

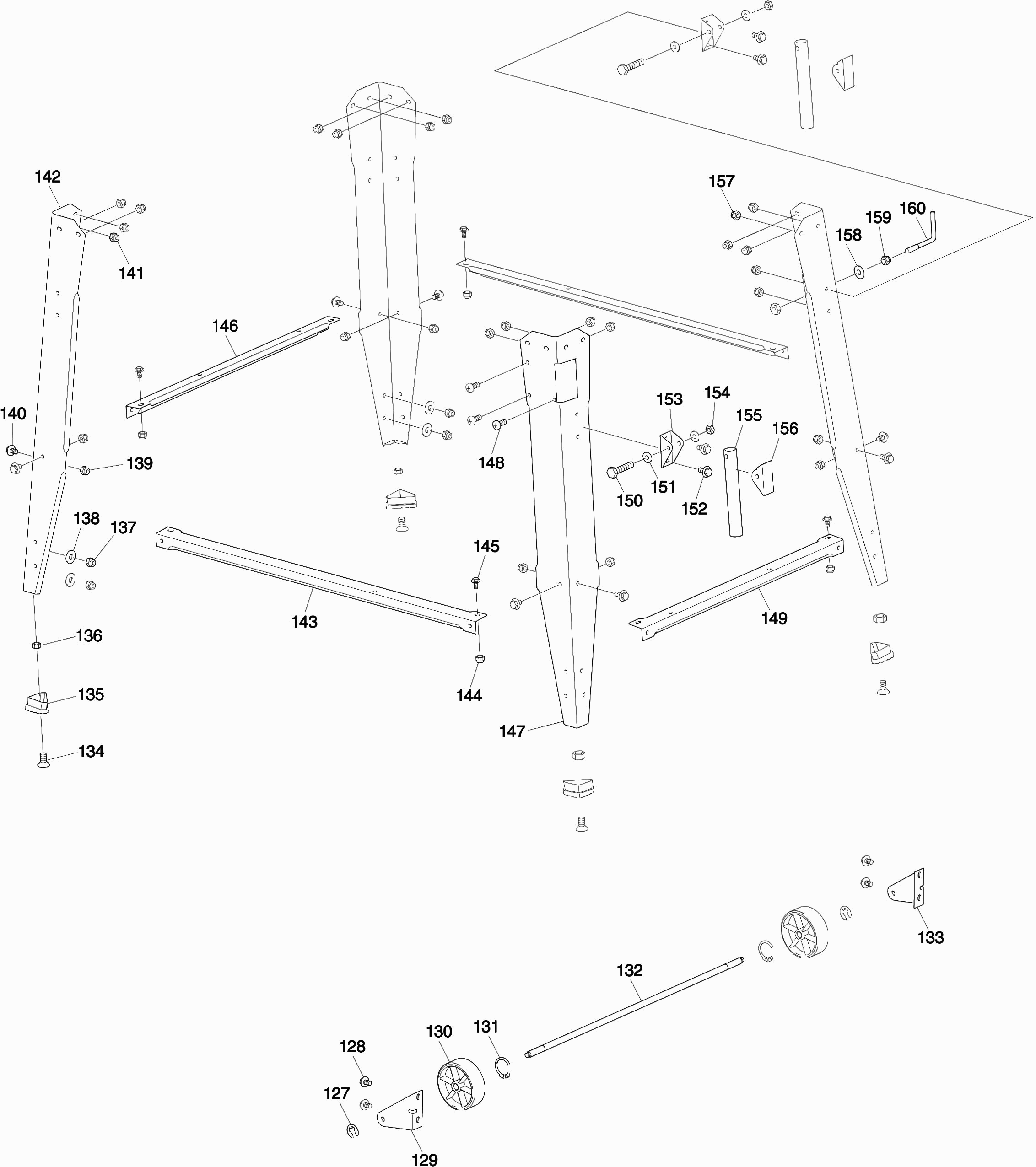

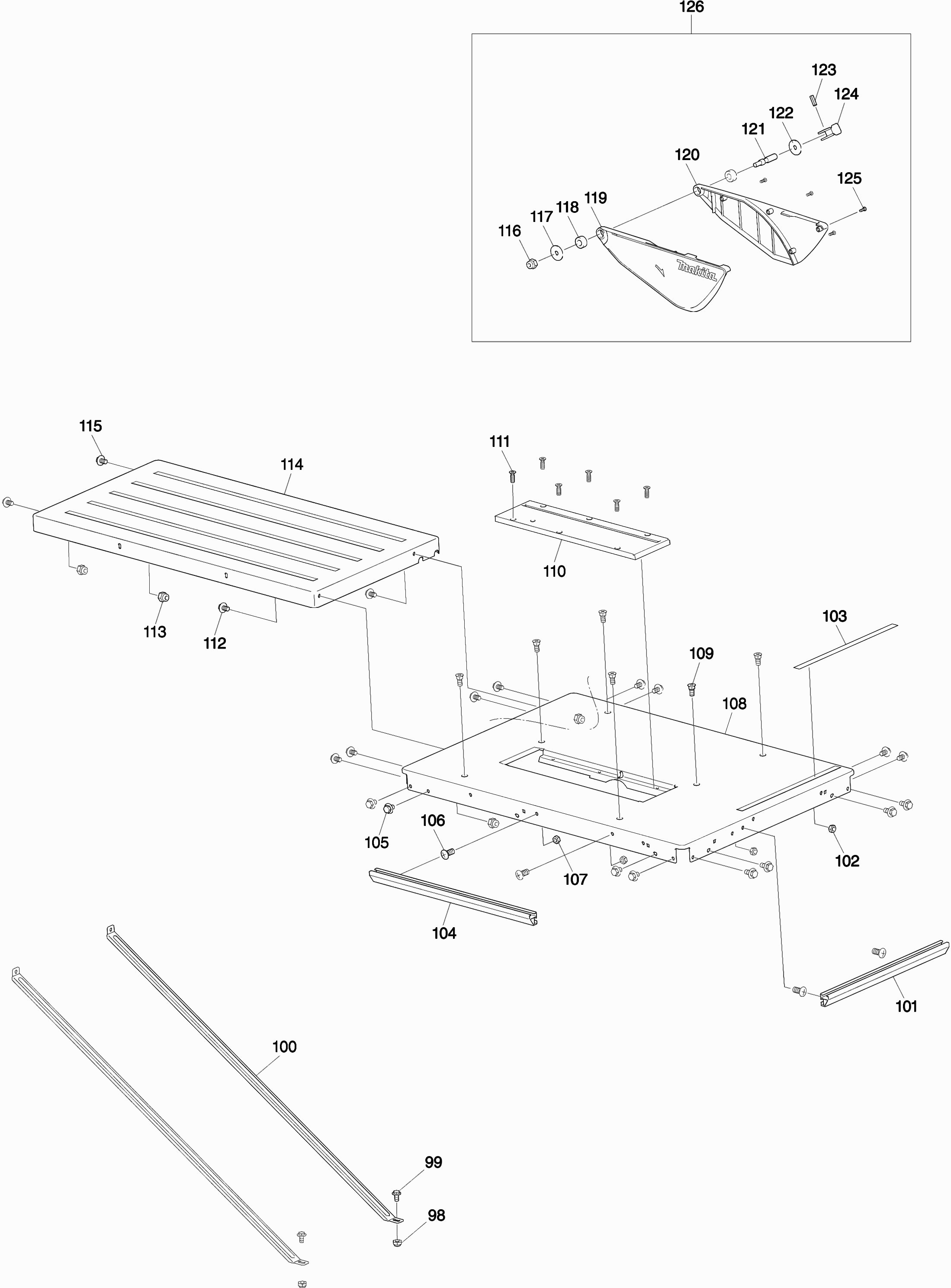

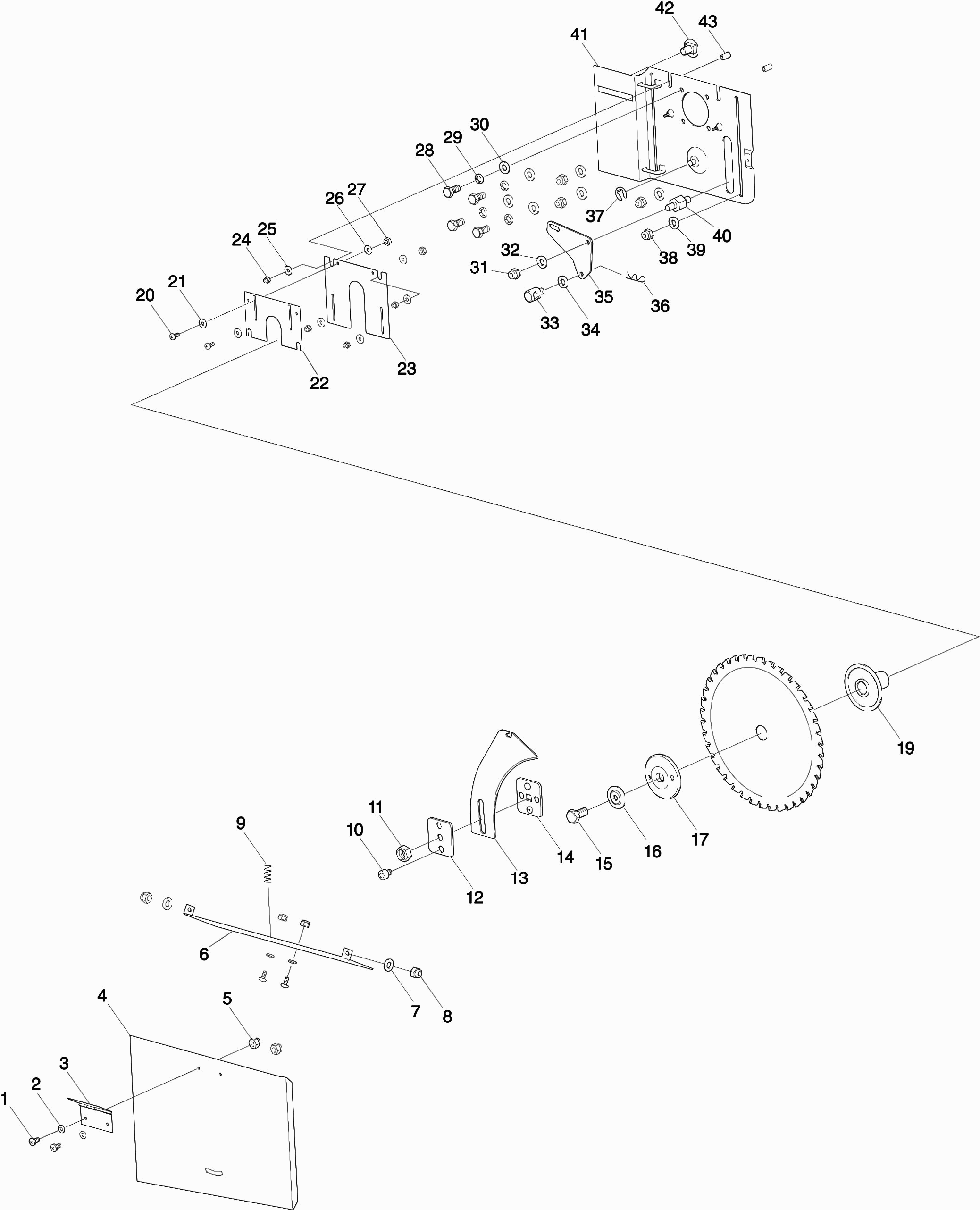

Tekeningen van de Makita 2712
Onderdelen lijst van de Makita 2712
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Met.schroef M5 | ||||
| 001 | JM27100031 | 1.12 | 1.36 | |
| Sluitring 5 | ||||
| 002 | JM27100032 | 1.58 | 1.91 | |
| Scharnier | ||||
| 003 | JM27100033 | 1.12 | 1.36 | |
| Afdekkap a compleet | ||||
| 004 | JM27110001 | 10.00 | 12.10 | |
| Makita logo label | ||||
| 004A | JM27180024 | 3.77 | 4.56 | |
| Borgmoer M5 | ||||
| 005 | JM27100111 | 9.24 | 11.18 | |
| Afdekkap b | ||||
| 006 | JM27100035 | 4.82 | 5.83 | |
| Sluitring 6Mm A | ||||
| 007 | 267214-6 | 0.83 | 1.00 | |
| Borgmoer M6 | ||||
| 008 | JM27100016 | 6.08 | 7.36 | |
| Drukveer | ||||
| 009 | JM27100036 | 0.83 | 1.00 | |
| Inbusbout M6 | ||||
| 010 | JM27100104 | 0.94 | 1.14 | |
| Borgmoer M12 | ||||
| 011 | JM27100037 | 0.95 | 1.15 | |
| Spouwmeshouderplaat | ||||
| 012 | JM27100038 | 1.32 | 1.60 | |
| Spouwmes | ||||
| 013 | JM27100039 | 5.44 | 6.58 | |
| Spouwmesplaat | ||||
| 014 | JM27100040 | 1.32 | 1.60 | |
| Zaagbladbout M10 | ||||
| 015 | JM27100041 | 12.20 | 14.76 | |
| Flens revet 10 | ||||
| 016 | JM27100042 | 3.12 | 3.78 | |
| Buitenflens | ||||
| 017 | JM27100043 | 3.16 | 3.82 | |
| Binnenflens | ||||
| 019 | JM27100044 | 5.05 | 6.11 | |
| Met.schr. M4 | ||||
| 020 | JM27100047 | 4.82 | 5.83 | |
| Sluitring 4mm | ||||
| 021 | JM27100046 | 0.83 | 1.00 | |
| Afdekkap | ||||
| 022 | JM27100048 | 3.28 | 3.97 | |
| beschermplaat | ||||
| 023 | JM27100049 | 3.28 | 3.97 | |
| Borgmoer M4 | ||||
| 024 | JM27100045 | 2.26 | 2.73 | |
| Sluitring 4mm | ||||
| 025 | JM27100046 | 0.83 | 1.00 | |
| Sluitring 4mm | ||||
| 026 | JM27100046 | 0.83 | 1.00 | |
| Borgmoer M4 | ||||
| 027 | JM27100045 | 2.26 | 2.73 | |
| Zeskant bout M8 | ||||
| 028 | JM27100050 | 1.12 | 1.36 | |
| Spring Veer 8 | ||||
| 029 | JM27100051 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 030 | JM27100052 | 1.12 | 1.36 | |
| Borgmoer M8 | ||||
| 031 | JM27100053 | 4.82 | 5.83 | |
| Sluitring 8mm | ||||
| 032 | JM27100054 | 0.83 | 1.00 | |
| Afstel pin | ||||
| 033 | JM27100055 | 1.12 | 1.36 | |
| Sluitring 8 | ||||
| 034 | JM27100106 | 0.83 | 1.00 | |
| Instelplaat | ||||
| 035 | JM27100057 | 0.83 | 1.00 | |
| Splitpen 2 | ||||
| 036 | JM27100056 | 1.12 | 1.36 | |
| Borgring 10 | ||||
| 037 | JM27100025 | 0.83 | 1.00 | |
| Borgmoer M8 | ||||
| 038 | JM27100053 | 4.82 | 5.83 | |
| Sluitring 8 | ||||
| 039 | JM27100052 | 1.12 | 1.36 | |
| Stok Bout | ||||
| 040 | JM27100058 | 1.58 | 1.91 | |
| Frame | ||||
| 041 | JM27100072 | 36.87 | 44.61 | |
| Platte Slotbout M12 | ||||
| 042 | JM27100073 | 1.32 | 1.60 | |
| Draadbus M4 | ||||
| 043 | JM27100059 | 0.83 | 1.00 | |
| Tapbout M6 | ||||
| 044 | JM27100011 | 0.94 | 1.14 | |
| Sluitring 6Mm A | ||||
| 045 | 267214-6 | 0.83 | 1.00 | |
| Sluitring 6Mm A | ||||
| 046 | 267214-6 | 0.83 | 1.00 | |
| Borgmoer M6 | ||||
| 047 | JM27100016 | 6.08 | 7.36 | |
| Instelgeleideplaat | ||||
| 048 | JM27100080 | 13.16 | 15.92 | |
| Kabelklem | ||||
| 049 | JM27100078 | 0.83 | 1.00 | |
| Sluitring 5 | ||||
| 050 | JM27100032 | 1.58 | 1.91 | |
| Met.schroef M5 | ||||
| 051 | JM27100031 | 1.12 | 1.36 | |
| Borgring E-5 | ||||
| 052 | JM27100079 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 053 | JM27100052 | 1.12 | 1.36 | |
| Borgmoer M8 | ||||
| 054 | JM27100053 | 4.82 | 5.83 | |
| Sluitring 6Mm A | ||||
| 055 | 267214-6 | 0.83 | 1.00 | |
| Stelknop | ||||
| 056 | JM27100077 | 3.77 | 4.56 | |
| Borgmoer M6 | ||||
| 057 | JM27100016 | 6.08 | 7.36 | |
| Stelknopkap | ||||
| 058 | JM27100076 | 3.77 | 4.56 | |
| Inbusbout M8 | ||||
| 059 | JM27100066 | 0.94 | 1.14 | |
| Afstandbus | ||||
| 060 | JM27100067 | 0.83 | 1.00 | |
| Sluitring 8mm | ||||
| 061 | JM27100054 | 0.83 | 1.00 | |
| Borgmoer M6 | ||||
| 062 | JM27100016 | 6.08 | 7.36 | |
| Koppelplaat | ||||
| 063 | JM27100068 | 2.26 | 2.73 | |
| Afstandbus | ||||
| 064 | JM27100069 | 0.83 | 1.00 | |
| Moer M10 | ||||
| 065 | JM27100070 | 1.32 | 1.60 | |
| Borgmoer M8 | ||||
| 066 | JM27100053 | 4.82 | 5.83 | |
| Hefstang | ||||
| 067 | JM27100071 | 4.82 | 5.83 | |
| Binnenzeskantbout M5 | ||||
| 068 | JM27100109 | 0.97 | 1.17 | |
| Veerring 5 | ||||
| 069 | JM27100065 | 0.83 | 1.00 | |
| Sluitring 5 | ||||
| 070 | JM27100032 | 1.58 | 1.91 | |
| Binnenzeskantbout M5 | ||||
| 071 | JM27100109 | 0.97 | 1.17 | |
| Veerring 5 | ||||
| 072 | JM27100065 | 0.83 | 1.00 | |
| Markeerplaat | ||||
| 073 | JM27100082 | 0.83 | 1.00 | |
| Sluitring 8mm | ||||
| 074 | JM27100054 | 0.83 | 1.00 | |
| Moer M8 | ||||
| 075 | JM27100020 | 1.12 | 1.36 | |
| Centreerplaat B | ||||
| 076 | JM27100083 | 0.83 | 1.00 | |
| Zeskant bout M8 | ||||
| 077 | JM27100050 | 1.12 | 1.36 | |
| Met.schr. M4 | ||||
| 078 | JM27100107 | 0.94 | 1.14 | |
| Met.schroef M5 | ||||
| 079 | JM27100031 | 1.12 | 1.36 | |
| Sluitring 5 | ||||
| 080 | JM27100032 | 1.58 | 1.91 | |
| Stofgeleider | ||||
| 081 | JM27100063 | 2.98 | 3.61 | |
| Label schaalverdeling 2712 | ||||
| 082C20 | JM00000361 | 2.58 | 3.12 | |
| Frame | ||||
| 082 | JM27110002 | 36.87 | 44.61 | |
| Makita logo label | ||||
| 082A | JM27180025 | 2.58 | 3.12 | |
| Makita logo label | ||||
| 082C10 | JM27180025 | 2.58 | 3.12 | |
| Houder | ||||
| 083 | JM27100062 | 2.98 | 3.61 | |
| Stelmoer | ||||
| 084 | JM27100061 | 1.58 | 1.91 | |
| Borgring 15 | ||||
| 085 | JM27100060 | 0.83 | 1.00 | |
| Veerring 5 | ||||
| 086 | JM27100065 | 0.83 | 1.00 | |
| Binnenzeskantbout M5 | ||||
| 087 | JM27100109 | 0.97 | 1.17 | |
| Binnenzeskantbout M4 | ||||
| 088 | JM27100110 | 0.94 | 1.14 | |
| Binnenzeskantbout M8x20mm | ||||
| 089 | JM27100074 | 1.32 | 1.60 | |
| Bout M6 | ||||
| 090 | JM27100075 | 0.94 | 1.14 | |
| Geleidingblok | ||||
| 091 | JM27100081 | 2.98 | 3.61 | |
| Hoeksteun | ||||
| 092 | JM27100084 | 13.16 | 15.92 | |
| Tapbout M6 | ||||
| 093 | JM27100011 | 0.94 | 1.14 | |
| Sluitring 6Mm A | ||||
| 094 | 267214-6 | 0.83 | 1.00 | |
| Borgmoer M6 | ||||
| 095 | JM27100016 | 6.08 | 7.36 | |
| Sluitring 6Mm A | ||||
| 096 | 267214-6 | 0.83 | 1.00 | |
| Niet meer leverbaar | ||||
| 097 | JM27100001 | |||
| Circuit motor 2712 | ||||
| 097C10 | JM27100153 | 4.22 | 5.11 | |
| Condensator Motor 2712 | ||||
| 097C10 | JM27100159 | 11.28 | 13.65 | |
| Condensator Motor 2712 | ||||
| 097C20 | JM27100159 | 11.28 | 13.65 | |
| Borgmoer M6 | ||||
| 098 | JM27100016 | 6.08 | 7.36 | |
| Flensbout M6 | ||||
| 099 | JM27100131 | 0.94 | 1.14 | |
| Steunplaat | ||||
| 100 | JM27100089 | 4.24 | 5.13 | |
| Langsgeleider compleet | ||||
| 101 | JM27100101 | 10.00 | 12.10 | |
| Borgmoer M6 | ||||
| 102 | JM27100016 | 6.08 | 7.36 | |
| Schaalverdeling | ||||
| 103 | JM27100100 | 2.71 | 3.28 | |
| Glijrail | ||||
| 104 | JM27100085 | 10.00 | 12.10 | |
| Flensbout M6 | ||||
| 105 | JM27100131 | 0.94 | 1.14 | |
| Met.schr. M6x12mm | ||||
| 106 | JM27100086 | 0.94 | 1.14 | |
| Borgmoer M6 | ||||
| 107 | JM27100016 | 6.08 | 7.36 | |
| Werktafel | ||||
| 108 | JM27110003 | 77.51 | 93.79 | |
| Met.schr. M6 X 10mm | ||||
| 109 | JM27100087 | 0.94 | 1.14 | |
| Zaaginlegplaat | ||||
| 110 | JM27100148 | 6.08 | 7.36 | |
| Metaalschroef M5 | ||||
| 111 | JM27100091 | 0.94 | 1.14 | |
| Flensbout M6 | ||||
| 112 | JM27100131 | 0.94 | 1.14 | |
| Borgmoer M6 | ||||
| 113 | JM27100016 | 6.08 | 7.36 | |
| Bijtafel | ||||
| 114 | JM27100092 | 52.76 | 63.84 | |
| Flensbout M6 | ||||
| 115 | JM27100131 | 0.94 | 1.14 | |
| Borgmoer M6 | ||||
| 116 | JM27100016 | 6.08 | 7.36 | |
| Platte ring 6 | ||||
| 117 | JM27100093 | 0.83 | 1.00 | |
| Drukplaat | ||||
| 118 | JM27100094 | 1.32 | 1.60 | |
| Niet meer leverbaar | ||||
| 119 | JM27100095 | |||
| Niet meer leverbaar | ||||
| 120 | JM27100096 | |||
| Verbindingsbout | ||||
| 121 | JM27100097 | 0.94 | 1.14 | |
| Platte ring 8 | ||||
| 122 | JM27100103 | 0.83 | 1.00 | |
| Borgpin 4mm | ||||
| 123 | JM27100099 | 1.12 | 1.36 | |
| Blokkeerhandel | ||||
| 124 | JM27100098 | 2.58 | 3.12 | |
| Parker 3,5X12 2712 | ||||
| 125 | JM27100105 | 0.83 | 1.00 | |
| Beschermkap compl. | ||||
| 126 | JM27110004 | 18.32 | 22.17 | |
| Borgring 10mm 2712 | ||||
| 127 | JM27100009 | 0.83 | 1.00 | |
| Flensbout M6 | ||||
| 128 | JM27100131 | 0.94 | 1.14 | |
| Wielmontageplaat Re | ||||
| 129 | JM27100010 | 2.71 | 3.28 | |
| Wiel | ||||
| 130 | JM27100012 | 13.78 | 16.67 | |
| Borgring 12mm | ||||
| 131 | JM27100102 | 0.83 | 1.00 | |
| Wielstang | ||||
| 132 | JM27100013 | 8.18 | 9.90 | |
| Wielmontageplaat Li | ||||
| 133 | JM27100014 | 2.71 | 3.28 | |
| Met.schroef M8 | ||||
| 134 | JM27100022 | 0.94 | 1.14 | |
| Voetdop | ||||
| 135 | JM27100021 | 4.24 | 5.13 | |
| Moer M8 | ||||
| 136 | JM27100020 | 1.12 | 1.36 | |
| Borgmoer M6 | ||||
| 137 | JM27100016 | 6.08 | 7.36 | |
| Sluitring 6Mm A | ||||
| 138 | 267214-6 | 0.83 | 1.00 | |
| Borgmoer M6 | ||||
| 139 | JM27100016 | 6.08 | 7.36 | |
| Flensbout M6 | ||||
| 140 | JM27100131 | 0.94 | 1.14 | |
| Borgmoer M6 | ||||
| 141 | JM27100016 | 6.08 | 7.36 | |
| Poot | ||||
| 142 | JM27100015 | 13.78 | 16.67 | |
| Stabiliteitsstang A | ||||
| 143 | JM27100019 | 10.00 | 12.10 | |
| Borgmoer M6 | ||||
| 144 | JM27100016 | 6.08 | 7.36 | |
| Flensbout M6 | ||||
| 145 | JM27100131 | 0.94 | 1.14 | |
| Poot A | ||||
| 147 | JM27100024 | 13.78 | 16.67 | |
| Parker St4 | ||||
| 148 | JM27100023 | 0.94 | 1.14 | |
| Stabiliteitsstang B | ||||
| 149 | JM27100017 | 7.81 | 9.45 | |
| Tapbout M8 | ||||
| 150 | JM27100029 | 1.18 | 1.43 | |
| Sluitring 8mm | ||||
| 151 | JM27100054 | 0.83 | 1.00 | |
| Flensbout M6 | ||||
| 152 | JM27100131 | 0.94 | 1.14 | |
| Montageplaat 1 | ||||
| 153 | JM27100028 | 3.37 | 4.08 | |
| Borgmoer M8 | ||||
| 154 | JM27100053 | 4.82 | 5.83 | |
| Stang | ||||
| 155 | JM27100027 | 4.24 | 5.13 | |
| Montageplaat 2 | ||||
| 156 | JM27100026 | 1.58 | 1.91 | |
| Borgmoer M6 | ||||
| 157 | JM27100016 | 6.08 | 7.36 | |
| Sluitring 6Mm A | ||||
| 158 | 267214-6 | 0.83 | 1.00 | |
| Borgmoer M6 | ||||
| 159 | JM27100016 | 6.08 | 7.36 | |
| Haak | ||||
| 160 | JM27100030 | 0.97 | 1.17 | |
| Niet meer leverbaar | ||||
| 161 | JM27100133 | |||
| Parker 3x12mm | ||||
| 162 | JM27100134 | 0.95 | 1.15 | |
| Niet meer leverbaar | ||||
| 163 | JM27100135 | |||
| Niet meer leverbaar | ||||
| 164 | JM27100136 | |||
| Niet meer leverbaar | ||||
| 165 | JM27100138 | |||
| Niet meer leverbaar | ||||
| 166 | JM27100140 | |||
| Niet meer leverbaar | ||||
| 167 | JM27100141 | |||
| Parker 4,2x18mm | ||||
| 168 | JM27100143 | 0.94 | 1.14 | |
| Schakelaar assy | ||||
| 169 | JM27100112 | 49.37 | 59.74 | |
| Netsnoer | ||||
| 170 | JM27100003 | 20.22 | 24.47 | |
