Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita AC3610'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

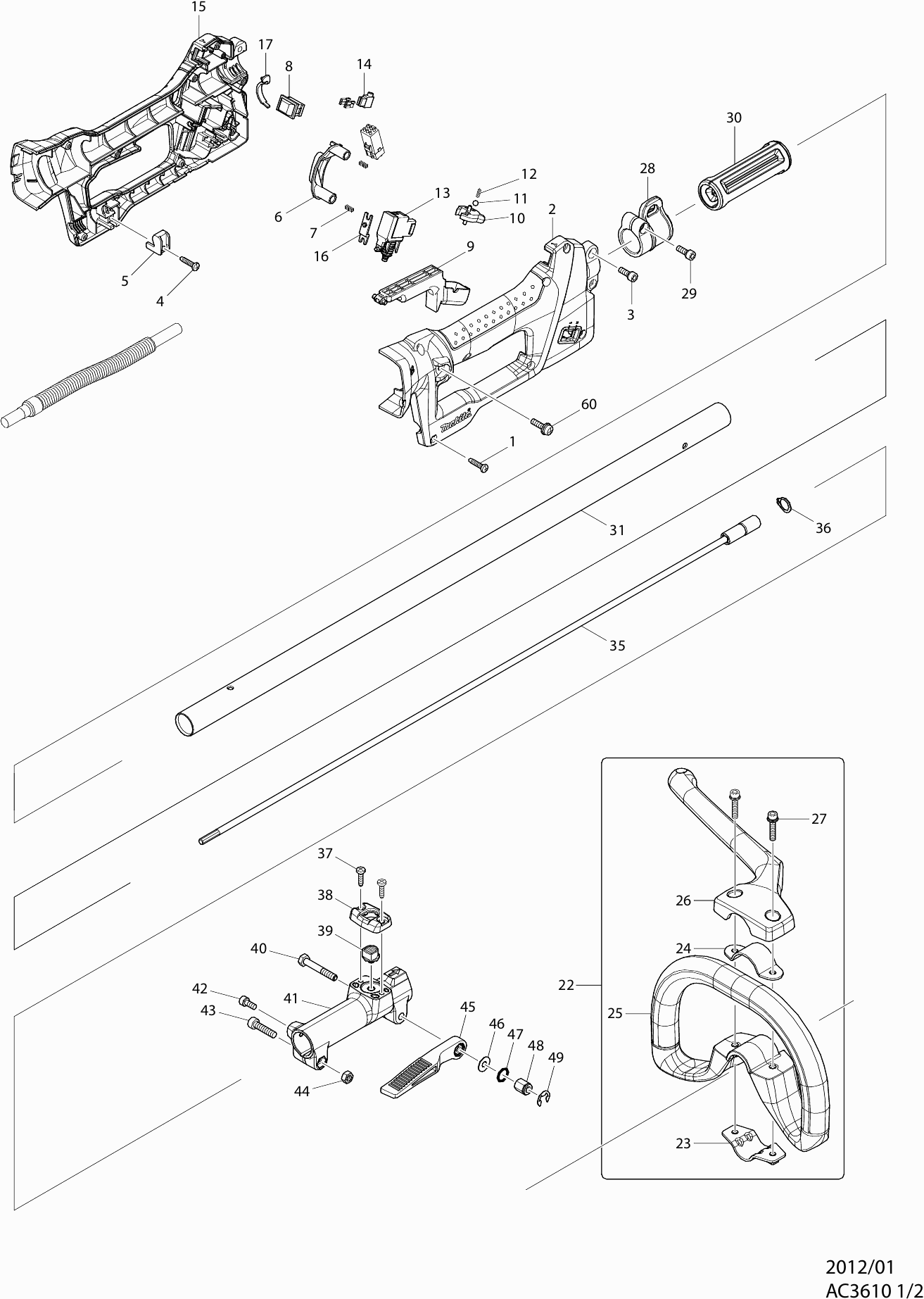

Tekeningen van de Makita AC3610
Onderdelen lijst van de Makita AC3610
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| TAPSCHROEF 4X18 P | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 1 | 265A48-7 | 1.00 | 1.21 | |
| HANDGREEPSET AT3630 | ||||
| 002 | 188840-7 | 62.70 | 75.87 | |
| HANDGREEPSET AT3630 | ||||
| 2 | 188840-7 | 62.70 | 75.87 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 003 | 922228-9 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 3 | 922228-9 | |||
| TAPSCHROEF 4X18 P | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 4 | 265A48-7 | 1.00 | 1.21 | |
| TREKONTLASTER PS001G | ||||
| 005 | 687261-5 | 1.00 | 1.21 | |
| TREKONTLASTER PS001G | ||||
| 5 | 687261-5 | 1.00 | 1.21 | |
| BLOKKEERKNOP BBC300L | ||||
| 006 | 451983-1 | 8.40 | 10.16 | |
| BLOKKEERKNOP BBC300L | ||||
| 6 | 451983-1 | 8.40 | 10.16 | |
| DRUKVEER 4 BUX361 | ||||
| 007 | 233054-4 | 1.00 | 1.21 | |
| DRUKVEER 4 BUX361 | ||||
| 7 | 233054-4 | 1.00 | 1.21 | |
| SCHAKELAAR SLE6A2-33 BBC231U | ||||
| 008 | 651533-4 | 3.60 | 4.36 | |
| SCHAKELAAR SLE6A2-33 BBC231U | ||||
| 8 | 651533-4 | 3.60 | 4.36 | |
| SCHAKELAARKNOP BBC300L | ||||
| 009 | 451984-9 | 16.50 | 19.96 | |
| SCHAKELAARKNOP BBC300L | ||||
| 9 | 451984-9 | 16.50 | 19.96 | |
| STROOMINDICATOR BBC300L | ||||
| 010 | 451986-5 | 11.00 | 13.31 | |
| STROOMINDICATOR BBC300L | ||||
| 10 | 451986-5 | 11.00 | 13.31 | |
| STALEN KOGEL 5.0 | ||||
| 011 | 216018-3 | 1.00 | 1.21 | |
| STALEN KOGEL 5.0 | ||||
| 11 | 216018-3 | 1.00 | 1.21 | |
| DRUKVEER 2 BFR540/6844 | ||||
| 012 | 233211-4 | 1.00 | 1.21 | |
| DRUKVEER 2 BFR540/6844 | ||||
| 12 | 233211-4 | 1.00 | 1.21 | |
| SCHAKELAAR TGR3-3 BBC300L * | ||||
| 013 | 650630-3 | 13.20 | 15.97 | |
| SCHAKELAAR TGR3-3 BBC300L * | ||||
| 13 | 650630-3 | 13.20 | 15.97 | |
| BUS 2012NB | ||||
| 014 | 686015-7 | 1.00 | 1.21 | |
| BUS 2012NB | ||||
| 14 | 686015-7 | 1.00 | 1.21 | |
| HANDGREEPSET AT3630 | ||||
| 015 | 188840-7 | 62.70 | 75.87 | |
| HANDGREEPSET AT3630 | ||||
| 15 | 188840-7 | 62.70 | 75.87 | |
| VERBINDINGSPLAAT BBC300L | ||||
| 016 | 451982-3 | 8.40 | 10.16 | |
| VERBINDINGSPLAAT BBC300L | ||||
| 16 | 451982-3 | 8.40 | 10.16 | |
| KABELBESCHERMER BBC300L | ||||
| 017 | 451985-7 | 10.80 | 13.07 | |
| KABELBESCHERMER BBC300L | ||||
| 17 | 451985-7 | 10.80 | 13.07 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 022 | 195515-1 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 22 | 195515-1 | |||
| DRAADKLEM 24 EM2653LH A | ||||
| 023 | 347094-7 | 1.20 | 1.45 | |
| DRAADKLEM 24 EM2653LH A | ||||
| 23 | 347094-7 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 024 | 346468-9 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 24 | 346468-9 | |||
| BEUGELHANDGREEP ER2650LH | ||||
| 025 | 452841-4 | 10.80 | 13.07 | |
| BEUGELHANDGREEP ER2650LH | ||||
| 25 | 452841-4 | 10.80 | 13.07 | |
| KLEMDEKSEL BUX361Z | ||||
| 026 | 452842-2 | 4.80 | 5.81 | |
| KLEMDEKSEL BUX361Z | ||||
| 26 | 452842-2 | 4.80 | 5.81 | |
| VLEUGELBOUT M5X25MM | ||||
| 027 | 922244-1 | 1.20 | 1.45 | |
| VLEUGELBOUT M5X25MM | ||||
| 27 | 922244-1 | 1.20 | 1.45 | |
| HANGER BBC231U | ||||
| 028 | 168478-4 | 4.80 | 5.81 | |
| HANGER BBC231U | ||||
| 28 | 168478-4 | 4.80 | 5.81 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 029 | 922228-9 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 29 | 922228-9 | |||
| AFSTANDHOUDER BBC300L | ||||
| 030 | 451601-1 | 2.40 | 2.90 | |
| AFSTANDHOUDER BBC300L | ||||
| 30 | 451601-1 | 2.40 | 2.90 | |
| AS BUB361Z | ||||
| 031 | 141499-1 | 22.00 | 26.62 | |
| WAARSCHUWINGSLABEL BUX361 | ||||
| 031 | 898125-0 | 8.40 | 10.16 | |
| AS BUB361Z | ||||
| 31 | 141499-1 | 22.00 | 26.62 | |
| BINNENAS UX361DZ | ||||
| 035 | 141238-9 | 16.50 | 19.96 | |
| BORGRING S-12 | ||||
| 036 | 961052-5 | 1.00 | 1.21 | |
| BORGRING S-12 | ||||
| 36 | 961052-5 | 1.00 | 1.21 | |
| TAPSCHROEF CT4X16 A | ||||
| 037 | 266034-5 | 1.00 | 1.21 | |
| TAPSCHROEF CT4X16 A | ||||
| 37 | 266034-5 | 1.00 | 1.21 | |
| KAP TBV ONTGRENDELKNOP P | ||||
| 038 | 452840-6 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 038-1 | 4133K8-4 | |||
| KAP TBV ONTGRENDELKNOP P | ||||
| 38 | 452840-6 | 1.20 | 1.45 | |
| ONTGRENDELKNOP BUX361 | ||||
| 039 | 452839-1 | 1.20 | 1.45 | |
| ONTGRENDELKNOP BUX361 | ||||
| 39 | 452839-1 | 1.20 | 1.45 | |
| INBUSBOUT M6X40 | ||||
| 040 | 265596-0 | 1.00 | 1.21 | |
| INBUSBOUT M6X40 | ||||
| 40 | 265596-0 | 1.00 | 1.21 | |
| VERBINDINGSSTUK DUX60 A | ||||
| 041 | 312D49-5 | 15.40 | 18.63 | |
| VERBINDINGSSTUK DUX60 A | ||||
| 41 | 312D49-5 | 15.40 | 18.63 | |
| INBUSBOUT M5X12 | ||||
| 042 | 922211-6 | 1.00 | 1.21 | |
| ZESKANTBOUT M6X25MM A | ||||
| 043 | 266087-4 | 1.00 | 1.21 | |
| ZESKANTMOER M6 | ||||
| 044 | 931302-2 | 1.00 | 1.21 | |
| ZESKANTMOER M6 | ||||
| 44 | 931302-2 | 1.00 | 1.21 | |
| HANDEL BUX361Z | ||||
| 045 | 272268-0 | 2.40 | 2.90 | |
| HANDEL BUX361Z | ||||
| 45 | 272268-0 | 2.40 | 2.90 | |
| DUNNE RING 6 RT0700 | ||||
| 046 | 253332-6 | 1.00 | 1.21 | |
| DUNNE RING 6 RT0700 | ||||
| 46 | 253332-6 | 1.00 | 1.21 | |
| O-RING 11 | ||||
| 047 | 213105-9 | 1.00 | 1.21 | |
| O-RING 11 | ||||
| 47 | 213105-9 | 1.00 | 1.21 | |
| ZESKANTMOER M6 SP6000/BSS500 | ||||
| 048 | 252159-1 | 2.40 | 2.90 | |
| ZESKANTMOER M6 SP6000/BSS500 | ||||
| 48 | 252159-1 | 2.40 | 2.90 | |
| STOPRING E-8 A | ||||
| 049 | 961014-3 | 1.00 | 1.21 | |
| STOPRING E-8 A | ||||
| 49 | 961014-3 | 1.00 | 1.21 | |
| KRUISKOPSCHROEF 5X20 | ||||
| 060 | 911233-1 | 1.00 | 1.21 | |
| KRUISKOPSCHROEF 5X20 | ||||
| 60 | 911233-1 | 1.00 | 1.21 | |
| AFDEKKAP BBC300L | ||||
| 061 | 451981-5 | 17.60 | 21.30 | |
| AFDEKKAP BBC300L | ||||
| 61 | 451981-5 | 17.60 | 21.30 | |
| DEMPER BBC231/300L | ||||
| 062 | 424307-4 | 2.40 | 2.90 | |
| DEMPER BBC231/300L | ||||
| 62 | 424307-4 | 2.40 | 2.90 | |
| ZESKANT BOUT 5X20 LF1000 A | ||||
| 063 | 265550-4 | 1.00 | 1.21 | |
| ZESKANT BOUT 5X20 LF1000 A | ||||
| 63 | 265550-4 | 1.00 | 1.21 | |
| STEELHOUDER BBC231U/300L | ||||
| 064 | 318560-1 | 28.60 | 34.61 | |
| STEELHOUDER BBC231U/300L | ||||
| 64 | 318560-1 | 28.60 | 34.61 | |
| KRUISKOPSCHROEF 5X20 | ||||
| 065 | 911233-1 | 1.00 | 1.21 | |
| KRUISKOPSCHROEF 5X20 | ||||
| 65 | 911233-1 | 1.00 | 1.21 | |
| RUBBER PEN 4 6413 A | ||||
| 066 | 263002-9 | 1.00 | 1.21 | |
| RUBBER PEN 4 6413 A | ||||
| 66 | 263002-9 | 1.00 | 1.21 | |
| O-RING 6 AN250/BO3711 | ||||
| 067 | 213045-1 | 1.00 | 1.21 | |
| O-RING 6 AN250/BO3711 | ||||
| 67 | 213045-1 | 1.00 | 1.21 | |
| ASHOUDER BBC231U/300L * | ||||
| 068 | 325811-5 | 17.60 | 21.30 | |
| ASHOUDER BBC231U/300L * | ||||
| 68 | 325811-5 | 17.60 | 21.30 | |
| KOGELLAGER 6001ZZ GD0800C A | ||||
| 069 | 211148-5 | 8.40 | 10.16 | |
| KOGELLAGER 6001ZZ GD0800C A | ||||
| 69 | 211148-5 | 8.40 | 10.16 | |
| SLUITRING 12 | ||||
| 070 | 253744-3 | 1.00 | 1.21 | |
| SLUITRING 12 | ||||
| 70 | 253744-3 | 1.00 | 1.21 | |
| TANDWIEL 33 BBC230U/BBC300L | ||||
| 071 | 227720-3 | 42.90 | 51.91 | |
| TANDWIEL 33 BBC230U/BBC300L | ||||
| 71 | 227720-3 | 42.90 | 51.91 | |
| SLUITRING 12 | ||||
| 072 | 253744-3 | 1.00 | 1.21 | |
| SLUITRING 12 | ||||
| 72 | 253744-3 | 1.00 | 1.21 | |
| KOGELLAGER 6901ZZ DUX60 P | ||||
| 073 | 211150-8 | 6.00 | 7.26 | |
| KOGELLAGER 6901ZZ DUX60 P | ||||
| 73 | 211150-8 | 6.00 | 7.26 | |
| TANDWIELHUIS BBC230U/BBC300L | ||||
| 074 | 318559-6 | 34.10 | 41.26 | |
| TANDWIELHUIS BBC230U/BBC300L | ||||
| 74 | 318559-6 | 34.10 | 41.26 | |
| TAPSCHROEF 4X18 P | ||||
| 075 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 75 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 5X25 A | ||||
| 076 | 266041-8 | 1.00 | 1.21 | |
| TAPSCHROEF 5X25 A | ||||
| 76 | 266041-8 | 1.00 | 1.21 | |
| VOET BBC230U/BBC300L | ||||
| 077 | 451572-2 | 8.40 | 10.16 | |
| VOET BBC230U/BBC300L | ||||
| 77 | 451572-2 | 8.40 | 10.16 | |
| KRUISKOPSCHROEF 5X20 | ||||
| 078 | 911233-1 | 1.00 | 1.21 | |
| KRUISKOPSCHROEF 5X20 | ||||
| 78 | 911233-1 | 1.00 | 1.21 | |
| KABEL AT3630 | ||||
| 079 | 699047-5 | 14.30 | 17.30 | |
| KABEL AT3630 | ||||
| 79 | 699047-5 | 14.30 | 17.30 | |
| TAPSCHROEF 4X18 P | ||||
| 080 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 80 | 265A48-7 | 1.00 | 1.21 | |
| SCHROEF M4X12 | ||||
| 082 | 251314-2 | 1.00 | 1.21 | |
| SCHROEF M4X12 | ||||
| 82 | 251314-2 | 1.00 | 1.21 | |
| BATTERIJHOUDER BBC230U/300L | ||||
| 083 | 346194-0 | 25.30 | 30.61 | |
| BATTERIJHOUDER BBC230U/300L | ||||
| 83 | 346194-0 | 25.30 | 30.61 | |
| HANDGREEPSET AT3623 P | ||||
| 084 | 188837-6 | 35.20 | 42.59 | |
| HANDGREEPSET AT3623 P | ||||
| 84 | 188837-6 | 35.20 | 42.59 | |
| TAPSCHROEF 4X18 P | ||||
| 085 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 85 | 265A48-7 | 1.00 | 1.21 | |
| MOTORHUISSET BBC231 | ||||
| 086 | 188838-4 | 10.80 | 13.07 | |
| MOTORHUISSET BBC231 | ||||
| 86 | 188838-4 | 10.80 | 13.07 | |
| O-RING 22 HM111CC | ||||
| 087 | 213961-7 | 1.00 | 1.21 | |
| O-RING 22 HM111CC | ||||
| 87 | 213961-7 | 1.00 | 1.21 | |
| ANKER BBC231U/300L | ||||
| 088 | 619254-4 | 71.50 | 86.52 | |
| ANKER BBC231U/300L | ||||
| 88 | 619254-4 | 71.50 | 86.52 | |
| VELD BBC231U/300L | ||||
| 089 | 629880-1 | 62.70 | 75.87 | |
| VELD BBC231U/300L | ||||
| 89 | 629880-1 | 62.70 | 75.87 | |
| MOTORHUISSET BBC231 | ||||
| 090 | 188838-4 | 10.80 | 13.07 | |
| MOTORHUISSET BBC231 | ||||
| 90 | 188838-4 | 10.80 | 13.07 | |
| TAPSCHROEF 4X18 P | ||||
| 091 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 91 | 265A48-7 | 1.00 | 1.21 | |
| TREKONTLASTER PS001G | ||||
| 092 | 687261-5 | 1.00 | 1.21 | |
| TREKONTLASTER PS001G | ||||
| 92 | 687261-5 | 1.00 | 1.21 | |
| STEUNPLAAT BHR261RDE* | ||||
| 093 | 346039-2 | 1.20 | 1.45 | |
| STEUNPLAAT BHR261RDE* | ||||
| 93 | 346039-2 | 1.20 | 1.45 | |
| HANDGREEPSET AT3623 P | ||||
| 094 | 188837-6 | 35.20 | 42.59 | |
| HANDGREEPSET AT3623 P | ||||
| 94 | 188837-6 | 35.20 | 42.59 | |
| AANSLUITUNIT BUB360* | ||||
| 095 | 643849-1 | 4.80 | 5.81 | |
| AANSLUITUNIT BUB360* | ||||
| 95 | 643849-1 | 4.80 | 5.81 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 096 | 631942-3 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 96 | 631942-3 | |||
| TOERENREGELCIRCUIT BBC231U A | ||||
| 097 | 620497-3 | 162.80 | 196.99 | |
| TOERENREGELCIRCUIT BBC231U A | ||||
| 97 | 620497-3 | 162.80 | 196.99 | |
| INDICATIELABEL BBC231U/BBC300 | ||||
| 098 | 140285-7 | 8.40 | 10.16 | |
| INDICATIELABEL BBC231U/BBC300 | ||||
| 98 | 140285-7 | 8.40 | 10.16 | |
