Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita AF500HP'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

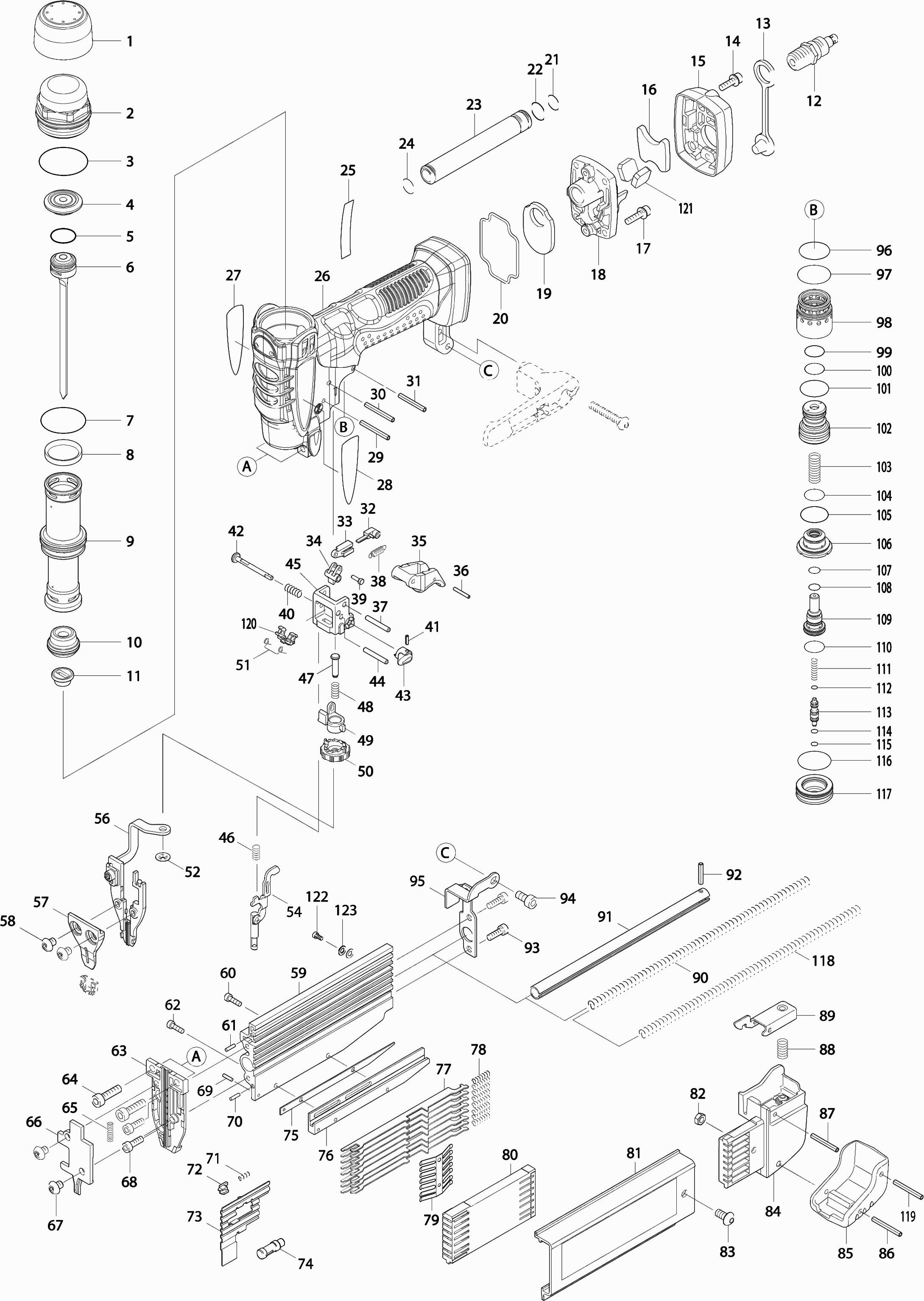

Tekeningen van de Makita AF500HP
Onderdelen lijst van de Makita AF500HP
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Afdekkap | ||||
| 001 | 450628-8 | 1.58 | 1.91 | |
| Bovendeksel | ||||
| 002 | 318284-9 | 6.86 | 8.30 | |
| O-ring 31 | ||||
| 003 | 213883-1 | 0.83 | 1.00 | |
| Stootkussen achter | ||||
| 004 | 424120-0 | 11.78 | 14.25 | |
| O-ring 14 | ||||
| 005 | 213190-2 | 8.18 | 9.90 | |
| Slagpen | ||||
| 006 | 158681-5 | 69.12 | 83.64 | |
| O-Ring 29 Af500Hp/Sr2600 | ||||
| 007 | 213412-0 | 0.83 | 1.00 | |
| D-ring | ||||
| 008 | 424116-1 | 1.67 | 2.02 | |
| Cilinder | ||||
| 009 | 331829-6 | 26.56 | 32.14 | |
| Stootkussen voor | ||||
| 010 | 424130-7 | 11.26 | 13.62 | |
| Afdichtplug A | ||||
| 011 | 424233-7 | 2.98 | 3.61 | |
| Insteeknippel Orion | ||||
| 012 | 243105-5 | 14.85 | 17.97 | |
| Kap | ||||
| 013 | 286280-4 | 1.18 | 1.43 | |
| Inbusbout 4x12 | ||||
| 014 | 265353-6 | 0.83 | 1.00 | |
| Uitlaatkap | ||||
| 015 | 450632-7 | 3.77 | 4.56 | |
| Filter | ||||
| 016 | 413123-9 | 2.98 | 3.61 | |
| Inbusbout 4x16 | ||||
| 017 | 922127-5 | 0.83 | 1.00 | |
| Inlaatdeksel Af500Hp | ||||
| 018 | 318287-3 | 5.69 | 6.88 | |
| Inlaatfilter | ||||
| 019 | 413122-1 | 3.37 | 4.08 | |
| Pakkingring | ||||
| 020 | 424117-9 | 1.39 | 1.68 | |
| O-ring 9,5 | ||||
| 021 | 213194-4 | 1.18 | 1.43 | |
| O-ring 11 | ||||
| 022 | 213105-9 | 0.83 | 1.00 | |
| Pijp | ||||
| 023 | 331832-7 | 7.87 | 9.52 | |
| O-ring 9,5 | ||||
| 024 | 213194-4 | 1.18 | 1.43 | |
| Naamplaat "af500hp" | ||||
| 025 | 865252-8 | 2.58 | 3.12 | |
| Behuizing | ||||
| 026 | 188601-5 | 100.48 | 121.58 | |
| Makita logo label r | ||||
| 027 | 819313-6 | 2.58 | 3.12 | |
| Makita logo label l | ||||
| 028 | 819314-4 | 2.58 | 3.12 | |
| Borgpen 3-28 | ||||
| 029 | 951075-1 | 0.83 | 1.00 | |
| Borgpen 3-28 | ||||
| 030 | 951075-1 | 0.83 | 1.00 | |
| Spanstift 3-26 | ||||
| 031 | 258037-3 | 0.83 | 1.00 | |
| Blokkeerpen | ||||
| 032 | 310263-3 | 2.98 | 3.61 | |
| Blokkeerpengeleiding | ||||
| 033 | 310296-8 | 2.58 | 3.12 | |
| Verbindingblok | ||||
| 034 | 310312-6 | 2.96 | 3.58 | |
| Schakelknop | ||||
| 035 | 450633-5 | 3.77 | 4.56 | |
| Spanstift 2-14 | ||||
| 036 | 951010-9 | 0.83 | 1.00 | |
| Pen 3 | ||||
| 037 | 256221-4 | 0.83 | 1.00 | |
| Trekveer 4 | ||||
| 038 | 231856-2 | 0.94 | 1.14 | |
| Pen 2 | ||||
| 039 | 268218-1 | 3.77 | 4.56 | |
| Drukveer 5 | ||||
| 040 | 231309-1 | 0.83 | 1.00 | |
| Spanstift 2-8 | ||||
| 041 | 951001-0 | 0.83 | 1.00 | |
| Blokkeerpin | ||||
| 042 | 324948-5 | 3.77 | 4.56 | |
| Knop | ||||
| 043 | 450786-0 | 3.77 | 4.56 | |
| Pen 3 | ||||
| 044 | 256221-4 | 0.83 | 1.00 | |
| Schakel montageplaat | ||||
| 045 | 451332-2 | 1.92 | 2.32 | |
| Drukveer 5 | ||||
| 046 | 234067-8 | 0.83 | 1.00 | |
| Pen 4 | ||||
| 047 | 268243-2 | 1.14 | 1.38 | |
| Drukveer 5 | ||||
| 048 | 234100-6 | 0.83 | 1.00 | |
| Stopper | ||||
| 049 | 310265-9 | 5.42 | 6.56 | |
| Afsteller | ||||
| 050 | 310286-1 | 12.33 | 14.92 | |
| Torsieveer | ||||
| 051 | 233533-2 | 10.00 | 12.10 | |
| Drukmoer M3 | ||||
| 052 | 259009-1 | 0.83 | 1.00 | |
| Arm | ||||
| 054 | 165567-6 | 10.00 | 12.10 | |
| Contactarm | ||||
| 056 | 140582-1 | 34.36 | 41.58 | |
| Contactpunt deksel | ||||
| 057 | 310261-7 | 19.20 | 23.23 | |
| Met.schroef Ck Inb M5x6mm | ||||
| 058 | 266577-7 | 0.83 | 1.00 | |
| Magazijn | ||||
| 059 | 331826-2 | 20.22 | 24.47 | |
| Inbusbout M3x10 | ||||
| 060 | 266177-3 | 0.83 | 1.00 | |
| Spanstift 2-8 | ||||
| 061 | 951001-0 | 0.83 | 1.00 | |
| Inbusbout M3x10 | ||||
| 062 | 266177-3 | 0.83 | 1.00 | |
| Slagpengeleider | ||||
| 063 | 310259-4 | 56.48 | 68.34 | |
| Inbusbout m5x18 | ||||
| 064 | 265853-6 | 0.83 | 1.00 | |
| Drukveer 3 | ||||
| 065 | 234119-5 | 3.95 | 4.78 | |
| Deksel slagpengeleider | ||||
| 066 | 310260-9 | 31.77 | 38.44 | |
| Met.schroef Ck Inb M5x6mm | ||||
| 067 | 266577-7 | 0.83 | 1.00 | |
| Inbusbout 4x12 | ||||
| 068 | 265353-6 | 0.83 | 1.00 | |
| Spanstift 2-8 | ||||
| 069 | 951001-0 | 0.83 | 1.00 | |
| Spanstift 2-8 | ||||
| 070 | 951001-0 | 0.83 | 1.00 | |
| Drukveer 3 | ||||
| 071 | 233018-8 | 0.83 | 1.00 | |
| Afslag Bpt350 | ||||
| 072 | 310176-8 | 2.98 | 3.61 | |
| Drukplaat | ||||
| 073 | 345947-4 | 3.77 | 4.56 | |
| Kraagpin 5-7 | ||||
| 074 | 450627-0 | 3.77 | 4.56 | |
| Afstandsteun | ||||
| 075 | 345945-8 | 3.77 | 4.56 | |
| Onderste nagelgeleider | ||||
| 076 | 331827-0 | 8.80 | 10.65 | |
| Nagelafslag | ||||
| 077 | 345946-6 | 3.77 | 4.56 | |
| Drukveer 4 | ||||
| 078 | 233476-8 | 0.83 | 1.00 | |
| Bladveer | ||||
| 079 | 232243-8 | 3.77 | 4.56 | |
| Nagelgeleiderhouder | ||||
| 080 | 450624-6 | 3.77 | 4.56 | |
| Bovenste nagelgeleider | ||||
| 081 | 158749-7 | 34.36 | 41.58 | |
| Waarschuwingslabel | ||||
| 081A | 810418-5 | 3.78 | 4.57 | |
| Zeskant moer M4 | ||||
| 082 | 931102-0 | 0.83 | 1.00 | |
| Zeskant knopse kopbout M4x8 | ||||
| 083 | 266430-7 | 3.77 | 4.56 | |
| Kap schuifdeksel | ||||
| 084 | 450625-4 | 5.42 | 6.56 | |
| Magazijnbumper | ||||
| 085 | 424113-7 | 3.77 | 4.56 | |
| Borgpen 3-28 | ||||
| 086 | 951075-1 | 0.83 | 1.00 | |
| Spanstift 3-24 | ||||
| 087 | 951072-7 | 0.83 | 1.00 | |
| Drukveer 7 | ||||
| 088 | 233097-6 | 0.83 | 1.00 | |
| Blokkeerhandel | ||||
| 089 | 345954-7 | 3.77 | 4.56 | |
| Drukveer 6 | ||||
| 090 | 234066-0 | 1.32 | 1.60 | |
| Geleidingsbus | ||||
| 091 | 345948-2 | 3.77 | 4.56 | |
| Spanstift 3-16 | ||||
| 092 | 951063-8 | 0.83 | 1.00 | |
| Inbusbout 4x12 | ||||
| 093 | 265353-6 | 0.83 | 1.00 | |
| Inbusbout m5x14 | ||||
| 094 | 265909-5 | 0.83 | 1.00 | |
| Koppelplaat | ||||
| 095 | 345949-0 | 3.77 | 4.56 | |
| O-ring 20 | ||||
| 096 | 213310-8 | 0.83 | 1.00 | |
| O-ring 22 | ||||
| 097 | 213373-4 | 1.12 | 1.36 | |
| Schakelklepgeleiding | ||||
| 098 | 331831-9 | 7.81 | 9.45 | |
| O-ring 11,2 | ||||
| 099 | 213137-6 | 1.58 | 1.91 | |
| O-ring 12,5 | ||||
| 100 | 213191-0 | 1.58 | 1.91 | |
| O-ring 18 | ||||
| 101 | 213262-3 | 0.94 | 1.14 | |
| Hoofdklep | ||||
| 102 | 412091-3 | 36.90 | 44.65 | |
| Drukveer 7 | ||||
| 103 | 234070-9 | 0.94 | 1.14 | |
| O-ring 14 | ||||
| 104 | 213162-7 | 0.83 | 1.00 | |
| O-ring 18 | ||||
| 105 | 213275-4 | 0.83 | 1.00 | |
| Schakelklepgeleiding | ||||
| 106 | 324912-6 | 8.80 | 10.65 | |
| O-ring 6 | ||||
| 107 | 213998-4 | 2.26 | 2.73 | |
| O-ring 6 | ||||
| 108 | 213998-4 | 2.26 | 2.73 | |
| Regelklep | ||||
| 109 | 451204-1 | 31.77 | 38.44 | |
| O-ring 14 | ||||
| 110 | 213162-7 | 0.83 | 1.00 | |
| Drukveer 3 | ||||
| 111 | 234068-6 | 0.83 | 1.00 | |
| O-ring 3 | ||||
| 112 | 213979-8 | 1.39 | 1.68 | |
| Schakelklepsteel | ||||
| 113 | 325691-9 | 5.44 | 6.58 | |
| O-ring 3 | ||||
| 114 | 213979-8 | 1.39 | 1.68 | |
| O-ring 3 | ||||
| 115 | 213979-8 | 1.39 | 1.68 | |
| O-ring 22 | ||||
| 116 | 213373-4 | 1.12 | 1.36 | |
| Schakelklephuis | ||||
| 117 | 325633-3 | 11.73 | 14.19 | |
| Drukveer 5 | ||||
| 118 | 234110-3 | 1.32 | 1.60 | |
| Borgpen 3-28 | ||||
| 119 | 951075-1 | 0.83 | 1.00 | |
| Verbindingsschakel | ||||
| 120 | 310284-5 | 14.85 | 17.97 | |
| Filter | ||||
| 121 | 413125-5 | 1.92 | 2.32 | |
| Schroef m3 | ||||
| 122 | 265591-0 | 5.42 | 6.56 | |
| Sluitring 3 | ||||
| 123 | 941002-6 | 0.83 | 1.00 | |
