Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita AN613'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

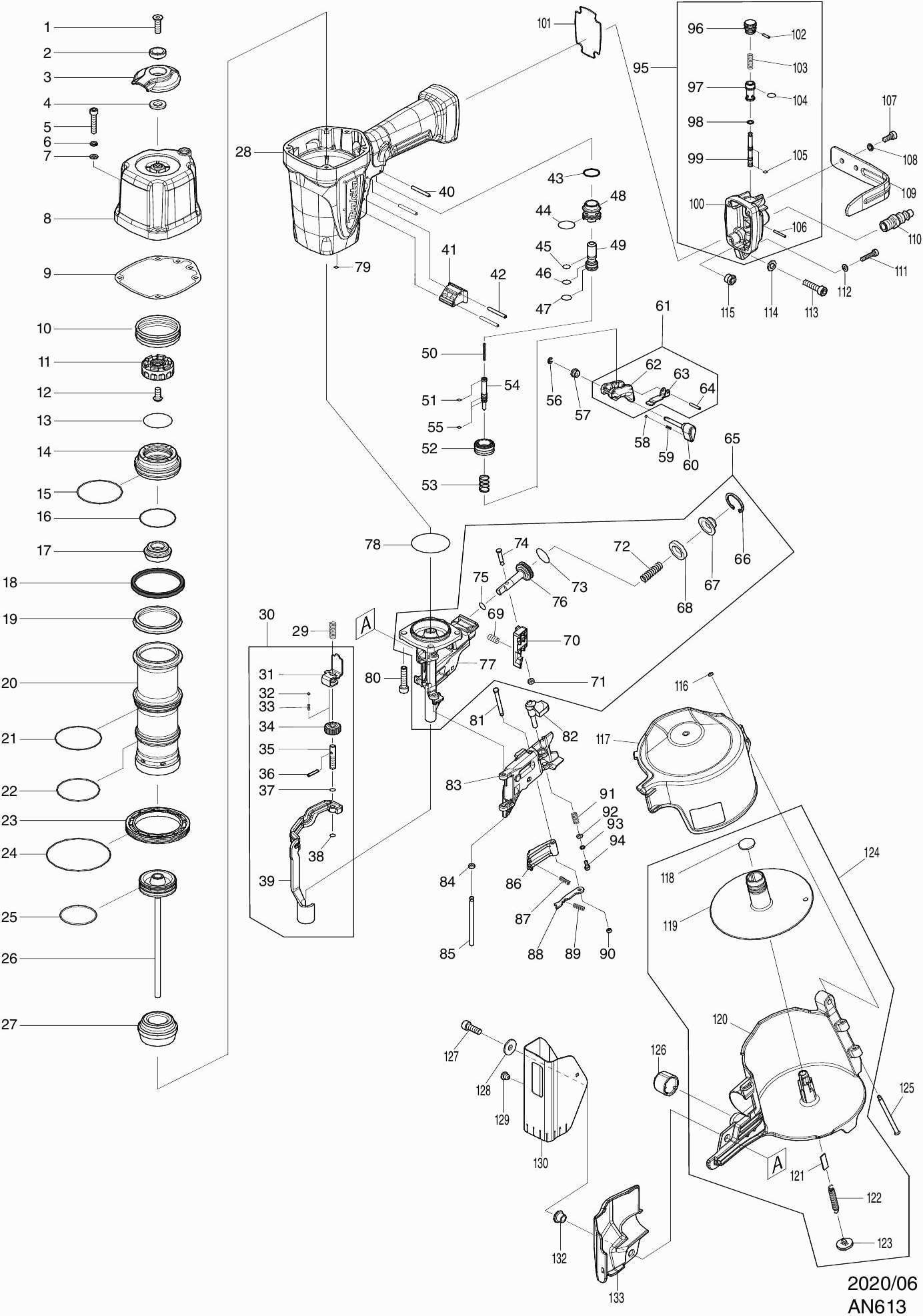

Tekeningen van de Makita AN613
Onderdelen lijst van de Makita AN613
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| INBUSBOUT M6X20MM AF635 | ||||
| 001 | HY00000655 | 1.00 | 1.21 | |
| BUS 6MM AF601 | ||||
| 002 | HY00000632 | 1.20 | 1.45 | |
| LUCHTUITLAATKAP AF601 | ||||
| 003 | HY00000596 | 2.40 | 2.90 | |
| RUBBERRING 10MM AF601 | ||||
| 004 | HY00000627 | 1.00 | 1.21 | |
| INBUSBOUT M5X25MM AF506 | ||||
| 005 | HY00000156 | 2.40 | 2.90 | |
| VEERRING 5MM AN454 | ||||
| 006 | HY00000162 | 1.00 | 1.21 | |
| SLUITRING 5MM AF506 | ||||
| 007 | HY00000160 | 1.00 | 1.21 | |
| AFDEKKAP AN613 | ||||
| 008 | HY00001064 | 16.50 | 19.96 | |
| KOPPAKKING AN613 | ||||
| 009 | HY00001065 | 3.60 | 4.36 | |
| DRUKVEER 45 AN613 | ||||
| 010 | HY00001101 | 2.40 | 2.90 | |
| HOOFKLEPGELEIDER AF635 | ||||
| 011 | HY00000455 | 3.60 | 4.36 | |
| INBUSBOUT M6X12MM AF635 | ||||
| 012 | HY00000677 | 1.00 | 1.21 | |
| O-RING 30,5MM AF506 | ||||
| 013 | HY00000409 | 1.00 | 1.21 | |
| HOOFDKLEP AN613 | ||||
| 014 | HY00001102 | 2.40 | 2.90 | |
| O-RING 45MM AF635 | ||||
| 015 | HY00000141 | 1.20 | 1.45 | |
| O-RING 36 AF505N | ||||
| 016 | HY00000020 | 1.20 | 1.45 | |
| ACHTERDEMPER AF635 | ||||
| 017 | HY00000517 | 2.40 | 2.90 | |
| KLEPGELEIDER AN613 | ||||
| 018 | HY00001066 | 4.80 | 5.81 | |
| KLEPBLAD AF635 | ||||
| 019 | HY00000452 | 1.20 | 1.45 | |
| CILINDER AN613 | ||||
| 020 | HY00001067 | 14.30 | 17.30 | |
| O-RING 47MM AF635 | ||||
| 021 | HY00000405 | 1.20 | 1.45 | |
| O-RING 44MM AF635 | ||||
| 022 | HY00000402 | 1.20 | 1.45 | |
| CILINDERTUSSENSTUK AN454 | ||||
| 023 | HY00000785 | 1.20 | 1.45 | |
| O-RING 67MM AN454 | ||||
| 024 | HY00000143 | 1.20 | 1.45 | |
| O-RING 35MM AF635 | ||||
| 025 | HY00000139 | 1.20 | 1.45 | |
| GELEIDER CPL AN613 | ||||
| 026 | HY00001068 | 52.80 | 63.89 | |
| BESCHERMRUBBER AN613 | ||||
| 027 | HY00001087 | 8.40 | 10.16 | |
| BEHUIZING AN613 | ||||
| 028 | HY00001069 | 63.80 | 77.20 | |
| WAARSCHUWINGSLABEL 3 AN454 | ||||
| 028C10 | HY00000828 | 2.40 | 2.90 | |
| DRUKVEER 6MM AN454 | ||||
| 029 | HY00000790 | 1.00 | 1.21 | |
| CONTACTARM ASSY AN613 | ||||
| 030 | HY00001070 | 9.60 | 11.62 | |
| HOUDER AN454 | ||||
| 031 | HY00000791 | 1.20 | 1.45 | |
| KOGEL 3MM AF635 | ||||
| 032 | HY00000526 | 1.00 | 1.21 | |
| DRUKVEER 2MM AF601 | ||||
| 033 | HY00000470 | 1.00 | 1.21 | |
| STELMOER AN454 | ||||
| 034 | HY00000792 | 2.40 | 2.90 | |
| STELAS AN454 | ||||
| 035 | HY00000793 | 2.40 | 2.90 | |
| BORGPIN 2,5X16MM AF506 | ||||
| 036 | HY00000114 | 1.20 | 1.45 | |
| O-RING 5MM AF353 | ||||
| 037 | HY00000397 | 1.00 | 1.21 | |
| VEERRING 5MM AN454 | ||||
| 038 | HY00000795 | 1.00 | 1.21 | |
| CONTACTARM AN613 | ||||
| 039 | HY00001071 | 10.80 | 13.07 | |
| BORGPIN 3X28MM AF601 | ||||
| 040 | HY00000165 | 2.40 | 2.90 | |
| SCHAKELBASIS AN454 | ||||
| 041 | HY00000805 | 1.20 | 1.45 | |
| BORGPIN 3X28MM AF601 | ||||
| 042 | HY00000165 | 2.40 | 2.90 | |
| O-RING 15MM AF601 | ||||
| 043 | HY00000135 | 1.00 | 1.21 | |
| O-RING 17MM AF601 | ||||
| 044 | HY00000137 | 1.00 | 1.21 | |
| O-RING 7MM AN454 | ||||
| 045 | HY00000806 | 1.00 | 1.21 | |
| O-RING 7MM AF601 | ||||
| 046 | HY00000132 | 1.00 | 1.21 | |
| O-RING 10MM AN454 | ||||
| 047 | HY00000807 | 1.00 | 1.21 | |
| KLEPGELEIDER AN454 | ||||
| 048 | HY00000808 | 2.40 | 2.90 | |
| REGELKLEP AN454 | ||||
| 049 | HY00000809 | 3.60 | 4.36 | |
| DRUKVEER 2MM AN454 | ||||
| 050 | HY00000810 | 1.00 | 1.21 | |
| O-RING 4MM AN454 | ||||
| 051 | HY00000812 | 1.00 | 1.21 | |
| SCHAKELKLEPHOUDER AN454 | ||||
| 052 | HY00000814 | 2.40 | 2.90 | |
| DRUKVEER 10MM AF353 | ||||
| 053 | HY00000705 | 1.00 | 1.21 | |
| SCHAKELKLEP AN454 | ||||
| 054 | HY00000811 | 1.20 | 1.45 | |
| O-RING 3MM AN454 | ||||
| 055 | HY00000813 | 1.00 | 1.21 | |
| BORGRING E-3 AF601 | ||||
| 056 | HY00000659 | 1.00 | 1.21 | |
| BUS 4MM AF601 | ||||
| 057 | HY00000520 | 1.00 | 1.21 | |
| KOGEL 3MM AF635 | ||||
| 058 | HY00000526 | 1.00 | 1.21 | |
| DRUKVEER 2MM AF601 | ||||
| 059 | HY00000590 | 1.00 | 1.21 | |
| HENDEL 4MM AF601 | ||||
| 060 | HY00000518 | 1.20 | 1.45 | |
| SCHAKELAAR ASSY AN454 | ||||
| 061 | HY00000815 | 1.20 | 1.45 | |
| MAGAZIJN ASSY AF506 | ||||
| 062 | HY00000947 | 26.40 | 31.94 | |
| BLOKKEERPEN AN454 | ||||
| 063 | HY00000816 | 1.00 | 1.21 | |
| BORGPIN 2,5X16MM AF506 | ||||
| 064 | HY00000114 | 1.20 | 1.45 | |
| SLAGPENGELEIDER ASSY AN613 | ||||
| 065 | HY00001073 | 100.10 | 121.12 | |
| SEEGERING R24 AN454 | ||||
| 066 | HY00000164 | 2.40 | 2.90 | |
| SCHOTELRING 5MM AN454 | ||||
| 067 | HY00000187 | 1.20 | 1.45 | |
| RUBBERRING 16MM AN454 | ||||
| 068 | HY00000207 | 1.20 | 1.45 | |
| DRUKVEER 6MM AN454 | ||||
| 069 | HY00000148 | 1.00 | 1.21 | |
| VOEDINGSKLEM AN613 | ||||
| 070 | HY00001074 | 11.00 | 13.31 | |
| URETHAANRING 3MM AN454 | ||||
| 071 | HY00000206 | 1.20 | 1.45 | |
| DRUKVEER 7MM AN454 | ||||
| 072 | HY00000150 | 1.00 | 1.21 | |
| O-RING 17MM AN454 | ||||
| 073 | HY00000136 | 1.00 | 1.21 | |
| PIN 4MM AN454 | ||||
| 074 | HY00000168 | 1.00 | 1.21 | |
| O-RING 8MM AN454 | ||||
| 075 | HY00000129 | 1.00 | 1.21 | |
| ZUIGER AN613 | ||||
| 076 | HY00001075 | 14.30 | 17.30 | |
| SLAGPENGELEIDER AN613 | ||||
| 077 | HY00001076 | 100.10 | 121.12 | |
| O-RING 41MM AN454 | ||||
| 078 | HY00000820 | 1.00 | 1.21 | |
| O-RING 4MM AN454 | ||||
| 079 | HY00000819 | 1.00 | 1.21 | |
| INBUSSCHROEF M6X20MM AN613 | ||||
| 080 | HY00001044 | 1.00 | 1.21 | |
| PIN 4 AN613 | ||||
| 081 | HY00001077 | 1.00 | 1.21 | |
| SCHAKELKNOP AN613 | ||||
| 082 | HY00001078 | 9.60 | 11.62 | |
| DEUR AN613 | ||||
| 083 | HY00001079 | 23.10 | 27.95 | |
| URETHAANRING 3MM AN454 | ||||
| 084 | HY00000206 | 1.20 | 1.45 | |
| PIN 4,5MM AN613 | ||||
| 085 | HY00001080 | 1.20 | 1.45 | |
| NAGELHOUDER AN613 | ||||
| 086 | HY00001081 | 9.60 | 11.62 | |
| DRUKVEER 4MM AF353 | ||||
| 087 | HY00000548 | 1.00 | 1.21 | |
| CONTROLEKLEM AN613 | ||||
| 088 | HY00001082 | 1.20 | 1.45 | |
| DRUKVEER 4MM AF353 | ||||
| 089 | HY00000548 | 1.00 | 1.21 | |
| URETHAANRING 3MM AN454 | ||||
| 090 | HY00000206 | 1.20 | 1.45 | |
| DRUKVEER 5 AN613 | ||||
| 091 | HY00001083 | 1.00 | 1.21 | |
| SLUITRING 3MM AN613 | ||||
| 092 | HY00001084 | 1.00 | 1.21 | |
| VEERRING 3 AN613 | ||||
| 093 | HY00001042 | 1.00 | 1.21 | |
| INBUSSCHROEF M3X8MM AN613 | ||||
| 094 | HY00001043 | 1.00 | 1.21 | |
| INLAATAFDEKKAP ASSY AN613 B | ||||
| 095 | HY00001097 | 9.60 | 11.62 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 096 | HY00000573 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 097 | HY00000599 | |||
| O-RING 5MM AF353 | ||||
| 098 | HY00000397 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 099 | HY00000513 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 100 | HY00001085 | |||
| PAKKINGRING AN613 | ||||
| 101 | HY00000580 | 1.00 | 1.21 | |
| PEN 2 AF505N | ||||
| 102 | HY00000046 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 103 | HY00000589 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 104 | HY00000399 | |||
| O-RING 3 AF505N | ||||
| 105 | HY00000037 | 1.00 | 1.21 | |
| SPANSTIFT 2.5-18 AF505N | ||||
| 106 | HY00000054 | 1.00 | 1.21 | |
| INBUSBOUT M5X12MM AN454 | ||||
| 107 | HY00000155 | 1.20 | 1.45 | |
| VEERRING 5MM AN454 | ||||
| 108 | HY00000162 | 1.00 | 1.21 | |
| DRAAGHAAK TACKER | ||||
| 109 | HY00000803 | 1.00 | 1.21 | |
| LUCHTNIPPEL ORION R1/4" | ||||
| 110 | HY00000081 | 1.00 | 1.21 | |
| INBUSSCHROEF M4X25MM AN613 | ||||
| 111 | HY00001050 | 1.00 | 1.21 | |
| REVET | ||||
| 112 | HY00000070 | 1.00 | 1.21 | |
| INBUSBOUT M6X25MM AN454 | ||||
| 113 | HY00000157 | 1.20 | 1.45 | |
| SLUITRING 6MM AN924 | ||||
| 114 | HY00000901 | 1.20 | 1.45 | |
| BORGMOER M6 AN924 | ||||
| 115 | HY00000858 | 1.00 | 1.21 | |
| URETHAANRING 3MM AN454 | ||||
| 116 | HY00000206 | 1.20 | 1.45 | |
| MAGAZIJNKAP AN613 | ||||
| 117 | HY00001052 | 19.80 | 23.96 | |
| KAPHOUDER AN454 | ||||
| 118 | HY00000198 | 1.20 | 1.45 | |
| WISSELPLAAT AN613 | ||||
| 119 | HY00001053 | 6.00 | 7.26 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 120 | HY00001054 | |||
| RUBBERPLAAT 6-19MM AN454 | ||||
| 121 | HY00000208 | 1.00 | 1.21 | |
| DRUKVEER 5 AN613 | ||||
| 122 | HY00001056 | 1.00 | 1.21 | |
| KAPHOUDER AN454 | ||||
| 123 | HY00000198 | 1.20 | 1.45 | |
| MAGAZIJN ASSY AN613 B | ||||
| 124 | HY00001051 | 30.80 | 37.27 | |
| PIN 4 AN613 | ||||
| 125 | HY00001055 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 126 | HY00001072 | |||
| INBUSSCHROEF M6X18MM | ||||
| 127 | HY00001063 | 1.00 | 1.21 | |
| SLUITRING 6MM AN613 | ||||
| 128 | HY00001062 | 1.00 | 1.21 | |
| PIN 5 AN613 | ||||
| 129 | HY00001045 | 1.00 | 1.21 | |
| AFDEKKAP AN613 | ||||
| 130 | HY00001046 | 3.60 | 4.36 | |
| BUS 6 AN613 | ||||
| 132 | HY00001061 | 2.40 | 2.90 | |
| CONTACTARMKAP AN613 | ||||
| 133 | HY00001060 | 4.80 | 5.81 | |
